The New Era of All-Solid Capacitor Motherboards Gigabyte first completes total product line up of All-Solid Capacitor motherboards based on 945 through 965 chipsets. u. Gigabyte values the quality more than the cost, bringing costly solid capacitors to provide high quality Ultra Durable Motherboards. 1 GIGABYTE UNITED INC. § Date:

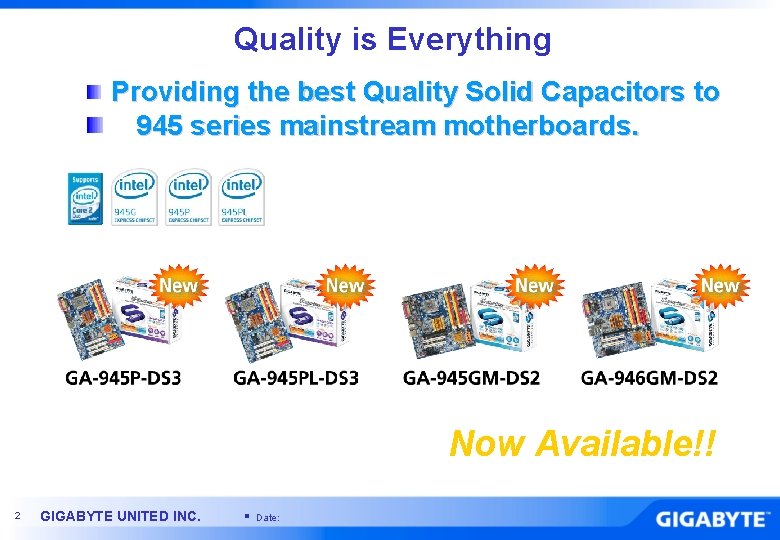

Quality is Everything Providing the best Quality Solid Capacitors to 945 series mainstream motherboards. Now Available!! 2 GIGABYTE UNITED INC. § Date:

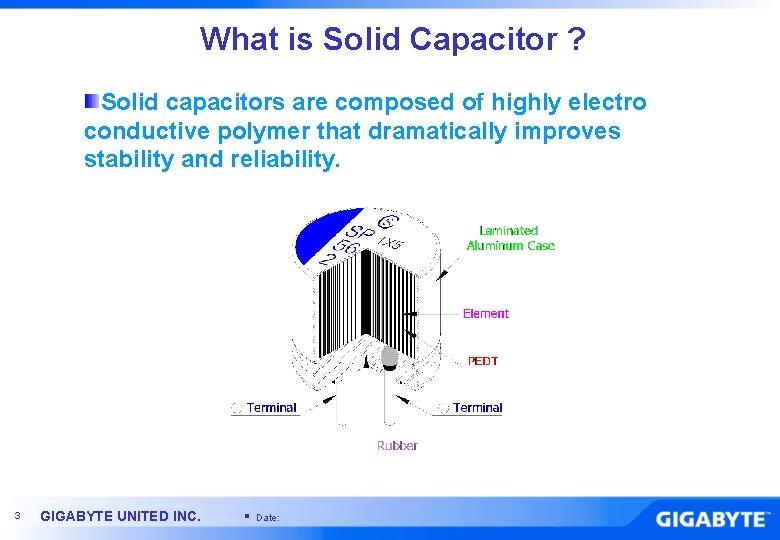

What is Solid Capacitor ? Solid capacitors are composed of highly electro conductive polymer that dramatically improves stability and reliability. 3 GIGABYTE UNITED INC. § Date:

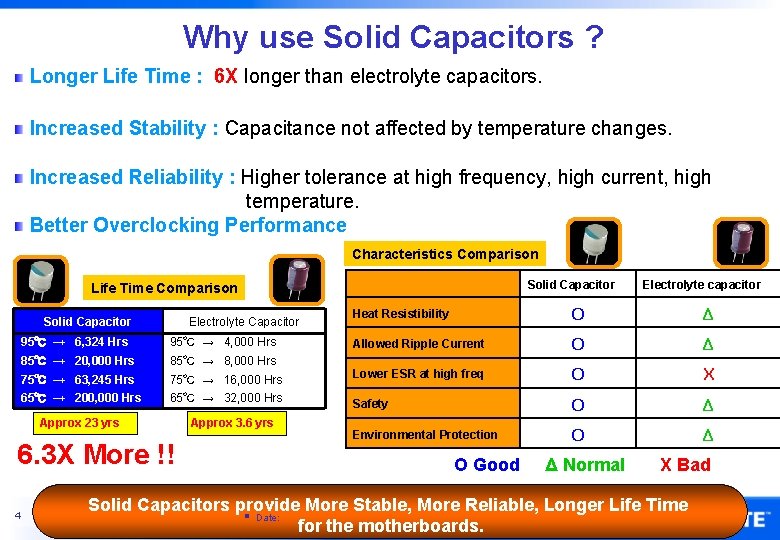

Why use Solid Capacitors ? Longer Life Time : 6 X longer than electrolyte capacitors. Increased Stability : Capacitance not affected by temperature changes. Increased Reliability : Higher tolerance at high frequency, high current, high temperature. Better Overclocking Performance Characteristics Comparison Solid Capacitor Life Time Comparison Solid Capacitor Electrolyte Capacitor Heat Resistibility Ο Δ Allowed Ripple Current Ο Δ 95℃ → 6, 324 Hrs 95℃ → 4, 000 Hrs 85℃ → 20, 000 Hrs 85℃ → 8, 000 Hrs 75℃ → 63, 245 Hrs 75℃ → 16, 000 Hrs Lower ESR at high freq Ο Χ 65℃ → 200, 000 Hrs 65℃ → 32, 000 Hrs Safety Ο Δ Environmental Protection Ο Δ Approx 23 yrs Approx 3. 6 yrs 6. 3 X More !! 4 Electrolyte capacitor Ο Good Δ Normal Χ Bad Solid Capacitors provide More Stable, More Reliable, Longer Life Time § Date: for the motherboards. GIGABYTE UNITED INC.

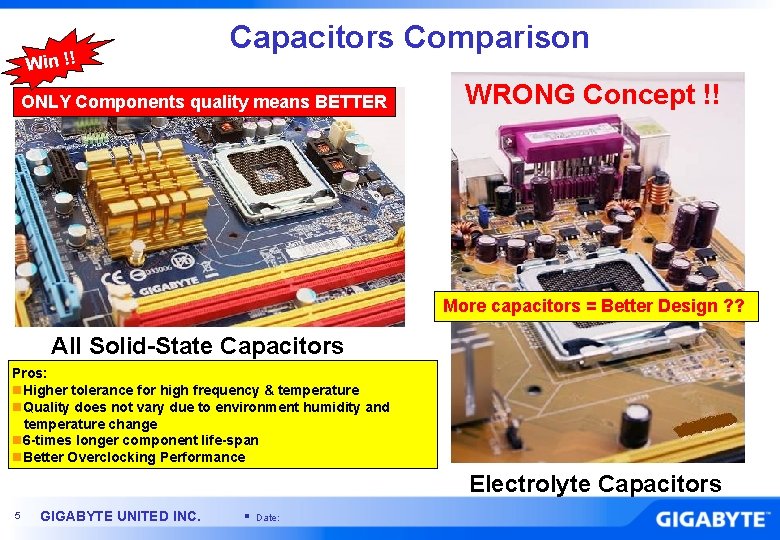

Win !! Capacitors Comparison ONLY Components quality means BETTER WRONG Concept !! More capacitors = Better Design ? ? All Solid-State Capacitors Pros: n. Higher tolerance for high frequency & temperature n. Quality does not vary due to environment humidity and temperature change n 6 -times longer component life-span n. Better Overclocking Performance Electrolyte Capacitors 5 GIGABYTE UNITED INC. § Date:

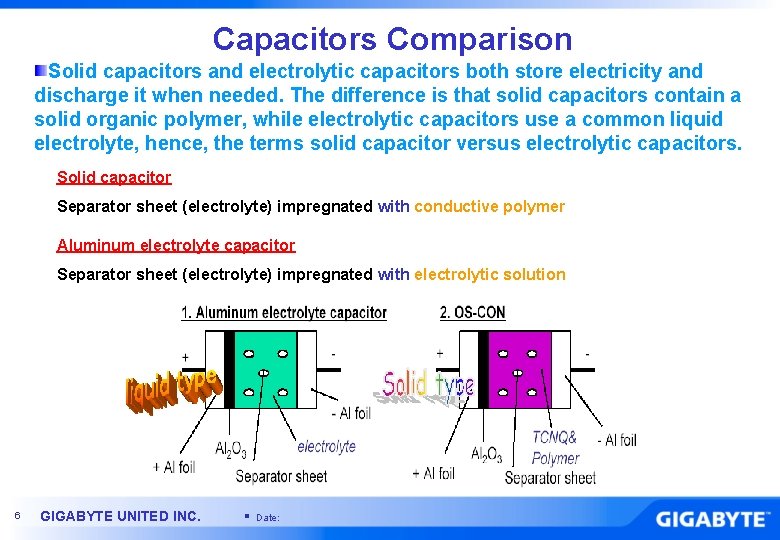

Capacitors Comparison Solid capacitors and electrolytic capacitors both store electricity and discharge it when needed. The difference is that solid capacitors contain a solid organic polymer, while electrolytic capacitors use a common liquid electrolyte, hence, the terms solid capacitor versus electrolytic capacitors. Solid capacitor Separator sheet (electrolyte) impregnated with conductive polymer Aluminum electrolyte capacitor Separator sheet (electrolyte) impregnated with electrolytic solution 6 GIGABYTE UNITED INC. § Date:

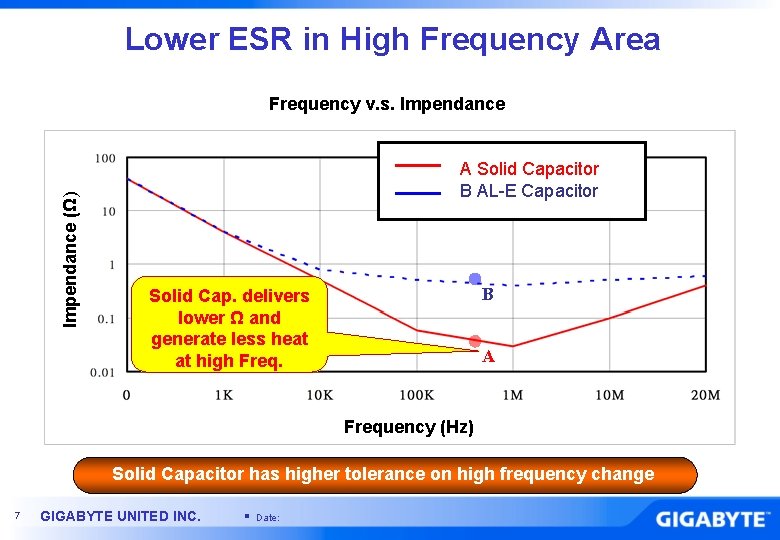

Lower ESR in High Frequency Area Impendance (Ω) Frequency v. s. Impendance A Solid Capacitor B AL-E Capacitor B Solid Cap. delivers lower Ω and generate less heat at high Freq. A Frequency (Hz) Solid Capacitor has higher tolerance on high frequency change 7 GIGABYTE UNITED INC. § Date:
Capacitance Change( %) Temperature Characteristics Solid CAP delivers more stable capacitance, and is not affected by temperature change Solid Capacitor has higher tolerance on temperature change 8 GIGABYTE UNITED INC. § Date:

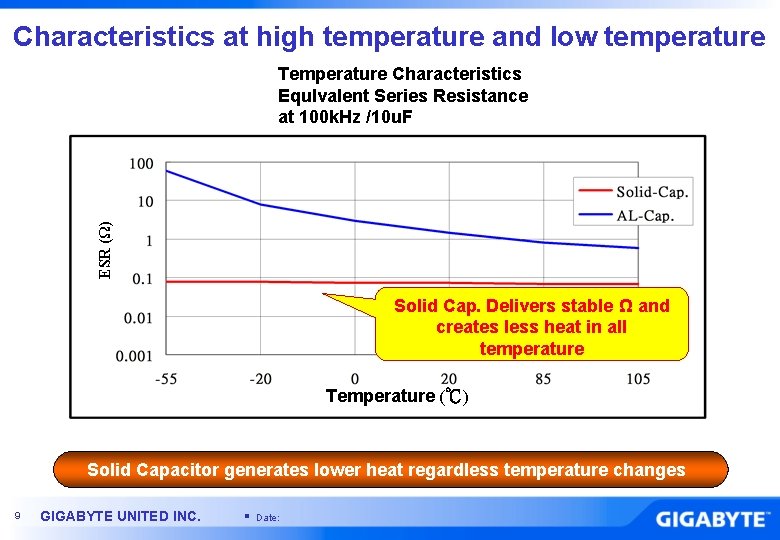

Characteristics at high temperature and low temperature ESR (Ω) Temperature Characteristics Equlvalent Series Resistance at 100 k. Hz /10 u. F Solid Cap. Delivers stable Ω and creates less heat in all temperature Temperature (℃) Solid Capacitor generates lower heat regardless temperature changes 9 GIGABYTE UNITED INC. § Date:

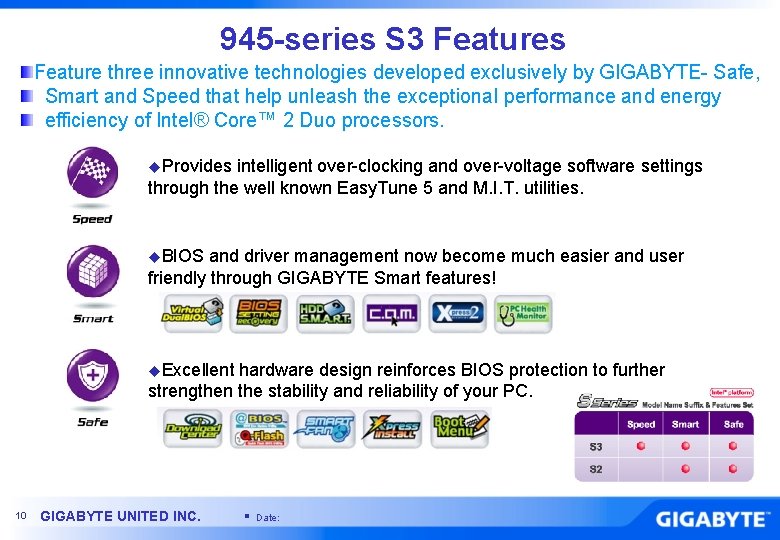

945 -series S 3 Features Feature three innovative technologies developed exclusively by GIGABYTE- Safe, Smart and Speed that help unleash the exceptional performance and energy efficiency of Intel® Core™ 2 Duo processors. u. Provides intelligent over-clocking and over-voltage software settings through the well known Easy. Tune 5 and M. I. T. utilities. u. BIOS and driver management now become much easier and user friendly through GIGABYTE Smart features! u. Excellent hardware design reinforces BIOS protection to further strengthen the stability and reliability of your PC. 10 GIGABYTE UNITED INC. § Date:

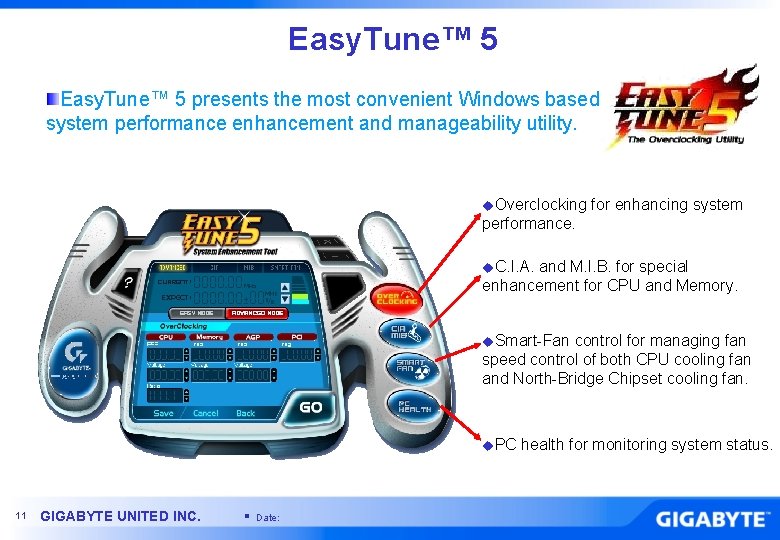

Easy. Tune™ 5 presents the most convenient Windows based system performance enhancement and manageability utility. u. Overclocking for enhancing system performance. u. C. I. A. and M. I. B. for special enhancement for CPU and Memory. u. Smart-Fan control for managing fan speed control of both CPU cooling fan and North-Bridge Chipset cooling fan. u. PC 11 GIGABYTE UNITED INC. § Date: health for monitoring system status.
Vista™ Premium Certificated GA-945 P-DS 3 (rev. 2. 0) GA-945 PL-DS 3 (rev. 2. 0) GA-945 GM-DS 2 (rev. 2. 0) GA-946 GM-DS 2 (rev. 2. 0) GIGABYTE has worked closely with Microsoft to ensure our hardware delivers the most reliable, performance-driven solutions to make the most of your Windows Vista experience. 12 GIGABYTE UNITED INC. § Date:
