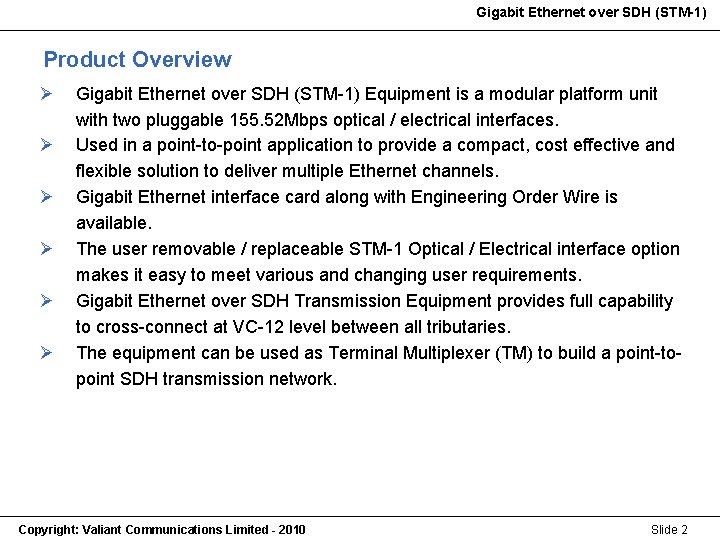

Gigabit Ethernet over SDH (STM-1) Gigabit Ethernet (STM-1) Product Overview Ø Ø Ø Gigabit Ethernet over SDH (STM-1) Equipment is a modular platform unit with two pluggable 155. 52 Mbps optical / electrical interfaces. Used in a point-to-point application to provide a compact, cost effective and flexible solution to deliver multiple Ethernet channels. Gigabit Ethernet interface card along with Engineering Order Wire is available. The user removable / replaceable STM-1 Optical / Electrical interface option makes it easy to meet various and changing user requirements. Gigabit Ethernet over SDH Transmission Equipment provides full capability to cross-connect at VC-12 level between all tributaries. The equipment can be used as Terminal Multiplexer (TM) to build a point-topoint SDH transmission network. Copyright: Valiant Communications Limited - 2010 Slide 2

Gigabit Ethernet over SDH (STM-1) Gigabit Ethernet (STM-1) Features and Highlights Ø 1 U height, 19 -Inch standard rack-mountable chassis Ø Service interface ü 2 x STM-1 optical interfaces, MSA compliant SFP (pluggable) optical module (LC connector) based design, which supports onsite optical port replacement ü 2 x STM-1 electrical interfaces, SFP electrical module (Mini BNC connector) Optional ü 1 x Gig. E (Gigabit) Ethernet interface Options • 1 Optical Gig. E (Gigabit) Ethernet interface • 2 Electrical 1000 Base. T (Gigabit) Ethernet Interface Ø Provides complete diagnostics facilities to the user for monitoring optical ports and provide reading of optical transmit power, optical receive power, laser temperature, bias current in voltage alarms etc. Ø Performance Monitoring and Alarms - Error counts for B 1, B 2, B 3 Copyright: Valiant Communications Limited - 2010 Slide 3

Gigabit Ethernet over SDH (STM-1) Gigabit Ethernet (STM-1) Features and Highlights Ø Performance Analysis - Error Seconds (ES), Several Error Seconds (SES), Unavailable seconds (UAS), Higher Order Virtual Container - Remote Error Indication (HOVC-REI), Higher Order Virtual Container - Pointer Justification Event (HOVC-PJE) Ø Management and Maintenance interfaces ü 10/100 Base. T Ethernet management interface ü RS 232 serial management interface ü Remote (Telnet) management interface ü Windows XP based Graphical User Interface (GUI) ü Windows 7 based Graphical User Interface (GUI) ü SNMP V 2 Monitoring ü Engineering Order Wire (EOW) interface (RJ-11) ü NMS (Network Management System) for monitoring multiple units from a single / central location. Copyright: Valiant Communications Limited - 2010 Slide 4

Gigabit Ethernet over SDH (STM-1) Gigabit Ethernet (STM-1) Features and Highlights Ø Timing mode ü Synchronization with STM-1 line timing ü External timing source - 120 Ohms 2 MBps (External Bits Clock) - Factory Configurable ü External timing source - 120 Ohms 2 MHz (External TTL Clock) - Factory Configurable ü Internal Clock - ITU-T G. 813 internal oscillator (Stratum 3) ü The timing source can be auto-switched according to default or operator programmed settings Ø Ethernet Standards Conformity ü Generic Framing Procedure GFP-F compliant with ITU-T G. 7041 ü VCAT compliant with ITU-T G. 707 and LCAS compliant with ITU-T G. 7042 ü Ethernet flow control on WAN port and LAN port ü Large buffer size upto 410, 000 bytes ü Electrical Gigabit compliant with 802. 3 ab ü Optical Gigabit compliant with 802. 3 z Copyright: Valiant Communications Limited - 2010 Slide 5

Gigabit Ethernet over SDH (STM-1) Gigabit Ethernet (STM-1) Features and Highlights ü ü ü Maximum Frame length (MTU size): 1552 bytes Auto MID/MID-X for Ethernet Interfaces Support 802. 1 Q based VLAN tagging Support Port based VLAN tagging Performance Analysis • All Received Packets • All Transmitted Packets • Received Dropped Packets ü Ethernet bandwidth can be adjusted by the user between 2 Mbps ~126 Mbps (VC-12 mapping) ü Supports MAC Address list filtration, learning and updating function Ø Supports 1+1 Line Protection and Automatic Protection Switching (APS) with less than 50 ms recovery Ø Supports point-to-point topology Ø Supports Remote Power Down Detection and Auto Laser Shutdown Copyright: Valiant Communications Limited - 2010 Slide 6

Gigabit Ethernet over SDH (STM-1) Gigabit Ethernet (STM-1) Features and Highlights Ø Supports STM-1 loop-back for troubleshooting Ø 850 nm multi-Mode, 1310 nm Single Mode and 1550 nm Single Mode optical interface options offered Ø Ethernet mapping adopts GFP/VC-12 virtual concatenated technology; according with MSTP criterion Ø Provides Ethernet over SDH mapping through standard GFP and VC-12 virtual concatenation (VCAT) Ø Easy to operate Ø Redundant power supply (EMI/EMC Complied) card options AC+DC, DC+DC and AC+AC. ü 110 V AC - 240 V AC (50/60 Hz) power options available ü -48 V and - 24 V DC power option available Ø Power consumption less than 12 W. Copyright: Valiant Communications Limited - 2010 Slide 7

Gigabit Ethernet over SDH (STM-1) Gigabit Ethernet (STM-1) Alarm and Indicator Monitoring Ø Ø Ø Ø Power Indicator Current Status (integrity and activity) Indicator Urgent Alarm Indicator Minor Alarm Indicator Optical Signal Loss Alarm Indicator Remote Device Power-down Indicator Ethernet Card Status Indicator General Alarm Indicator for Ethernet Card (including Link-down of Ethernet Port) Auto Laser Shutdown (ALS) Indicator Engineering Order-Wire (EOW) Indicator Ethernet Link Indicator Ethernet Speed Indicator Dry contact via 9 -pin, D-type male connector Buzzer Alarm SNMP Diagnostic and Monitoring. Copyright: Valiant Communications Limited - 2010 Slide 8

Gigabit Ethernet over SDH (STM-1) Gigabit Ethernet (STM-1) Application Diagram Point to point network application LAN STM-1 Link SDH STM-1 Link LAN Gigabit Ethernet over SDH (STM-1) ROUTER Copyright: Valiant Communications Limited - 2010 Slide 9

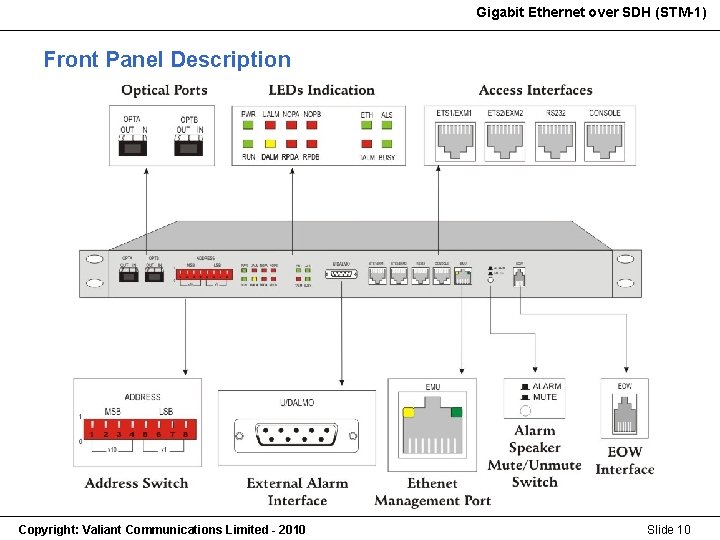

Gigabit Ethernet over SDH (STM-1) Gigabit Ethernet (STM-1) Front Panel Description Copyright: Valiant Communications Limited - 2010 Slide 10

Gigabit Ethernet over SDH (STM-1) Gigabit Ethernet (STM-1) Switches ADDRESS MUTE NE / EOW (Phone) address switch Alarm speaker mute / unmute switch LED Indicators PWR (Green) Power indicator RUN (Green) UALM (Red) DALM (Yellow) NOP A/B (Red) RPD A/B (Yellow) ETH (Green) TALM (Red) ALS (Green) BUSY (Green) Running indicator Urgent alarm indicator Minor alarm indicator Optical / electrical signal loss Alarm indicator Remote device power-down indicator Ethernet card existing status indicator General alarm indicator for Ethernet card Auto Laser Shut enable / disable status indicator EOW (Phone) status indicator Copyright: Valiant Communications Limited - 2010 Slide 11

Gigabit Ethernet over SDH (STM-1) Gigabit Ethernet (STM-1) Access Interfaces CONSOLE (RJ-45) EMU (RJ-45) Serial network management interface for CLI management Ethernet network management interface Optical Interfaces OPTA OPTB SFP based optical / electrical interface A SFP based optical / electrical interface B External Alarm (U/DALMO) Interface U/DALM (DB-9) Urgent (major) and differed (minor) external alarm interface Copyright: Valiant Communications Limited - 2010 Slide 12

Gigabit Ethernet over SDH (STM-1) Gigabit Ethernet (STM-1) User Channel (RS 232) Interface RS 2322 (RJ-45) User channel interface, RS 232 level, used to transmit the collected alarm information of the telehouse, the user control information and etc. EOW Interfaces EOW Interface (RJ-11) Engineering Order Wire (Phone) interface, Ordinary telephone set with two line mode can be used External Management / Timing Interfaces ETS 1/ETS 2 (RJ-45) Two external timing source (TTL or Bits) interfaces EXM 1/EXM 2 (RJ-45) Two external management interfaces Copyright: Valiant Communications Limited - 2010 Slide 13

Gigabit Ethernet over SDH (STM-1) Gigabit Ethernet (STM-1) Rear Panel Description Copyright: Valiant Communications Limited - 2010 Slide 14

Gigabit Ethernet over SDH (STM-1) Gigabit Ethernet (STM-1) AC and DC Power Supply Power Slot Power Switch Two power card slots, one for 110 V AC - 240 V AC (50/60 Hz), the other is -48 V DC. Two different cards (AC+DC) or two same cards (AC+AC, DC+DC) can be inserted into the device simultaneously. ON / OFF switch, '1': Power ON, '0': Power OFF. Ethernet Options SOCKET 3 Gigabit Ethernet Card, Option 1 – Electrical 1000 Base. T (Gigabit) Ethernet Interface (2 x RJ-45) – Standard configuration Option 2 – Optical Gig. E (Gigabit) Ethernet interface (1 SFP based optical Gigabit Ethernet). Copyright: Valiant Communications Limited - 2010 Slide 15

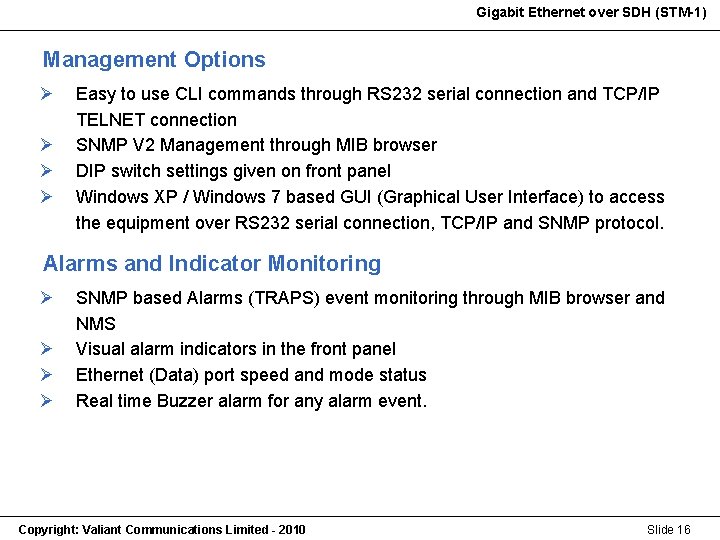

Gigabit Ethernet over SDH (STM-1) Gigabit Ethernet (STM-1) Management Options Ø Ø Easy to use CLI commands through RS 232 serial connection and TCP/IP TELNET connection SNMP V 2 Management through MIB browser DIP switch settings given on front panel Windows XP / Windows 7 based GUI (Graphical User Interface) to access the equipment over RS 232 serial connection, TCP/IP and SNMP protocol. Alarms and Indicator Monitoring Ø Ø SNMP based Alarms (TRAPS) event monitoring through MIB browser and NMS Visual alarm indicators in the front panel Ethernet (Data) port speed and mode status Real time Buzzer alarm for any alarm event. Copyright: Valiant Communications Limited - 2010 Slide 16

Gigabit Ethernet over SDH (STM-1) Gigabit Ethernet (STM-1) NMS (Networks Management System) built in GUI Ø Monitoring and Managing multiple systems from a central location over RS 232 serial connection (Local), TCP/IP TELNET and SNMP Protocol (LAN or Remotely) ü Monitoring single system ü Monitoring multiple systems • NMS (Network Management System) provides the facility to monitor multiple systems from a central location and provide alert (SNMP based) if any alarm event occurs on any Network Element (NE). Copyright: Valiant Communications Limited - 2010 Slide 17
