Gibbs sampling The Motif Finding Problem Given a

Gibbs sampling

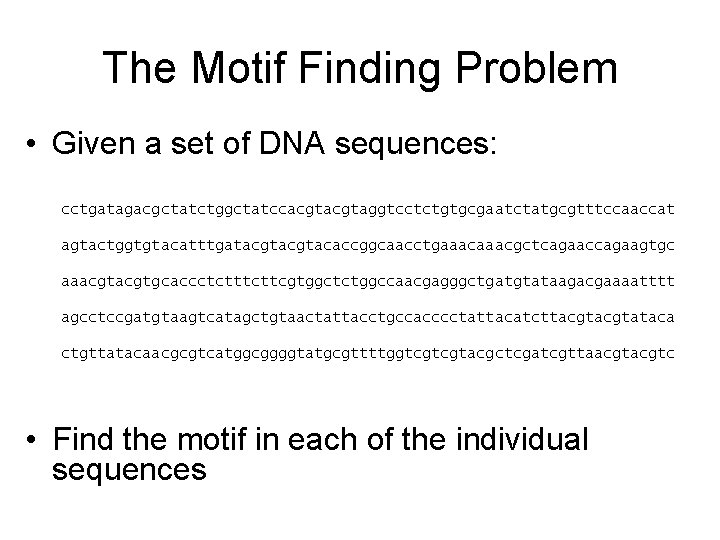

The Motif Finding Problem • Given a set of DNA sequences: cctgatagacgctatctggctatccacgtaggtcctctgtgcgaatctatgcgtttccaaccat agtactggtgtacatttgatacgtacaccggcaacctgaaacgctcagaaccagaagtgc aaacgtgcaccctcttcgtggctctggccaacgagggctgatgtataagacgaaaatttt agcctccgatgtaagtcatagctgtaactattacctgccacccctattacatcttacgtataca ctgttatacaacgcgtcatggcggggtatgcgttttggtcgtcgtacgctcgatcgttaacgtc • Find the motif in each of the individual sequences

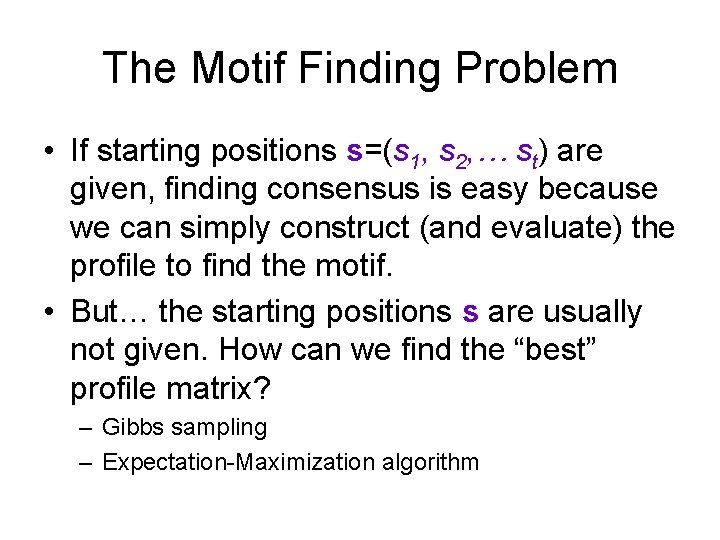

The Motif Finding Problem • If starting positions s=(s 1, s 2, … st) are given, finding consensus is easy because we can simply construct (and evaluate) the profile to find the motif. • But… the starting positions s are usually not given. How can we find the “best” profile matrix? – Gibbs sampling – Expectation-Maximization algorithm

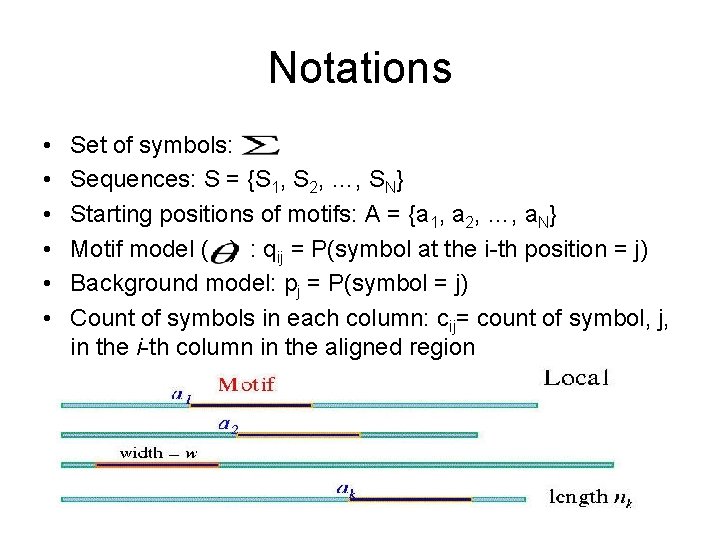

Notations • • • Set of symbols: Sequences: S = {S 1, S 2, …, SN} Starting positions of motifs: A = {a 1, a 2, …, a. N} Motif model ( ) : qij = P(symbol at the i-th position = j) Background model: pj = P(symbol = j) Count of symbols in each column: cij= count of symbol, j, in the i-th column in the aligned region

Motif Finding Problem • Problem: find starting positions and model parameters simultaneously to maximize the posterior probability: • This is equivalent to maximizing the likelihood by Bayes’ Theorem, assuming uniform prior distribution:

Equivalent Scoring Function • Maximize the log-odds ratio:

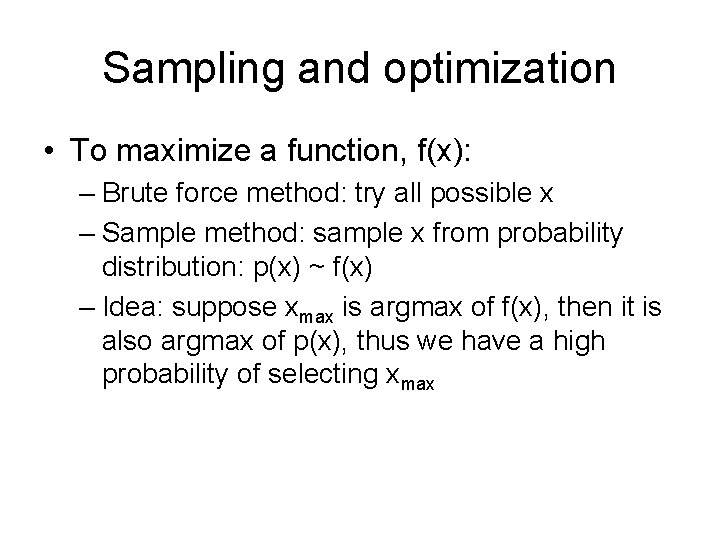

Sampling and optimization • To maximize a function, f(x): – Brute force method: try all possible x – Sample method: sample x from probability distribution: p(x) ~ f(x) – Idea: suppose xmax is argmax of f(x), then it is also argmax of p(x), thus we have a high probability of selecting xmax

Gibbs Sampling • Idea: a joint distribution may be hard to sample from, but it may be easy to sample from the conditional distributions where all variables are fixed except one • To sample from p(x 1, x 2, …xn), let each state of the Markov chain represent (x 1, x 2, …xn), the probability of moving to a state (x 1, x 2, …xn) is: p(xi |x 1, …xi-1, xi+1, …xn). It is also called Markov Chain Monte Carlo (MCMC) method.

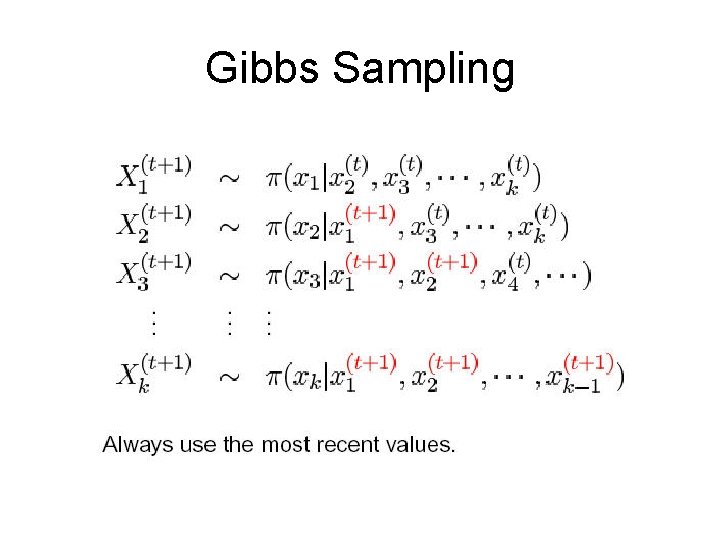

Gibbs Sampling

Gibbs Sampling in Motif Finding Randomly initialize A 0; Repeat: (1) randomly choose a sequence z from S; A* = At az; compute θt = estimator of θ given S and A*; (2) sample az according to P(az = x), which is proportional to Qx/Px; update At+1 = A* union x; Select At that maximizes F; Qx: the probability of generating x according to θt; Px: the probability of generating x according to the background model

Estimator of θ • Given an alignment A, i. e. the starting positions of motifs, θ can be estimated by its MLE with smoothing (e. g. Dirichlet prior with parameter bj):

The Motif Finding Problem • Given a set of DNA sequences: cctgatagacgctatctggctatccacgtaggtcctctgtgcgaatctatgcgtttccaaccat agtactggtgtacatttgatacgtacaccggcaacctgaaacgctcagaaccagaagtgc aaacgtgcaccctcttcgtggctctggccaacgagggctgatgtataagacgaaaatttt agcctccgatgtaagtcatagctgtaactattacctgccacccctattacatcttacgtataca ctgttatacaacgcgtcatggcggggtatgcgttttggtcgtcgtacgctcgatcgttaacgtc • Find the motif in each of the individual sequences

Gene Regulation TF Gene 1 CACGTGT TF Gene 2 CACGTGA TF Gene 3 CAAGTGA TF CAGGTGA Gene 4 Transcription factor binding site, or motif

Evolutionary Conservation CACGTGACC CACGTGAAC

Overview of TGS How did the motifs evolve? How to find the ancestral motif instances? Colored lines: regulatory regions of genes Colored boxes: motif instances

How to find the ancestral motif instances? Ancestral motif profile: 1 2 3 A. 036. 892. 036 C. 892. 036. 892 G. 036 T. 036 CACGTGACC 4 5 6 7 8 9. 036. 892. 036. 75. 892. 036. 892. 036. 178 CACGTGAAC

How did the motifs evolve? Background substitution matrix A C G T 0. 8515 0. 0278 0. 0775 0. 0432 0. 0464 0. 8026 0. 0344 0. 1167 0. 0350 0. 8023 0. 0460 0. 0429 0. 0785 0. 0264 0. 8522 Motif substitution matrix A C G T 0. 9802 0. 0066 0. 0120 0. 9640 0. 0120 0. 0066 0. 9802

Evolution of motifs Distant species 250 million years

Implementation Overview of Gibbs Sampler Iteratively sample from conditional distribution when other parameters are fixed. In order to draw: draw ~

Implementation Parameters Ancestral motif weight matrix at the root Background distribution (multinomial) Probability that a gene in the i-th species will contain the motif Motif width Background substitution matrix for the i-th branch Motif substitution matrix for the i-th branch

Implementation Prior distribution Beta(1, 1) Poisson distribution

Implementation Initialization Parameters are sampled using prior distributions; Motif instances in current species are sampled from sequences directly for each current species; Motif instances in ancestral species are randomly assigned with one of its immediate child motif instances.

Implementation Motif instance updating Updating motif instances in ancestral species M 11 M 12 Updating motif instances in current species

Implementation Updating motif instance in ancestral species A C G T Ancestral Motif Weight Matrix 1 2 3 4 5 6 7 8 9. 036. 892. 036. 75. 036. 892. 036. 178 M 11 CCCGTGACC 2 th position A: 0. 932… C: 0. 067 G: 8. 4 e-6 T: 2. 5 e-4 M 12 CACGTGAAC M 11 C M 12 A

Implementation Updating motif instances for current species Updated ancestral motif instance CACTTGAAC M 11 …CACACCACGTGAGCTT. . . M 12 …CACATCACGTGAACTT…

Multiple Species? ? CAGGTGATC CACGTGAAC CACGTGATC CAGGTGATC
