GHS CLASSIFICATION ONLINE
Registration: Click on “Register”
Registration: Enter a username and password

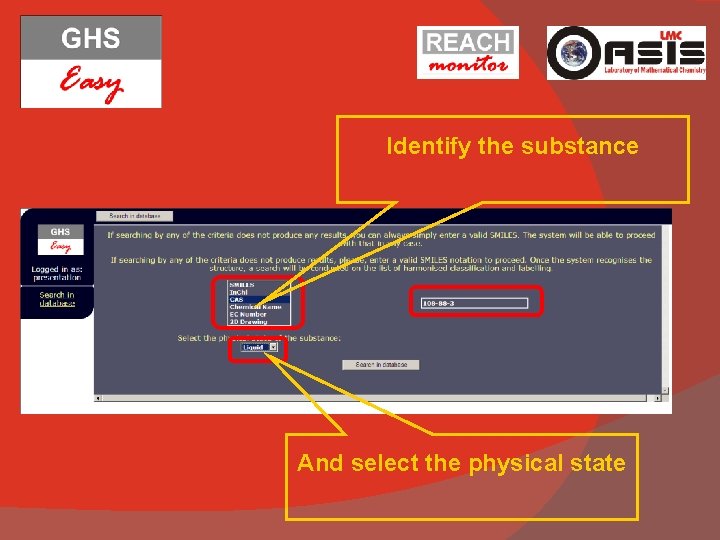

Identify the substance And select the physical state
To identify the substance use: -CAS number or - SMILES / In. Chi notation or -Chemical name or - EC number or -Draw the structure
Example: Drawing the structure

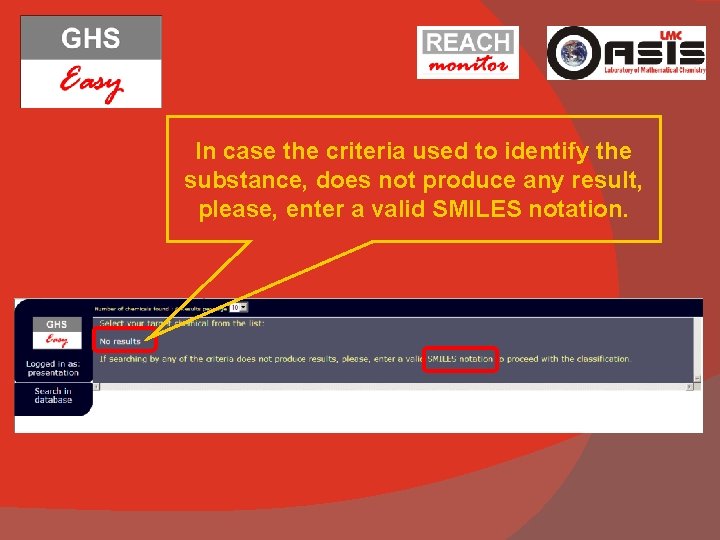

In case the criteria used to identify the substance, does not produce any result, please, enter a valid SMILES notation.
Once the substance is recognised by the system, the structure will be shown on the screen.

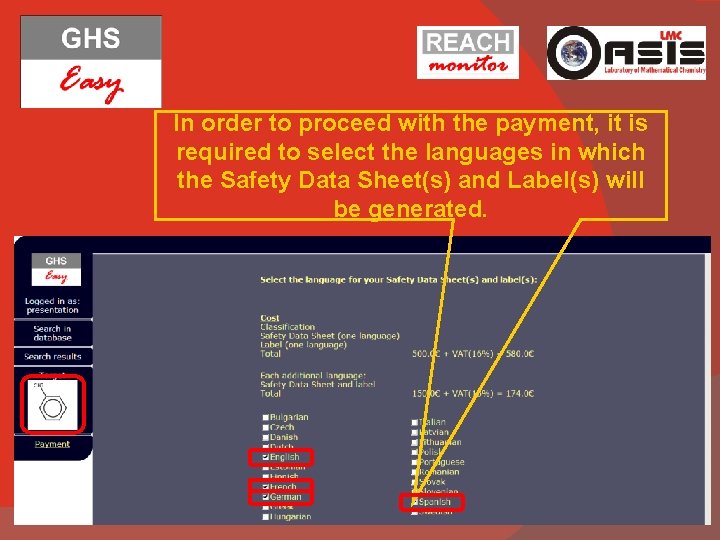

In order to proceed with the payment, it is required to select the languages in which the Safety Data Sheet(s) and Label(s) will be generated.
In order to generate the corresponding invoice, the following details are required:

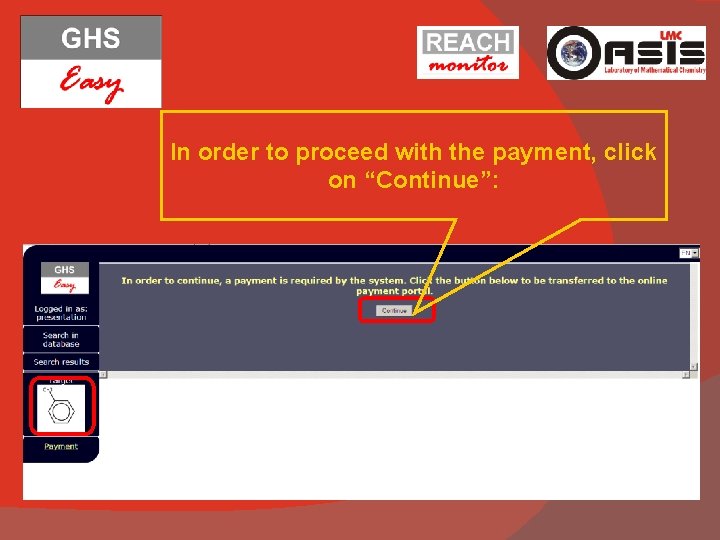

In order to proceed with the payment, click on “Continue”:
Online payment portal
Once the payment is successful, the invoice can be downloaded and the following screen on the substance will be shown:
The following information will be provided: - Experimental data from bibliography

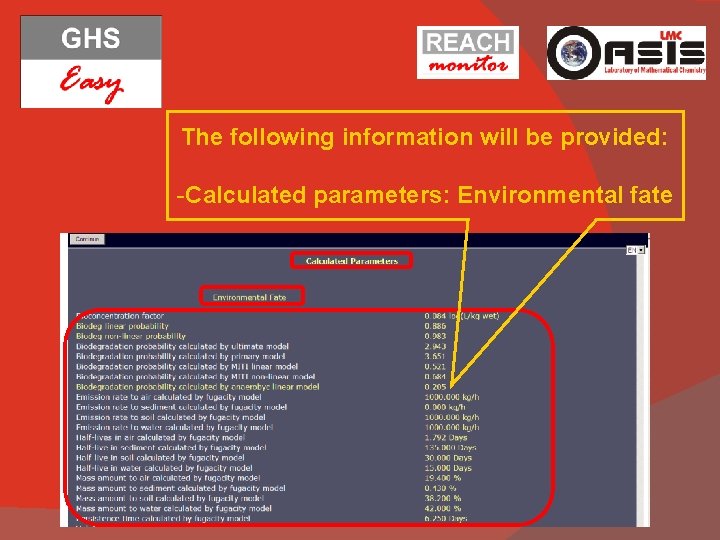

The following information will be provided: -Calculated parameters: Environmental fate

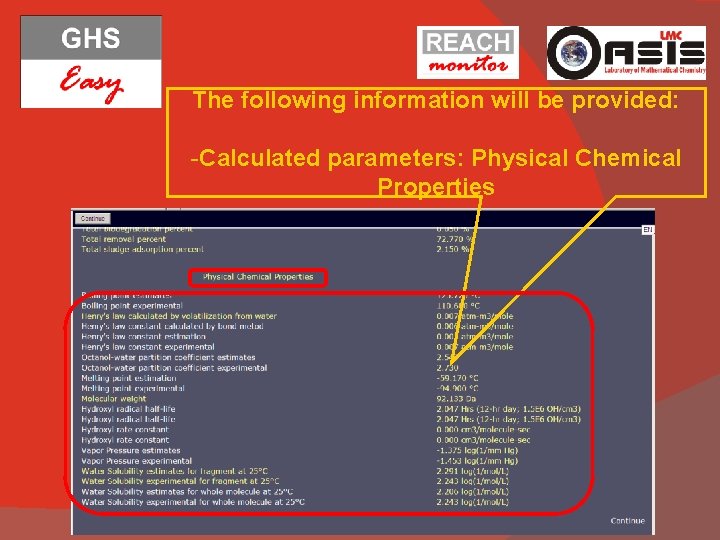

The following information will be provided: -Calculated parameters: Physical Chemical Properties
Click on “Continue”

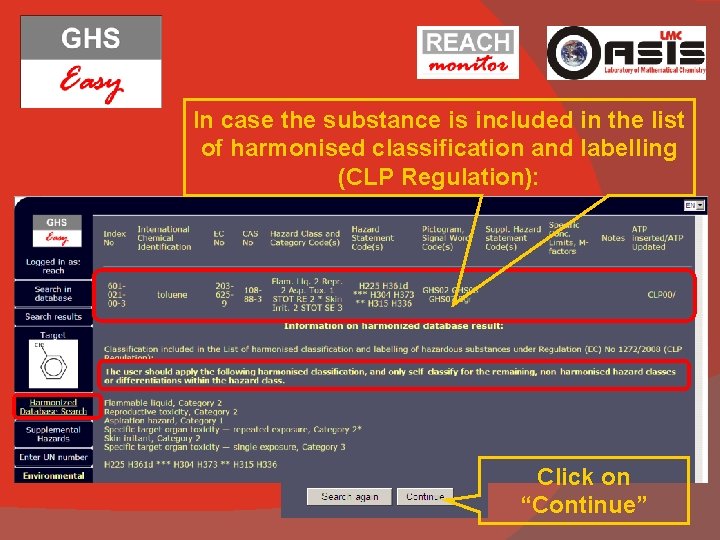

In case the substance is included in the list of harmonised classification and labelling (CLP Regulation): Click on “Continue”
Select the supplemental hazard information in case it is applicable: and Click on “Select”

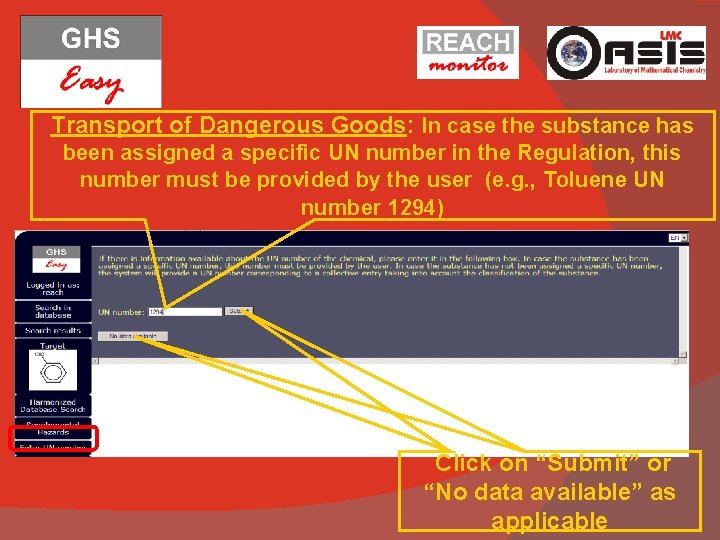

Transport of Dangerous Goods: In case the substance has been assigned a specific UN number in the Regulation, this number must be provided by the user (e. g. , Toluene UN number 1294) Click on “Submit” or “No data available” as applicable
Transport of Dangerous Goods: In case the substance has not been assigned a specific UN number in the Regulation and the user does not know the UN number for the applicable collective entry (e. g. , Flammable liquid, UN number 1993), the applicable collective entries will be provided to the user.
ENVIRONMENTAL HAZARD – AQUATIC ENVIRONMENT:
In case the user has no data, the system will provide with the worst experimental value (bibliography). If no experimental data are available, a calculated value will be used (based on international accepted tools). The following information is provided: Value / Type (experimental or calculated) / Species / Source
In case the user has own data, the values will be included in the corresponding fields.

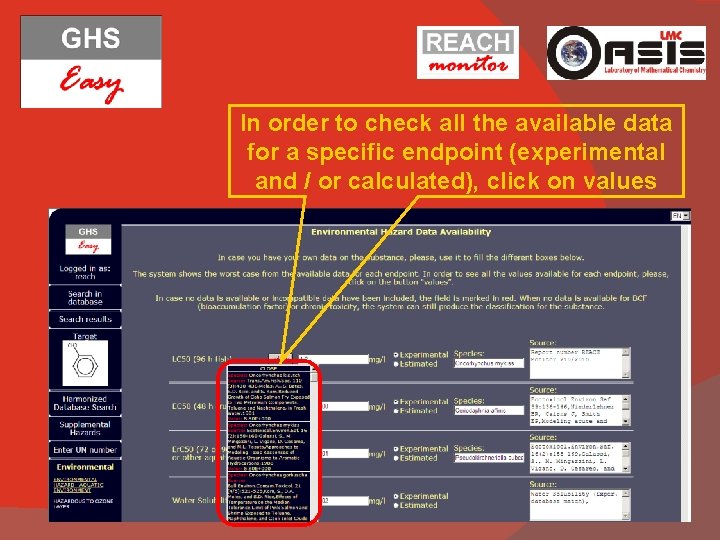

In order to check all the available data for a specific endpoint (experimental and / or calculated), click on values

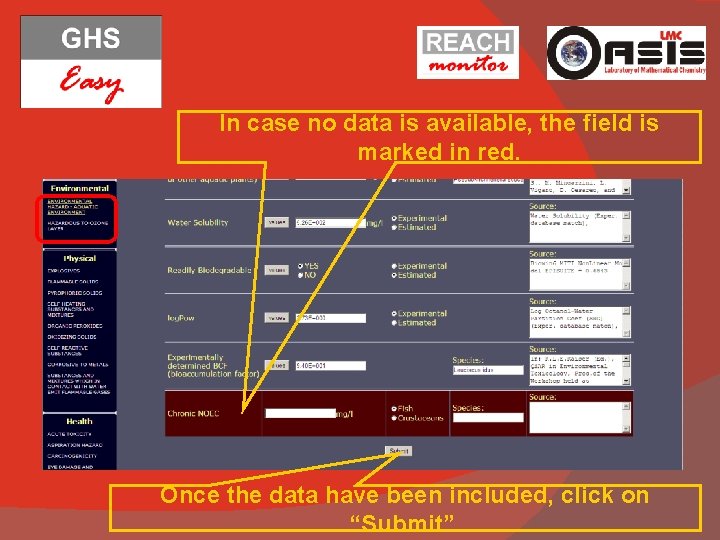

In case no data is available, the field is marked in red. Once the data have been included, click on “Submit”.

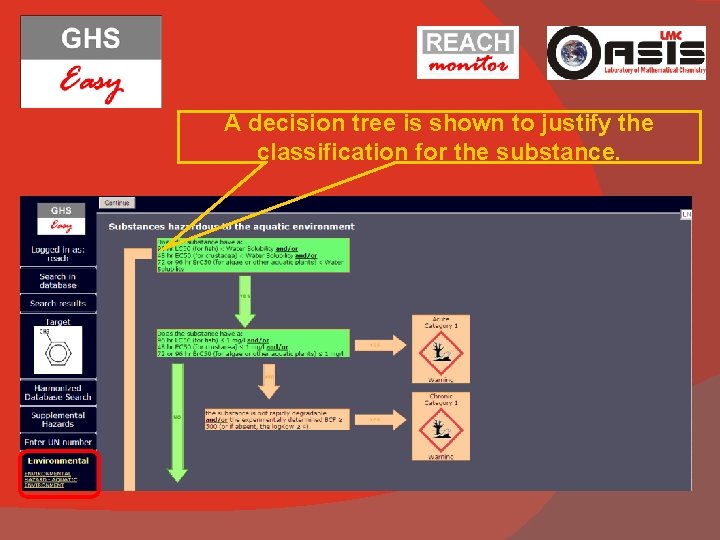

A decision tree is shown to justify the classification for the substance.
In this case, the conclusion is that the substance is not classified as hazardous to the aquatic environme Click on “Continue”.

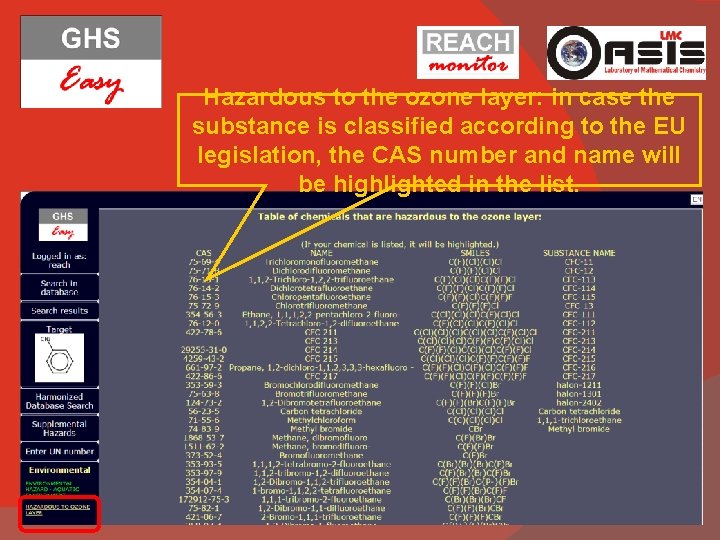

Hazardous to the ozone layer: in case the substance is classified according to the EU legislation, the CAS number and name will be highlighted in the list.

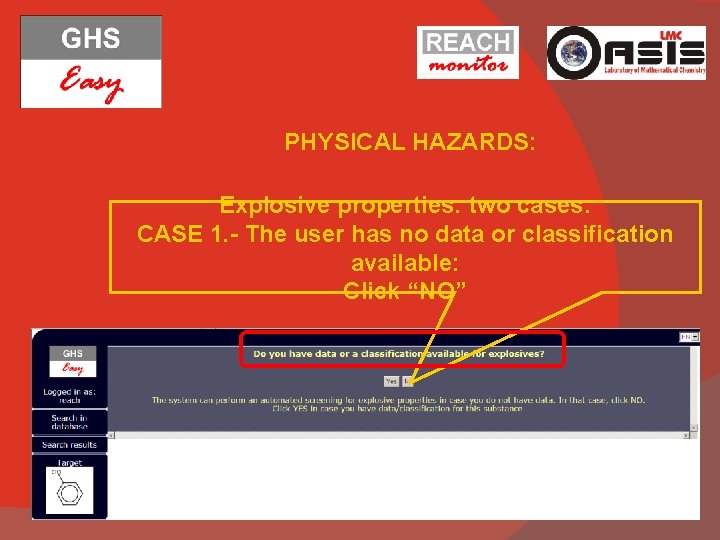

PHYSICAL HAZARDS: Explosive properties: two cases: CASE 1. - The user has no data or classification available: Click “NO”
The system will conduct a screening to find out if the substance contains chemical groups which indicate explosive properties.
Example: toluene:

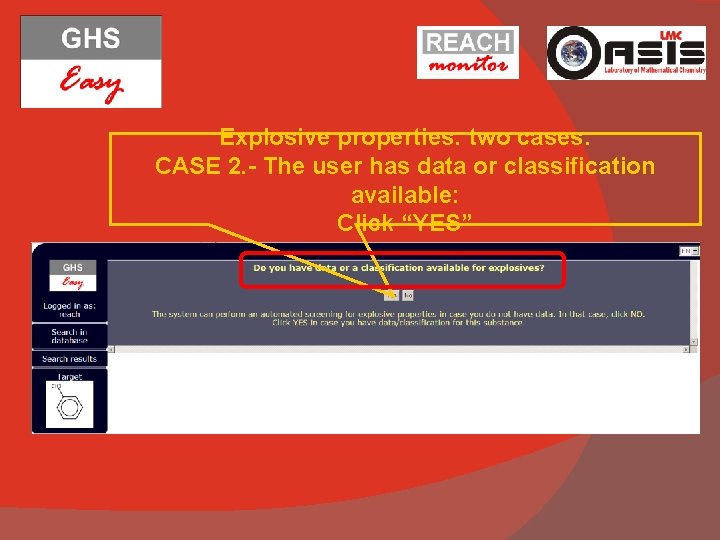

Explosive properties: two cases: CASE 2. - The user has data or classification available: Click “YES”
The system will show a screen with the different classifications and the user will select the appropriate option based on the available data.
Flammability properties: Example: since the substance is classified under the harmonised list of classification and labelling (CLP Regulation), the system will take this information into account:
Pyrophoric properties: Example: toluene: No data available. Click on “NO”

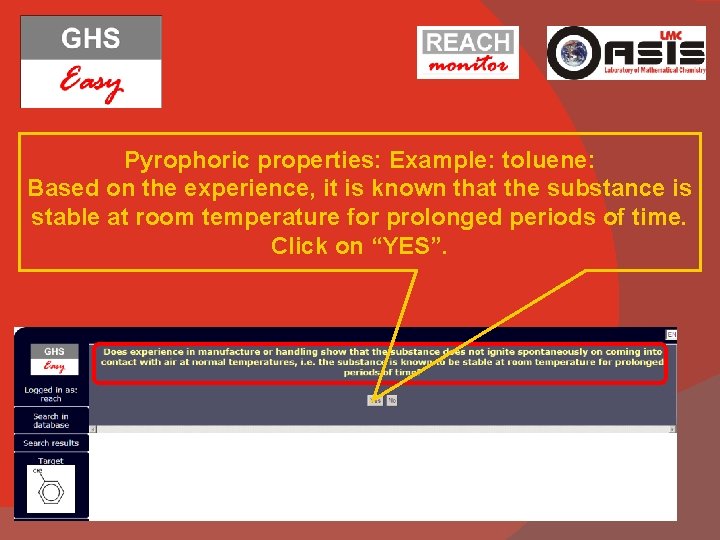

Pyrophoric properties: Example: toluene: Based on the experience, it is known that the substance is stable at room temperature for prolonged periods of time. Therefore, classification is not required. Click on “YES”.
Pyrophoric properties: Example: toluene: Based on the experience, it is known that the substance is stable at room temperature for prolonged periods of time. Click on “YES”.
Pyrophoric properties: Example: toluene: The substance is not a pyrophoric liquid. Click on “Continue”.

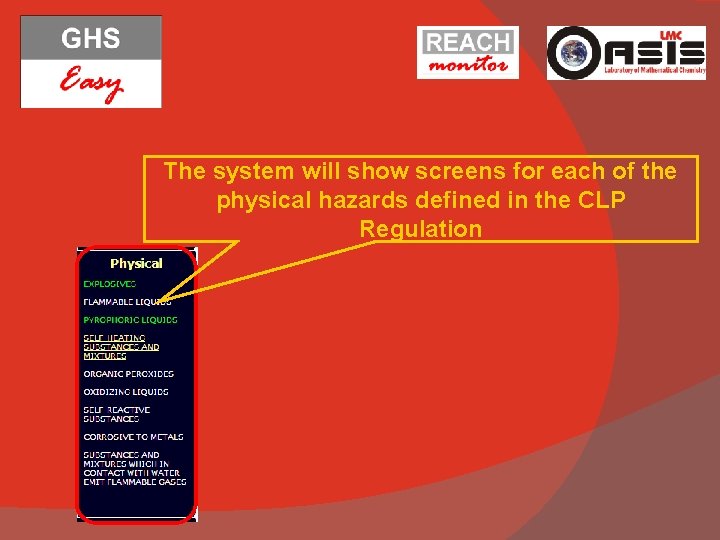

The system will show screens for each of the physical hazards defined in the CLP Regulation

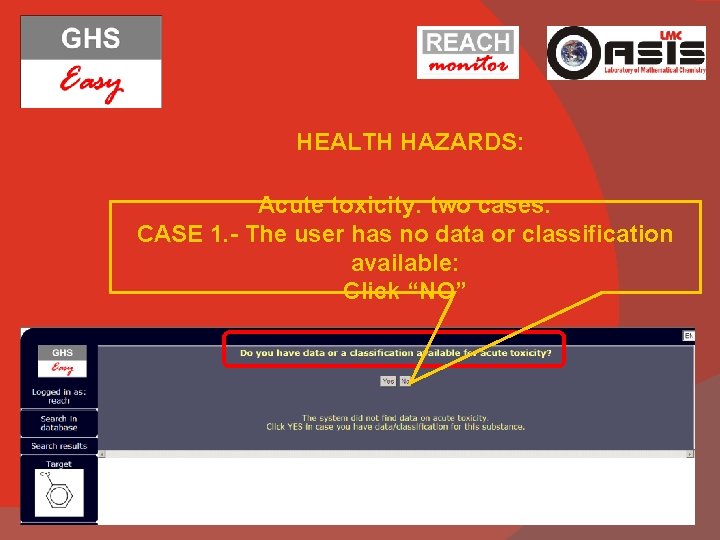

HEALTH HAZARDS: Acute toxicity: two cases: CASE 1. - The user has no data or classification available: Click “NO”
HEALTH HAZARDS: Acute toxicity: two cases: CASE 2. - The user has data available: Click “YES”
A screen is shown to include the available information on acute toxicity for the different routes (oral, dermal and / or inhalation):

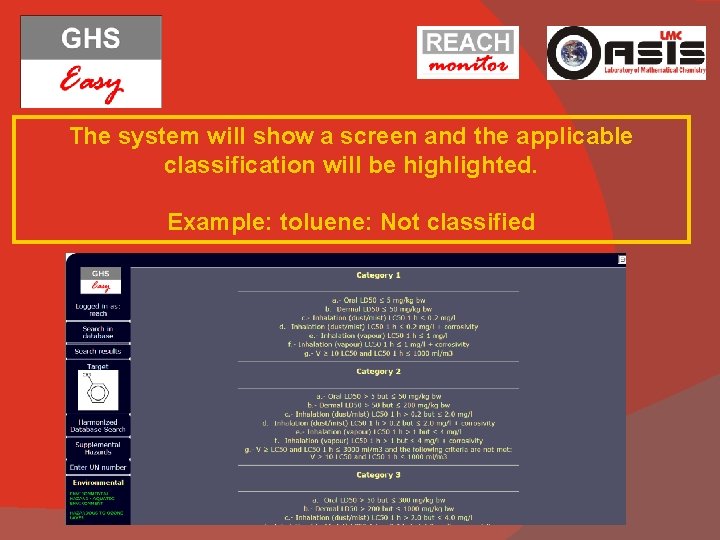

The system will show a screen and the applicable classification will be highlighted. Example: toluene: Not classified
Aspiration hazard: Example: since the substance is classified under the harmonised list of classification and labelling (CLP Regulation), the system will take this information into account:
Specific target organ toxicity – repeated exposure: Example: the substance is classified under the harmonised list of classification and labelling (CLP Regulation). A minimum classification is established in the Regulation. Two cases:
CASE 1. - The user has no data. The system will apply the minimum classification (Category 2) as established by the Regulation. Click “NO”
CASE 2. - The user has data to classify the substance in a more severe category. The system will classify according to the data provided by the user. Click “YES”

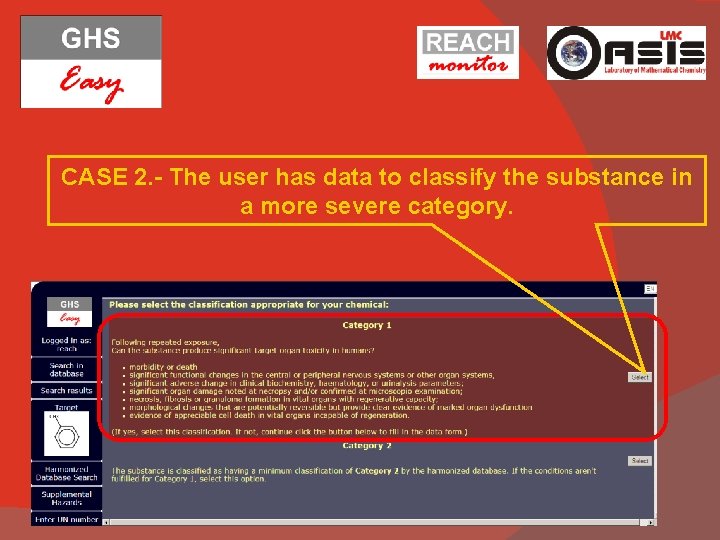

CASE 2. - The user has data to classify the substance in a more severe category.
The system will show screens for each of the health hazards defined in the CLP Regulation
CLASSIFICATION UNDER DIRECTIVE 67/548/EEC In order to include in the Safety Data Sheet the classification according to Annex I of Directive 67/548/EEC, the system will ask for the identification of the substance:
CLASSIFICATION UNDER DIRECTIVE 67/548/EEC The classification will be shown to the user:
INFORMATION TO COMPLETE THE SAFETY DATA SHEET The user will select information to complete the different sections of the Safety Data Sheet:
INFORMATION TO COMPLETE THE SAFETY DATA SHEET
CLASSIFICATION COMPLETE
The following documents are available: 1. - REPORT 2. - LABEL 3. - SAFETY DATA SHEET

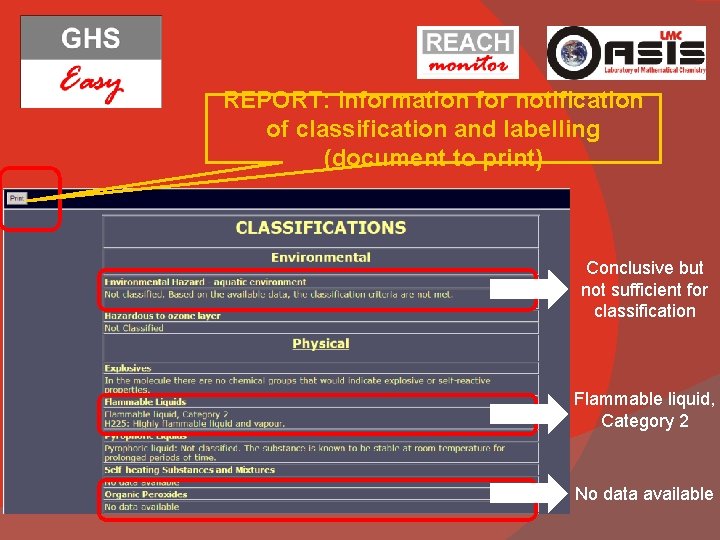

REPORT: information for notification of classification and labelling (document to print) Conclusive but not sufficient for classification Flammable liquid, Category 2 No data available
LABEL 1. - To include the required data in the box 2. - To select the language

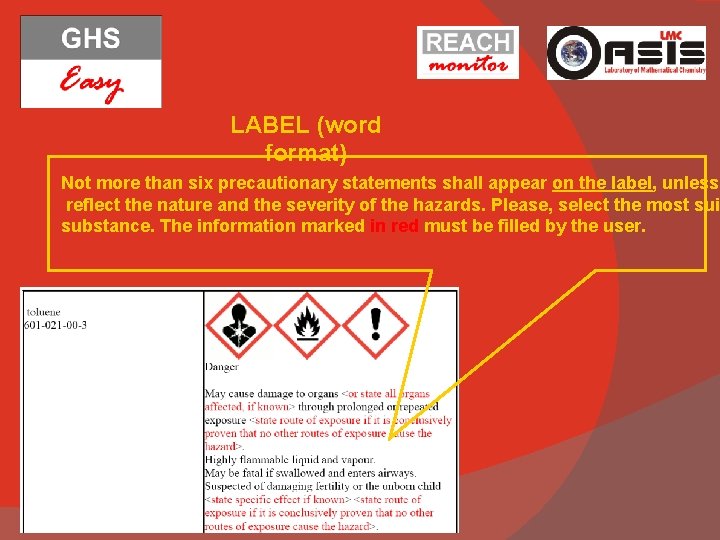

LABEL (word format) Not more than six precautionary statements shall appear on the label, unless reflect the nature and the severity of the hazards. Please, select the most suit substance. The information marked in red must be filled by the user.
SAFETY DATA SHEET SDS(s): Available in word format in the languages selected by the user before the payment:
SAFETY DATA SHEET Available in word format

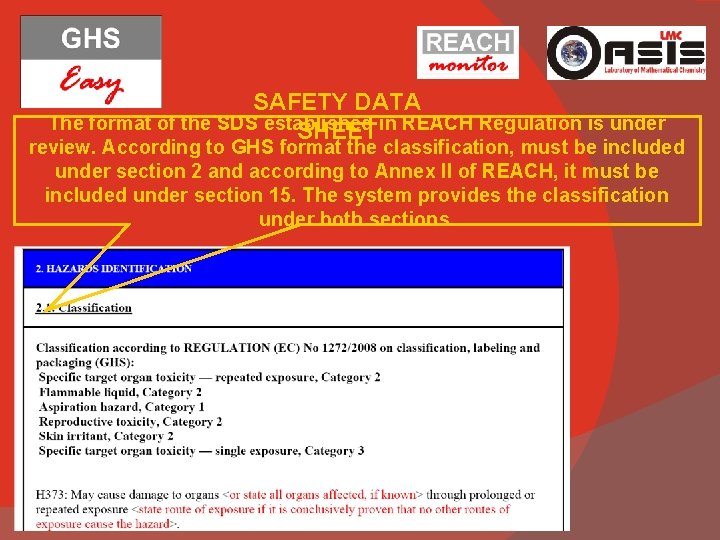

SAFETY DATA The format of the SDS established SHEET in REACH Regulation is under review. According to GHS format the classification, must be included under section 2 and according to Annex II of REACH, it must be included under section 15. The system provides the classification under both sections.
SAFETY DATA SHEET Under section 12: Experimental and / or calculated values
SAFETY DATA SHEET information: the name of the Under section 14: Transport substance is provided by the system only in English, French or Spanish
SAFETY DATA SHEET Under section 16: Bibliographic references and tools for the calculated values
USER DATABASE The system stores all the searches conducted by the user. Click on “Logged in as” to have access to the user database
USER DATABASE Click on “View previous results”.
USER DATABASE Click on “Select”.
