GHANA’S EMERGING OIL AND GAS INDUSTRY: OVERVIEW OF AVAILABLE PETROLEUM DATA IN THE GHANA

GHANA’S EMERGING OIL AND GAS INDUSTRY: OVERVIEW OF AVAILABLE PETROLEUM DATA IN THE GHANA NATIONAL PETROLEUM CORPORATION: THE RESOURCE, LICENCES, COMPANIES, SEISMICS, WELLS, ETC AND EFFORTS TO ESTABLISH A DATA BANK PRESENTED BY: FERDINAND K. ANIWA MANAGER, INFO. SYS. , DATA MGMT & COMMUNICATION

WHERE IS GHANA ?

WHERE IS GHANA ?

WHERE IS GHANA ?

WHERE IS GHANA ?

INTRODUCTION GNPC’S FUNCTIONALITY AND PERFORMANCE AS A NATIONAL OIL COMPANY GNPC since its Establishment

INTRODUCTION GNPC’S FUNCTIONALITY AND PERFORMANCE AS A NATIONAL OIL COMPANY GNPC since its Establishment in 1985 as a NOC has had the following responsibilities: Custodian of national data assets Safe and secure storage of data on behalf of the nation Deriving value from these data Encouraging new investments into Ghana by making this information available to partners and potential bidders through promotional tours and presentations

OTHERS INCLUDE: o. Management of national hydrocarbon assets: • Ensure that existing and future

OTHERS INCLUDE: o. Management of national hydrocarbon assets: • Ensure that existing and future operators provide all relevant exploration and production data • Ensure that operators are functioning efficiently and in line with national policy o. Act as operator, exploring and developing new plays. Hence GNPC’s Roles are as: Advisor To Government, Regulator and Operator

GOVERNMENTS LEGISLATIVE REGIME TOWARDS PETROLEUM RESOURCE OPTIMISATION The Petroleum Exploration and Production Law, 1984,

GOVERNMENTS LEGISLATIVE REGIME TOWARDS PETROLEUM RESOURCE OPTIMISATION The Petroleum Exploration and Production Law, 1984, of Ghana, also referred to as the PNDC Law 84, in its Article 23 (2) states that: “All data and information obtained by a contractor or subcontractor as a result of petroleum operations and all geological, technical, financial and economic reports, studies, interpretations and analysis prepared by or on behalf of a contractor or sub-contractor in connection with such petroleum operations shall be the property of the Corporation”. This mandate therefore enjoins and obligates the Ghana National Petroleum Corporation to safeguard all Exploration and Production Data and their Management. Hence the establishment of its Data Management Center.

 The Information Systems, Data Management and Communication Department (ISDM&C) is the Department responsible

The Information Systems, Data Management and Communication Department (ISDM&C) is the Department responsible for all Information and Communications Technology Deployment and Policy Implementation within the Ghana National Petroleum Corporation. The ISDM&C Department has two main sections; namely the Information and Communication Technology (ICT) Section and the Data Management Section.

 The responsibilities of the Department could be summarized as follows: To ensure the

The responsibilities of the Department could be summarized as follows: To ensure the effective transfer and use in GNPC of appropriate advanced Information Systems Technology relating to petroleum operations including exploration and production; To establish and operate an Exploration and Production Data Management Center, including the maintenance of a technical and archival library for the provision of technical and administrative documentation services; To promote and co-ordinate the utilization of the Corporation’s laboratory facilities to provide routine analysis, technical services and training as part of development activities within the technical departments in support of petroleum operations of GNPC and its partners as well as twinning institutions.

The primary mandate of the Data Management Center is to store originals and copies

The primary mandate of the Data Management Center is to store originals and copies of all exploration and engineering data. Most of the data in storage are magnetic tapes with seismic, well logs and other engineering data on them. These data forms provide the fundamental source of exploration and engineering data for all work done in the oil and gas industry. They also form the investment and capital asset base of any exploration company, and for that matter the GNPC.

 The GNPC responsibility for data organization and promotion has enabled it to embrace

The GNPC responsibility for data organization and promotion has enabled it to embrace the developments in information technology in setting up a wellorganized Data Management Center manned by expertise with immense experience. The Center comprises of a 4000 square feet data warehouse, located in Accra on the Spintex Road, about 22 km in straight line from GNPC’s Head-Offices in Tema. This provides the local storage infrastructure for GNPC. The Center has a Geophysical Data Management Unit for storage of all geophysical data tapes and a Geological Data Management Unit for the storage of all geological data, including well cores and sampling data. The Geological Unit also has a Laboratory Facility for Geochemical, Petrographic and Paleontological Data Analysis. These attributes, therefore, places GNPC in a position to share its knowledge base with its exploration partners, where asset use could be tracked and monitored to guarantee their absolute safety and sustained availability for storage under controlled climatic conditions.

The following broad objectives are being met under the GNPC in-house data storage program:

The following broad objectives are being met under the GNPC in-house data storage program: That GNPC develops the core competencies for the management of geoscientific data, including the registration and storage of these, as well as enhancing the degree of their accessibility by potential users off and online. That GNPC directly benefits from technology transfer and the associated training to its staff. That provision of more modern and localized facilities and infrastructure for the Data Center would result in immense savings on overhead expenditures on foreign data storage and management. That the Corporation’s Geoscientists would benefit directly from readily available exploration data for integrated interpretative geoscientific work. That GNPC’s competitive capabilities to attract foreign investment from the international petroleum industry will be drastically enhanced to provide a one-stop shop of data resources and data rooms. That the production and reproduction of data copies and promotional materials up to international standards will be the direct and recursive benefit to accrue from the local management of data. That GNPC would then be in a position to protect and safeguard its national heritage entrusted onto its responsibility.

 Hence the Corporation has established operational standards, procedures and guideline policies and regulations

Hence the Corporation has established operational standards, procedures and guideline policies and regulations on the strategic use, security and upgrade of the Corporations information systems, including equipment and software thereof for monitoring and reporting on compliance.

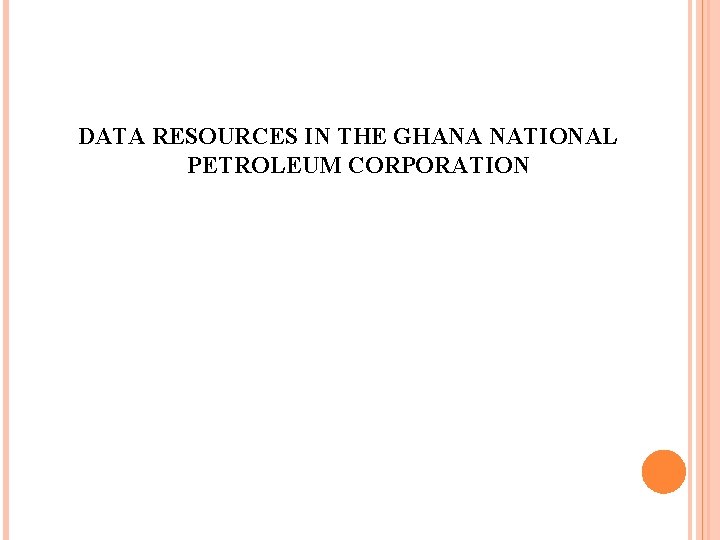

DATA RESOURCES IN THE GHANA NATIONAL PETROLEUM CORPORATION

DATA RESOURCES IN THE GHANA NATIONAL PETROLEUM CORPORATION

THE RESOURCE LOCATIONS Sedimentry Basins: Five (5) sedimentary basins have been identified in the

THE RESOURCE LOCATIONS Sedimentry Basins: Five (5) sedimentary basins have been identified in the country. These are: - The inland Voltaian Basin - Offshore Accra-Keta Basin with an onshore extension - Offshore Saltpond (Central) Basin - Offshore Cape Three Points Basin (this is sometimes considered as part of the Tano basin) - Offshore Tano Basin with an onshore extension

CONCESSIONS Currently, there are over twelve (12) offshore licences with various companies operating in

CONCESSIONS Currently, there are over twelve (12) offshore licences with various companies operating in the basins. The operating companies, areas of operation and dates of petroleum agreements are provided.

OPERATOR AREA OF OPERATION AREA OF SPECIALISATION RATIFICATION DATE EXPIRY OF CONTRACT TECHNICAL EXPERTISE

OPERATOR AREA OF OPERATION AREA OF SPECIALISATION RATIFICATION DATE EXPIRY OF CONTRACT TECHNICAL EXPERTISE ACTIVITIES & GEOGRAPHY Afren Plc Keta Basin Oil & Gas Exploration & Production August 2002, 1 st Amendment July Exploration In 2006, 2 nd Seismic Acquisition / The Gulf Of 13 th August 2009 Processing/ Guinea / Angola Amendment 13 th (New: 2017) August 2008, Interpretation & Congo Brazzaville Divested Devons Interests to Afren Vanco Gh Ltd / Luk. Oil Overseas Gh Ltd Deepwater Cape Three Points Exploring & Developing Deep Water 19 th August 2002 Kosmos Energy Gh Hc / Anadarko WCTP / Tullow Gh Ltd / E. O Group Ltd West Cape Three Points Oil & Gas Exploration & Production 22 nd May 2004 22 nd May 2011 Seismic Acquisition / Exploration in Processing/ Gulf of Guinea & Interpretation Morocco /Drilling Saltpond Offshore Producing Co Ltd, Lushann Eternit Saltpond Field Production & Disposal 30 th July 2004 30 th July 2034 Production & Marketing Oil Production in Saltpond Ghana Offshore Cape. Three Points (Shallow) Oil Transportation/ Refining /Distribution 15 th March 2013 Crude Oil Refinery Gulf Of Guinea/South East Asia/Middle East/North Sea 21 st July 2006 21 st February 2013 Seismic Acquisition / Africa/Europe/S Processing/ outh Asia/South Interpretation America /Drilling 19 th July 2006 19 th February 2013 Seismic Acquisition / Africa/Europe/S Processing/ outh Asia/South Interpretation America /Drilling ENI Ghana Exploration & Production Limited Tullow Gh Ltd / Sabre Oil & Gas Ltd / Interoil / Al Thani Shallow Water Tano & Oil & Gas Tano Fields Exploration Tullow Gh Ltd / Anardarko / Kosmos Energy Gh Hc / Sabre Oil & Gas Ltd Oil & Gas Deepwater Tano Area Exploration 15 th March 2006 Seismic Acquisition / Gulf of Guinea / 19 th August 2009 Processing/ Morocco/ (New: 2016) Interpretation Ukraine

OPERATOR AREA OF OPERATION AREA OF SPECIALISATION RATIFICATIO N DATE EXPIRY OF CONTRACT TECHNICAL

OPERATOR AREA OF OPERATION AREA OF SPECIALISATION RATIFICATIO N DATE EXPIRY OF CONTRACT TECHNICAL EXPERTISE Seismic Acquisition / Processing/ Interpretation /Drilling ACTIVITIES & GEOGRAPHY Hess Gh Exploration Ltd Deepwater Tano/Cape Three Points Oil & Gas Exploration & Production & Marketing Gasop Oil Gh Ltd Offshore Saltpond Basin Oil & Gas Exploration & Transportation Vitol Upstream Gh Ltd South Cape Three Points Oil Transportation/ Refining /Distribution 30 th June 2008 30 th June 2015 Gulf Of Guinea/South Crude Oil Refinery East & Marketing Asia/Middle East/North Sea Oranto Petroleum International Ltd Offshore Saltpond Basin Exploration / Exploitation / Production 3 rd July 2008 3 rd February 2015 Oil Marketing Aker ASA South Deepwater Tano Construction/Engine 5 th November ering/ Contracting 2008 Services 5 th November 2015 Production Of Hiring of Drilling & Offshore Oil & Production Gas Facilities Equipment Around the world Tap Oil, Afex Oil & Challenger Minerals Offshore Accra. Keta Exploration / Production March 2017 Oil & Gas Exploration & Production Australia/SE Asia Sahara Oil Cape Three Points Exploration/Producti Signed MOU on & Distribution MOU Expired Crude Oil Refinery & Marketing Africa/Asia/Eur ope/United States Agreement Terminated 19 th July 2006 28 th July 2006 March 2010 19 th July 2013 28 th July 2013 Africa/Asia/Eur ope/United States Exploration In Saltpond Basin Ghana Exploration In The Gulf Of Guinea

DISCOVERIES AS EARLY AS 1896, WELLS WERE DRILLED IN AND AROUND HALF-ASSINI AS A

DISCOVERIES AS EARLY AS 1896, WELLS WERE DRILLED IN AND AROUND HALF-ASSINI AS A RESULT OF OIL SEEPS FOUND ONSHORE TANO BASIN. TODAY ONE CAN STILL SEE SOME OF THESE SEEPS AT BOKAKERE. BETWEEN 1978 AND 1985 OIL WAS PRODUCED FROM THE SALTPOND FIELD. A NUMBER OF OIL, OIL/GAS AND GAS FIELDS HAVE BEEN FOUND IN THE TANO BASIN. IN ALL OVER 117 WELLS HAVE BEEN DRILLED IN THE COUNTRY AND OVER 13 DISCOVERIES HAVE BEEN MADE. IT IS ALSO WORTH MENTIONING THAT 75% OF 50 EXPLORATORY WELLS DRILLED ENCOUNTERED VARYING DEGREES OF HYDROCARBON SHOWS. Field Basin Year Fluid type Saltpond 1970 Oil & Gas Cape Three Points 1973 Gas South Tano Main Block Tano 1978 Oil & Gas South Tano 3 -AX Block Tano 1979 Gas North Tano 1980 Oil & Gas CTS Tano 1989 Gas West Tano - 1 Tano 2000 Oil Jubilee Tano / West CTP 2007 Oil & Gas Sankofa Cape Three Points 2008 Oil & Gas Odum-1 Cape Three Points 2008 Oil Tweneboa Tano Deep 2009 Gas, Condensate/Oil Dzata 1 Tano/CTP 2010 Gas, Condensate/Oil Owo-1 Tano Deep 2010 Oil and Gas

SEISMICS: TO DATE, THERE ABOUT 53, 228. 4 KM OF 2 D SEISMIC DATA

SEISMICS: TO DATE, THERE ABOUT 53, 228. 4 KM OF 2 D SEISMIC DATA AND OVER 18, 693 SQ. KM OF 3 -D SEISMIC DATA THAT HAVE BEEN ACQUIRED AND PROCESSED.

A WINDOWED SAMPLE OF THE DATABASE INVENTORY 3 D, 2 D & OTHER SURVEYS

A WINDOWED SAMPLE OF THE DATABASE INVENTORY 3 D, 2 D & OTHER SURVEYS NAME/SURVEY OPERATOR/OWNE R MONTH YEAR SIZE CONTRACTOR DATA PROCESSED BY HESS 3 D DEEP TANO/CTP HESS CORPORATION DEC 2008 CGG VERITAS CGG CSEM(SEABED LOGGING) HESS CORPORATION FEB-MARCH 2008 951 km JUBILEE FIELD SITE SURVEY KOSMOS, TULLOW & OTHERS MAY 2008 C&C TECHNOLOGIES INC SEP-OCT 2008 504 sqkm WESTERN GECO 2007 1511 sqkm PETROLEUM GEOSERVICES(PGS) GEOTRACE KOSMOS HR ODUM 3 D 65 HESS 3 D HESS CORPORATION FEB - APRIL HESS 2 D HESS CORPORATION JAN-FEB 2006/2007 1068 km WESTERN GEOPHYSICAL GEOTRACE KOSMOS HR 3 D (JUBILEE) KOSMOS ENERGY OCT-DEC 2007 939 sqkm WESTERN GECO VITOL 3 D VITOL UPSTREAM (VUGL) JULY-OCT 2007 939. 78 sqkm BGP VITOL SOUTH 3 D VITOL UPSTREAM (VUGL) 2007/2008 865 sqkm CGG KOSMOS 3 D KOSMOS ENERGY 2005 1080 sq. km VERITAS VANCO 3 D VANCO ENERGY 2005 1500 sq. Km PETROLEUM GEOSERVICES(PGS) DEVON 3 D DEVON ENERGY 2003 1550 sq. km CGG WESTERN GECO VANCO 2 D VANCO ENERGY 2002 3180 km CGG

THE TECHNICAL LIBRARY GNPC’s Tema facility hosts a library with over 5000 documents made

THE TECHNICAL LIBRARY GNPC’s Tema facility hosts a library with over 5000 documents made up of books, reports & references. Summary of the Volumes (Tema Library) ENG. 1350 WELL S 1520 1400 1200 1000 BOOK S 1000 G&G 700 800 600 SEISMI C 250 400 200 0 BOOKS WELLS G&G ENG SEISMIC

THE DATA RESOURCE MANAGEMENT

THE DATA RESOURCE MANAGEMENT

GNPC EFFORTS IN DATA MANAGEMENT After the establishment of GNPC in 1985, the Corporation

GNPC EFFORTS IN DATA MANAGEMENT After the establishment of GNPC in 1985, the Corporation had to take over responsibility of all Exploration and Engineering data in storage in different locations, both locally and abroad. Some of these data were under storage in commercial data storage houses in the U. K. , where storage charges had to be paid by GNPC annually. Other data, mostly field data acquired by previous partner companies and by the Petroleum Law, had to provide copies to GNPC still had these data sets under their storage due to initial lack of storage facilities in GNPC on its start off. By 1986, just after a year of its being, GNPC had managed to bring in about the first 4000 ½ - inch 9 -track seismic tapes for storage in an air-conditioned room provided it by the Volta River Authority in Akuse. Subsequently, after GNPC’s own custom-built Data Storage Warehouse was completed on the Spintex Road in 1989, several other exploration data were moved into Ghana for storage. These initiatives quickly brought up the number of seismic tapes in different media and formats in storage in GNPC locally up to over 20, 000. All these have now been transcribed onto IBM 3590 and DLT media.

CONDITIONS OF THE DATA The present storage condition of all physical assets is good

CONDITIONS OF THE DATA The present storage condition of all physical assets is good although there is a definite lack of physical storage space. All transcribed tape copies and originals are stored in the Data Center with a few of the originals stored in Tema. However, documents in a fairly large number are still ‘squirreled’ in users’ offices in Tema. Presently there are 2 documentary databases which have been adapted for Exploration Data and Technical Document Library Management and archiving: they are the ISIS and Library. Soft/Library. World databases. These databases are complete for cores and samples, seismic tapes , logs and sections, books and reports.

OTHER FUTURE ANTICIPATED DATA FROM PRODUCING FIELDS THE JUBILEE PRODUCTION DATA MANAGEMENT SYSTEM

OTHER FUTURE ANTICIPATED DATA FROM PRODUCING FIELDS THE JUBILEE PRODUCTION DATA MANAGEMENT SYSTEM

 The Jubilee Field was discovered offshore Ghana in 2007. It is an Oil

The Jubilee Field was discovered offshore Ghana in 2007. It is an Oil and Gas reserve located in approximately 1, 100 m of water within the Deepwater Tano and West Cape Three Points concession blocks. The Jubilee Field Unit Area is operated by Tullow Ghana Limited.

JUBILEE FIELD

JUBILEE FIELD

PLANS FOR ICT INFRASTRUCTURE FOR PRODUCTION DATA MANAGEMENT & ACCESSIBILITY SYSTEMS GNPC through its

PLANS FOR ICT INFRASTRUCTURE FOR PRODUCTION DATA MANAGEMENT & ACCESSIBILITY SYSTEMS GNPC through its alignment with the Jubilee Field Partners (Tullow) are designing for implementation the following infrastructural outlays for a PDMS: Utilization of high frequency data from wells, subsea infrastructure and surface facilities for near real-time decisions.

 • The collaborative work environments for utilization of high frequency data include: Reservoir

• The collaborative work environments for utilization of high frequency data include: Reservoir performance monitoring Day to day well optimization Production Surveillance Asset Integrity Management Technical Limit Production Short and medium term Production Forecasting Monitoring and Calibrating MPFM (Multiphase Metering) performance Hydrocarbon Allocation and Accounting Daily and Periodic Reporting

This Cutting Edge Production Data Management System would receive Primary Aggregated Data at its

This Cutting Edge Production Data Management System would receive Primary Aggregated Data at its Primary Data Hub. A Secure Offsite Back-Up Hub and Disaster Recovery Site is to be provided to GNPC as a parallel infrastructure for real time data delivery after verification and validation. A proposed Data Bank architecture would allow for integration and unification of the PDMS. Consequently, GNPC would require further capacity building and training challenges in terms of short term courses and long term programmes in: 2 D / 3 D Seismic and Well Data Loading into Computer Aided Application Systems ICT Security Management and Access Control of Server and Network Systems Storage and Projects Database Administration.

PRODUCTION DATA MANAGEMENT SYSTEM Excel Classical Reservoir Engineerin g Well Integrity OFM (Oil Field

PRODUCTION DATA MANAGEMENT SYSTEM Excel Classical Reservoir Engineerin g Well Integrity OFM (Oil Field Manager) Production Forecast Biennial (2 yrs) Redetermination Production Surveillance Production Reporting Deferment Reporting IAM PETEX - Eclipse Automatic Data DCS, Subsea Plus any Manual Data Deferment analysis etc Data Historian PI (Local on FPSO) Secure Offsite Hub Reserves Reporting Tool OPEX Budget Data Validation Financials Forecast and Actuals Hydrocarbon Allocation Entitlement Data Hub (Aggregated Data) Accra Data Historian PI (Accra) Data Driven Model (PU? ) MPFM Calibration Courtesy Tullow Oil Gh Ltd Lifting Schedule Shipping Coordinator

THE DATA BANK PROJECT A Data Center Data Bank System with Optimized Data Management

THE DATA BANK PROJECT A Data Center Data Bank System with Optimized Data Management and Data Administration Workflow Solutions has been proposed by GNPC for World Bank funding support and technical assistance provided under a Norwegian Of. D/NORAD collaboration. The Data Bank would constitute a three tier data integration layer within an electronic data vault system made up of a cluster of data storage platforms and associated software. The Data Bank Common Data Administrator (an application) provides full integrated management of the Data Bank through a GIS Interface.

 Integration Layer 1: Loaded Exploration and Engineering data currently in storage on tapes

Integration Layer 1: Loaded Exploration and Engineering data currently in storage on tapes into electronic storage. Integration Layer 2: Scanning and storage of all hardcopy data including Library Reports, Maps, Image Captures of Cores and Sections, and other Bibliographic Materials, in agreed archival formats. Integration Layer 3: Production Database System, storing all Primary Aggregated Data to be received from GNPC’s producing fields for secure secondary storage after validation. Currently, access to the PDMS is through a Portal with a barrage of Firewalls and Security / Access Controlled Facilitations.

GNPC NDR, pre-operational phase GNPC – Main office 10 0 mb s link Referance

GNPC NDR, pre-operational phase GNPC – Main office 10 0 mb s link Referance database (GNPC internal database) 38 GNPC -Data Center Weekly loading referance data (licencee s, companie s, wells, installatio ns, pipelines etc) NDR installing software / hardware / procedures/ training/ dataloading Updatin g interfac e with well/ navigati on from NDR draft 24. 3. 2010 Courtesy Hans Stokka, NPD Web GIS on Internett open for everybody. Shows all seismic (navigation) and well data at GNPC DS with ”shopping

GNPC NDR, operational phase one – no online internet from oil companies , but

GNPC NDR, operational phase one – no online internet from oil companies , but GNPC main office has online access (full) 3. Physical delivery of the data (seismic, logs etc on personal disks, usb’s, 3490/92. . GNPC – Main office 10 0 mb s link Referance database (GNPC internal database) 39 GNPC -Data Center Production Data base Weekly loading referance data (licencee s, companie s, wells, installatio ns, pipelines etc) NDR with database software and disk for storage seismic, welldata. Facilities for loading storing and making copies for oil companies Updatin g interfac e with well/ navigati on from NDR draft 24. 3. 2010 Courtesy Hans Stokka, NPD 2. Data order 1. Browsing for data Web GIS on Internett open for everybody. Shows all seismic (navigation) and well data at GNPC DS with ”shopping Oil company 1 Oil company 2 Oil company 3

GNPC NDR, operational phase two online internet for GNPC and selected oil companies 3.

GNPC NDR, operational phase two online internet for GNPC and selected oil companies 3. Physical delivery of the data (seismic, logs etc on personal disks, usb’s, 3490/92. . GNPC – Main office 10 0 mb s link Referance database (GNPC internal database) 40 GNPC -Data Center Production Data base Weekly loading referance data (licencee s, companie s, wells, installatio ns, pipelines etc) NDR with database software and disk for storage seismic, welldata. Facilities for loading storing and making copies for oil companies Updatin g interfac e with well/ navigati on from NDR draft 24. 3. 2010 Courtesy Hans Stokka, NPD Online access to data, 100 mbs 2. Data order 1. Browsing for data Web GIS on Internett open for everybody. Shows all seismic (navigation) and well data at GNPC DS with ”shopping Oil company 1 Oil company 2 Oil company 3 Oil company 4 Oil company 5. . .

PART OF A SCHEMA FOR THE REFERENCE DATABASE

PART OF A SCHEMA FOR THE REFERENCE DATABASE

THE OPTIMIZED DATA MANAGEMENT AND WORKFLOW SOLUTIONS FOR ALL CAN BE ACHIEVED THROUGH THE

THE OPTIMIZED DATA MANAGEMENT AND WORKFLOW SOLUTIONS FOR ALL CAN BE ACHIEVED THROUGH THE DATA BANK Courtesy Schlumberger Information Systems
