Getting the YSI Sonde Ready For Use

Getting the YSI Sonde Ready For Use

Quality Data Proper Maintenance & Calibration 1. Keep all electrical contacts dry a. Proper

Quality Data Proper Maintenance & Calibration 1. Keep all electrical contacts dry a. Proper removal / installation of probes b. Good DO membrane installation 2. Use Good Laboratory Practice a. Proper Rinse method between buffers/standards b. Pre-rinse…using small amount of calibration solution c. Allowing time for Equilibration 3. Quality Calibration a. Understanding Sensor Diagnostics

Probe Installation/Removal Review Handout DISSOLVED OXYGEN ISE 4 ISE 3 4 3 CHLOROPHYLL TURBIDITY

Probe Installation/Removal Review Handout DISSOLVED OXYGEN ISE 4 ISE 3 4 3 CHLOROPHYLL TURBIDITY T C 5 ISE 1 / ISE 2 (p. H / ORP) COND/TEMP ISE 5

Reconditioning DO Probe for Maintenance and/or High DO Charge 1. Remove membrane, rinse probe

Reconditioning DO Probe for Maintenance and/or High DO Charge 1. Remove membrane, rinse probe in clean water, and dry off probe surface 2. Use the YSI 6035 kit to service electrodes (note that the sanding disc must be stroke parallel with the electrodes) (Care & Maintenance Section) 3. Rinse probe surface area with clean water and wipe away residue 4. Re-membrane probe and check DO Charge (after 5 minutes of probe burn-in). NOTE: Install new O-RING 5. If reconditioning DO Probe does not reduce High Charge, repeat conditioning. If it does not help, then replace probe or contact Technical Support at YSI for further assistance.

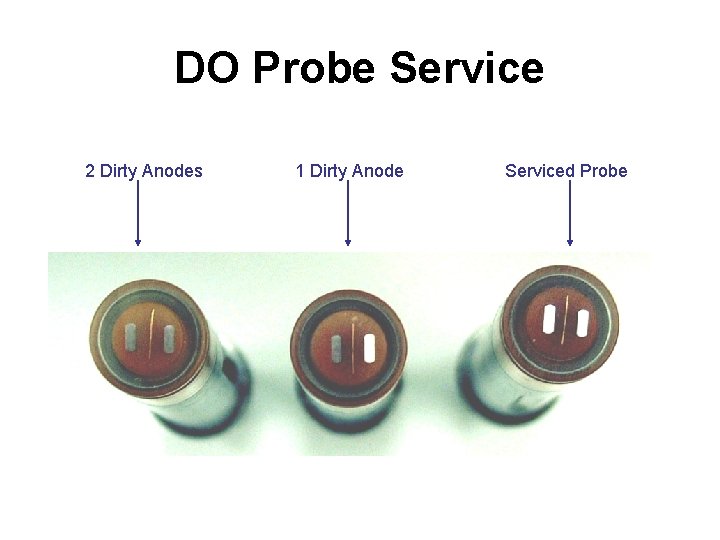

DO Probe Service 2 Dirty Anodes 1 Dirty Anode Serviced Probe

DO Probe Service 2 Dirty Anodes 1 Dirty Anode Serviced Probe

Membrane Installation / Quality Data Prepare the Probe with KCl

Membrane Installation / Quality Data Prepare the Probe with KCl

Prepare to Install Membrane

Prepare to Install Membrane

Finish Installation of Membrane

Finish Installation of Membrane

Keep Membrane Tight to Install O-Ring

Keep Membrane Tight to Install O-Ring

Cut Excess Material Away

Cut Excess Material Away

DO Probe Ready to Proceed

DO Probe Ready to Proceed

Temperature No calibration or service available But check accuracy with a Precision Certified Thermometer

Temperature No calibration or service available But check accuracy with a Precision Certified Thermometer

Conductivity Service and Calibration 1. Always service conductivity cell before calibration (Care and Maintenance

Conductivity Service and Calibration 1. Always service conductivity cell before calibration (Care and Maintenance Section) 2. Always use a standard that is a 1000 u. S/cm or greater 3. Pre-rinse before calibration 4. Always use fresh standards, and allow time to equilibrate 5. Ensure that conductivity cell is totally submerged in solution and lightly shake sonde to remove any air bubbles 6. Never accept an “Out of Range”

Conductivity Probe Service

Conductivity Probe Service

Conductivity Calibration Precautions & Diagnostics 1. Calibrate in Sp. Cond (Specific Conductance) 2. Enter

Conductivity Calibration Precautions & Diagnostics 1. Calibrate in Sp. Cond (Specific Conductance) 2. Enter correct value e. g. : 1000 u. S/cm Calibration value has to be entered as a m. S/cm) 1000 u. S/cm = 1 m. S/cm 3. After calibration “ALWAYS” check “AND” record Cell Constant in “Advanced / Cal Constants Menu” Range 5. 0 ± 0. 5 (should be very close with each cal. ) a. If Cell Constant is out of range clean and recalibrate 4. SEE CALIBRATION WORK SHEET

p. H/ORP Maintenance Tips 1. During calibration; if m. V readings are out of

p. H/ORP Maintenance Tips 1. During calibration; if m. V readings are out of specs, or if there is slow response, do cleaning procedure to probe (Care and Maintenance Section) 2. Soak probe for 24 - 48 hrs. in 2 M KCl note: Proper Storage will extend the life of the probe 3. If all this fails, replace electrode (Reference first)

p. H Probe Service Clean p. H Probe Dirty p. H/ORP Probe

p. H Probe Service Clean p. H Probe Dirty p. H/ORP Probe

p. H / ORP Diagnostics and Calibration 1. In “Report Menu” enable p. H

p. H / ORP Diagnostics and Calibration 1. In “Report Menu” enable p. H m. V 2. Place into a p. H 7. 0 buffer, let Equilibrate and record m. V value. Considered acceptable range: 0 +/- 50 ? ? 3. 4. 0 buffer should be +177 (from 7 buffer m. V value) range 165 to 180 m. V 4. 10. 0 buffer should be -177 (from 7 buffer m. V value) range -165 to -180 m. V

p. H – The potential is related to the p. H by a form

p. H – The potential is related to the p. H by a form of the Nernst Equation p. H 4. 0 p. H 7. 0 +177 m. V 0 m. V p. H 10. 0 -177 m. V

p. H Calibration Tips 1. Calibrate using at least a 2 Point Cal. (7

p. H Calibration Tips 1. Calibrate using at least a 2 Point Cal. (7 buffer always being the first point) 2. Make sure Temperature Probe is in the p. H Buffer and allowing time for Equilibration 3. Pre-rinse between buffers 4. Record m. V values in all buffers and check probe response between buffers 5. Never accept an “Out of Range” 6. SEE CALIBRATION WORK SHEET

ORP / REDOX Calibration CALIBRATION CHART Temperature Celsius Zobell Solution Value, MV -5 270.

ORP / REDOX Calibration CALIBRATION CHART Temperature Celsius Zobell Solution Value, MV -5 270. 0 0 263. 5 5 257. 0 10 250. 5 15 244. 0 20 237. 5 25 231. 0 30 224. 5 35 218. 0 40 211. 5 45 205. 0 50 198. 5 NOTE: All ISE sensors, requires the p. H and temperature probe to be in solution during calibration. • • Never accept an “Out of Range” SEE CALIBRATION WORK SHEET

Depth Sensor Maintenance 1. Use syringe from Maintenance Kit; this is the only tool

Depth Sensor Maintenance 1. Use syringe from Maintenance Kit; this is the only tool to be used on the depth sensor 2. If further cleaning is required, soak in warm soapy tap water, then try syringe again

Depth Sensor Calibration 1. Calibrate in air to zero 2. For more accurate reading

Depth Sensor Calibration 1. Calibrate in air to zero 2. For more accurate reading in reference to WQ sensors; apply offset to calibration 3. Never accept an “Out of Range” 4. SEE CALIBRATION WORK SHEET

DO Sensor Diagnostics 1. In Report menu; Enable DO Charge confirm that DO charge

DO Sensor Diagnostics 1. In Report menu; Enable DO Charge confirm that DO charge is 50 +/- 25, if out of specs recondition probe 2. Put into RUN MODE for 15 - 20 minutes before calibration (Probe Burn In) 3. Confirm DO Warm-up Pattern (PROBE HAS TO BE COLD BEFORE STARTING THIS TEST) 4. Check DO Gain “Advance/Cal Const. Menu” (After Calibration) should be 1 within a range of. 7 to 1. 5

Dissolved Oxygen Calibration 1. Calibrate with probe cold OR fully warmed up ? ?

Dissolved Oxygen Calibration 1. Calibrate with probe cold OR fully warmed up ? ? (RS 232 auto sleep enabled) ; UNATTENDED (RS 232 auto sleep disabled) ; SPOT SAMPLING 2. Membrane and temperature sensor must be dry 3. Probe must be in a water saturated air, or air saturated water 4. Enter current barometer reading (mm/Hg) 5. Never accept an “Out of Range” 6. SEE CALIBRATION WORK SHEET

Optic Probes Service and Calibration 1. 2. 3. 4. 5. 6. Turbidity Chlorophyll Rhodamine

Optic Probes Service and Calibration 1. 2. 3. 4. 5. 6. Turbidity Chlorophyll Rhodamine BGA-PC…Fresh to Brackish Water BGA-PE…Brackish to Marine Water DO

Dirty Optic Wiper Pads

Dirty Optic Wiper Pads

Clean Optic Wiper Pads

Clean Optic Wiper Pads

Optic Probe Wiper Motor Wiper Sponge Wiper

Optic Probe Wiper Motor Wiper Sponge Wiper

Proper Spacing for Wiper Block

Proper Spacing for Wiper Block

Turbidity Probe test and Calibration 1. Finger Test to confirm probe response and wiper

Turbidity Probe test and Calibration 1. Finger Test to confirm probe response and wiper parking 2. Calibration process more critical in certain applications: (review handout) 3. Standards to use / value to enter (review handout) 4. For 6600 EDS Sonde; remove brush and install clean wiper block with clean pad

Chlorophyll, Rhodamine and BGA Calibration 1. Accept default calibration and use for screening and/or

Chlorophyll, Rhodamine and BGA Calibration 1. Accept default calibration and use for screening and/or monitoring trends 2. Check for drift and/or slightly enhance accuracy using dye solution to simulate field data 3. Use extractive analysis results from field samples to post calibrate all readings (Chlorophyll, BGA)

Post-calibration of In Vivo Chl Readings

Post-calibration of In Vivo Chl Readings

Calibration of Optical DO 1. Calibration method the same as for Rapid Pulse, e.

Calibration of Optical DO 1. Calibration method the same as for Rapid Pulse, e. g. air saturated water / water saturated air, entering correct barometric pressure value, etc. (RS 232 can be enabled for either application) 2. Can do a 2 point calibration; 1 st. Point being in zero oxygen environment; 2 nd. Point in saturated environment 3. Diagnostics is DO gain; acceptable range is. 75 to 1. 25

Membrane Removal The wiper set screw is loosened with the Allen tool provided, then

Membrane Removal The wiper set screw is loosened with the Allen tool provided, then the wiper is removed.

Membrane Removal Themembrane three membrane can now screws be removed. are removed using the

Membrane Removal Themembrane three membrane can now screws be removed. are removed using the Allen tool provided.

Membrane Replacement • • Remove the new sensor membrane assembly from its hydrated container

Membrane Replacement • • Remove the new sensor membrane assembly from its hydrated container and dry the underside completely. Ensure both sides of the membrane cavity are dry. Be sure to enter the new calibration code values into sonde menu. Topside Underside

Final test of all Sensors after Calibration 1. Place sensors in tap water (aerated

Final test of all Sensors after Calibration 1. Place sensors in tap water (aerated for 20 minutes or more) 2. Check for response time to stabilize on all sensors (this will vary from sensor to sensor), and look for realistic values 3. Review handout on p. H response test

REVIEW • CALIBRATION WORK SHEET • “GLP” FILE • TRANSPORT METHODS OF SONDE

REVIEW • CALIBRATION WORK SHEET • “GLP” FILE • TRANSPORT METHODS OF SONDE

Sensor Storage Recommendations 1. “General Rule” – Short term (4 weeks or less): Saturated

Sensor Storage Recommendations 1. “General Rule” – Short term (4 weeks or less): Saturated Air – Long term (Seasonal): Varies with Sonde Model 2. Sonde Care and Maintenance Review Handout

Questions….

Questions….
