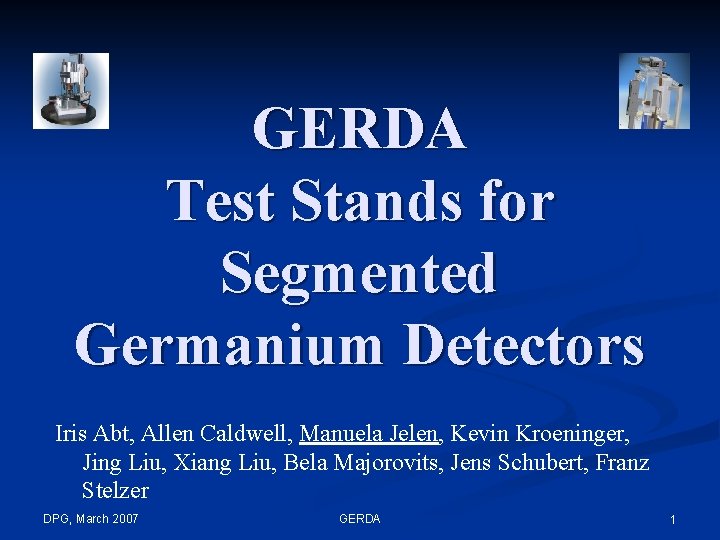

GERDA Test Stands for Segmented Germanium Detectors Iris Abt, Allen Caldwell, Manuela Jelen, Kevin Kroeninger, Jing Liu, Xiang Liu, Bela Majorovits, Jens Schubert, Franz Stelzer DPG, March 2007 GERDA 1
Outline Motivation Test Stands with Detectors on Cold Finger Test Stands with Detectors in Cryo-Liquid Conclusions DPG, March 2007 GERDA 2
Motivation counts [arbitrary units] GERDA is looking for 0νββ-decay → n Dirac or Majorana particle? → total mass (upper limit if no discovery) 0νββ: rare process → low background (sum of electron energies)/Qββrequired -3 cnts/kg/y/ke. V) Ge: good energy resolution →(<10 background reduction DPG, March 2007 GERDA 3
Motivation Background reduction: GERDA in underground lab (cosmic rays) Water Tank (neutrons) GERDA Detectors operated directly in LAr (γ-background) Test Stands in Munich: LN 2/LAr and Cold Finger DPG, March 2007 GERDA 4
Segmented Germanium Detectors detector material: high purity Germanium detectors segmented 6 -fold in φ and 3 -fold in height segmentation helps with background rejection signal: 1 segment hit background event: more segments hit DPG, March 2007 GERDA 5
Test Stands with Detectors on Cold Finger classical cryostat ‘Galatea’ LN 2 DPG, March 2007 GERDA 6
Test Stands with Detectors on Cold Finger classical cryostat for first n-type 18 -fold segmented detector cooled indirectly via copper cold finger sources put outside aluminum vacuum tank DPG, March 2007 GERDA 7

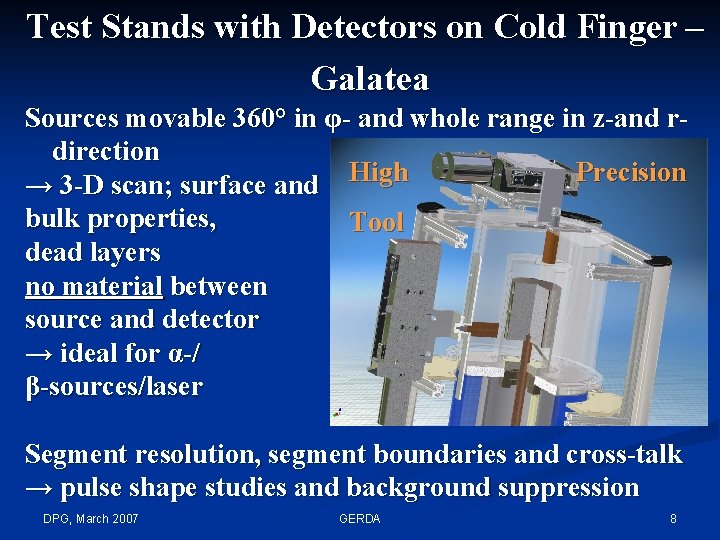

Test Stands with Detectors on Cold Finger – Galatea Sources movable 360° in φ- and whole range in z-and rdirection Precision → 3 -D scan; surface and High bulk properties, Tool dead layers no material between source and detector → ideal for α-/ β-sources/laser Segment resolution, segment boundaries and cross-talk → pulse shape studies and background suppression DPG, March 2007 GERDA 8
Test Stands with Detectors in Cryo-Liquid ‘Milchkanne ’ ‘GERDAlinchen II’ LN 2 or LAr DPG, March 2007 GERDA 9
Test Stands with Detectors in Cryo-Liquid detector ‘Milchkanne >30 cooling cycles: ’ 1) submerge crystal in LN 2 or LAr top view 2) measurement (resolution) 3) warm crystal to 300 K and put back in vacuum storage 2 → operational routine → detector stands alternating environments DPG, March 2007 GERDA 10
Test Stands with Detectors in Cryo-Liquid Leakage Current [p. A] ‘GERDAlinchen’ DPG, March 2007 Mounting of a 6 -fold segmented p-type detector 103 102 10 1 Bias Voltage [V] GERDA 11
Test Stands with Detectors in Cryo-Liquid ‘GERDAlinchen II’ DPG, March 2007 GERDA 12

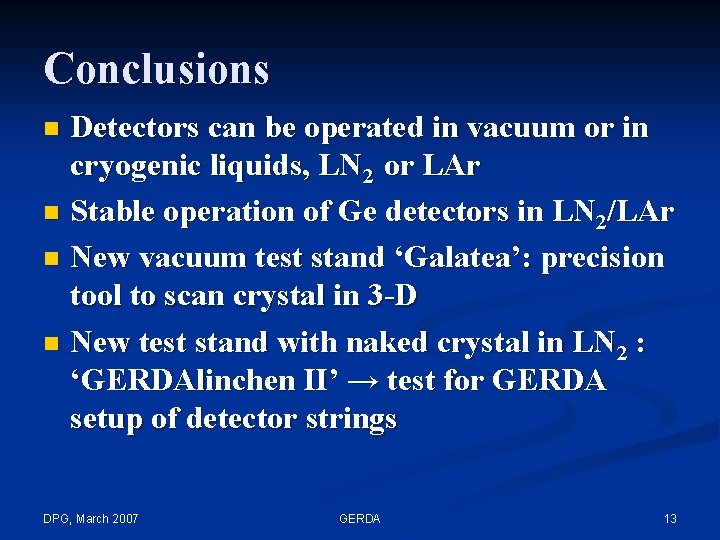

Conclusions Detectors can be operated in vacuum or in cryogenic liquids, LN 2 or LAr n Stable operation of Ge detectors in LN 2/LAr n New vacuum test stand ‘Galatea’: precision tool to scan crystal in 3 -D n New test stand with naked crystal in LN 2 : ‘GERDAlinchen II’ → test for GERDA setup of detector strings n DPG, March 2007 GERDA 13
