Geothermal Alliance of Illinois FERNOX CLEANING UP DIRTY EARTH LOOP FIXING PROBLEM LOOP FIELDS
CLEANING UP DIRTY EARTH LOOP FIXING PROBLEM LOOP FIELDS • WHAT DO I NEED • METHODS • TREATMENT
Systems Treated Residential & Commercial • • • Closed Loop Heating & Chilled Solar Thermal Ground Source Heating Geo Systems Air Source Heating 4
1
Allow system to run for ~30 minutes to allow all the sludge to circulate. Take a minimum 8 oz. (250 ml) sample. Clear = Awesome! Brown = Magnetite present - power flush recommended Black = Excessive magnetite present – power flush!
Water quality and issues
Scale (calcium carbonate) Buildup due to excessively hard water
Magnetite Effects
CLEANING UP DIRTY EARTH LOOP FIXING PROBLEM LOOP FIELDS • • • WHERE DO I START TEST SYSTEM ON SITE WHAT DO I NEED METHODS TREATMENT
CLEANING UP DIRTY EARTH LOOP FIXING PROBLEM LOOP FIELDS • TEST SYSTEM ON SITE p. H , Hardness, Debris, Metals, Chlorides Ammonia Is there any inhibitor present

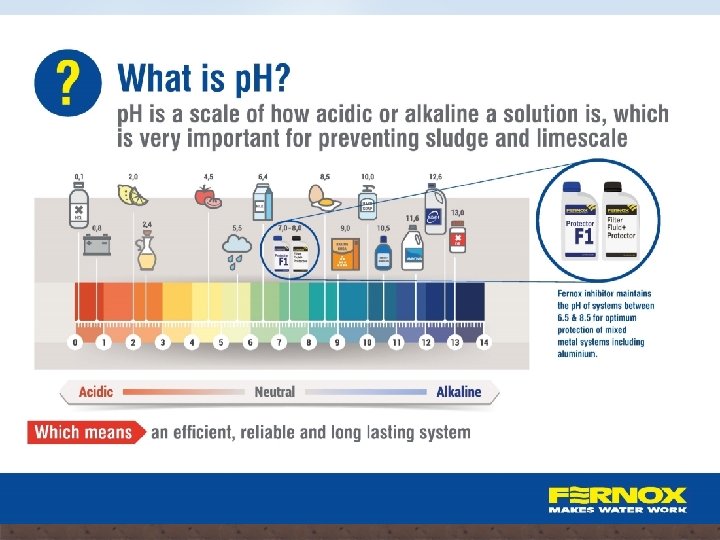

TESTING A SYSTEM • • • WHAT ARE KEY PARAMETERS ? p. H WINDOW 7. 0 TO 8. 3 HARDNESS BELOW 5 -7 GRAINS IRON LEVELS BELOW 3 PPM COPPER LEVEL BELOW 3 PPM AMMONIA LESS THAN. 5 ppm FERNOX WATER TEST KIT
Fernox F 3 or F 5 Cleaner for New System Install or Existing systems Cleaning new systems at Install or existing systems. • Neutral universal non acid cleaner • Min 2 hours up to 10 days. • Remove flux residues and installation debris. OK to dump to septic systems. • Non-acidic and non-hazardous. • Compatible with all metals and materials. ALUMINUM included
FERNOX MK 4 Cleaner
Magnetite Sludge Removal
Cleaning
The benefits of water treatment • Improve/maintain system efficiency. • Prevent system breakdown. • Reduce fuel costs. • Minimize environmental impact. • Reduce call-backs. • Comply with manufacturers recommendations and requirements.
FERNOX Residential & Commercial • • Geo Systems Fernox Alphi-11 or F 1 inhibitor works with all metals even aluminum. F 5/F 3 Cleaner can be used in Methanol and Glycol systems to remove debris. Advantages = F 1 can be used with Methanol or Ethyl Alcohol fluids. Very stable keep p. H at neutral Fernox buffers p. H and suspends hardness. No phosphates, nitrates, Potassium in Fernox Simple on site testing kits for easy analysys of systems and dosing. Environmentally safe 4
