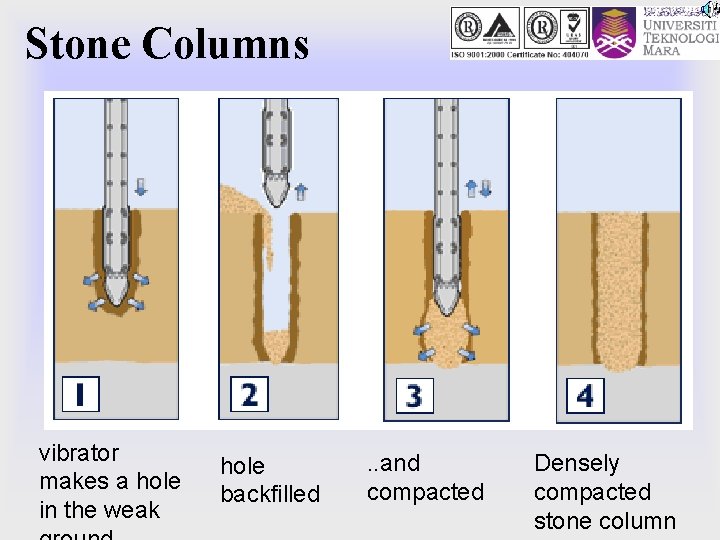

Stone Columns vibrator makes a hole in the weak hole backfilled . . and

EXAMPLE OF CASE STUDY FOR GROUND IMPROVEMENT METHODS ON SOFT CLAY

Slides: 59

Download presentation

GEOTECHNICAL ENGINEERING ECG 503 LECTURE NOTE 12 TOPIC : 4. 0 GROUND IMPROVEMENT TECHNIQUES 09 OCTOBER 2008

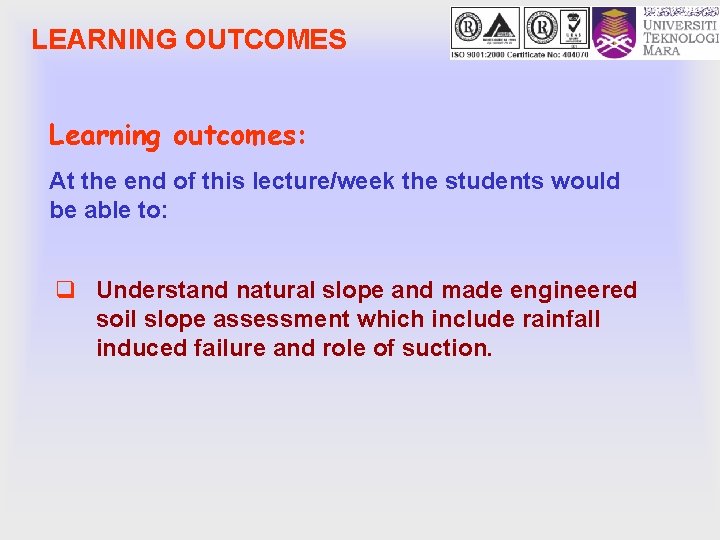

LEARNING OUTCOMES Learning outcomes: At the end of this lecture/week the students would be able to: q Understand natural slope and made engineered soil slope assessment which include rainfall induced failure and role of suction.

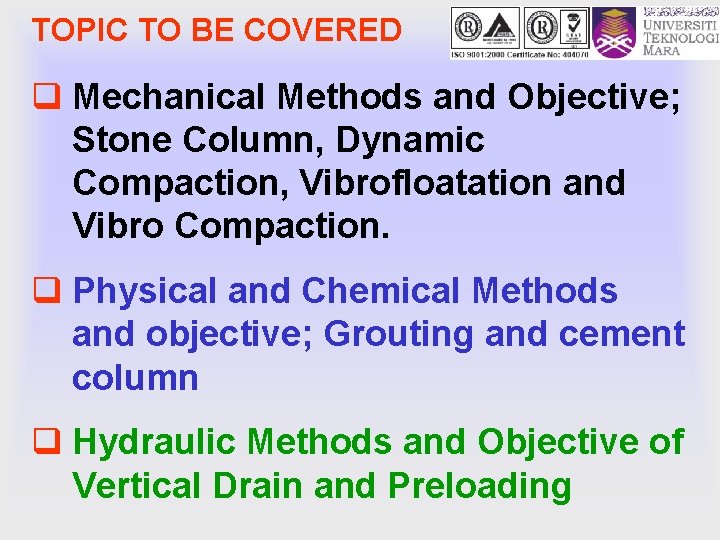

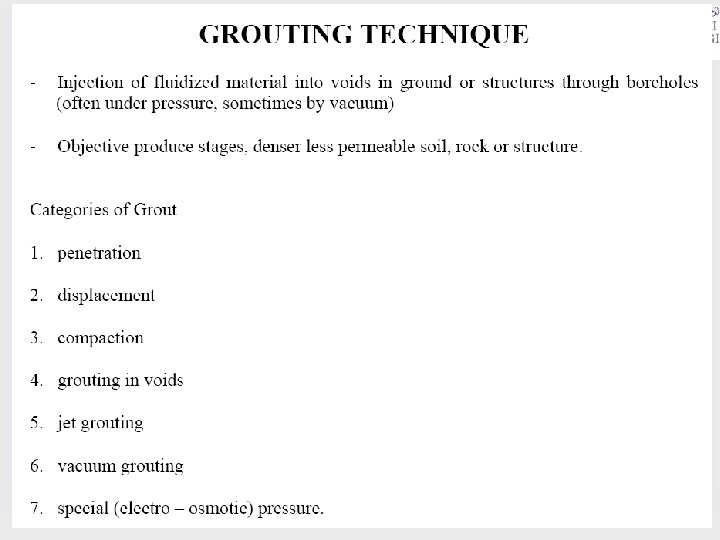

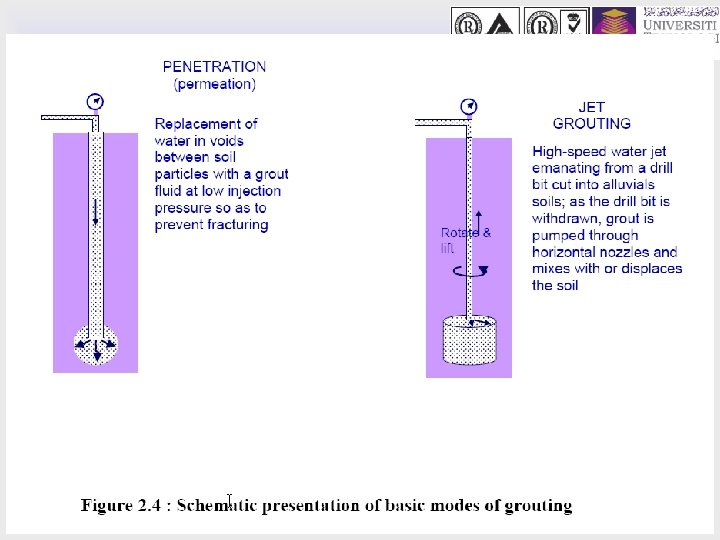

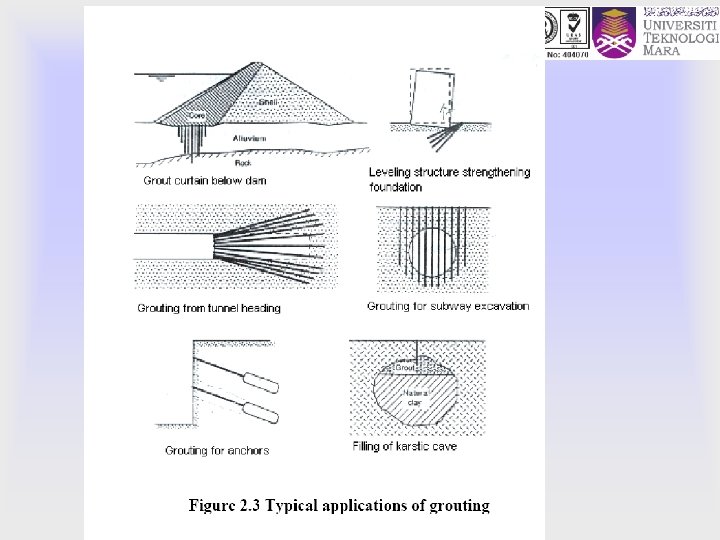

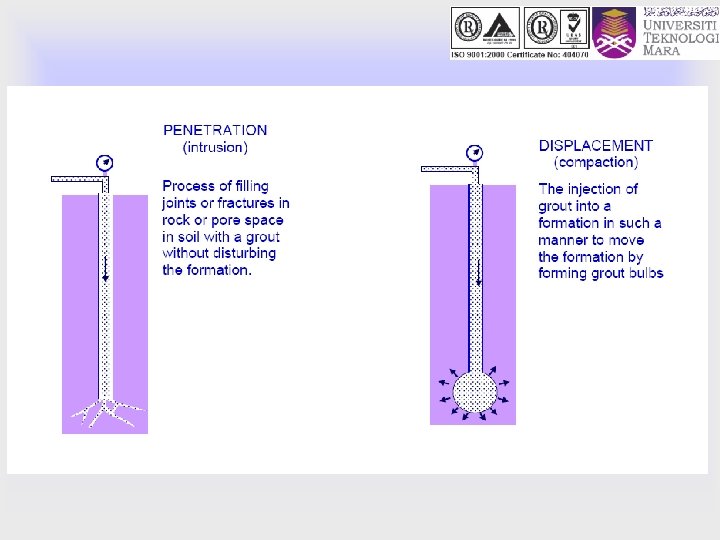

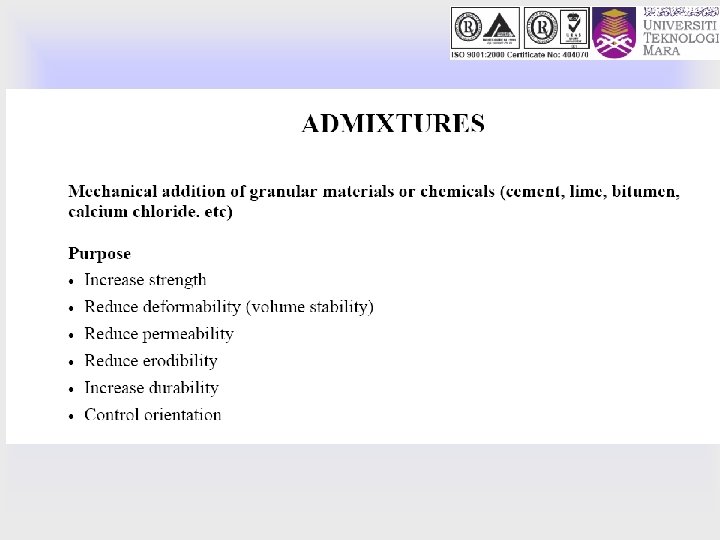

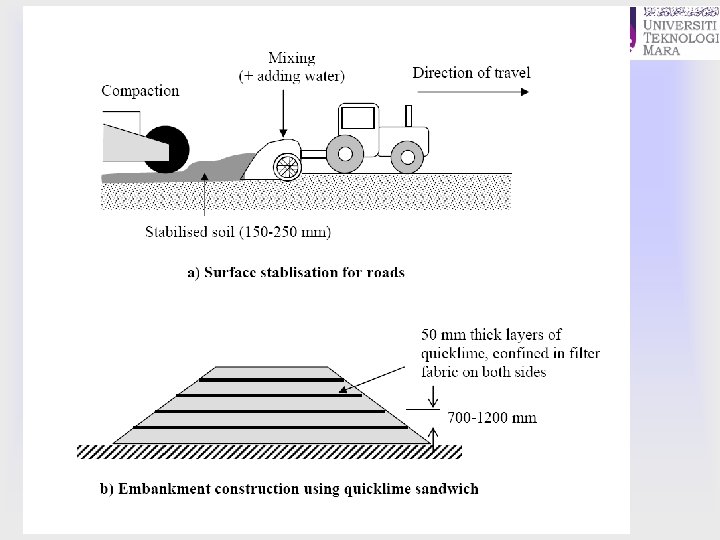

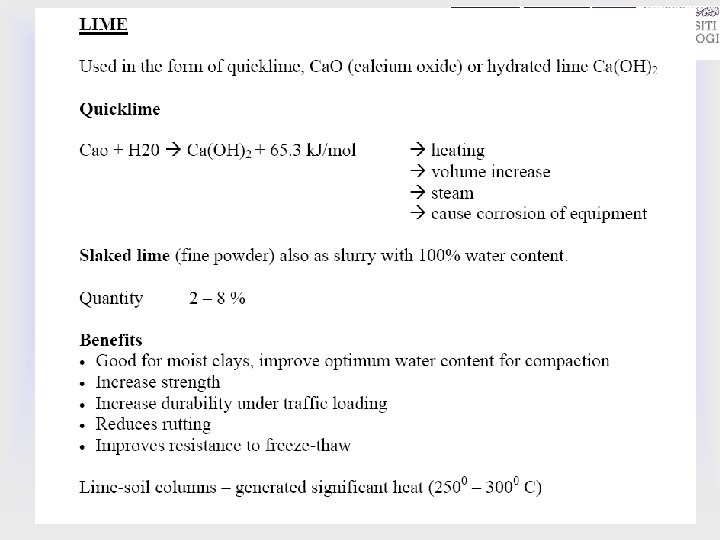

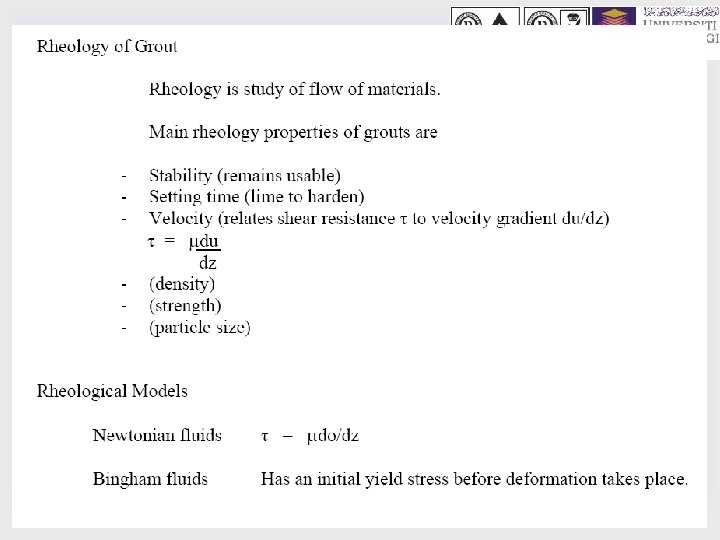

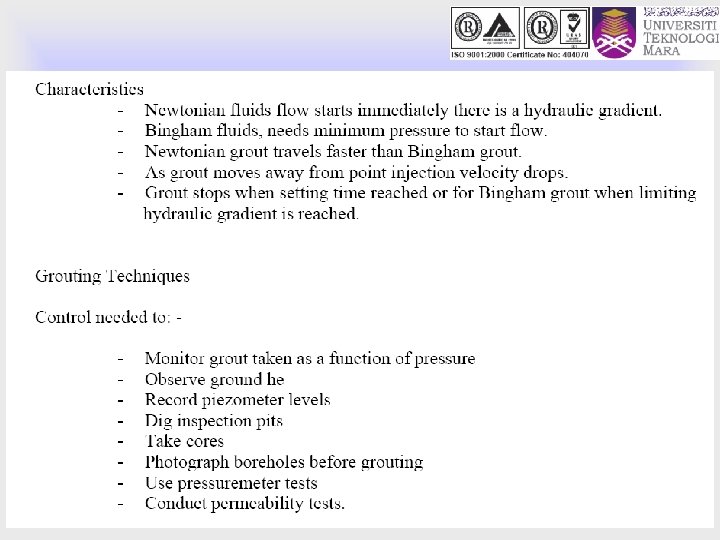

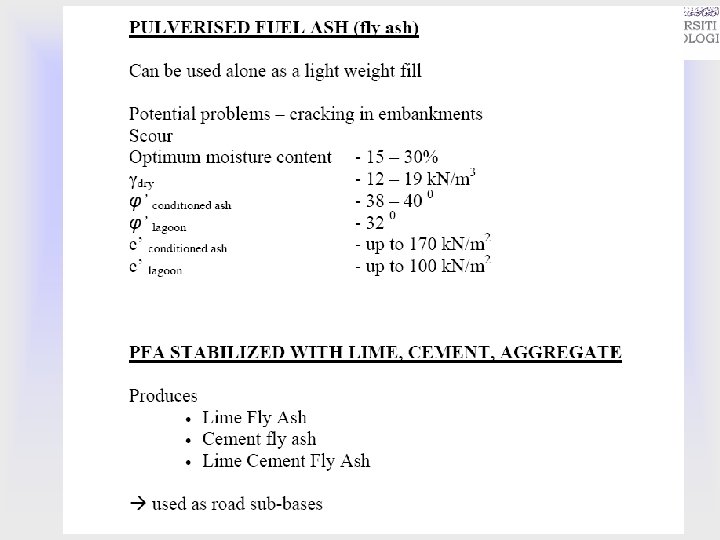

TOPIC TO BE COVERED q Mechanical Methods and Objective; Stone Column, Dynamic Compaction, Vibrofloatation and Vibro Compaction. q Physical and Chemical Methods and objective; Grouting and cement column q Hydraulic Methods and Objective of Vertical Drain and Preloading

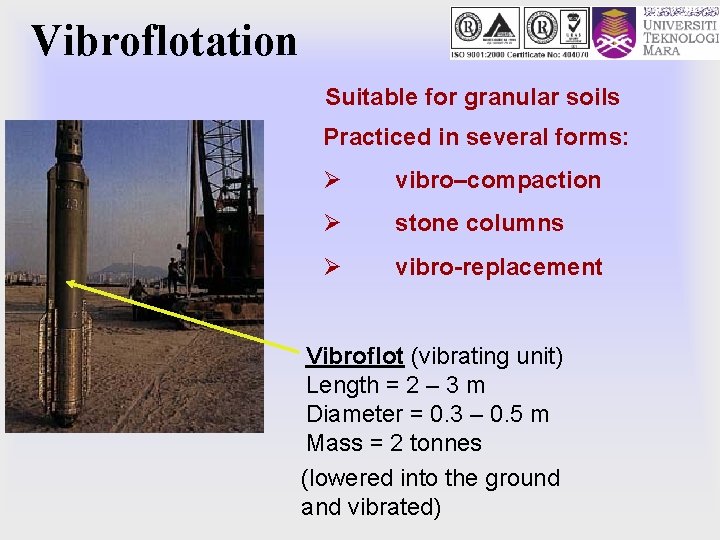

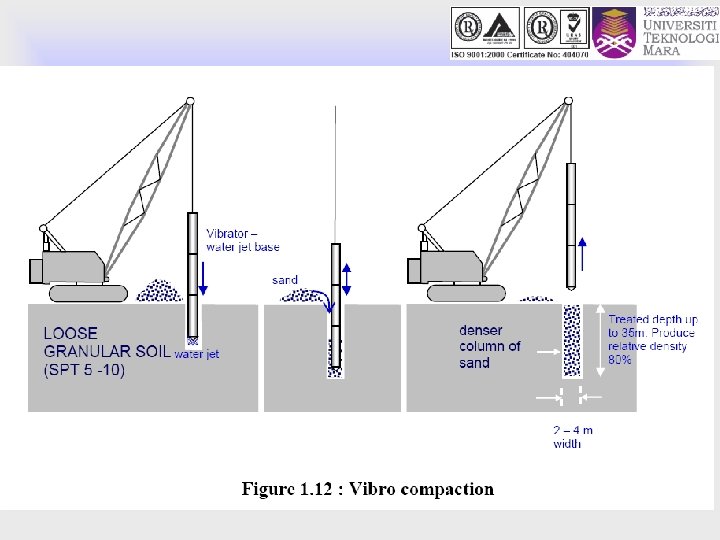

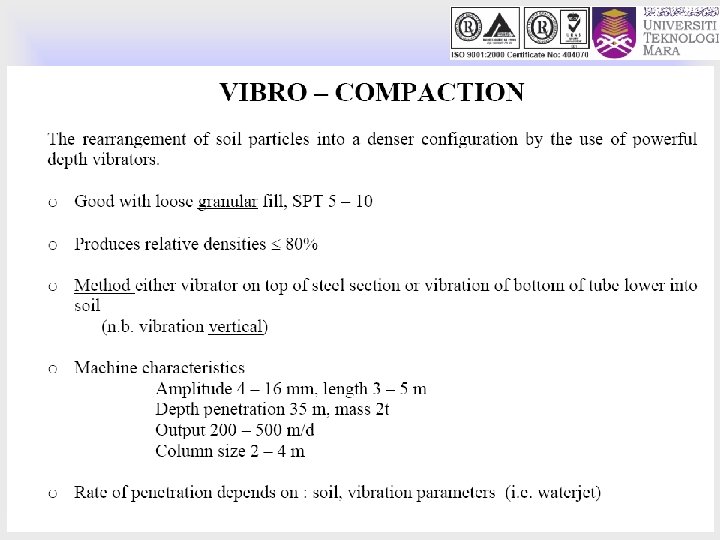

Vibroflotation Suitable for granular soils Practiced in several forms: Ø vibro–compaction Ø stone columns Ø vibro-replacement Vibroflot (vibrating unit) Length = 2 – 3 m Diameter = 0. 3 – 0. 5 m Mass = 2 tonnes (lowered into the ground and vibrated)

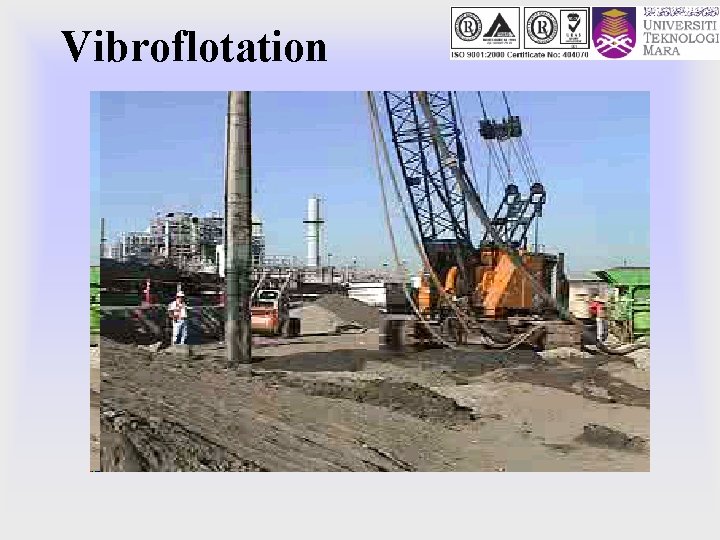

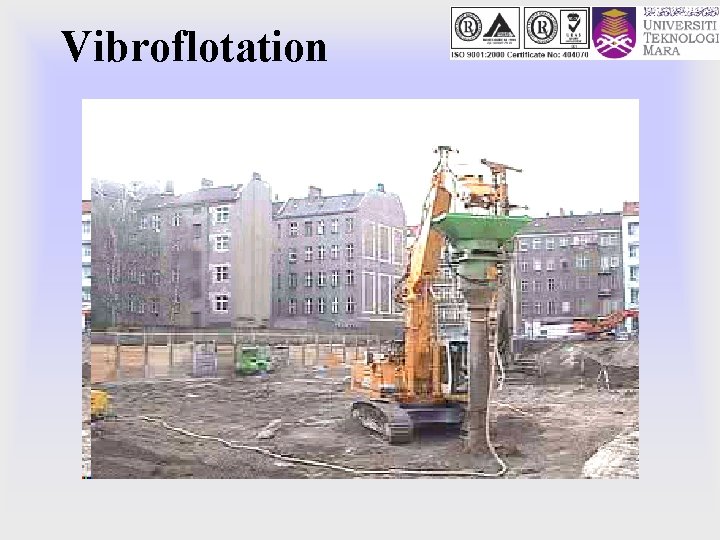

Vibroflotation

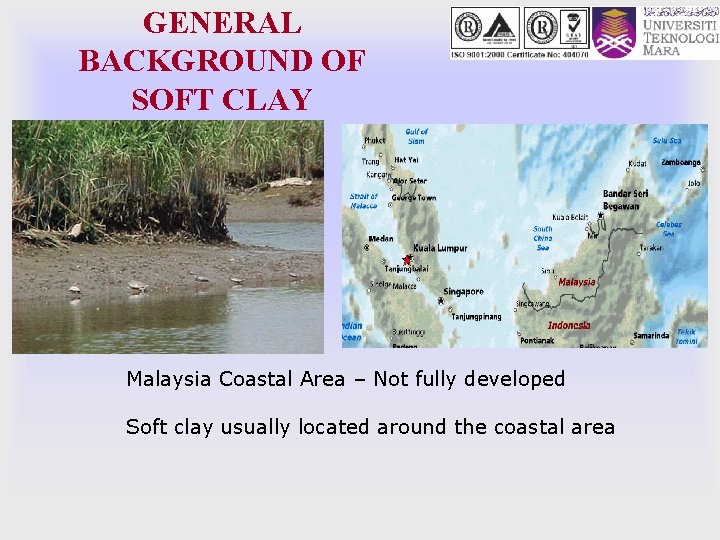

GENERAL BACKGROUND OF SOFT CLAY Malaysia Coastal Area – Not fully developed Soft clay usually located around the coastal area

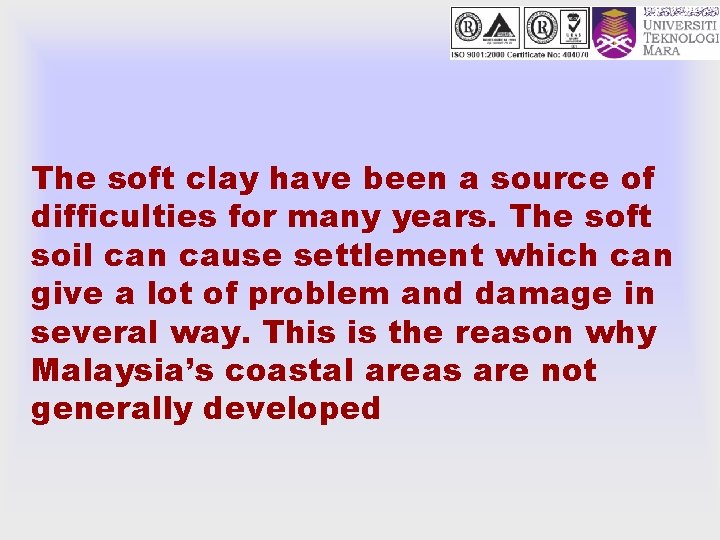

The soft clay have been a source of difficulties for many years. The soft soil can cause settlement which can give a lot of problem and damage in several way. This is the reason why Malaysia’s coastal areas are not generally developed

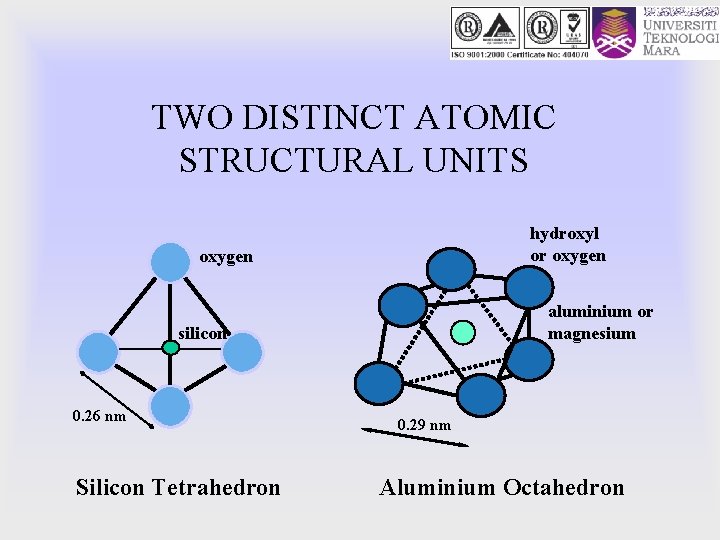

TWO DISTINCT ATOMIC STRUCTURAL UNITS hydroxyl or oxygen aluminium or magnesium silicon 0. 26 nm Silicon Tetrahedron 0. 29 nm Aluminium Octahedron

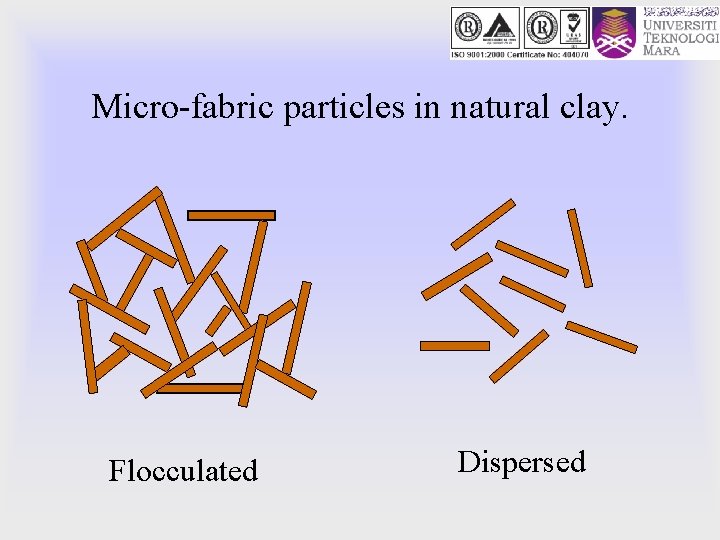

Micro-fabric particles in natural clay. Flocculated Dispersed

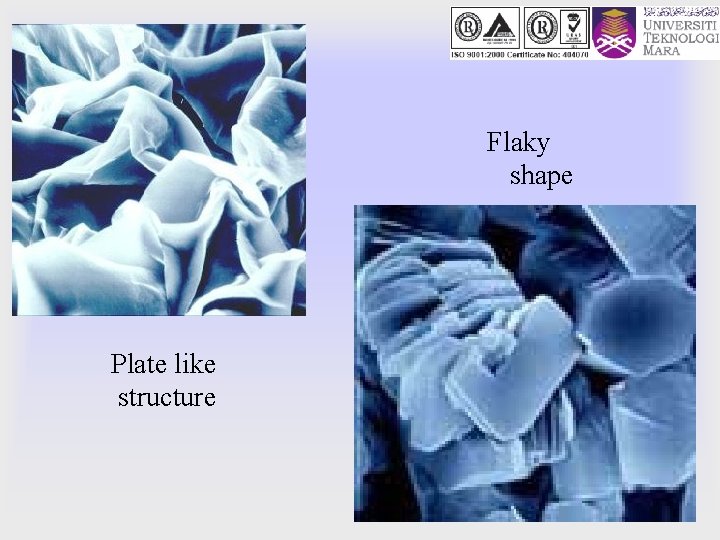

Flaky shape Plate like structure

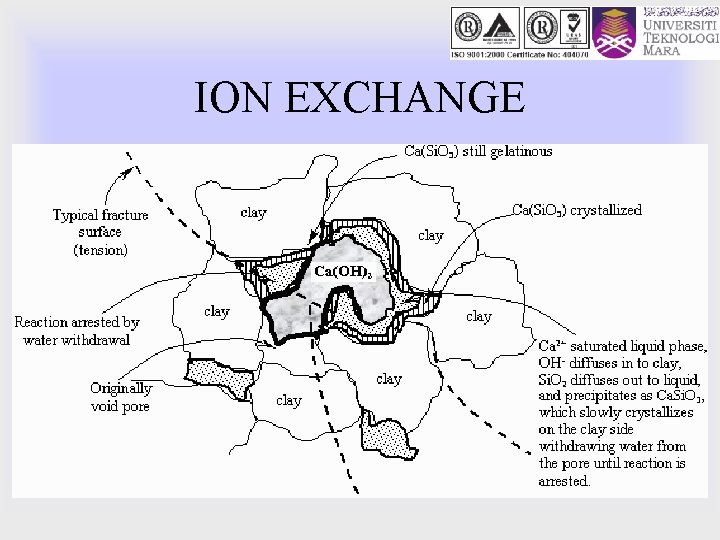

ION EXCHANGE

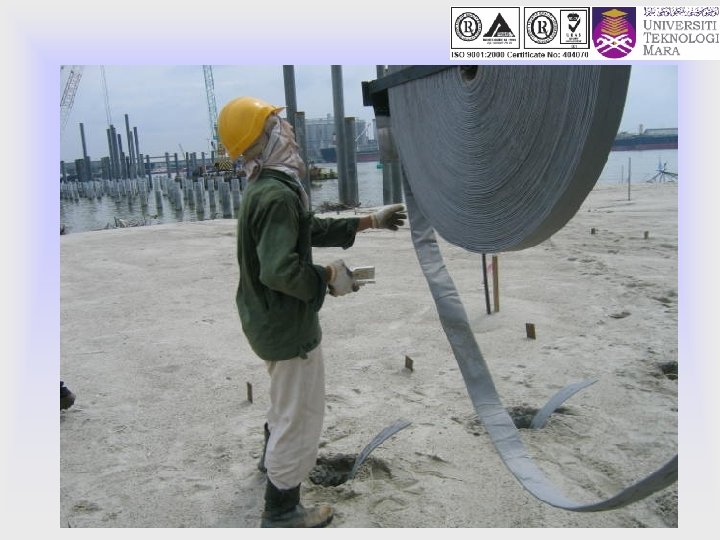

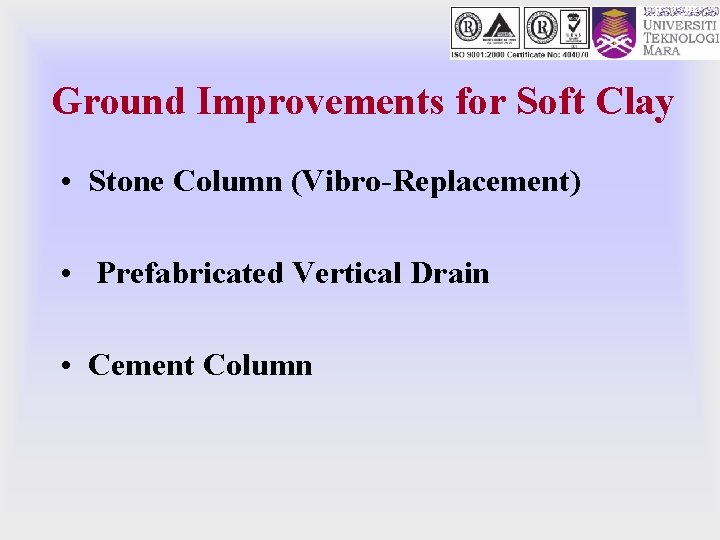

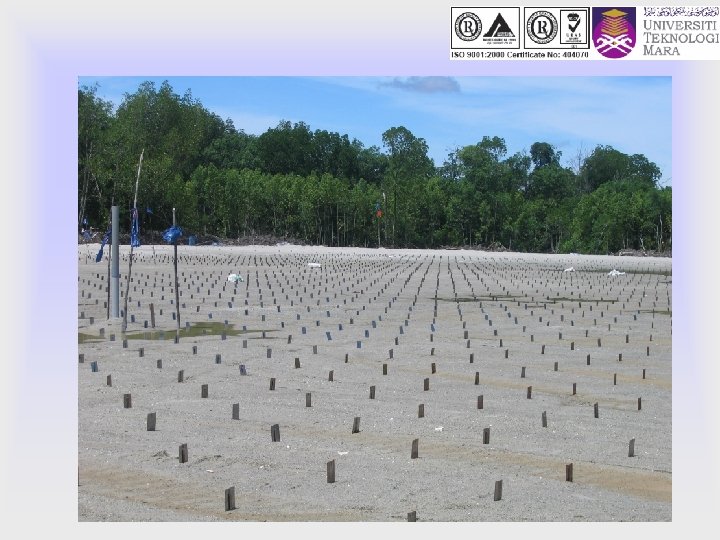

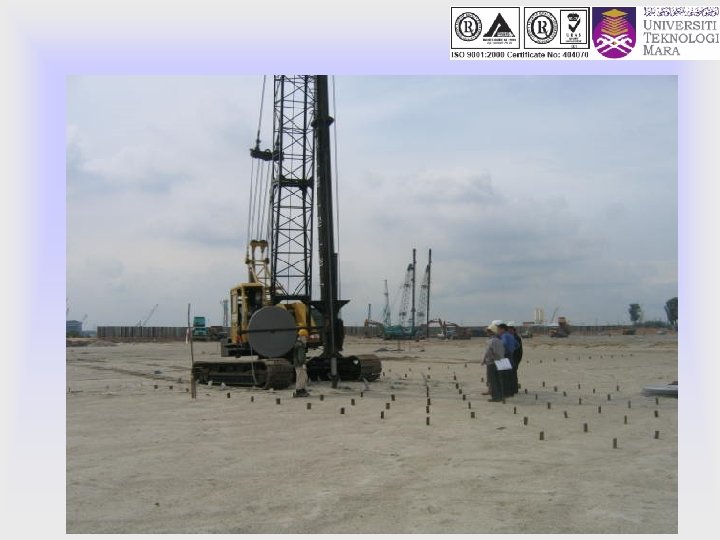

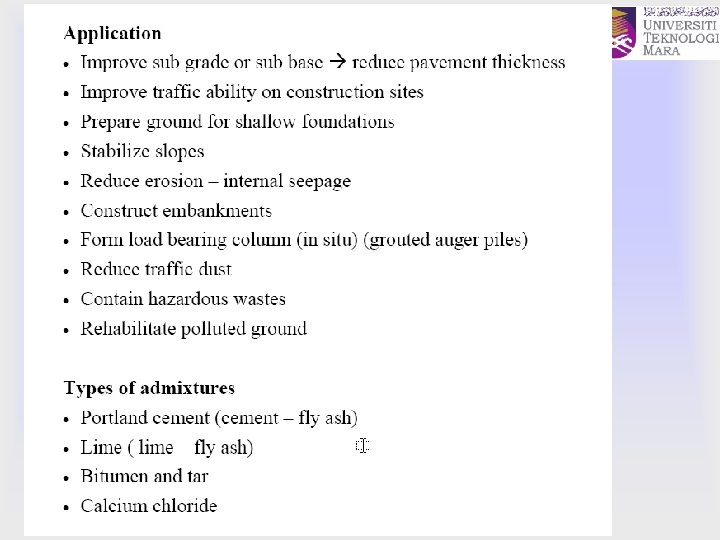

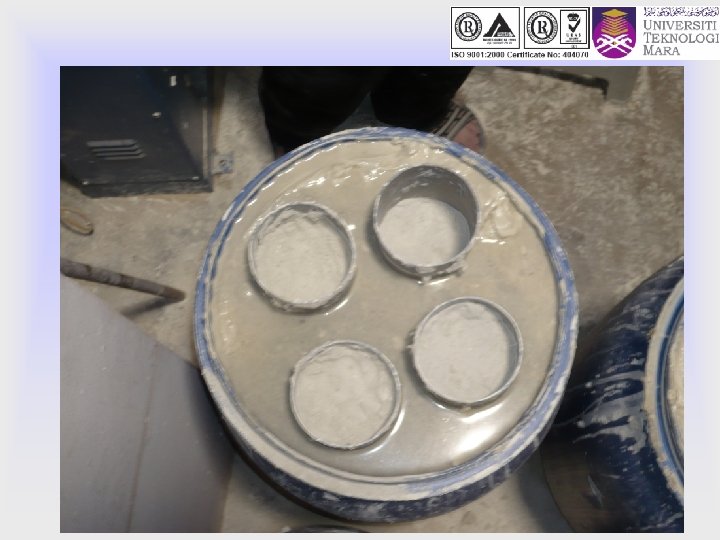

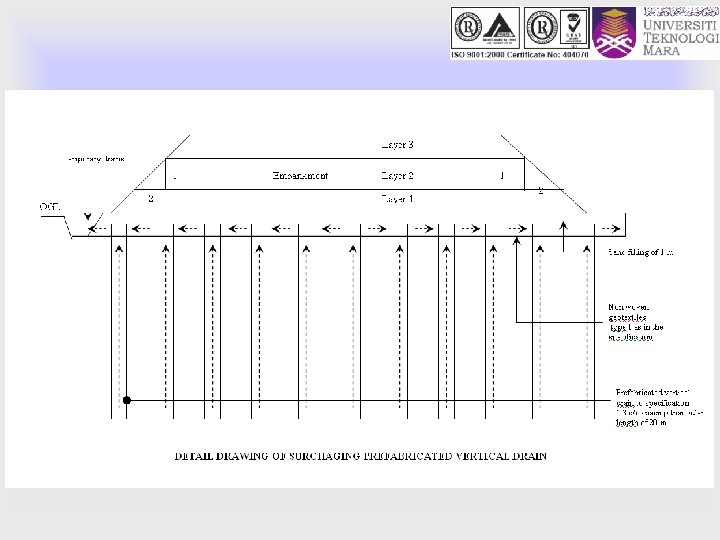

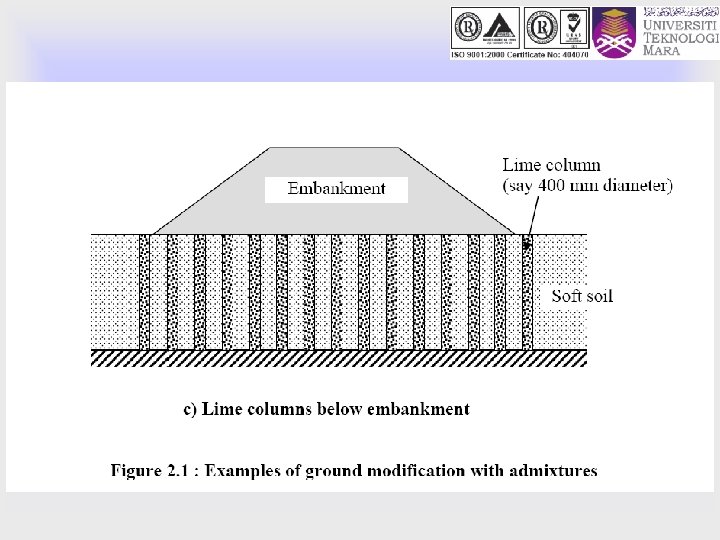

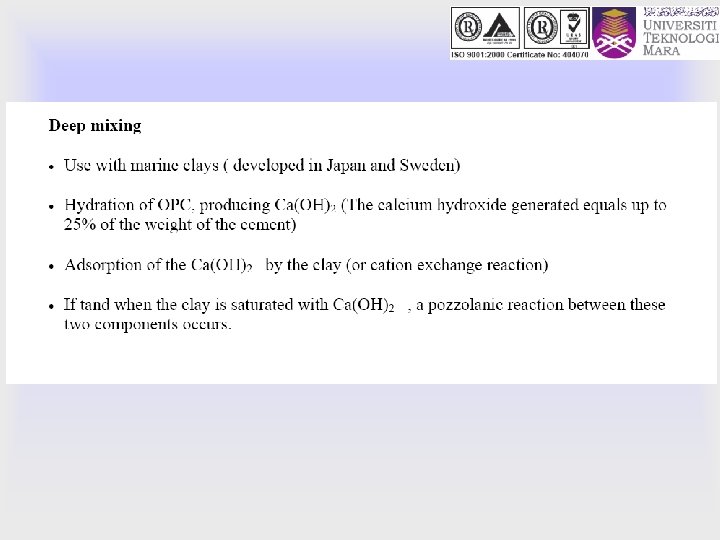

Ground Improvements for Soft Clay • Stone Column (Vibro-Replacement) • Prefabricated Vertical Drain • Cement Column

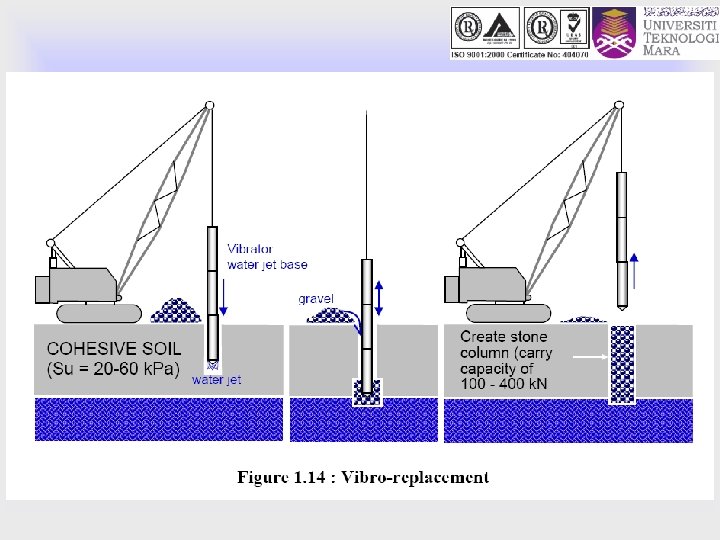

VIBRO-REPLACEMENT (STONE COLUMN)

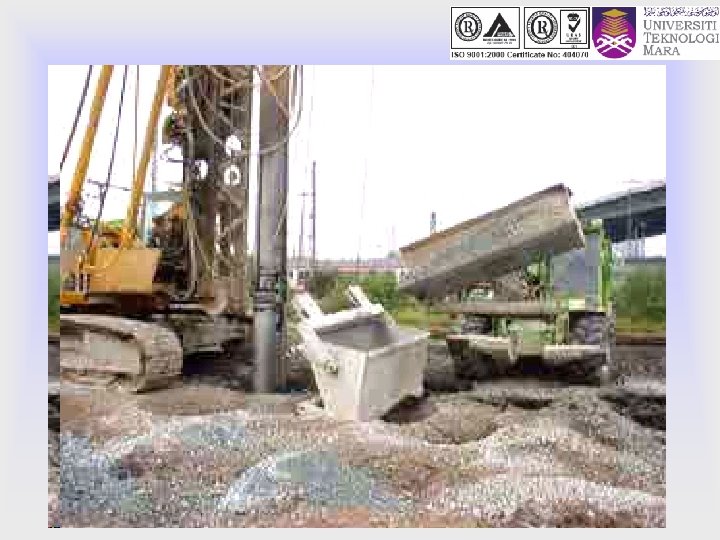

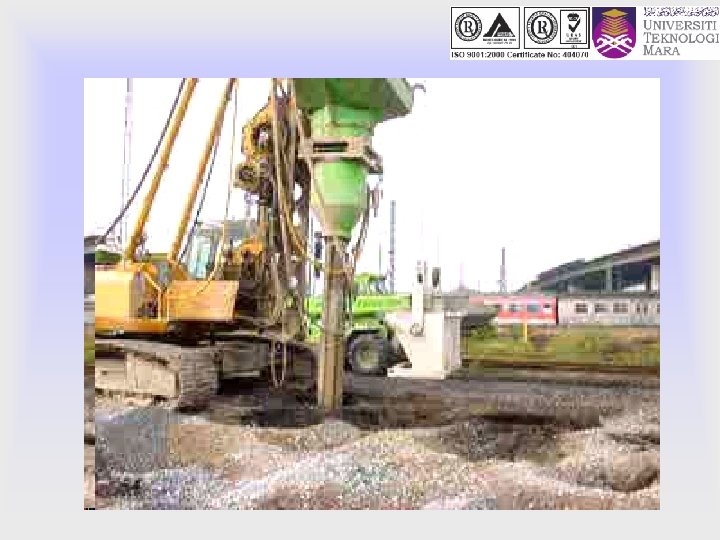

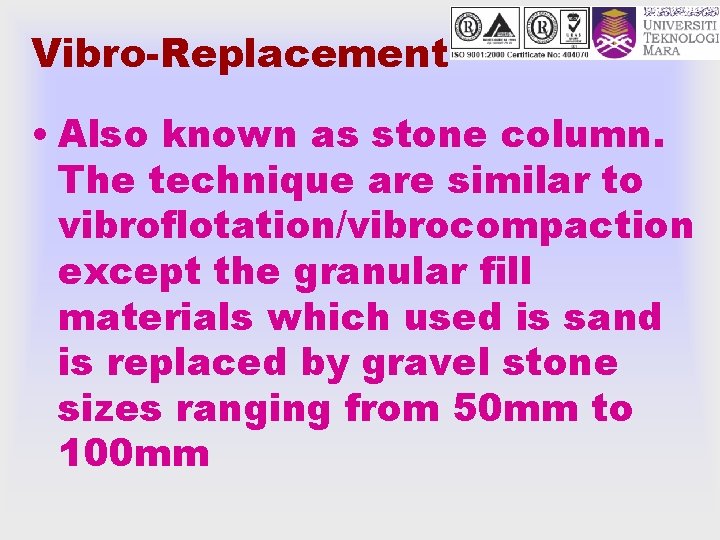

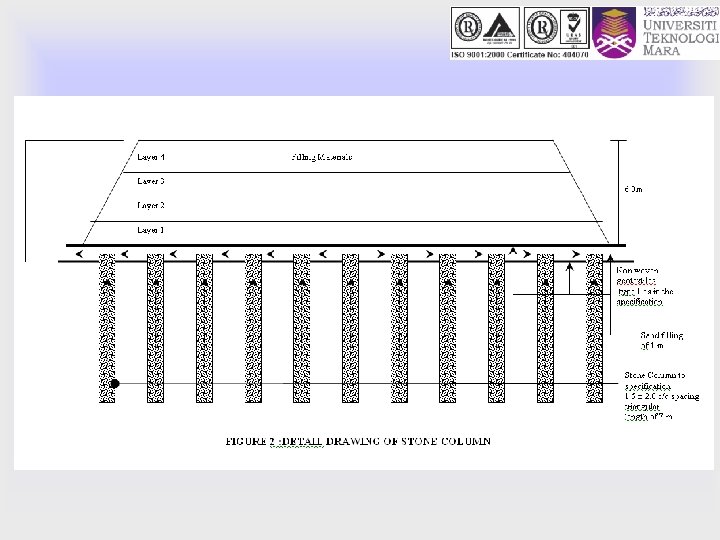

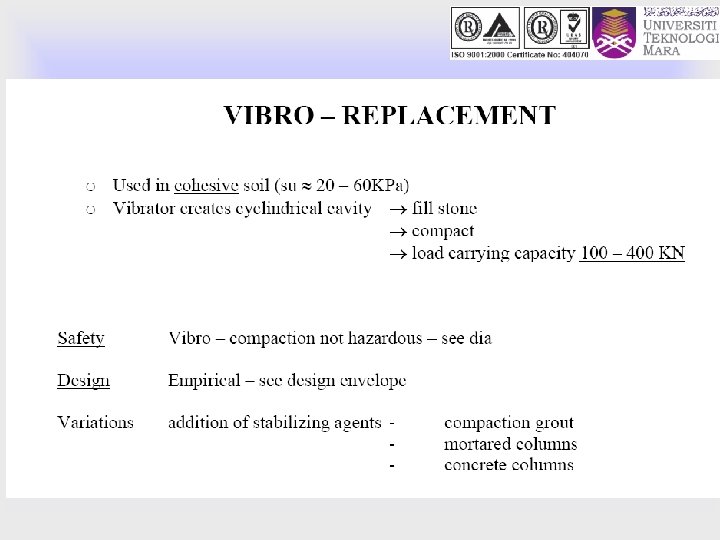

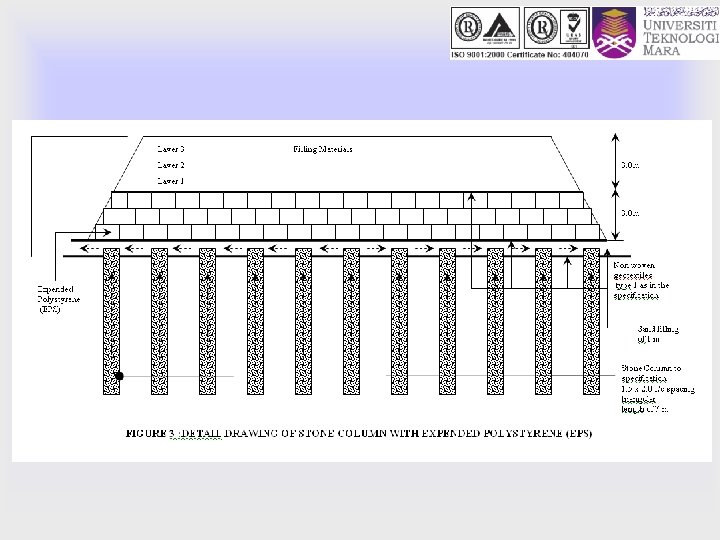

Vibro-Replacement • Also known as stone column. The technique are similar to vibroflotation/vibrocompaction except the granular fill materials which used is sand is replaced by gravel stone sizes ranging from 50 mm to 100 mm

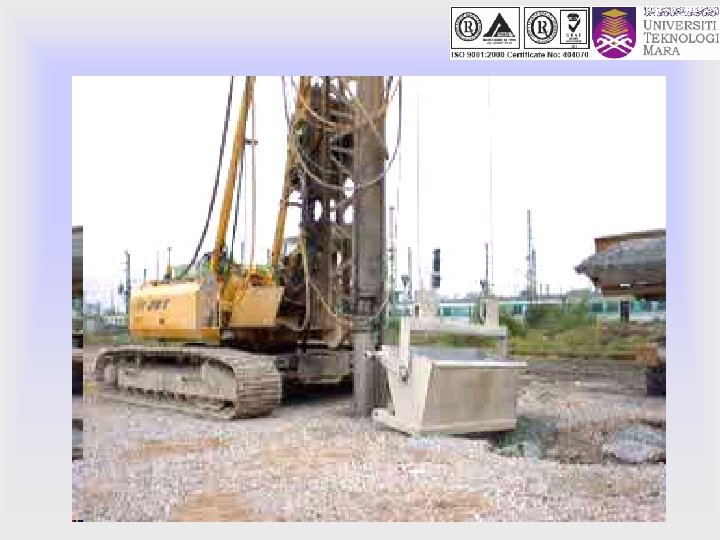

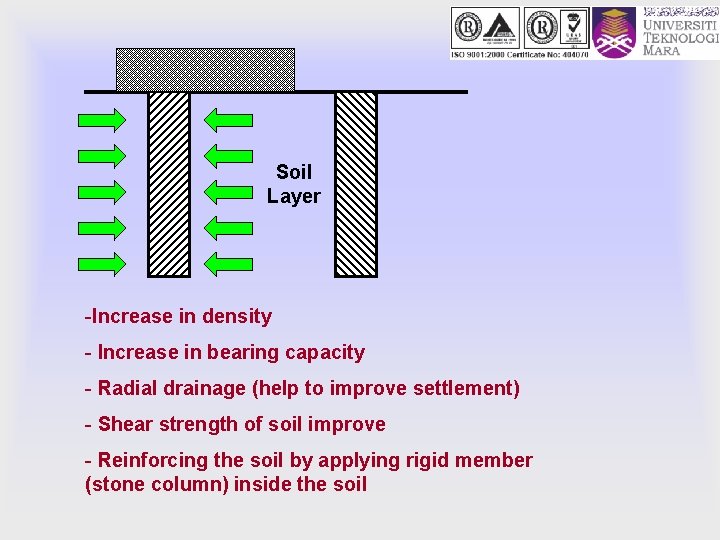

Soil Layer -Increase in density - Increase in bearing capacity - Radial drainage (help to improve settlement) - Shear strength of soil improve - Reinforcing the soil by applying rigid member (stone column) inside the soil
