Geospatial errors can cause reallife problems CS 128ES

Geospatial errors can cause real-life problems! CS 128/ES 228 - Lecture 14 a http: //www. brownsmarina. com/fun. html Data Quality Management 1

One management strategy … CS 128/ES 228 - Lecture 14 a 2

Murphy’s Law Ignoring data quality issues usually doesn’t work very well CS 128/ES 228 - Lecture 14 a 3

Some geospatial goofs CS 128/ES 228 - Lecture 14 a 4

This one’s worse… Mars Climate Orbiter (MCO) was lost on 23 Sep 1999 when it failed to enter an orbit around Mars, instead crashing into the planet, destroying the $125 million craft, part of a $328 million mission http: //www. boeing. com/companyoffices/gallery/images/s pace/d 2_mars_climate_orbiter_01. htm The root cause of the failure was a computer program that was supposed to provide its output in newton seconds (N·s) but instead provided pound-force seconds (lbf·s). http: //lamar. colostate. edu/~hillger/unit-mixups. html#mco CS 128/ES 228 - Lecture 14 a 5

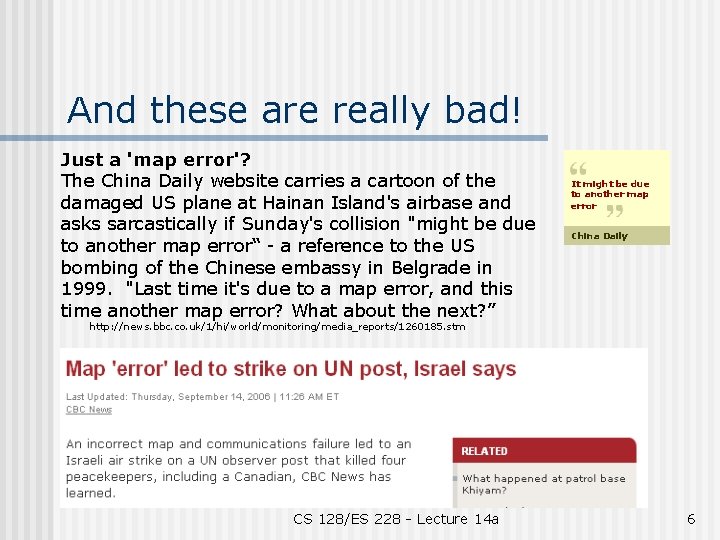

And these are really bad! Just a 'map error'? The China Daily website carries a cartoon of the damaged US plane at Hainan Island's airbase and asks sarcastically if Sunday's collision "might be due to another map error“ - a reference to the US bombing of the Chinese embassy in Belgrade in 1999. "Last time it's due to a map error, and this time another map error? What about the next? ” It might be due to another map error China Daily http: //news. bbc. co. uk/1/hi/world/monitoring/media_reports/1260185. stm CS 128/ES 228 - Lecture 14 a 6

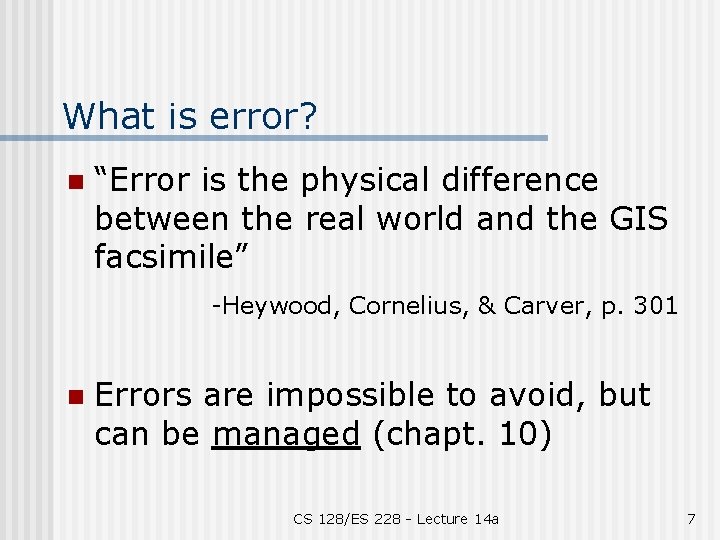

What is error? n “Error is the physical difference between the real world and the GIS facsimile” -Heywood, Cornelius, & Carver, p. 301 n Errors are impossible to avoid, but can be managed (chapt. 10) CS 128/ES 228 - Lecture 14 a 7

A Data Management Model Data acquisition Data representation & analysis Data outputs CS 128/ES 228 - Lecture 14 a 8

Data acquisition errors Scientists use the term “error” for two very different concepts: n natural variability n actual mistakes CS 128/ES 228 - Lecture 14 a 9

Take a sidewalk … Suppose its width is about 1 ¾ m. What happens if we measure the width at 3 points? a. “Error” (natural variability): measured widths= 1. 77, 1. 69, 1. 82 m b. “Error” (actual mistake): mean of the 3 measurements = 1. 67 ft How can you tell this average is wrong? CS 128/ES 228 - Lecture 14 a 10

Accuracy vs. Precision Figure 10. 1, An Introduction to Geographic Information Systems by Heywood, Cornelius, and Carver CS 128/ES 228 - Lecture 14 a 11

Random error vs. Bias CS 128/ES 228 - Lecture 14 a 12

Where does lack of precision come from? n Natural variability n Imprecise equipment n Sloppy measurement n Accumulated error CS 128/ES 228 - Lecture 14 a 13

Random error is often “normal” mean Standard deviation CS 128/ES 228 - Lecture 14 a 14

95% of observations ± 2 s. d. mean Mean + 2 s. d. CS 128/ES 228 - Lecture 14 a 15

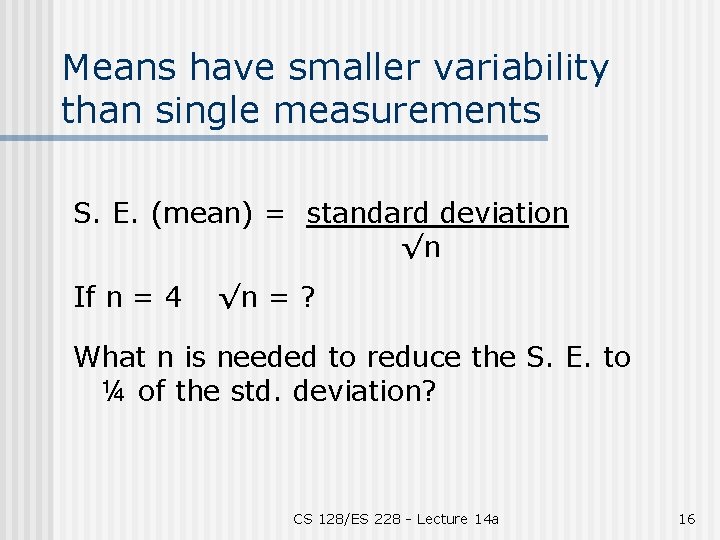

Means have smaller variability than single measurements S. E. (mean) = standard deviation √n If n = 4 √n = ? What n is needed to reduce the S. E. to ¼ of the std. deviation? CS 128/ES 228 - Lecture 14 a 16

Where does lack of accuracy come from? n Dubious source data n Incompatible source data Data collected at different times through different methods, possibly in different formats (such as datums, coordinate systems) n Bias (instrumental or operator) CS 128/ES 228 - Lecture 14 a 17

How can we fix it? n Benchmarks ex. National Geodetic Survey maintains a database of survey “monuments” at http: //www. ngs. noaa. gov/ cgi-bin/datasheet. prl http: //upload. wikimedia. org/wikipedia/commons /thumb/6/66/USCGS-E 134. jpg/617 px-USCGSE 134. jpg n Otherwise – just measure variability CS 128/ES 228 - Lecture 14 a 18

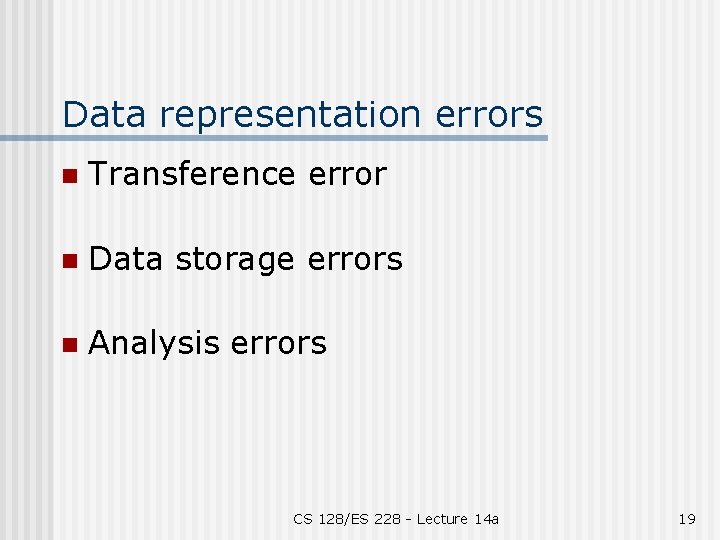

Data representation errors n Transference error n Data storage errors n Analysis errors CS 128/ES 228 - Lecture 14 a 19

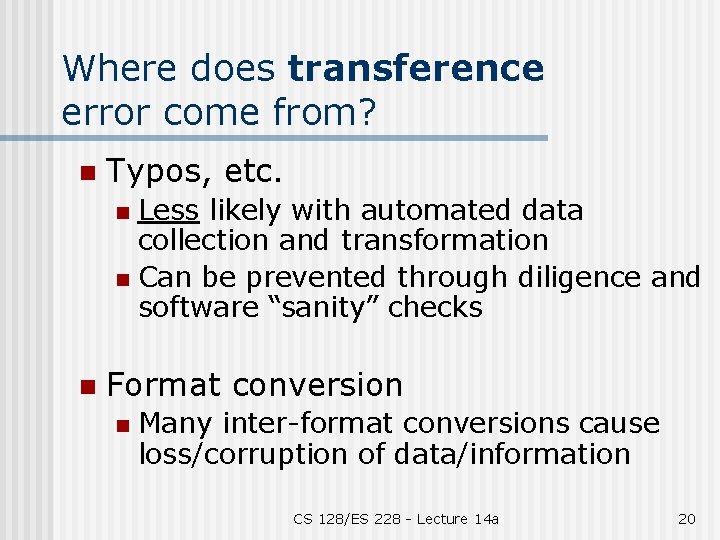

Where does transference error come from? n Typos, etc. Less likely with automated data collection and transformation n Can be prevented through diligence and software “sanity” checks n n Format conversion n Many inter-format conversions cause loss/corruption of data/information CS 128/ES 228 - Lecture 14 a 20

Data checking CS 128/ES 228 - Lecture 14 a 21

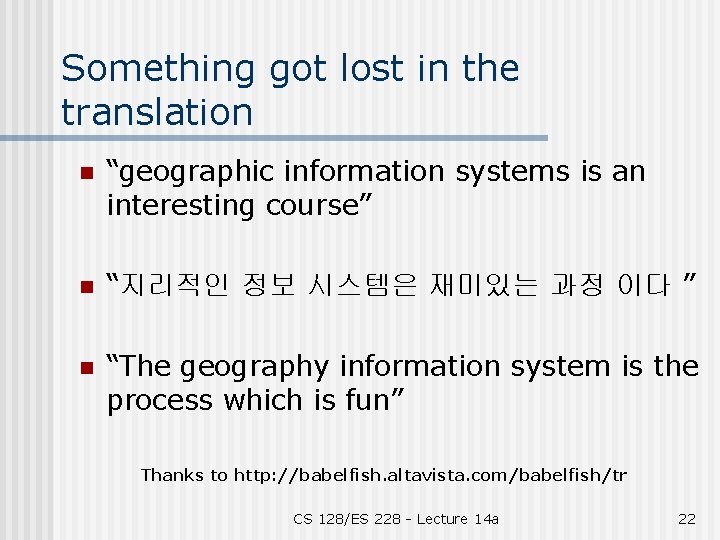

Something got lost in the translation n “geographic information systems is an interesting course” n “지리적인 정보 시스템은 재미있는 과정 이다 ” n “The geography information system is the process which is fun” Thanks to http: //babelfish. altavista. com/babelfish/tr CS 128/ES 228 - Lecture 14 a 22

Raster Vector conversions Aliasing is an intrinsic problem of GIS’s CS 128/ES 228 - Lecture 14 a 23

Digitization errors Georeferencing Raster to vector conversion CS 128/ES 228 - Lecture 14 a 24

Topology errors Figure 10. 5, An Introduction to Geographic Information Systems by Heywood, Cornelius, and Carver CS 128/ES 228 - Lecture 14 a 25

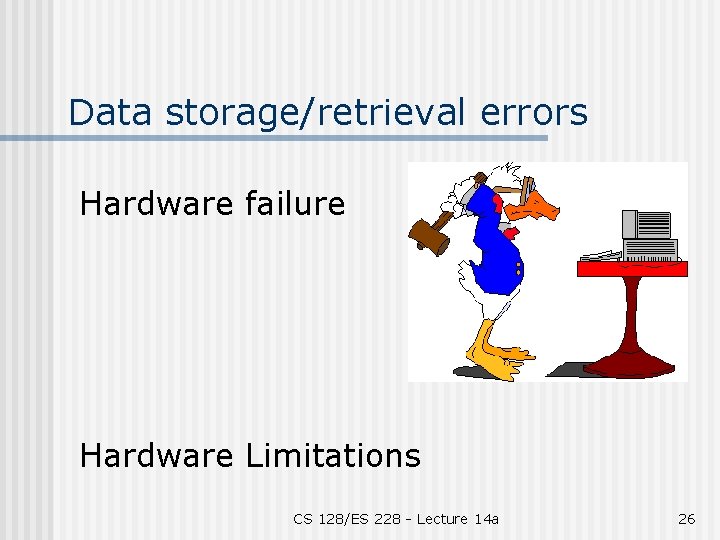

Data storage/retrieval errors Hardware failure Hardware Limitations CS 128/ES 228 - Lecture 14 a 26

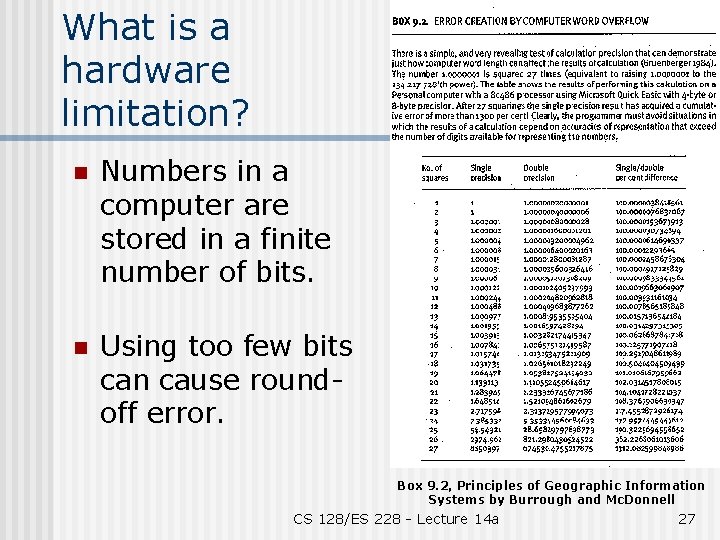

What is a hardware limitation? n Numbers in a computer are stored in a finite number of bits. n Using too few bits can cause roundoff error. Box 9. 2, Principles of Geographic Information Systems by Burrough and Mc. Donnell CS 128/ES 228 - Lecture 14 a 27

Where do errors of data rot come from? n Link rot Not Found The requested URL /cs/dlevine/ was not found on this server. Apache/1. 3. 27 Server at www. xxx. edu Port 80 n Poor “style” n E. g. “Employees may appeal to Sr. Carney” as opposed to “Employees may appeal to the President of the University” CS 128/ES 228 - Lecture 14 a 28

Where do errors of analysis come from? How long do you have? … n Mistaken queries n Analyzing layers with different datums or coordinate systems n Comparing attributes with incompatible units CS 128/ES 228 - Lecture 14 a 29

More errors of analysis … n Inappropriate resolution n Combining rasters/vectors with different resolutions n Using exact/abrupt surface fits when approx. /gradual is appropriate (or vice versa) CS 128/ES 228 - Lecture 14 a 30

Data output errors n Maps n Reports CS 128/ES 228 - Lecture 14 a 31

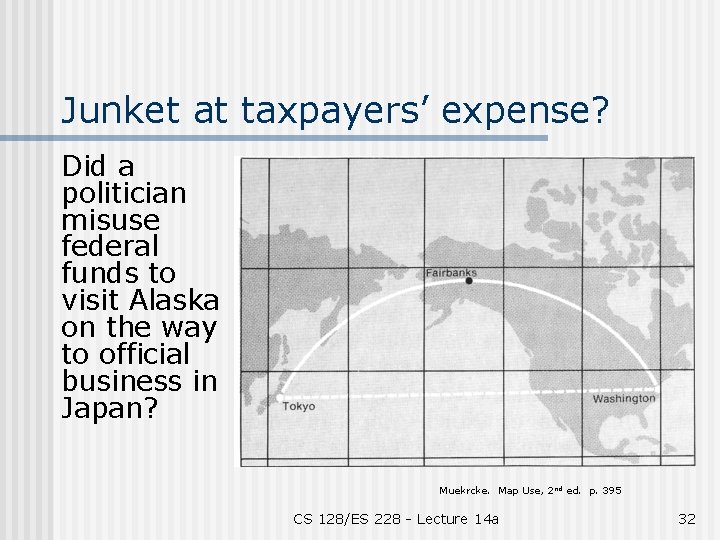

Junket at taxpayers’ expense? Did a politician misuse federal funds to visit Alaska on the way to official business in Japan? Muekrcke. Map Use, 2 nd ed. p. 395 CS 128/ES 228 - Lecture 14 a 32

No - Intentional map error* *More like lying with maps! Muekrcke. Map Use, 2 nd ed. p. 395 CS 128/ES 228 - Lecture 14 a 33

Should maps be as accurate as possible? n Map simplification n Features are omitted n Area features become lines or points n Exaggeration n Features’ apparent size is “increased” (e. g. hydrants) n Features’ separation is increased on the map for visibility Must Mapquest be accurate? CS 128/ES 228 - Lecture 14 a 34

Reporting significance of findings n What does the term “significant” mean to scientists? n Hypothesis testing CS 128/ES 228 - Lecture 14 a 35

Are two means really different? http: //www. steve. gb. com/science/statistics. html#t These two normal distributions have a very large overlap. The means of the two populations are not significantly different, because the overlap is > 5% of the area under the curves. t would be very small. CS 128/ES 228 - Lecture 14 a 36

http: //www. steve. gb. com/science/statistics. html#t What about these two means? CS 128/ES 228 - Lecture 14 a 37

http: //www. steve. gb. com/science/statistics. html#t These means are also significantly different - why? CS 128/ES 228 - Lecture 14 a 38

How do we actually test for statistical differences? Student’s t-test t= difference in means measure of variability CS 128/ES 228 - Lecture 14 a 39

Three Commandments of Data Reporting Thou Shalt Not … I. Report insignificant digits (or omit significant trailing zeros) II. Report means without also reporting sample sizes and variability III. Report results as “significant” (or even worth talking about) without doing the appropriate statistical tests. CS 128/ES 228 - Lecture 14 a 40
