Agenda GEA Co. P WG Overview – Brenda Smith Geospatial Profile Outline – Brenda Smith FEA DRM Overview – Andy Hoskinson Discussion – All Geo. DRM: Draft Outline – Kurt Buehler Geospatial Enterprise Architecture Community of Practice Working Group 2

GEA Co. P WG Overview: Purpose Encourage communication between participants Examine and promote awareness of current EA practices Leverage successful EA work to advance the development of the Geospatial Profile Identify and pursue opportunities to validate the Geospatial Profile best practices Identify opportunities to leverage investments Geospatial Enterprise Architecture Community of Practice Working Group 3

GEA Co. P WG Overview: Scope The development and advancement of a national Geospatial Profile for enterprise architecture Establishing a cross-cutting guidance document useful to all levels of government To compliment the work of the OMB in advancing the FEA Geospatial Enterprise Architecture Community of Practice Working Group 4

GEA Co. P WG Overview: Responsibility Build common terminology, concepts, and scope of efforts Creating an efficient inter-organizational EA approach with a geospatial perspective Solicit, synthesize, and promote existing geospatial EA Map existing geospatial concepts, standards, and practices into EA Reference Models Validate the Geospatial Profile through inter-org. use cases Assure reporting of activities, deliverables, issues and recommendations to all Working Group participants Geospatial Enterprise Architecture Community of Practice Working Group 5

Geospatial Profile Outline Introduction n n n Background Scope Audience Existing policy and drivers (legislation, exec orders, . . . ) Objectives Geospatial Basics n n n Cross-cutting nature of geospatial Common Scenario Terminology Geospatial Capabilities in the FEA Reference Models n How geospatial interacts with the various RMs Geospatial Enterprise Architecture Community of Practice Working Group n n n Business Reference Model Performance Reference Model Service Reference Model Technical Reference Model Data Reference Model Relationship to other FEA profiles Application of this Profile n n Common scenario and related use cases Examples Appendix A: References Appendix B: Acronym List Appendix C: Terminology (Glossary) 6

Geospatial Enterprise Architecture Community of Practice Working Group FEA DRM Overview Andy Hoskinson

Geospatial Enterprise Architecture Community of Practice Working Group Discussion 1. FEA DRM/NSDI Interoperability and Integration Methodology 2. FEA DRM Schema

1. FEA DRM/NSDI Interoperability and Integration Methodology Option 1: Single Pointer to NSDI n One DRM Registry record that points to NSDI Catalog Option 2: Agency Holdings Referenced by DRM n DRM Registry records point to NSDI records FEA DRM Context Extract could be a harvest that invokes XSL transform on the NSDI metadata record NSDI Context DRM Registry DRM Record Contains an extract of the NSDI metadata record NSDI Catalog Geospatial Enterprise Architecture Community of Practice Working Group Metadata Record Data 9

2. FEA DRM Schema Discussion (1) drm: Geospatial. Enabled n n “A boolean flag indicating whether or not a particular data asset supports or provides Geospatial data. ” What does this mean? What requirement(s) does this element address? w “This is geospatial data” w “This data be portrayed geospatially” w Other ddms: geospatial. Coverage n n “Geographic place names or coordinates that relate to the resource, such as a jurisdiction, point, area, or volume on land, in space, or at sea. This element can contain either a Facility element or Place element, but not both. This element is reused from the Department of Defense (Do. D) Discovery Metadata Specification (DDMS) v. 1. 2. ” Can be associated with either Resource, Data. Asset, or Exchange. Package w Resource: “Encapsulates a single "page view" of unstructured or semi-structured data, referenceable via a URI. This element aggregates numerous sub-elements, mostly metadata tags reused from the Dublin Core 1. 1 set. ” w Data. Asset: “An aggregated, managed container. A database, system, application, or other electronic entity that produces and/or houses data. ” w Exchange. Package: “A description of a specific information exchange between organizations. ” n What are the semantics of these associations and where is this described? What requirement(s) does this element address? Geospatial Enterprise Architecture Community of Practice Working Group 10

2. FEA DRM Schema Discussion (2) ISO 19115/19139 has concepts of: n Extent—contains information about the geographic, temporal, and the vertical extent of the referring entity. w The geographic extent can be a bounding polygon, a bounding box, or a geographic description w Geographic description is mean to refer to named places according to some authority (such as a gazetteer) n Address—found within the contact information of the responsible party (can be individual or organizational) Geospatial Enterprise Architecture Community of Practice Working Group 11

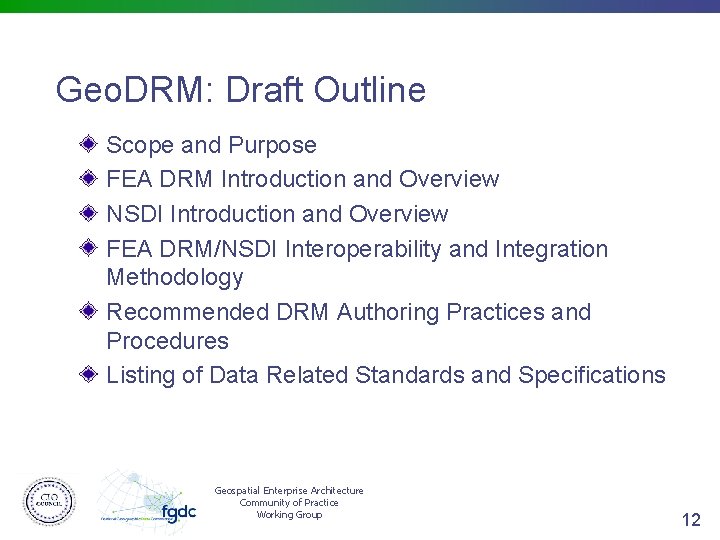

Geo. DRM: Draft Outline Scope and Purpose FEA DRM Introduction and Overview NSDI Introduction and Overview FEA DRM/NSDI Interoperability and Integration Methodology Recommended DRM Authoring Practices and Procedures Listing of Data Related Standards and Specifications Geospatial Enterprise Architecture Community of Practice Working Group 12

Geo. DRM: Draft Outline Scope and Purpose Guidance to EA authors regarding geospatial data Purpose to align with FEA DRM while retaining the effort of the geospatial community over many years Geospatial Enterprise Architecture Community of Practice Working Group 13

Geo. DRM: Draft Outline FEA DRM Introduction and Overview Context Discovery Exchange Geospatial Enterprise Architecture Community of Practice Working Group 14

Geo. DRM: Draft Outline NSDI Introduction and Overview Content Standard for Digital Geospatial Metadata n n ISO 19115 ISO 19139 Geospatial-One Stop Portal n n n ISO 23950 CSW 2. 0 (as related to data) WMS/WFS/WCS (as related to data) Framework Content Standards Geospatial Enterprise Architecture Community of Practice Working Group 15

Geo. DRM: Draft Outline FEA DRM/NSDI Interoperability and Integration Methodology Single Pointer to Geospatial One Stop Agency Holdings Referenced by FGDC Metadata Geospatial Enterprise Architecture Community of Practice Working Group 16

Geo. DRM: Draft Outline Recommended DRM Authoring Practices and Procedures TBD Content Geospatial Enterprise Architecture Community of Practice Working Group 17

Geo. DRM: Draft Outline Listing of Data Related Standards and Specifications The listing should be complete with information in support of decision-making. We must help EA authors decide which standards to reference and supplying a list with descriptions and recommended use statements will help tremendously. Content Standards/Specifications Exchange Standards/Specifications Encodings and Format Standards/Specifications Geospatial Enterprise Architecture Community of Practice Working Group 18
