George Martin Brake Retrofit A detailed walkthrough of
George Martin Brake Retrofit A detailed walkthrough of how Montalvo upgrades the capabilities of your George Martin machine with a retrofit to Montalvo V Brakes
The George Martin Low Profile Brake & Cover The unique requirements of George Martin Corrugating Machines mean high performance brakes and covers in limited spaces. Montalvo’s George Martin V Brake Retrofit package accounts for this.
Drill and tap hole for anti-rotation stud Anti-rotation stud tap
Attach anti-rotation stud Anti-Rotation Stud
Attach V Series Spider Plate in line with keyway and anti-rotation stud The Montalvo V Series Spider Plate comes ready to install. Simply slide onto shaft when ready.

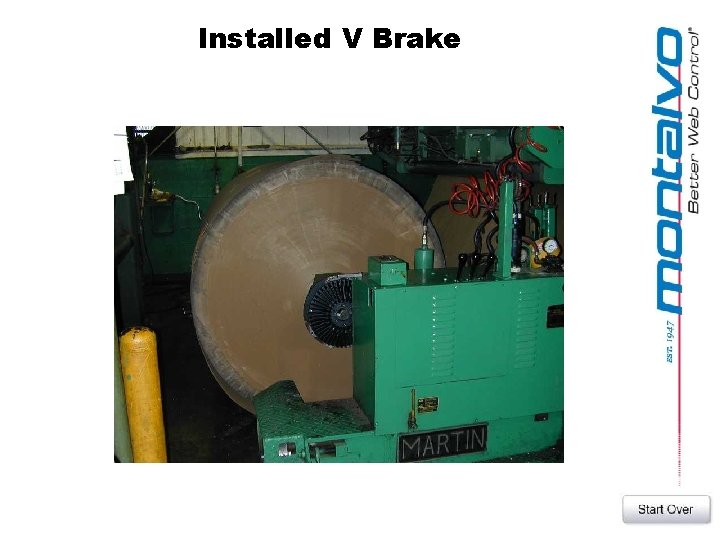

Installed V Brake
Perform additional cut on machine floor to account for the new brake and pad changes.
Finally, attach cover the V Brake
Note, brake assembly just clears machine frame Snap-out, snap-in, tool-less brake pad changes make maintenance fast and easy regardless of space
V Series Brakes Highlights • Engineered to fit on most any roll stand • Optional Fan Cover for optimum cooling • High Thermal Capacity Disc Design • Compact Overall Size to eliminate nip points • Wide Torque Range for optimum tension control during splices • Patented “No-Tools” Easy Friction Pad Maintenance System • Long Friction Pad Life • Very low maintenance required • Backed by Worldwide Customer Support
