Geometry Services for ISO 10303 – STEP standards linking product definition, management and visualization in the value chain Jean Brangé : Jean. brange@boost-conseil. com Project leader ISO_NP TS 23301 April. 24 th 2018 STEP Geometry Services Kick. Off

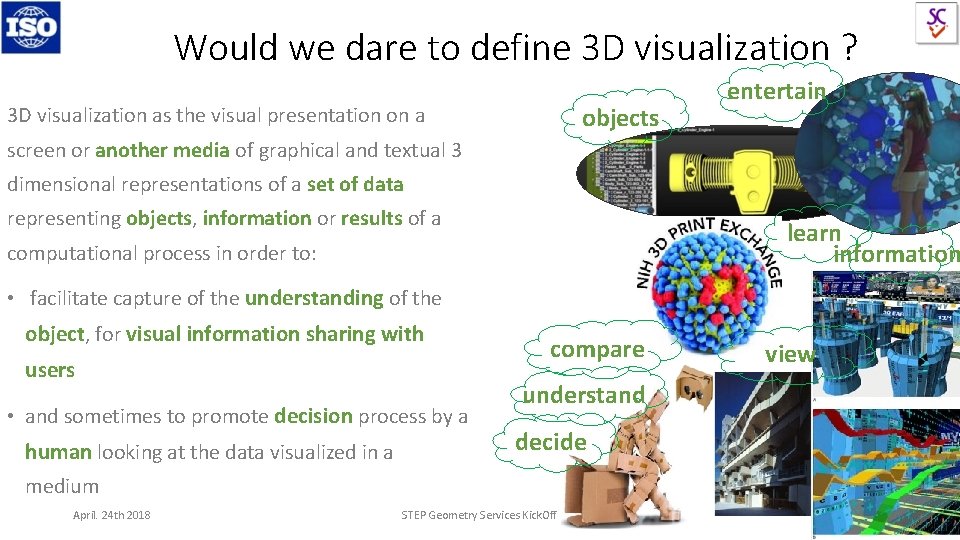

Would we dare to define 3 D visualization ? objects 3 D visualization as the visual presentation on a entertain screen or another media of graphical and textual 3 dimensional representations of a set of data representing objects, information or results of a learn information computational process in order to: • facilitate capture of the understanding of the object, for visual information sharing with users • and sometimes to promote decision process by a human looking at the data visualized in a compare understand decide medium April. 24 th 2018 STEP Geometry Services Kick. Off view

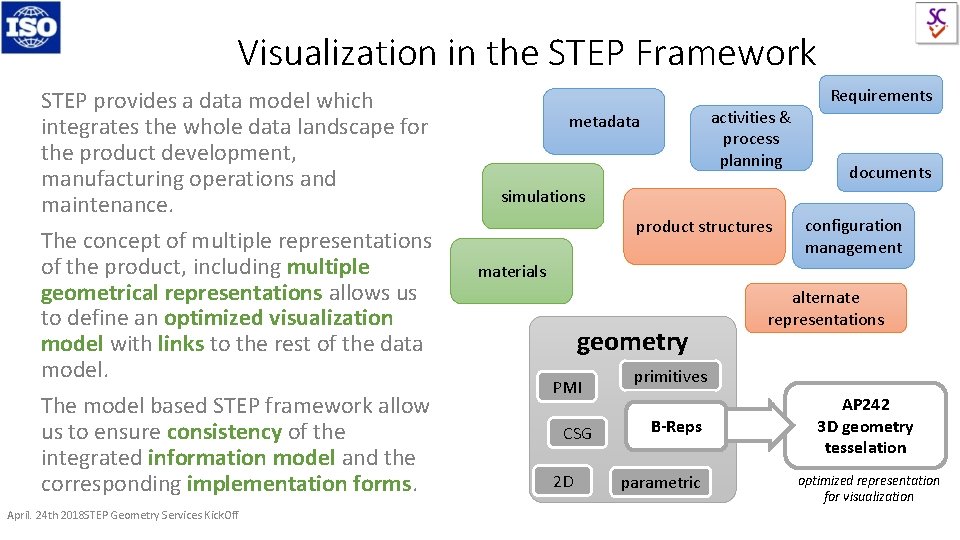

Visualization in the STEP Framework STEP provides a data model which integrates the whole data landscape for the product development, manufacturing operations and maintenance. The concept of multiple representations of the product, including multiple geometrical representations allows us to define an optimized visualization model with links to the rest of the data model. The model based STEP framework allow us to ensure consistency of the integrated information model and the corresponding implementation forms. April. 24 th 2018 STEP Geometry Services Kick. Off activities & process planning metadata Requirements documents simulations product structures configuration management materials geometry PMI CSG 2 D alternate representations primitives B-Reps parametric AP 242 3 D geometry tesselation optimized representation for visualization

Analysis • Promoting the re-use of the rich integrated STEP data model in the enterprise processes has great value • There is a confirmed opportunity for industry to have a structured approach on 3 D product visualisation and to enable integration of product data in visualization application across the life cycle of the product in all the activities of the enterprise. • Use cases exist related with the visualization of product data other that geometry (meta data, production data, financial data. . . ) • Need for STEP interfaces for geometry and other STEP data access (OSLC ? MOSSEC approach? ) • There is also a need for a simple STEP geometry schema and associated API , with and without PMI (integration with STEP New Architecture ? ) • Requirements for a STEP AP 242 geometry conformance classes using the STEP New Architecture April. 24 th 2018 STEP Geometry Services Kick. Off

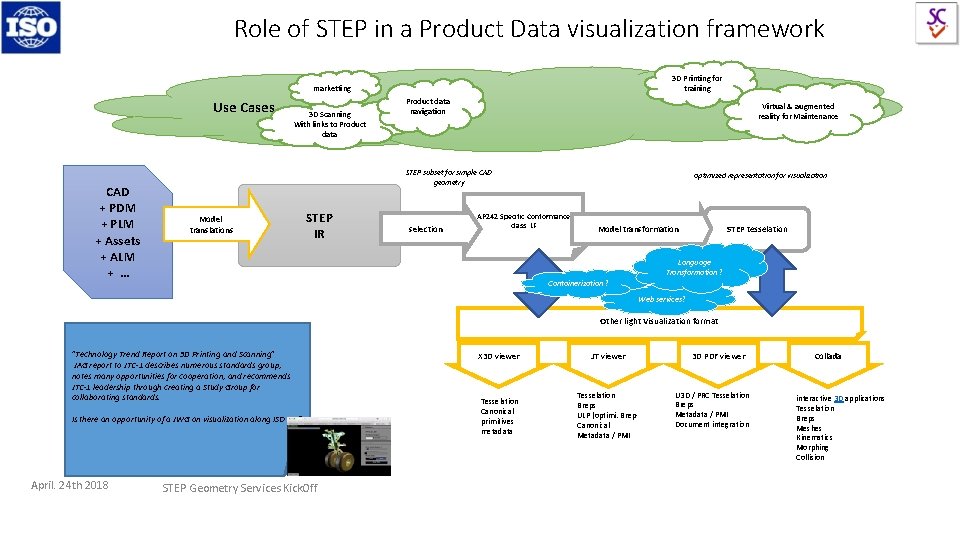

Role of STEP in a Product Data visualization framework 3 D Printing for training marketting Use Cases CAD + PDM + PLM + Assets + ALM + … 3 D Scanning With links to Product data navigation Virtual & augmented reality for Maintenance STEP subset for simple CAD geometry Model translations STEP IR selection optimized representation for visualization AP 242 Specific Conformance class LF Model transformation STEP tesselation Language Transformation ? Containerization ? Web services? Other light Visualization format "Technology Trend Report on 3 D Printing and Scanning" JAG report to JTC-1 describes numerous standards group, notes many opportunities for cooperation, and recommends JTC-1 leadership through creating a Study Group for collaborating standards. Is there an opportunity of a JWG on visualization along ISO TC ? April. 24 th 2018 STEP Geometry Services Kick. Off X 3 D viewer JT viewer Tesselation Canonical primitives metadata Tesselation Breps ULP (optimi. Brep. Canonical Metadata / PMI 3 D PDF viewer U 3 D / PRC Tesselation Breps Metadata / PMI Document integration Collada interactive 3 D applications Tesselation Breps Meshes Kinematics Morphing Collision

3 D PDF & STEP Next version of ISO 32000 (-3? ) PDF will include a container for STEP geometry The strong liaisons between TC 184/SC 4 and TC 171/SC 2 is making this activity much easier. Ad Hoc group has delivered a report on how to integrate STEP into PDF. TC 171/SC 2 will contribute to the SC 4/WG 16 work. April. 24 th 2018 STEP Geometry Services Kick. Off

Proposed workplan T 0+6 1 T 0+12 T 0+18 T 0+30 T 0+36 IS DIS Ballot CD Ballot T 0+24 2 3 4 WD DIS Ballot SC 4 Beijing US SE FR JT 1. 2. 3. 4. CD Ballot IS CD Ballot Produce an minimal STEP geometry schema for Brep only extracted from 2013 243 schema (specific AP Brep) [6 months] Develop a reference implementation of an SDAI for the AP Brep with an in-memory data [18 months] Specify a Dublin Core for CAD (mandatory properties to qualify a geometric model) [12 Months] Specify a set of services definitions (signatures) to query the above model [12 months] April. 24 th 2018 STEP Geometry Services Kick. Off
