Geometry

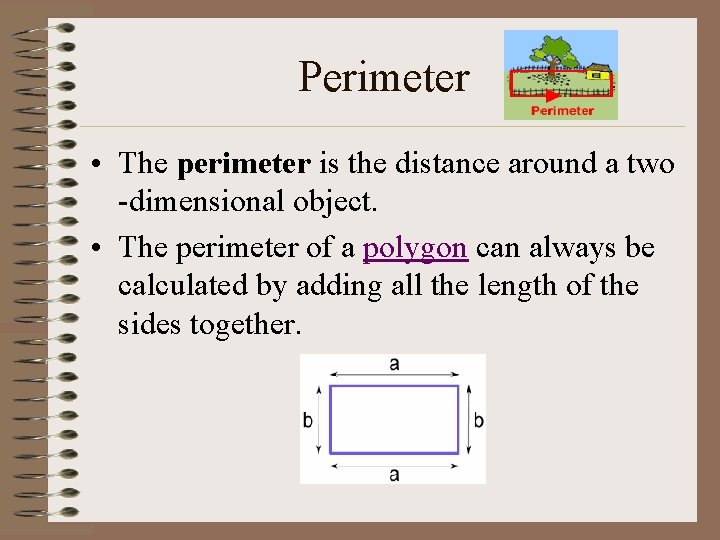

Perimeter • The perimeter is the distance around a two -dimensional object. • The perimeter of a polygon can always be calculated by adding all the length of the sides together.

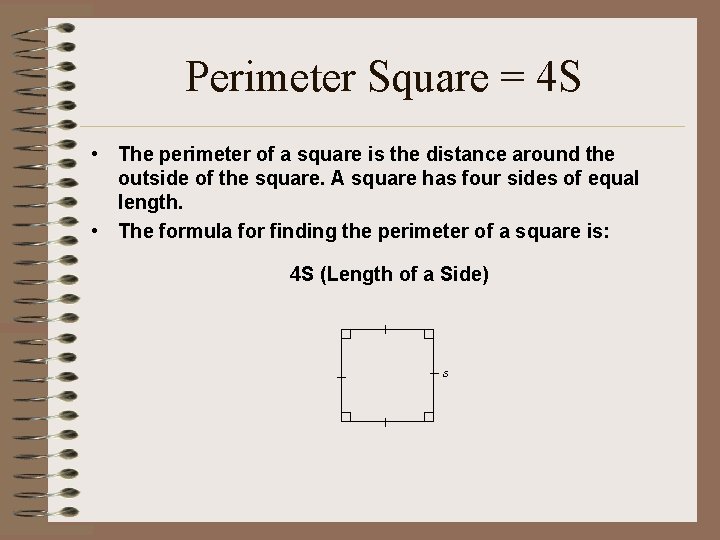

Perimeter Square = 4 S • The perimeter of a square is the distance around the outside of the square. A square has four sides of equal length. • The formula for finding the perimeter of a square is: 4 S (Length of a Side)

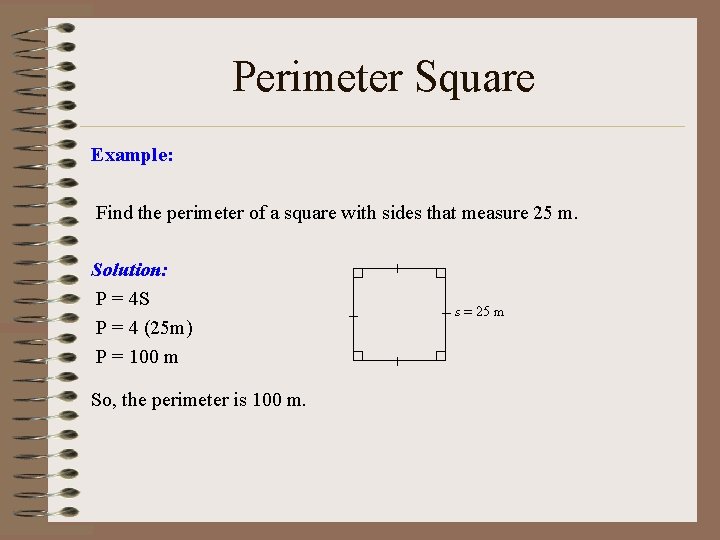

Perimeter Square Example: Find the perimeter of a square with sides that measure 25 m. Solution: P = 4 S P = 4 (25 m) P = 100 m So, the perimeter is 100 m.

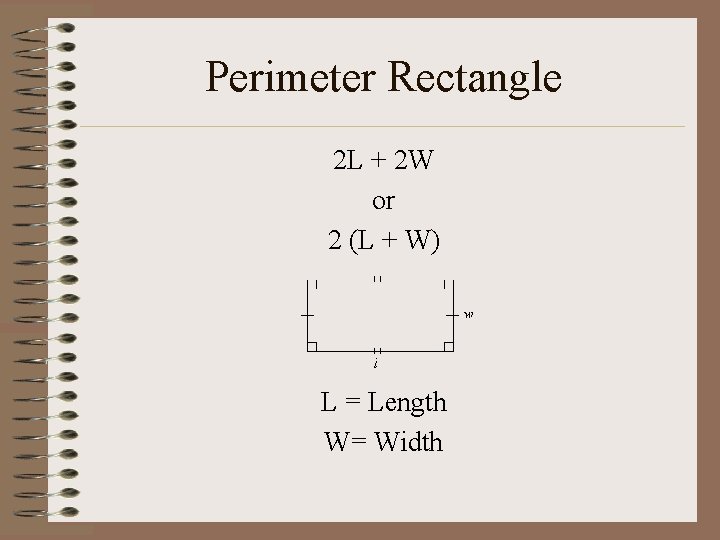

Perimeter Rectangle 2 L + 2 W or 2 (L + W) L = Length W= Width

Perimeter Rectangle Example: Find the perimeter of a rectangular field of length 45 m and width 35 m. Solution: P = 2 (L + W) P = 2 (45 + 35) P = 2 (80) P = 160 So, the perimeter is 160 m.

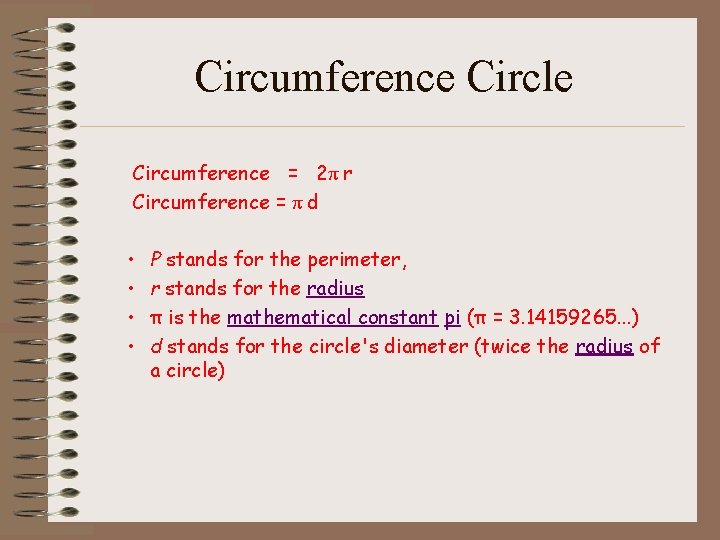

Circumference Circle Circumference = 2π r Circumference = π d • • P stands for the perimeter, r stands for the radius π is the mathematical constant pi (π = 3. 14159265. . . ) d stands for the circle's diameter (twice the radius of a circle)

Circumference Circle

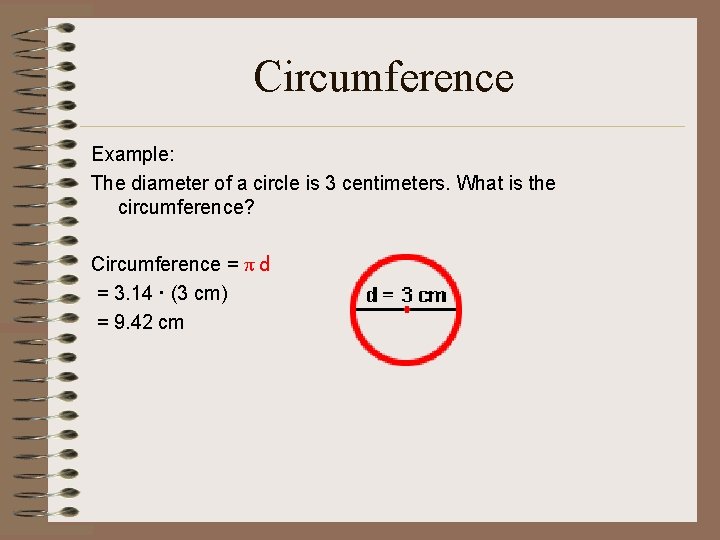

Circumference Example: The diameter of a circle is 3 centimeters. What is the circumference? Circumference = π d = 3. 14 · (3 cm) = 9. 42 cm

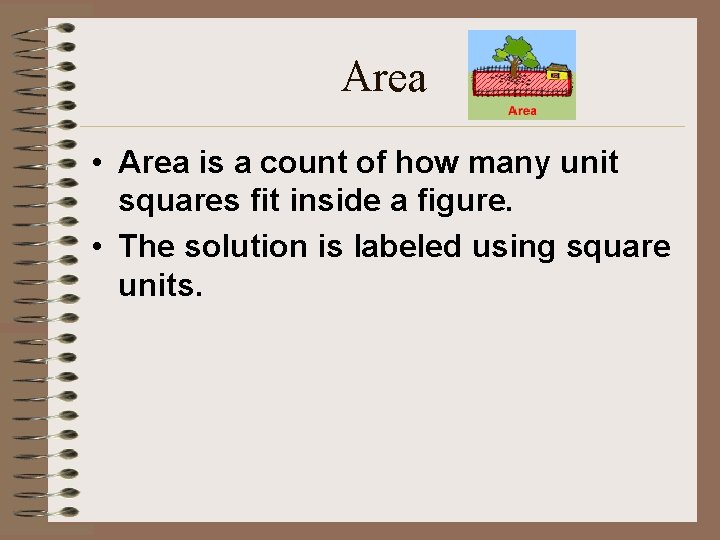

Area • Area is a count of how many unit squares fit inside a figure. • The solution is labeled using square units.

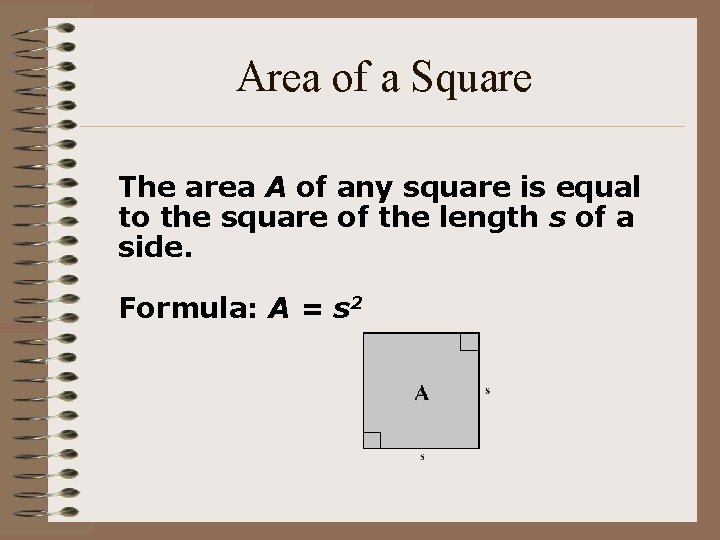

Area of a Square The area A of any square is equal to the square of the length s of a side. Formula: A = s 2

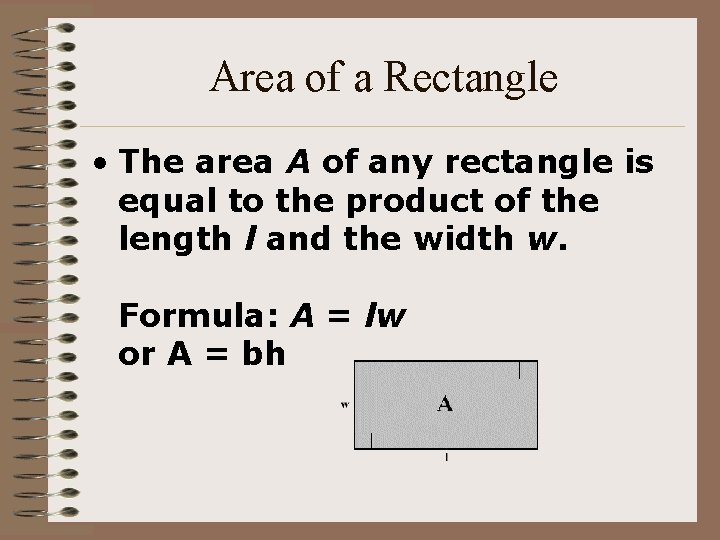

Area of a Rectangle • The area A of any rectangle is equal to the product of the length l and the width w. Formula: A = lw or A = bh

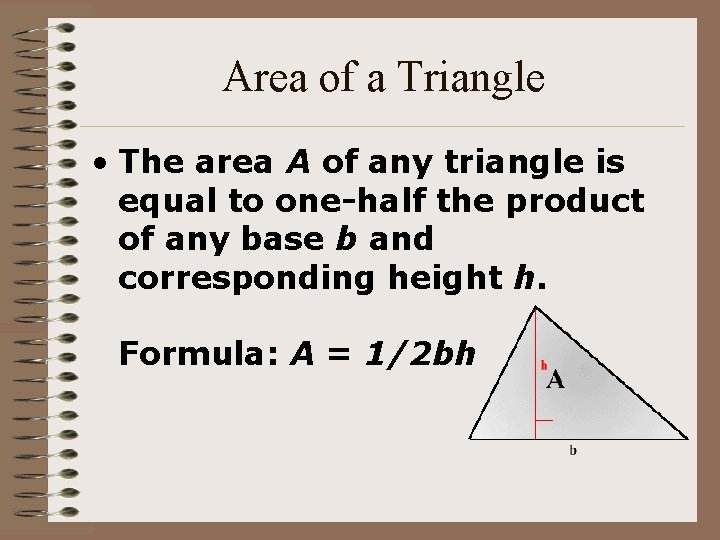

Area of a Triangle • The area A of any triangle is equal to one-half the product of any base b and corresponding height h. Formula: A = 1/2 bh

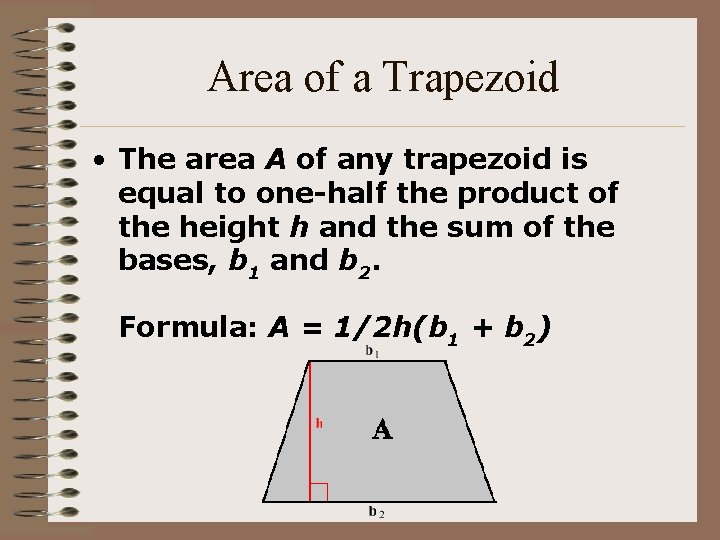

Area of a Trapezoid • The area A of any trapezoid is equal to one-half the product of the height h and the sum of the bases, b 1 and b 2. Formula: A = 1/2 h(b 1 + b 2)

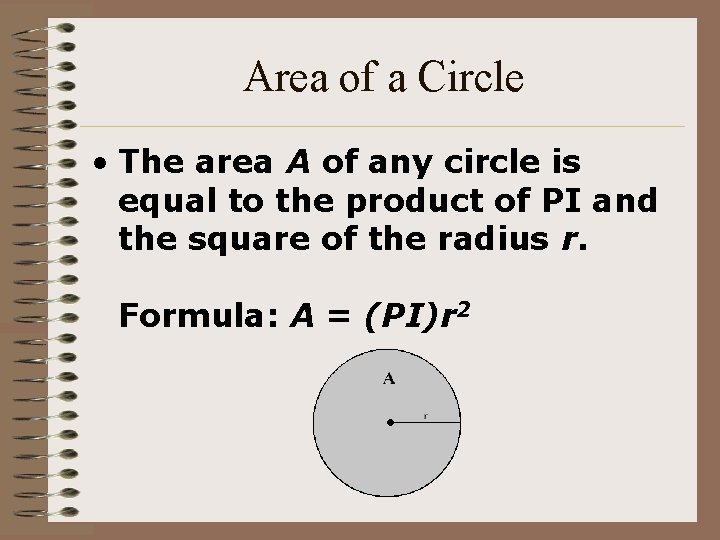

Area of a Circle • The area A of any circle is equal to the product of PI and the square of the radius r. Formula: A = (PI)r 2
