Geometry Lesson 8 – 4 Trigonometry Objective: Find trigonometric ratios using right triangles. Use trigonometric ratios to find angle measures in right triangles.

Trigonometry Comes from two Greek terms: trigon – meaning triangle l metron – meaning measure l

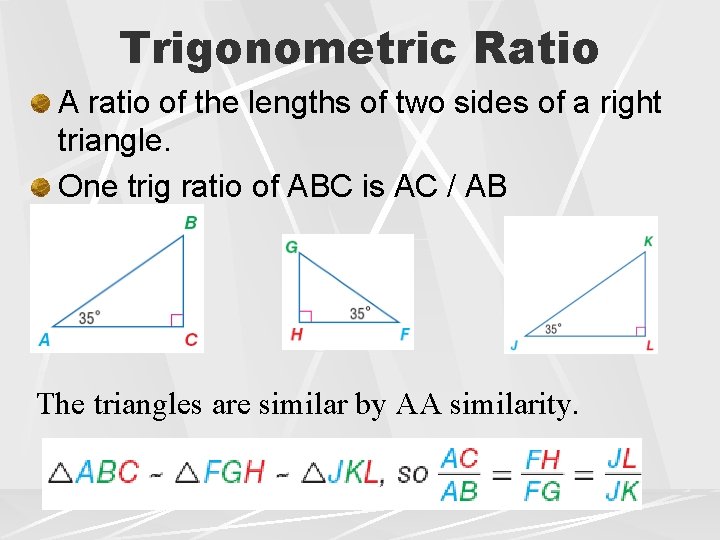

Trigonometric Ratio A ratio of the lengths of two sides of a right triangle. One trig ratio of ABC is AC / AB The triangles are similar by AA similarity.

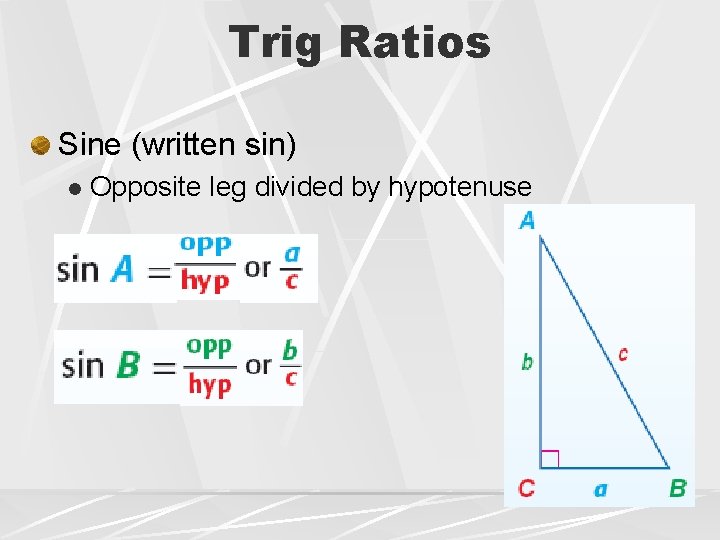

Trig Ratios Sine (written sin) l Opposite leg divided by hypotenuse

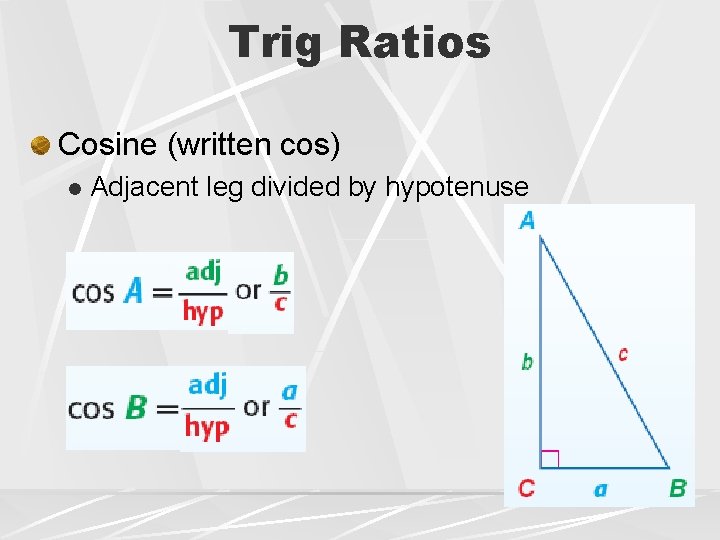

Trig Ratios Cosine (written cos) l Adjacent leg divided by hypotenuse

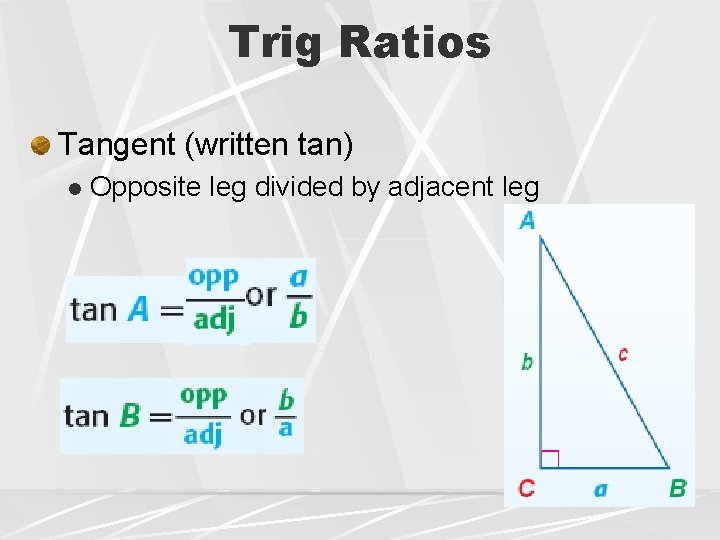

Trig Ratios Tangent (written tan) l Opposite leg divided by adjacent leg

$Express each ratio as a fraction and as a decimal to the nearest hundredth.$

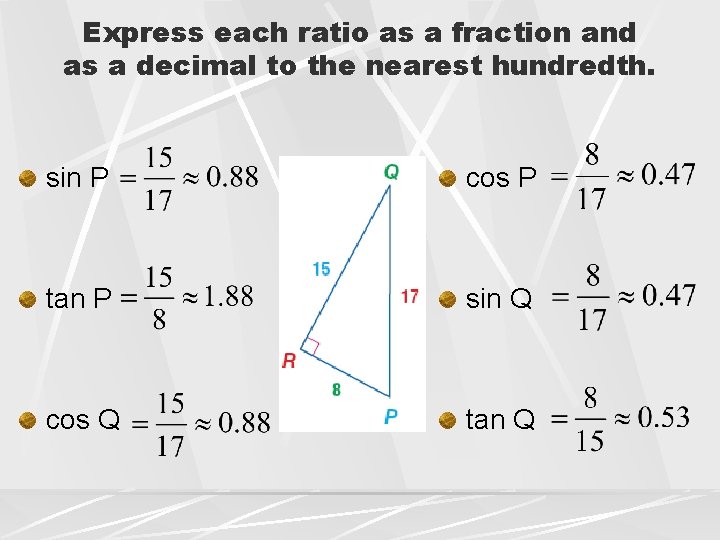

Express each ratio as a fraction and as a decimal to the nearest hundredth. sin P cos P tan P sin Q cos Q tan Q

$Express each ratio as a fraction and as a decimal to the nearest hundredth.$

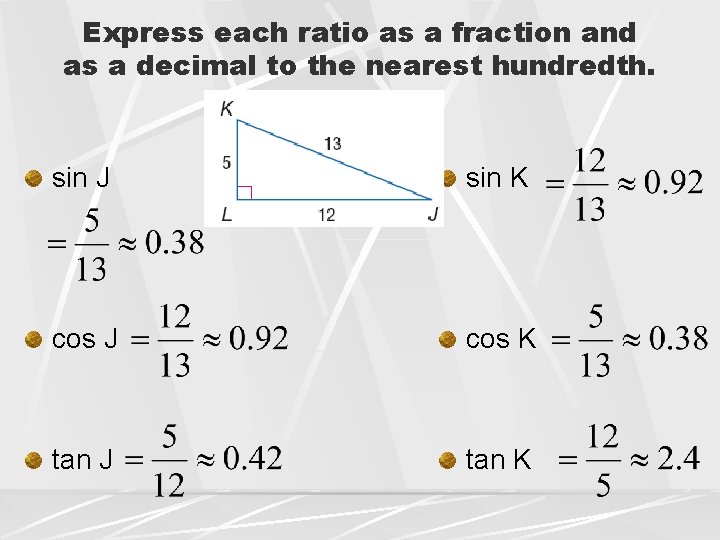

Express each ratio as a fraction and as a decimal to the nearest hundredth. sin J sin K cos J cos K tan J tan K

$Use special right triangles to express the tangent of 30 o as a fraction$

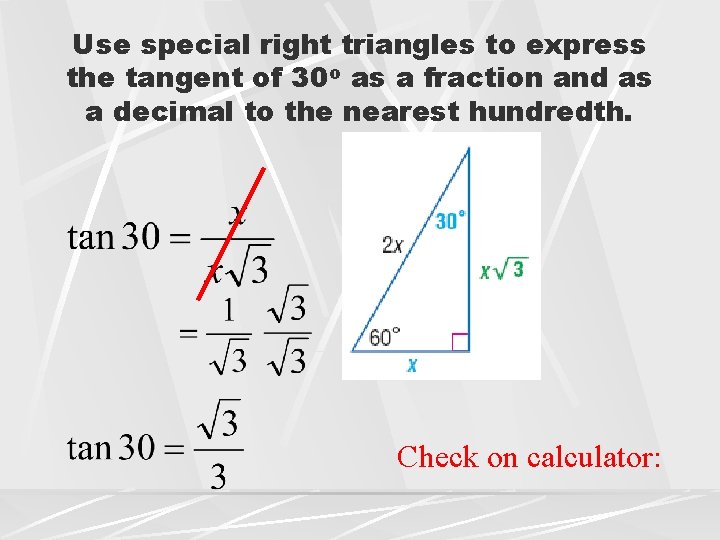

Use special right triangles to express the tangent of 30 o as a fraction and as a decimal to the nearest hundredth. Check on calculator:

$Use special right triangles to express the cosine of 45 o as a fraction$

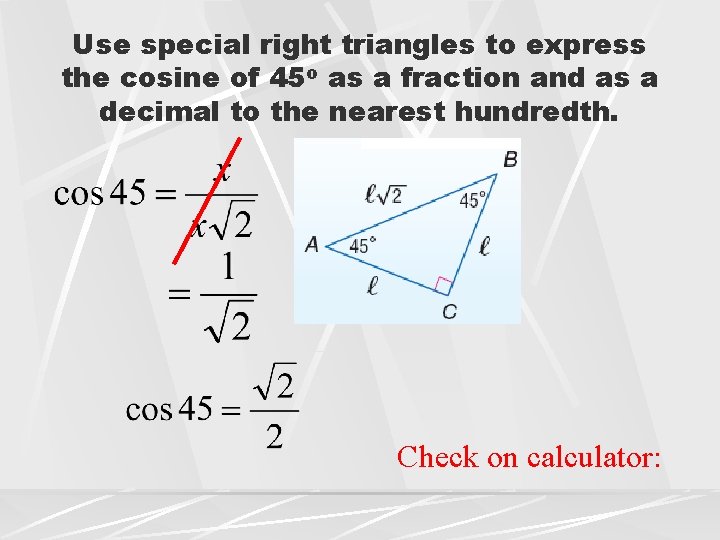

Use special right triangles to express the cosine of 45 o as a fraction and as a decimal to the nearest hundredth. Check on calculator:

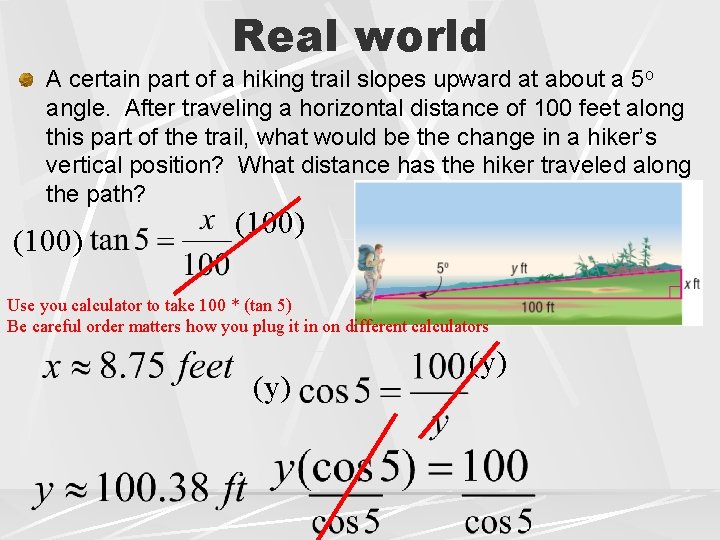

Real world A certain part of a hiking trail slopes upward at about a 5 o angle. After traveling a horizontal distance of 100 feet along this part of the trail, what would be the change in a hiker’s vertical position? What distance has the hiker traveled along the path? (100) Use you calculator to take 100 * (tan 5) Be careful order matters how you plug it in on different calculators (y)

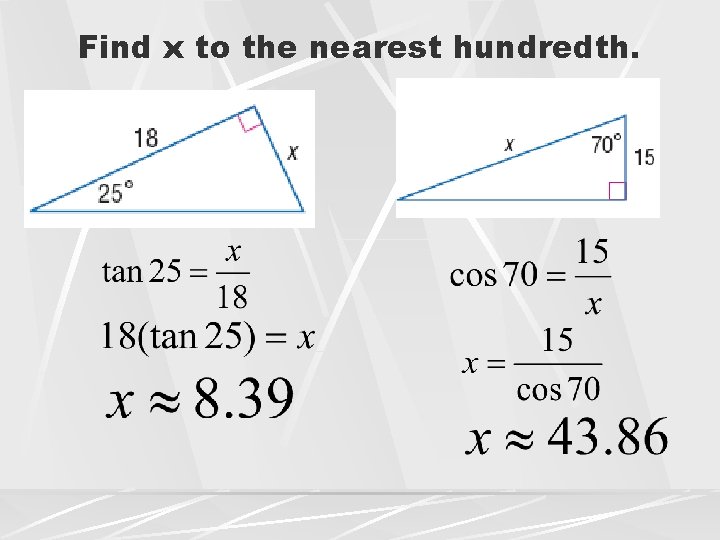

Find x to the nearest hundredth.

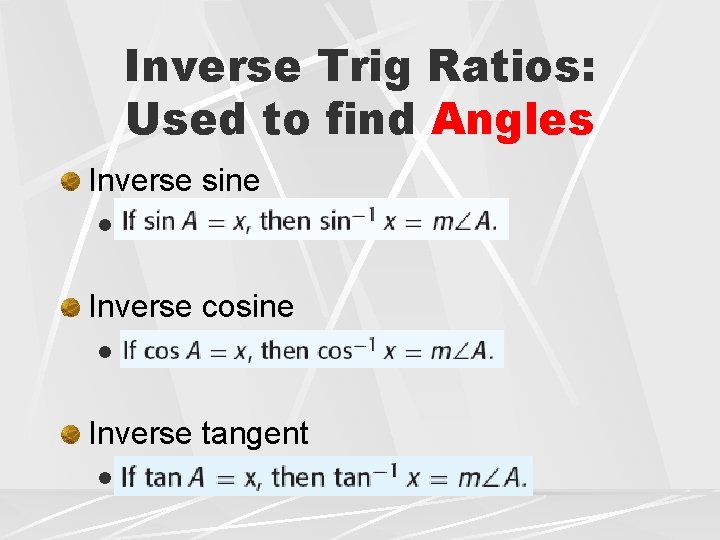

Inverse Trig Ratios: Used to find Angles Inverse sine l Inverse cosine l Inverse tangent l

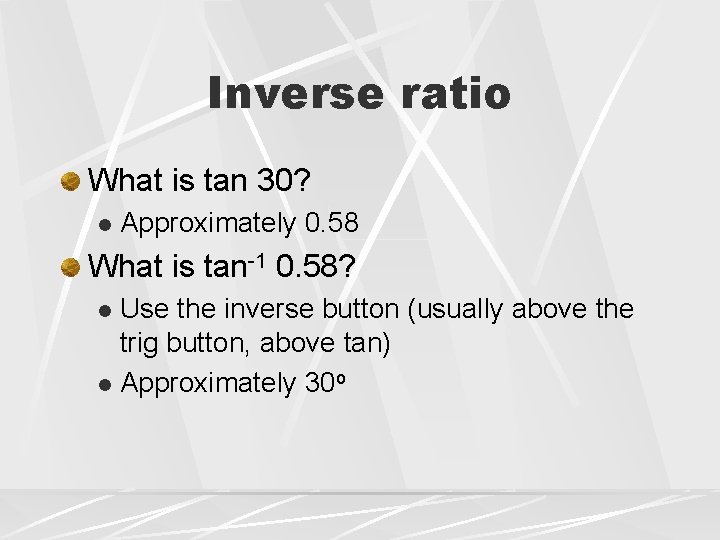

Inverse ratio What is tan 30? l Approximately 0. 58 What is tan-1 0. 58? Use the inverse button (usually above the trig button, above tan) l Approximately 30 o l

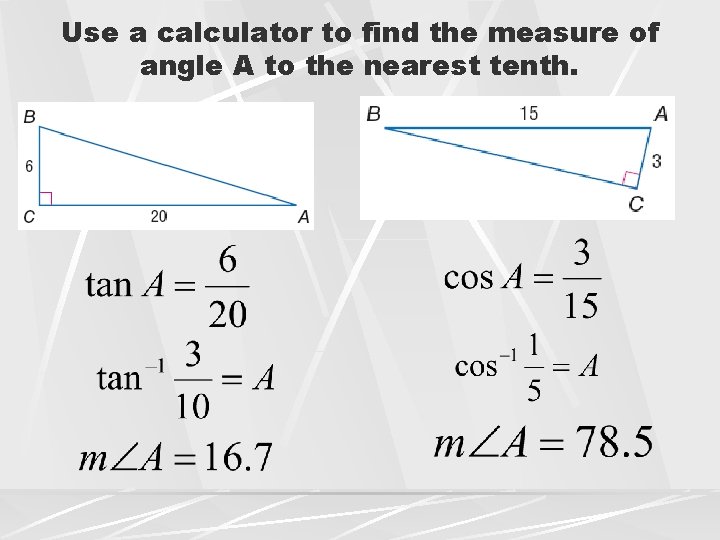

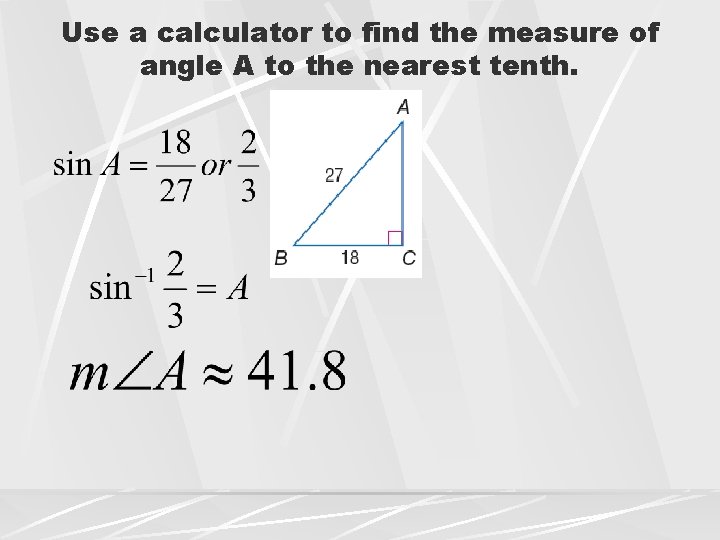

Use a calculator to find the measure of angle A to the nearest tenth.

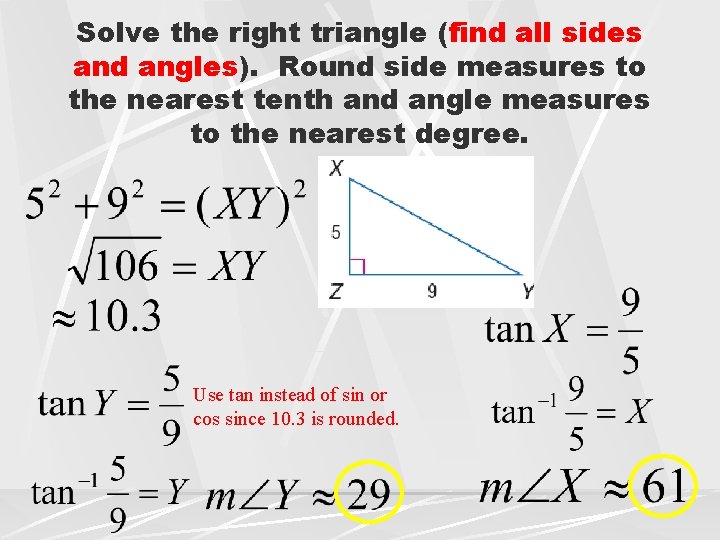

Solve the right triangle (find all sides and angles). Round side measures to the nearest tenth and angle measures to the nearest degree. Use tan instead of sin or cos since 10. 3 is rounded.

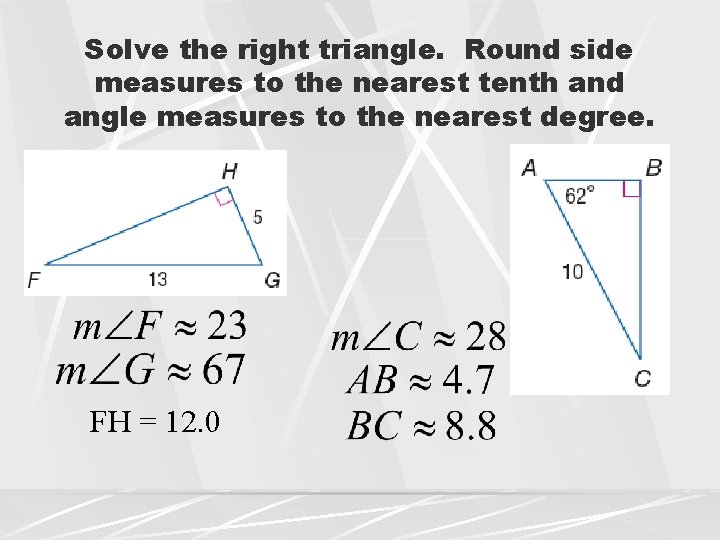

Solve the right triangle. Round side measures to the nearest tenth and angle measures to the nearest degree. FH = 12. 0

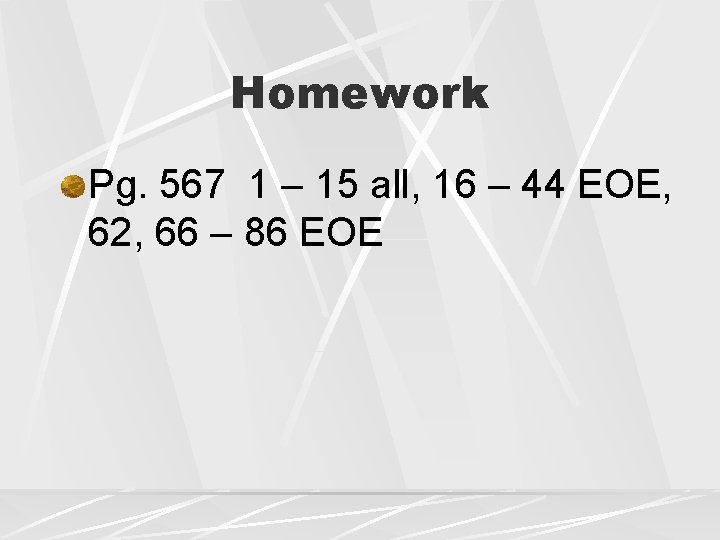

Homework Pg. 567 1 – 15 all, 16 – 44 EOE, 62, 66 – 86 EOE
