Geometry Lesson 7 6 Similarity Transformations Objective Identify

Geometry Lesson 7 – 6 Similarity Transformations Objective: Identify similarity transformations. Verify similarity after a similarity transformation.

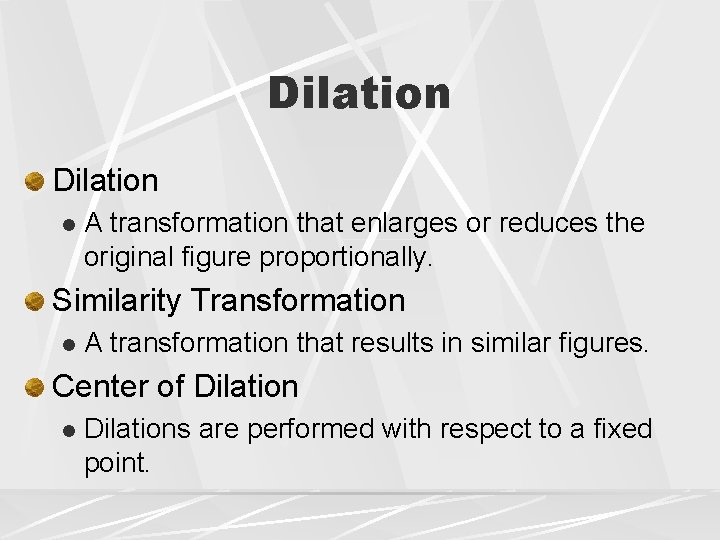

Dilation l A transformation that enlarges or reduces the original figure proportionally. Similarity Transformation l A transformation that results in similar figures. Center of Dilation l Dilations are performed with respect to a fixed point.

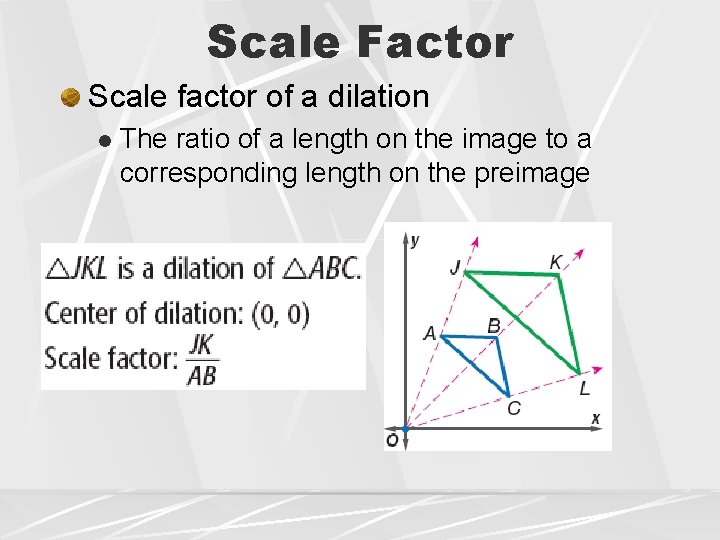

Scale Factor Scale factor of a dilation l The ratio of a length on the image to a corresponding length on the preimage

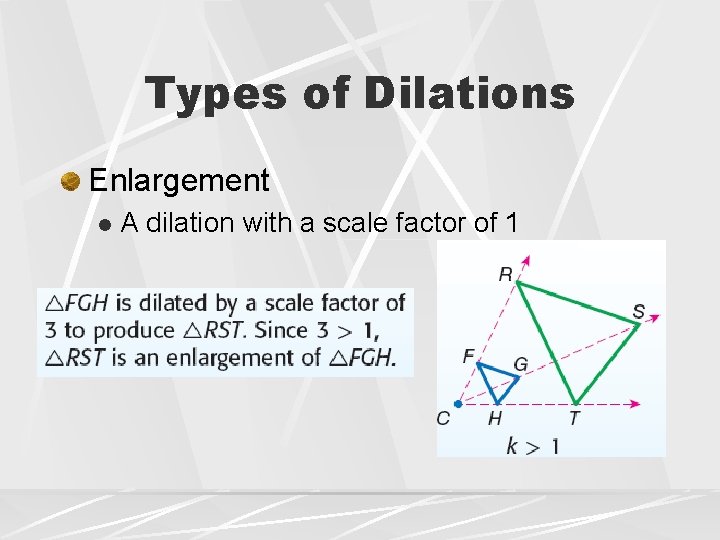

Types of Dilations Enlargement l A dilation with a scale factor of 1

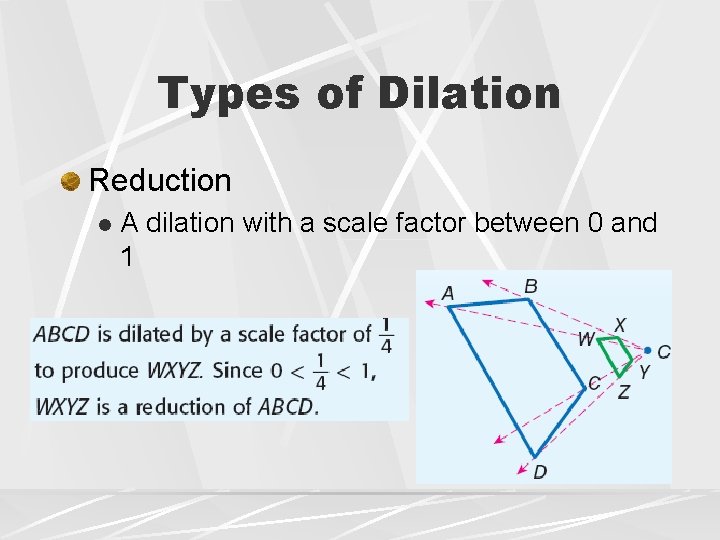

Types of Dilation Reduction l A dilation with a scale factor between 0 and 1

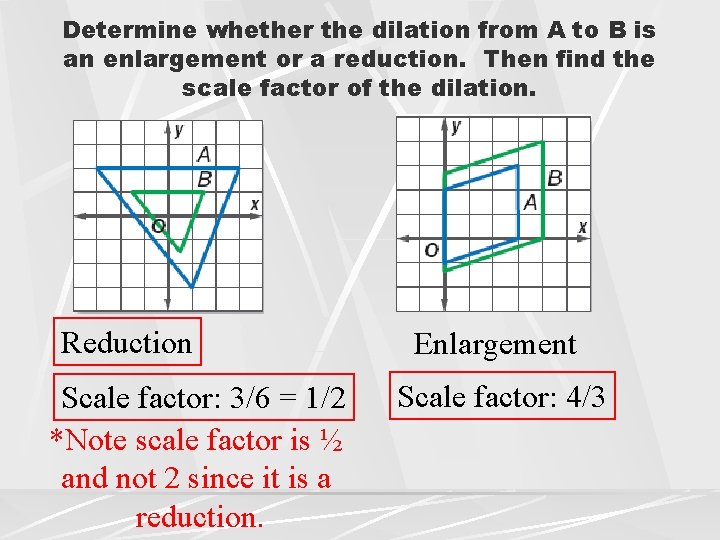

Determine whether the dilation from A to B is an enlargement or a reduction. Then find the scale factor of the dilation. Reduction Scale factor: 3/6 = 1/2 *Note scale factor is ½ and not 2 since it is a reduction. Enlargement Scale factor: 4/3

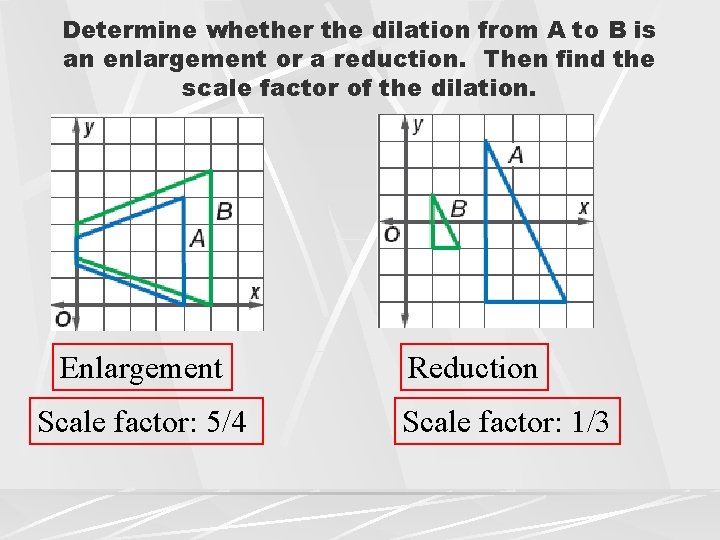

Determine whether the dilation from A to B is an enlargement or a reduction. Then find the scale factor of the dilation. Enlargement Scale factor: 5/4 Reduction Scale factor: 1/3

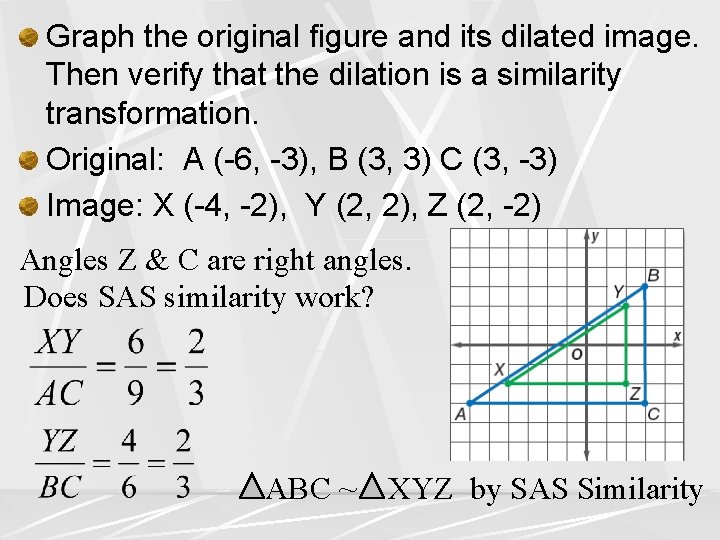

Graph the original figure and its dilated image. Then verify that the dilation is a similarity transformation. Original: A (-6, -3), B (3, 3) C (3, -3) Image: X (-4, -2), Y (2, 2), Z (2, -2) Angles Z & C are right angles. Does SAS similarity work? ABC ~ XYZ by SAS Similarity

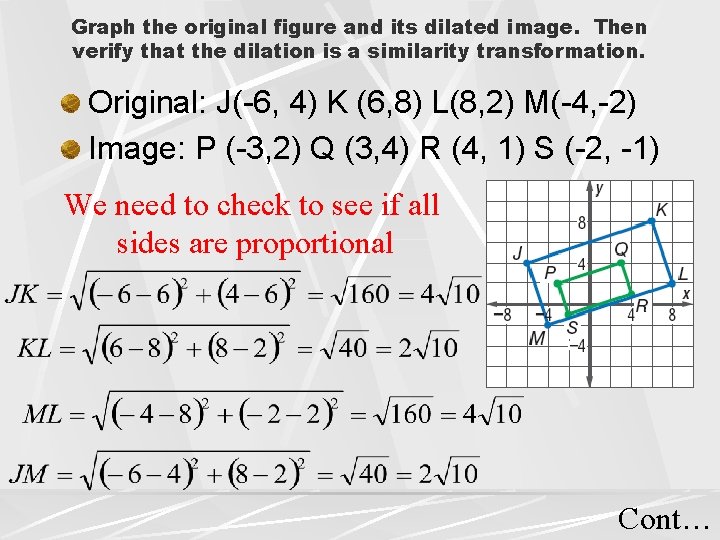

Graph the original figure and its dilated image. Then verify that the dilation is a similarity transformation. Original: J(-6, 4) K (6, 8) L(8, 2) M(-4, -2) Image: P (-3, 2) Q (3, 4) R (4, 1) S (-2, -1) We need to check to see if all sides are proportional Cont…

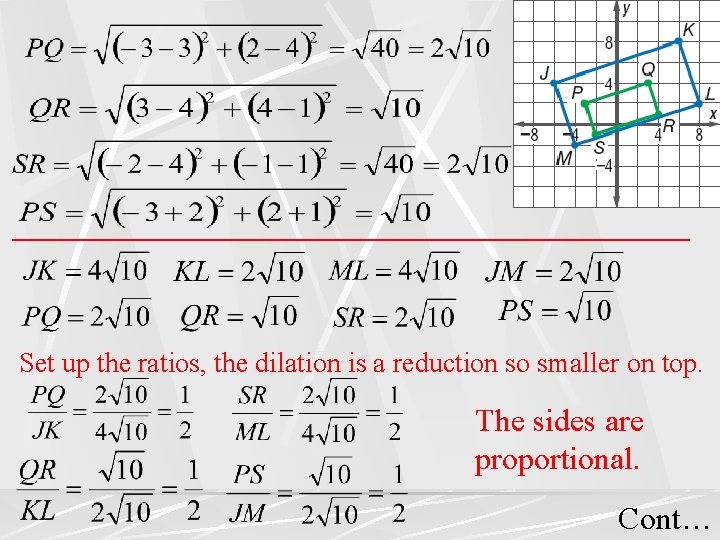

Set up the ratios, the dilation is a reduction so smaller on top. The sides are proportional. Cont…

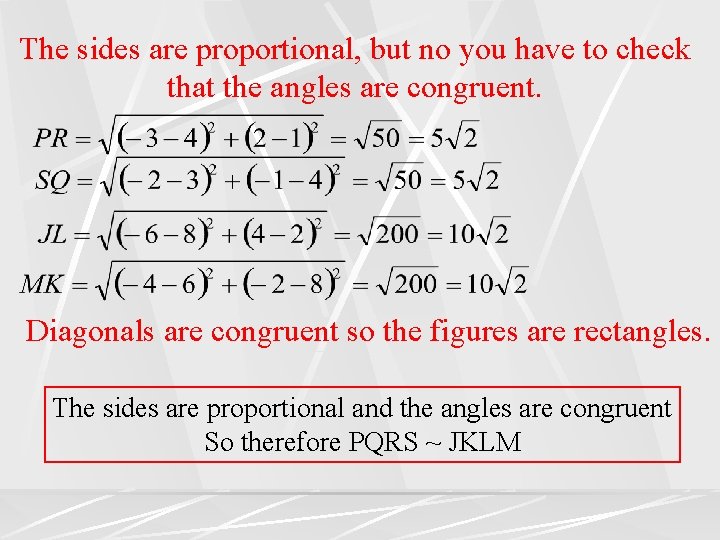

The sides are proportional, but no you have to check that the angles are congruent. Diagonals are congruent so the figures are rectangles. The sides are proportional and the angles are congruent So therefore PQRS ~ JKLM

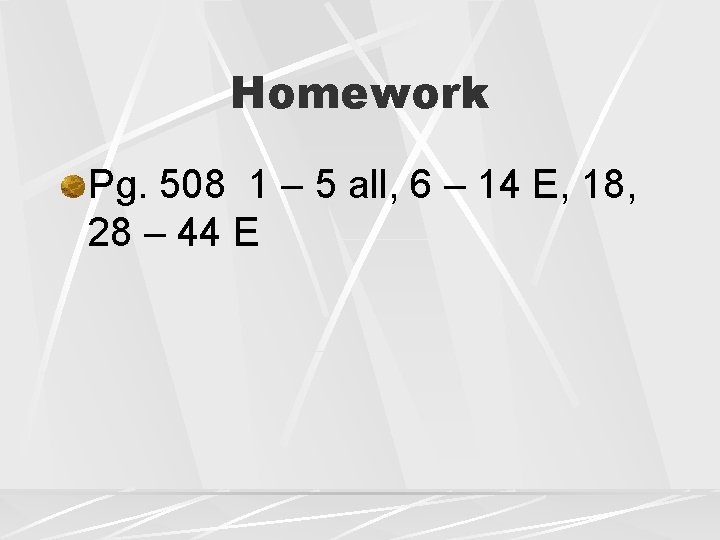

Homework Pg. 508 1 – 5 all, 6 – 14 E, 18, 28 – 44 E
