Geometry Chapter 8 Review If the ALTITUDE is

Geometry Chapter 8 Review If the ALTITUDE is drawn to the Hypotenuse: the SQUARE of the Altitude EQUALS the PRODUCT of the SEGMENTS of the Hypotenuse.

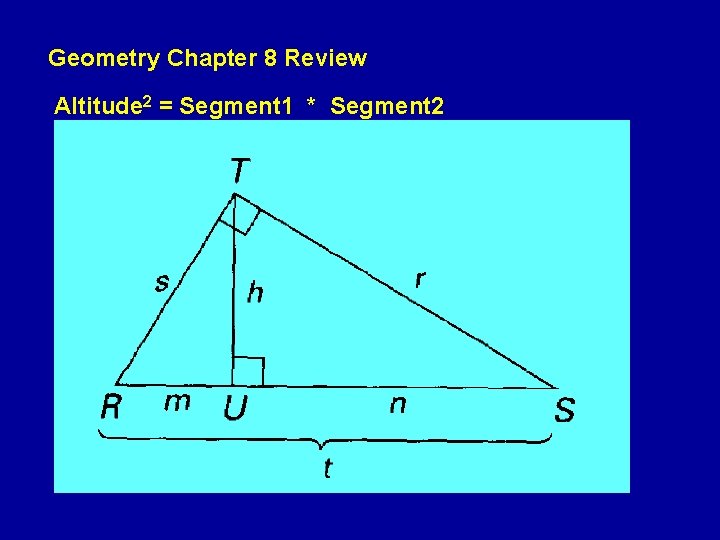

Geometry Chapter 8 Review Altitude 2 = Segment 1 * Segment 2

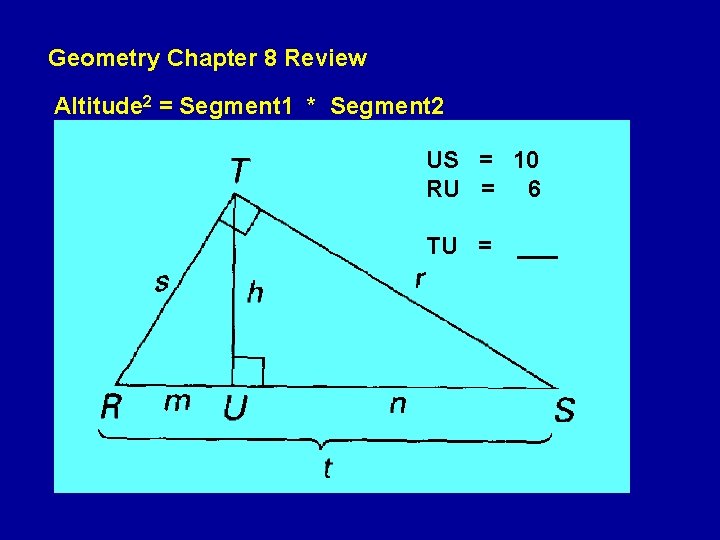

Geometry Chapter 8 Review Altitude 2 = Segment 1 * Segment 2 US = 10 RU = 6 TU = ___

Geometry Chapter 8 Review Altitude 2 = Segment 1 * Segment 2 SQ = 4 PS = 8 SR = _____

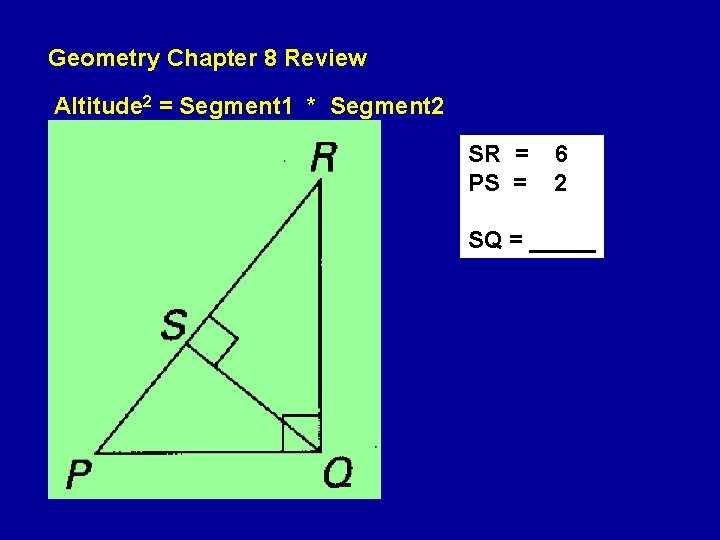

Geometry Chapter 8 Review Altitude 2 = Segment 1 * Segment 2 SR = PS = 6 2 SQ = _____

Geometry Chapter 8 Review

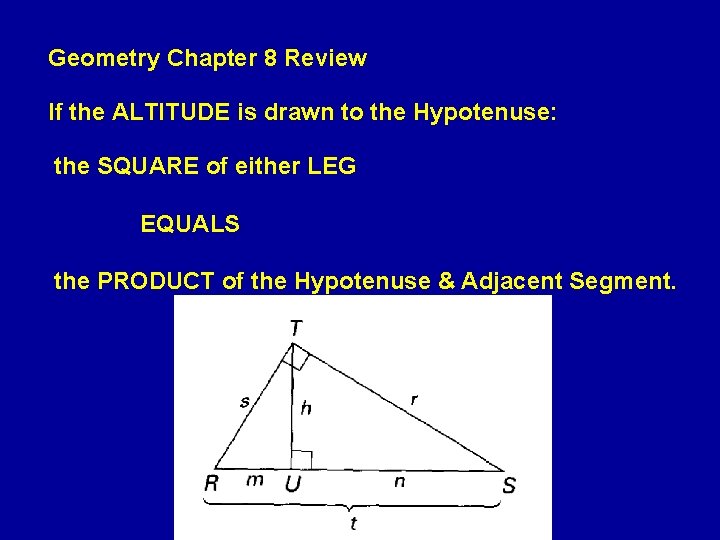

Geometry Chapter 8 Review If the ALTITUDE is drawn to the Hypotenuse: the SQUARE of either LEG EQUALS the PRODUCT of the Hypotenuse & Adjacent Segment.

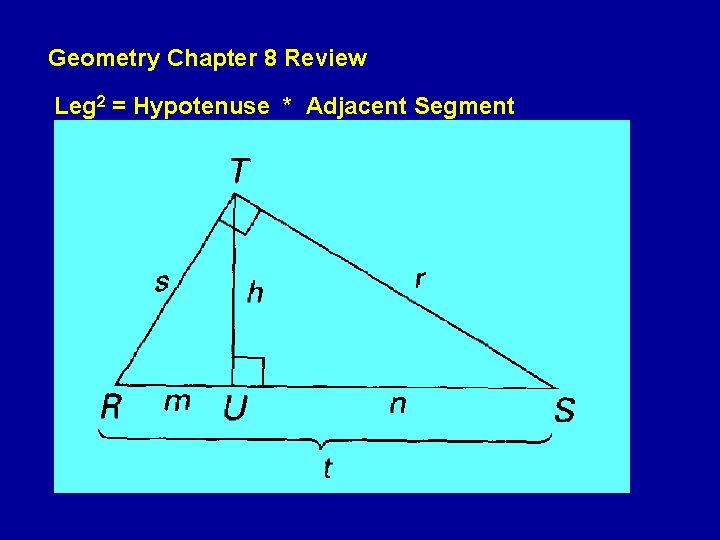

Geometry Chapter 8 Review Leg 2 = Hypotenuse * Adjacent Segment

Geometry Chapter 8 Review s 2 = r 2 =

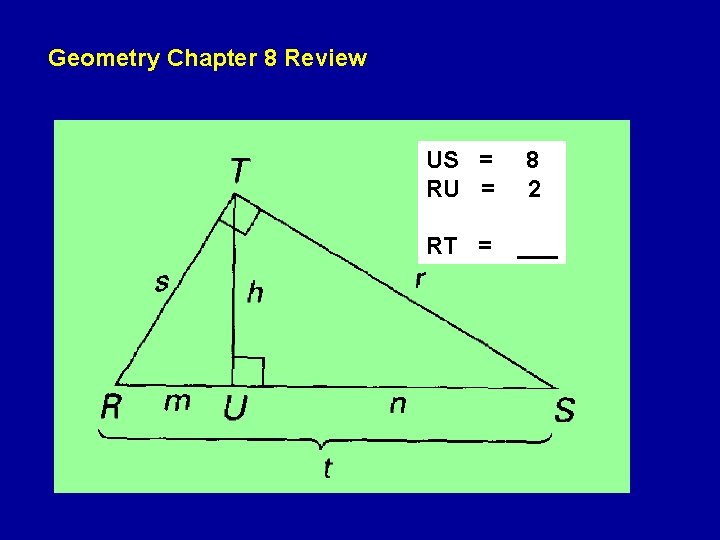

Geometry Chapter 8 Review US = RU = 8 2 RT = ___

Geometry Chapter 8 Review TS = RS = 4 8 US = ___

Geometry Chapter 8 Review

Geometry Chapter 8 Review

Geometry Chapter 8 Review

Geometry Chapter 8 Review

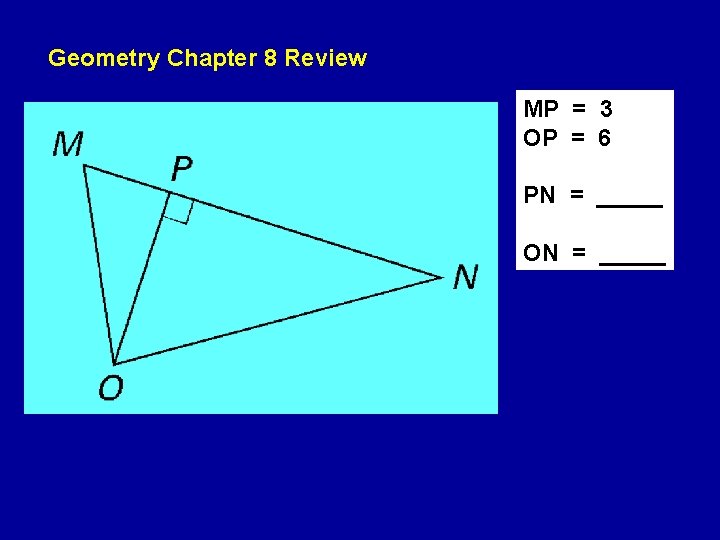

Geometry Chapter 8 Review MP = 3 OP = 6 PN = _____ ON = _____

Geometry Chapter 8 Review PROVE: The Pythagorean Theorem

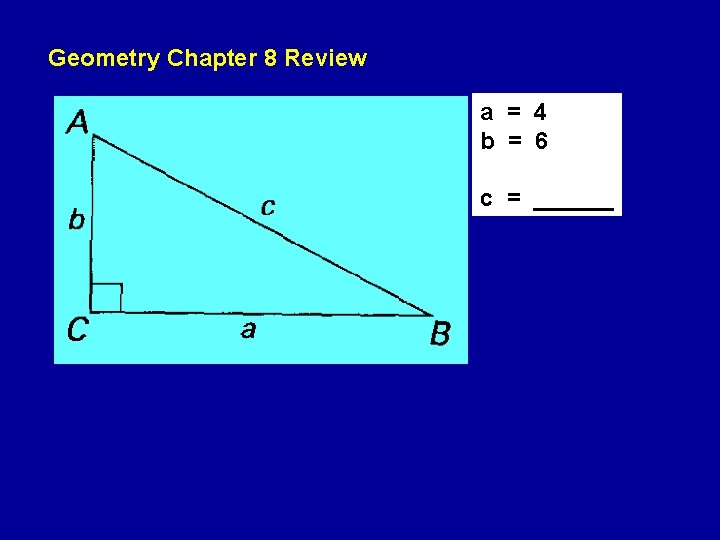

Geometry Chapter 8 Review a = 4 b = 6 c = ______

Geometry Chapter 8 Review a = 2 c = 7 b = ______

Geometry Chapter 8 Review

Geometry Chapter 8 Review

Geometry Chapter 8 Review

Geometry Chapter 8 Review

Geometry Chapter 8 Review 4 X ---- 6 ------

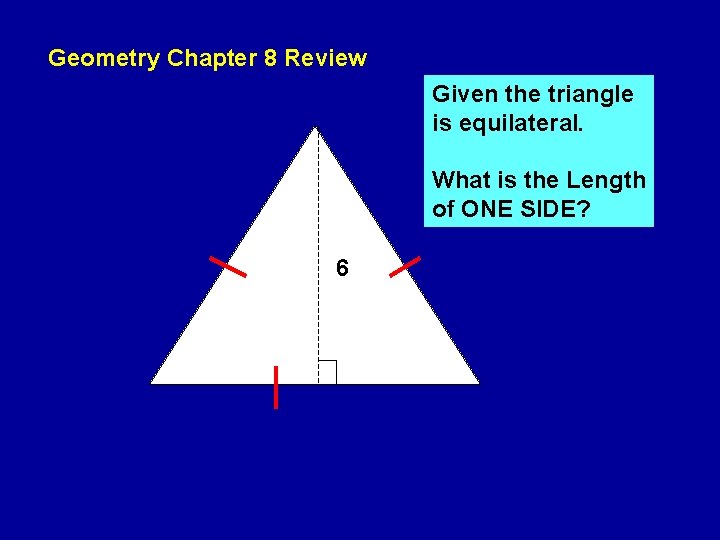

Geometry Chapter 8 Review Given the triangle is equilateral. What is the Length of ONE SIDE? 6

Geometry Chapter 8 Review

Geometry Chapter 8 Review

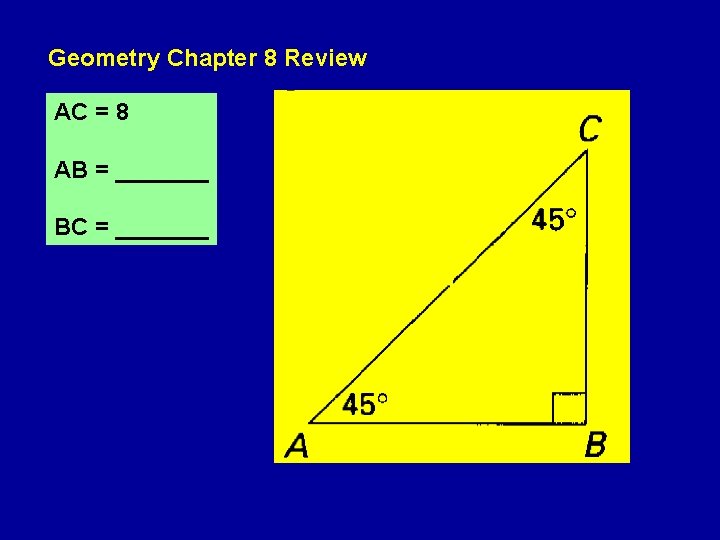

Geometry Chapter 8 Review AC = 8 AB = _______ BC = _______

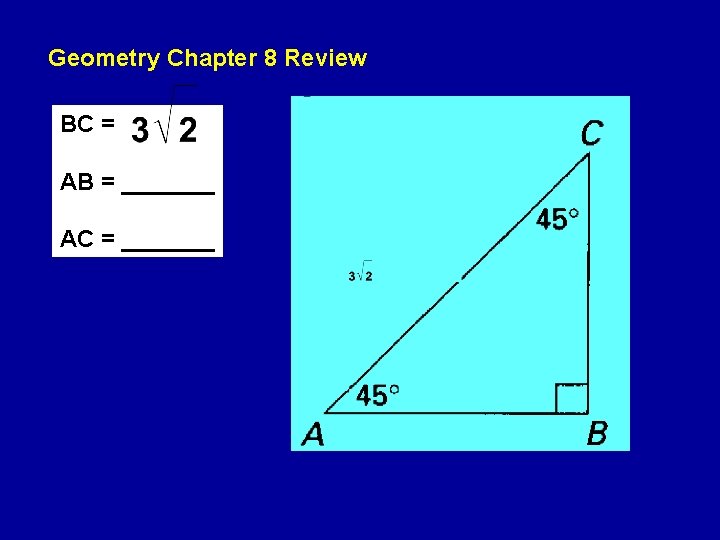

Geometry Chapter 8 Review BC = AB = _______ AC = _______

Geometry Chapter 8 Review PS = 12 PQ = _____ SQ = _____

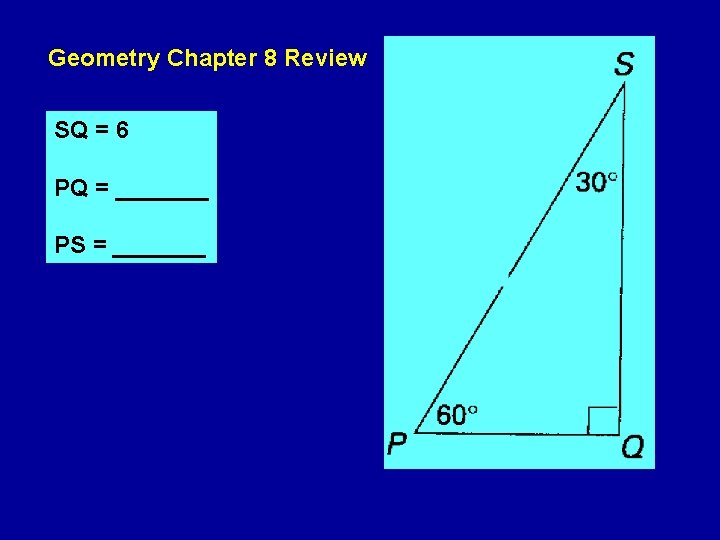

Geometry Chapter 8 Review SQ = 6 PQ = _______ PS = _______

Geometry Chapter 8 Review

Geometry Chapter 8 Review

Geometry Chapter 8 Review

Geometry Chapter 8 Review

Geometry Chapter 8 Review

Geometry Chapter 8 Review

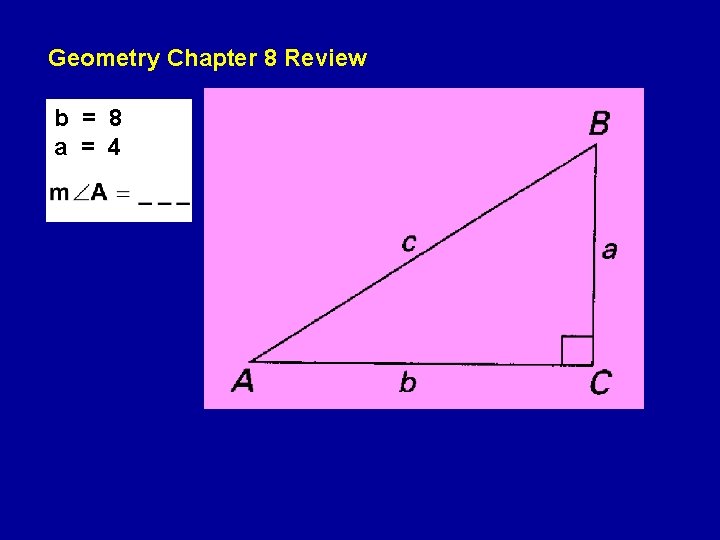

Geometry Chapter 8 Review b = 8 a = 4

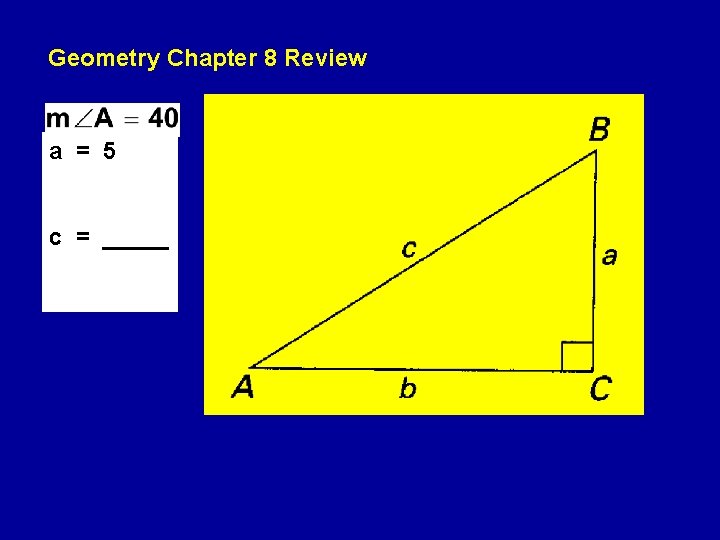

Geometry Chapter 8 Review a = 5 c = _____

Geometry Chapter 8 Review a = 20 c = _____

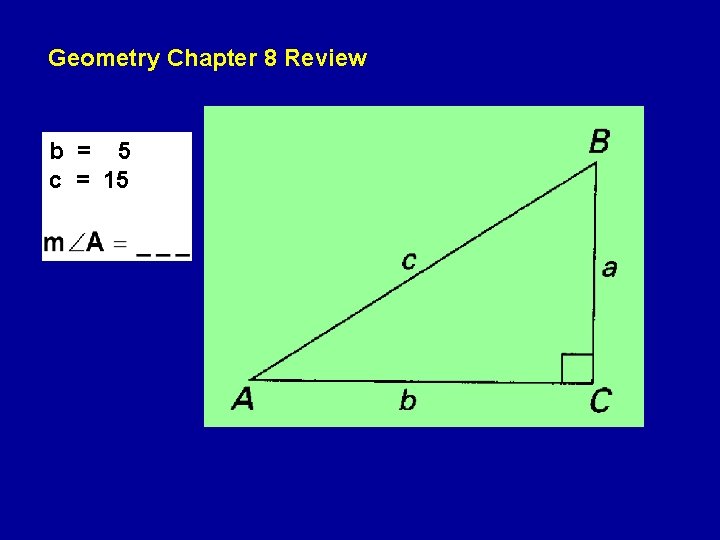

Geometry Chapter 8 Review b = 5 c = 15

Geometry Chapter 8 Review

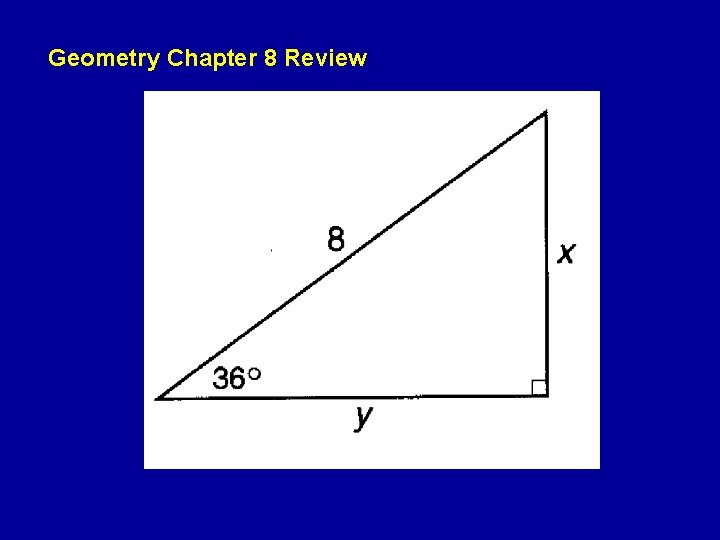

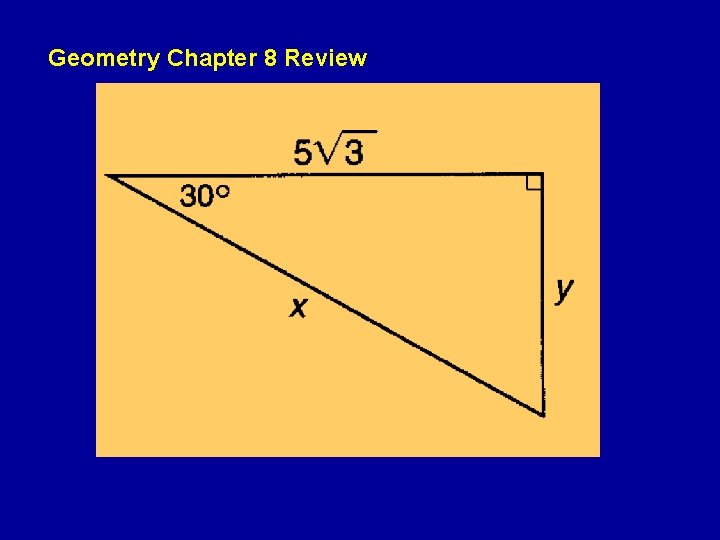

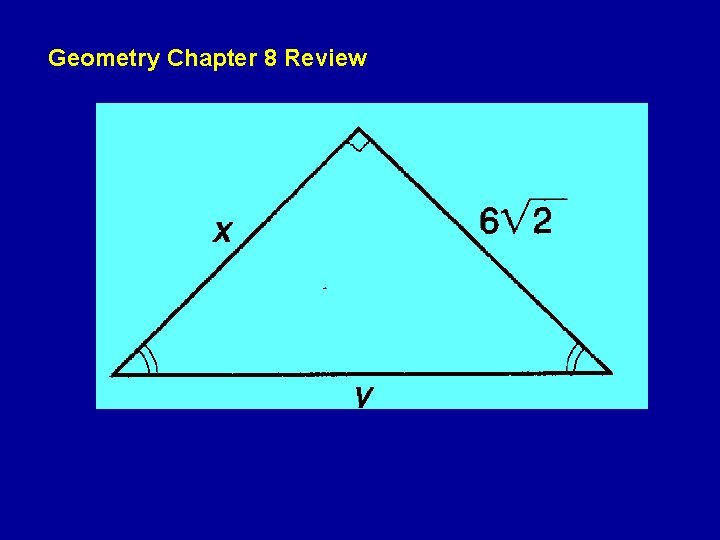

Geometry Chapter 8 Review x y

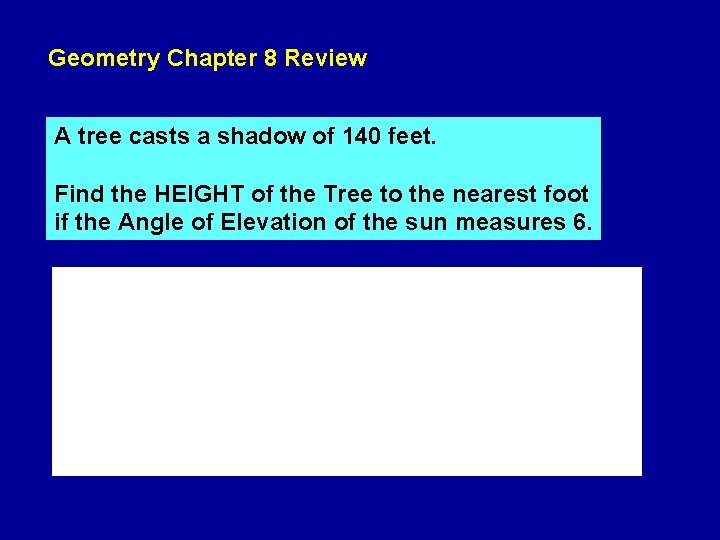

Geometry Chapter 8 Review A tree casts a shadow of 140 feet. Find the HEIGHT of the Tree to the nearest foot if the Angle of Elevation of the sun measures 6.

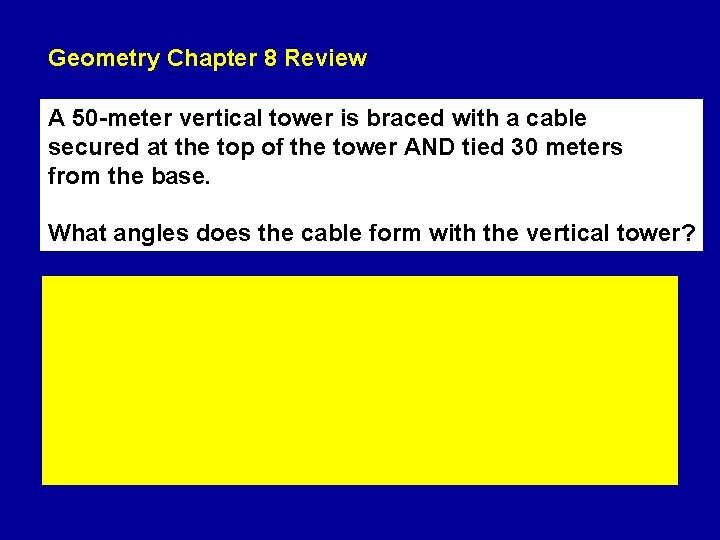

Geometry Chapter 8 Review A 50 -meter vertical tower is braced with a cable secured at the top of the tower AND tied 30 meters from the base. What angles does the cable form with the vertical tower?

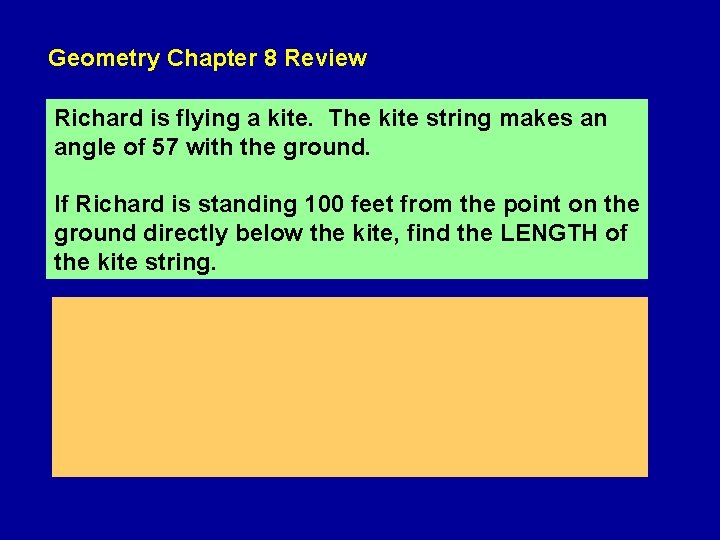

Geometry Chapter 8 Review Richard is flying a kite. The kite string makes an angle of 57 with the ground. If Richard is standing 100 feet from the point on the ground directly below the kite, find the LENGTH of the kite string.
