Geometric Dimensioning and Tolerancing Unit 6 Datums GDT
- Slides: 29
Geometric Dimensioning and Tolerancing Unit 6 – Datums
GDT 1. Establish a reference coordinate system. 2. Tell me where ‘perfect’ is. 3. Tell me how far off from ‘perfect’ is allowed. EML 2023 Department of Mechanical and Aerospace Engineering 2

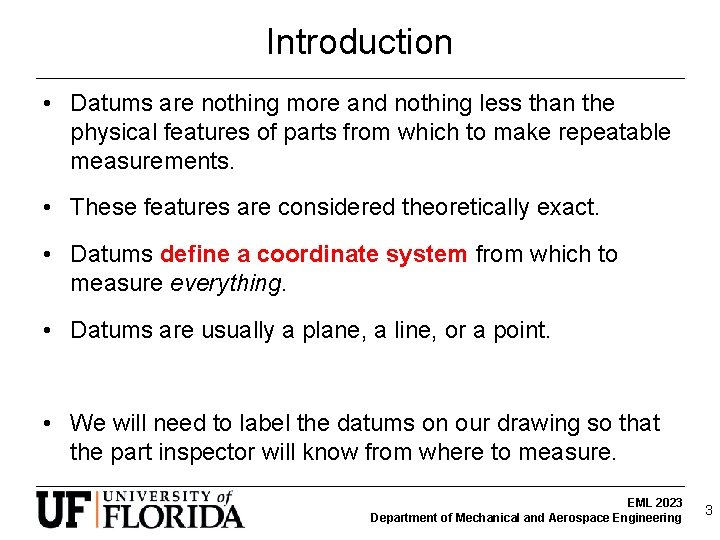

Introduction • Datums are nothing more and nothing less than the physical features of parts from which to make repeatable measurements. • These features are considered theoretically exact. • Datums define a coordinate system from which to measure everything. • Datums are usually a plane, a line, or a point. • We will need to label the datums on our drawing so that the part inspector will know from where to measure. EML 2023 Department of Mechanical and Aerospace Engineering 3
Datum Feature Symbol • Datum Feature Symbol EML 2023 Department of Mechanical and Aerospace Engineering 4
Three-Plane Concept • define primary, secondary, and tertiary datum planes • the primary datum is the one that functionally is usually the most critical feature or surface of the part • the primary datum feature of the part will make contact with theoretical datum plane in a minimum of three points EML 2023 Department of Mechanical and Aerospace Engineering 5
Three-Plane Concept • the secondary datum plane is to the primary datum • secondary datum feature is the one that functionally is the 2 nd most critical feature or surface of the part • 2 point minimum contact EML 2023 Department of Mechanical and Aerospace Engineering 6
Three-Plane Concept • the tertiary datum plane is to the primary & sec. datums • 1 point minimum contact EML 2023 Department of Mechanical and Aerospace Engineering 7
Three-Plane Concept - Circular • circular parts also require a three-plane concept for repeatable orientation • the primary datum is usually one flat surface of the part, • defines a datum axis along the center of cylinder should be a construction line (or omitted) should have a center line EML 2023 Department of Mechanical and Aerospace Engineering 8
Features with and without Size 1. 9

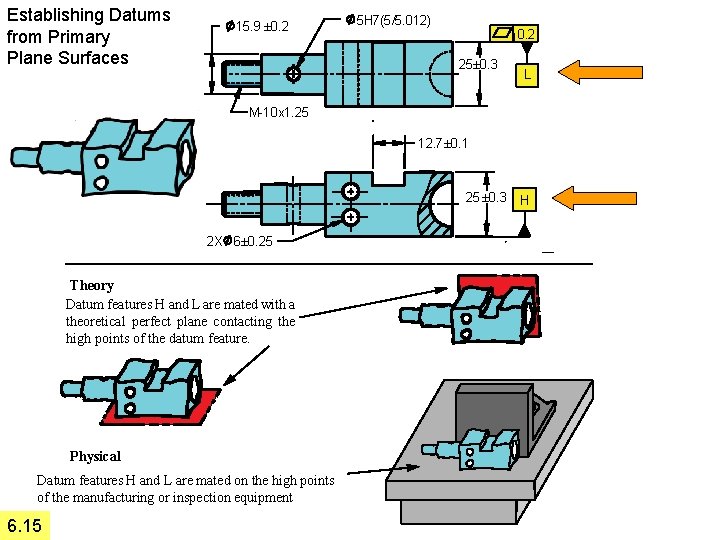

Establishing Datums from Primary Plane Surfaces 15. 9 ± 0. 2 5 H 7(5/5. 012) 0. 2 25± 0. 3 LL M-10 x 1. 25 12. 7± 0. 1 25 ± 0. 3 H 2 X 6± 0. 25 Theory Datum features H and L are mated with a theoretical perfect plane contacting the high points of the datum feature. Physical Datum features H and L are mated on the high points of the manufacturing or inspection equipment 6. 15
Datum Features without Size P L 5 H 7(5/5. 012) 15. 9 ± 0. 2 25± 0. 3 M-10 x 1. 25 N M K 2 SURFACES 12. 7± 0. 1 H 2 X 6± 0. 25 25 ± 0. 3 S 17± 0. 02 Datum planes established from planar datum features Datum feature N establishes a plane on the high points of the left surface. Datum feature L establishes a plane on the high points of the rear surface. Datum feature K establishes a plane on the high points of two surfaces. 6. 16 Datum feature H establishes a plane on the high points of the bottom surface. Datum feature M establishes a plane on the high points of the left side of the slot.
Datum Features without Size P L 5 H 7(5/5. 012) 15. 9 ± 0. 2 25± 0. 3 M-10 x 1. 25 N M K 2 SURFACES 12. 7± 0. 1 H 2 X 6± 0. 25 25 ± 0. 3 S 17± 0. 02 Datum planes established from planar datum features Datum feature N establishes a plane on the high points of the left surface. Datum feature L establishes a plane on the high points of the rear surface. Datum feature K establishes a plane on the high points of two surfaces. 6. 16 Datum feature H establishes a plane on the high points of the bottom surface. Datum feature M establishes a plane on the high points of the left side of the slot.
Datum Features without Size P L 5 H 7(5/5. 012) 15. 9 ± 0. 2 25± 0. 3 M-10 x 1. 25 N M K 2 SURFACES 12. 7± 0. 1 H 2 X 6± 0. 25 25 ± 0. 3 S 17± 0. 02 Datum planes established from planar datum features Datum feature N establishes a plane on the high points of the left surface. Datum feature L establishes a plane on the high points of the rear surface. Datum feature K establishes a plane on the high points of two surfaces. 6. 16 Datum feature H establishes a plane on the high points of the bottom surface. Datum feature M establishes a plane on the high points of the left side of the slot.
Datum Features without Size P L 5 H 7(5/5. 012) 15. 9 ± 0. 2 25± 0. 3 M-10 x 1. 25 N M K 2 SURFACES 12. 7± 0. 1 H 2 X 6± 0. 25 25 ± 0. 3 S 17± 0. 02 Datum planes established from planar datum features Datum feature N establishes a plane on the high points of the left surface. Datum feature L establishes a plane on the high points of the rear surface. Datum feature K establishes a plane on the high points of two surfaces. 6. 16 Datum feature H establishes a plane on the high points of the bottom surface. Datum feature M establishes a plane on the high points of the left side of the slot.
Datum Features without Size P L 5 H 7(5/5. 012) 15. 9 ± 0. 2 25± 0. 3 M-10 x 1. 25 N M K 2 SURFACES 12. 7± 0. 1 H 2 X 6± 0. 25 25 ± 0. 3 S 17± 0. 02 Datum planes established from planar datum features Datum feature N establishes a plane on the high points of the left surface. Datum feature L establishes a plane on the high points of the rear surface. Datum feature K establishes a plane on the high points of two surfaces. 6. 16 Datum feature H establishes a plane on the high points of the bottom surface. Datum feature M establishes a plane on the high points of the left side of the slot.
Datum Features of Size C 15. 9 ± 0. 2 R 5 H 7(5/5. 012) 25± 0. 1 M 10 x 1. 25 E F B 12. 7 ± 0. 1 A 25± 0. 1 2 X 6± 0. 25 0. 2 M SR 8. 5 0. 4 D Theory Datum axis E is the axis of theoretical datum feature simulator 6. 18 G Physical Simulated datum axis E is the axis of a collet, chuck, CMM etc.
Datum Features of Size C 15. 9 ± 0. 2 R 5 H 7(5/5. 012) 25± 0. 1 M 10 x 1. 25 E F B 12. 7 ± 0. 1 A 25± 0. 1 2 X 6± 0. 25 0. 2 M SR 8. 5 0. 4 D 6. 19 G
Datum Features of Size C 15. 9 ± 0. 2 R 5 H 7(5/5. 012) 25± 0. 1 M 10 x 1. 25 E F B 12. 7 ± 0. 1 A 25± 0. 1 2 X 6± 0. 25 0. 2 M SR 8. 5 0. 4 D Theory 6. 19 G Physical Datum center plane B is the center plane of the datum feature simulator. Sim ulated datum center plane B is the center plane of the gage block.

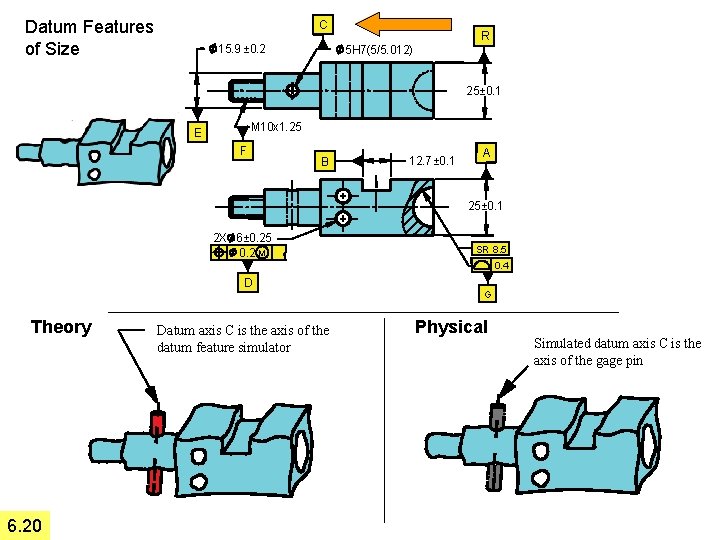

Datum Features of Size C 15. 9 ± 0. 2 R 5 H 7(5/5. 012) 25± 0. 1 M 10 x 1. 25 E F B 12. 7 ± 0. 1 A 25± 0. 1 2 X 6± 0. 25 0. 2 M SR 8. 5 0. 4 D Theory 6. 20 Datum axis C is the axis of the datum feature simulator G Physical Simulated datum axis C is the axis of the gage pin
Datum Features of Size C 15. 9 ± 0. 2 R 5 H 7(5/5. 012) 25± 0. 1 M 10 x 1. 25 E F B 12. 7 ± 0. 1 A 25± 0. 1 2 X 6± 0. 25 0. 2 M SR 8. 5 0. 4 D Theory Physical Datum D axis and two planes are established from a pattern of two holes 6. 20 G Simulated datum feature D axis and two intersecting planes established from gage

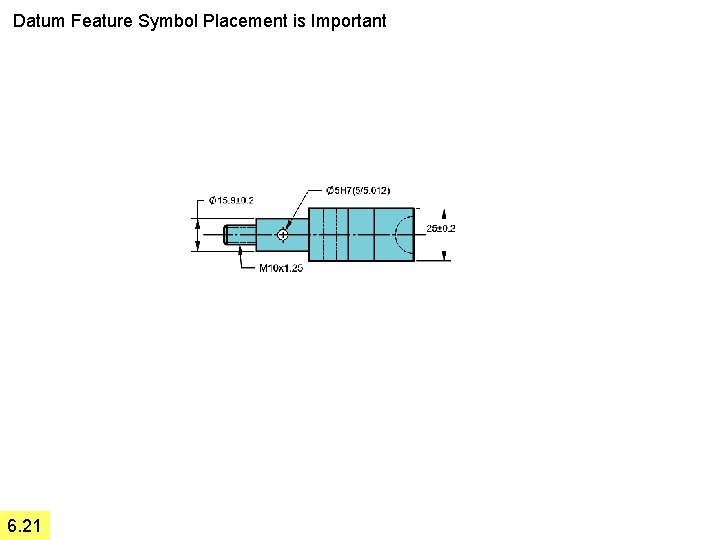

Datum Feature Symbol Placement is Important 6. 21
Datum Feature Symbol Placement is Important 6. 21
Datum Feature Symbol Placement is Important 6. 21
Datum Feature Symbol Placement is Important 6. 21
Datum Feature Symbol Placement is Important 6. 21
Datum Feature Symbol Placement is Important 6. 21
Datum Feature Symbol Placement is Important 6. 21
Datum Feature Symbol Placement is Important 6. 21
Datum Feature Symbol Placement is Important 6. 21
