Geographical Visualisation of CIM networks using Google APIs Alan Mc. Morran

Network Topologies • Common Power System Model (CPSM) CIM data contains topological data at a node-breaker level • IEC 61970 -301 does not natively support the embedding of singleline diagram layout or geographical position data

CDPSM • The Common Distribution Power System Model (CDPSM) extends the CPSM and incorporates IEC 61968 classes for geographical data • The Location and Gml. Position (formerly Coordinate. Pair) allows the geographical location of equipment to be embedded within the model

CDPSM • The Location class has a 0. . n association with Power System Resource • For CDPSM the container classes, Substation and Line, have a corresponding Geographical Location Power. System Resource Location • location. Type • location. Code • polygon. Flag Equipment Container Line Gml. Position • x. Position • y. Position • z. Position • sequence. Number Substation

Google Maps • Web based map and aerial imagery viewer • Google provides a powerful API that is free to use for building non-commercial applications (pricing starts at $10 k/year for Google Maps for Enterprise for intranet applications) • Using Google Maps API, Canvas API, some custom Javascript libraries and back-end server processing, network layouts can be overlayed onto the map

Basic Embedding • The simplest form of geographical embedding is single coordinates for substations • Combining this with the network topology information within the CIM XML file allows a simple network diagram to be constructed

Basic Embedding • EDF Aiguebelle network in the Alps • Example of a LV distribution network • Each marker represents a substation • No line routing data

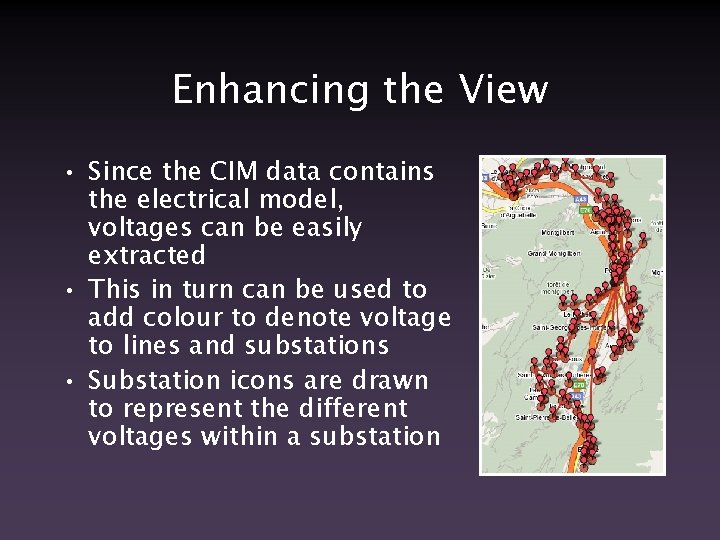

Enhancing the View • Since the CIM data contains the electrical model, voltages can be easily extracted • This in turn can be used to add colour to denote voltage to lines and substations • Substation icons are drawn to represent the different voltages within a substation

Transmission Level • The same process can be applied to Transmission networks • A CIM electrical model of the Scottish Power network was taken from their EMS • Geographical data was taken from their asset database, converted from UK Grid coordinates to Latitude and Longitude and embedded within the CIM XML file

Scottish Power

Line Routing Data • CDPSM supports multiple coordinates for each location • A sequence. Position denotes the order each coordinate should be drawn in • This allows line routing data to be embedded along with the substation location data

Embedding Other Data • Viewable data not limited to colours to denote voltage • Simple to additional data to the map depending on requirements • Asset data extracted from SP Asset database integrated with EMS model • Viewable through Google Maps interface

Embedding Asset Data

Enhancing View • Additional data can be incorporated using the same interface • Anything that can have a Location associated can be plotted on the map • Anything associated with a Substation can be embedded in the marker details window

Aerial View • As well as the map view Google Maps has aerial imagery • Shows the accuracy of the data after conversion from UK Grid to Latitude and Longitude Scottish Power Charlotte Street 275/33 k. V Substation Glasgow, UK

Google Earth • Full 3 D model of the Earth with overlay of aerial and satellite imagery • Google Earth allows overlay of data in a similar manner to Google Map • Data is encoded in Keyhole Markup Language (KML), an XML schema

Google Earth Demo

Telemetry Processor • Software developed using AI techniques by team within the University in conjunction with SP • Processes SCADA data and classifies incidents using an expert system derived from protection engineers’ expertise • Allows engineers to quickly identify and rectify faults on the network • Resulting data put into custom My. SQL database schema

Telemetry Processor

Telemetry Processor

Telemetry Processor • Existing interface lists incidents and the corresponding events • Suitable for viewing a list of incidents but difficult to identify clusters either temporally or spatially • Raw data is from SCADA • No link with data from other systems (e. g. EMS, GIS, Asset, Work Management etc. ) • The CIM provides an avenue for both utilising other data in the existing processor and linking its results to other systems and applications

CIM Messaging • Telemetry Processor results can be mapped to CIM and a corresponding message schema created Message Network. Activity. Record 0. . n • Name • Description • Status • status. Date. Time 0. . n Power. System Resource Equipment. Container Failure. Event Substation 0. . n Incident. Record Activity. Record 0. . n • Name • Description • Status • status. Date. Time 0. . n Power. System Resource

CIM Messaging • A client application polls the server for any events on the network in last x seconds and server returns resulting XML message • Server-side data is generated from dynamic CIM model containing EMS/DMS, Location, SCADA and Telemetry Processor data in CIM format

Client Side • Client side browser generates a network map from the CDPSM compliant (or enhanced CPSM) data on the server • To highlights faults on the network, the incident’s substation and/or line identifier is included in the message payload • The CIM message’s substation and/or line references are consistent with those used to generate the map view

Geographical Highlighting • The event in each message is highlighted on the map • The user can quickly identify clusters of faults • Icons can be colour coded according to fault type

Temporal Tracking • As well as showing the location a fault takes place it is useful to show events relate to each other in the timedomain • Timeline is a DHTML/Javascript widget developed by the SIMILE project at MIT for viewing time-based information • A Javascript library decodes the CIM messages and uses the data to simultaneously plot the location on the map and on this Timeline

Temporal Tracking • Multiple bands have different Interval units (milliseconds, hours, days, weeks and months) • Timeline updated along with map as new events are received and processed • Can be used to show real-time and historical network activity

Timeline Demos

Ed. F Aiguebelle

Scottish Power

Problems Encountered • No consistent identifiers between EMS, Asset and SCADA data at SP • Manual data cleansing and mapping was required in a number of cases • Multiple coordinate systems must be converted for use with Google Maps (Lambert I-IV, UK Ordnance Survey, Latitude/Longitude) • Performance issues in Google Maps with large complex distribution networks

Future Avenues • Overlay of additional data including load demand & generation capacity • Enhancing incident reports by using the combined electrical and geographical model (e. g. working out line fault locations from impedance) • Remote access via palm-tops and subnotebooks for on-site engineers

Questions? • For more information and a demo of the Mercury software go to: – http: //cimphony. org
