Concept Mapping Presentation is clear and neat. Crossreferencing data collected. Concept maps are graphical tools for organizing and representing knowledge. They include concepts, usually enclosed in circles or boxes Relationships between concepts are indicated by a connecting line. They help visual demonstrate the connections between different pieces information. They require a lot of time to create and can be made overcomplicated. Made relevant links with arrows. Thorough annotations that describes the evidence. This students has a range of different pieces of information linking to a particular area of a coastline.

Sketches Made focused on special/certain features. Presentation is to a high standard. A geographical sketch is a freehand drawing of the main elements that make up a landscape. It supports the interpretation of an actual landscape or photo of a landscape based on key geographical concepts. They can enhance keys aspects or features of a landscapes. The are relatively easy and take little time to create. They are not as accurate as a photograph. They can miss key details that could be relevant. Makes good links with other data collected. Thorough annotations that help to describe the evidence. This students has included a number of annotations to explain the features found within their sketch.

Four Figure Grid References Four Figure Grid Reference Move ‘along the corridor’ and stop once you hit the square that the location is within. Bone’s Farm 16 Now move ‘up the stairs’ and stop once you hit the square that the location is within again. 44 11 12 13 14 15 16 17 16, 44

Six Figure Grid References Six Figure Grid Reference This time you need to move within the box. Judge which ‘mini’ grid coordinate it would be. Bone’s Farm 16 1 Now do the same but this time go up within that square. 44 8 11 12 13 14 15 16 17 16 , 44 1 8

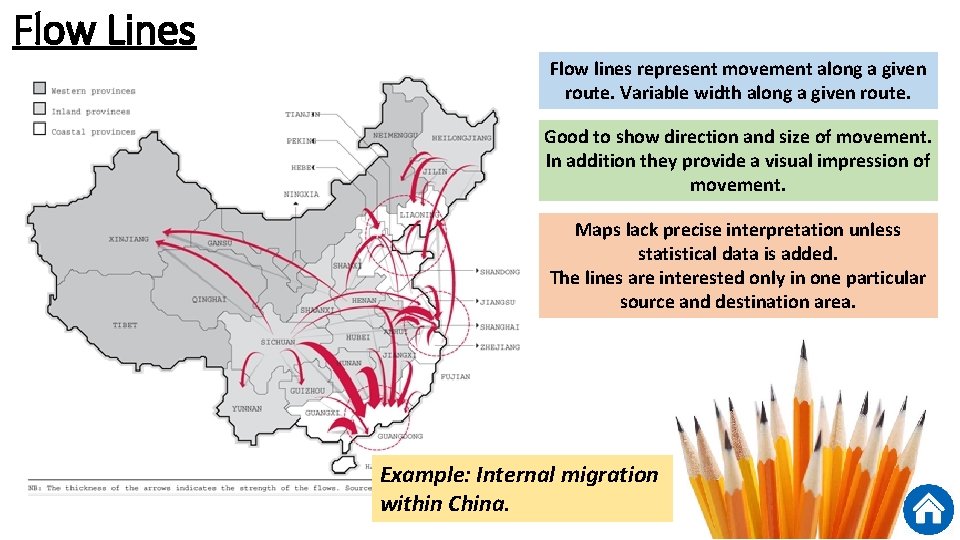

Flow Lines Flow lines represent movement along a given route. Variable width along a given route. Good to show direction and size of movement. In addition they provide a visual impression of movement. Maps lack precise interpretation unless statistical data is added. The lines are interested only in one particular source and destination area. Example: Internal migration within China.

Proportional Symbols Map Proportional symbol maps use symbols of different sizes to represent different quantities. The symbols can be different shapes and the key shows the quantity that each different sized symbol represents. These maps visually represent the data clearly. They also allow you to easily compare different locations quickly. These maps may lack the precise data for a given area, making it difficult to compare locations with similar values. Example: Traffic fatalities in the USA by state.

Desire Lines Desire lines shows individual movement with lines of proportional thickness. They are very similar to flow lines except they generalise movement, showing movement only directly from A to B whilst flow lines follow the exact path of movement. They are effective at visually showing movement of people, goods and transports. They are also good at showing the volume and direction of movement. In order to achieve a clear image, the real distance and direction may be distorted. Example: Truck flow to St Louis, USA.

Choropleth Maps These are maps, where areas are shaded according to a prearranged key, each shading or colour type representing a range of values. They can give a false impression of abrupt change at the boundaries of shaded units. Helpful for identifying relationships and comparing between different geographic location. Example: Ethnic population of Blank Caribbean in London

Layer shading Land use maps are visuals that provide information about how a piece of land is used, like a zoning map. Areas of land are often divided by a colour that represents a type of land use. Can visually compare and identify different areas easily. Can generalise areas into categories and may not represent complete area. Example: Land Use of Sleaford Key Commercial Buildings/offices Residential Recreational Businesses

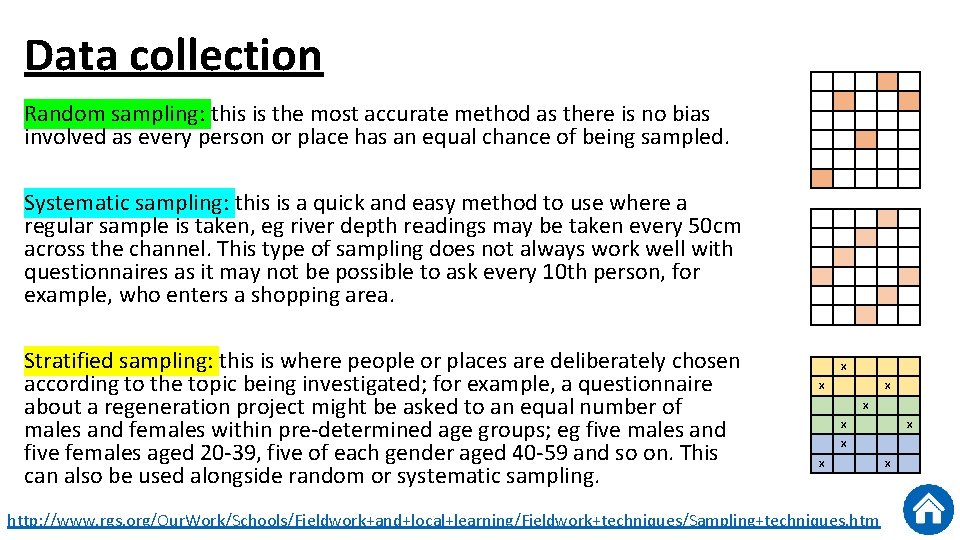

Data collection Random sampling: this is the most accurate method as there is no bias involved as every person or place has an equal chance of being sampled. Systematic sampling: this is a quick and easy method to use where a regular sample is taken, eg river depth readings may be taken every 50 cm across the channel. This type of sampling does not always work well with questionnaires as it may not be possible to ask every 10 th person, for example, who enters a shopping area. Stratified sampling: this is where people or places are deliberately chosen according to the topic being investigated; for example, a questionnaire about a regeneration project might be asked to an equal number of males and females within pre-determined age groups; eg five males and five females aged 20 -39, five of each gender aged 40 -59 and so on. This can also be used alongside random or systematic sampling. X X X X http: //www. rgs. org/Our. Work/Schools/Fieldwork+and+local+learning/Fieldwork+techniques/Sampling+techniques. htm X

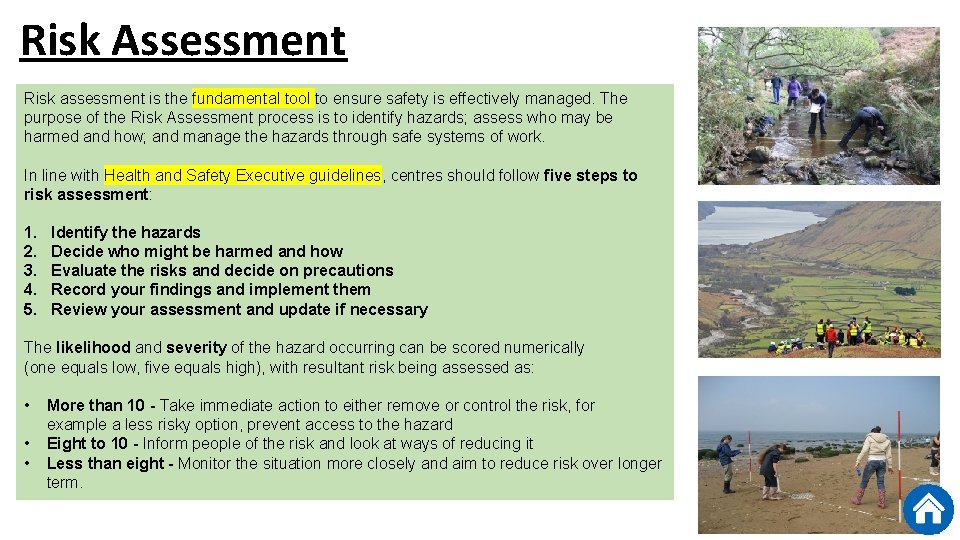

Risk Assessment Risk assessment is the fundamental tool to ensure safety is effectively managed. The purpose of the Risk Assessment process is to identify hazards; assess who may be harmed and how; and manage the hazards through safe systems of work. In line with Health and Safety Executive guidelines, centres should follow five steps to risk assessment: 1. 2. 3. 4. 5. Identify the hazards Decide who might be harmed and how Evaluate the risks and decide on precautions Record your findings and implement them Review your assessment and update if necessary The likelihood and severity of the hazard occurring can be scored numerically (one equals low, five equals high), with resultant risk being assessed as: • • • More than 10 - Take immediate action to either remove or control the risk, for example a less risky option, prevent access to the hazard Eight to 10 - Inform people of the risk and look at ways of reducing it Less than eight - Monitor the situation more closely and aim to reduce risk over longer term.

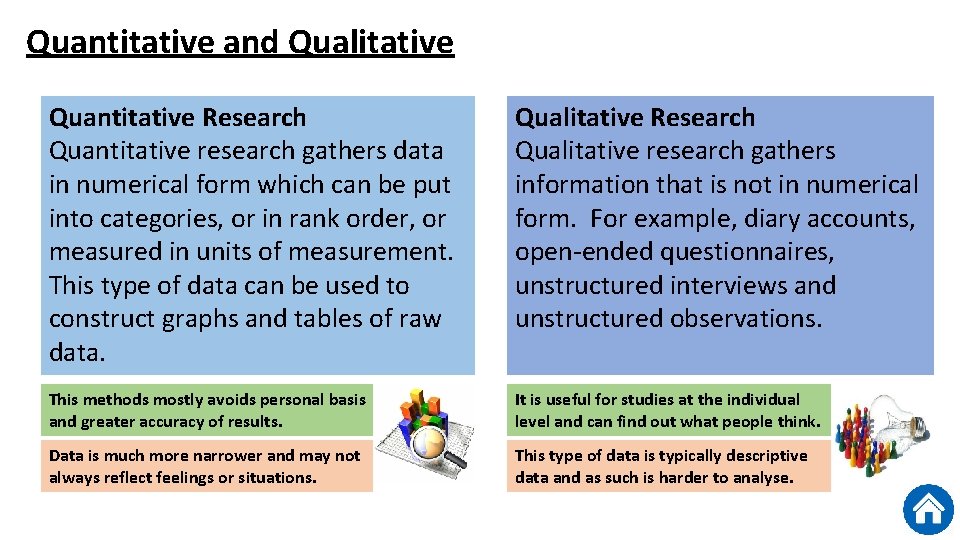

Quantitative and Qualitative Quantitative Research Quantitative research gathers data in numerical form which can be put into categories, or in rank order, or measured in units of measurement. This type of data can be used to construct graphs and tables of raw data. Qualitative Research Qualitative research gathers information that is not in numerical form. For example, diary accounts, open-ended questionnaires, unstructured interviews and unstructured observations. This methods mostly avoids personal basis and greater accuracy of results. It is useful for studies at the individual level and can find out what people think. Data is much more narrower and may not always reflect feelings or situations. This type of data is typically descriptive data and as such is harder to analyse.

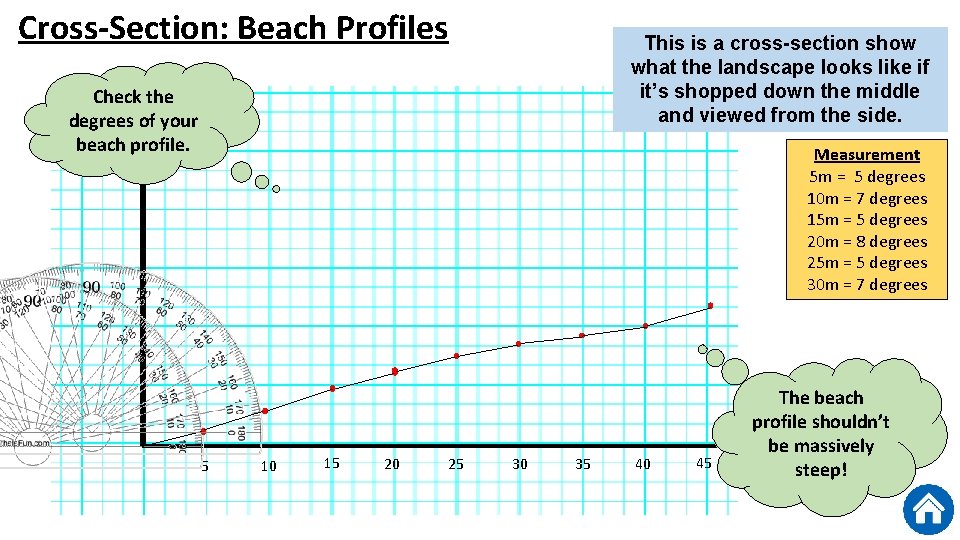

Cross-Section: Beach Profiles This is a cross-section show what the landscape looks like if it’s shopped down the middle and viewed from the side. Check the degrees of your beach profile. 5 Measurement 5 m = 5 degrees 10 m = 7 degrees 15 m = 5 degrees 20 m = 8 degrees 25 m = 5 degrees 30 m = 7 degrees 10 15 20 25 30 35 40 45 The beach profile shouldn’t be massively 50 steep!

Working out the Percentages and Degrees for Pie Charts Eleven students were asked about for their opinion about geography. Geography is the best subject in the world. Strongly Disagree Agree Strong Agree 1 4 6 5 • For each value you will need to divide it by the total amount of people. 1 / 16 4 / 16 6 / 16 5 / 16 = 0. 06 = 0. 25 = 0. 38 = 0. 31 x 100 6% 25% 38% 31% x 3. 6 22 90 136 112 • Now you need to turn the number into a percentage by multiplying by 100 • For a pie chart however you will need to turn the percentage into a degree. This can be done by multiplying by the magic 3. 6. You can check whether your result is accurate by seeing if it adds up to 100 for percentages and 360 for degrees!

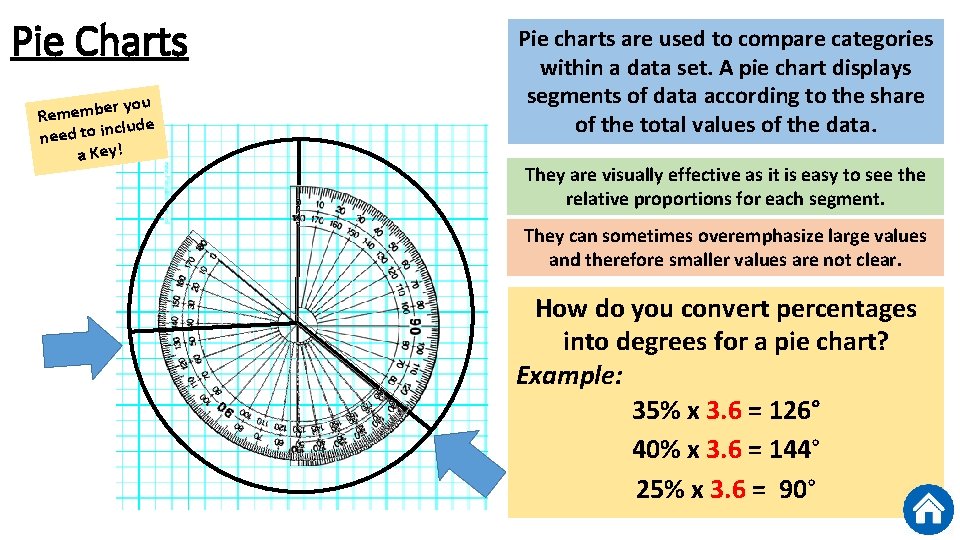

Pie Charts you r e b m e m Re clude need to in a Key! Pie charts are used to compare categories within a data set. A pie chart displays segments of data according to the share of the total values of the data. They are visually effective as it is easy to see the relative proportions for each segment. They can sometimes overemphasize large values and therefore smaller values are not clear. How do you convert percentages into degrees for a pie chart? Example: 35% x 3. 6 = 126° 40% x 3. 6 = 144° 25% x 3. 6 = 90°

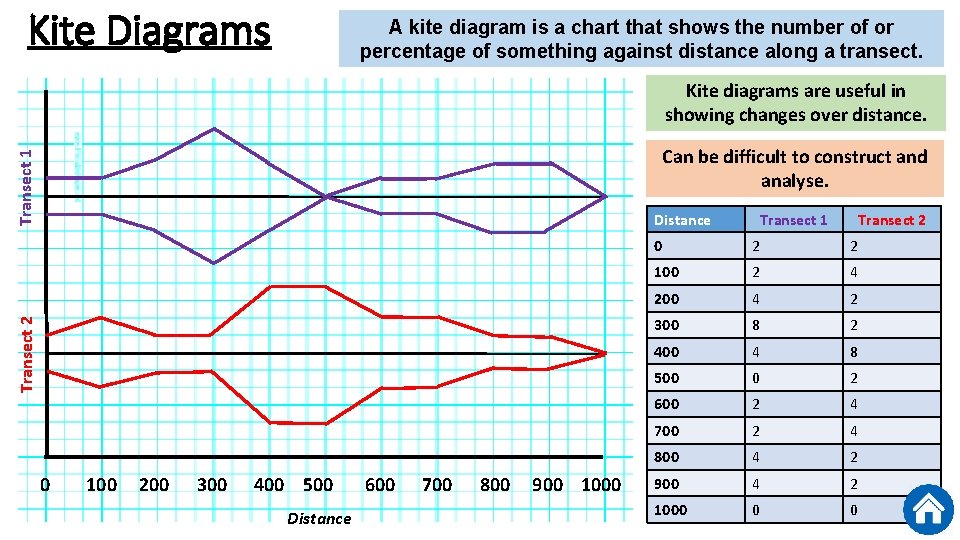

Kite Diagrams A kite diagram is a chart that shows the number of or percentage of something against distance along a transect. Kite diagrams are useful in showing changes over distance. Transect 1 Can be difficult to construct and analyse. Transect 2 Distance 0 100 200 300 400 500 600 700 800 900 1000 Distance Transect 1 Transect 2 0 2 2 100 2 4 200 4 2 300 8 2 400 4 8 500 0 2 600 2 4 700 2 4 800 4 2 900 4 2 1000 0 0

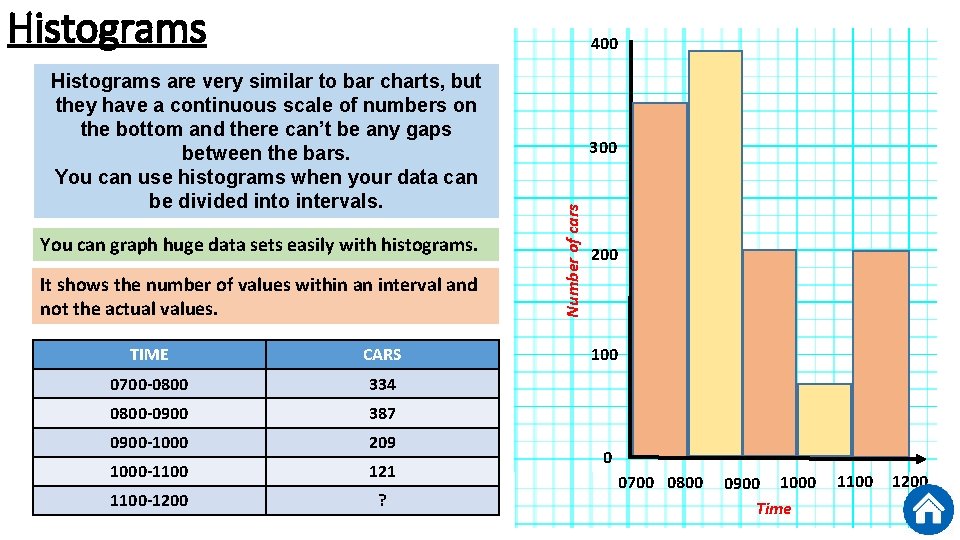

Histograms 400 You can graph huge data sets easily with histograms. It shows the number of values within an interval and not the actual values. TIME CARS 0700 -0800 334 0800 -0900 387 0900 -1000 209 1000 -1100 121 1100 -1200 ? 300 Number of cars Histograms are very similar to bar charts, but they have a continuous scale of numbers on the bottom and there can’t be any gaps between the bars. You can use histograms when your data can be divided into intervals. 200 100 0 0700 0800 0900 1000 Time 1100 1200

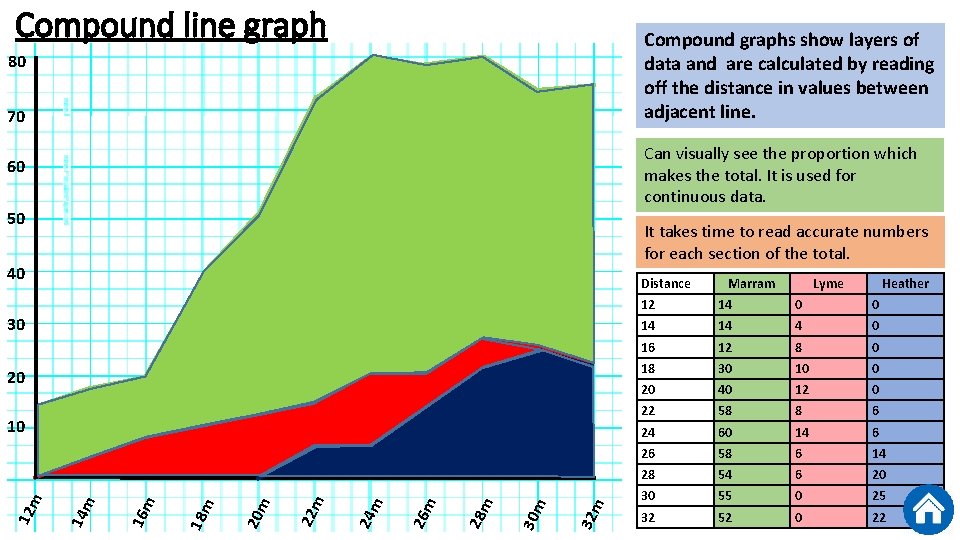

Compound line graph Compound graphs show layers of data and are calculated by reading off the distance in values between adjacent line. 80 70 Can visually see the proportion which makes the total. It is used for continuous data. 60 50 It takes time to read accurate numbers for each section of the total. 40 Distance 30 20 32 m 30 m 28 m 26 m 24 m 22 m 20 m 18 m 16 m 14 m 12 m 10 Marram Lyme Heather 12 14 0 0 14 14 4 0 16 12 8 0 18 30 10 0 20 40 12 0 22 58 8 6 24 60 14 6 26 58 6 14 28 54 6 20 30 55 0 25 32 52 0 22

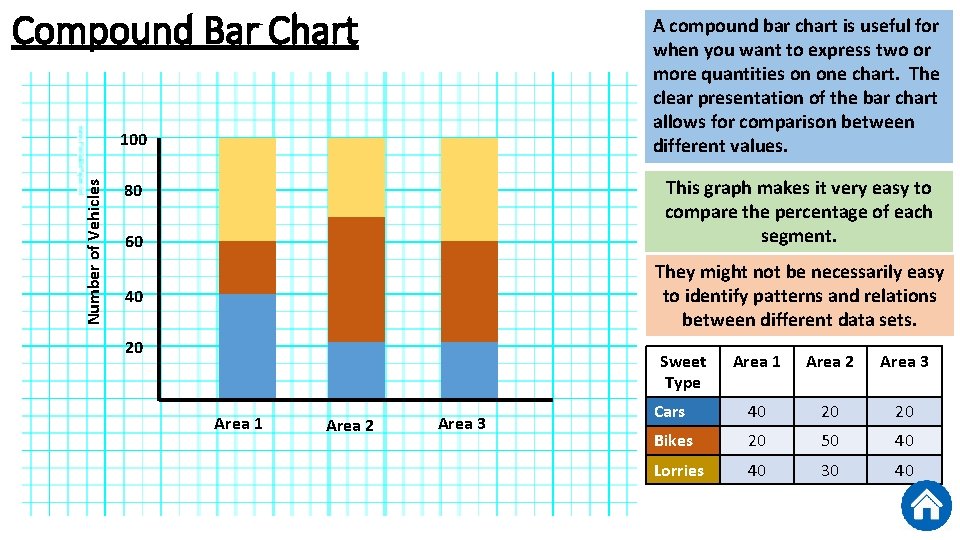

Compound Bar Chart A compound bar chart is useful for when you want to express two or more quantities on one chart. The clear presentation of the bar chart allows for comparison between different values. Number of Vehicles 100 This graph makes it very easy to compare the percentage of each segment. 80 60 They might not be necessarily easy to identify patterns and relations between different data sets. 40 20 Sweet Type Area 1 Area 2 Area 3 Cars 40 20 20 Bikes 20 50 40 Lorries 40 30 40

Radar Graphs A radar chart is a graphical method of displaying several different sets of data that are on the same scale using one focal point. Building Quality 5 4 3 Green Space Shops & Services 2 1 They are a useful way of identifying patterns within a particular theme. Can only be used for data which scale is the same. Noise Pollution Litter Factors 500 m 0 m Building Quality 5 4 Shop & Services 4 5 Litter 3 4 Noise Pollution 4 2 Green Space 4 4

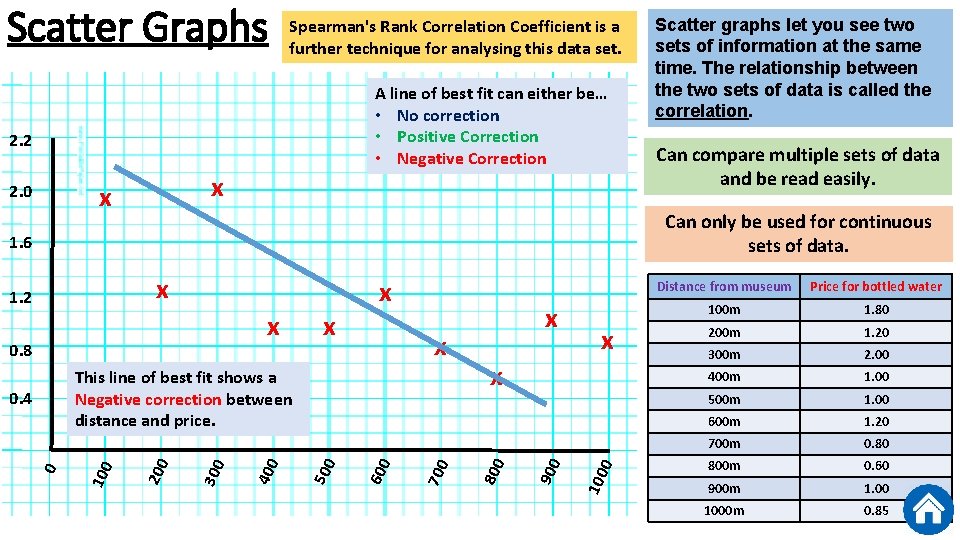

Scatter Graphs Spearman's Rank Correlation Coefficient is a further technique for analysing this data set. A line of best fit can either be… • No correction • Positive Correction • Negative Correction 2. 2 x x 2. 0 700 600 500 400 300 200 0 100 This line of best fit shows a Negative correction between distance and price. x 0 x x 100 0. 8 x x 900 x x 800 x 0. 4 Can compare multiple sets of data and be read easily. Can only be used for continuous sets of data. 1. 6 1. 2 Scatter graphs let you see two sets of information at the same time. The relationship between the two sets of data is called the correlation. Distance from museum Price for bottled water 100 m 1. 80 200 m 1. 20 300 m 2. 00 400 m 1. 00 500 m 1. 00 600 m 1. 20 700 m 0. 80 800 m 0. 60 900 m 1. 00 1000 m 0. 85

Line Graphs Line graphs are used to show continuous data and are useful for showing trends. This is a simple line graph. 70 60 Can compare multiple sets of data and be read easily. 50 Can only be used for continuous sets of data. 40 Population Number (millions) 30 Years 20 1 201 0 200 1 199 1 198 1 197 1 196 1 195 1 194 1 193 192 1 10 UK France Spain 1921 40 37 21 1931 44 39 24 1941 46 41 26 1951 50 42 28 1961 53 46 31 1971 56 51 34 1981 56 54 38 1991 58 57 39 2001 59 59 40 2011 63 63 47

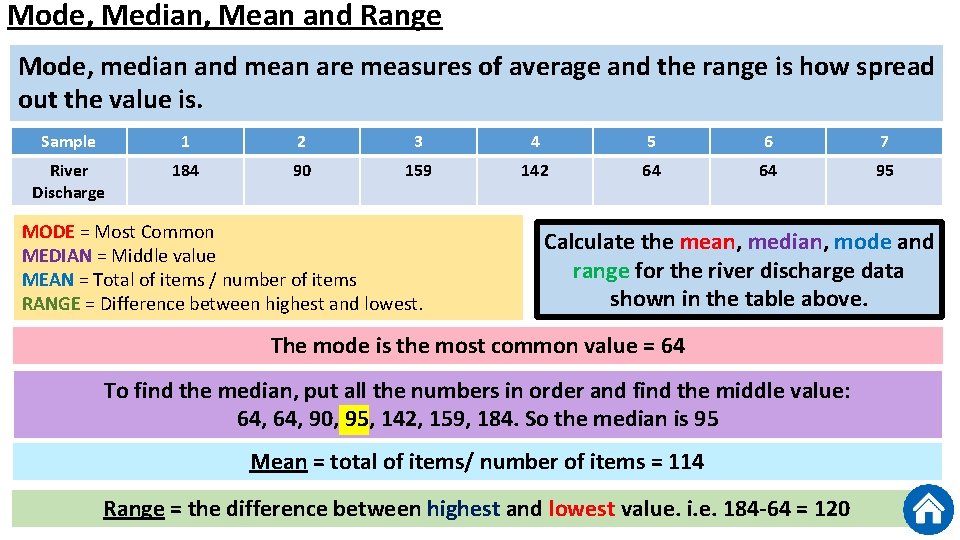

Mode, Median, Mean and Range Mode, median and mean are measures of average and the range is how spread out the value is. Sample 1 2 3 4 5 6 7 River Discharge 184 90 159 142 64 64 95 MODE = Most Common MEDIAN = Middle value MEAN = Total of items / number of items RANGE = Difference between highest and lowest. Calculate the mean, median, mode and range for the river discharge data shown in the table above. The mode is the most common value = 64 To find the median, put all the numbers in order and find the middle value: 64, 90, 95, 142, 159, 184. So the median is 95 Mean = total of items/ number of items = 114 Range = the difference between highest and lowest value. i. e. 184 -64 = 120

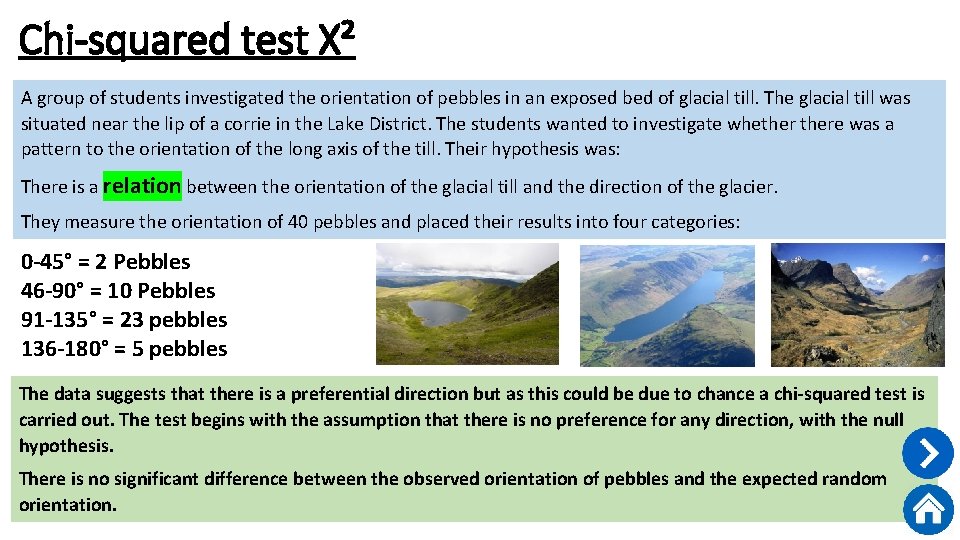

Chi-squared test X² A group of students investigated the orientation of pebbles in an exposed bed of glacial till. The glacial till was situated near the lip of a corrie in the Lake District. The students wanted to investigate whethere was a pattern to the orientation of the long axis of the till. Their hypothesis was: There is a relation between the orientation of the glacial till and the direction of the glacier. They measure the orientation of 40 pebbles and placed their results into four categories: 0 -45° = 2 Pebbles 46 -90° = 10 Pebbles 91 -135° = 23 pebbles 136 -180° = 5 pebbles The data suggests that there is a preferential direction but as this could be due to chance a chi-squared test is carried out. The test begins with the assumption that there is no preference for any direction, with the null hypothesis. There is no significant difference between the observed orientation of pebbles and the expected random orientation.

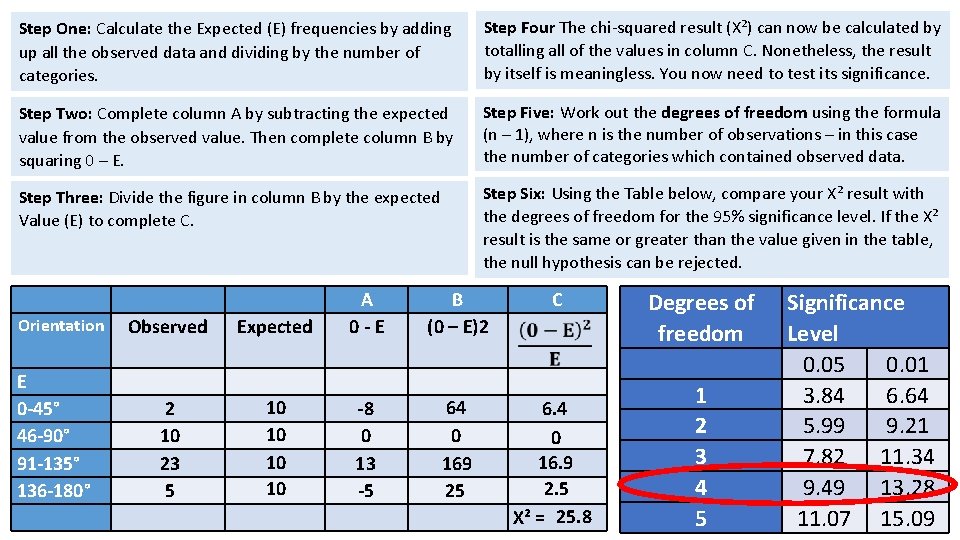

Step One: Calculate the Expected (E) frequencies by adding up all the observed data and dividing by the number of categories. Step Four The chi-squared result (X²) can now be calculated by totalling all of the values in column C. Nonetheless, the result by itself is meaningless. You now need to test its significance. Step Two: Complete column A by subtracting the expected value from the observed value. Then complete column B by squaring 0 – E. Step Five: Work out the degrees of freedom using the formula (n – 1), where n is the number of observations – in this case the number of categories which contained observed data. Step Three: Divide the figure in column B by the expected Value (E) to complete C. Step Six: Using the Table below, compare your X² result with the degrees of freedom for the 95% significance level. If the X² result is the same or greater than the value given in the table, the null hypothesis can be rejected. Orientation E 0 -45° 46 -90° 91 -135° 136 -180° Observed 2 10 23 5 A 0 - E Expected 10 10 -8 0 13 -5 B (0 – E)2 64 0 169 25 C 6. 4 0 16. 9 2. 5 X² = 25. 8 Degrees of freedom 1 2 3 4 5 Significance Level 0. 05 0. 01 3. 84 6. 64 5. 99 9. 21 7. 82 11. 34 9. 49 13. 28 11. 07 15. 09

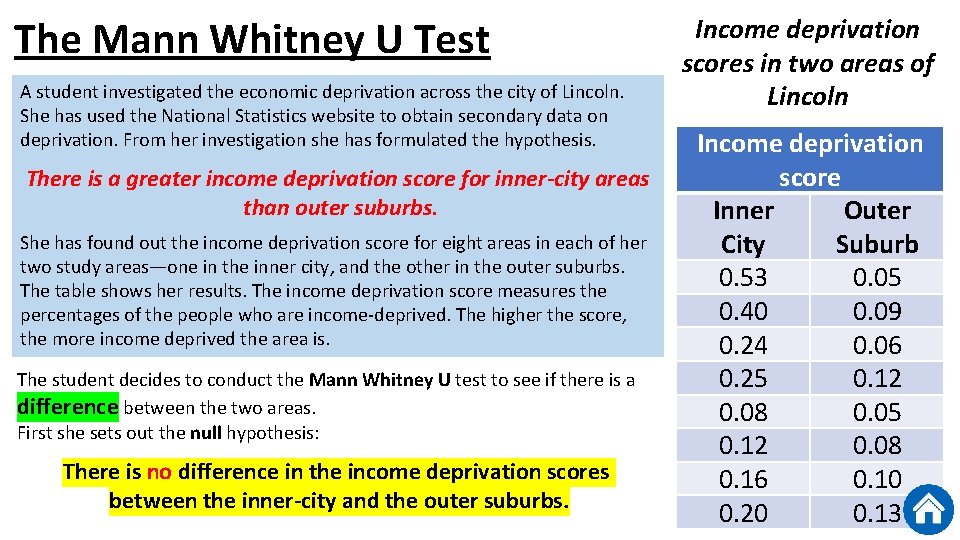

The Mann Whitney U Test A student investigated the economic deprivation across the city of Lincoln. She has used the National Statistics website to obtain secondary data on deprivation. From her investigation she has formulated the hypothesis. There is a greater income deprivation score for inner-city areas than outer suburbs. She has found out the income deprivation score for eight areas in each of her two study areas—one in the inner city, and the other in the outer suburbs. The table shows her results. The income deprivation score measures the percentages of the people who are income-deprived. The higher the score, the more income deprived the area is. The student decides to conduct the Mann Whitney U test to see if there is a difference between the two areas. First she sets out the null hypothesis: There is no difference in the income deprivation scores between the inner-city and the outer suburbs. Income deprivation scores in two areas of Lincoln Income deprivation score Inner Outer City Suburb 0. 53 0. 05 0. 40 0. 09 0. 24 0. 06 0. 25 0. 12 0. 08 0. 05 0. 12 0. 08 0. 16 0. 10 0. 20 0. 13

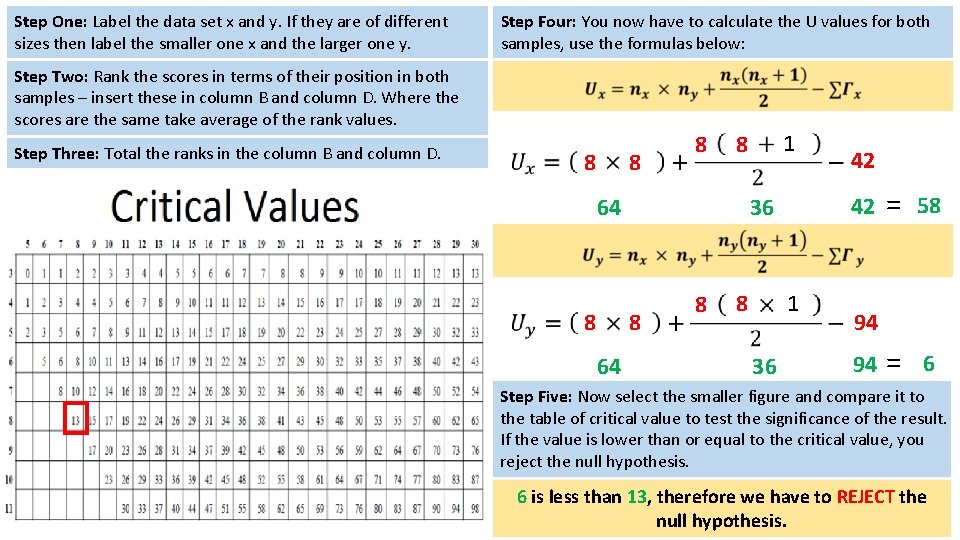

Step One: Label the data set x and y. If they are of different sizes then label the smaller one x and the larger one y. Step Four: You now have to calculate the U values for both samples, use the formulas below: Step Two: Rank the scores in terms of their position in both samples – insert these in column B and column D. Where the scores are the same take average of the rank values. Step Three: Total the ranks in the column B and column D. A B C D Inner-city scores (x) Rank Outer suburb scores (y) Rank 0. 53 0. 40 0. 24 0. 25 0. 08 0. 12 0. 16 0. 20 1 2 4 3 12. 5 8. 5 6 5 Total = 42 0. 05 0. 09 0. 06 0. 12 0. 05 0. 08 0. 10 0. 13 15. 5 11 14 8. 5 15. 5 12. 5 10 7 Total = 94 8 8 8 1 8 42 36 64 42 = 58 = 6 8 8 64 8 1 8 36 94 94 Step Five: Now select the smaller figure and compare it to the table of critical value to test the significance of the result. If the value is lower than or equal to the critical value, you reject the null hypothesis. 6 is less than 13, therefore we have to REJECT the null hypothesis.

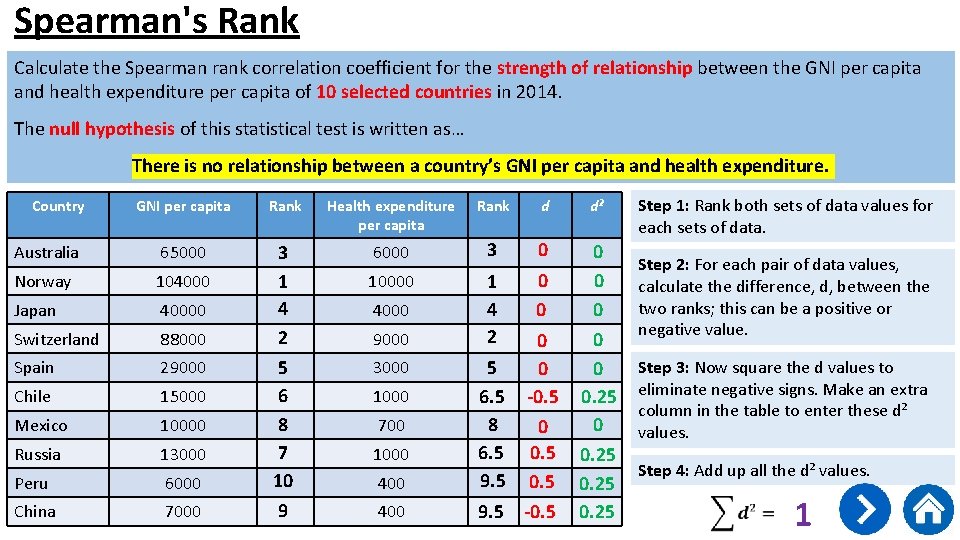

Spearman's Rank Calculate the Spearman rank correlation coefficient for the strength of relationship between the GNI per capita and health expenditure per capita of 10 selected countries in 2014. The null hypothesis of this statistical test is written as… There is no relationship between a country’s GNI per capita and health expenditure. Country GNI per capita Rank Health expenditure per capita Rank d d² Australia 65000 6000 3 0 Norway 104000 10000 Japan 40000 0 0 88000 1 4 2 0 0 0 Switzerland 3 1 4 2 Spain 29000 Chile 15000 Mexico 10000 Russia 13000 Peru 6000 China 7000 5 6 8 7 10 9 4000 9000 3000 1000 700 1000 400 0 5 0 6. 5 -0. 5 8 0 6. 5 0. 5 9. 5 -0. 5 0 0 0. 25 Step 1: Rank both sets of data values for each sets of data. Step 2: For each pair of data values, calculate the difference, d, between the two ranks; this can be a positive or negative value. Step 3: Now square the d values to eliminate negative signs. Make an extra column in the table to enter these d² values. Step 4: Add up all the d² values. 1

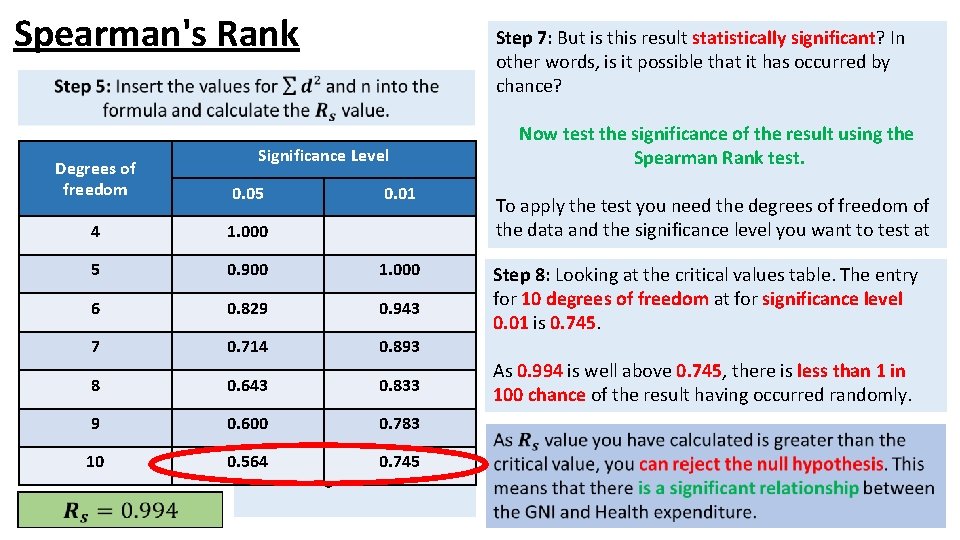

Spearman's Rank Degrees of freedom 4 5 n = number of variables 0. 900 1. 000 6 Step 6: If the value of r is very 0. 829 0. 943 close to 1, there is a strong positive correlation. 0. 893 0. 714 If the value of r is very close to 0. 643 0. 833 -1, there is a strong negative correlation. 0. 600 0. 783 8 9 10 Now test the significance of the result using the Spearman Rank test. Significance Level r = relationship = sum of 0. 05 0. 01 d = differences between the 1. 000 ranks 7 Step 7: But is this result statistically significant? In other words, is it possible that it has occurred by chance? 0. 564 This value suggests a 0. 745 strong correlation. To apply the test you need the degrees of freedom of the data and the significance level you want to test at Step 8: Looking at the critical values table. The entry for 10 degrees of freedom at for significance level 0. 01 is 0. 745. As 0. 994 is well above 0. 745, there is less than 1 in 100 chance of the result having occurred randomly.

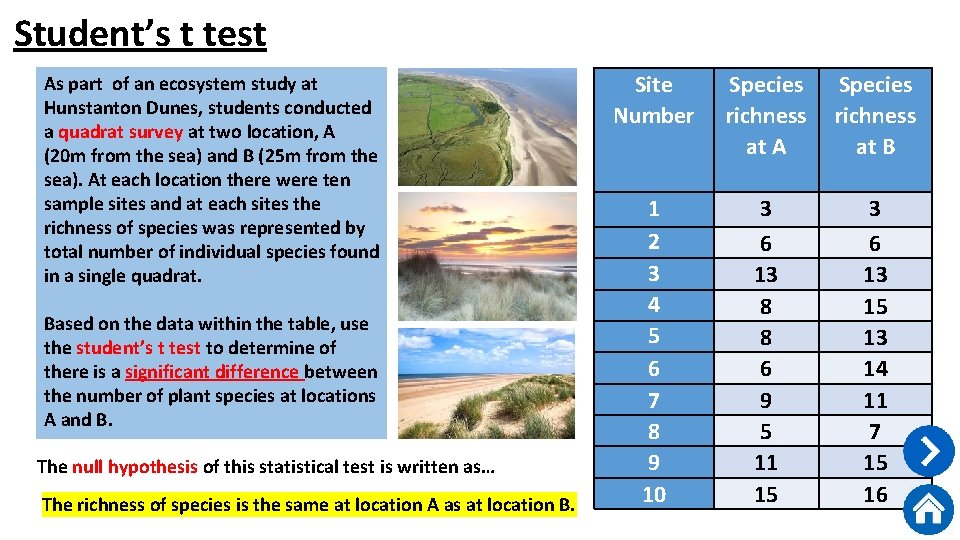

Student’s t test As part of an ecosystem study at Hunstanton Dunes, students conducted a quadrat survey at two location, A (20 m from the sea) and B (25 m from the sea). At each location there were ten sample sites and at each sites the richness of species was represented by total number of individual species found in a single quadrat. Based on the data within the table, use the student’s t test to determine of there is a significant difference between the number of plant species at locations A and B. The null hypothesis of this statistical test is written as… The richness of species is the same at location A as at location B. Site Number 1 2 3 4 5 6 7 8 9 10 Species richness at A at B 3 6 13 8 8 6 9 5 11 15 3 6 13 15 13 14 11 7 15 16

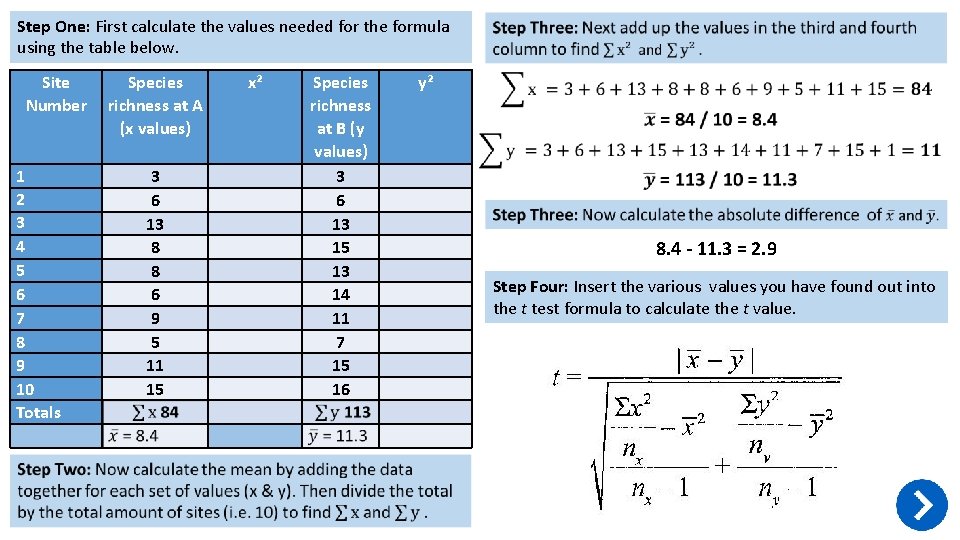

Step One: First calculate the values needed for the formula using the table below. Site Number 1 2 3 4 5 6 7 8 9 10 Totals Species richness at A (x values) 3 6 13 8 8 6 9 5 11 15 x² Species richness at B (y values) 3 6 13 15 13 14 11 7 15 16 y² 8. 4 - 11. 3 = 2. 9 Step Four: Insert the various values you have found out into the t test formula to calculate the t value.

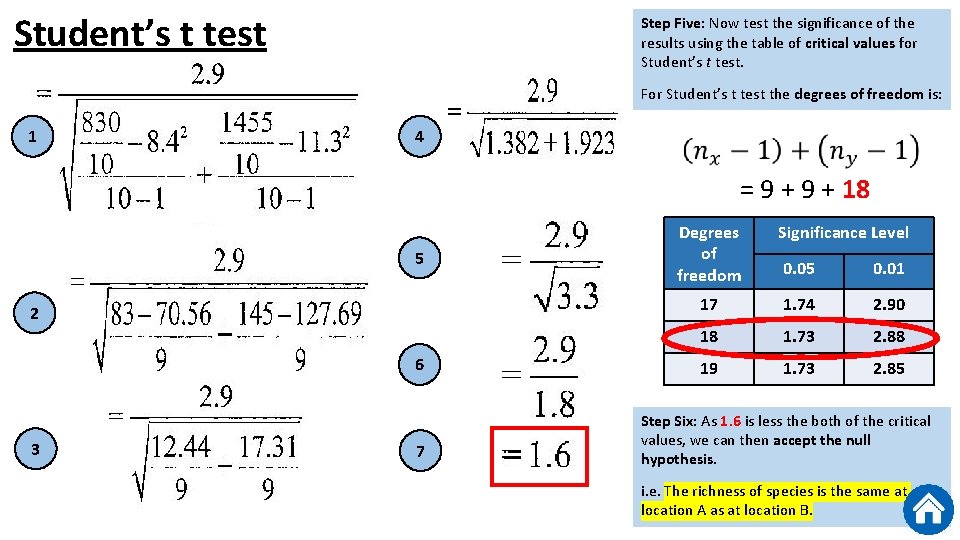

Student’s t test Step Five: Now test the significance of the results using the table of critical values for Student’s t test. For Student’s t test the degrees of freedom is: 1 4 = 9 + 18 5 2 6 3 7 Degrees of freedom Significance Level 0. 05 0. 01 17 1. 74 2. 90 18 1. 73 2. 88 19 1. 73 2. 85 Step Six: As 1. 6 is less the both of the critical values, we can then accept the null hypothesis. i. e. The richness of species is the same at location A as at location B.
