Making Maps With GIS

Introduction Output is the pinnacle of GIS projects n Two main types of output n – Maps – Visualizations (see chapter 13) n Maps are good at summarizing and communicating

What is a map? n “A graphic depiction of all or part of a geographic realm in which the real-world features have been replaced by symbols in their correct spatial location at a reduced scale. ” power line

Map function in GIS Storage n Temporary communication n Intermediate check of data n Final report n

GIS Processing Transformations

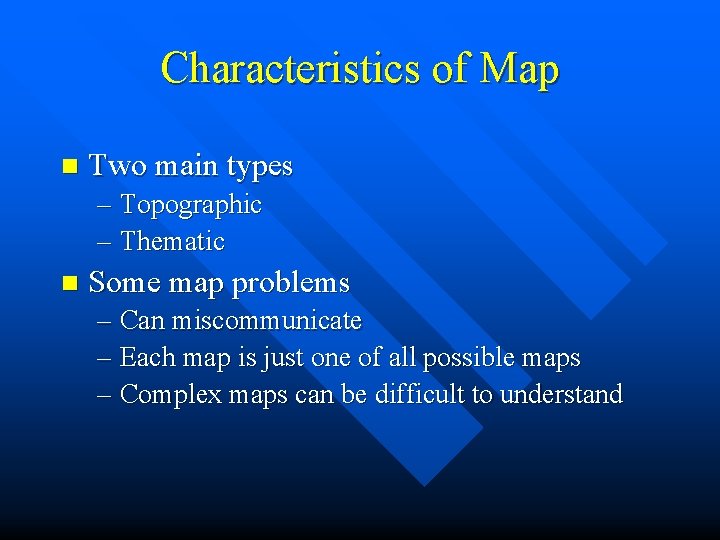

Characteristics of Map n Two main types – Topographic – Thematic n Some map problems – Can miscommunicate – Each map is just one of all possible maps – Complex maps can be difficult to understand

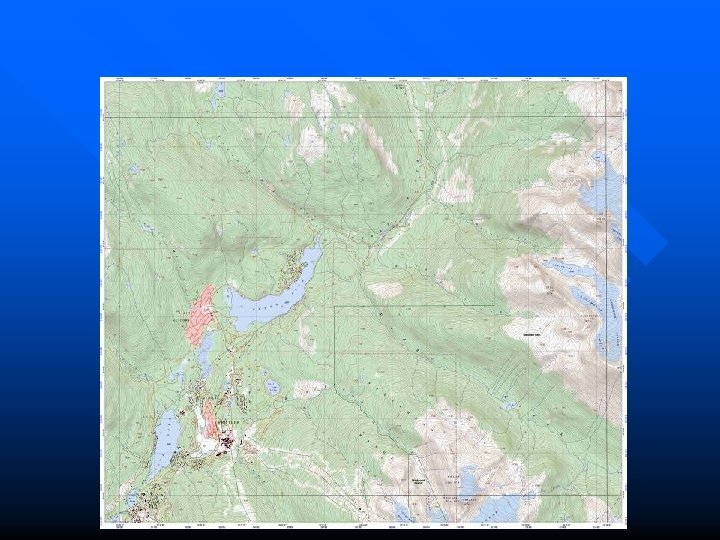

Topographic Map

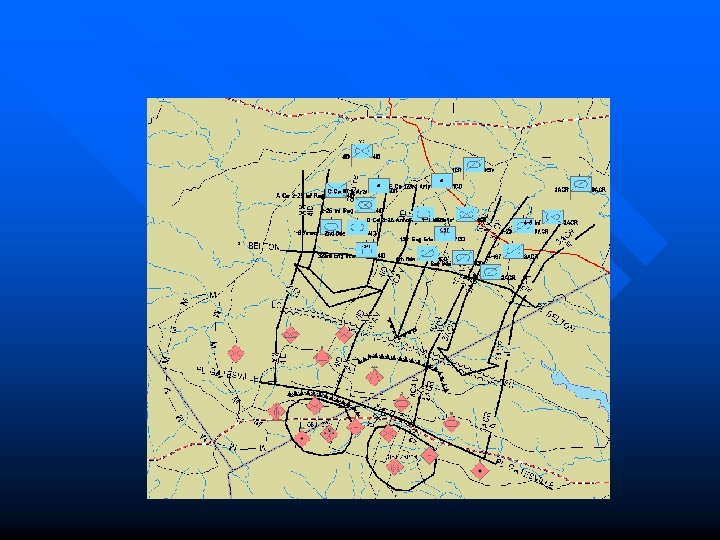

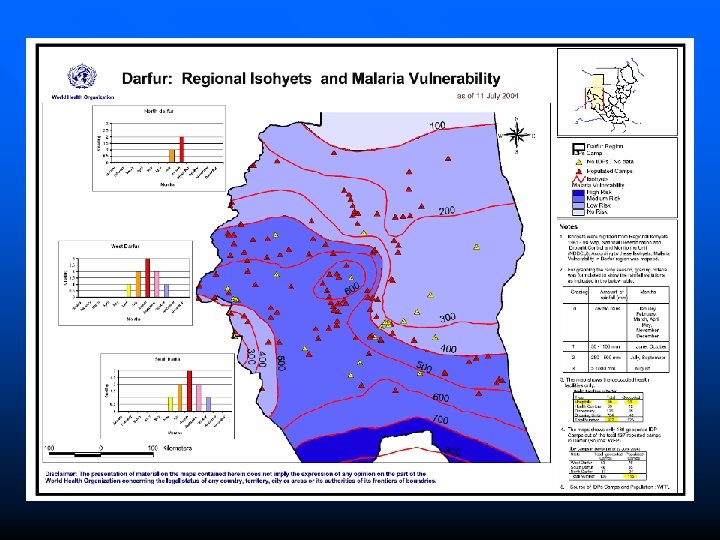

Thematic Map

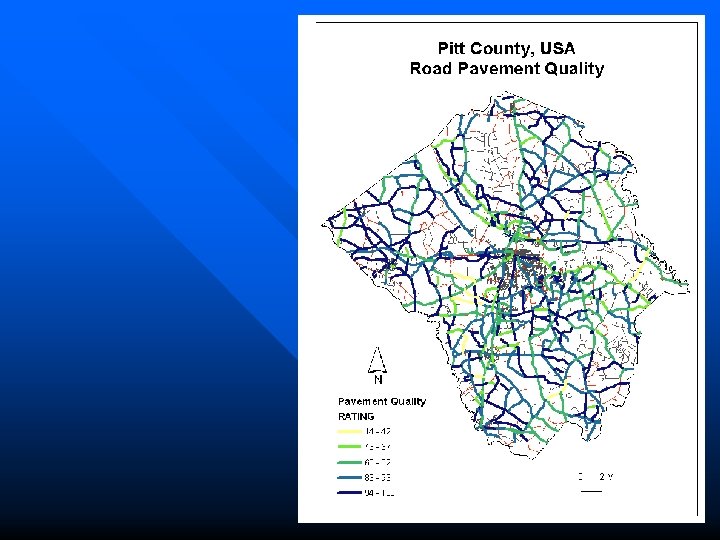

Map Types Point data n Line data n Area data n Volume data n Time data n

Choosing a Map Type Cartographers have designed hundreds of map types: methods of cartographic representation. n Not all GISs allow all types. n Most have a set of basic types n Depends heavily on the dimension of the data to be shown in the map figure. n

Choosing the Wrong Type Fairly common GIS error. n Due to lack of knowledge about cartographic options. n Can still have perfect symbolization. n Possibility of misinformation n Definite reduction in communication effectiveness. n

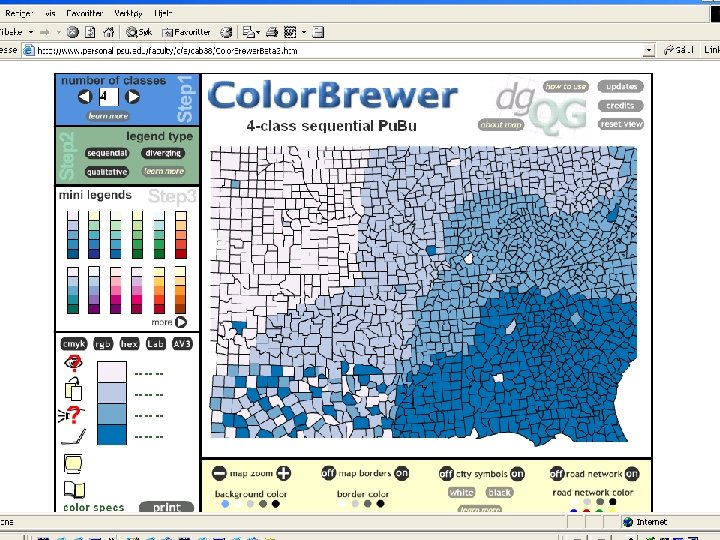

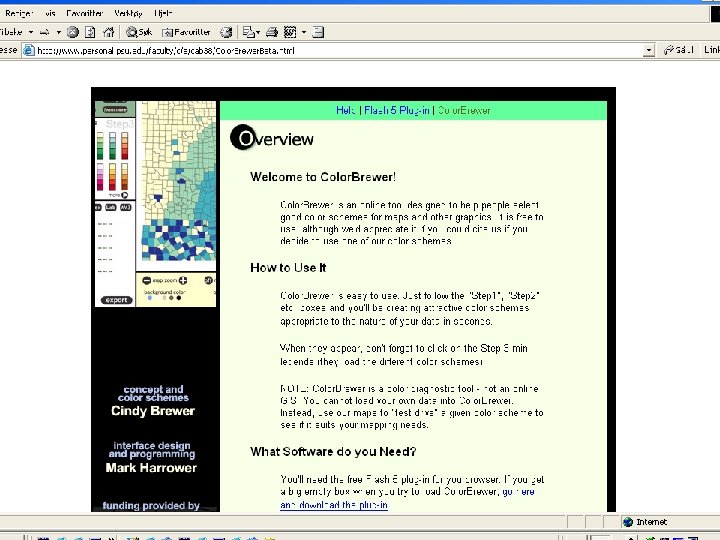

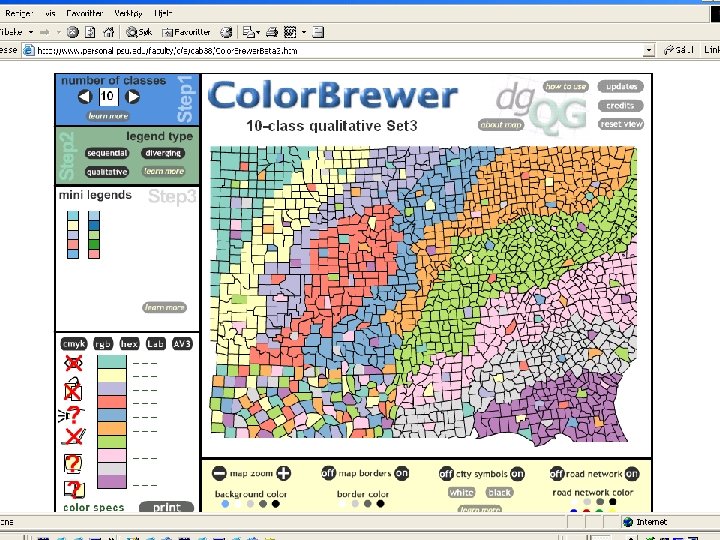

Choropleth Class Schemes

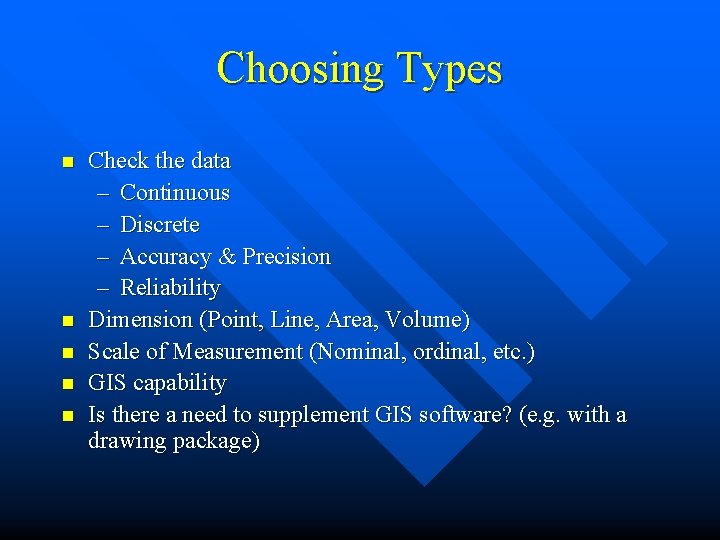

Choosing Types n n n Check the data – Continuous – Discrete – Accuracy & Precision – Reliability Dimension (Point, Line, Area, Volume) Scale of Measurement (Nominal, ordinal, etc. ) GIS capability Is there a need to supplement GIS software? (e. g. with a drawing package)

Maps and Cartography Map – ‘digital or analog output from a GIS showing information using well established cartographic conventions’ n Cartography is the art, science and techniques of making maps n

The Need for Design To appear professional and avoid errors, GIS maps should reflect cartographic knowledge about map design. n A map has a visual grammar or structure that must be understood and used if the best map design is desired. n Cartographic conventions should be followed (e. g. forests should be green). n

Map Design Good map design requires that map elements be placed in a balanced arrangement within the neat line. n A GIS map is designed in a process called the design loop. n

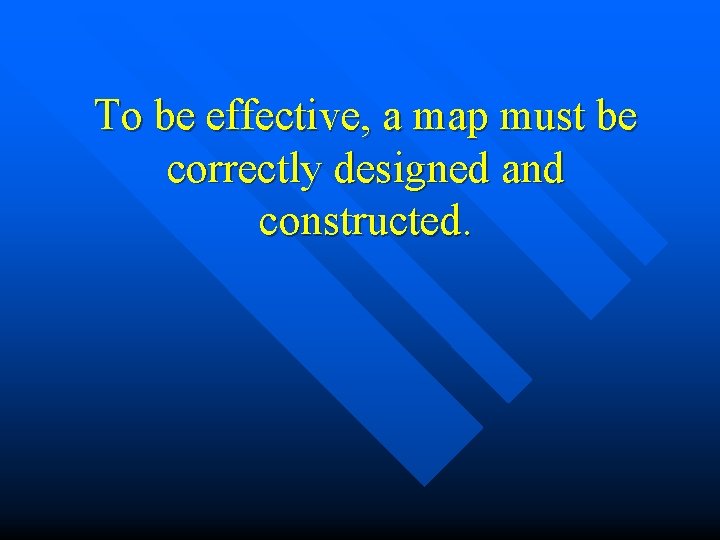

To be effective, a map must be correctly designed and constructed.

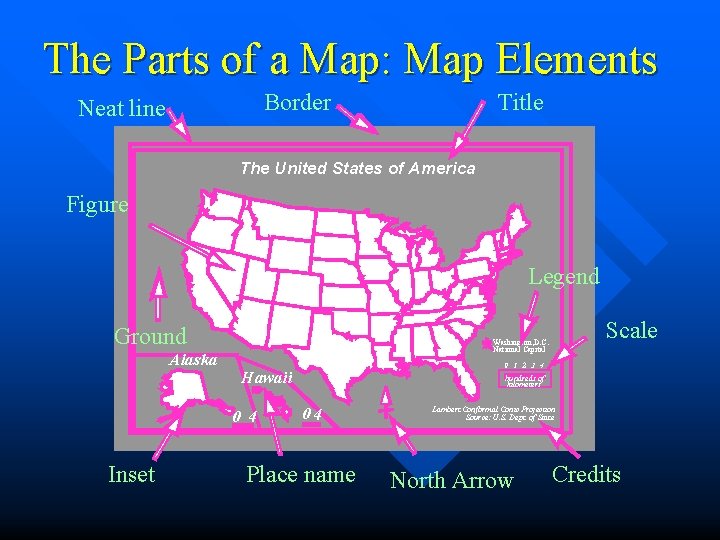

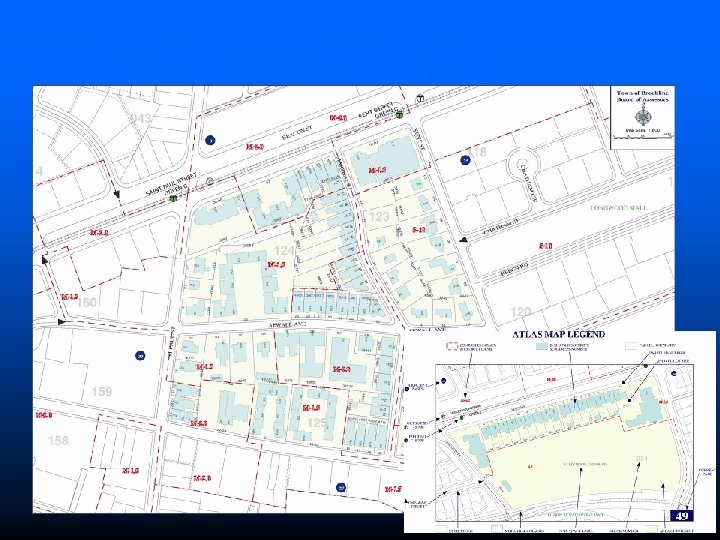

The Parts of a Map: Map Elements Border Neat line Title The United States of America Figure Legend Ground Alaska 0 1 2 3 4 Hawaii 0 4 Inset Scale Washington, D. C. National Capital hundreds of kilometers 04 Place name Lambert Conformal Conic Projection Source: U. S. Dept. of State North Arrow Credits

Inset map Scale Author North Arrow Data Source Map Body Projection Title Grid Legend

Bertin's Graphic Primitives

Visual balance is key! Visual balance is affected by: v the "weight" of the symbols v the visual hierarchy of the symbols and elements v the location of the elements with respect to each other and the visual center of the map. n

Visual center 5% of height Landscape Portrait

Visual Layout Title Here Eye expects (1) balance and (2) alignment

Text: Selection and Placement POINT LINE e d u M La k Oslo BM 232 Bærum 20 0 Kristiansand R S U 6 6 e t u o AREA Some cartographic label placement conventions. Points: right and above preferred with no overlap. Lines: Following the direction of the line, curved if a river. Areas: On a gently curved line following the shape of the figure and upright.

Text placement Trondheim Path right Trondheim Bogstadvann P a t h D o w n

Symbol “weight” Line weight Pattern Shading Hue

Map Design and GIS When a GIS map is the result of a complex analytical or modeling process, good design is essential for understanding. n The map is what distinguishes GIS as a different approach to the management of information, so extra care should be taken to improve the final maps that a GIS generates in a GIS task. n

Limitations of Paper Maps Fixed scale n Fixed extent n Static view n Flat and hence limited for 3 D visualization n Only presents ‘complete’ world view n Map producer-centric n

Conclusions Cartography is both an art and a science n Maps are fundamental to GIS projects n Modern advances in cartography make it easy to produce good and bad maps n New technology and especially the Internet has change the content and techniques of GIS-based cartography n

Multivariate Mapping
