GEOGRAPHIC INFORMATION SYSTEM GIS Project Objective and Scope

GEOGRAPHIC INFORMATION SYSTEM (GIS)

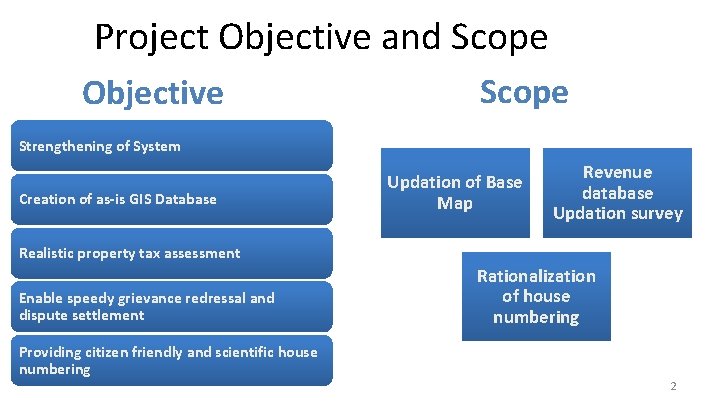

Project Objective and Scope Objective Scope Strengthening of System Creation of as-is GIS Database Updation of Base Map Revenue database Updation survey Realistic property tax assessment Enable speedy grievance redressal and dispute settlement Rationalization of house numbering Providing citizen friendly and scientific house numbering 2

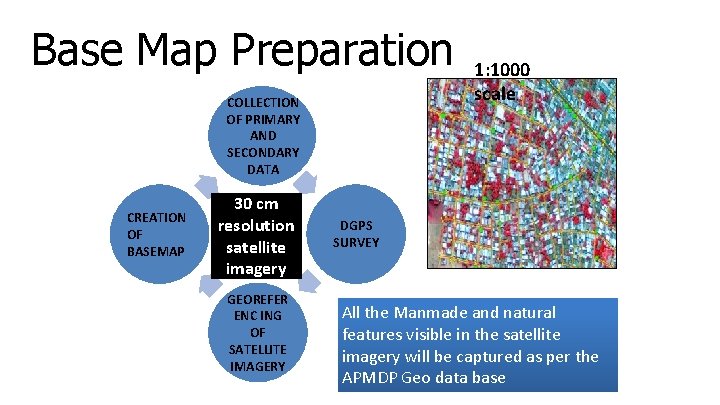

Base Map Preparation COLLECTION OF PRIMARY AND SECONDARY DATA CREATION OF BASEMAP 30 cm resolution satellite imagery GEOREFER ENC ING OF SATELLITE IMAGERY 1: 1000 scale DGPS SURVEY All the Manmade and natural features visible in the satellite imagery will be captured as per the APMDP Geo data base

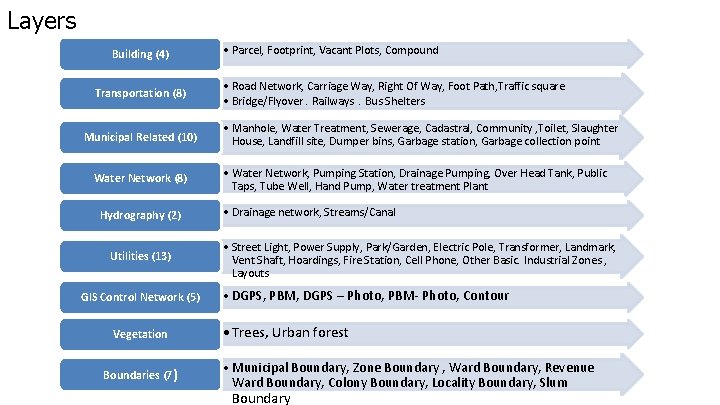

Layers Building (4) Transportation (8) Municipal Related (10) Water Network (8) Hydrography (2) Utilities (13) GIS Control Network (5) Vegetation Boundaries (7) • Parcel, Footprint, Vacant Plots, Compound • Road Network, Carriage Way, Right Of Way, Foot Path, Traffic square • Bridge/Flyover. Railways. Bus Shelters • Manhole, Water Treatment, Sewerage, Cadastral, Community , Toilet, Slaughter House, Landfill site, Dumper bins, Garbage station, Garbage collection point • Water Network, Pumping Station, Drainage Pumping, Over Head Tank, Public Taps, Tube Well, Hand Pump, Water treatment Plant • Drainage network, Streams/Canal • Street Light, Power Supply, Park/Garden, Electric Pole, Transformer, Landmark, Vent Shaft, Hoardings, Fire Station, Cell Phone, Other Basic. Industrial Zones , Layouts • DGPS, PBM, DGPS – Photo, PBM‐ Photo, Contour • Trees, Urban forest • Municipal Boundary, Zone Boundary , Ward Boundary, Revenue Ward Boundary, Colony Boundary, Locality Boundary, Slum Boundary

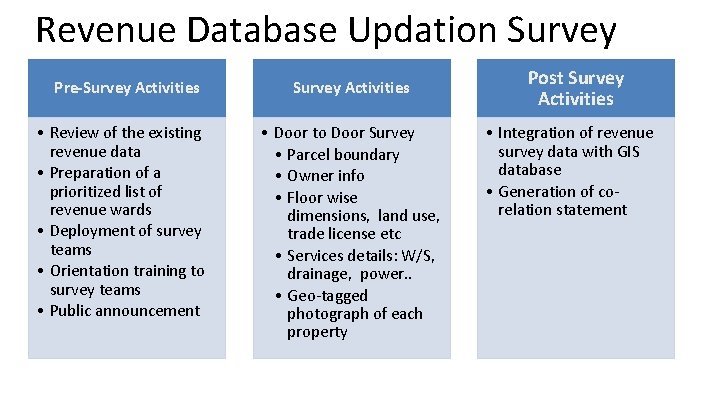

Revenue Database Updation Survey Pre-Survey Activities • Review of the existing revenue data • Preparation of a prioritized list of revenue wards • Deployment of survey teams • Orientation training to survey teams • Public announcement Survey Activities • Door to Door Survey • Parcel boundary • Owner info • Floor wise dimensions, land use, trade license etc • Services details: W/S, drainage, power. . • Geo‐tagged photograph of each property Post Survey Activities • Integration of revenue survey data with GIS database • Generation of co‐ relation statement

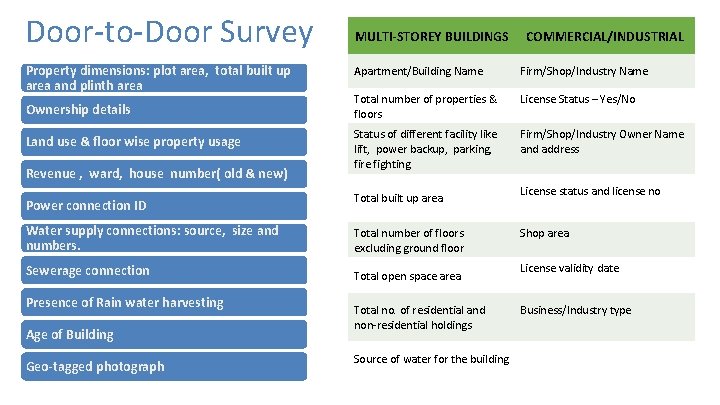

Door‐to‐Door Survey MULTI-STOREY BUILDINGS Property dimensions: plot area, total built up area and plinth area Apartment/Building Name Firm/Shop/Industry Name Total number of properties & floors License Status – Yes/No Status of different facility like lift, power backup, parking, fire fighting Firm/Shop/Industry Owner Name and address Ownership details Land use & floor wise property usage Revenue , ward, house number( old & new) Power connection ID Total built up area Water supply connections: source, size and numbers. Total number of floors excluding ground floor Sewerage connection Total open space area Presence of Rain water harvesting Age of Building Geo-tagged photograph Total no. of residential and non‐residential holdings Source of water for the building COMMERCIAL/INDUSTRIAL License status and license no Shop area License validity date Business/Industry type
