Geocaching Merit Badge 1 The Plan for Today

Geocaching Merit Badge 1

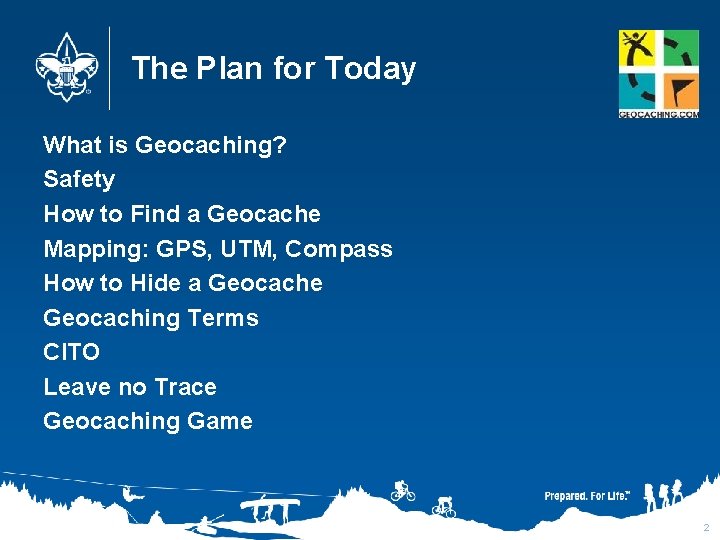

The Plan for Today What is Geocaching? Safety How to Find a Geocache Mapping: GPS, UTM, Compass How to Hide a Geocache Geocaching Terms CITO Leave no Trace Geocaching Game 2

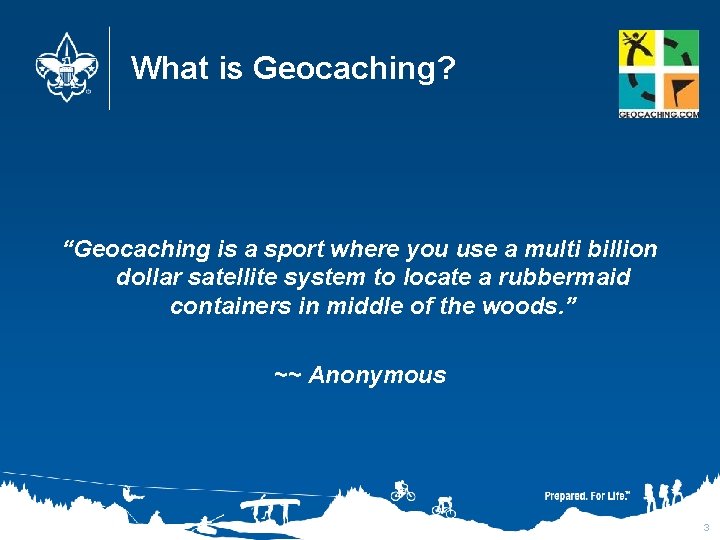

What is Geocaching? “Geocaching is a sport where you use a multi billion dollar satellite system to locate a rubbermaid containers in middle of the woods. ” ~~ Anonymous 3

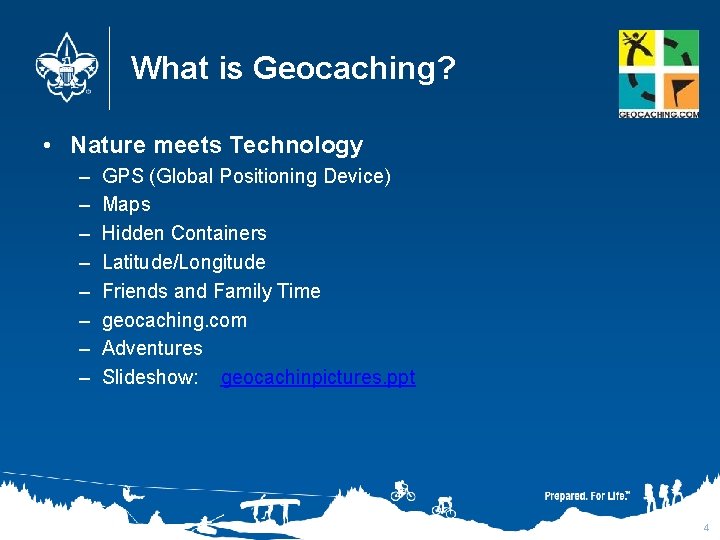

What is Geocaching? • Nature meets Technology – – – – GPS (Global Positioning Device) Maps Hidden Containers Latitude/Longitude Friends and Family Time geocaching. com Adventures Slideshow: geocachinpictures. ppt 4

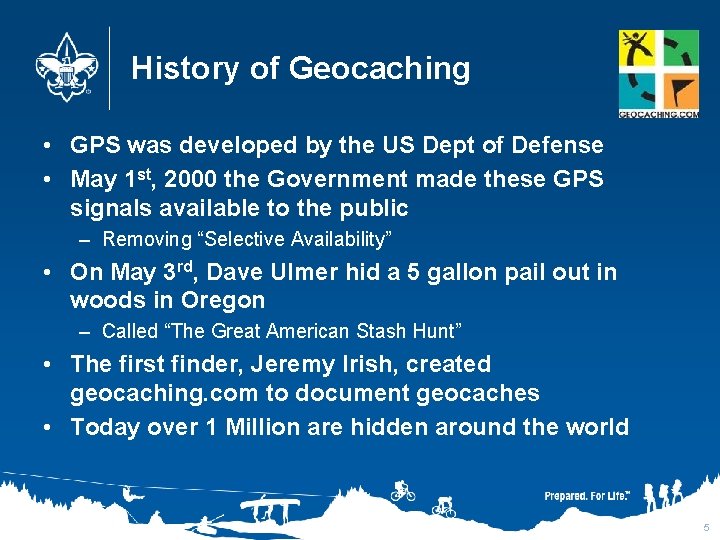

History of Geocaching • GPS was developed by the US Dept of Defense • May 1 st, 2000 the Government made these GPS signals available to the public – Removing “Selective Availability” • On May 3 rd, Dave Ulmer hid a 5 gallon pail out in woods in Oregon – Called “The Great American Stash Hunt” • The first finder, Jeremy Irish, created geocaching. com to document geocaches • Today over 1 Million are hidden around the world 5

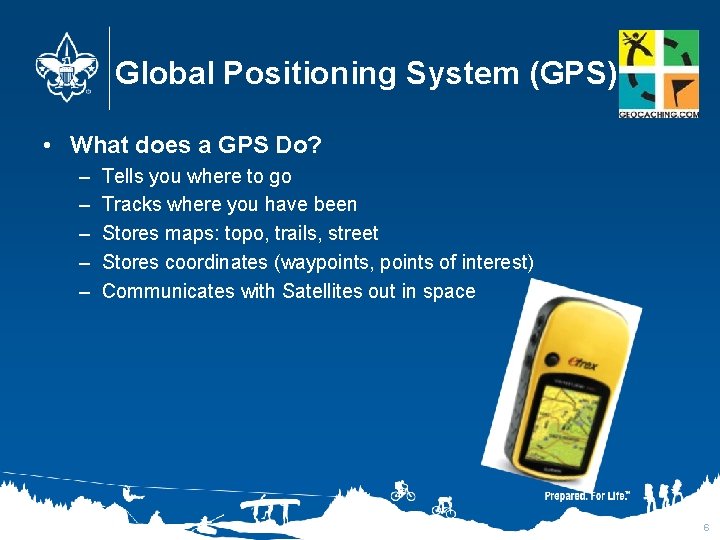

Global Positioning System (GPS) • What does a GPS Do? – – – Tells you where to go Tracks where you have been Stores maps: topo, trails, street Stores coordinates (waypoints, points of interest) Communicates with Satellites out in space 6

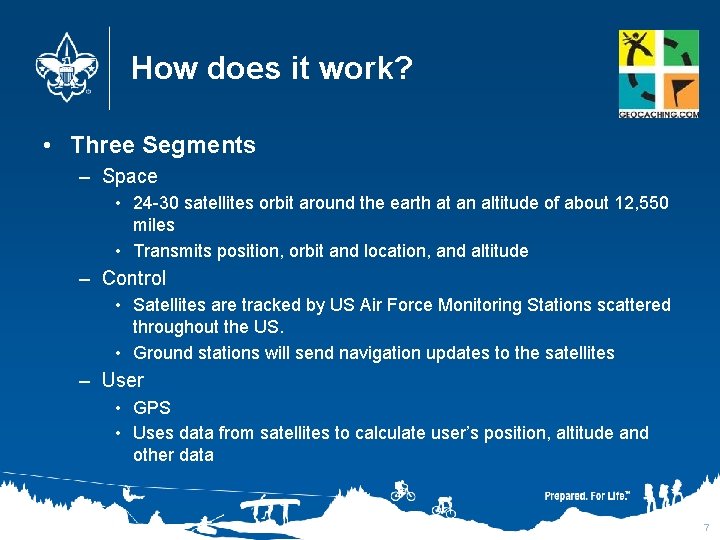

How does it work? • Three Segments – Space • 24 -30 satellites orbit around the earth at an altitude of about 12, 550 miles • Transmits position, orbit and location, and altitude – Control • Satellites are tracked by US Air Force Monitoring Stations scattered throughout the US. • Ground stations will send navigation updates to the satellites – User • GPS • Uses data from satellites to calculate user’s position, altitude and other data 7

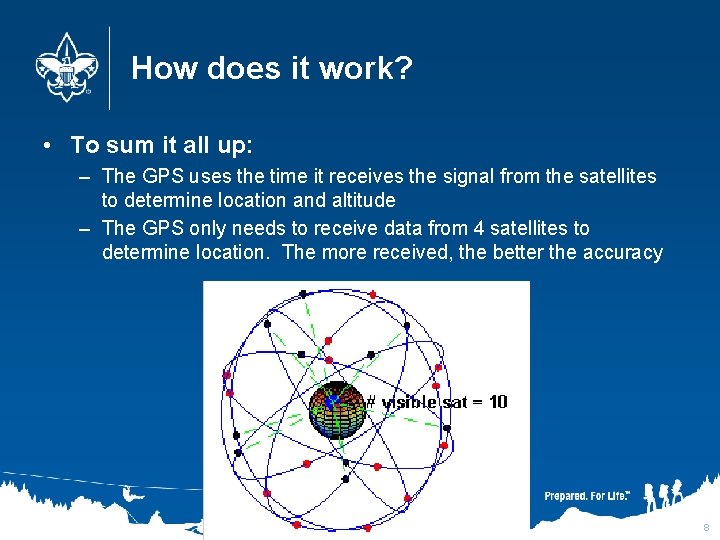

How does it work? • To sum it all up: – The GPS uses the time it receives the signal from the satellites to determine location and altitude – The GPS only needs to receive data from 4 satellites to determine location. The more received, the better the accuracy 8

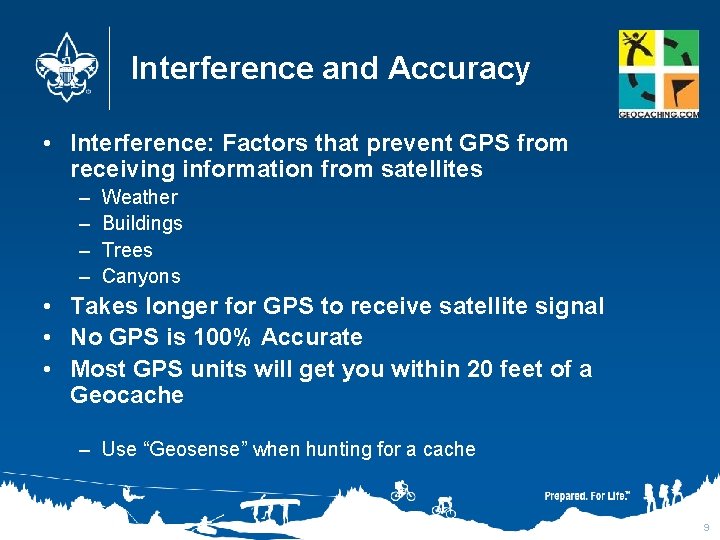

Interference and Accuracy • Interference: Factors that prevent GPS from receiving information from satellites – – Weather Buildings Trees Canyons • Takes longer for GPS to receive satellite signal • No GPS is 100% Accurate • Most GPS units will get you within 20 feet of a Geocache – Use “Geosense” when hunting for a cache 9

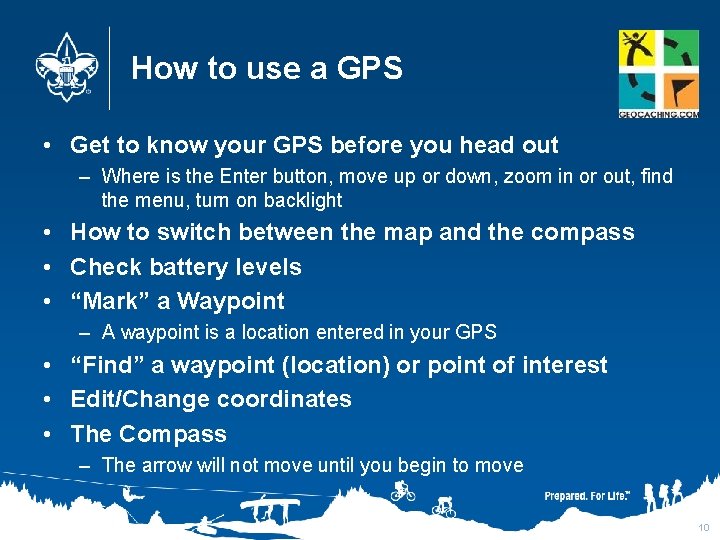

How to use a GPS • Get to know your GPS before you head out – Where is the Enter button, move up or down, zoom in or out, find the menu, turn on backlight • How to switch between the map and the compass • Check battery levels • “Mark” a Waypoint – A waypoint is a location entered in your GPS • “Find” a waypoint (location) or point of interest • Edit/Change coordinates • The Compass – The arrow will not move until you begin to move 10

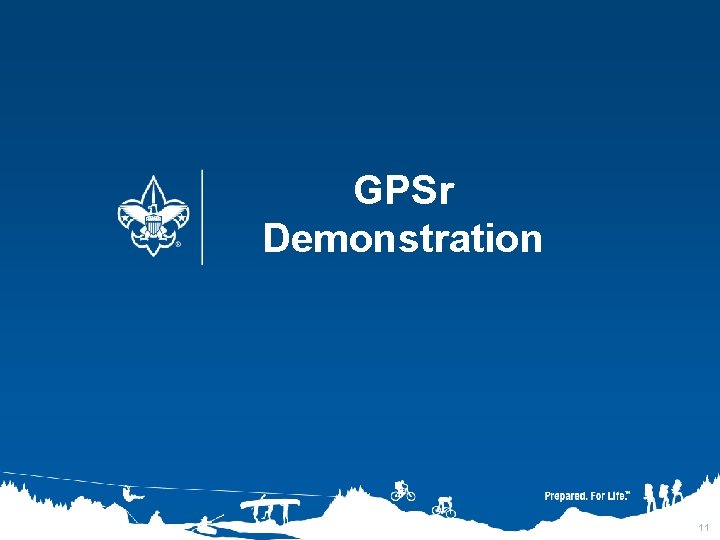

GPSr Demonstration 11

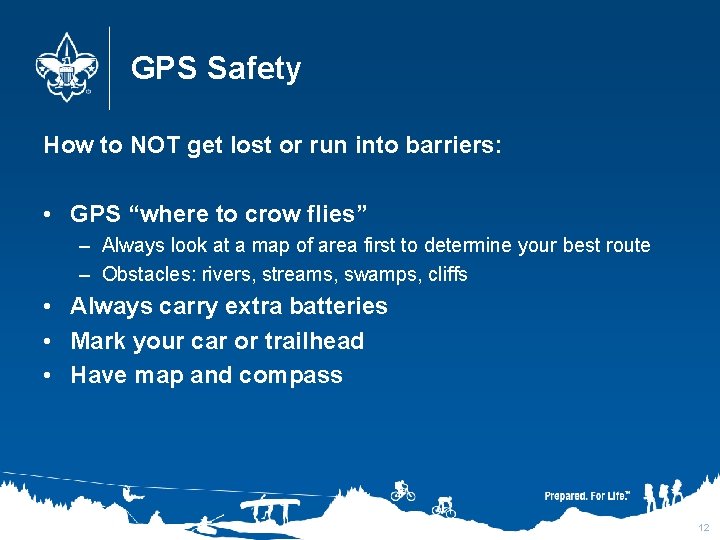

GPS Safety How to NOT get lost or run into barriers: • GPS “where to crow flies” – Always look at a map of area first to determine your best route – Obstacles: rivers, streams, swamps, cliffs • Always carry extra batteries • Mark your car or trailhead • Have map and compass 12

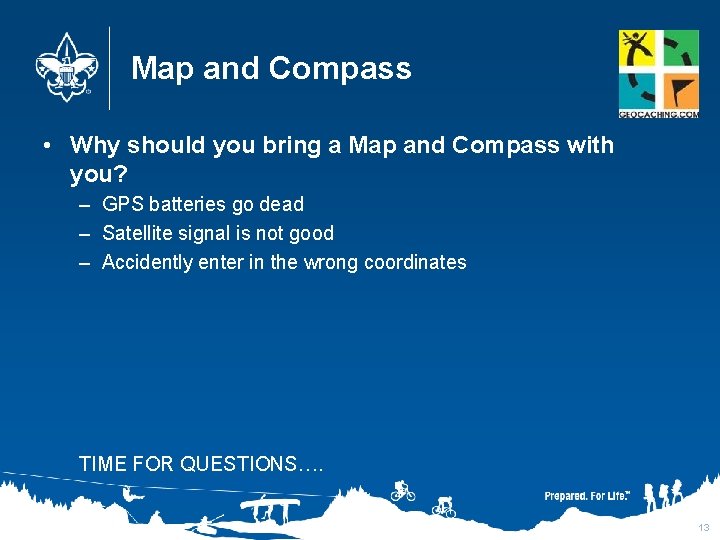

Map and Compass • Why should you bring a Map and Compass with you? – GPS batteries go dead – Satellite signal is not good – Accidently enter in the wrong coordinates TIME FOR QUESTIONS…. 13

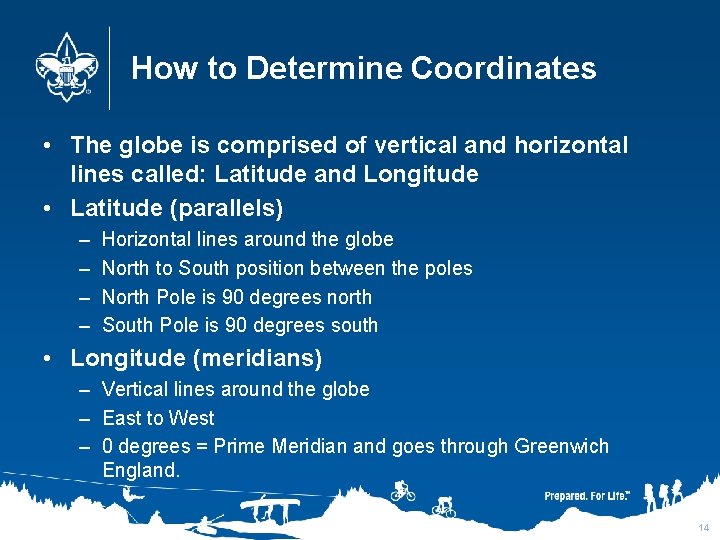

How to Determine Coordinates • The globe is comprised of vertical and horizontal lines called: Latitude and Longitude • Latitude (parallels) – – Horizontal lines around the globe North to South position between the poles North Pole is 90 degrees north South Pole is 90 degrees south • Longitude (meridians) – Vertical lines around the globe – East to West – 0 degrees = Prime Meridian and goes through Greenwich England. 14

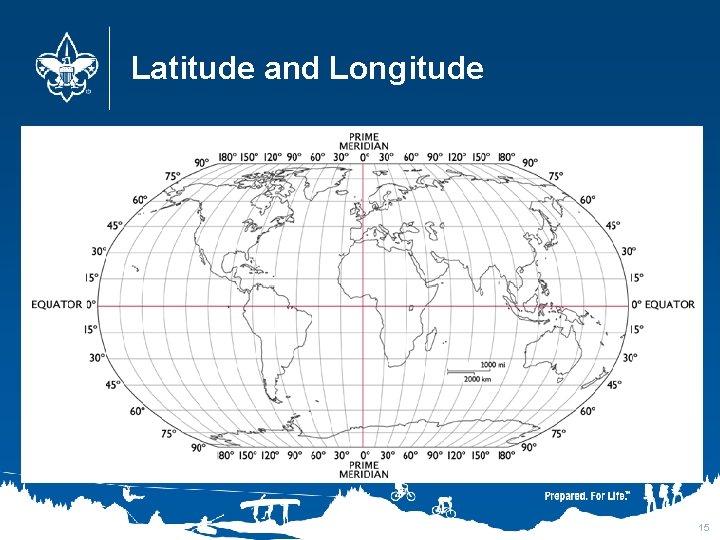

Latitude and Longitude 15

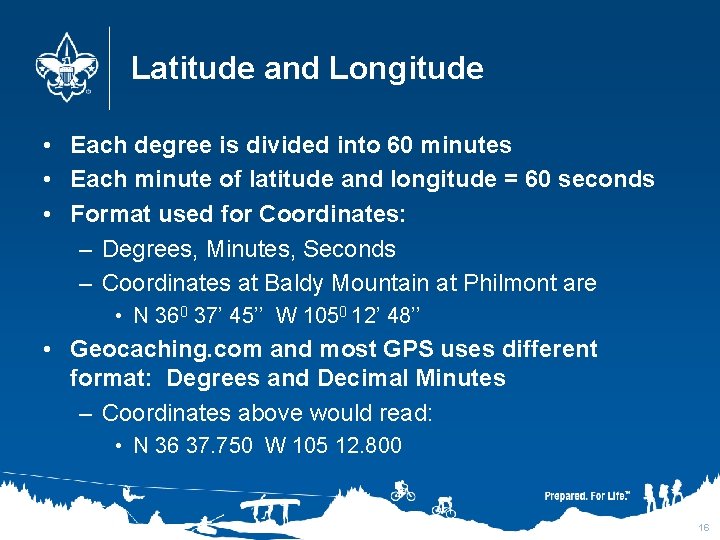

Latitude and Longitude • Each degree is divided into 60 minutes • Each minute of latitude and longitude = 60 seconds • Format used for Coordinates: – Degrees, Minutes, Seconds – Coordinates at Baldy Mountain at Philmont are • N 360 37’ 45’’ W 1050 12’ 48’’ • Geocaching. com and most GPS uses different format: Degrees and Decimal Minutes – Coordinates above would read: • N 36 37. 750 W 105 12. 800 16

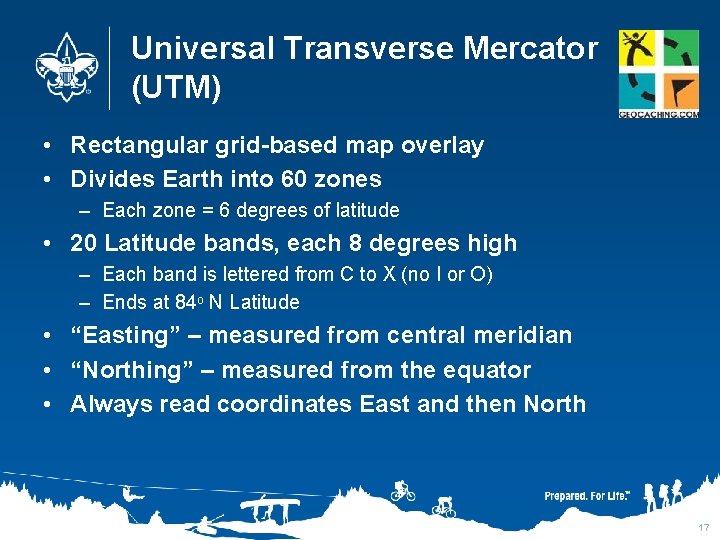

Universal Transverse Mercator (UTM) • Rectangular grid-based map overlay • Divides Earth into 60 zones – Each zone = 6 degrees of latitude • 20 Latitude bands, each 8 degrees high – Each band is lettered from C to X (no I or O) – Ends at 84 o N Latitude • “Easting” – measured from central meridian • “Northing” – measured from the equator • Always read coordinates East and then North 17

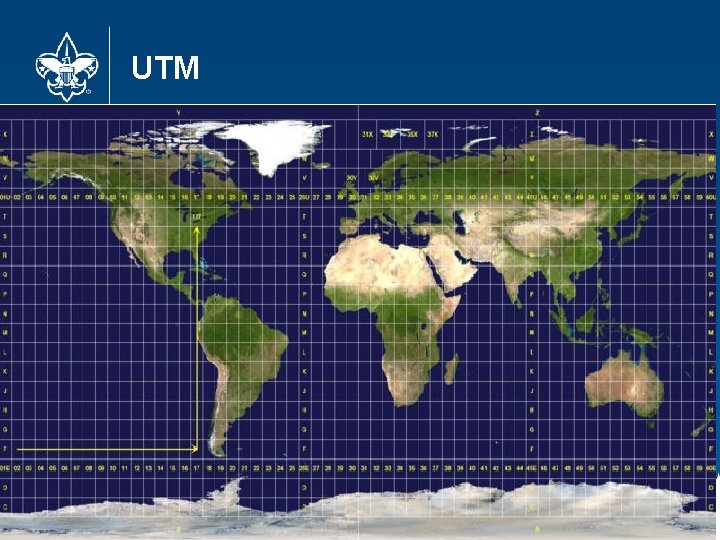

UTM 18

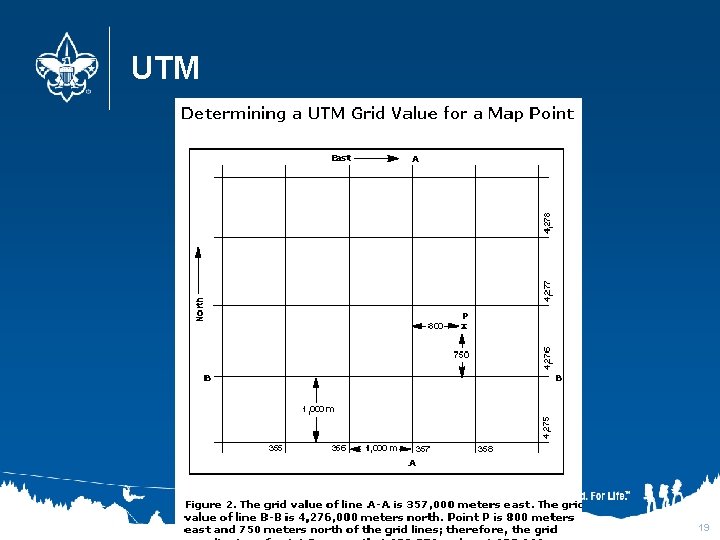

UTM 19

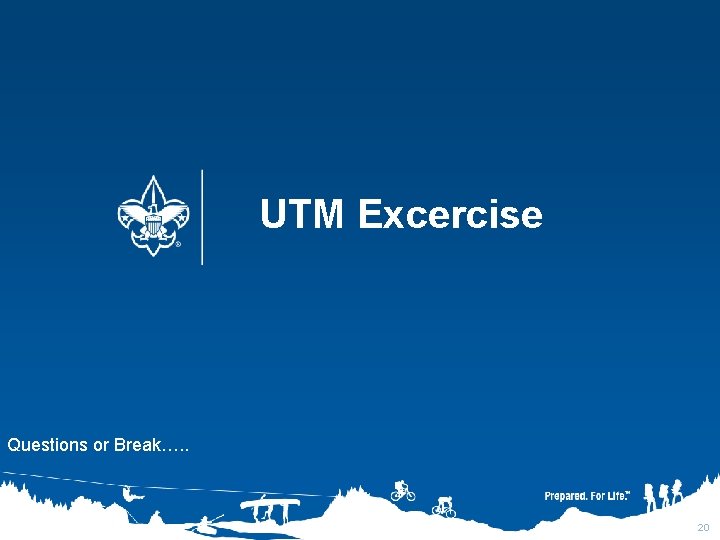

UTM Excercise Questions or Break…. . 20

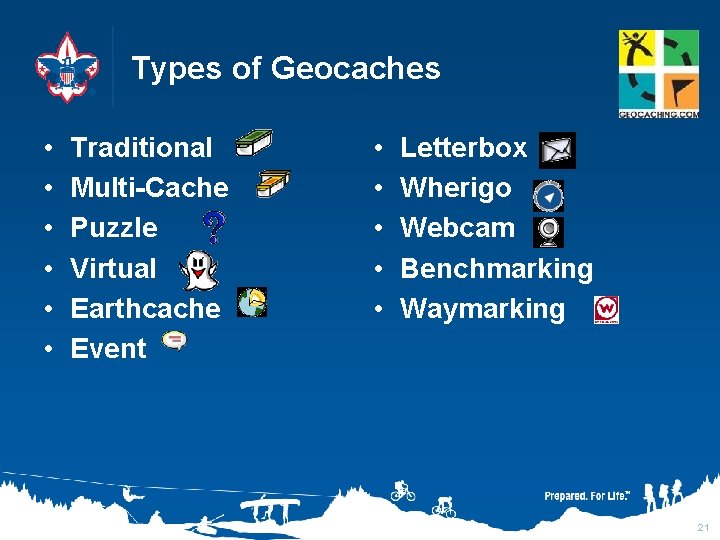

Types of Geocaches • • • Traditional Multi-Cache Puzzle Virtual Earthcache Event • • • Letterbox Wherigo Webcam Benchmarking Waymarking 21

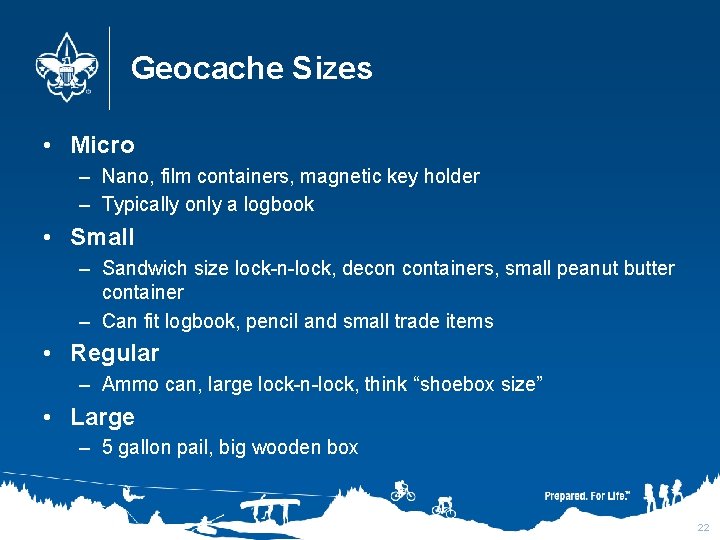

Geocache Sizes • Micro – Nano, film containers, magnetic key holder – Typically only a logbook • Small – Sandwich size lock-n-lock, decon containers, small peanut butter container – Can fit logbook, pencil and small trade items • Regular – Ammo can, large lock-n-lock, think “shoebox size” • Large – 5 gallon pail, big wooden box 22

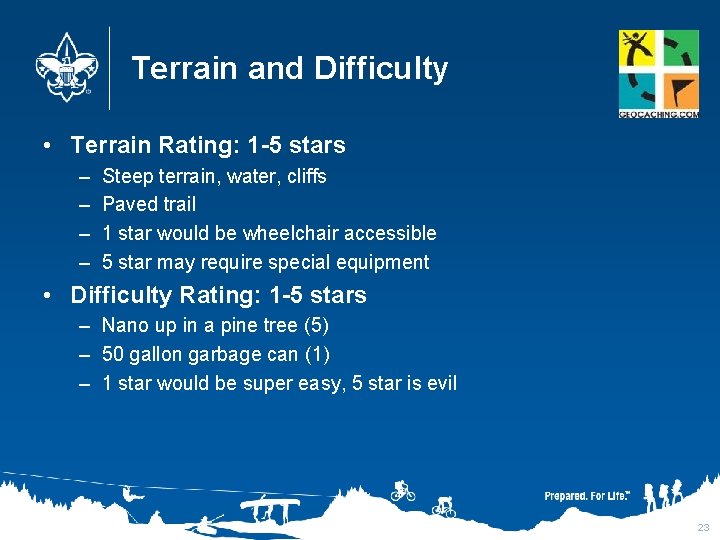

Terrain and Difficulty • Terrain Rating: 1 -5 stars – – Steep terrain, water, cliffs Paved trail 1 star would be wheelchair accessible 5 star may require special equipment • Difficulty Rating: 1 -5 stars – Nano up in a pine tree (5) – 50 gallon garbage can (1) – 1 star would be super easy, 5 star is evil 23

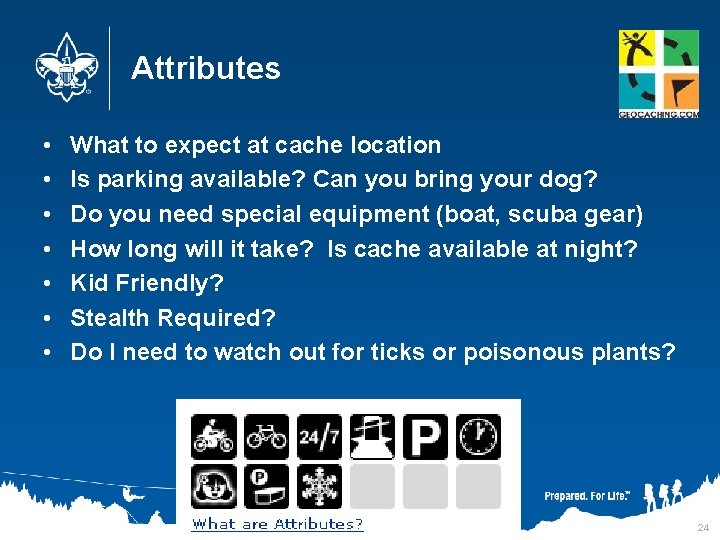

Attributes • • What to expect at cache location Is parking available? Can you bring your dog? Do you need special equipment (boat, scuba gear) How long will it take? Is cache available at night? Kid Friendly? Stealth Required? Do I need to watch out for ticks or poisonous plants? 24

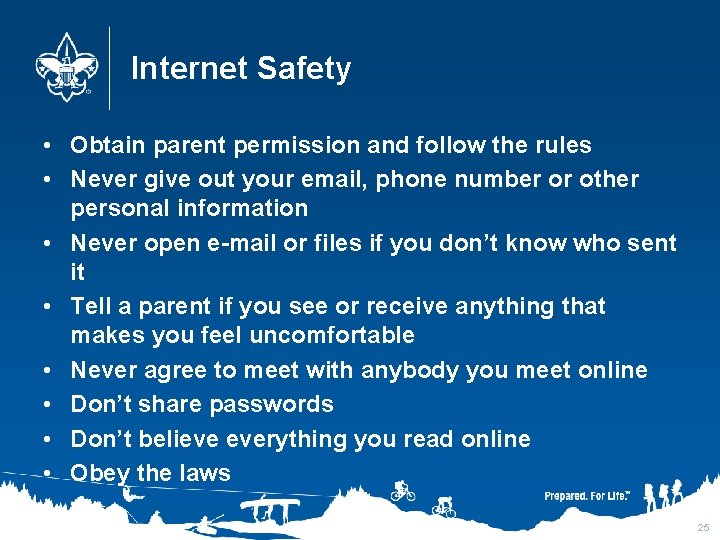

Internet Safety • Obtain parent permission and follow the rules • Never give out your email, phone number or other personal information • Never open e-mail or files if you don’t know who sent it • Tell a parent if you see or receive anything that makes you feel uncomfortable • Never agree to meet with anybody you meet online • Don’t share passwords • Don’t believe everything you read online • Obey the laws 25

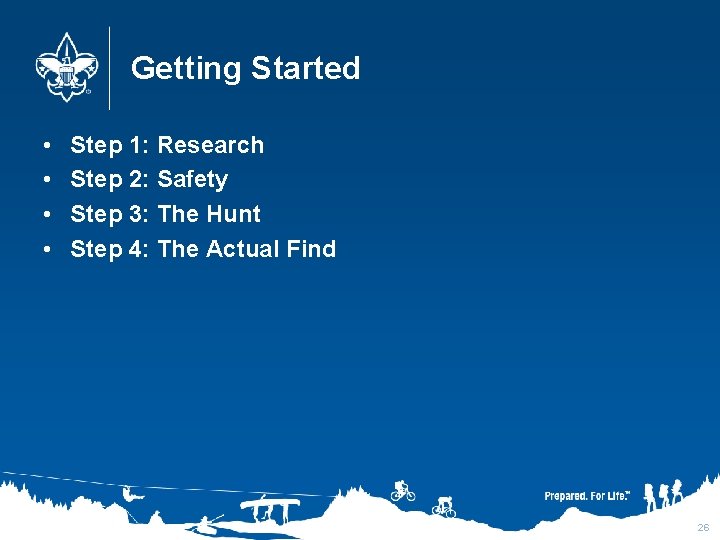

Getting Started • • Step 1: Research Step 2: Safety Step 3: The Hunt Step 4: The Actual Find 26

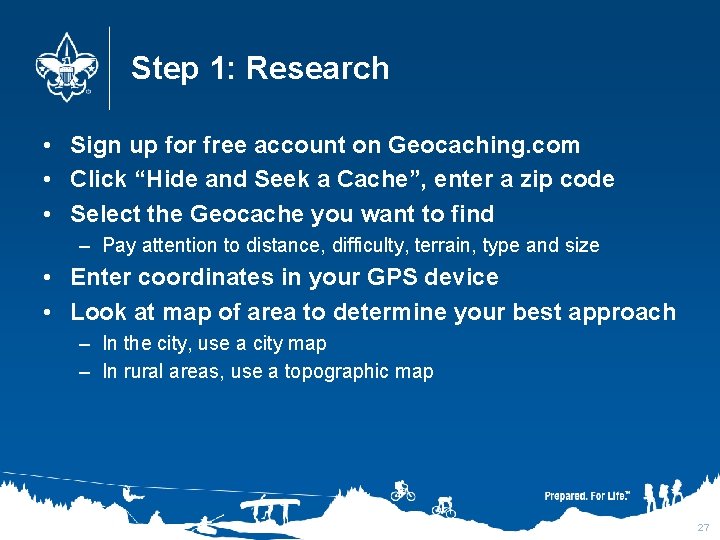

Step 1: Research • Sign up for free account on Geocaching. com • Click “Hide and Seek a Cache”, enter a zip code • Select the Geocache you want to find – Pay attention to distance, difficulty, terrain, type and size • Enter coordinates in your GPS device • Look at map of area to determine your best approach – In the city, use a city map – In rural areas, use a topographic map 27

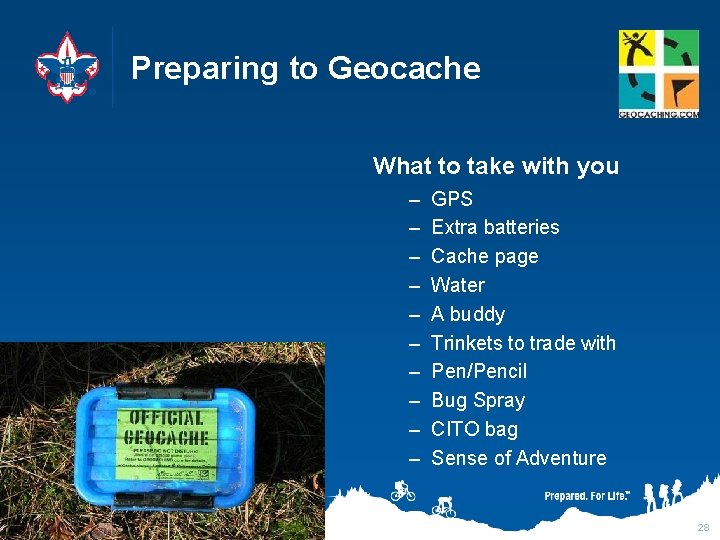

Preparing to Geocache What to take with you – – – – – GPS Extra batteries Cache page Water A buddy Trinkets to trade with Pen/Pencil Bug Spray CITO bag Sense of Adventure 28

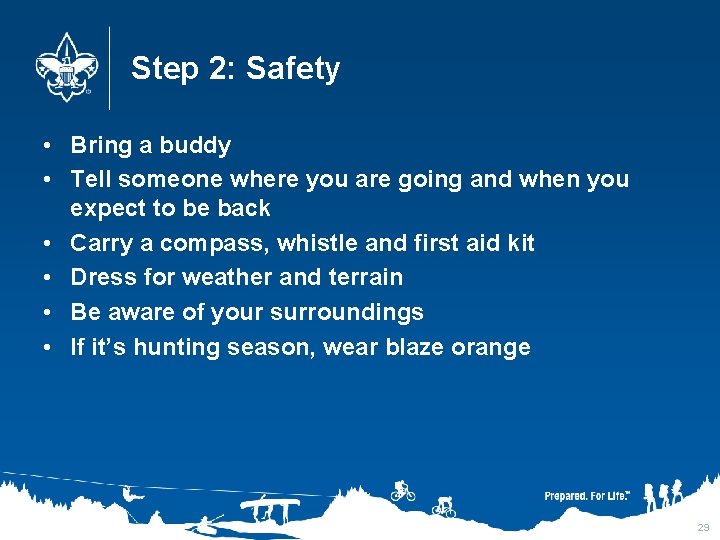

Step 2: Safety • Bring a buddy • Tell someone where you are going and when you expect to be back • Carry a compass, whistle and first aid kit • Dress for weather and terrain • Be aware of your surroundings • If it’s hunting season, wear blaze orange 29

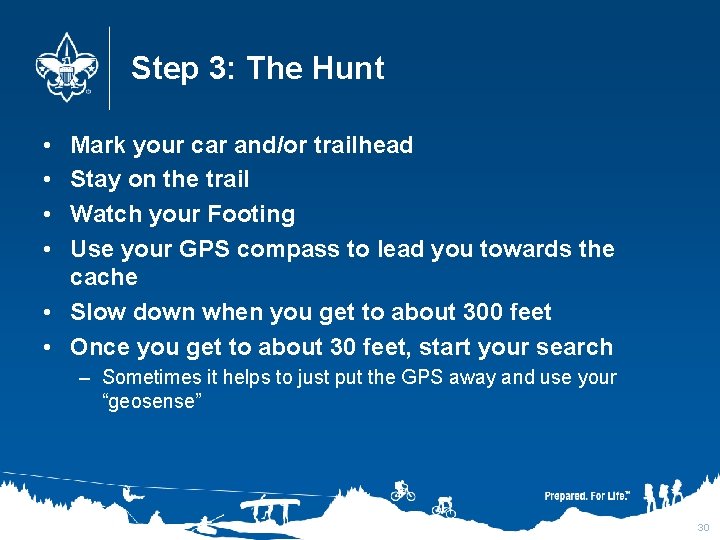

Step 3: The Hunt • • Mark your car and/or trailhead Stay on the trail Watch your Footing Use your GPS compass to lead you towards the cache • Slow down when you get to about 300 feet • Once you get to about 30 feet, start your search – Sometimes it helps to just put the GPS away and use your “geosense” 30

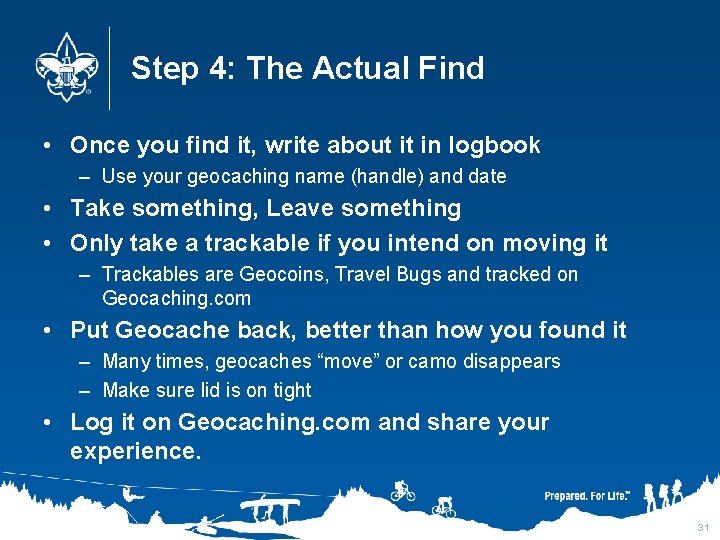

Step 4: The Actual Find • Once you find it, write about it in logbook – Use your geocaching name (handle) and date • Take something, Leave something • Only take a trackable if you intend on moving it – Trackables are Geocoins, Travel Bugs and tracked on Geocaching. com • Put Geocache back, better than how you found it – Many times, geocaches “move” or camo disappears – Make sure lid is on tight • Log it on Geocaching. com and share your experience. 31

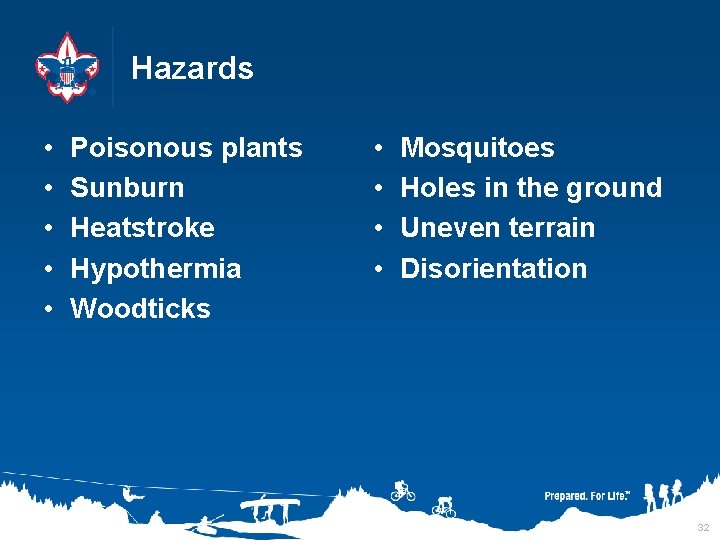

Hazards • • • Poisonous plants Sunburn Heatstroke Hypothermia Woodticks • • Mosquitoes Holes in the ground Uneven terrain Disorientation 32

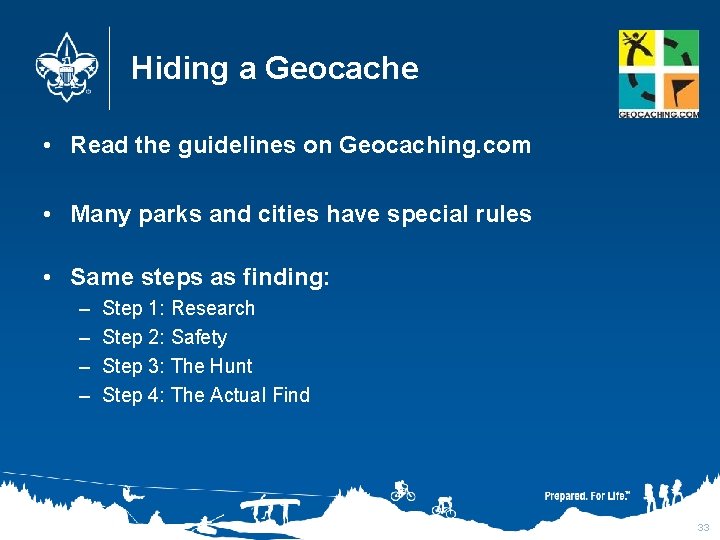

Hiding a Geocache • Read the guidelines on Geocaching. com • Many parks and cities have special rules • Same steps as finding: – – Step 1: Research Step 2: Safety Step 3: The Hunt Step 4: The Actual Find 33

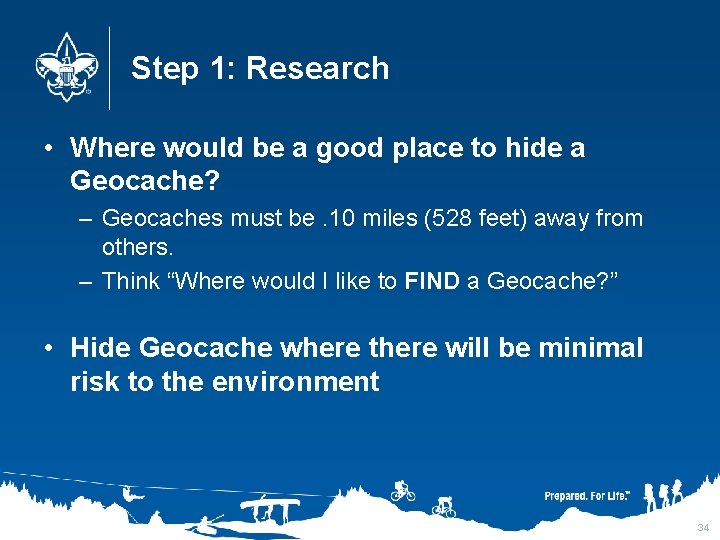

Step 1: Research • Where would be a good place to hide a Geocache? – Geocaches must be. 10 miles (528 feet) away from others. – Think “Where would I like to FIND a Geocache? ” • Hide Geocache where there will be minimal risk to the environment 34

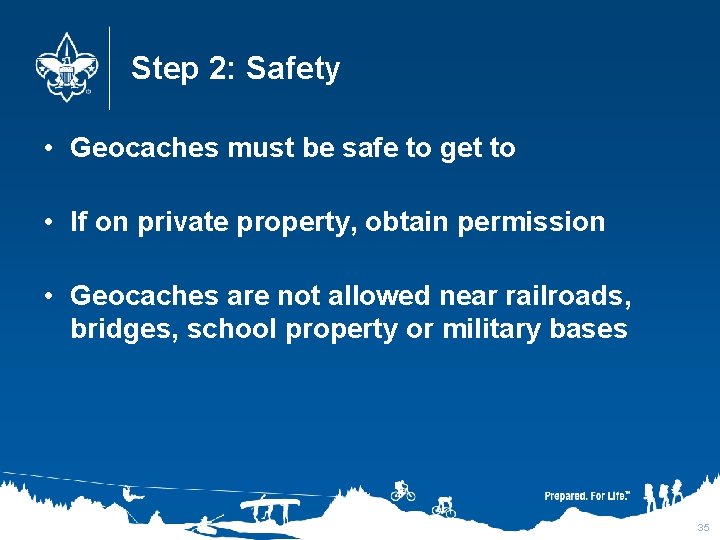

Step 2: Safety • Geocaches must be safe to get to • If on private property, obtain permission • Geocaches are not allowed near railroads, bridges, school property or military bases 35

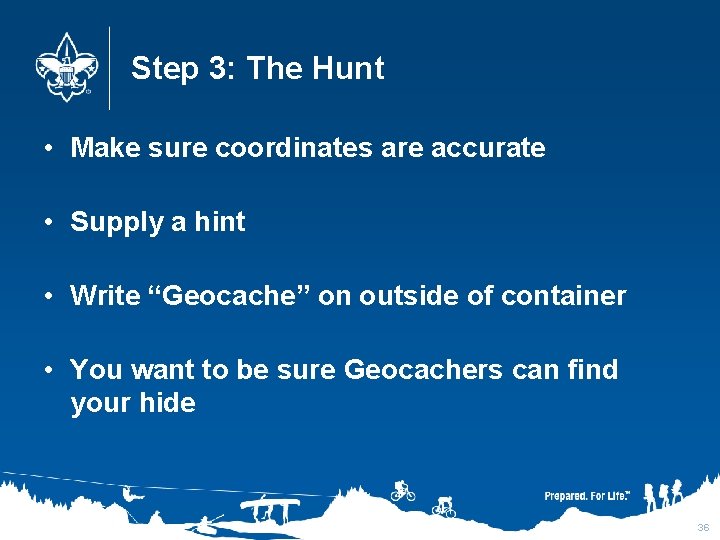

Step 3: The Hunt • Make sure coordinates are accurate • Supply a hint • Write “Geocache” on outside of container • You want to be sure Geocachers can find your hide 36

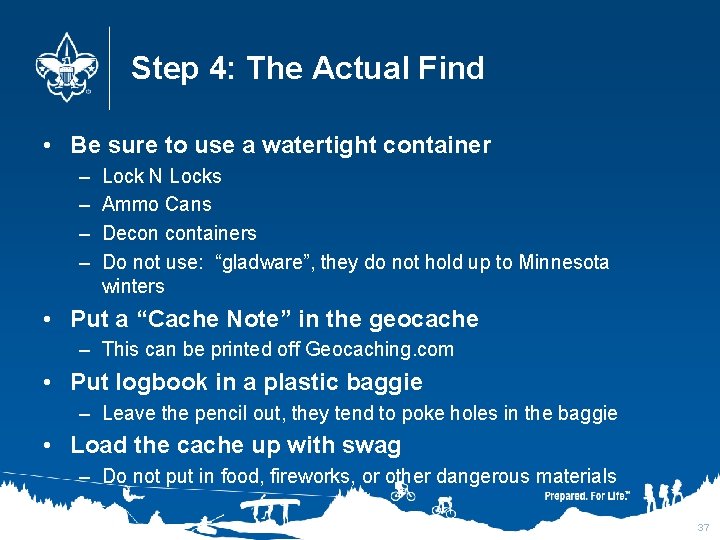

Step 4: The Actual Find • Be sure to use a watertight container – – Lock N Locks Ammo Cans Decon containers Do not use: “gladware”, they do not hold up to Minnesota winters • Put a “Cache Note” in the geocache – This can be printed off Geocaching. com • Put logbook in a plastic baggie – Leave the pencil out, they tend to poke holes in the baggie • Load the cache up with swag – Do not put in food, fireworks, or other dangerous materials 37

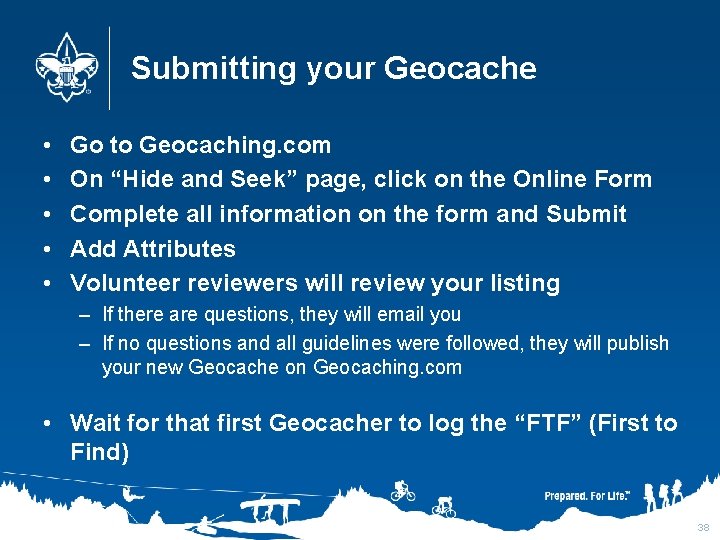

Submitting your Geocache • • • Go to Geocaching. com On “Hide and Seek” page, click on the Online Form Complete all information on the form and Submit Add Attributes Volunteer reviewers will review your listing – If there are questions, they will email you – If no questions and all guidelines were followed, they will publish your new Geocache on Geocaching. com • Wait for that first Geocacher to log the “FTF” (First to Find) 38

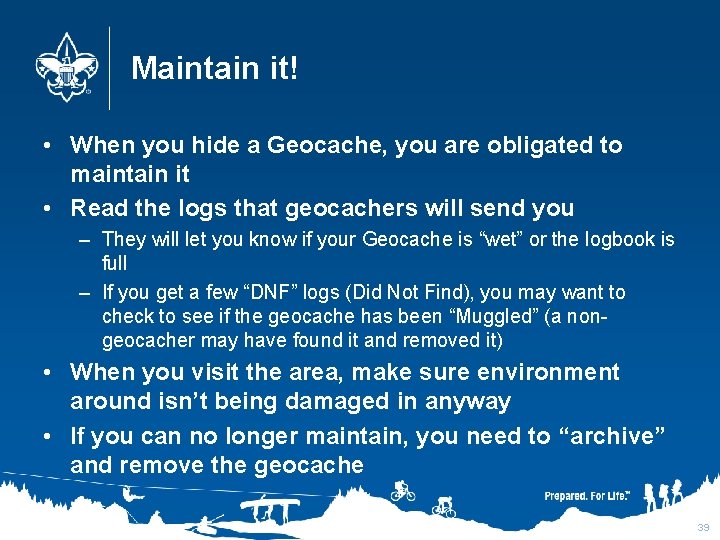

Maintain it! • When you hide a Geocache, you are obligated to maintain it • Read the logs that geocachers will send you – They will let you know if your Geocache is “wet” or the logbook is full – If you get a few “DNF” logs (Did Not Find), you may want to check to see if the geocache has been “Muggled” (a nongeocacher may have found it and removed it) • When you visit the area, make sure environment around isn’t being damaged in anyway • If you can no longer maintain, you need to “archive” and remove the geocache 39

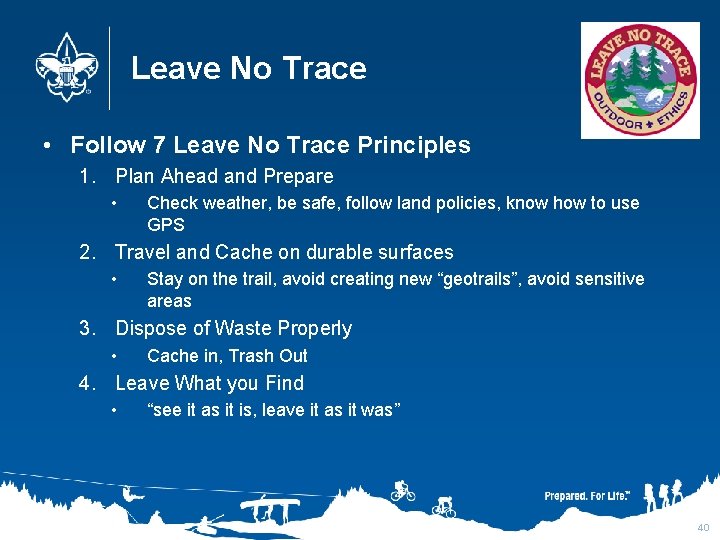

Leave No Trace • Follow 7 Leave No Trace Principles 1. Plan Ahead and Prepare • Check weather, be safe, follow land policies, know how to use GPS 2. Travel and Cache on durable surfaces • Stay on the trail, avoid creating new “geotrails”, avoid sensitive areas 3. Dispose of Waste Properly • Cache in, Trash Out 4. Leave What you Find • “see it as it is, leave it as it was” 40

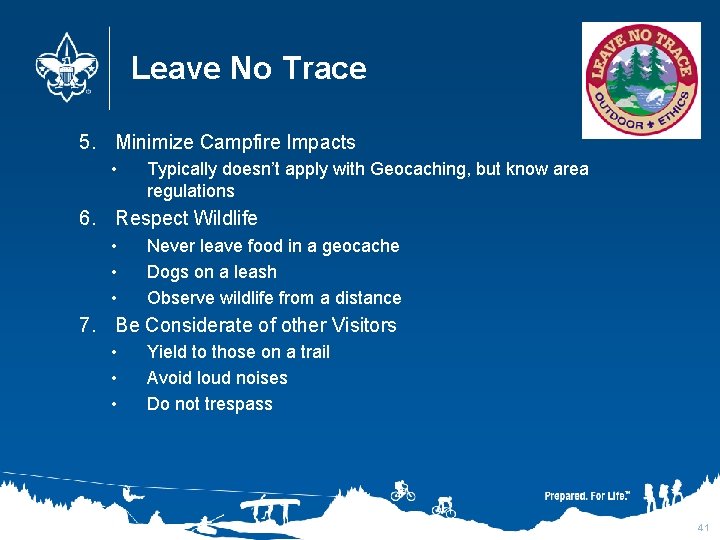

Leave No Trace 5. Minimize Campfire Impacts • Typically doesn’t apply with Geocaching, but know area regulations 6. Respect Wildlife • • • Never leave food in a geocache Dogs on a leash Observe wildlife from a distance 7. Be Considerate of other Visitors • • • Yield to those on a trail Avoid loud noises Do not trespass 41

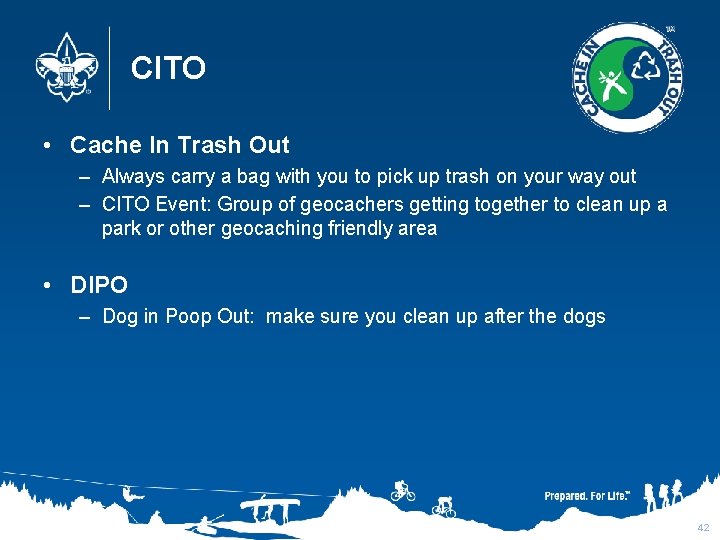

CITO • Cache In Trash Out – Always carry a bag with you to pick up trash on your way out – CITO Event: Group of geocachers getting together to clean up a park or other geocaching friendly area • DIPO – Dog in Poop Out: make sure you clean up after the dogs 42

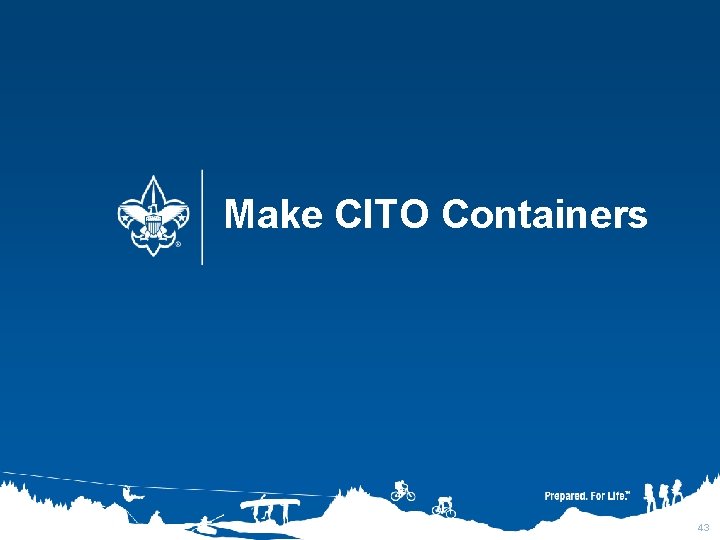

Make CITO Containers 43

Geocaching Game!! 44

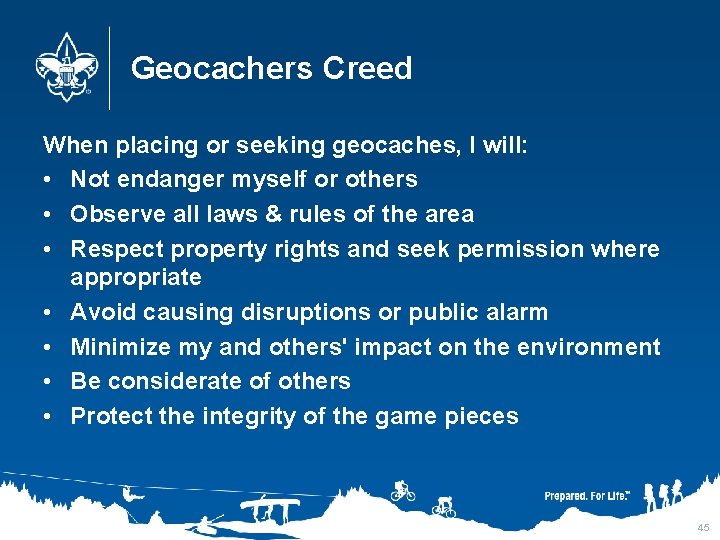

Geocachers Creed When placing or seeking geocaches, I will: • Not endanger myself or others • Observe all laws & rules of the area • Respect property rights and seek permission where appropriate • Avoid causing disruptions or public alarm • Minimize my and others' impact on the environment • Be considerate of others • Protect the integrity of the game pieces 45

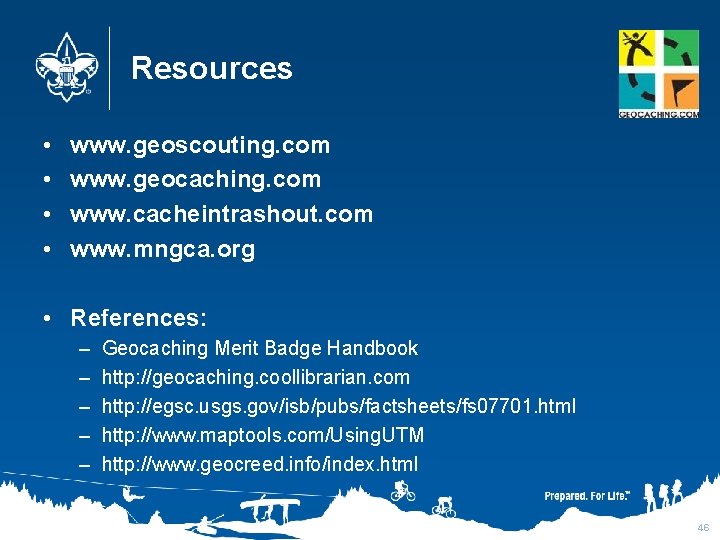

Resources • • www. geoscouting. com www. geocaching. com www. cacheintrashout. com www. mngca. org • References: – – – Geocaching Merit Badge Handbook http: //geocaching. coollibrarian. com http: //egsc. usgs. gov/isb/pubs/factsheets/fs 07701. html http: //www. maptools. com/Using. UTM http: //www. geocreed. info/index. html 46

Contact Information Melissa Portz, Assistant Scoutmaster Delano Troop 273 612 -590 -3453 47

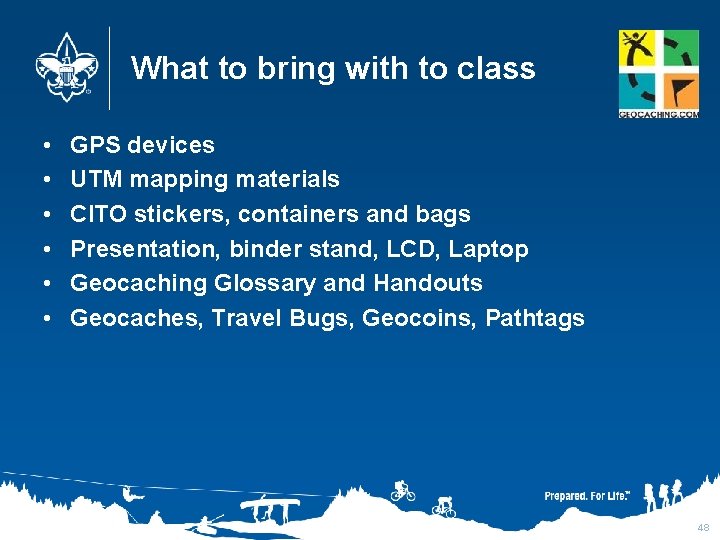

What to bring with to class • • • GPS devices UTM mapping materials CITO stickers, containers and bags Presentation, binder stand, LCD, Laptop Geocaching Glossary and Handouts Geocaches, Travel Bugs, Geocoins, Pathtags 48
