Geo Max Product Introduction Geo Max Auto Level

Geo. Max Product Introduction

Geo. Max Auto Level ZAL 100 Series ZAL 300 Series 2

Geo. Max ZAL 100 Meeting the IP 54 class specifications guarantees all weather operation of the ZAL 100 Series and provides you with an instrument that “Works when you do!”. l Technical Data l Magnification - 32 x 28 x 24 x 20 x l Minimum focusing distance - < 1. 0 m l Damping system - Automatic, air-damped l Standard deviation for 1 km double-run levellingl 2. 0 mm 2. 5 mm 3

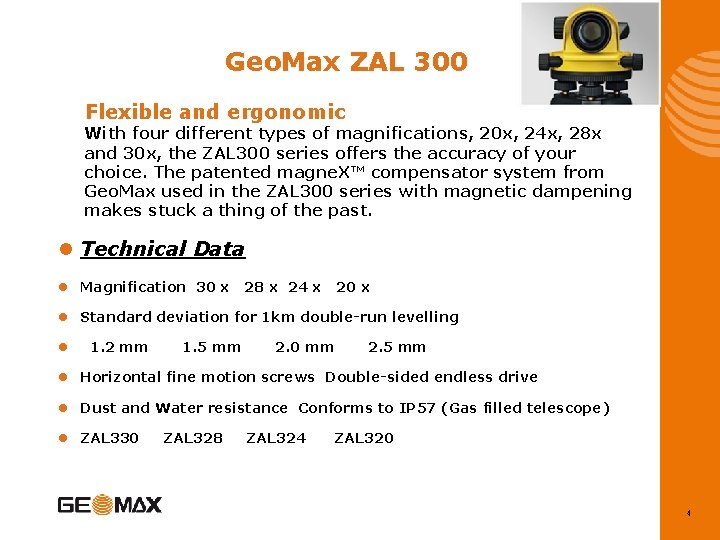

Geo. Max ZAL 300 Flexible and ergonomic With four different types of magnifications, 20 x, 24 x, 28 x and 30 x, the ZAL 300 series offers the accuracy of your choice. The patented magne. X™ compensator system from Geo. Max used in the ZAL 300 series with magnetic dampening makes stuck a thing of the past. l Technical Data l Magnification 30 x 28 x 24 x 20 x l Standard deviation for 1 km double-run levelling l 1. 2 mm 1. 5 mm 2. 0 mm 2. 5 mm l Horizontal fine motion screws Double-sided endless drive l Dust and Water resistance Conforms to IP 57 (Gas filled telescope) l ZAL 330 ZAL 328 ZAL 324 ZAL 320 4

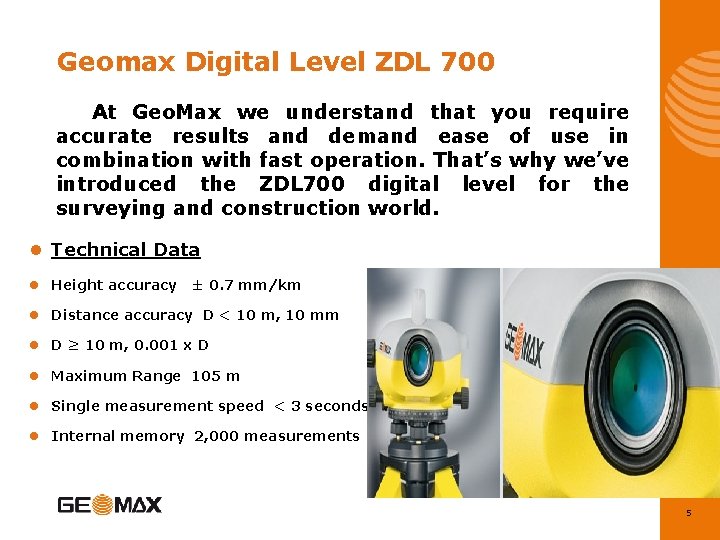

Geomax Digital Level ZDL 700 At Geo. Max we understand that you require accurate results and demand ease of use in combination with fast operation. That’s why we’ve introduced the ZDL 700 digital level for the surveying and construction world. l Technical Data l Height accuracy ± 0. 7 mm/km l Distance accuracy D < 10 m, 10 mm l D ≥ 10 m, 0. 001 x D l Maximum Range 105 m l Single measurement speed < 3 seconds l Internal memory 2, 000 measurements 5

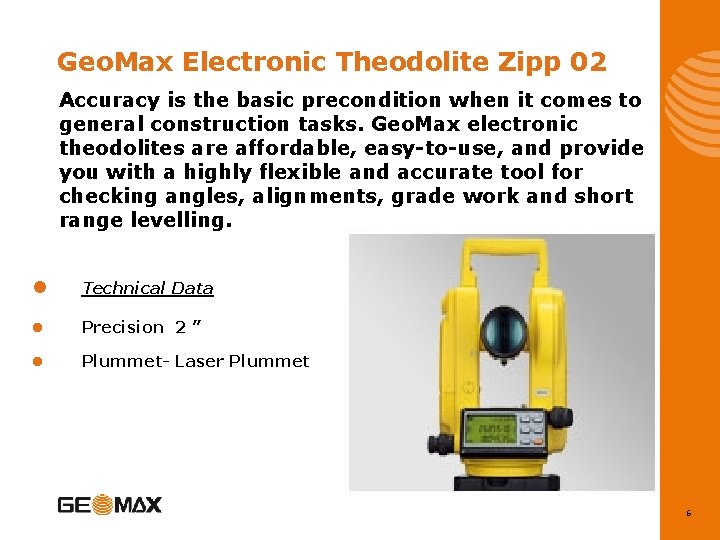

Geo. Max Electronic Theodolite Zipp 02 Accuracy is the basic precondition when it comes to general construction tasks. Geo. Max electronic theodolites are affordable, easy-to-use, and provide you with a highly flexible and accurate tool for checking angles, alignments, grade work and short range levelling. l Technical Data l Precision 2 ” l Plummet- Laser Plummet 6

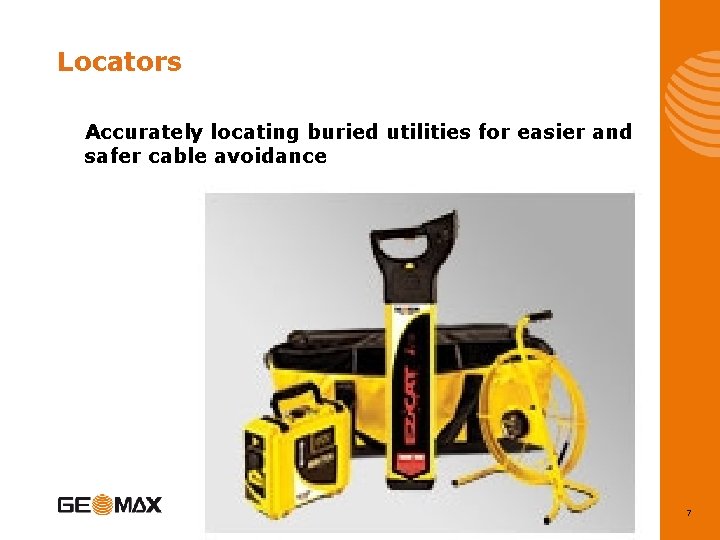

Locators Accurately locating buried utilities for easier and safer cable avoidance 7

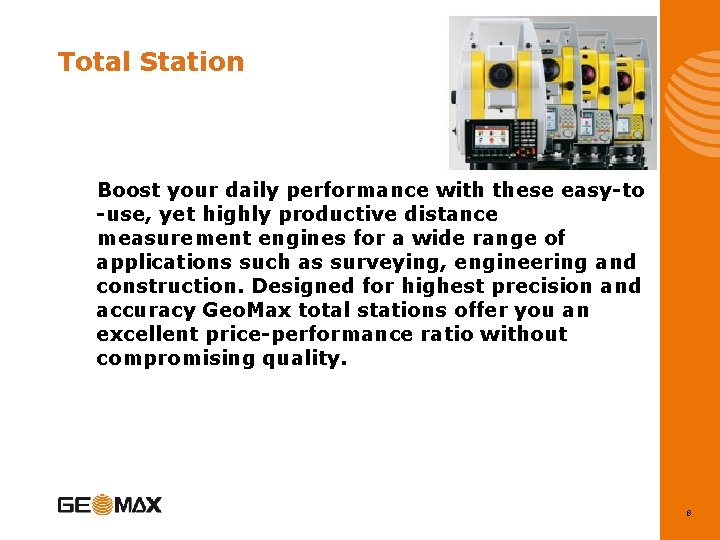

Total Station Boost your daily performance with these easy-to -use, yet highly productive distance measurement engines for a wide range of applications such as surveying, engineering and construction. Designed for highest precision and accuracy Geo. Max total stations offer you an excellent price-performance ratio without compromising quality. 8

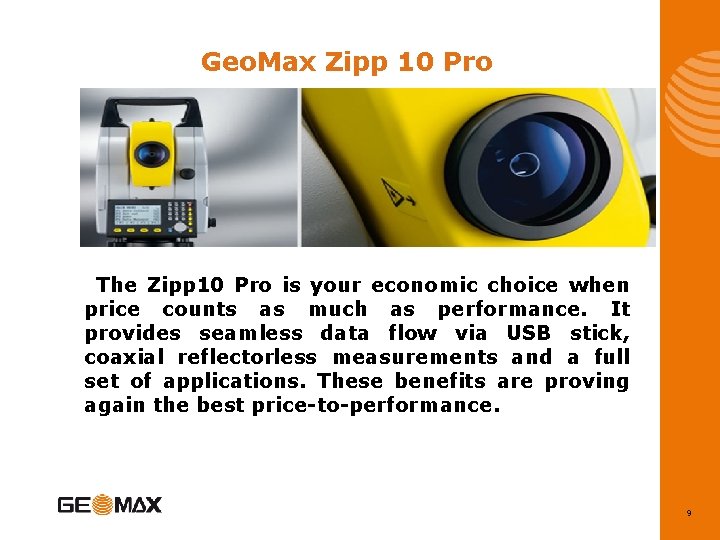

Geo. Max Zipp 10 Pro The Zipp 10 Pro is your economic choice when price counts as much as performance. It provides seamless data flow via USB stick, coaxial reflectorless measurements and a full set of applications. These benefits are proving again the best price-to-performance. 9

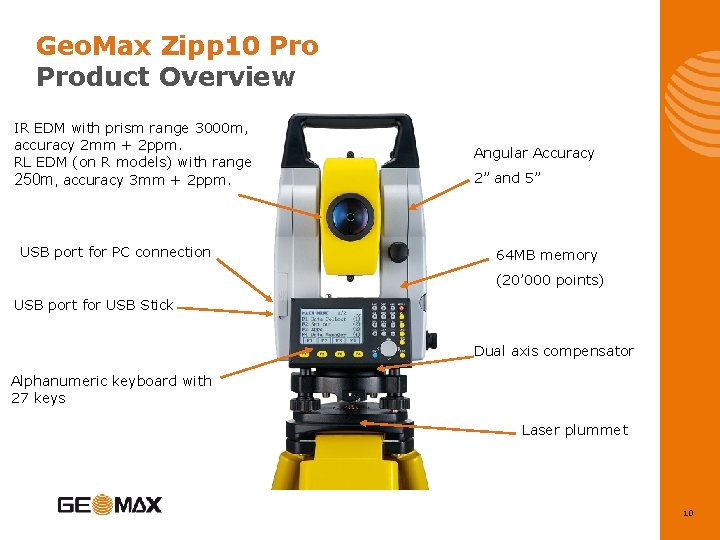

Geo. Max Zipp 10 Product Overview IR EDM with prism range 3000 m, accuracy 2 mm + 2 ppm. RL EDM (on R models) with range 250 m, accuracy 3 mm + 2 ppm. USB port for PC connection Angular Accuracy 2” and 5” 64 MB memory (20’ 000 points) USB port for USB Stick Dual axis compensator Alphanumeric keyboard with 27 keys Laser plummet 10

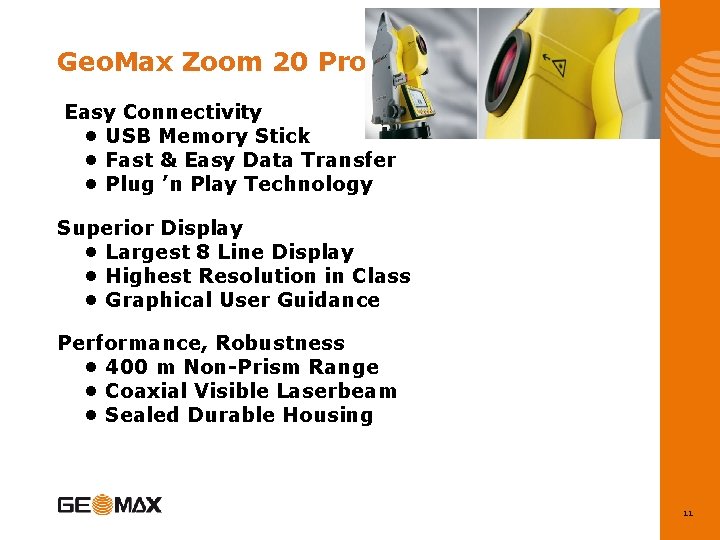

Geo. Max Zoom 20 Pro Easy Connectivity • USB Memory Stick • Fast & Easy Data Transfer • Plug ’n Play Technology Superior Display • Largest 8 Line Display • Highest Resolution in Class • Graphical User Guidance Performance, Robustness • 400 m Non-Prism Range • Coaxial Visible Laserbeam • Sealed Durable Housing 11

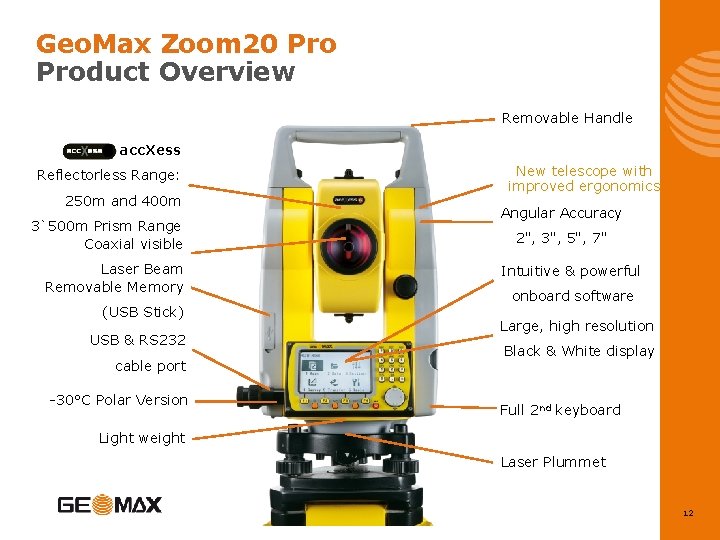

Geo. Max Zoom 20 Product Overview Removable Handle acc. Xess Reflectorless Range: 250 m and 400 m 3`500 m Prism Range Coaxial visible Laser Beam Removable Memory (USB Stick) USB & RS 232 cable port -30°C Polar Version New telescope with improved ergonomics Angular Accuracy 2", 3", 5", 7" Intuitive & powerful onboard software Large, high resolution Black & White display Full 2 nd keyboard Light weight Laser Plummet 12

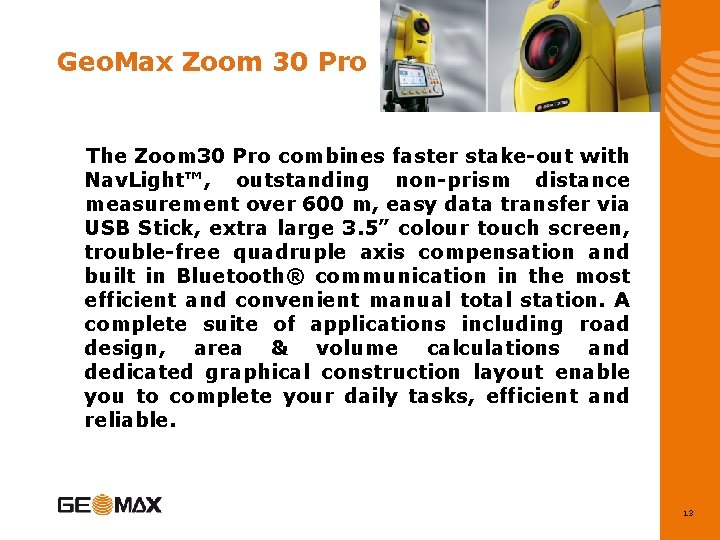

Geo. Max Zoom 30 Pro The Zoom 30 Pro combines faster stake-out with Nav. Light™, outstanding non-prism distance measurement over 600 m, easy data transfer via USB Stick, extra large 3. 5” colour touch screen, trouble-free quadruple axis compensation and built in Bluetooth® communication in the most efficient and convenient manual total station. A complete suite of applications including road design, area & volume calculations and dedicated graphical construction layout enable you to complete your daily tasks, efficient and reliable. 13

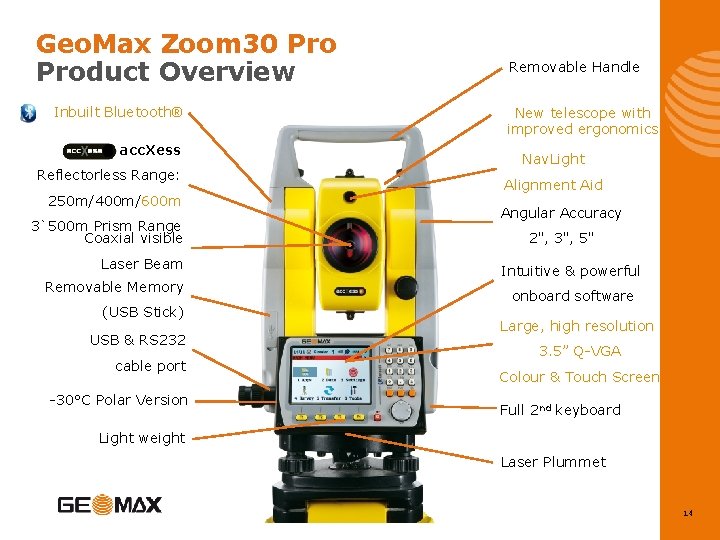

Geo. Max Zoom 30 Product Overview Inbuilt Bluetooth® acc. Xess Reflectorless Range: 250 m/400 m/600 m 3`500 m Prism Range Coaxial visible Laser Beam Removable Memory (USB Stick) USB & RS 232 cable port -30°C Polar Version Removable Handle New telescope with improved ergonomics Nav. Light Alignment Aid Angular Accuracy 2", 3", 5" Intuitive & powerful onboard software Large, high resolution 3. 5” Q-VGA Colour & Touch Screen Full 2 nd keyboard Light weight Laser Plummet 14

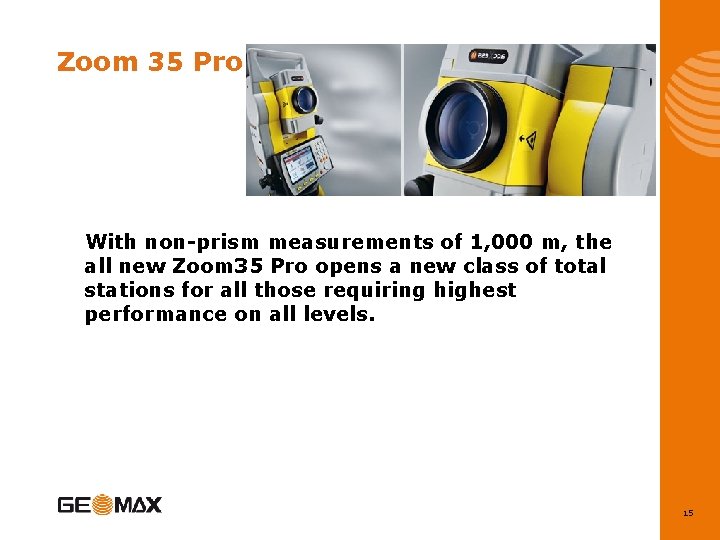

Zoom 35 Pro With non-prism measurements of 1, 000 m, the all new Zoom 35 Pro opens a new class of total stations for all those requiring highest performance on all levels. 15

Geo. Max Zoom 35 Product Overview Removable Handle Inbuilt Bluetooth® acc. Xess 10 1`000 m Reflectorless > 10`000 m to prism Coaxial visible Laser Beam Removable Memory (USB Stick) USB & RS 232 cable port -30°C Polar Version Light weight Angular Accuracy 2", 3", 5" Intuitive & powerful onboard software Large, high resolution 3. 5” Q-VGA Colour & Touch Screen Full 2 nd keyboard Laser Plummet 16

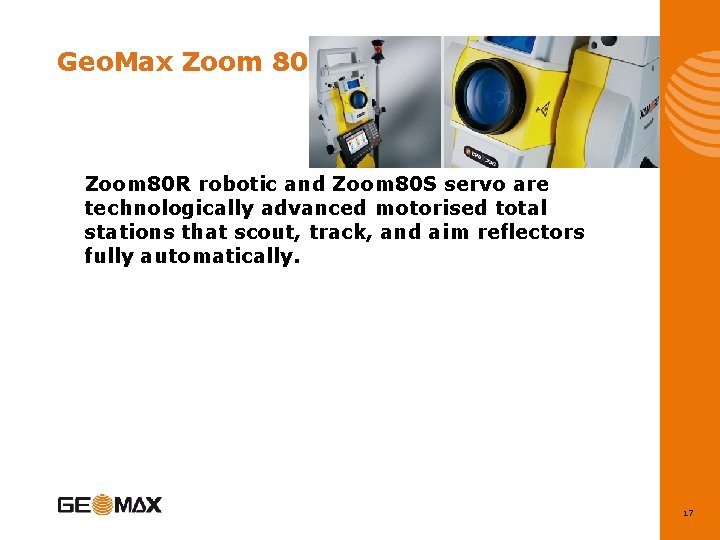

Geo. Max Zoom 80 R robotic and Zoom 80 S servo are technologically advanced motorised total stations that scout, track, and aim reflectors fully automatically. 17

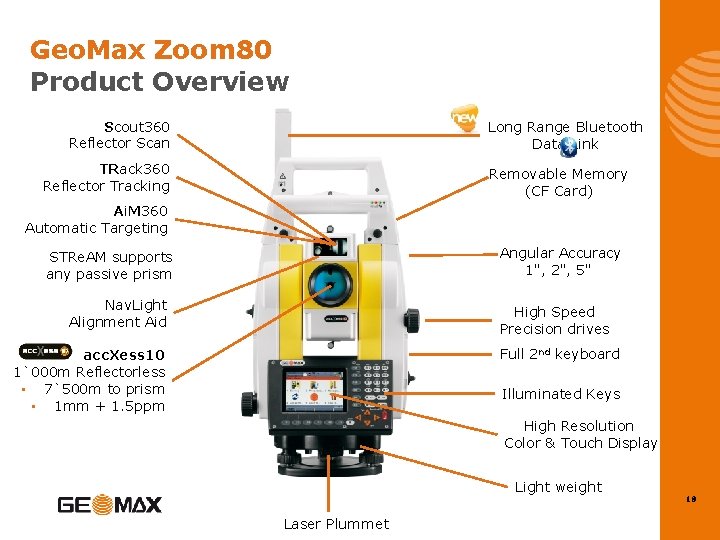

Geo. Max Zoom 80 Product Overview Scout 360 Reflector Scan Long Range Bluetooth Data Link TRack 360 Reflector Tracking Removable Memory (CF Card) Ai. M 360 Automatic Targeting Angular Accuracy 1", 2", 5" STRe. AM supports any passive prism Nav. Light Alignment Aid High Speed Precision drives Full 2 nd keyboard acc. Xess 10 1`000 m Reflectorless • 7`500 m to prism • 1 mm + 1. 5 ppm Illuminated Keys High Resolution Color & Touch Display Light weight Laser Plummet 18

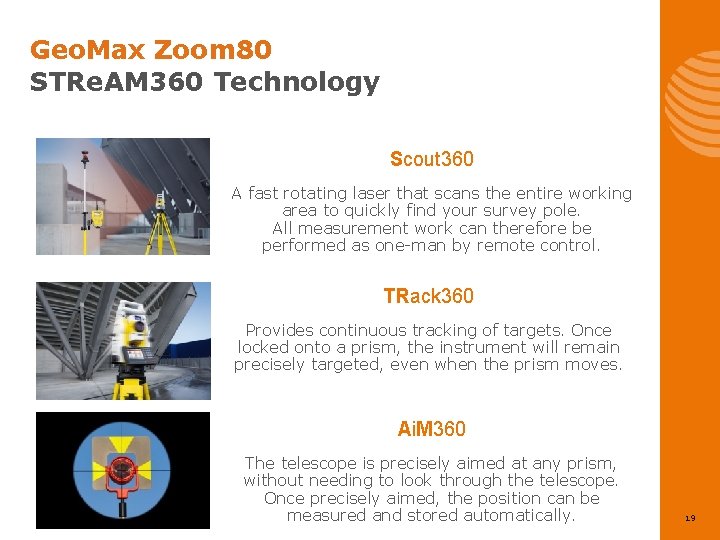

Geo. Max Zoom 80 STRe. AM 360 Technology Scout 360 A fast rotating laser that scans the entire working area to quickly find your survey pole. All measurement work can therefore be performed as one-man by remote control. TRack 360 Provides continuous tracking of targets. Once locked onto a prism, the instrument will remain precisely targeted, even when the prism moves. Ai. M 360 The telescope is precisely aimed at any prism, without needing to look through the telescope. Once precisely aimed, the position can be measured and stored automatically. 19

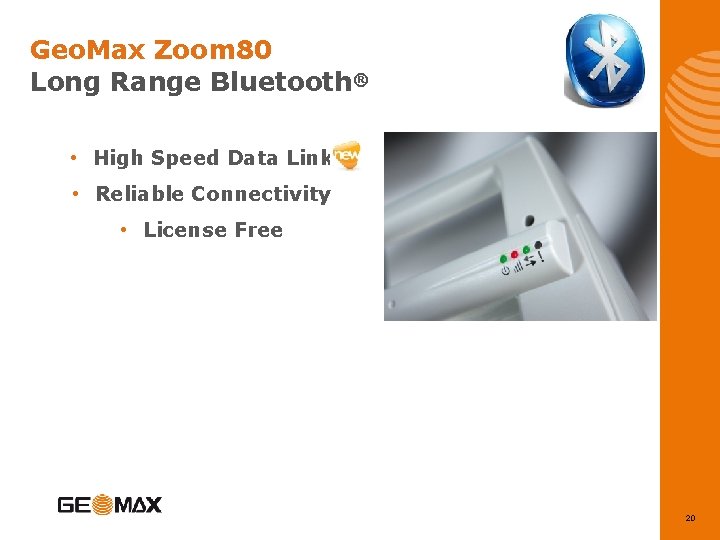

Geo. Max Zoom 80 Long Range Bluetooth® • High Speed Data Link • Reliable Connectivity • License Free 20

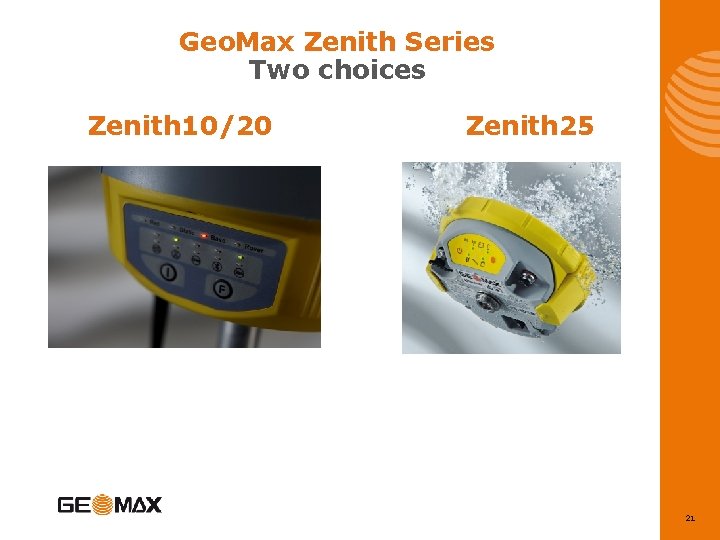

Geo. Max Zenith Series Two choices Zenith 10/20 Zenith 25 21

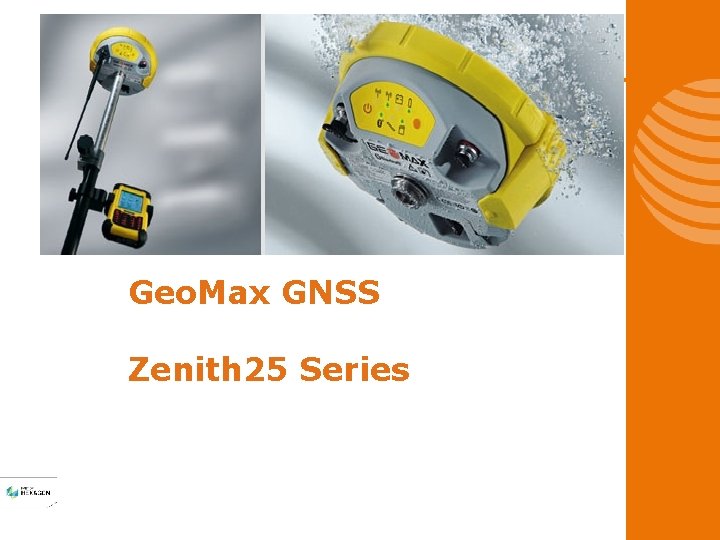

Geo. Max GNSS Zenith 25 Series

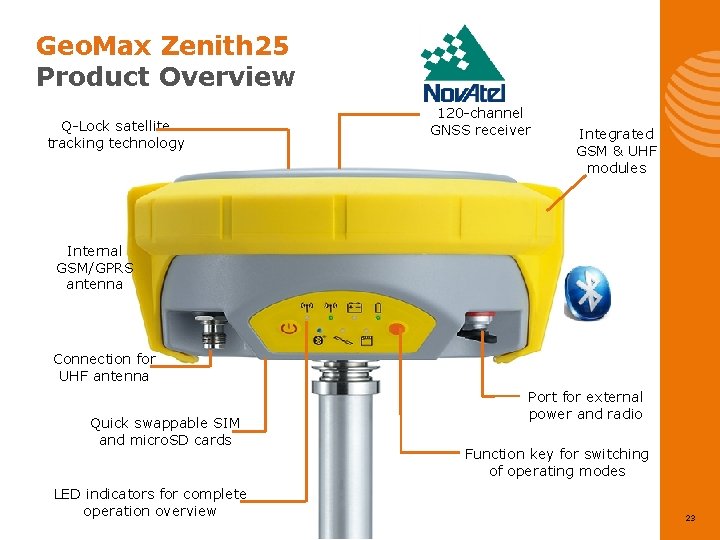

Geo. Max Zenith 25 Product Overview Q-Lock satellite tracking technology 120 -channel GNSS receiver Integrated GSM & UHF modules Internal GSM/GPRS antenna Connection for UHF antenna Quick swappable SIM and micro. SD cards LED indicators for complete operation overview Port for external power and radio Function key for switching of operating modes 23

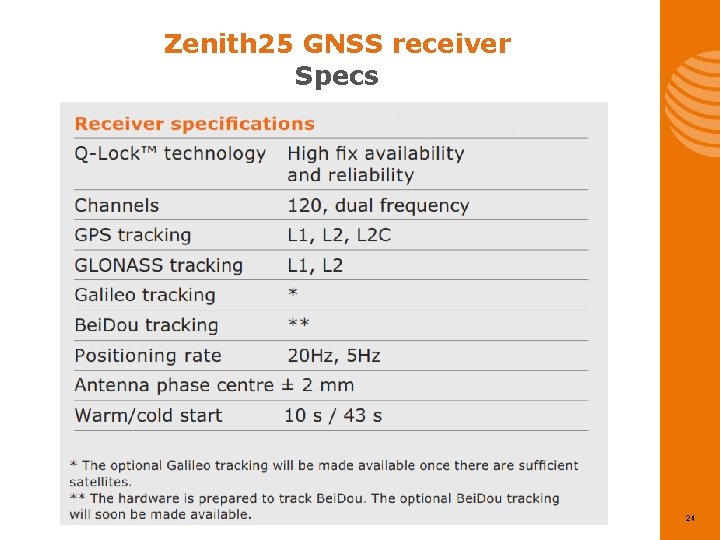

Zenith 25 GNSS receiver Specs 24

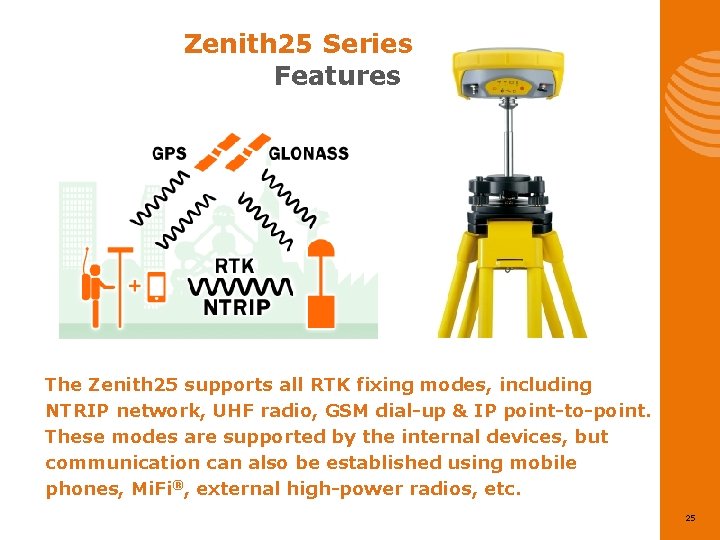

Zenith 25 Series Features The Zenith 25 supports all RTK fixing modes, including NTRIP network, UHF radio, GSM dial-up & IP point-to-point. These modes are supported by the internal devices, but communication can also be established using mobile phones, Mi. Fi®, external high-power radios, etc. 25

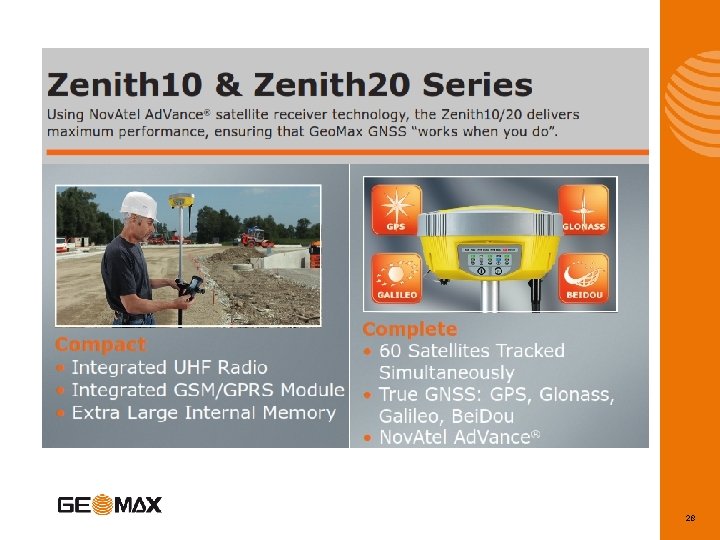

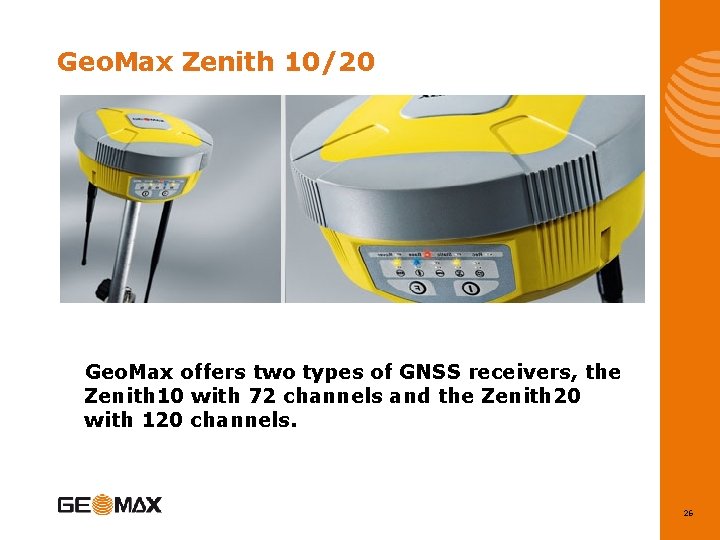

Geo. Max Zenith 10/20 Geo. Max offers two types of GNSS receivers, the Zenith 10 with 72 channels and the Zenith 20 with 120 channels. 26

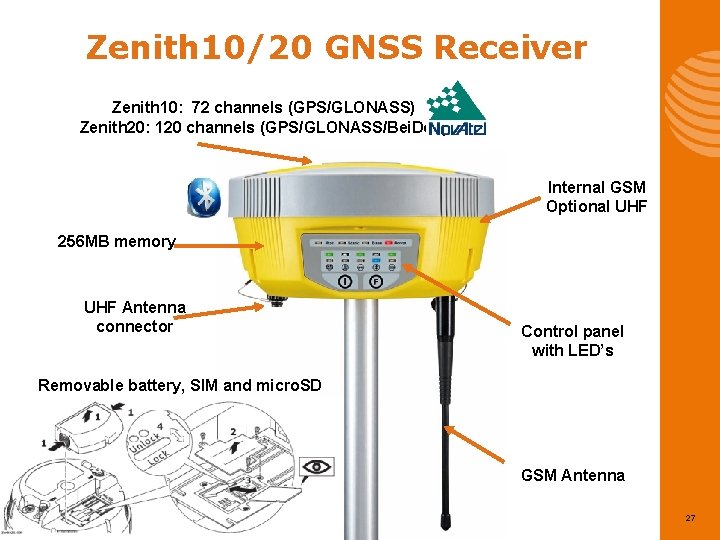

Zenith 10/20 GNSS Receiver Zenith 10: 72 channels (GPS/GLONASS) Zenith 20: 120 channels (GPS/GLONASS/Bei. Dou) Internal GSM Optional UHF 256 MB memory UHF Antenna connector Control panel with LED’s Removable battery, SIM and micro. SD GSM Antenna 27

28

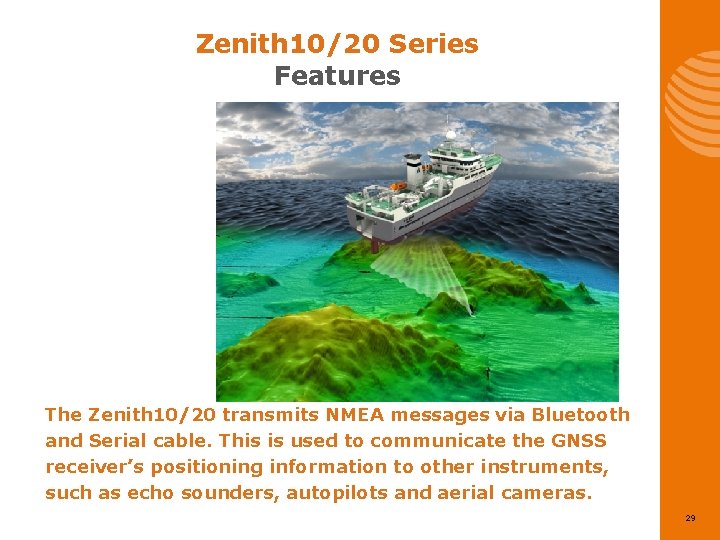

Zenith 10/20 Series Features The Zenith 10/20 transmits NMEA messages via Bluetooth and Serial cable. This is used to communicate the GNSS receiver’s positioning information to other instruments, such as echo sounders, autopilots and aerial cameras. 29
