Genomic DNA purification IMBB 2013 Why purify DNA

Genomic DNA purification IMBB 2013

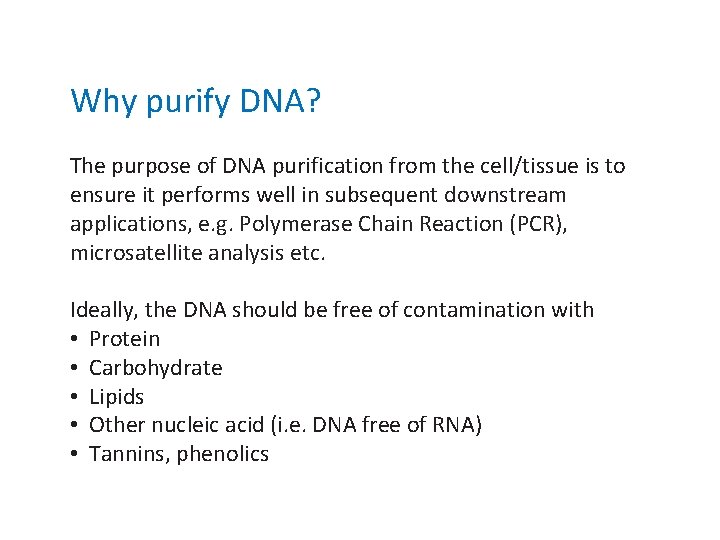

Why purify DNA? The purpose of DNA purification from the cell/tissue is to ensure it performs well in subsequent downstream applications, e. g. Polymerase Chain Reaction (PCR), microsatellite analysis etc. Ideally, the DNA should be free of contamination with • Protein • Carbohydrate • Lipids • Other nucleic acid (i. e. DNA free of RNA) • Tannins, phenolics

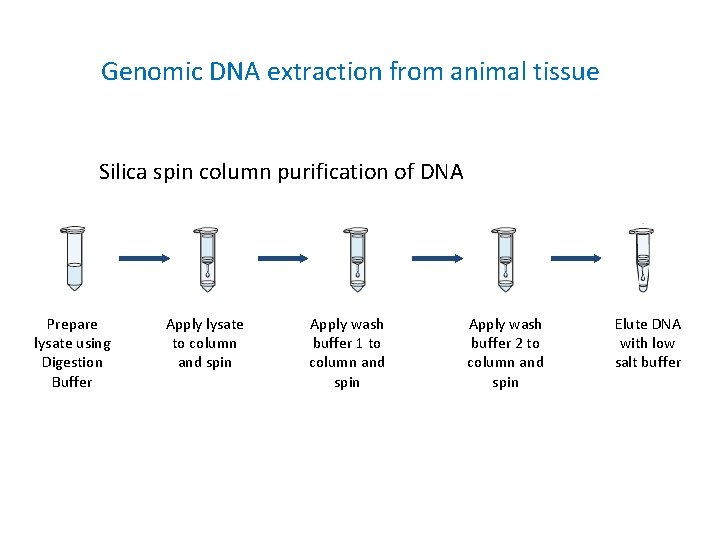

Genomic DNA extraction from animal tissue Silica spin column purification of DNA Prepare lysate using Digestion Buffer Apply lysate to column and spin Apply wash buffer 1 to column and spin Apply wash buffer 2 to column and spin Elute DNA with low salt buffer

Genomic DNA extraction from animal tissue Chelex Method Add tissue sample to 20% (w/v) Chelex in Water Heat 95 o. C for 5 min Centrifuge Remove supernatant

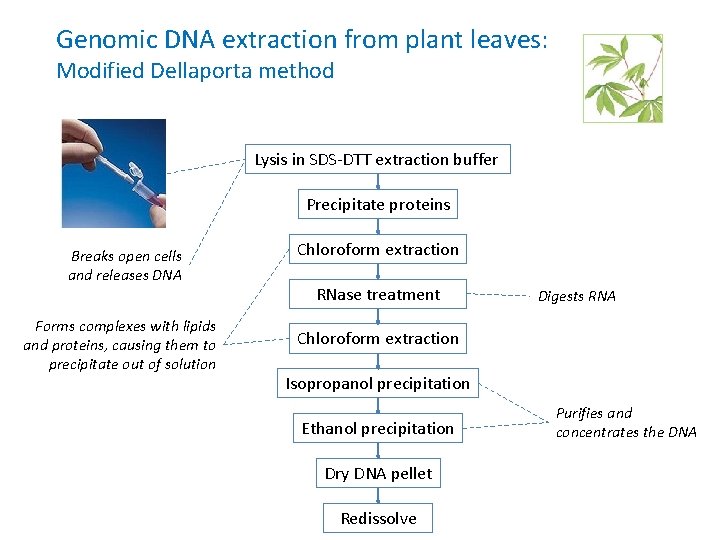

Genomic DNA extraction from plant leaves: Modified Dellaporta method Lysis in SDS-DTT extraction buffer Precipitate proteins Breaks open cells and releases DNA Forms complexes with lipids and proteins, causing them to precipitate out of solution Chloroform extraction RNase treatment Digests RNA Chloroform extraction Isopropanol precipitation Ethanol precipitation Dry DNA pellet Redissolve Purifies and concentrates the DNA

Polymerase chain reaction

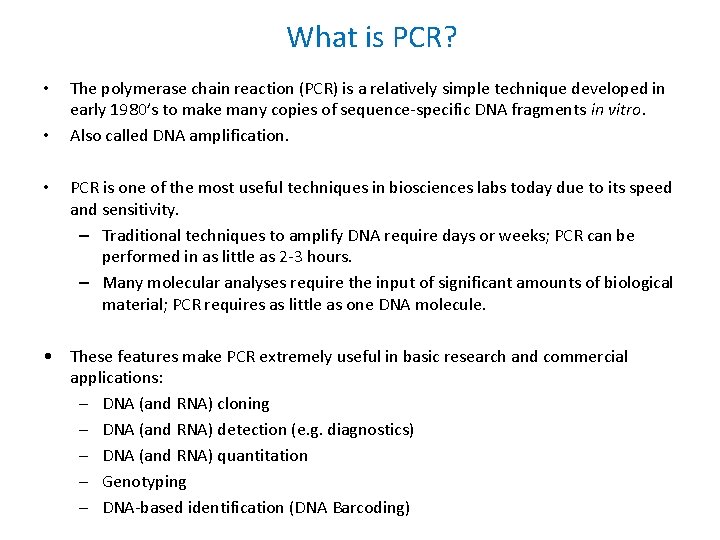

What is PCR? • • • The polymerase chain reaction (PCR) is a relatively simple technique developed in early 1980’s to make many copies of sequence-specific DNA fragments in vitro. Also called DNA amplification. PCR is one of the most useful techniques in biosciences labs today due to its speed and sensitivity. – Traditional techniques to amplify DNA require days or weeks; PCR can be performed in as little as 2 -3 hours. – Many molecular analyses require the input of significant amounts of biological material; PCR requires as little as one DNA molecule. • These features make PCR extremely useful in basic research and commercial applications: – DNA (and RNA) cloning – DNA (and RNA) detection (e. g. diagnostics) – DNA (and RNA) quantitation – Genotyping – DNA-based identification (DNA Barcoding)

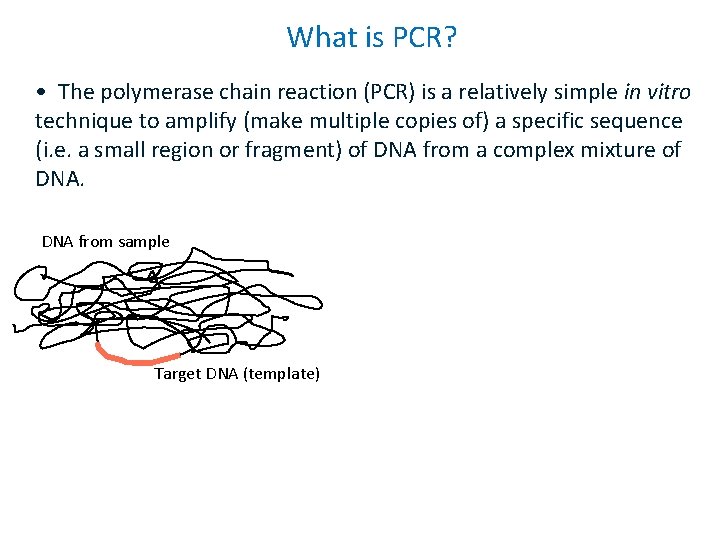

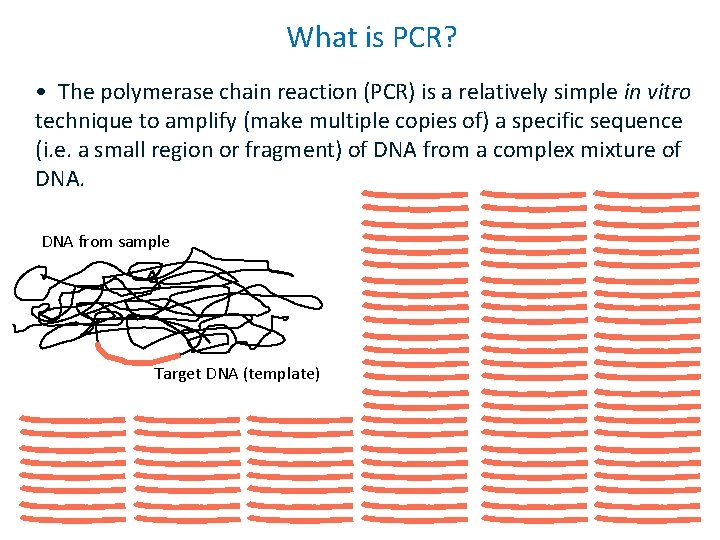

What is PCR? • The polymerase chain reaction (PCR) is a relatively simple in vitro technique to amplify (make multiple copies of) a specific sequence (i. e. a small region or fragment) of DNA from a complex mixture of DNA from sample Target DNA (template)

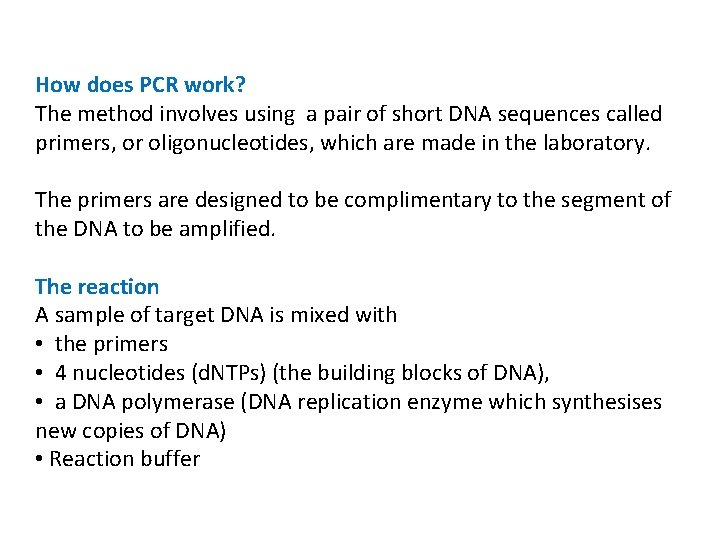

How does PCR work? The method involves using a pair of short DNA sequences called primers, or oligonucleotides, which are made in the laboratory. The primers are designed to be complimentary to the segment of the DNA to be amplified. The reaction A sample of target DNA is mixed with • the primers • 4 nucleotides (d. NTPs) (the building blocks of DNA), • a DNA polymerase (DNA replication enzyme which synthesises new copies of DNA) • Reaction buffer

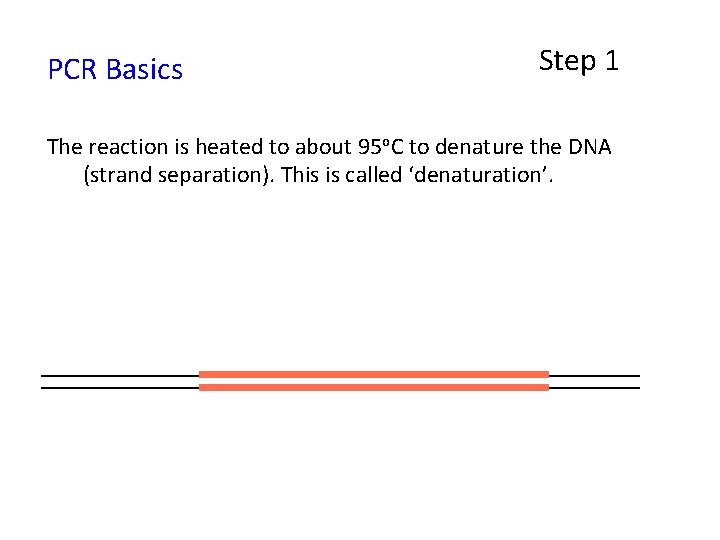

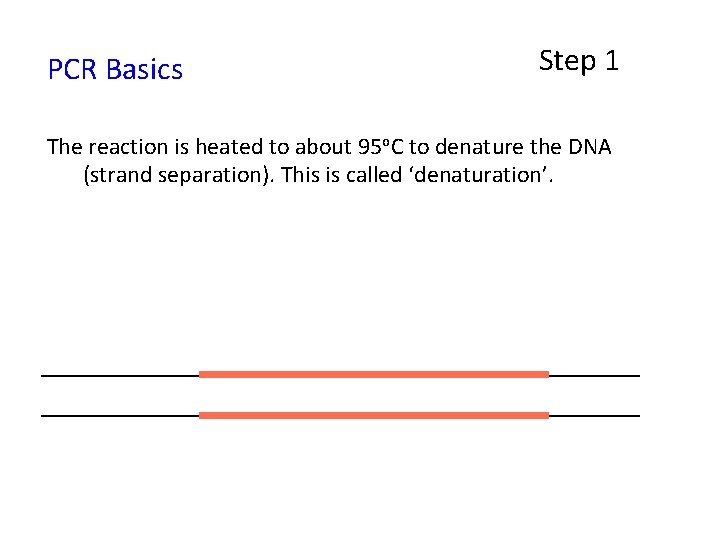

PCR Basics Step 1 The reaction is heated to about 95 o. C to denature the DNA (strand separation). This is called ‘denaturation’.

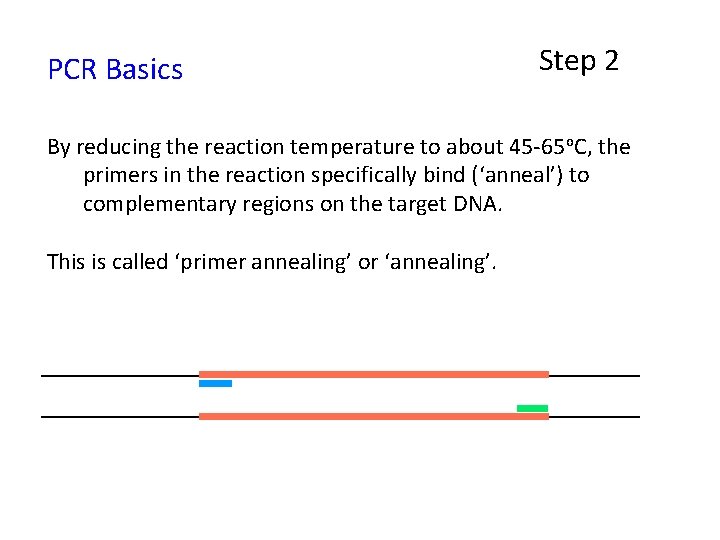

PCR Basics Step 2 By reducing the reaction temperature to about 45 -65 o. C, the primers in the reaction specifically bind (‘anneal’) to complementary regions on the target DNA. This is called ‘primer annealing’ or ‘annealing’.

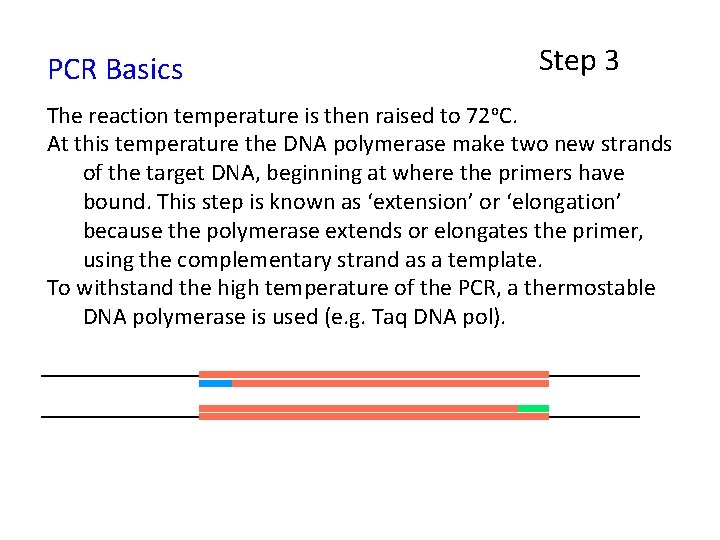

PCR Basics Step 3 The reaction temperature is then raised to 72 o. C. At this temperature the DNA polymerase make two new strands of the target DNA, beginning at where the primers have bound. This step is known as ‘extension’ or ‘elongation’ because the polymerase extends or elongates the primer, using the complementary strand as a template. To withstand the high temperature of the PCR, a thermostable DNA polymerase is used (e. g. Taq DNA pol).

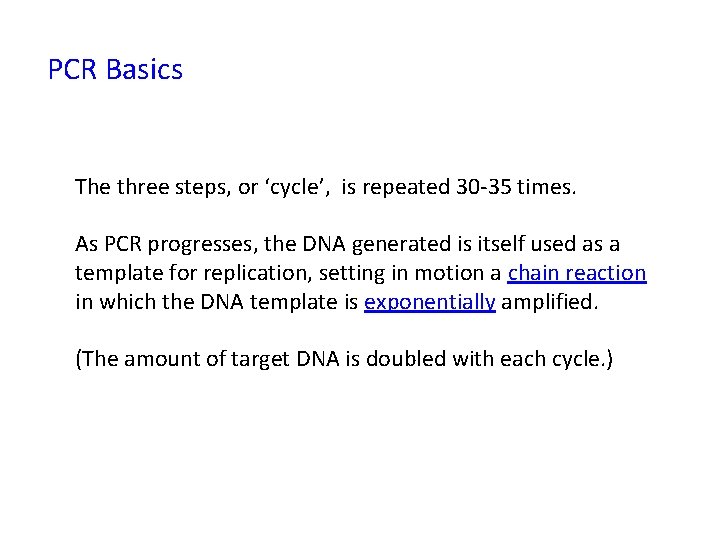

PCR Basics The three steps, or ‘cycle’, is repeated 30 -35 times. As PCR progresses, the DNA generated is itself used as a template for replication, setting in motion a chain reaction in which the DNA template is exponentially amplified. (The amount of target DNA is doubled with each cycle. )

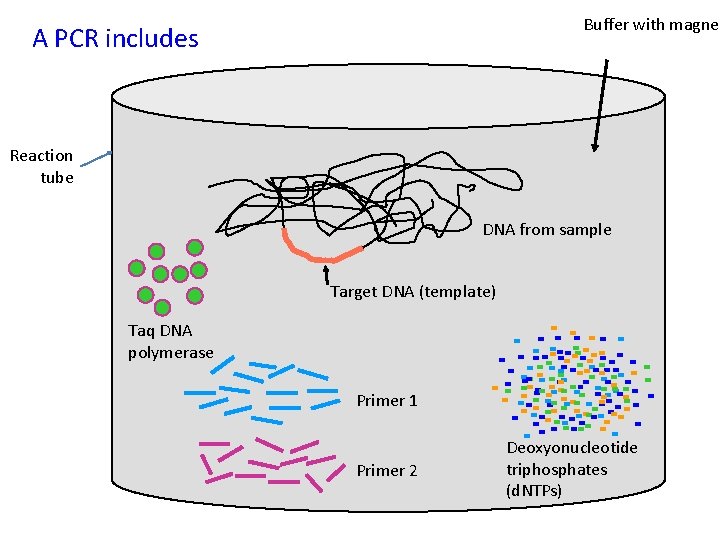

Buffer with magnes A PCR includes Reaction tube DNA from sample Target DNA (template) Taq DNA polymerase Primer 1 Primer 2 Deoxyonucleotide triphosphates (d. NTPs)

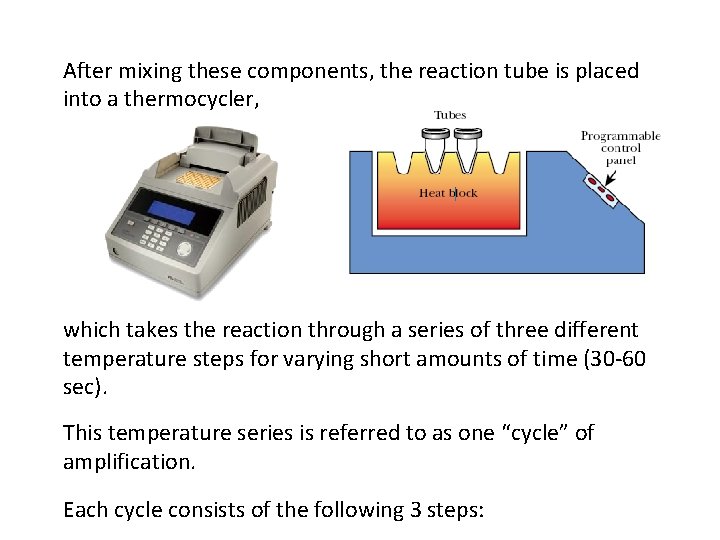

After mixing these components, the reaction tube is placed into a thermocycler, which takes the reaction through a series of three different temperature steps for varying short amounts of time (30 -60 sec). This temperature series is referred to as one “cycle” of amplification. Each cycle consists of the following 3 steps:

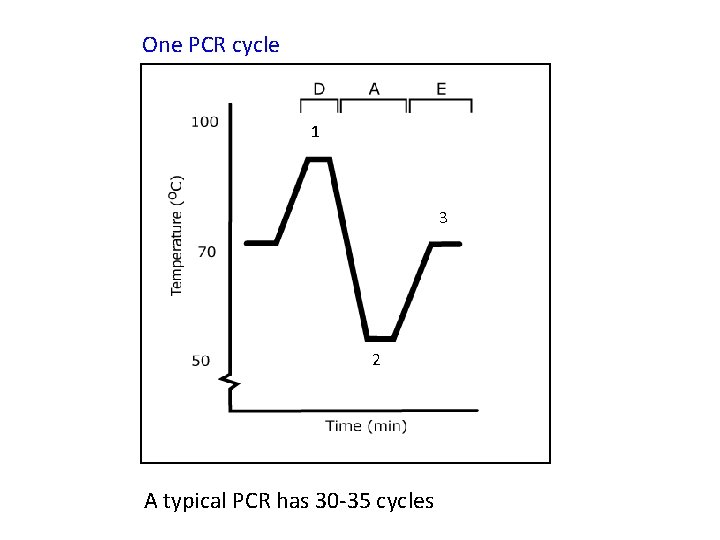

One PCR cycle 1 3 2 A typical PCR has 30 -35 cycles

PCR movie for IMBB_2013. flv

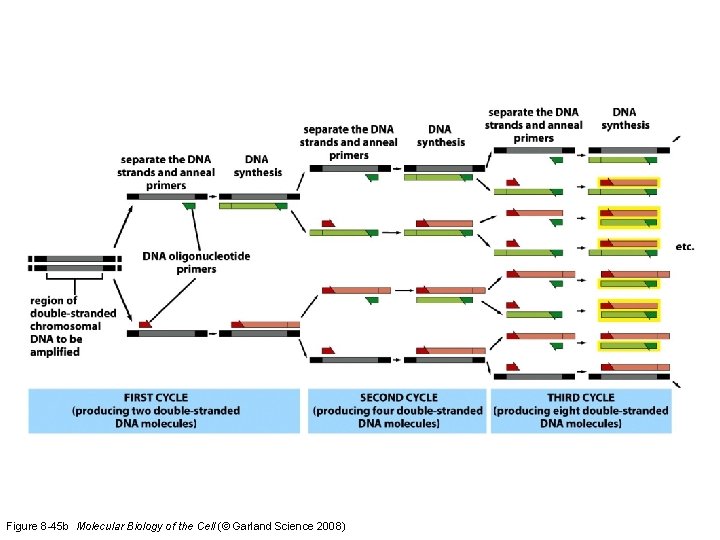

Figure 8 -45 b Molecular Biology of the Cell (© Garland Science 2008)

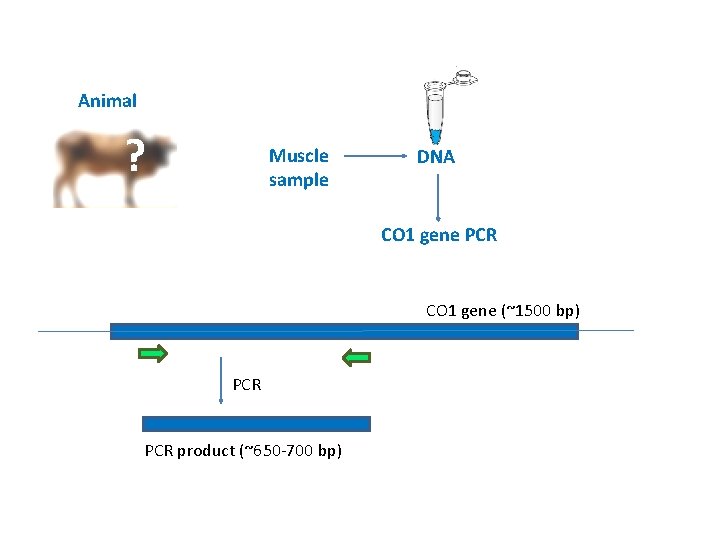

Animal ? Muscle sample DNA CO 1 gene PCR CO 1 gene (~1500 bp) PCR product (~650 -700 bp)

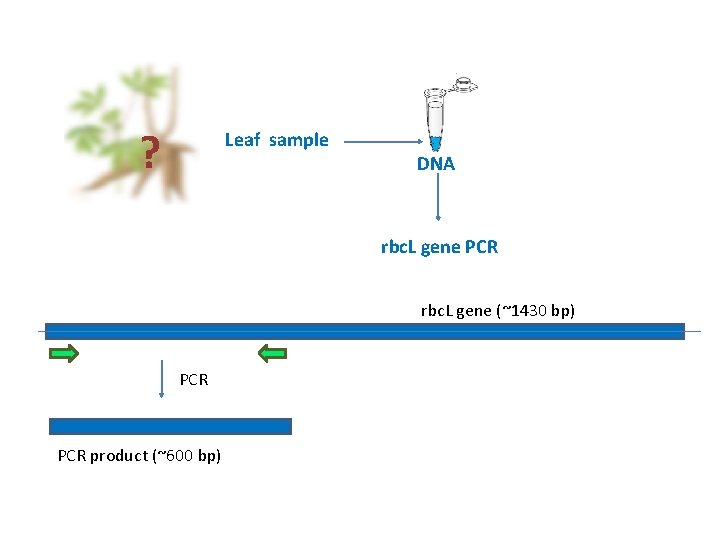

? Leaf sample DNA rbc. L gene PCR rbc. L gene (~1430 bp) PCR product (~600 bp)

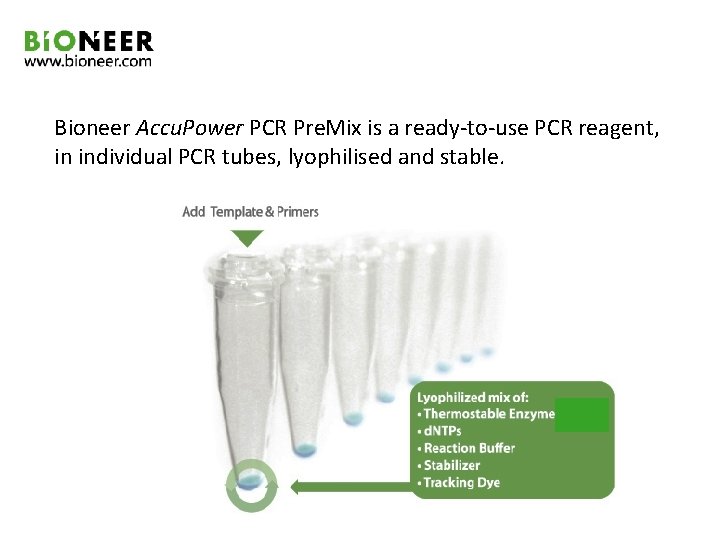

Bioneer Accu. Power PCR Pre. Mix is a ready-to-use PCR reagent, in individual PCR tubes, lyophilised and stable.
