Genetics Review and Alterations

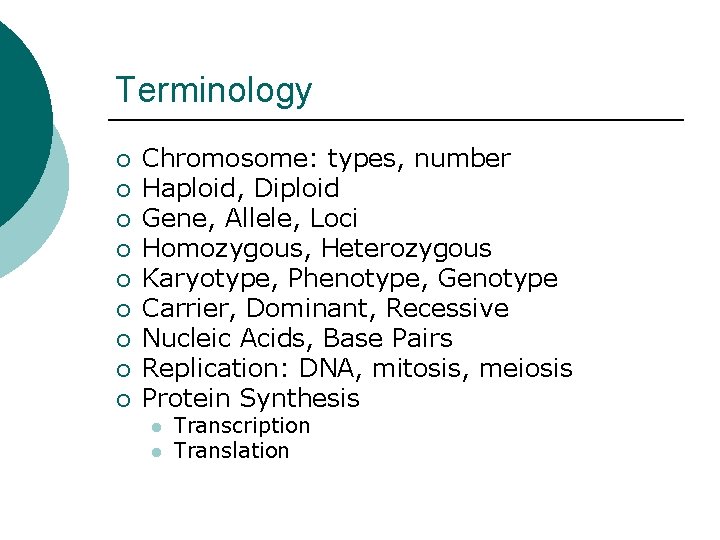

Terminology ¡ ¡ ¡ ¡ ¡ Chromosome: types, number Haploid, Diploid Gene, Allele, Loci Homozygous, Heterozygous Karyotype, Phenotype, Genotype Carrier, Dominant, Recessive Nucleic Acids, Base Pairs Replication: DNA, mitosis, meiosis Protein Synthesis l l Transcription Translation

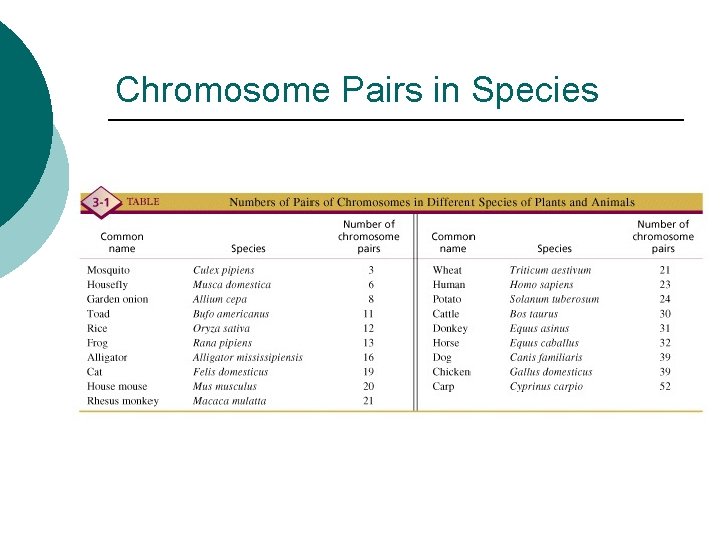

Chromosome Pairs in Species

Chromosome Types

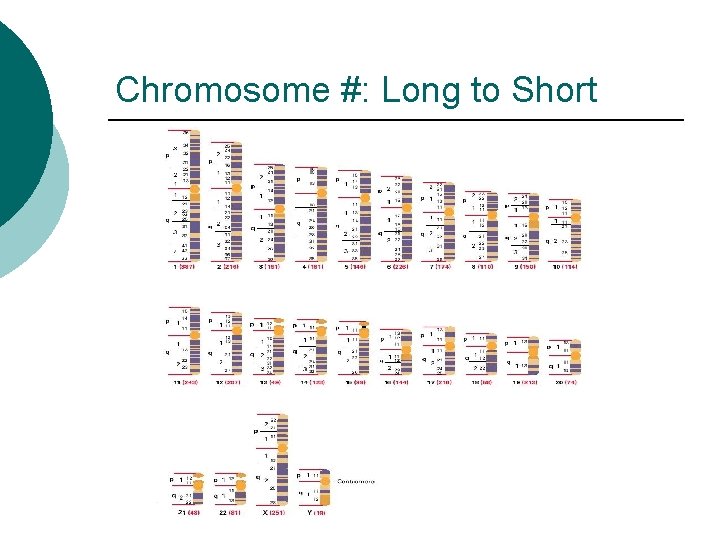

Chromosome #: Long to Short

Human Karyotype

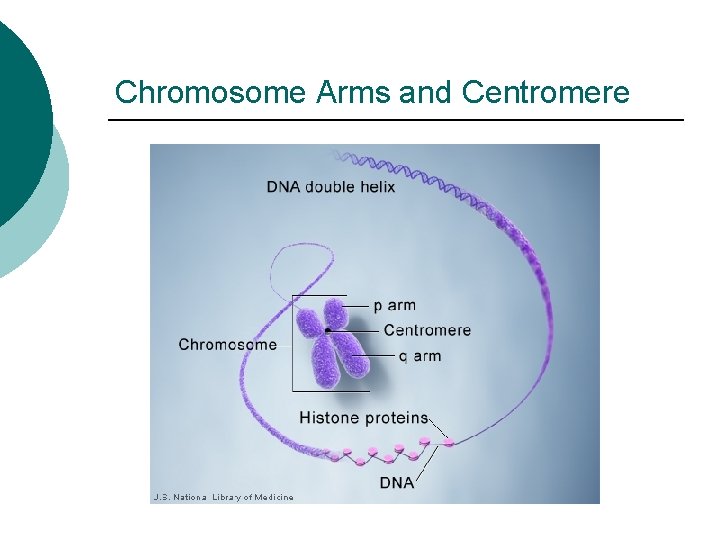

Chromosome Arms and Centromere

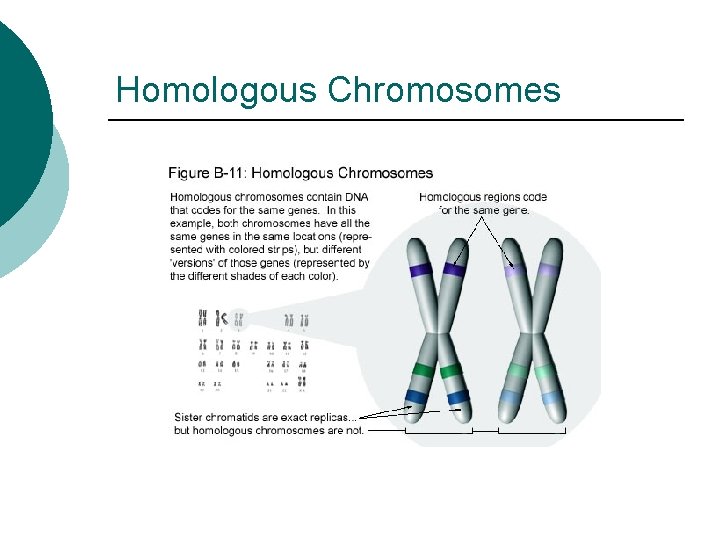

Homologous Chromosomes

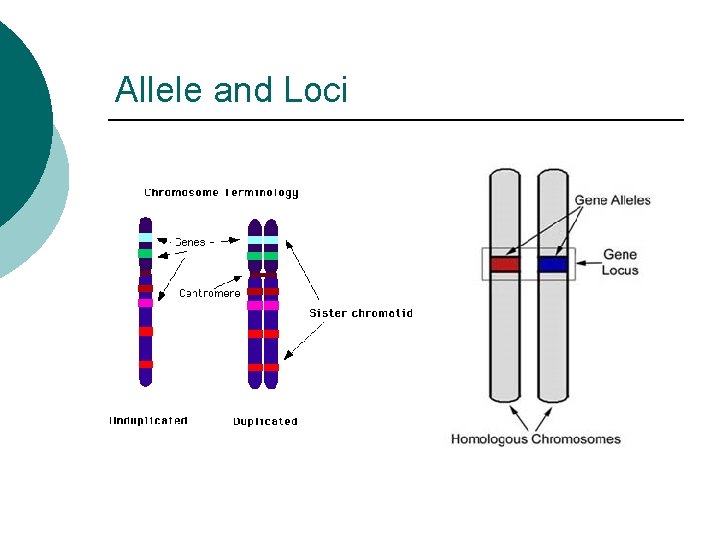

Allele and Loci

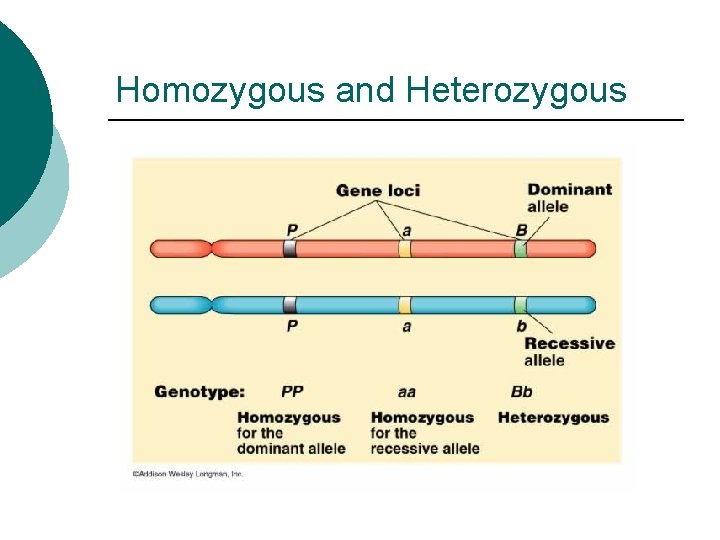

Homozygous and Heterozygous

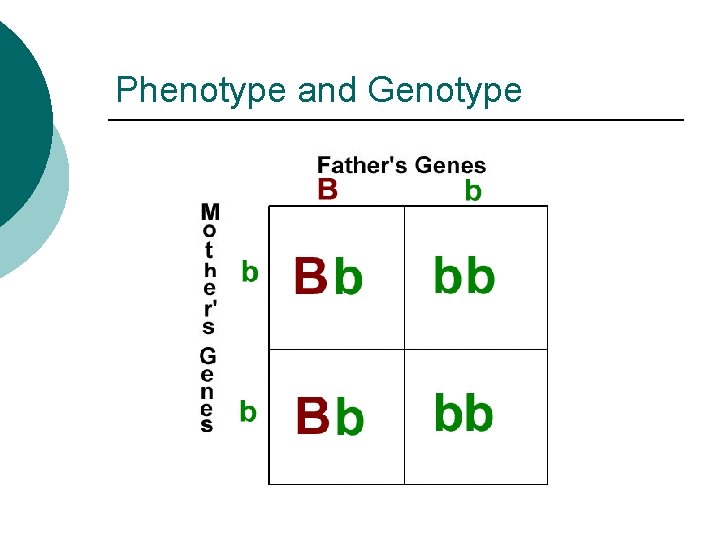

Phenotype and Genotype

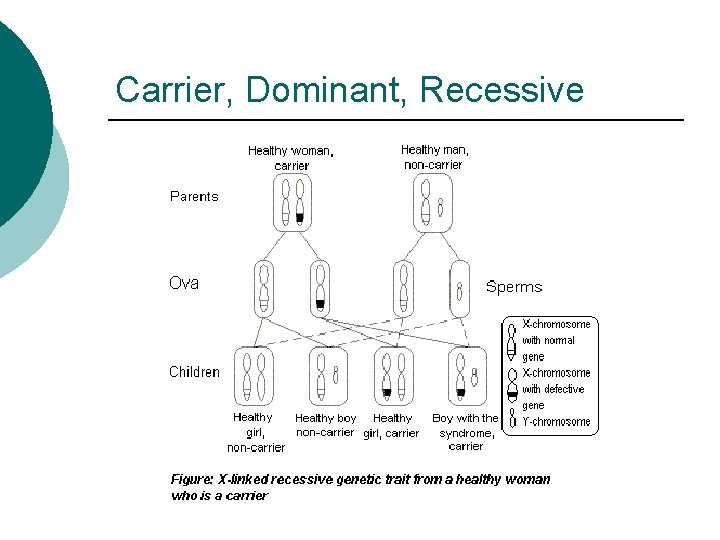

Carrier, Dominant, Recessive

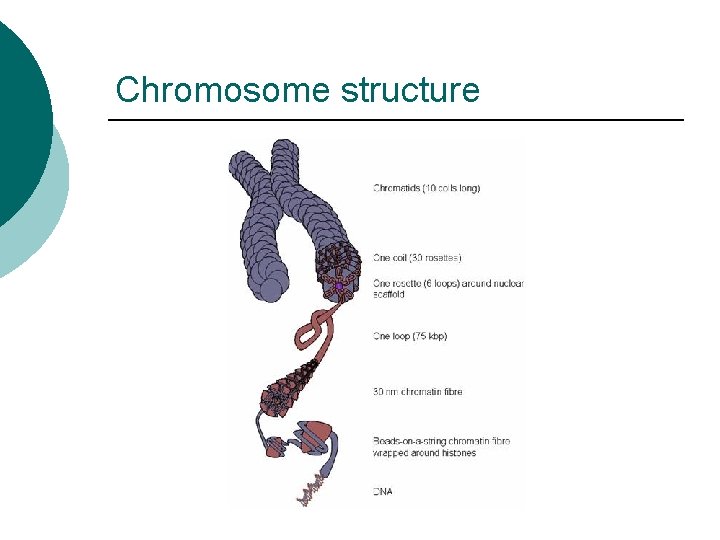

Chromosome structure

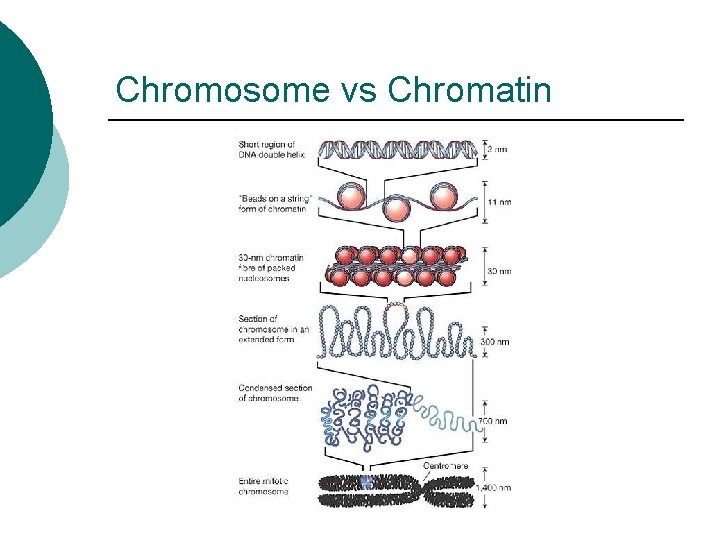

Chromosome vs Chromatin

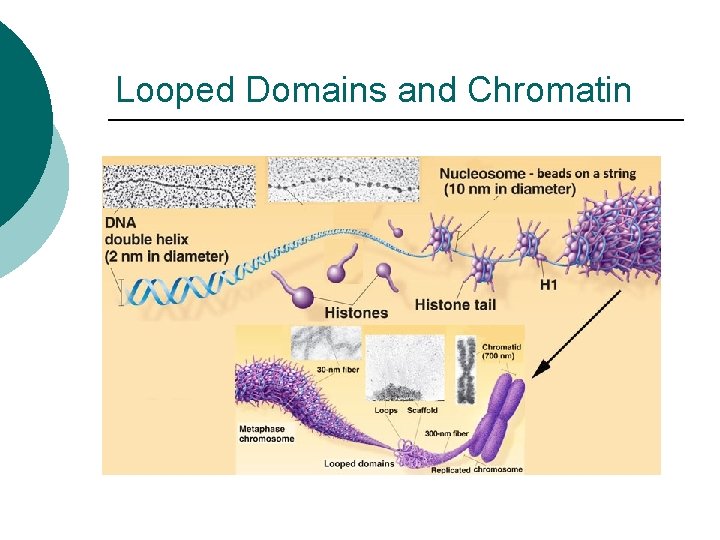

Looped Domains and Chromatin

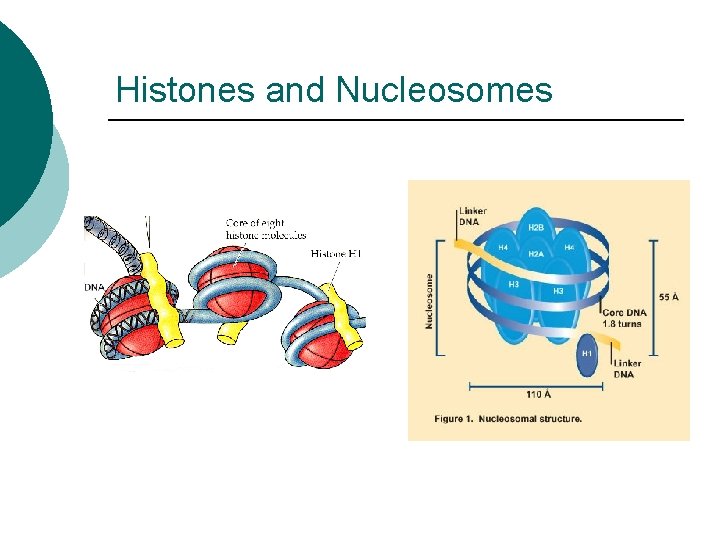

Histones and Nucleosomes

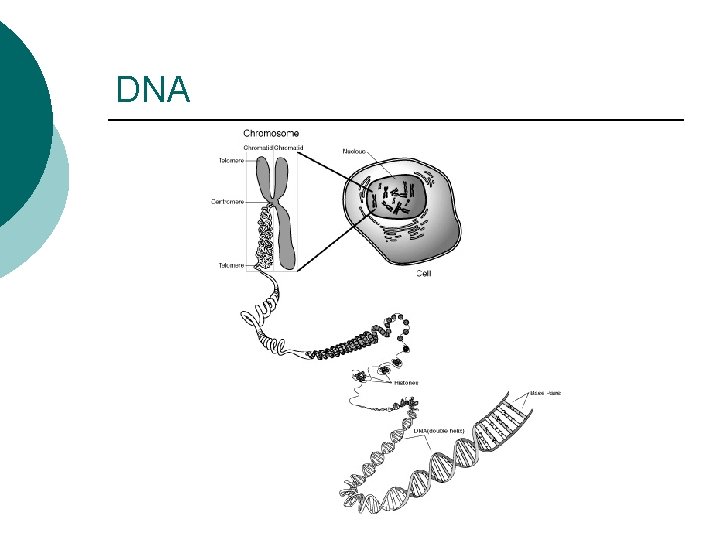

DNA

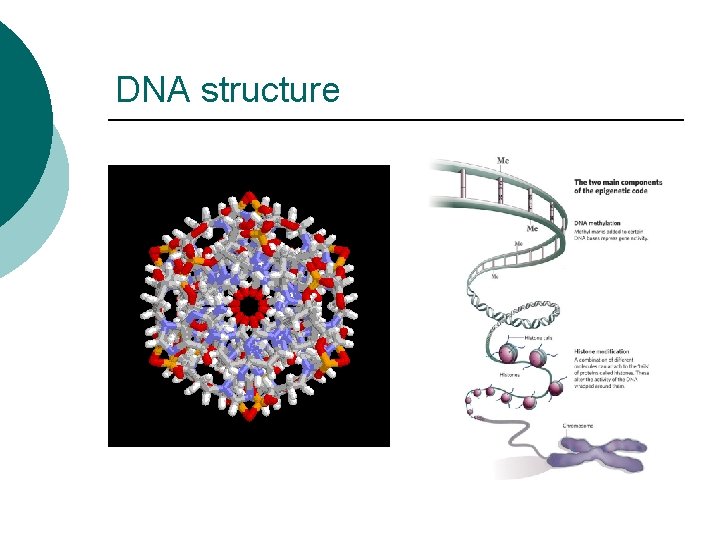

DNA structure

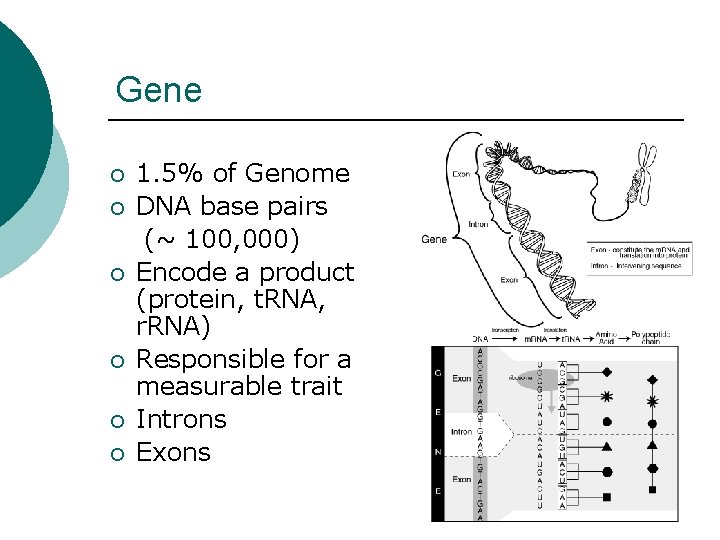

Gene ¡ ¡ ¡ 1. 5% of Genome DNA base pairs (~ 100, 000) Encode a product (protein, t. RNA, r. RNA) Responsible for a measurable trait Introns Exons

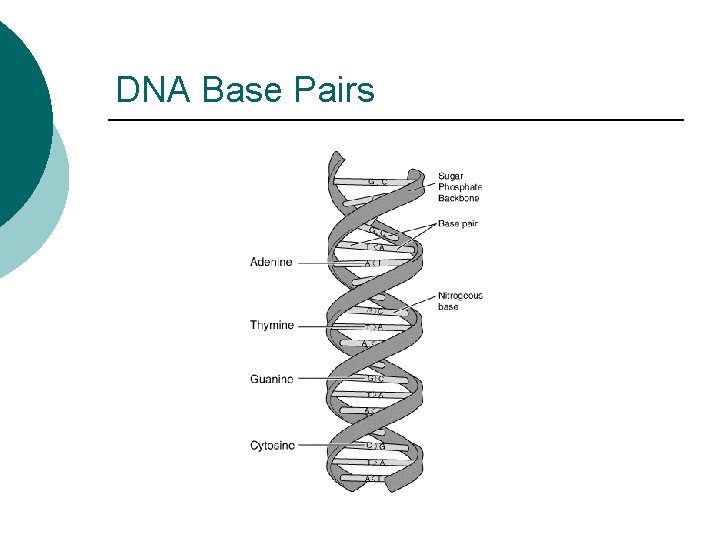

DNA Base Pairs

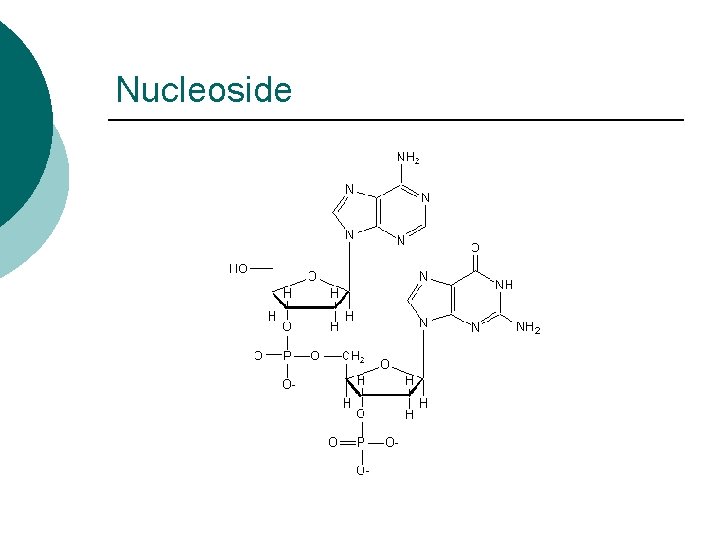

Nucleoside

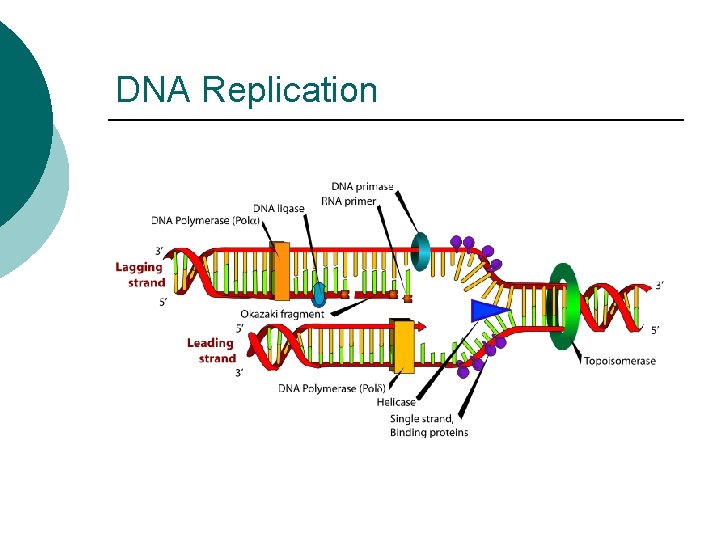

DNA Replication

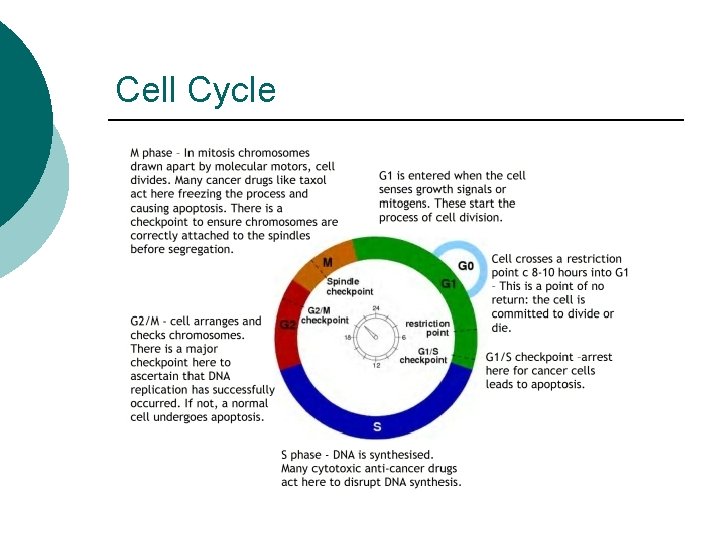

Cell Cycle Review

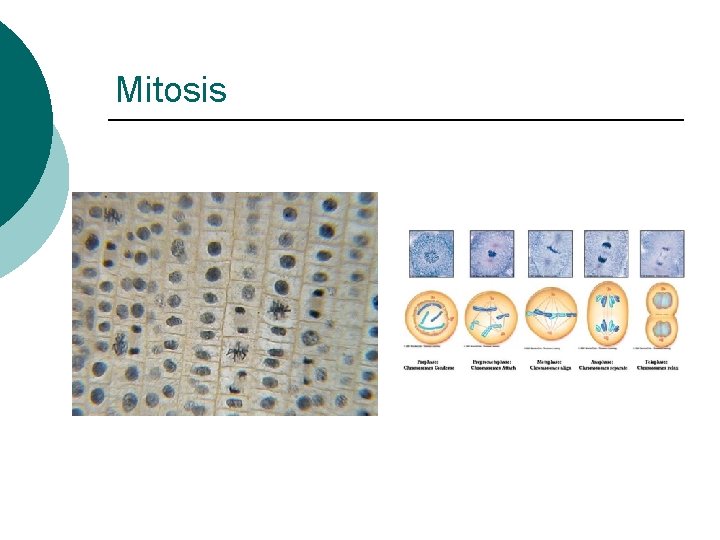

Mitosis

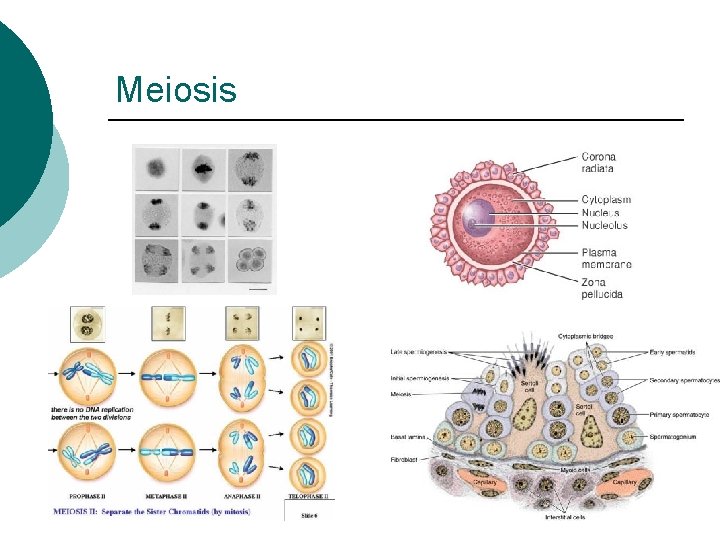

Meiosis

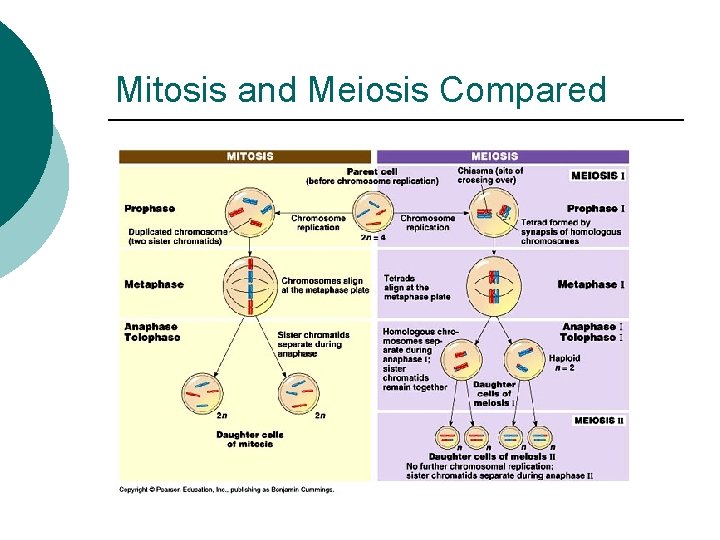

Mitosis and Meiosis Compared

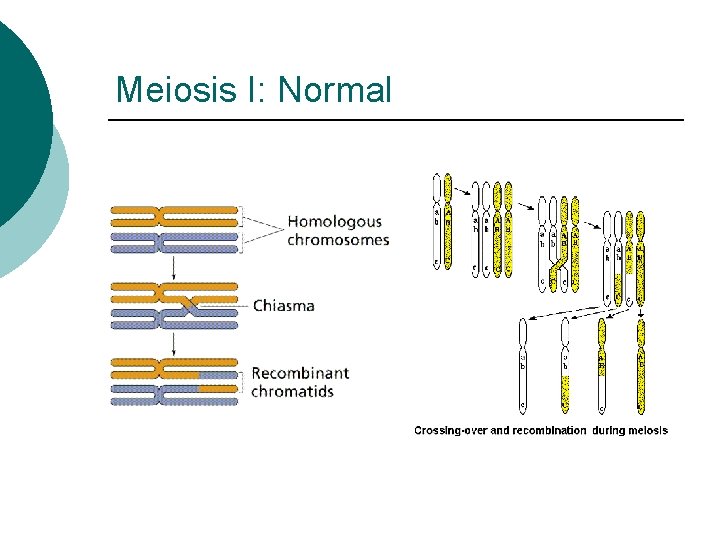

Meiosis I: Normal

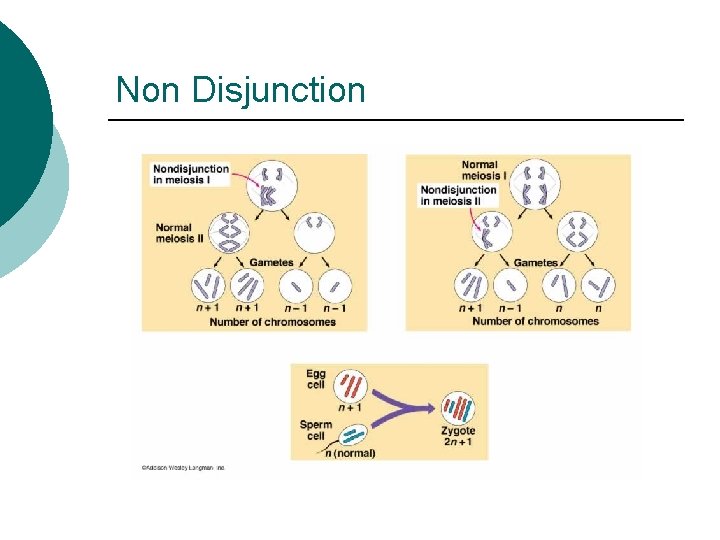

Non Disjunction

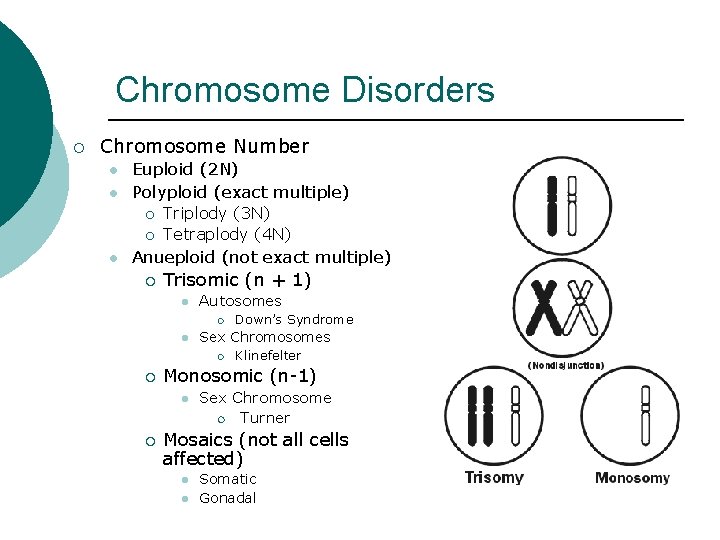

Chromosome Disorders ¡ Chromosome Number l l Euploid (2 N) Polyploid (exact multiple) ¡ ¡ l Triplody (3 N) Tetraplody (4 N) Anueploid (not exact multiple) ¡ Trisomic (n + 1) l Autosomes ¡ l Sex Chromosomes ¡ ¡ Klinefelter Monosomic (n-1) l ¡ Down’s Syndrome Sex Chromosome ¡ Turner Mosaics (not all cells affected) l l Somatic Gonadal

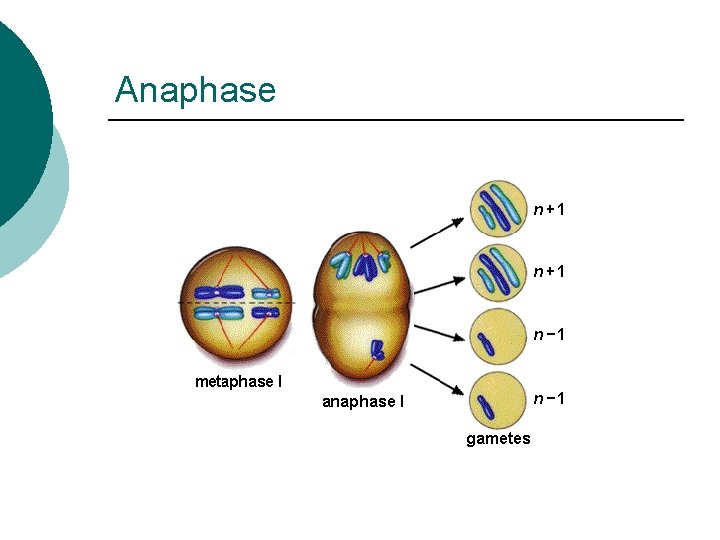

Anaphase

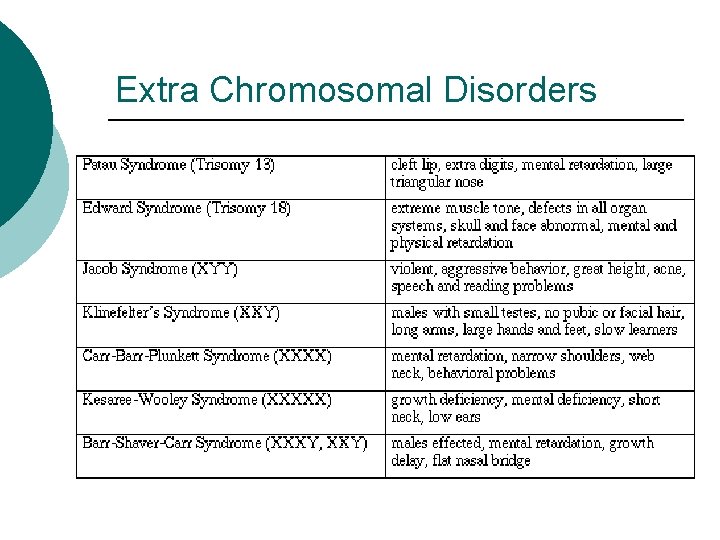

Extra Chromosomal Disorders

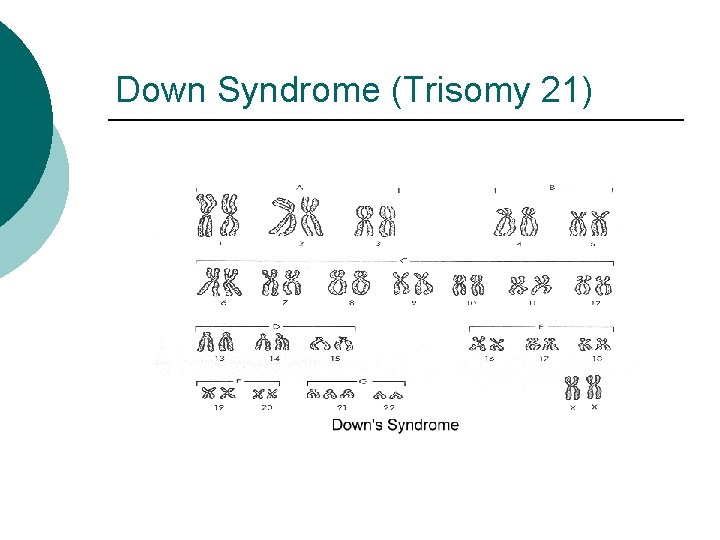

Down Syndrome (Trisomy 21)

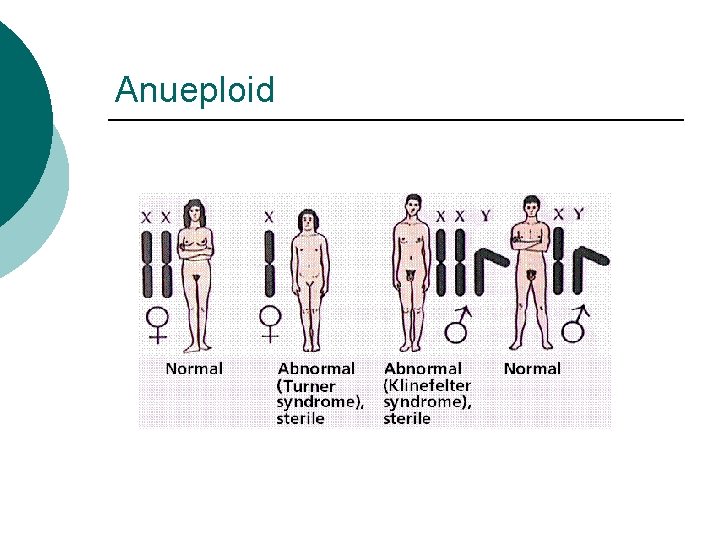

Anueploid

Chromosome Abnormalities ¡ Structure l l l Break and reassemble abnormally Inversion Translocation Insertion Deletion Duplication

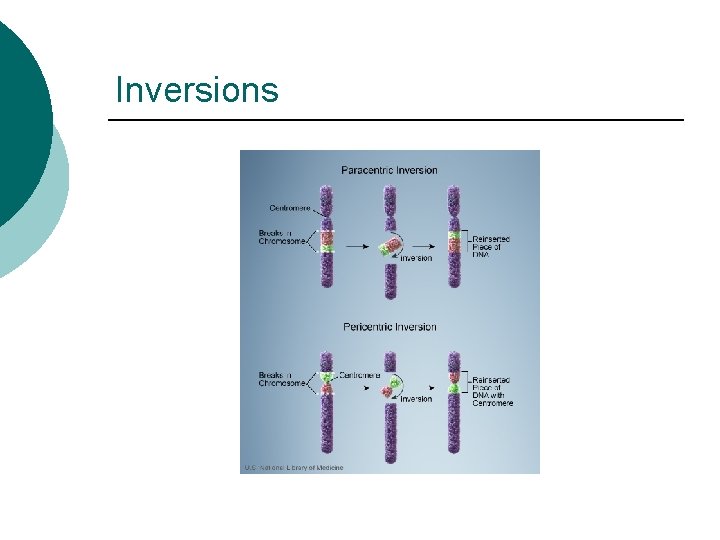

Inversions

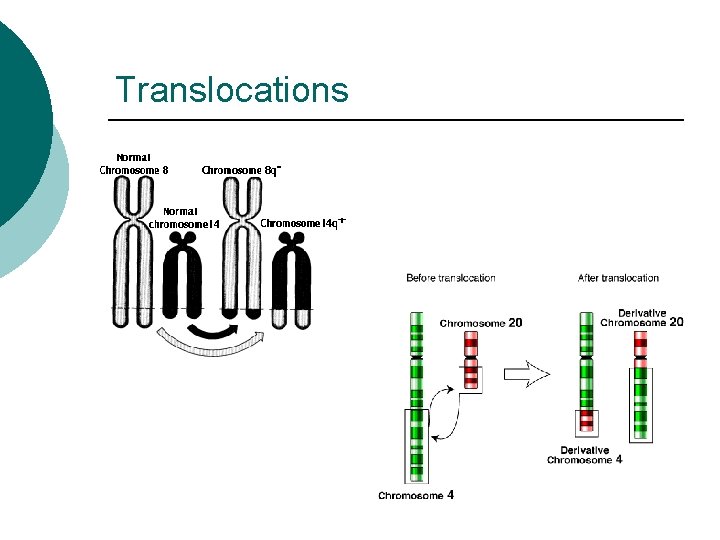

Translocations

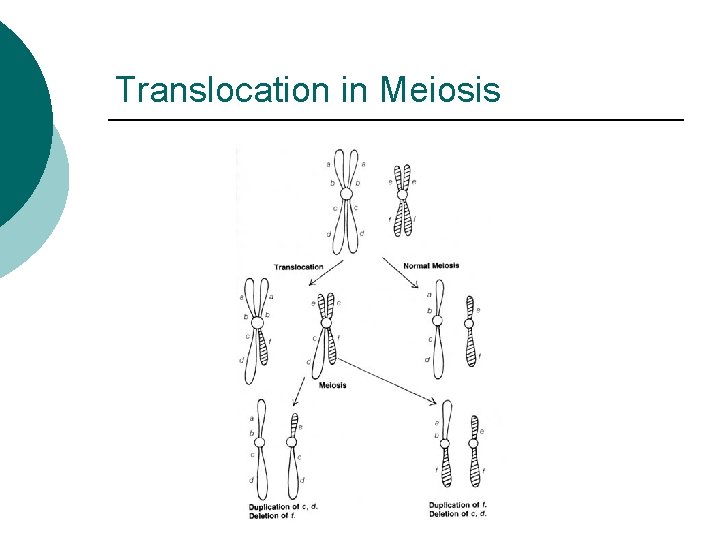

Translocation in Meiosis

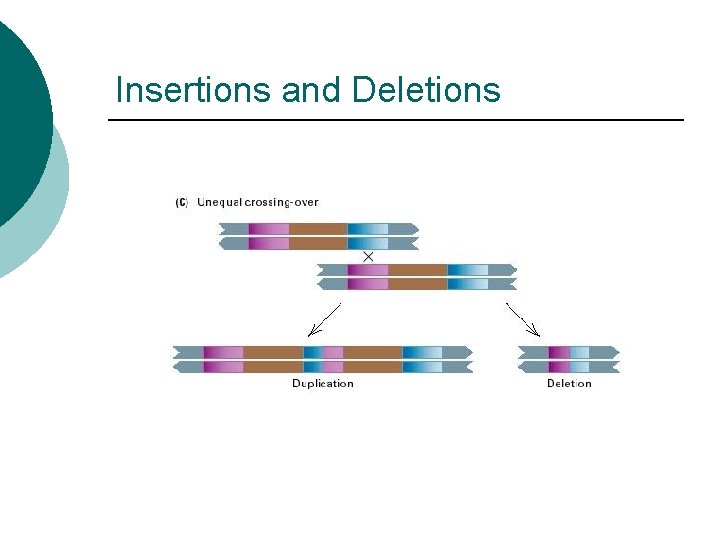

Insertions and Deletions

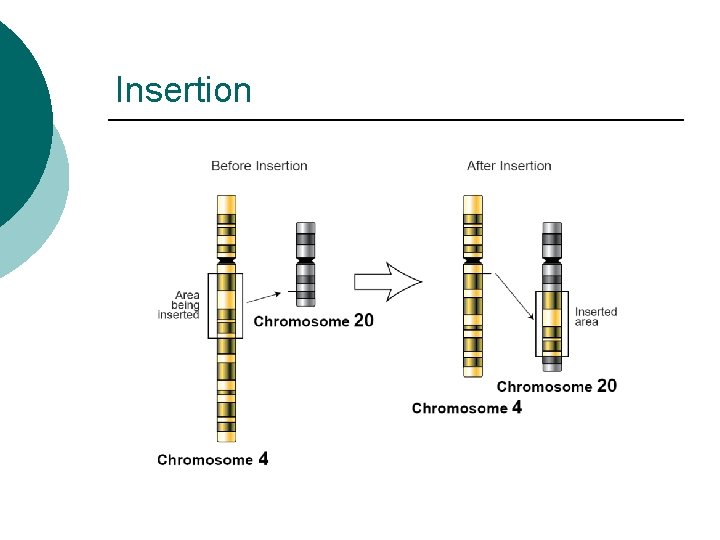

Insertion

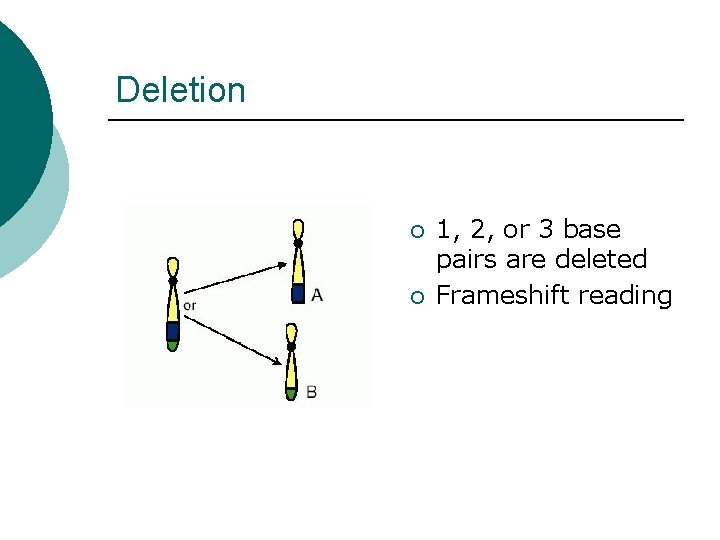

Deletion ¡ ¡ 1, 2, or 3 base pairs are deleted Frameshift reading

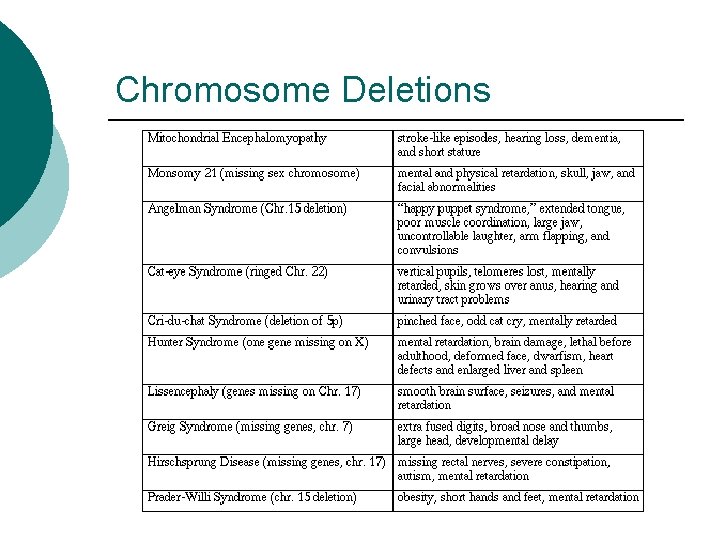

Chromosome Deletions

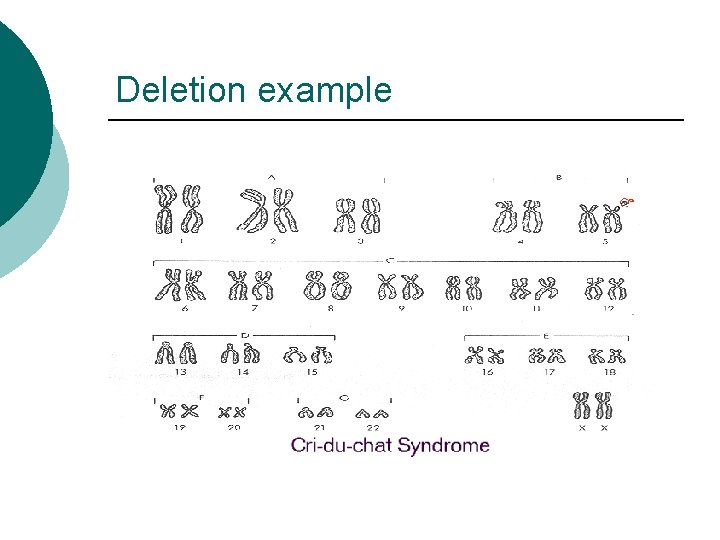

Deletion example

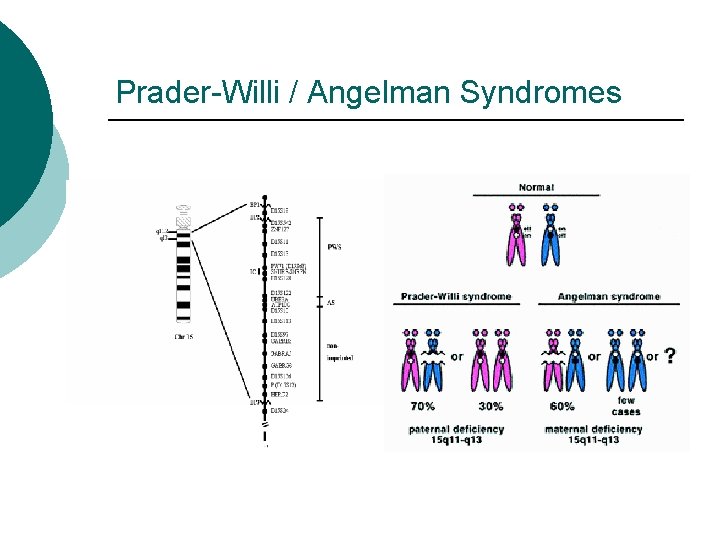

Prader-Willi / Angelman Syndromes

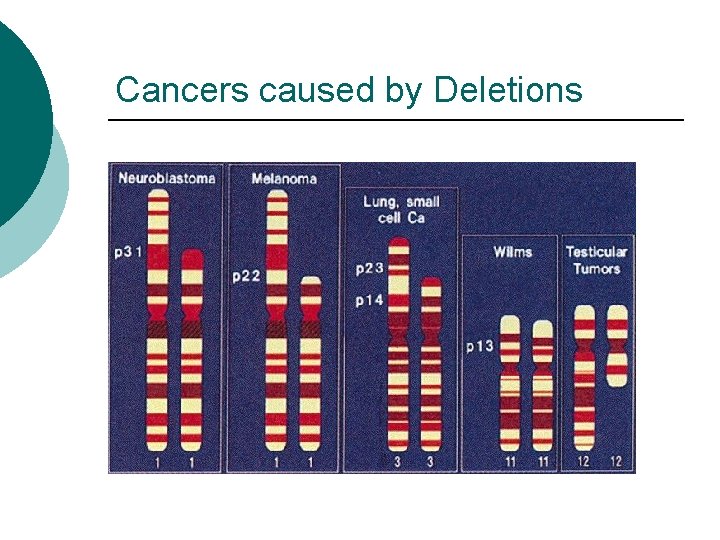

Cancers caused by Deletions

Wilms Tumor

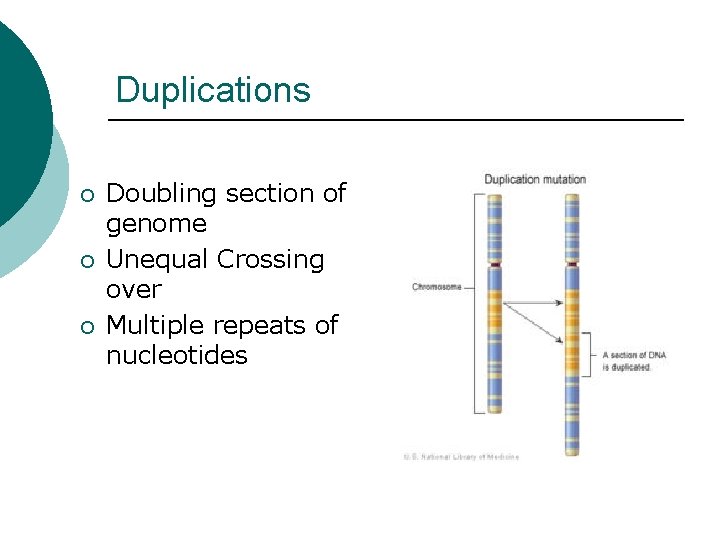

Duplications ¡ ¡ ¡ Doubling section of genome Unequal Crossing over Multiple repeats of nucleotides

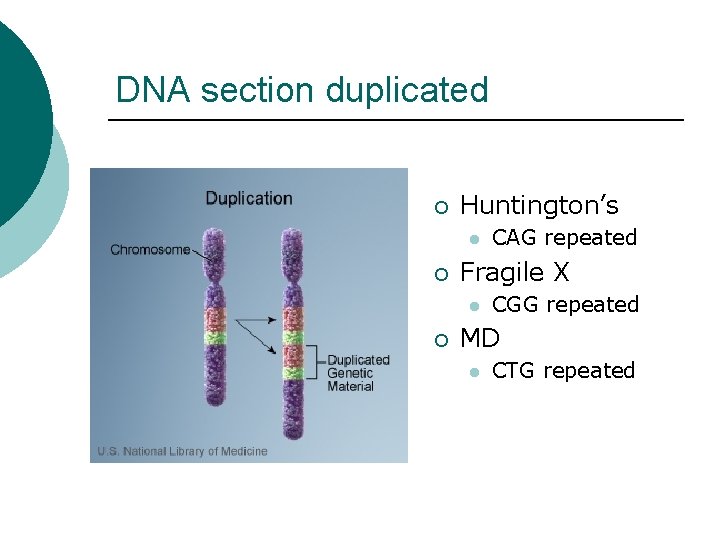

DNA section duplicated ¡ Huntington’s l ¡ Fragile X l ¡ CAG repeated CGG repeated MD l CTG repeated

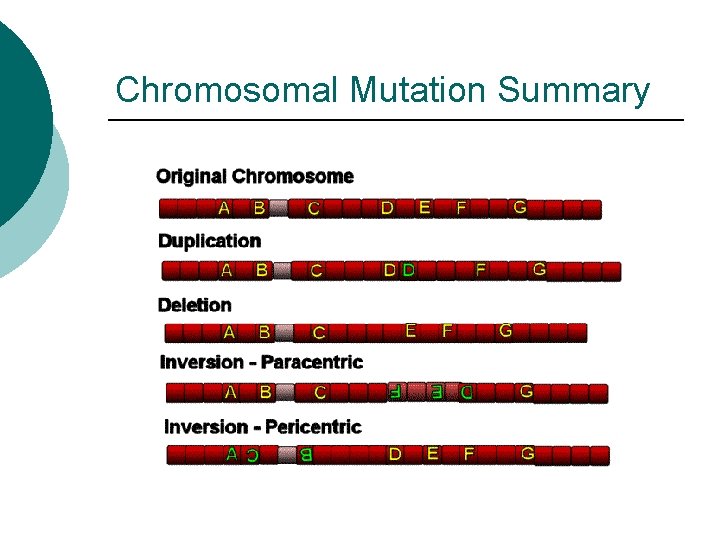

Chromosomal Mutation Summary

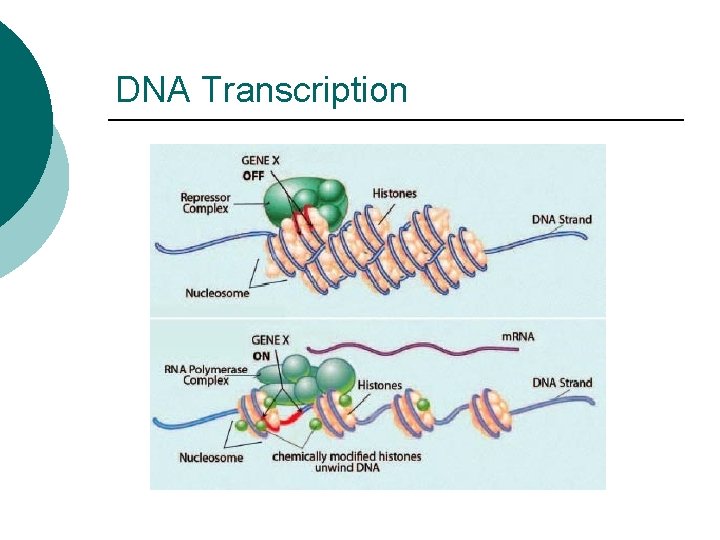

DNA Transcription

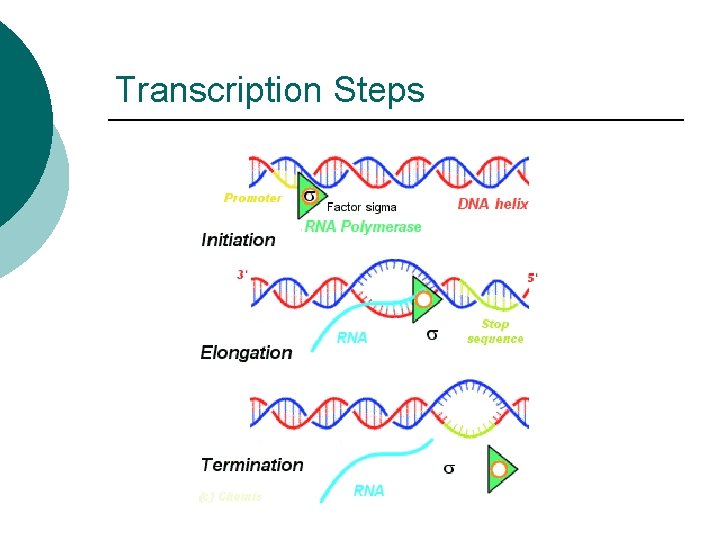

Transcription Steps

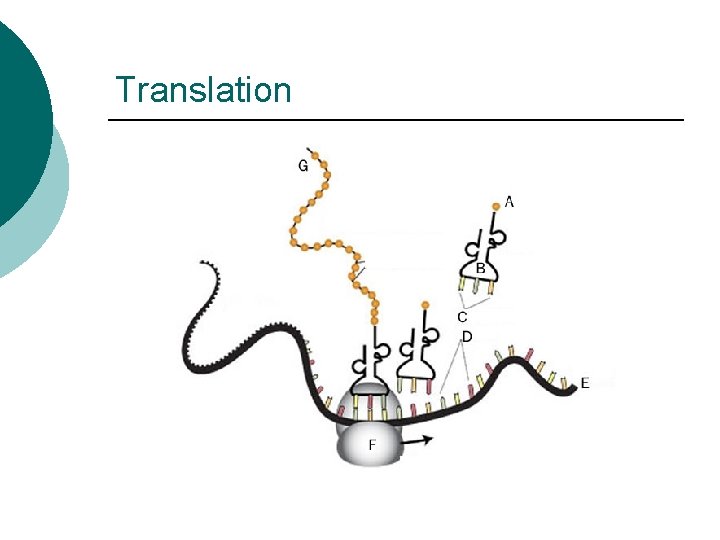

Translation

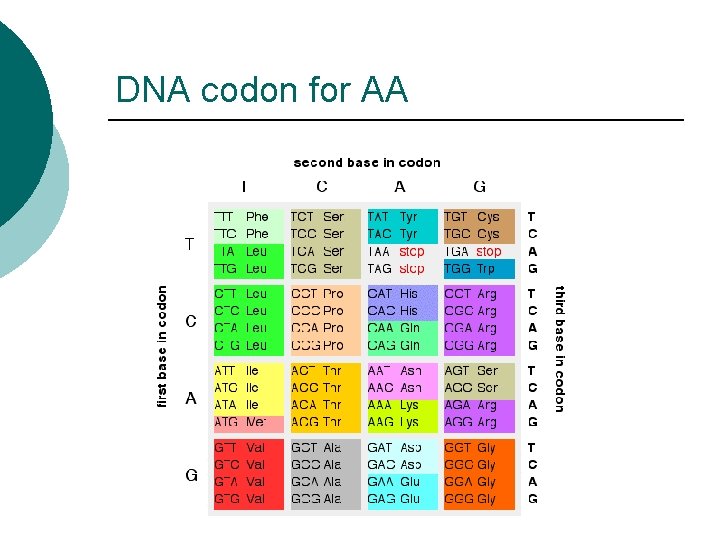

DNA codon for AA

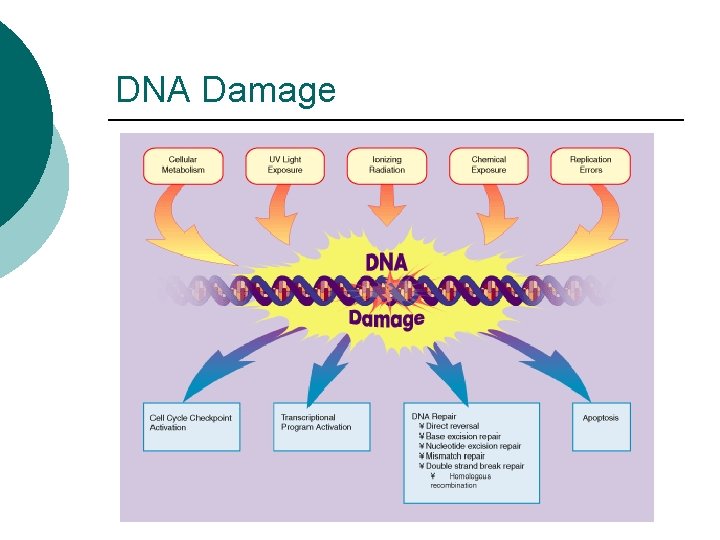

DNA Damage

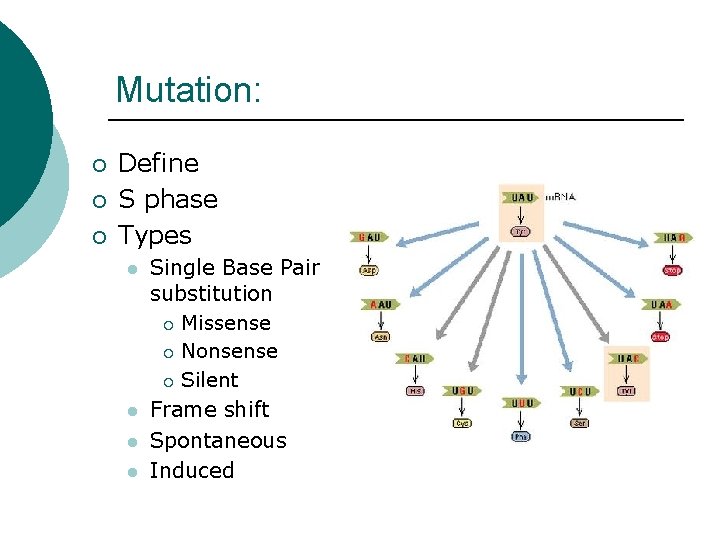

Mutation: ¡ ¡ ¡ Define S phase Types l l Single Base Pair substitution ¡ Missense ¡ Nonsense ¡ Silent Frame shift Spontaneous Induced

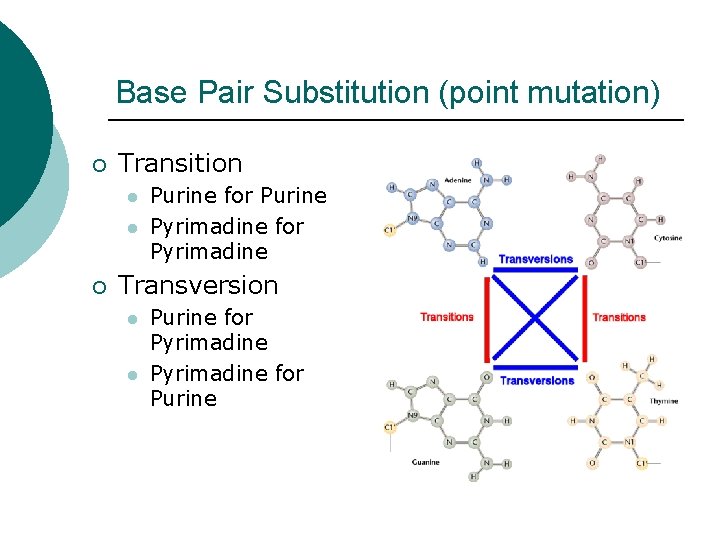

Base Pair Substitution (point mutation) ¡ Transition l l ¡ Purine for Purine Pyrimadine for Pyrimadine Transversion l l Purine for Pyrimadine for Purine

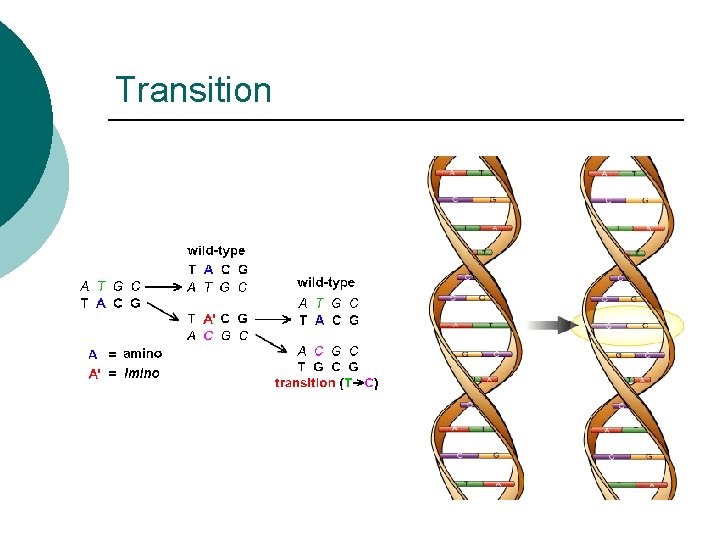

Transition

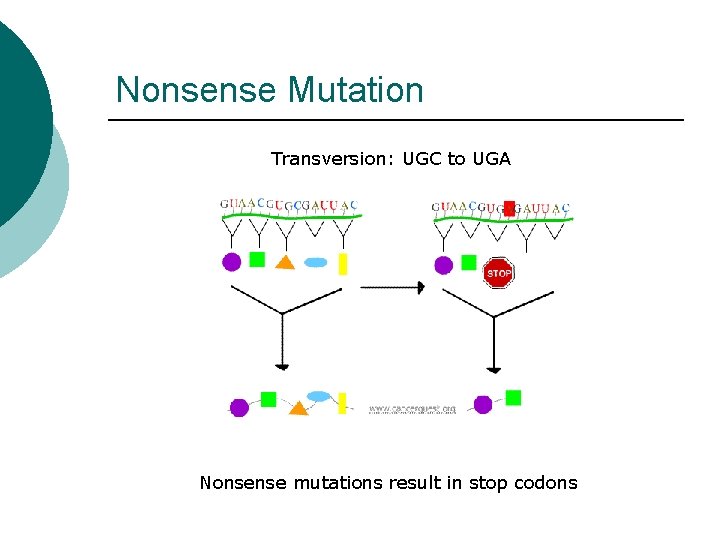

Nonsense Mutation Transversion: UGC to UGA Nonsense mutations result in stop codons

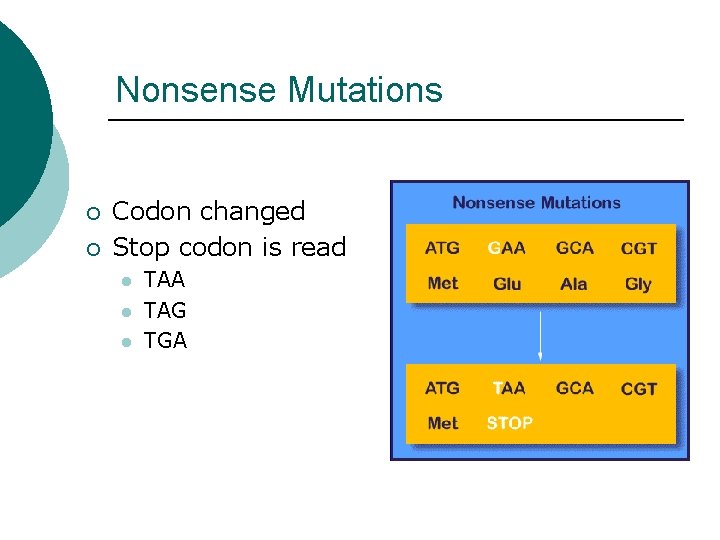

Nonsense Mutations ¡ ¡ Codon changed Stop codon is read l l l TAA TAG TGA

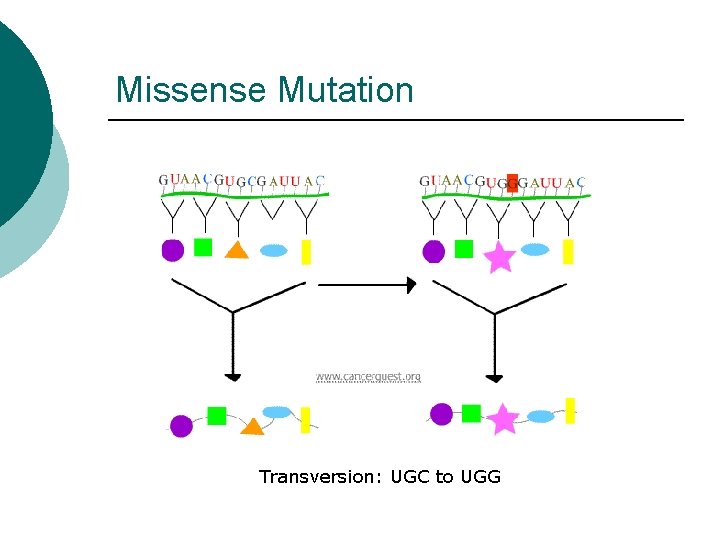

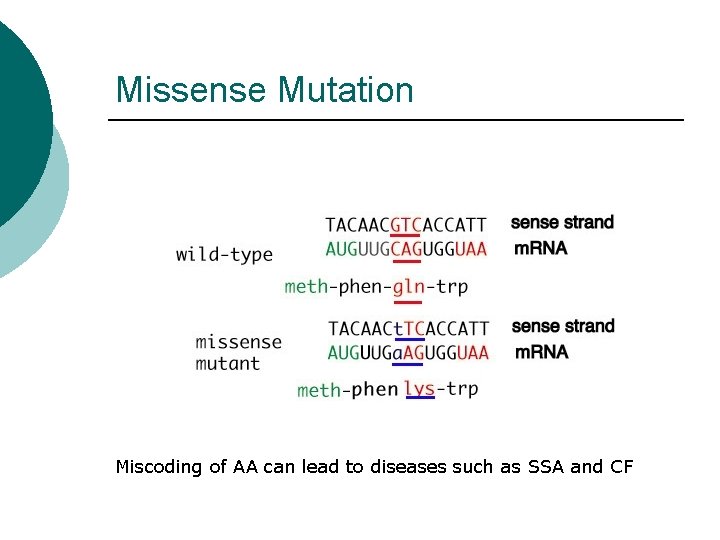

Missense Mutation Transversion: UGC to UGG

Missense Mutation Miscoding of AA can lead to diseases such as SSA and CF

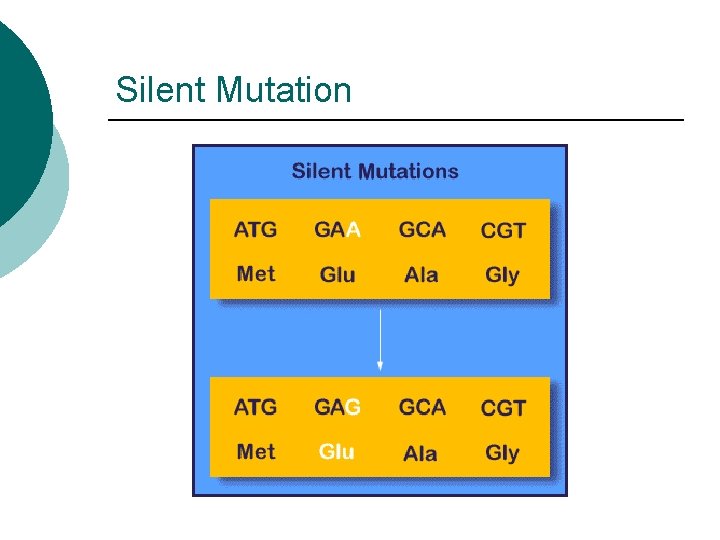

Silent Mutation

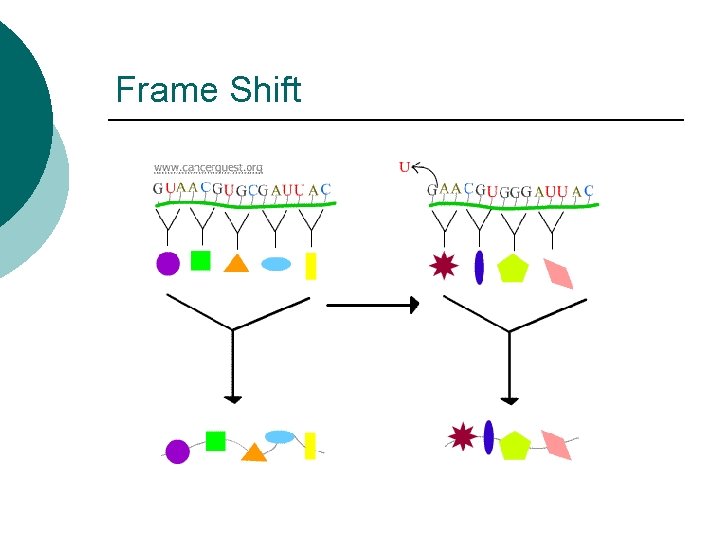

Frame Shift

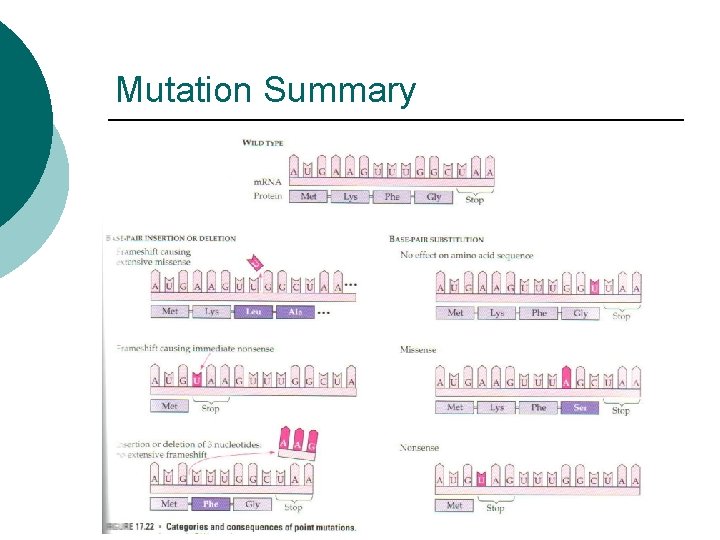

Mutation Summary

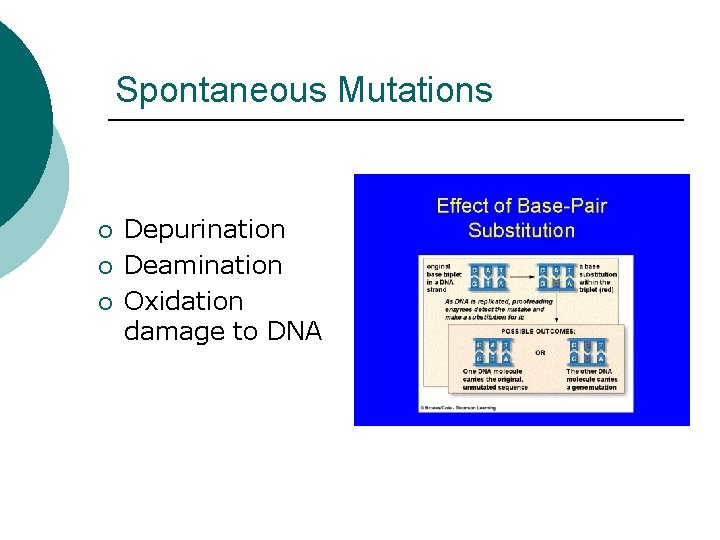

Spontaneous Mutations ¡ ¡ ¡ Depurination Deamination Oxidation damage to DNA

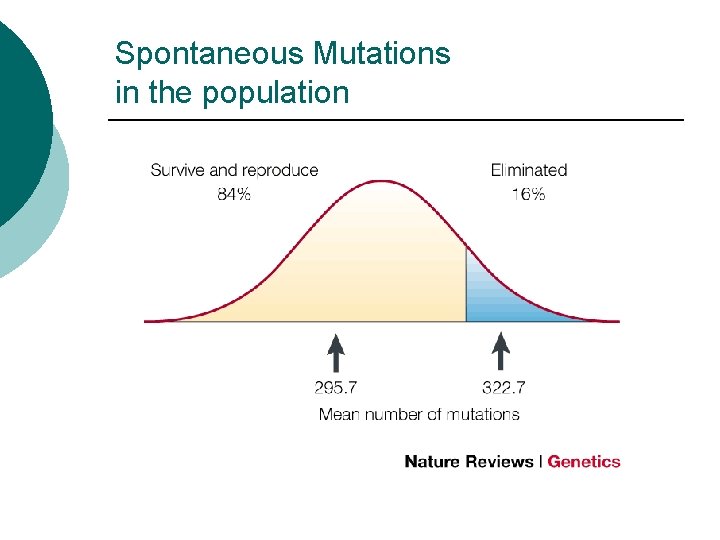

Spontaneous Mutations in the population

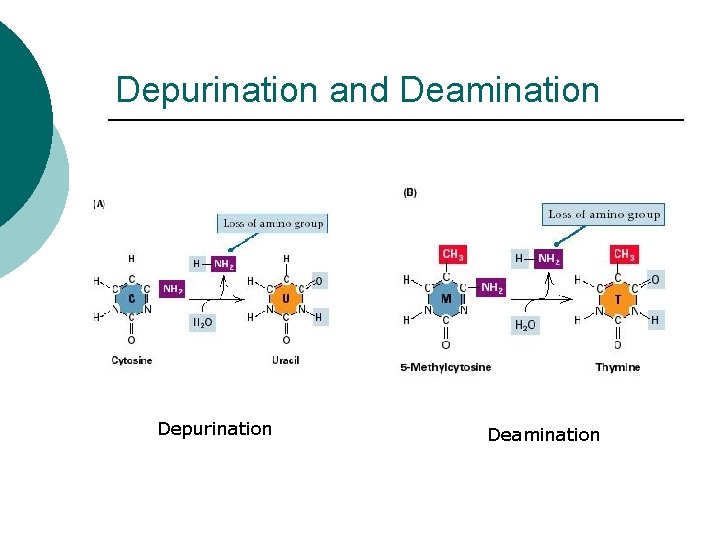

Depurination and Deamination Depurination Deamination

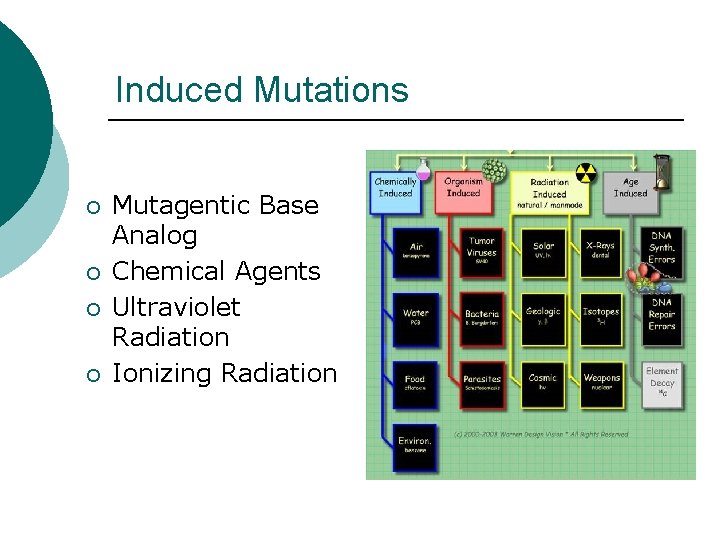

Induced Mutations ¡ ¡ Mutagentic Base Analog Chemical Agents Ultraviolet Radiation Ionizing Radiation

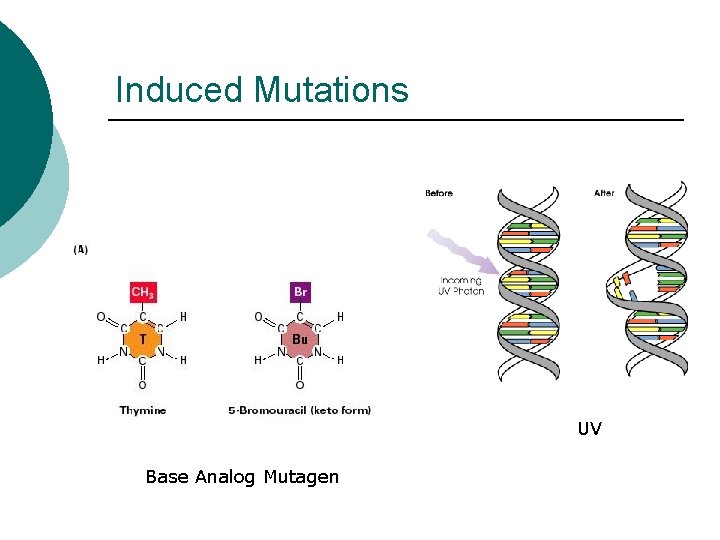

Induced Mutations UV Base Analog Mutagen

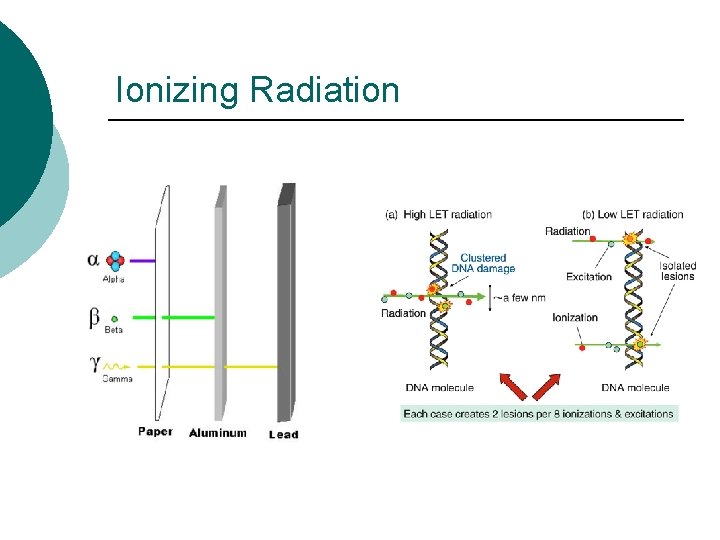

Ionizing Radiation

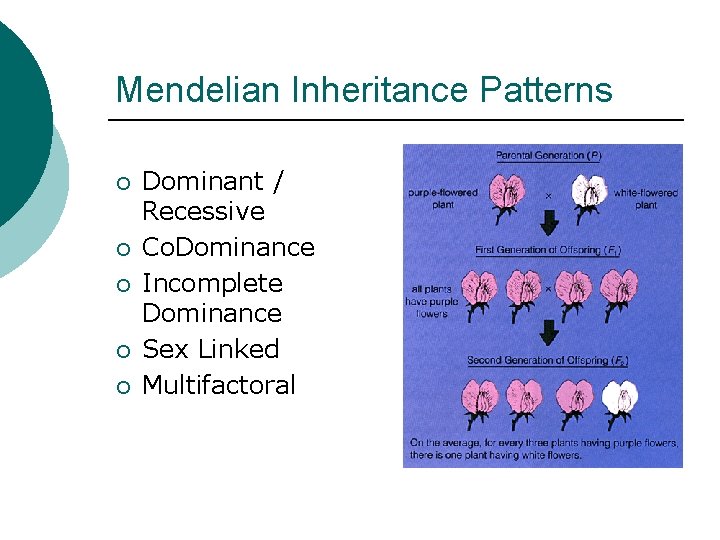

Mendelian Inheritance Patterns ¡ ¡ ¡ Dominant / Recessive Co. Dominance Incomplete Dominance Sex Linked Multifactoral

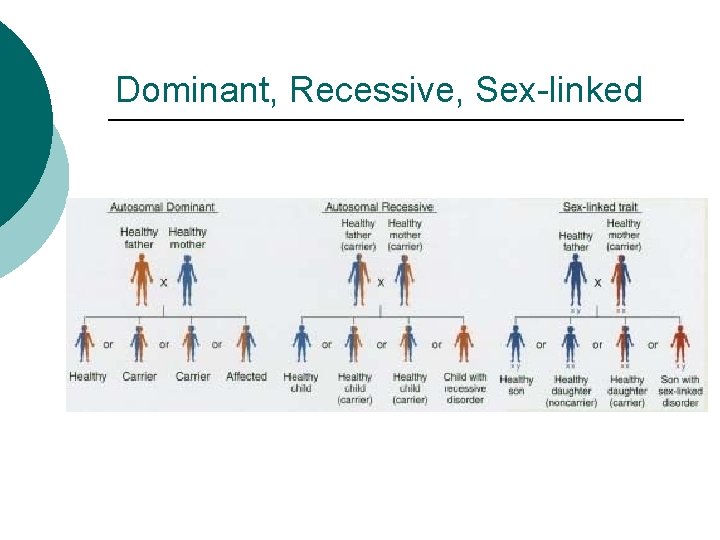

Dominant, Recessive, Sex-linked

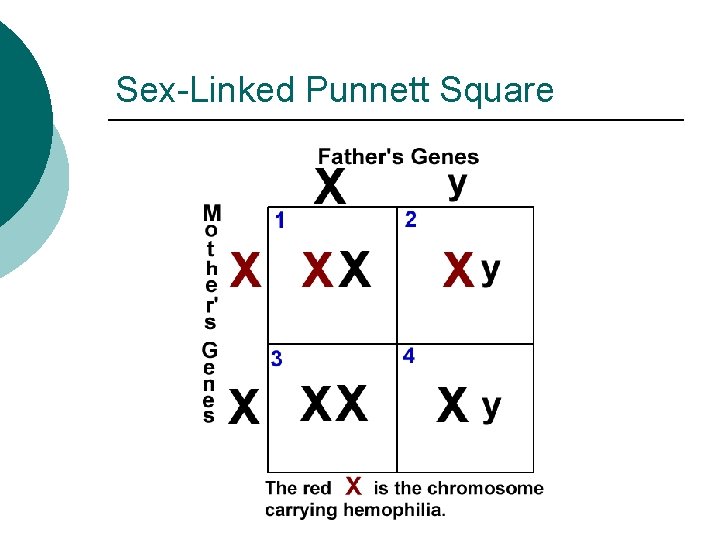

Sex-Linked Punnett Square

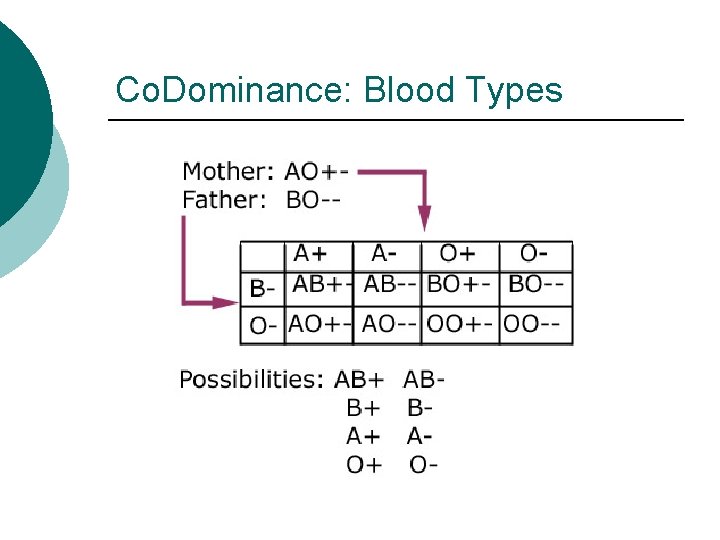

Co. Dominance: Blood Types

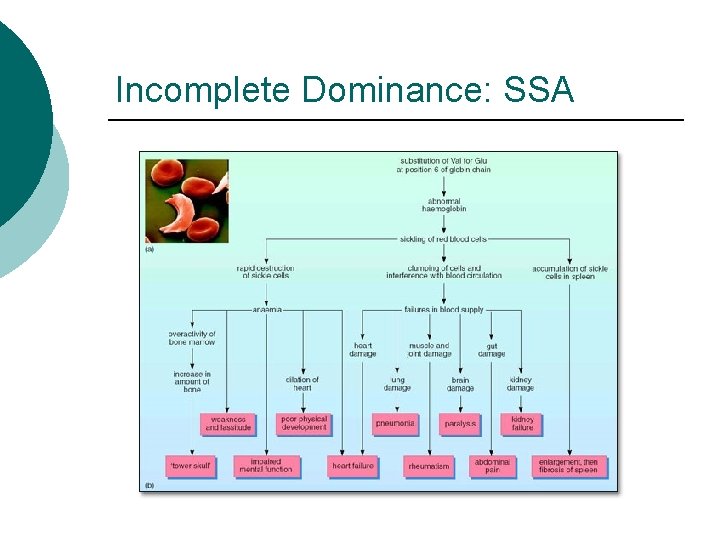

Incomplete Dominance: SSA

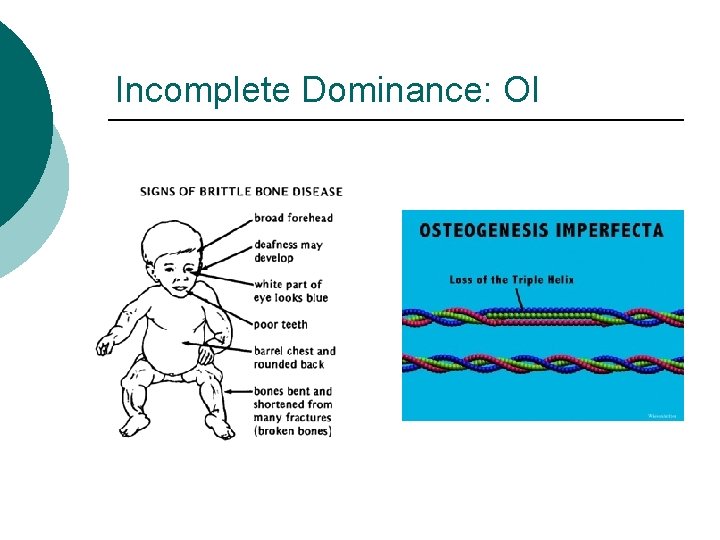

Incomplete Dominance: OI

Genetic Disorders: Single Gene ¡ ¡ Autosomal Dominant Autosomal Recessive X-linked dominant X-linked recessive

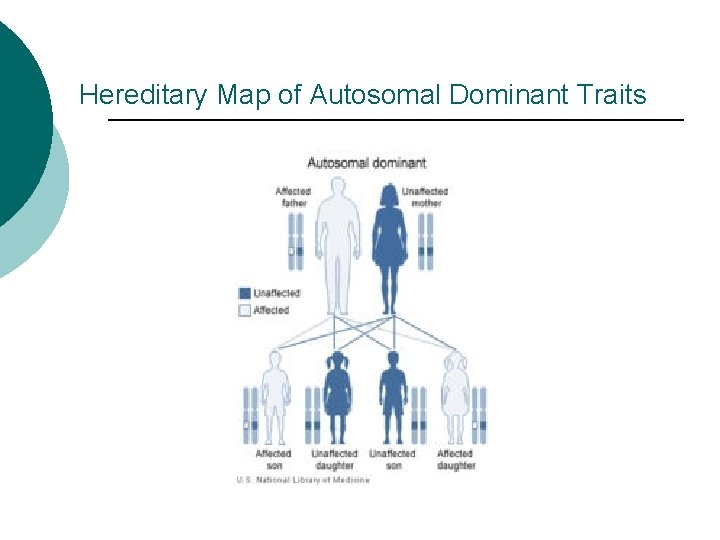

Hereditary Map of Autosomal Dominant Traits

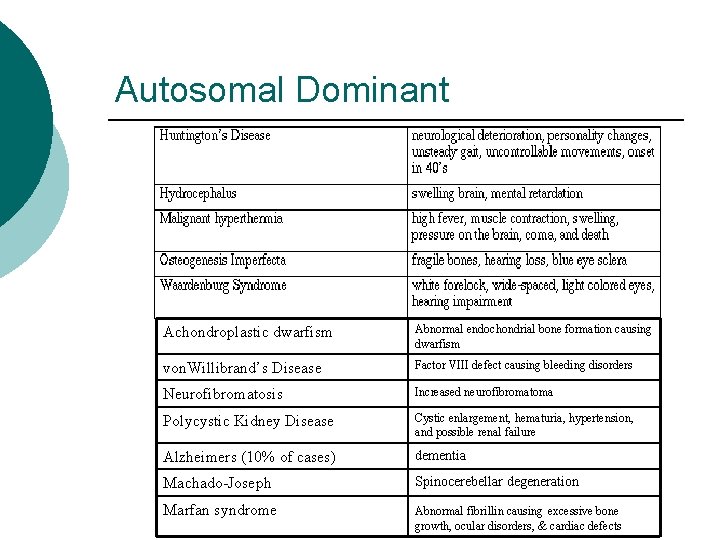

Autosomal Dominant Achondroplastic dwarfism Abnormal endochondrial bone formation causing dwarfism von. Willibrand’s Disease Factor VIII defect causing bleeding disorders Neurofibromatosis Increased neurofibromatoma Polycystic Kidney Disease Cystic enlargement, hematuria, hypertension, and possible renal failure Alzheimers (10% of cases) dementia Machado-Joseph Spinocerebellar degeneration Marfan syndrome Abnormal fibrillin causing excessive bone growth, ocular disorders, & cardiac defects

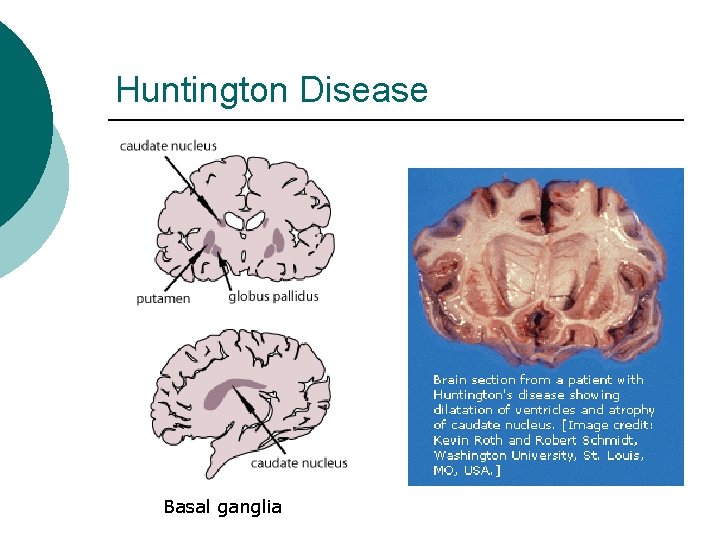

Huntington Disease Basal ganglia

Huntington brain compared to normal

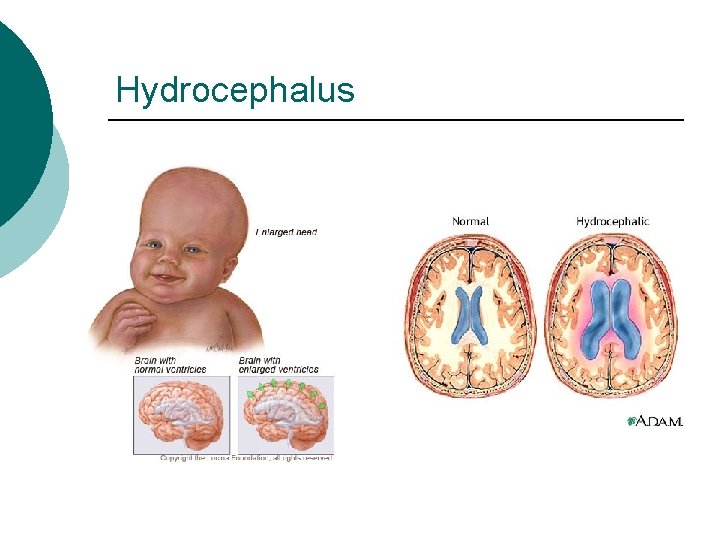

Hydrocephalus

Hydrocephalus brain image

Polycystic Kidney Disease

PKD Cat kidney Human kidney

Neurofibromatosis

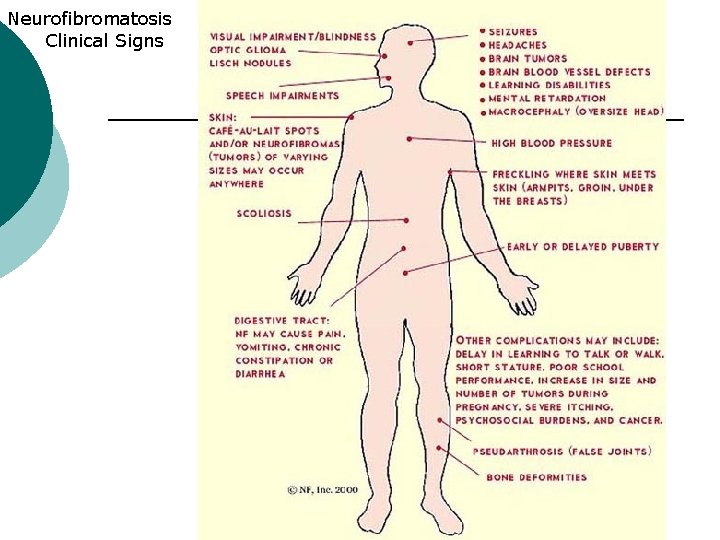

Neurofibromatosis Clinical Signs

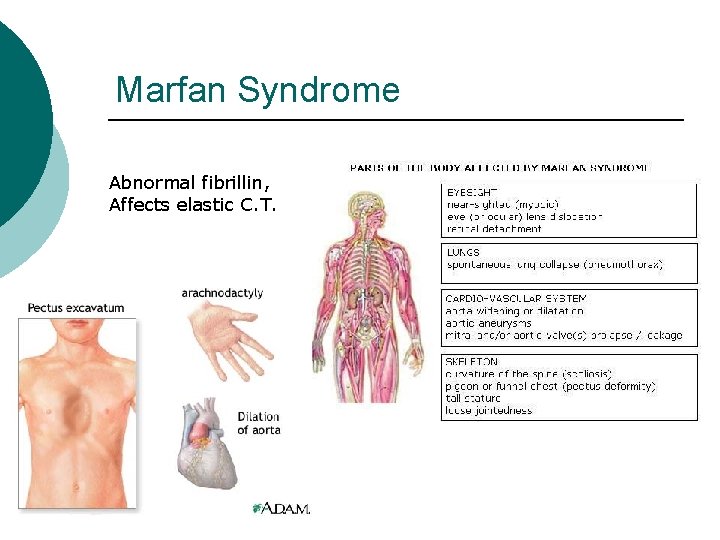

Marfan Syndrome Abnormal fibrillin, Affects elastic C. T.

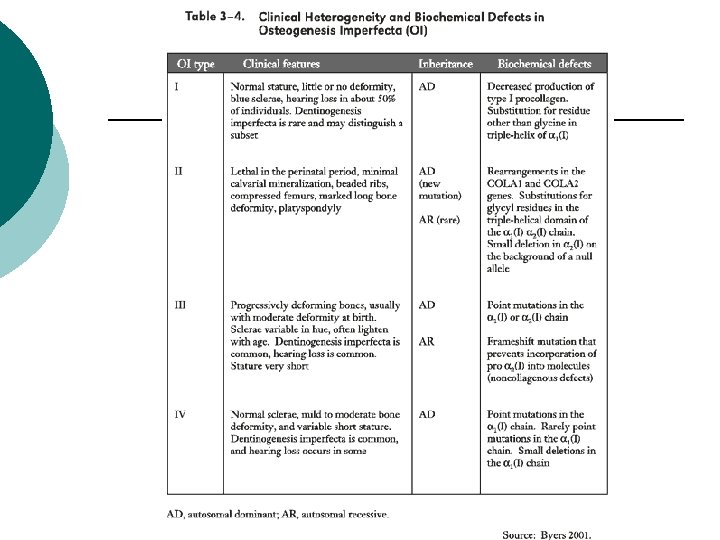

Osteogenesis Imperfecta

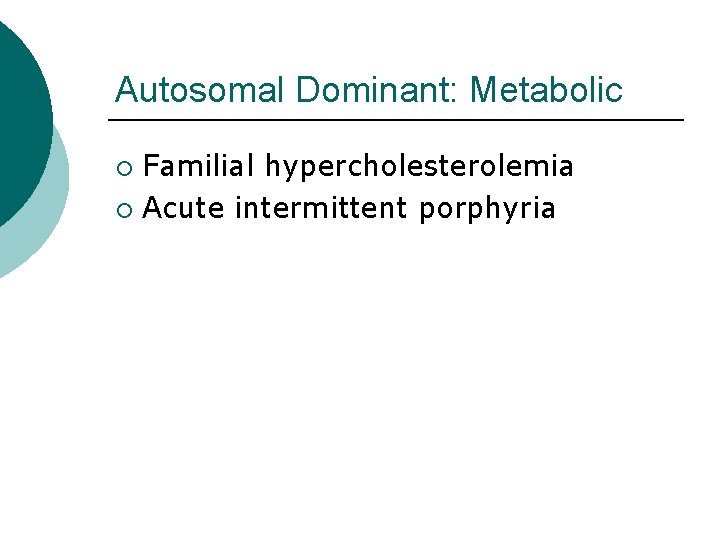

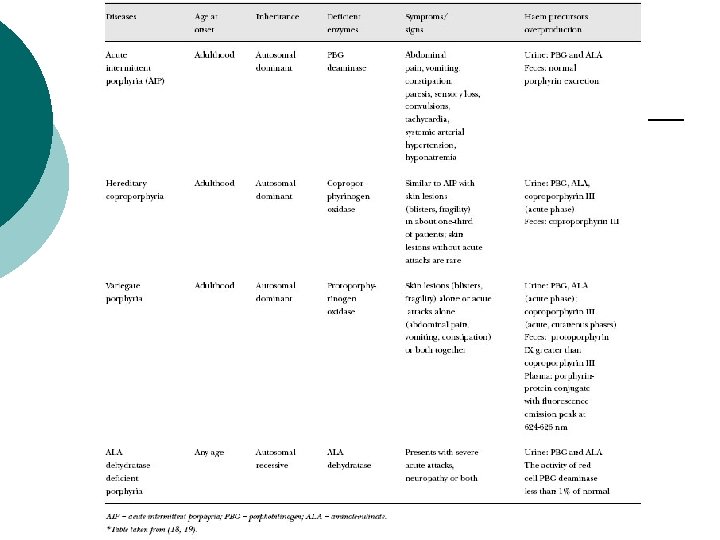

Autosomal Dominant: Metabolic Familial hypercholesterolemia ¡ Acute intermittent porphyria ¡

Familial Hypercholesterolemia

Polydactylia

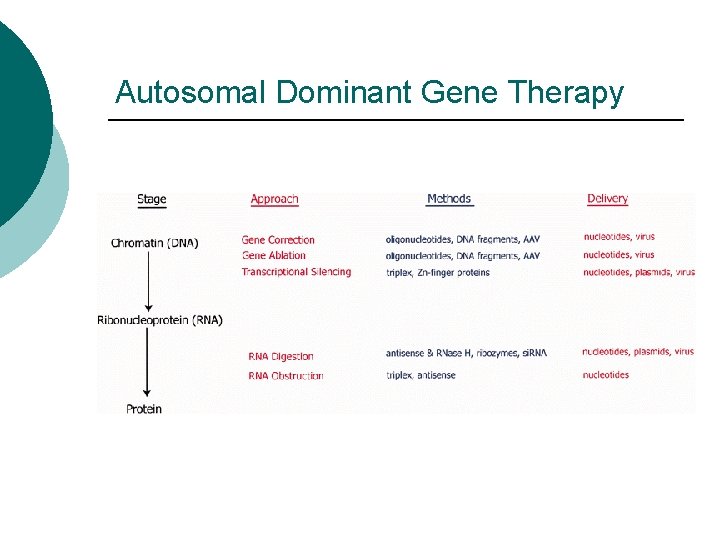

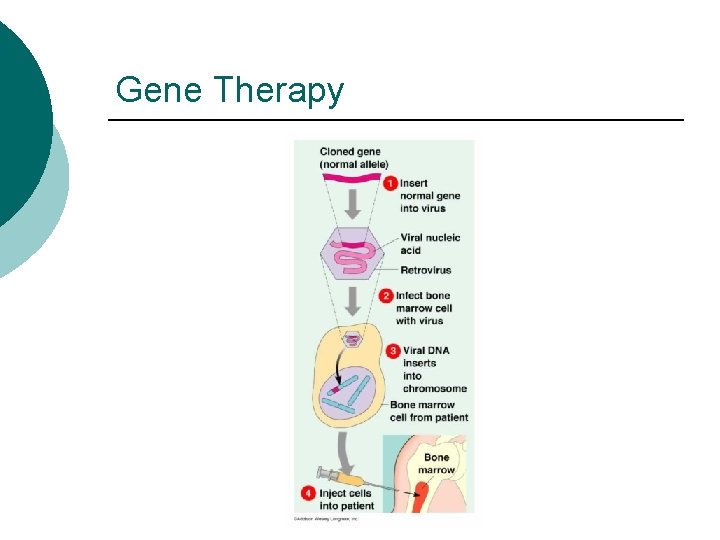

Autosomal Dominant Gene Therapy

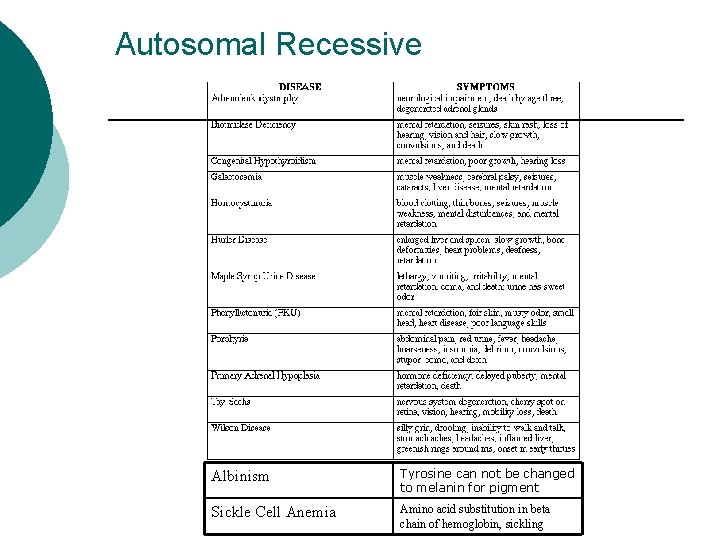

Autosomal Recessive Albinism Tyrosine can not be changed to melanin for pigment Sickle Cell Anemia Amino acid substitution in beta chain of hemoglobin, sickling

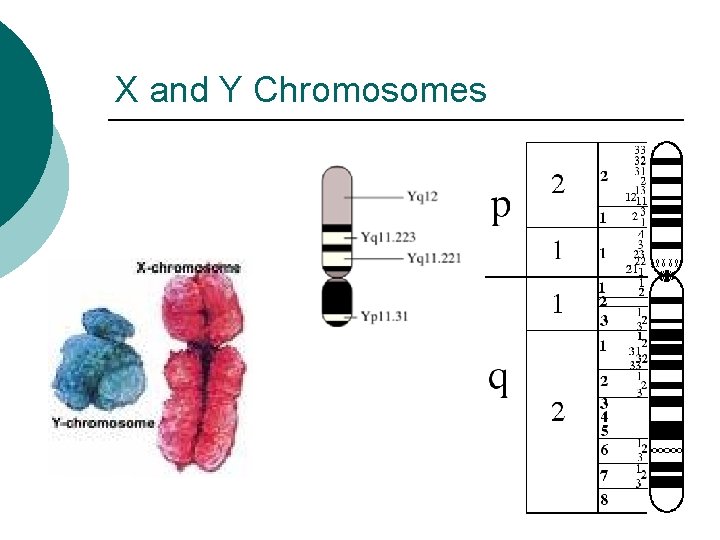

X and Y Chromosomes

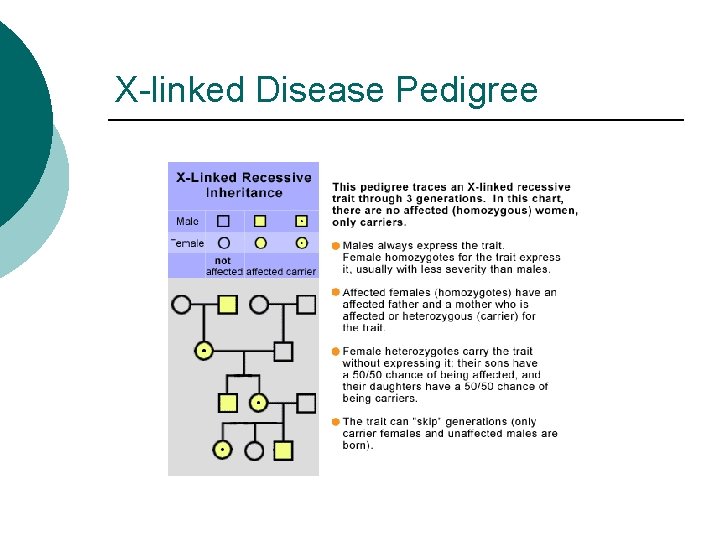

X-linked Disease Pedigree

Sex-Linked

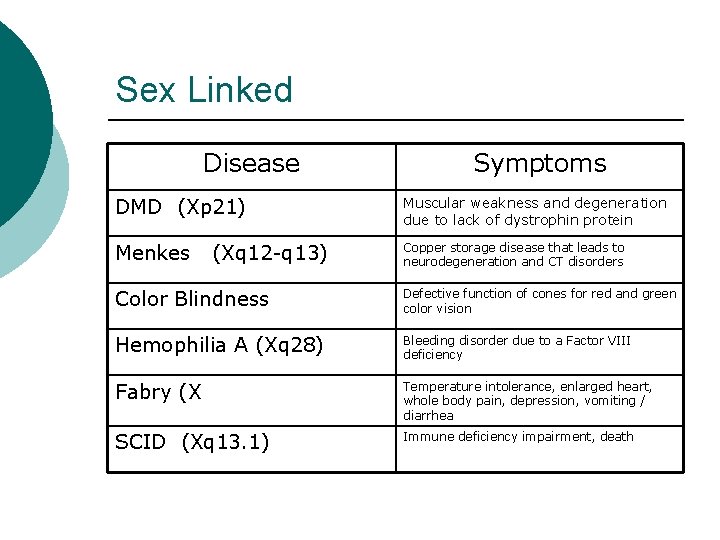

Sex Linked Disease Symptoms DMD (Xp 21) Muscular weakness and degeneration due to lack of dystrophin protein Menkes Copper storage disease that leads to neurodegeneration and CT disorders (Xq 12 -q 13) Color Blindness Defective function of cones for red and green color vision Hemophilia A (Xq 28) Bleeding disorder due to a Factor VIII deficiency Fabry (X Temperature intolerance, enlarged heart, whole body pain, depression, vomiting / diarrhea SCID (Xq 13. 1) Immune deficiency impairment, death

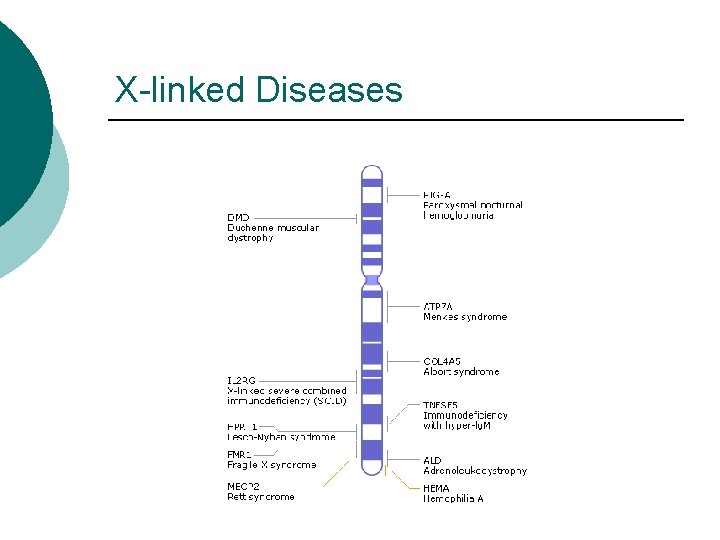

X-linked Diseases

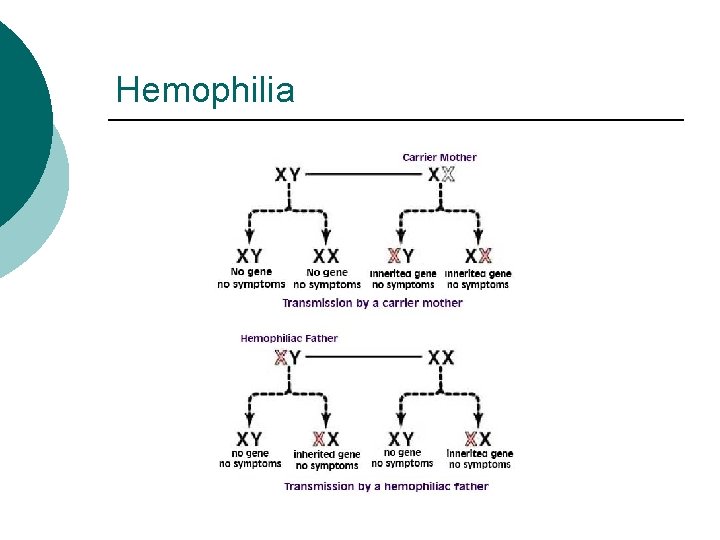

Hemophilia

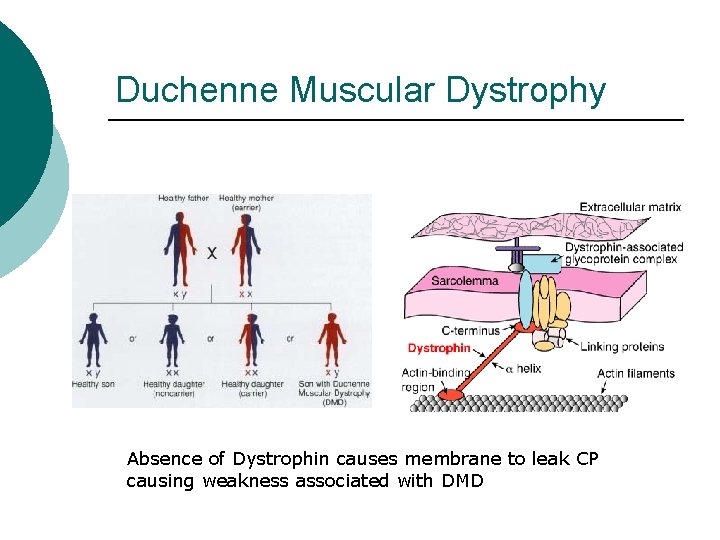

Duchenne Muscular Dystrophy Absence of Dystrophin causes membrane to leak CP causing weakness associated with DMD

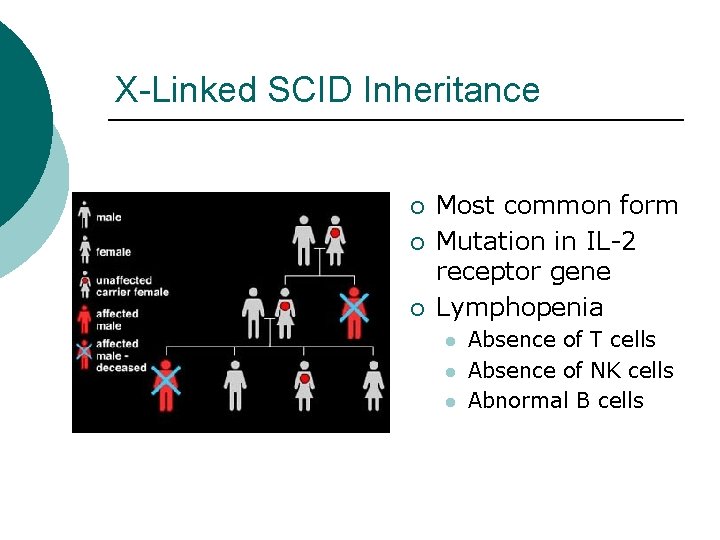

X-Linked SCID Inheritance ¡ ¡ ¡ Most common form Mutation in IL-2 receptor gene Lymphopenia l l l Absence of T cells Absence of NK cells Abnormal B cells

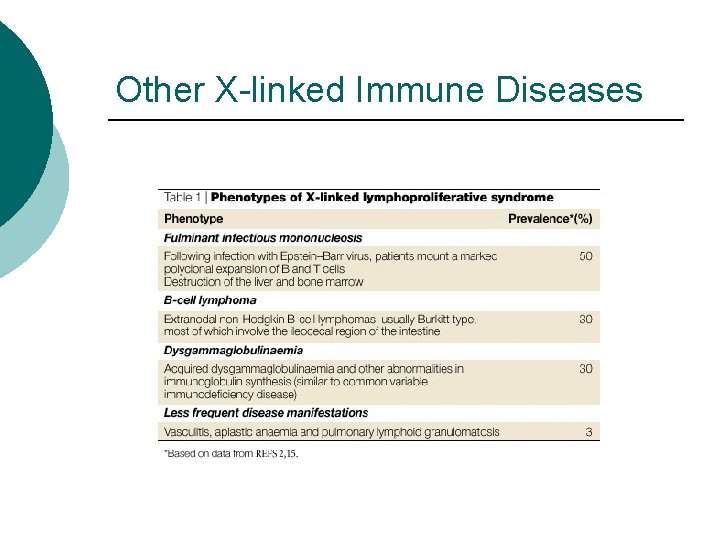

Other X-linked Immune Diseases

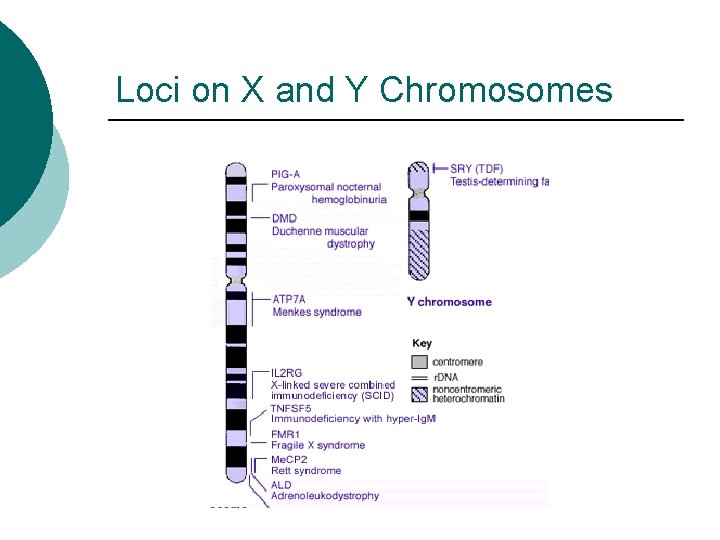

Loci on X and Y Chromosomes

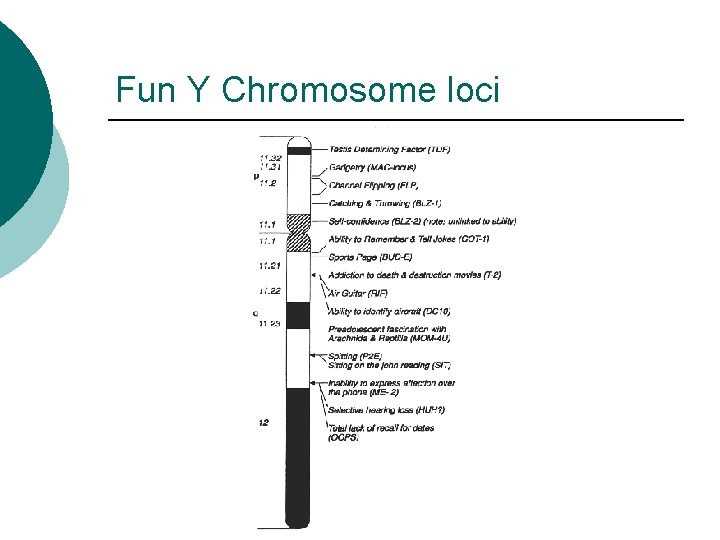

Fun Y Chromosome loci

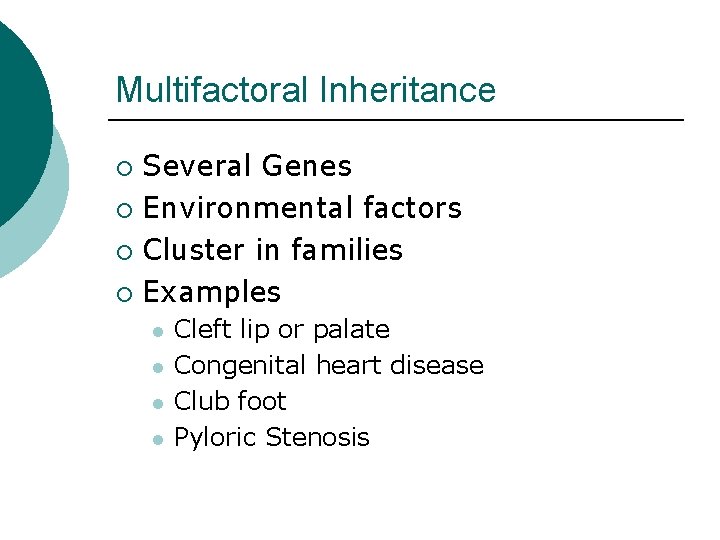

Multifactoral Inheritance Several Genes ¡ Environmental factors ¡ Cluster in families ¡ Examples ¡ l l Cleft lip or palate Congenital heart disease Club foot Pyloric Stenosis
