Generic AAA* based Bandwidth on Demand * Authentication Authorization & Accounting EVL at UIC meeting Chicago 18/10/2002 Leon Gommans Advanced Internet Research Group University of Amsterdam lgommans@science. uva. nl
Content - Goals and basic list of requirements. - Lightpath and Lightpath control concepts - Generic AAA concepts - High level design and operation of proof of concept. - Example of a simple request message and policy. - Next work items
Goal - Allow a provisioned Lightpath to by-pass a regular internet connection. Internet connection becomes control channel. Motivation: - Routed networks are too expensive if requested bandwidth is in the order of the traffic generated by a nations NRN -TCP stack & transport channel needs tailored behavior to make optimal use of a high speed ( GB ), high delay (>100 ms) channel - Modifications generates Internet “unfriendly” TCP traffic. - Firewalls do (not yet) statefully inspect 10 GB/S streams without delays or performance implications. - Single Packet drop causes severe performance hits. - Memory buffers in routers/switches are a concern when the road gets smaller.
Rough requirements list. - Allow lightpath usage in a “demand driven” fashion. Allow “hard” or “soft” pre-allocation. Must support allocation and usage across multiple domains. Must be integrated into middleware e. g. by allowing provisioned by-pass model to be supported by Grid. FTP. Raised this with GGF Data Transport RG (Bill Allcock). - Allow authorized VO’s or individual users to discover available lightpaths (e. g. via a OGSA/WS style interface). - Allow authorized users (with a certain role within the VO) to pre-allocate and use bypass for a limited amount of time and with limits on the allocated bandwidth. - Must integrate with existing authentication & user (role based) authorization system: Looking into EDG VOMS.
Rough requirements list. - - Must hide complexity from user. Conceptually the user must perform the process in 3 basic steps after login: 1) Pre-allocate either manually or automatically thru a scheduling system -> system issues an authorization. 2) Allow the job to allocate the network resource whereby it uses the authorization. 3) Once the job is finished, the authorization is handed back so resources can be freed. User (or scheduling system) must be allowed to change the reservation if the process flow so dictates. Allocating user may be different from ultimate user. Allocating user may subdivide capacity amongst users. Must ultimately support Grid Economic Services Architecture features to allow ad hoc creation. Must ultimately provide Grid Accounting records for billing in contract situations.
Design considerations. - - Group in Amsterdam does focus on deploying Generic AAA (RFC 2903/RFC 2904) concepts to handle authorization of lightpath. Group members were authors. Best suited to handle policy based authorization in a dynamic fashion either to build Auth. Z tokens or process requests which contain Auth. Z tokens. Note Auth. Z may itself also contain policies. Authorizations between administrative domains must be done at a fairly high-level. Don’t want to address low level networking problems (path finding/setup) as vendors and researchers like ICAIR are already active in this area Need to identify role, messages and policies that are handled by Generic AAA components as part of the overall “workflow”.
Lightpath Def*: Any uni-directional point to point connection with effective guaranteed bandwidth Examples of Light. Paths: * Analog wavelength on a CWDM or DWDM system * STS channel on a SONET or SDH circuit * ATM CBR circuit * Diff serv “gold” service on a packet based network * Gigabit Ethernet over dedicated fiber strand * Definition by Bill St. Arnoud of Canarie
Onion Lightpath model Selector Switch Domain X Domain. Y Domain X Distributor Switch

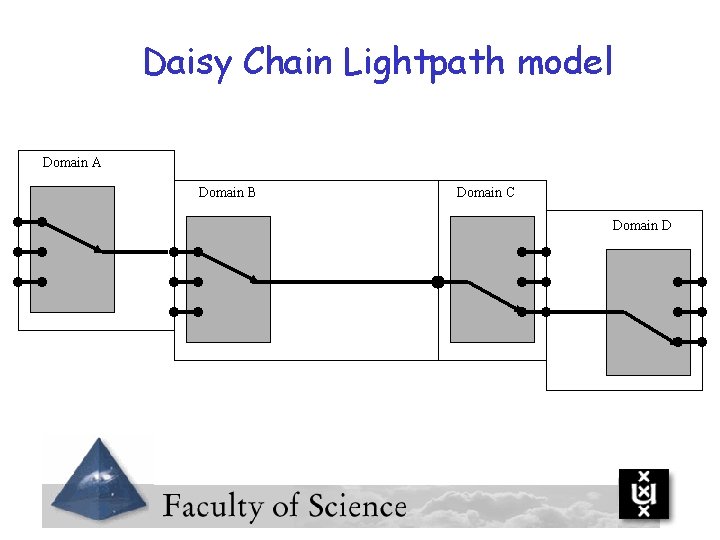

Daisy Chain Lightpath model Domain A Domain B Domain C Domain D
Daisy Chain & Onion Domain A Domain B Domain X Domain C Domain D Domain X Domain. Y Domain X
Onion control model Seector Switch Distributor Switch Domain X Domain Y AAA Domain AAA engine must control both selector and distributor switch and Interconnecting network
Daisy chain control model Selector Switch AAA Domain B Distributor Switch AAA Domain AAA engine must control the selector or distributor switch and one of the AAA Servers must control intermediate network
Generic AAA o 5 years ago a AAA server was known as a server supporting dail-in boxes thru the RADIUS protocol (at IETF). o IETF 42 (in same hotel as GGF 6) held first AAA BOF as it was recognized AAA could be used in other type of applications. o Amsterdam group has been participating on defining concepts for Generic AAA since march 1999 when AAA WG was formed at IETF-44 o Work became IRTF subject end of 1999 (AAA ARCH RG). o ID’s that became RFC’s 2903 – 2906 were submitted after the Adelaide IETF march 2000. RFC’s describe framework, architecture, example applications and requirements. o Optical Networking within grid environment is a research application for Generic AAA.
RFC 2904 Generic AAA Framework basic principles AAA User 2 1 4 3 Service 1 User 1 AAA 4 3 2 Service AAA 2 User 3 4 Service Pull sequence Agent sequence Push sequence. NAS (remote access) RSVP (network Qo. S) Agents, Brokers, Proxy’s. Tokens, Tickets, AC’s etc. 3 fundamentally different user initiated authorization sequences. Note: RFC 2904 does not show step 5 – service access.
Generic AAA Framework AAA 3 User Home Organization 4 AAA User 1 6 2 5 Service Provider Service Separating the User Awareness from the Service yield Roaming Models: Example roaming pull model.
Generic AAA Framework AAA User Home Organization AAA Service Provider A Service Provider B User AAA Client Distributed Services Models allow many types and combination of authorization sequences. .
Generic AAA Architecture – RFC 2903 Fundamental idea’s inspired by work of the IETF RAP WG that in RFC 2753 describes a framework for Policy-based Admission Control. Foundation for COPS Policy Decision Point The point where policy decisions are made. Policy Repository Request Decision Policy Enforcement Point The point where the policy decisions are actually enforced. Basic Goal Generic AAA: Allow policy decisions to be made by multiple PDP’s belonging to different administrative domains.
Generic AAA Architecture – RFC 2903 Archieve goal by by separating the logical decision process from the application specific parts within the PDP Rule Based Engine Policy Repository Application Specific Module Request Decision Policy Enforcement Point
Example of Generic AAA Architecture – RFC 2903 Rule Based Engine Policy Repository User Application Specific Module Rule Based Engine Application Specific Module AAA Server Purchase Dept. Bandwidth Broker Qo. S Enabled Network Policy Repository Contracts Budgets Rule Based Engine Policy Repository Application Specific Module AAA Server Registration Dept. (Virtual) User Organization Service Bandwidth Provider Service Organization Users
Generic AAA (RFC 2903) based Bandwidth on Demand 192. 168. 1. 5 192. 168. 2. 3 A B 802. 1 Q VLAN Switch 1 GB SX 802. 1 Q VLAN Switch 192. 168. 2. 4 C Enterasys Matrix E 5 192. 168. 1. 6 D Policy DB AAA Request AA A i. Grid 2002
Generic AAA (RFC 2903) based Bandwidth on Demand 192. 168. 1. 5 192. 168. 2. 3 A B 802. 1 Q VLAN Switch 1 GB SX 802. 1 Q VLAN Switch 192. 168. 2. 4 C Enterasys Matrix E 5 192. 168. 1. 6 D Policy DB AAA Request AA A i. Grid 2002
Next Setup using vendor provided network provisioning system IP A A IP B B 802. 1 Q VLAN Switch Enterasys SS 6000 Managed Optical Connection Service Cisc o CT M AA A Bo DSe rv 802. 1 Q VLAN Switch Enterasys SS 6000 C IP C D IP D
Example XML Lightpath request <AAARequest version="0. 1" type="Bo. D" > <Authorization> <credential> <credential_type>simple</credential_type> <credential_ID>Jan. Jansen</credential_ID> <credential_secret>#f 034 d</credential_secret> </credential> </Authorization> <Bod. Data> <Source>192. 168. 1. 5</Source> <Destination>192. 168. 1. 6</Destination> <Bandwidth>1000</Bandwidth> <Start. Time>now</Start. Time> <Duration>20</Duration> </Bod. Data> </AAARequest>
Policy (significant part) executed by AAA Rule Based Engine if ( ( ASM: : RM. Check. Connection( Request: : Bod. Data. Source, Request: : Bod. Data. Destination ) && ( Request: : Bod. Data. Bandwidth <= 1000 ) ) ) then ( ASM: : RM. Request. Connection( Request: : Bod. Data. Source, Request: : Bod. Data. Destination, Request: : Bod. Data. Bandwidth, Request: : Bod. Data. Start. Time, Request: : Bod. Data. Duration ) ; Reply: : Answer. Message = "Request successful" ) else ( Reply: : Error. Message = "Request failed" )
Design Details o Onion model was chosen for first implementation. o Single AAA engine controls both ingress and egress switch by creating 802. 1 Q VLAN’s using the dot 1 Q Bridge MIB extentions via SNMP. o 1 GB channel between switches carry 802. 1 Q tagged ethernet frames. An 802. 1 Q trunk can carry up to 4096 VLAN’s. o End stations register with AAA engine and subsequently send request to reach other stations (pointed to via its public IP address). o By-pass communication channel uses a private IP address space. Destinations are identified by main IP address.
Technical Implementation o XML/SOAP messages for request/reply (to prepare for a future web services interface) o RBE: JAVA code running as Servlet. Uses Apache Axis to handle SOAP messages. o ASM: JAVA code currently running in Java context of RBE. Currently investigating how it could run separately e. g. as Java Bean or using CORBA. o More technical details: Bas van Oudenaarde: oudenaar@science. uva. nl and Arie Taal: taal@science. uva. nl
Upcomming work: 1) Separate ASM and RBE and allow ASM’s to be loaded/unloaded dynamically. 2) Implement pre-allocation mechanisms (based on GARA – collaboration with Volker Sander). 3) Create ASM for other B/W manager (e. g. Alcatel Bon. D, Cisco CTM, Level-3 Ontap) 4) Create ASM to talk to other domain: OMNInet 5) Allow RBE’s to talk to each other (define messages). 6) Integrate Bo. D AAA client into middleware eg by allowing integration with Grid. FTP and integration with VOMS authentication and user authorization system. 7) Build WS interface abstraction for pre-allocation and subsequent usage.
Thank you ! Lgommans@science. uva. nl
