Generator Functions Frequency Range Frequency Knob Frequency display
Generator Functions Frequency Range Frequency Knob Frequency display Output -20 db (output attenuate) Amplitude (output Level) Knob
AC DC Press one toggle AC/DC look at left bottom corner of display INV Press and hold to invert the signal Press once GND (see left bottom corner of display) Time/Division Display Auto Setup Move cursor Up/Down or Left/Right Time/Division Knob Volt/Division Knob Press and hold toggle delta. V and delta. T Press once to active cursor (broken to dask) and use Cursor to move To ADD the signal Press both key DUAL and CH 2 at the same time Look at the bottom display see + symbol Volt/Division Display
Generate A signal • Functions (Sine, Triangle, Square Wave) • Amplitude (A) • Frequency(F) • On Generator: – Select a function (Sine, Triangle, or Square Wave) – Select frequency range. – Turn Amplitude knob to mid range.
Setup Amplitude • On Oscilloscope Side: 1) Find out appropriate Volt/Division. 1 - Amplitude / 4 = Estimated Volt/Division. 2 - Turn Volts/Division knob and observe Volt/Division display on the screen, stop when Volts/Division = or < then Estimated Volts/Division. 3 - Look at the displaying Volts/Division, This is the appropriate Volts/Division 2) Find out the number of Division. - The Number of Divisions = Amplitude / (Volts/Division) 3) When the setting is done, then do not touch Oscilloscope go to generator.
4) On generator side, turn Amplitude knob. 5) Observe the Oscilloscope screen until the signal display Vpp to the calculated number of vertical divisions.

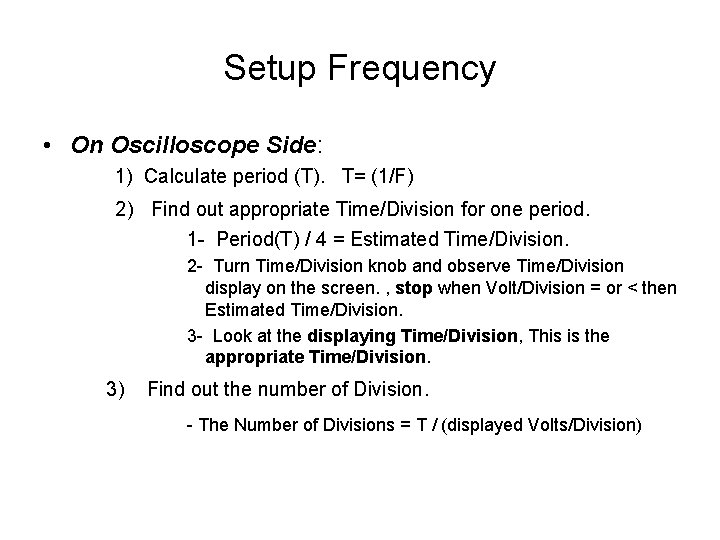

Setup Frequency • On Oscilloscope Side: 1) Calculate period (T). T= (1/F) 2) Find out appropriate Time/Division for one period. 1 - Period(T) / 4 = Estimated Time/Division. 2 - Turn Time/Division knob and observe Time/Division display on the screen. , stop when Volt/Division = or < then Estimated Time/Division. 3 - Look at the displaying Time/Division, This is the appropriate Time/Division. 3) Find out the number of Division. - The Number of Divisions = T / (displayed Volts/Division)
4) On generator side, set the Frequency Range to the appropriate range. 5) Adjust the Frequency knob and Observe the Oscilloscope screen until one period(T) gets to the calculated number of horizontal divisions.

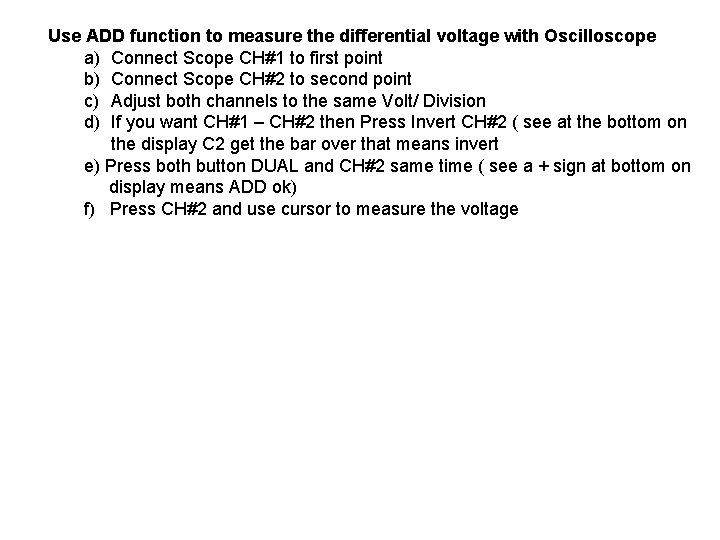

Use ADD function to measure the differential voltage with Oscilloscope a) Connect Scope CH#1 to first point b) Connect Scope CH#2 to second point c) Adjust both channels to the same Volt/ Division d) If you want CH#1 – CH#2 then Press Invert CH#2 ( see at the bottom on the display C 2 get the bar over that means invert e) Press both button DUAL and CH#2 same time ( see a + sign at bottom on display means ADD ok) f) Press CH#2 and use cursor to measure the voltage
