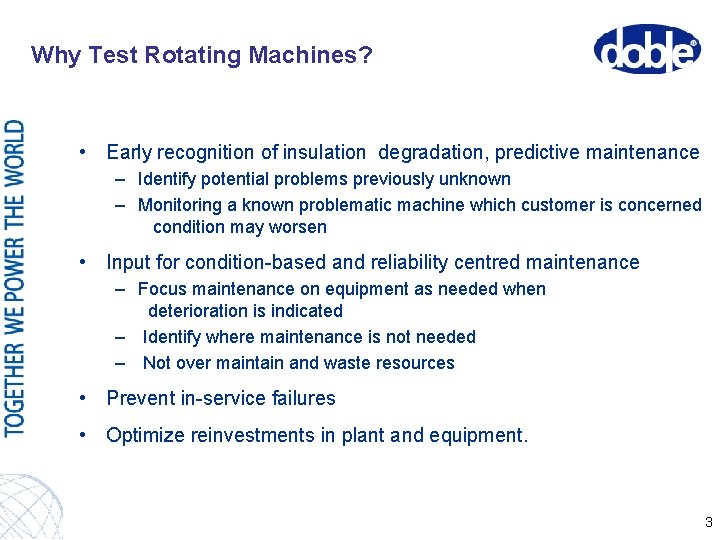

Why Test Rotating Machines? • Early recognition of insulation degradation, predictive maintenance – Identify potential problems previously unknown – Monitoring a known problematic machine which customer is concerned condition may worsen • Input for condition-based and reliability centred maintenance – Focus maintenance on equipment as needed when deterioration is indicated – Identify where maintenance is not needed – Not over maintain and waste resources • Prevent in-service failures • Optimize reinvestments in plant and equipment. 3

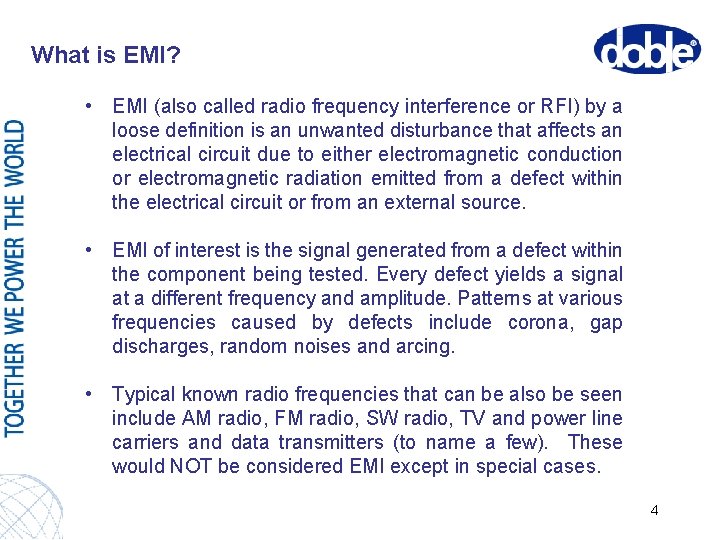

What is EMI? • EMI (also called radio frequency interference or RFI) by a loose definition is an unwanted disturbance that affects an electrical circuit due to either electromagnetic conduction or electromagnetic radiation emitted from a defect within the electrical circuit or from an external source. • EMI of interest is the signal generated from a defect within the component being tested. Every defect yields a signal at a different frequency and amplitude. Patterns at various frequencies caused by defects include corona, gap discharges, random noises and arcing. • Typical known radio frequencies that can be also be seen include AM radio, FM radio, SW radio, TV and power line carriers and data transmitters (to name a few). These would NOT be considered EMI except in special cases. 4

EMI Diagnostics Electromagnetic interference testing: Precise frequency domain measurement and identification of RF energy that results from electrical activity at defects. It is a non-intrusive testing technique that is performed while the component is on line. Unlike PD, this testing does not require the permanent installation of any high-voltage connections to the generator. Data is collected from the temporary placement of a split core radio frequency current transformer while the machine remains in service terminals and does not introduce any signals into the system. 5

EMI Diagnostics Electromagnetic interference testing: No hot connections are required to any energized conductor and no interference with operation for data collection. No arc flash risk to collecting data. This one test location permits a global survey of the entire component and associated system that can detect a wide variety of electrical system components defects in: – – – Generators Motors Transformers Phase bus Switchgear and cables Associated electrical system components. 6

EMI Diagnostics • Over 8, 000 tests conducted since 1980. • More than 500 different machine designs 25 hp - 1, 400 MW. • Fossil, hydro, geothermal, nuclear, industrial, petrochemical, oil rig platforms etc. • EMI Diagnostics is applicable to all Power Systems 25, 50, 60 Hz. • Best results 2, 300 Volts ac and higher. • Some success with 250 & 600 V dc power systems. 7

EMI Diagnostics Data collected from split core radio frequency current transformer. RFCT has a 12 cm window. The frequency range is 0. 001 to 100 MHz. 8

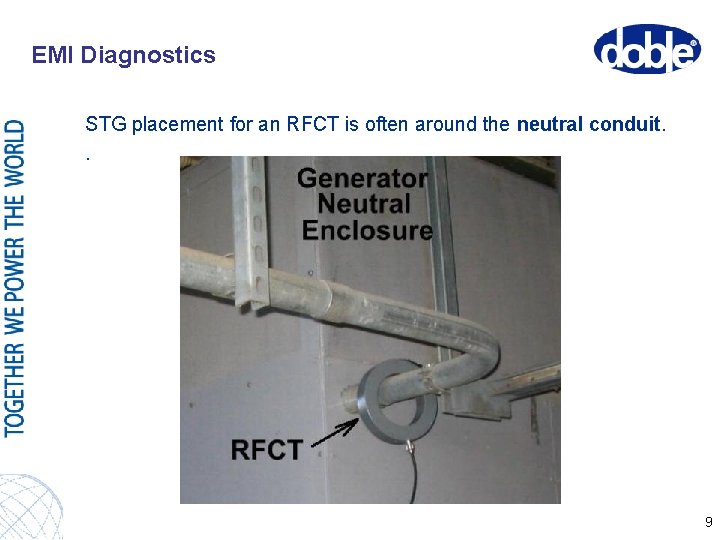

EMI Diagnostics STG placement for an RFCT is often around the neutral conduit. . 9

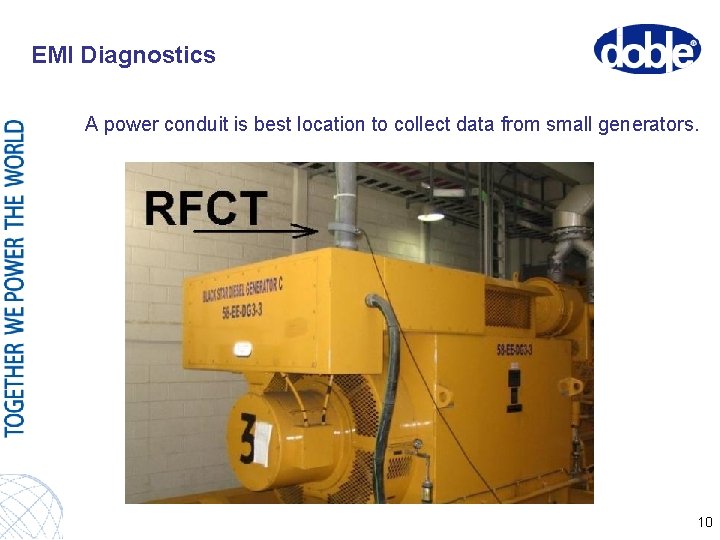

EMI Diagnostics A power conduit is best location to collect data from small generators. 10

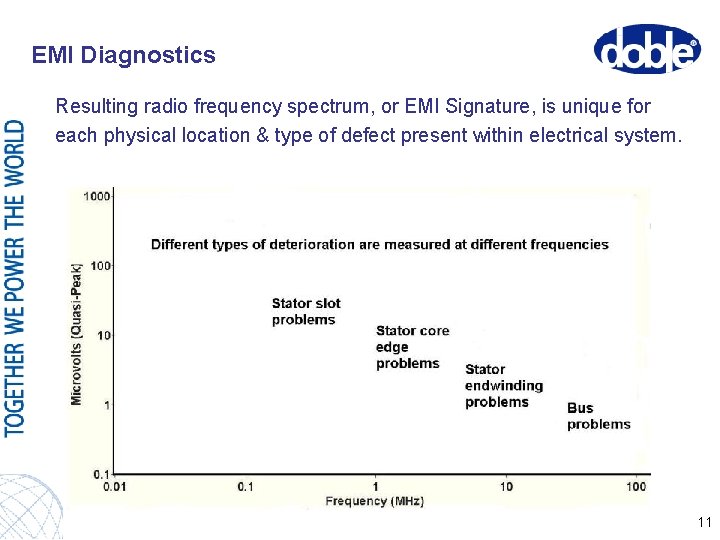

EMI Diagnostics Resulting radio frequency spectrum, or EMI Signature, is unique for each physical location & type of defect present within electrical system. 11

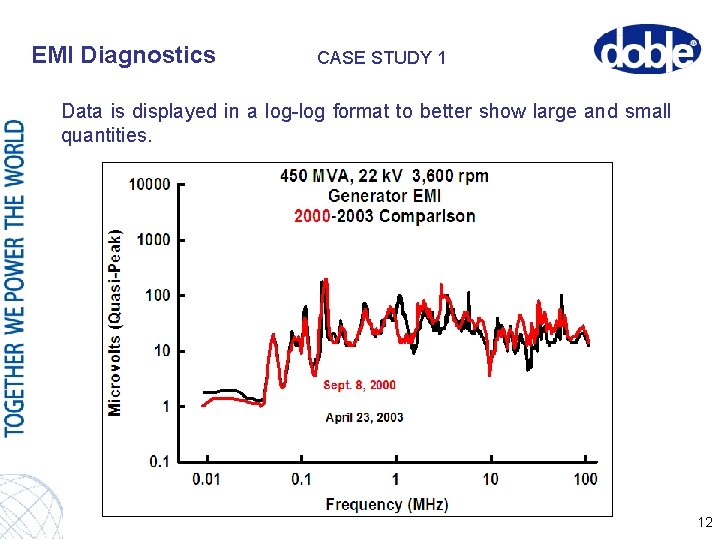

EMI Diagnostics CASE STUDY 1 Data is displayed in a log-log format to better show large and small quantities. 12

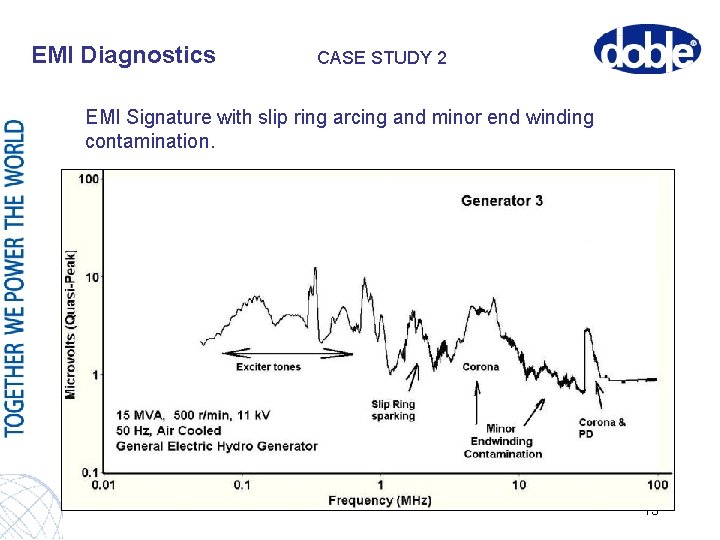

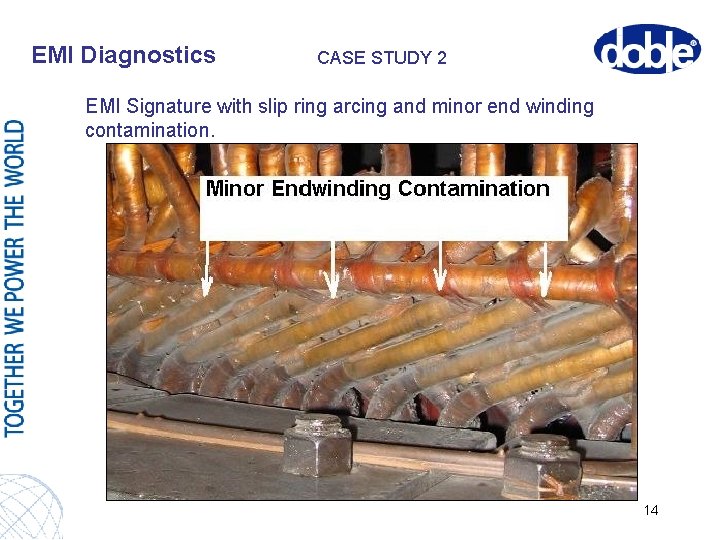

EMI Diagnostics CASE STUDY 2 EMI Signature with slip ring arcing and minor end winding contamination. 13

EMI Diagnostics CASE STUDY 2 EMI Signature with slip ring arcing and minor end winding contamination. 14

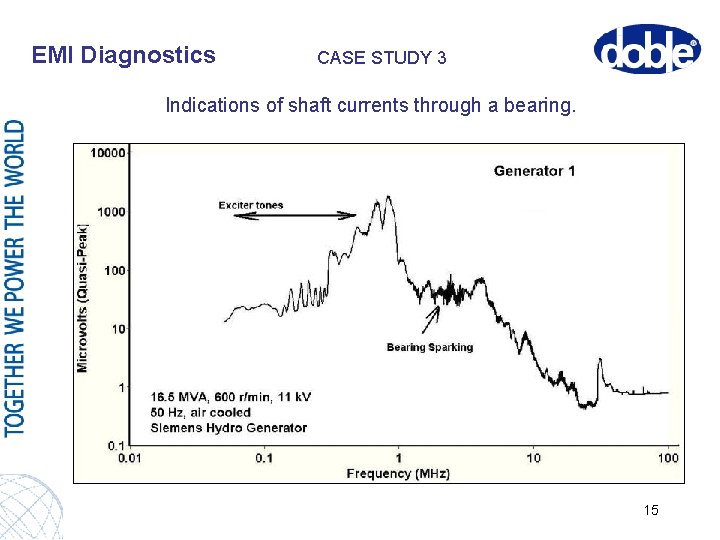

EMI Diagnostics CASE STUDY 3 Indications of shaft currents through a bearing. 15

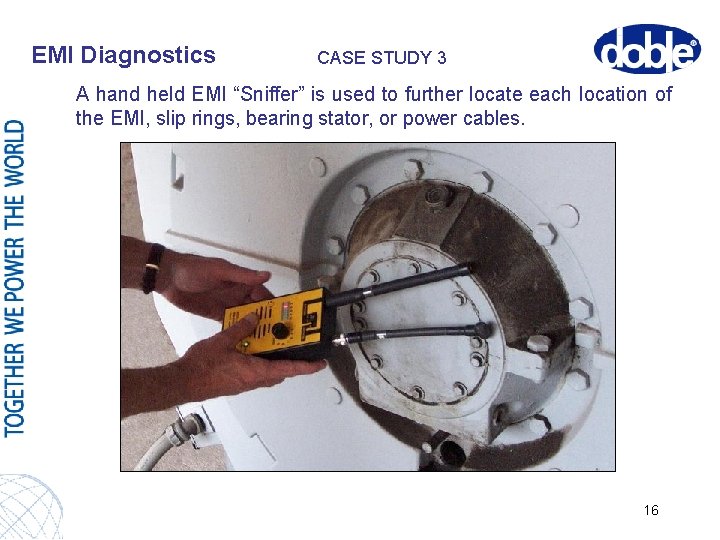

EMI Diagnostics CASE STUDY 3 A hand held EMI “Sniffer” is used to further locate each location of the EMI, slip rings, bearing stator, or power cables. 16

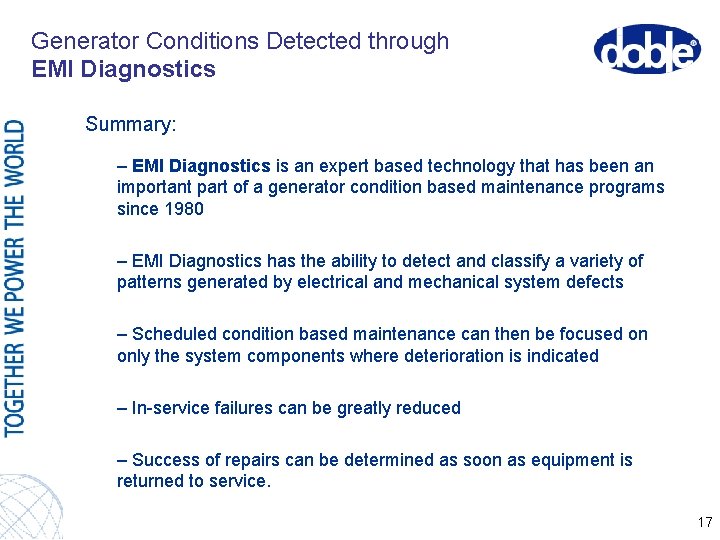

Generator Conditions Detected through EMI Diagnostics Summary: – EMI Diagnostics is an expert based technology that has been an important part of a generator condition based maintenance programs since 1980 – EMI Diagnostics has the ability to detect and classify a variety of patterns generated by electrical and mechanical system defects – Scheduled condition based maintenance can then be focused on only the system components where deterioration is indicated – In-service failures can be greatly reduced – Success of repairs can be determined as soon as equipment is returned to service. 17
