Generative Measurement Scenario for STEP-NC ISO 10303 AP 238 Larry Maggiano Senior Systems Analyst

Generative Measurement Scenario for STEP-NC ISO 10303 AP 238 Larry Maggiano Senior Systems Analyst Mitutoyo America Corporation CTLab 1 October 2008 Copyright Mitutoyo America Corp. 2008

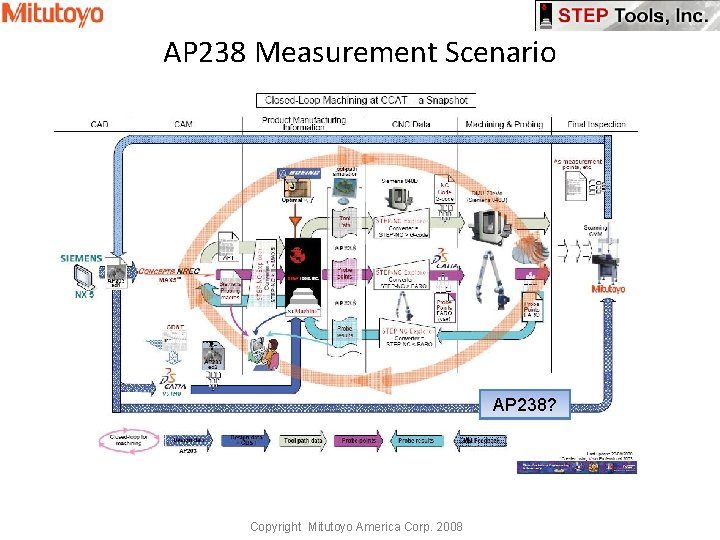

AP 238 Measurement Scenario AP 238? Copyright Mitutoyo America Corp. 2008

AP 238 Measurement Scenario AP 238? Copyright Mitutoyo America Corp. 2008

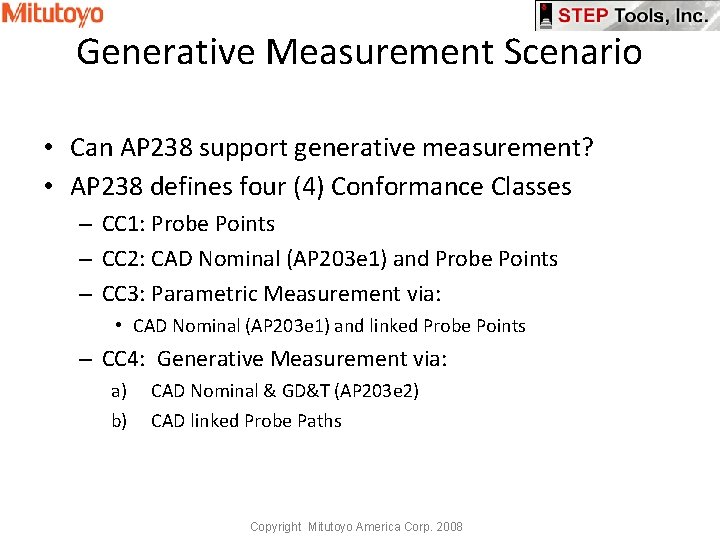

Generative Measurement Scenario • Can AP 238 support generative measurement? • AP 238 defines

Generative Measurement Scenario • Can AP 238 support generative measurement? • AP 238 defines four (4) Conformance Classes – CC 1: Probe Points – CC 2: CAD Nominal (AP 203 e 1) and Probe Points – CC 3: Parametric Measurement via: • CAD Nominal (AP 203 e 1) and linked Probe Points – CC 4: Generative Measurement via: a) b) CAD Nominal & GD&T (AP 203 e 2) CAD linked Probe Paths Copyright Mitutoyo America Corp. 2008

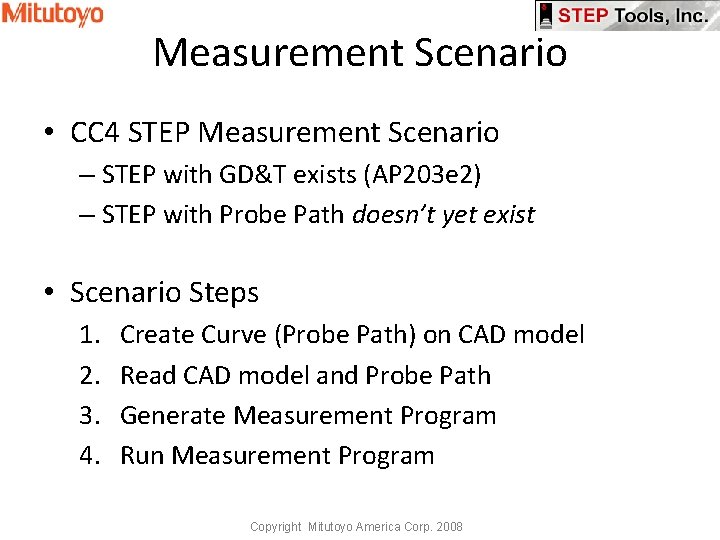

Measurement Scenario • CC 4 STEP Measurement Scenario – STEP with GD&T exists (AP

Measurement Scenario • CC 4 STEP Measurement Scenario – STEP with GD&T exists (AP 203 e 2) – STEP with Probe Path doesn’t yet exist • Scenario Steps 1. 2. 3. 4. Create Curve (Probe Path) on CAD model Read CAD model and Probe Path Generate Measurement Program Run Measurement Program Copyright Mitutoyo America Corp. 2008

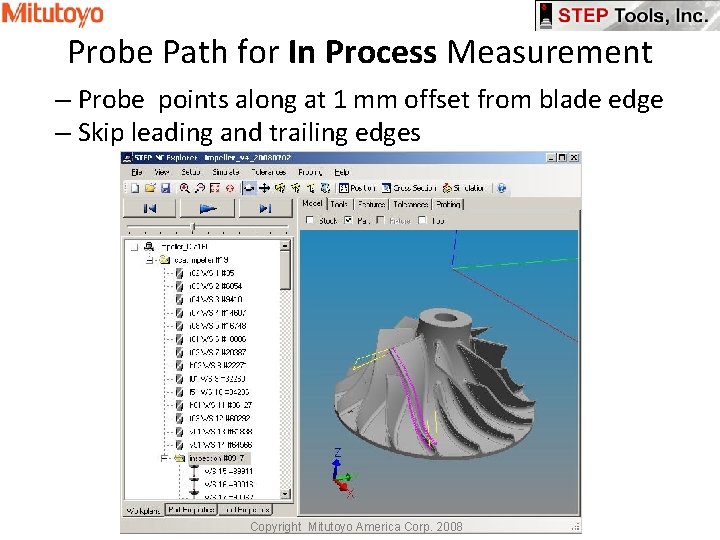

Probe Path for In Process Measurement – Probe points along at 1 mm offset

Probe Path for In Process Measurement – Probe points along at 1 mm offset from blade edge – Skip leading and trailing edges Copyright Mitutoyo America Corp. 2008

Probe Path for Post Process Measurement • Scanning CMM follows Curves, not Points •

Probe Path for Post Process Measurement • Scanning CMM follows Curves, not Points • Use same criteria for In Process Measurement – Scan Curve at 1 mm offset from blade edge – Skip leading and trailing edges • Create “Curve on Surface” of Impeller Blade – Curve on Surface is CAD Entity, not data point set – Curve is associated with Surface of Blade – Defines precise Scanning Probe Path Copyright Mitutoyo America Corp. 2008

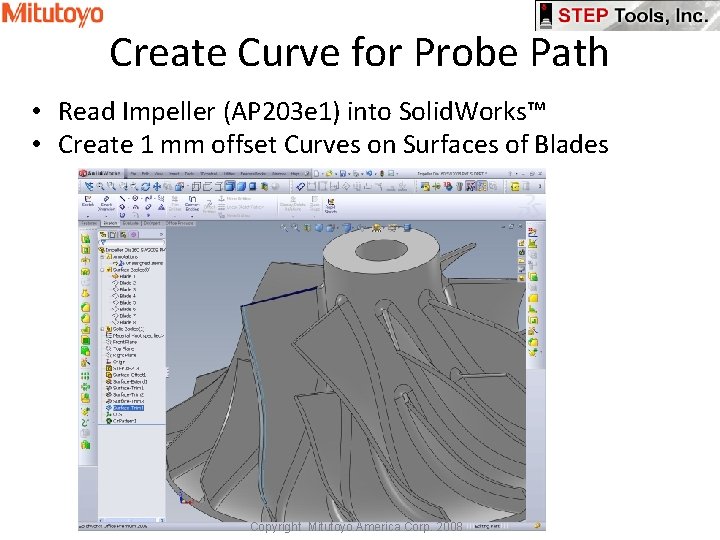

Create Curve for Probe Path • Read Impeller (AP 203 e 1) into Solid.

Create Curve for Probe Path • Read Impeller (AP 203 e 1) into Solid. Works™ • Create 1 mm offset Curves on Surfaces of Blades Copyright Mitutoyo America Corp. 2008

Read CAD & Probe Path (~AP 238) Copyright Mitutoyo America Corp. 2008

Read CAD & Probe Path (~AP 238) Copyright Mitutoyo America Corp. 2008

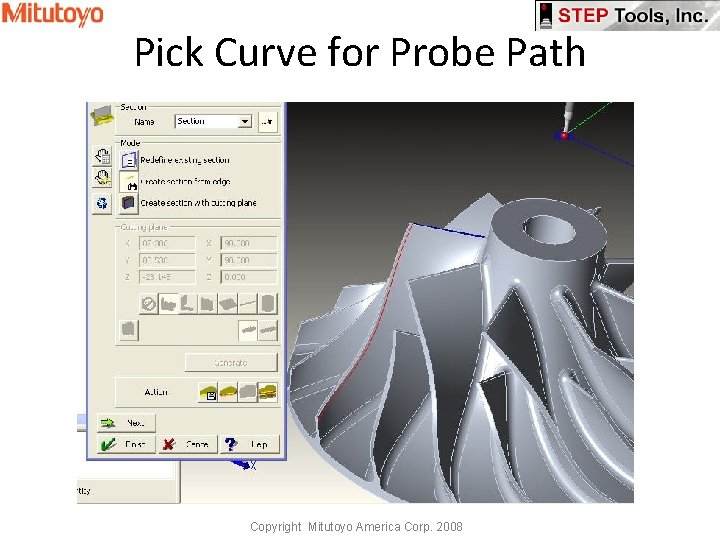

Pick Curve for Probe Path Copyright Mitutoyo America Corp. 2008

Pick Curve for Probe Path Copyright Mitutoyo America Corp. 2008

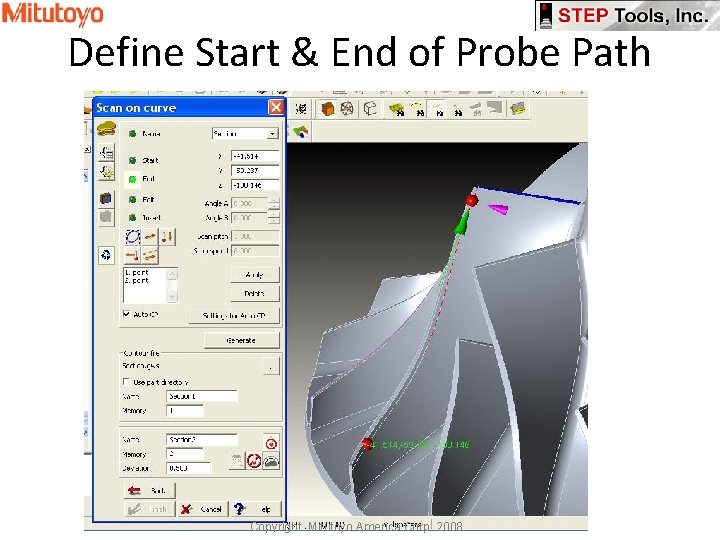

Define Start & End of Probe Path Copyright Mitutoyo America Corp. 2008

Define Start & End of Probe Path Copyright Mitutoyo America Corp. 2008

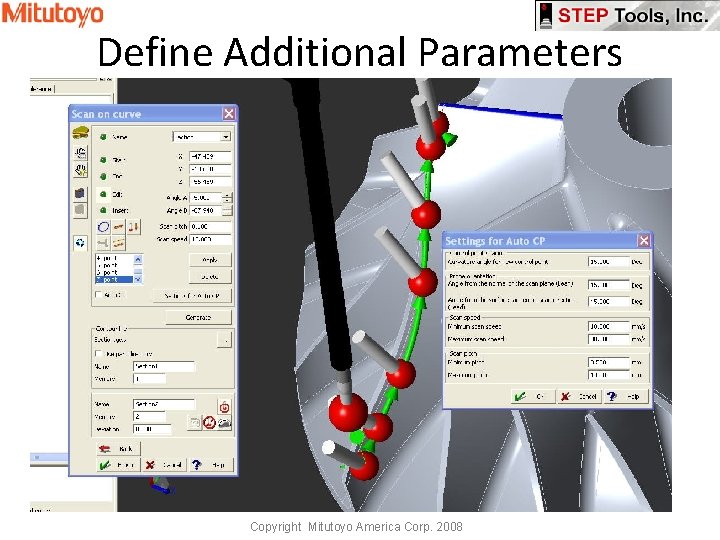

Define Additional Parameters Copyright Mitutoyo America Corp. 2008

Define Additional Parameters Copyright Mitutoyo America Corp. 2008

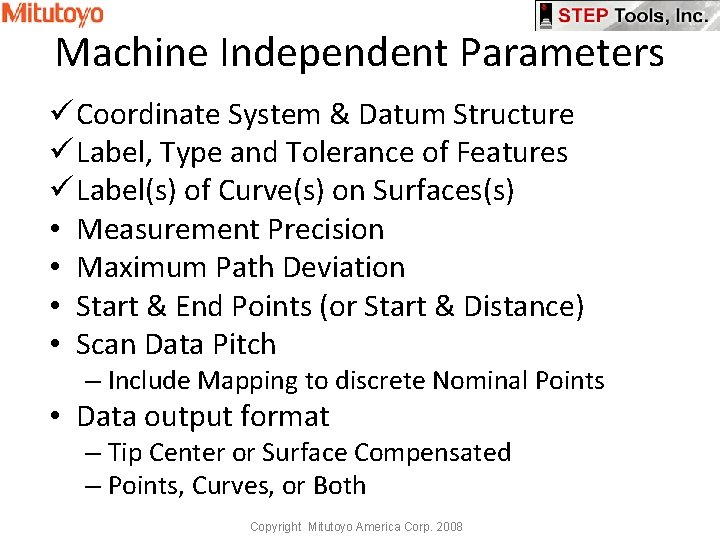

Machine Independent Parameters ü Coordinate System & Datum Structure ü Label, Type and Tolerance

Machine Independent Parameters ü Coordinate System & Datum Structure ü Label, Type and Tolerance of Features ü Label(s) of Curve(s) on Surfaces(s) • Measurement Precision • Maximum Path Deviation • Start & End Points (or Start & Distance) • Scan Data Pitch – Include Mapping to discrete Nominal Points • Data output format – Tip Center or Surface Compensated – Points, Curves, or Both Copyright Mitutoyo America Corp. 2008

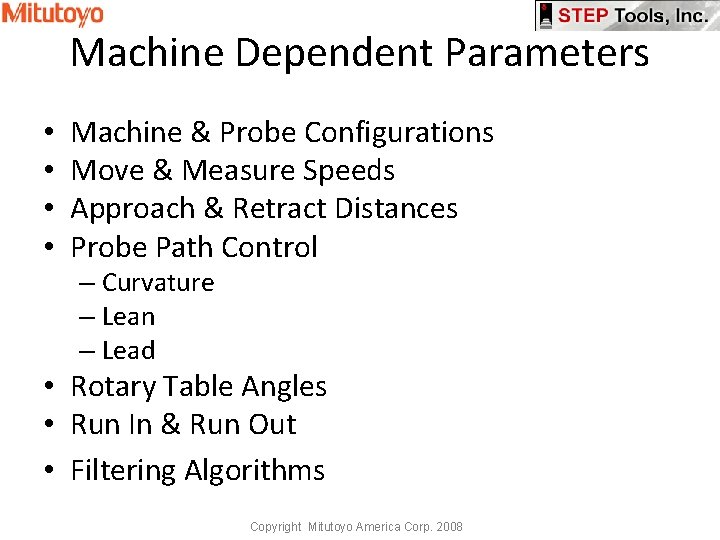

Machine Dependent Parameters • • Machine & Probe Configurations Move & Measure Speeds Approach

Machine Dependent Parameters • • Machine & Probe Configurations Move & Measure Speeds Approach & Retract Distances Probe Path Control – Curvature – Lean – Lead • Rotary Table Angles • Run In & Run Out • Filtering Algorithms Copyright Mitutoyo America Corp. 2008

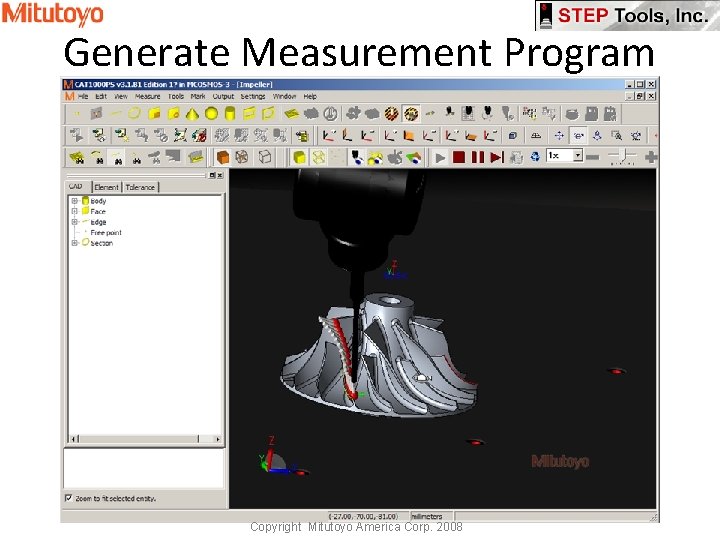

Generate Measurement Program Copyright Mitutoyo America Corp. 2008

Generate Measurement Program Copyright Mitutoyo America Corp. 2008

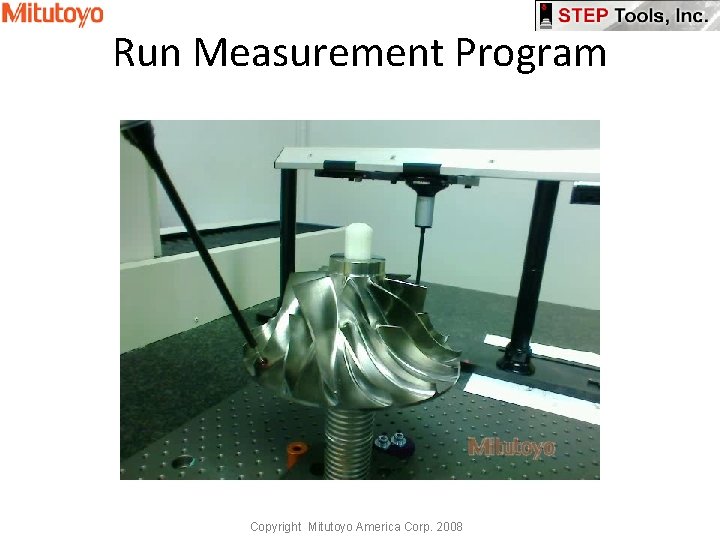

Run Measurement Program Copyright Mitutoyo America Corp. 2008

Run Measurement Program Copyright Mitutoyo America Corp. 2008

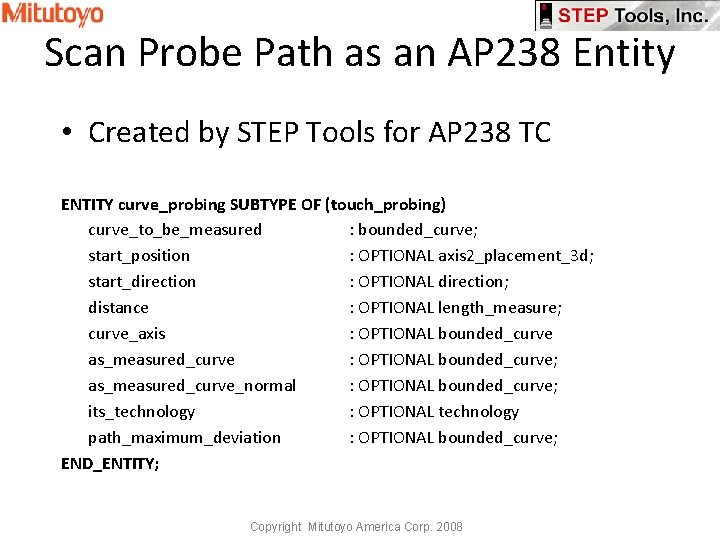

Scan Probe Path as an AP 238 Entity • Created by STEP Tools for

Scan Probe Path as an AP 238 Entity • Created by STEP Tools for AP 238 TC ENTITY curve_probing SUBTYPE OF (touch_probing) curve_to_be_measured : bounded_curve; start_position : OPTIONAL axis 2_placement_3 d; start_direction : OPTIONAL direction; distance : OPTIONAL length_measure; curve_axis : OPTIONAL bounded_curve as_measured_curve : OPTIONAL bounded_curve; as_measured_curve_normal : OPTIONAL bounded_curve; its_technology : OPTIONAL technology path_maximum_deviation : OPTIONAL bounded_curve; END_ENTITY; Copyright Mitutoyo America Corp. 2008

Scenario Test Results • Probe Paths can be defined as CAD Curve – Curves

Scenario Test Results • Probe Paths can be defined as CAD Curve – Curves are linked to Surfaces and Tolerances – Probe Paths (Curves) can have Parameters • AP 238 can include: – Measurement Plans expressed as: • Probe Paths (CAD Curves on Surfaces) • Probe Path Parameters (CAD attributes) • AP 238 CC 4 Generative Measurement is: – Feasible – Relatively Simple Copyright Mitutoyo America Corp. 2008

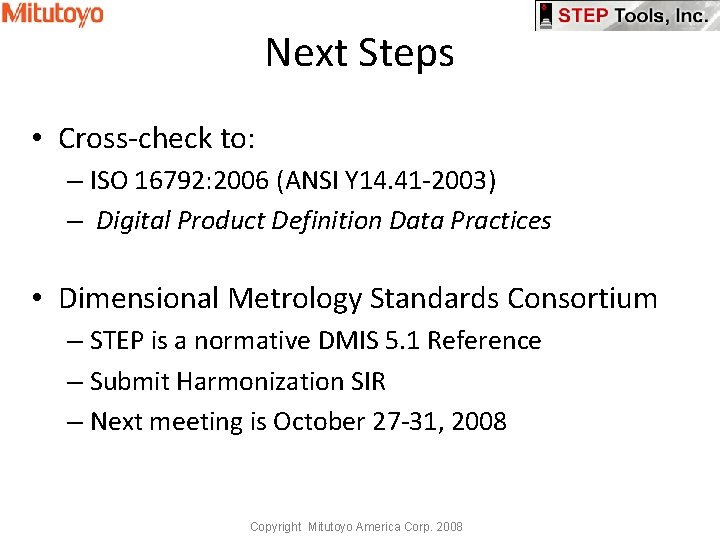

Next Steps • Cross-check to: – ISO 16792: 2006 (ANSI Y 14. 41 -2003)

Next Steps • Cross-check to: – ISO 16792: 2006 (ANSI Y 14. 41 -2003) – Digital Product Definition Data Practices • Dimensional Metrology Standards Consortium – STEP is a normative DMIS 5. 1 Reference – Submit Harmonization SIR – Next meeting is October 27 -31, 2008 Copyright Mitutoyo America Corp. 2008

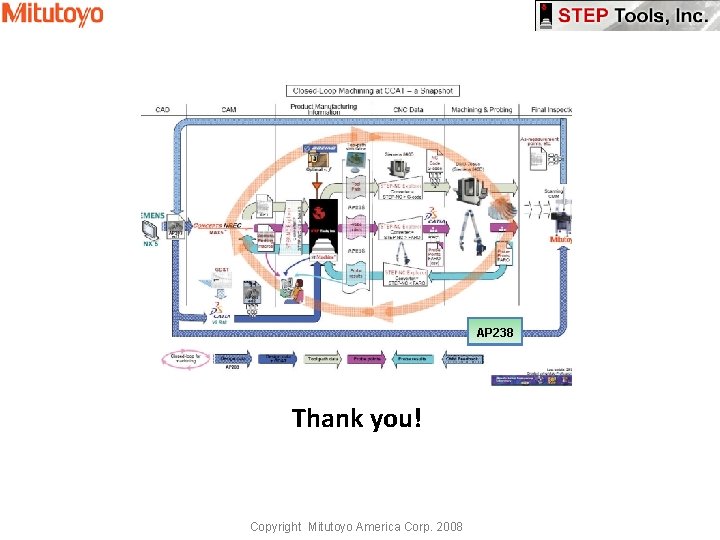

AP 238 Thank you! Copyright Mitutoyo America Corp. 2008

AP 238 Thank you! Copyright Mitutoyo America Corp. 2008
