Generating Graphs and Charts from Database Queries using SVG Graciela Gonzalez Gaurav Dalal Dept. of Computer Science Sam Houston State University Huntsville, TX.
Structure n n n SQL+D Charon Architecture Examples Advantages 2
![SQL+D <query> <SQL Query> [DISPLAY <disp specs>] <disp specs> panel <id>, (<container panels> )*](http://slidetodoc.com/presentation_image_h2/fcd4fae5ff95abe0382b02519fc35bdc/image-3.jpg "SQL+D <query> <SQL Query> [DISPLAY <disp specs>] <disp specs> panel <id>, (<container panels> )*")
SQL+D <query> <SQL Query> [DISPLAY <disp specs>] <disp specs> panel <id>, (<container panels> )* WITH <disp element> <container panels> <panel list> ON <id>. <loc>[(<layout>)] <panel list> panel <id> (, panel <id>)* <loc> North | South | East | West | Center <layout> Horizontal | Vertical | Overlay <disp element> <graph specs> | <chart specs> < chart specs> (Attr. X, Attr. Y) AS <chart elem> ON <id> <graph specs> nodes(Attr 1, Attr 2, . . . , Attrn) AS text ON <id> | edge ( (Attr 1 TO Attr 2)| (Attr 1, Attr 2) ) [LABEL string | LABEL Attrn] ON <id> < chart elem> linechart | barchart | piechart | xyscatter 3

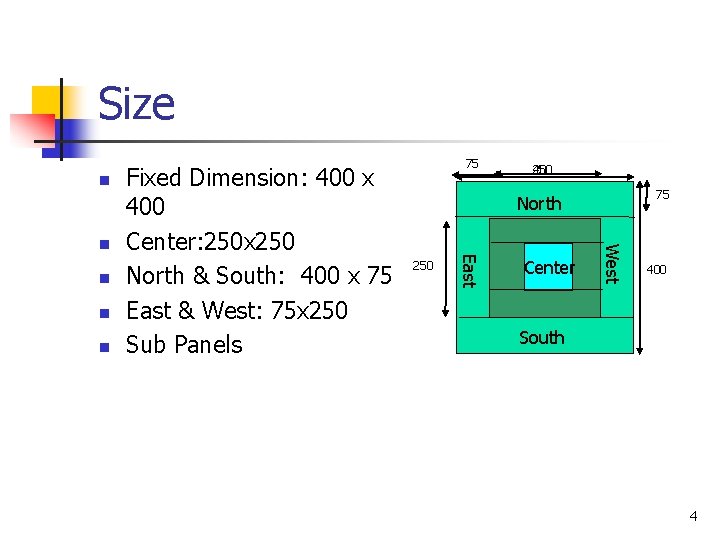

Size n n n 75 North 250 East n 250 400 Center West n Fixed Dimension: 400 x 400 Center: 250 x 250 North & South: 400 x 75 East & West: 75 x 250 Sub Panels 75 400 South 4

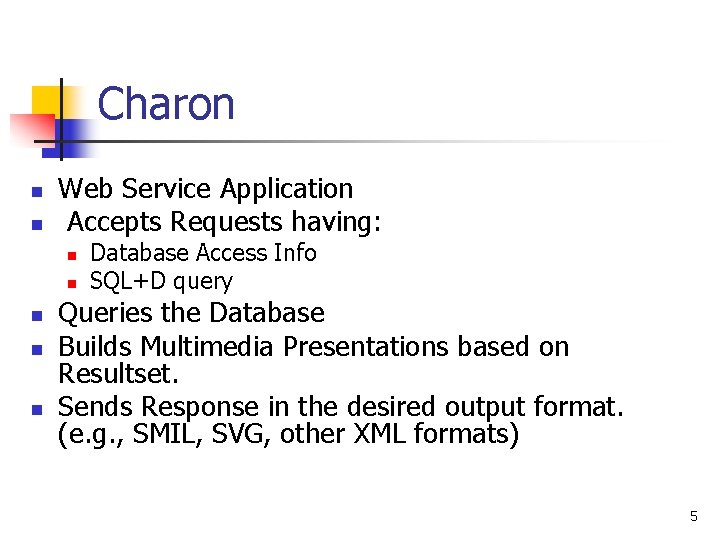

Charon n n Web Service Application Accepts Requests having: n n n Database Access Info SQL+D query Queries the Database Builds Multimedia Presentations based on Resultset. Sends Response in the desired output format. (e. g. , SMIL, SVG, other XML formats) 5

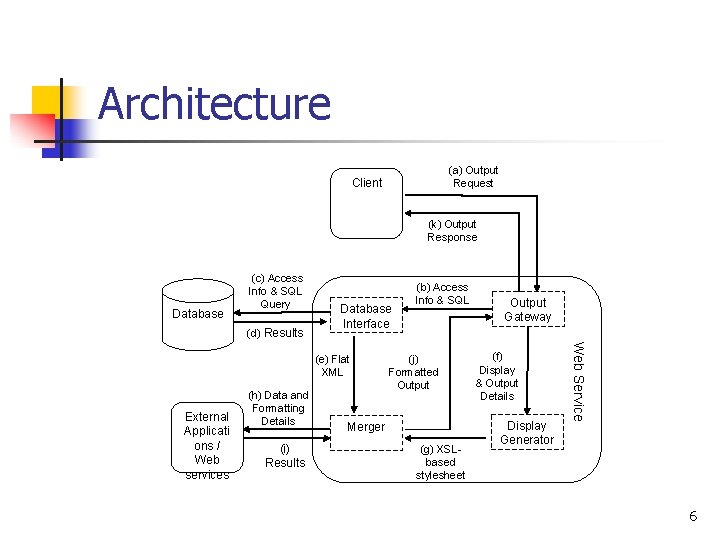

Architecture (a) Output Request Client (k) Output Response Database (c) Access Info & SQL Query (d) Results Database Interface External Applicati ons / Web services (h) Data and Formatting Details (i) Results (j) Formatted Output Merger (g) XSLbased stylesheet Output Gateway (f) Display & Output Details Display Generator Web Service (e) Flat XML (b) Access Info & SQL 6
(g) XSL-based stylesheet <? xml version="1. 0"? > <xsl: stylesheet version="1. 0" xmlns: xsl="http: //www. w 3. org/1999/XSL/Transform"> <xsl: template match=". /Results"> <Data> <File> <Name>smil 1. smil</Name> <contents> (i) Results <smil> <svg> <head> <meta content="SMIL" name="title"/> <rect fill="red" <layout> height="140" stroke="black" width="12" x="25" y="110. 0000" /> <root-layout height="400"stroke="black" width="400"/> width="12" x="50" y="125. 0000" /> <rect fill="red" height="125" <region height="400" id="main" width="400"/> (j) Formatted Output (f) Display & Output Details Client </layout> <Data> <text style="font-size: 12; stroke: black; writing-mode: tb; " x="25" y="260">Jan</text> DISPLAY PANEL main WITH (month, total) AS </head> <File> Architecture Web Service <text style="font-size: 12; stroke: black; writing-mode: tb; " x="50" y="260">Feb</text> barchart ON main. Center <Name>smil 1. smil</Name> <body> (k) Output <contents> <line<seq> stroke="black" x 1="12" x 2="12" y 1="12" y 2="250"/> Response (a)<line Output Request <barchart datafield="Sales. Amount" size="300" textfield="Sales. Month"/> <smil> stroke="black" x 1="12" x 2="250" y 1="250" y 2="250"/> </seq> <SQLD> <head> </body> <Connection> (e) Flat XML <meta content="SMIL" name="title"/> <line stroke="black" x 1="30" x 2="55" y 1="235" y 2="210" /> (c) Access </smil>. <url>jdbc: odbc: sales</url> <Results> Info &x 1="55" SQL <line stroke="black" x 2="80" y 1="210" y 2="225" /> </contents>. <username>gaurav</username> Output Query </File> Database </body> <password>12345</password> <Record Index="1"> </Data> Gateway <text style="font-size: 8; stroke: black; " x="0" y="250">0</text> Interface </smil> </Connection> </xsl: template> <Sales. Month>Jan</Sales. Month> (d) Results <text style="font-size: 8; stroke: black; " x="0" y="225">25</text> </xsl: stylesheet> </contents> <Query> <Sales. Amount>11000</Sales. Amount> <File> SELECT Sales. Month, </svg> Sales. Amount(b) FROM Product </Record> Access Info & SQL (h) JOIN Data and Formatting Details </File> INNER Sales ON Product. ID = Sales. Product. ID <Query> Barchart "Sales. Month", "Sales. Amount") <Name>bar 1. svg</Name> AND ("300", year = ‘ 2003’ AND Product. ID='3' DISPLAY PANEL main <Record Index="2"> <url>jdbc: odbc: movie</url> <contents> WITH (month, total) AS barchart ON main. Center; <Sales. Month>Feb</Sales. Month> <username>gaurav</username> <svg> </Query><password>12345</password> <Sales. Amount>55555</Sales. Amount> External Display Merger <rect fill="red" height="140" stroke="black" <Output> </Record> Applicati <SQL>SELECT Sales. Month, Sales. Amount FROM Product INNER JOIN Sales Generator width="12" ON x="25"Product. ID y="110. 0000"/> <Format>SMIL</SMIL> ons / = Sales. Product. ID AND year = ‘ 2003’ AND. <Size> </Results> Product. ID='3'; Web. <Width>400</Width> services </SQL> </svg><Height>400</Height> </Query> </contents> </Size> </File> </Output> </Data> </SQLD> 7
Examples Charts Passing the attributes of the resultset as input to a external XSLT application. n Graphs Running an external application to get the SVG image from SQL+D. n 8
Bar Charts n Required Inputs n n n Required Size (in pixels) Text Field Data Field (s) 9
Bar Charts-Query n n SALES (month, year, value) SELECT * FROM SALES WHERE year = ‘ 2003’ DISPLAY PANEL main WITH (month, total AS month total) barchart ON main. Center. 10

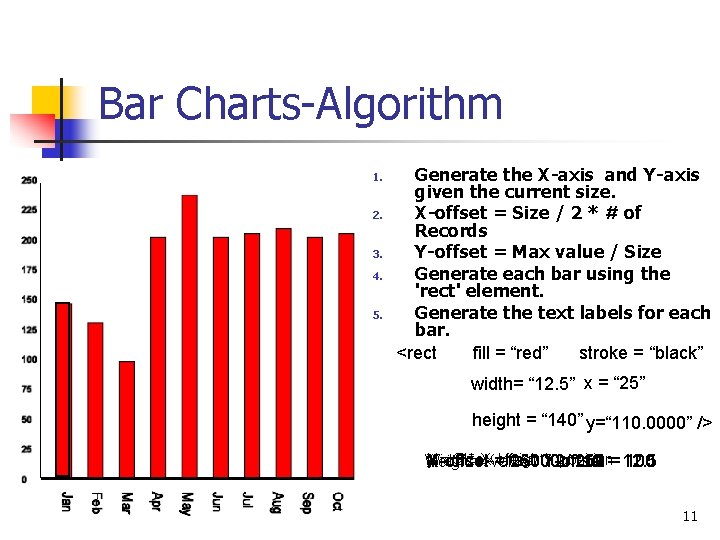

Bar Charts-Algorithm 1. 2. 3. 4. 5. Generate the X-axis and Y-axis given the current size. X-offset = Size / 2 * # of Records Y-offset = Max value / Size Generate each bar using the 'rect' element. Generate the text labels for each bar. • <rect • fill = “red” • stroke = “black” • width= “ 12. 5” • x = “ 25” • height = “ 140” • y=“ 110. 0000” /> y. Height X == Size 2 *==X-offset */ 2 position X-value offset • Width X-offset Y-offset =Height 250/ Y-offset 25000 /*250 10 == 12. 5 100 11

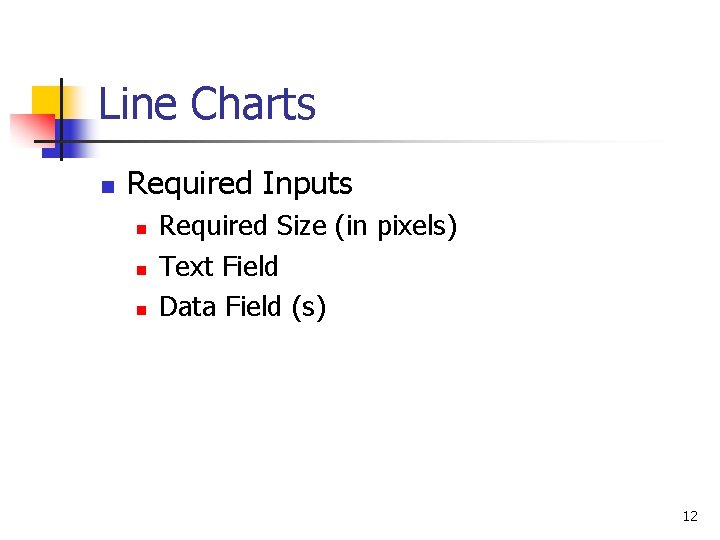

Line Charts n Required Inputs n n n Required Size (in pixels) Text Field Data Field (s) 12

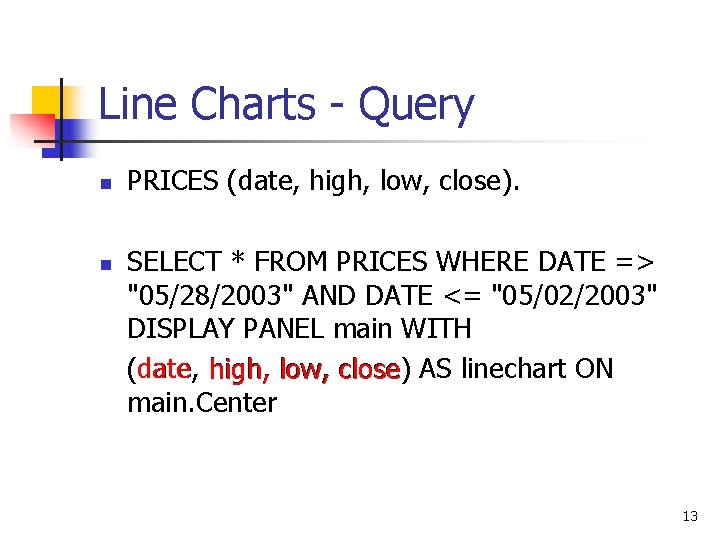

Line Charts - Query n n PRICES (date, high, low, close). SELECT * FROM PRICES WHERE DATE => "05/28/2003" AND DATE <= "05/02/2003" DISPLAY PANEL main WITH date high, low, close) (date, close AS linechart ON main. Center 13

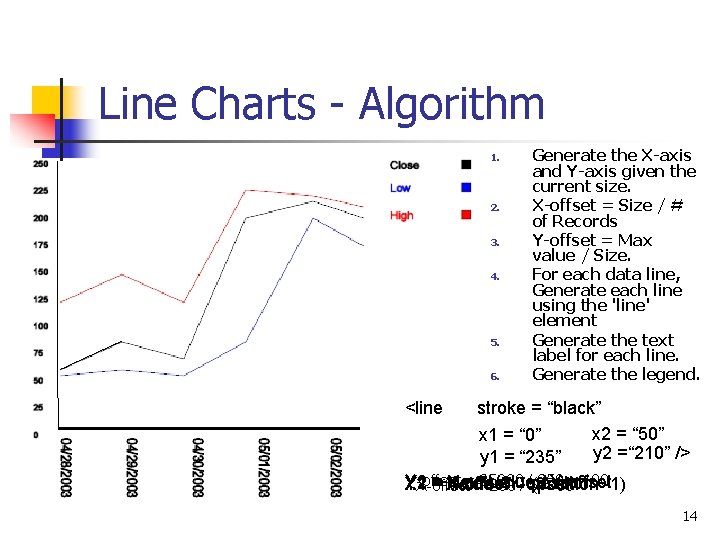

Line Charts - Algorithm 1. 2. 3. 4. 5. 6. Generate the X-axis and Y-axis given the current size. X-offset = Size / # of Records Y-offset = Max value / Size. For each data line, Generate each line using the 'line' element Generate the text label for each line. Generate the legend. • <line • stroke = “black” • x 2 = “ 50” • x 1 = “ 0” • y 1 = “ 235” • y 2 =“ 210” /> • X 2 Y-offset ==25000 250 Y 2 = X-offset Next Value /=Y-offset */ /5 position Y 1 X 1 Value / Y-offset (position • X-offset 250 50= 100 -1) 14

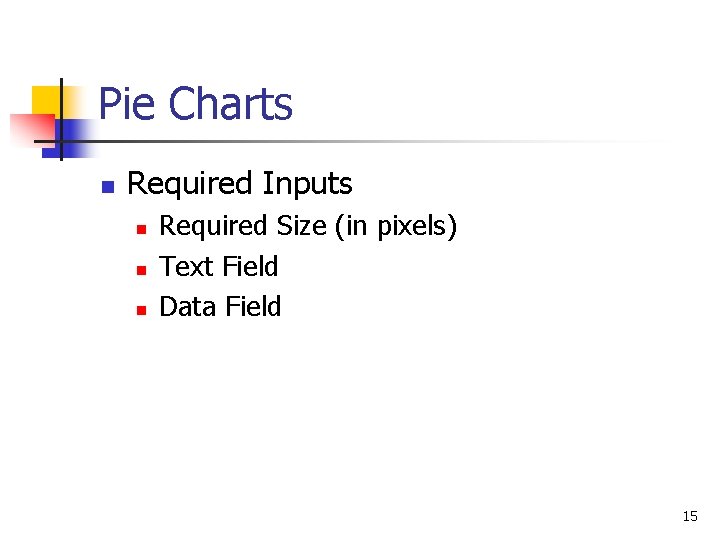

Pie Charts n Required Inputs n n n Required Size (in pixels) Text Field Data Field 15

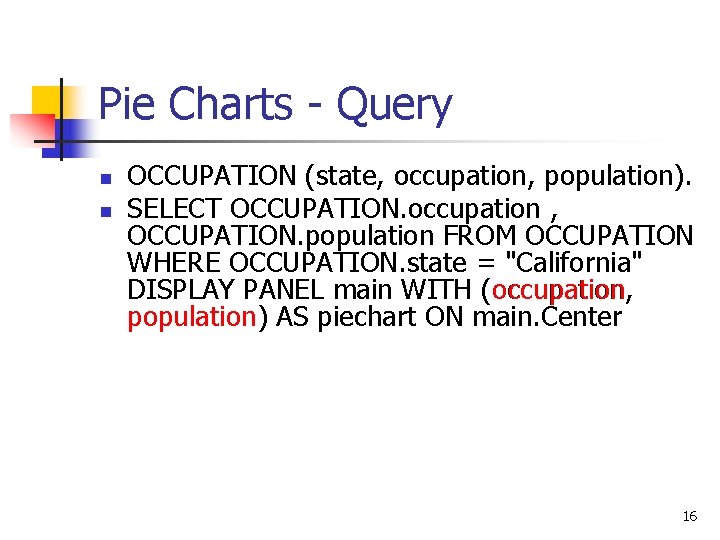

Pie Charts - Query n n OCCUPATION (state, occupation, population). SELECT OCCUPATION. occupation , OCCUPATION. population FROM OCCUPATION WHERE OCCUPATION. state = "California" occupation DISPLAY PANEL main WITH (occupation, population) AS piechart ON main. Center population 16
![Pie Charts - Algorithm x = [cos (angle expressed in radians)-1]*size = [0. 866](http://slidetodoc.com/presentation_image_h2/fcd4fae5ff95abe0382b02519fc35bdc/image-17.jpg "Pie Charts - Algorithm x = [cos (angle expressed in radians)-1]*size = [0. 866")
Pie Charts - Algorithm x = [cos (angle expressed in radians)-1]*size = [0. 866 -1]*100 = -13. 39 • <path d=“ + ∏ • M 0, 0 ∏/12 radians ∏/6 radians /6 1. Ratio = ∑values * ∏/ • L 100, 0 180 • a 100, 0, 1 slice, 2. For 0, each ra di an s • -13. 39 + y = sin (angle expressed in radians)*size = 0. 5 * 100 = 50 • 50 • z“ 1. 2. Calculate the angle of each slice using the ratio. Generate each slice using the ‘path' element. 3. Generate the legend. • style="fill: blue“ • transform="rotate(60)“ /> 17

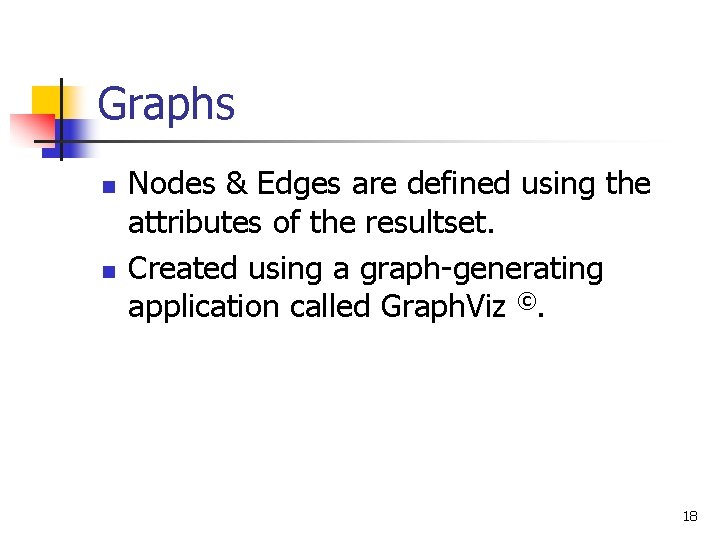

Graphs n n Nodes & Edges are defined using the attributes of the resultset. Created using a graph-generating application called Graph. Viz ©. 18

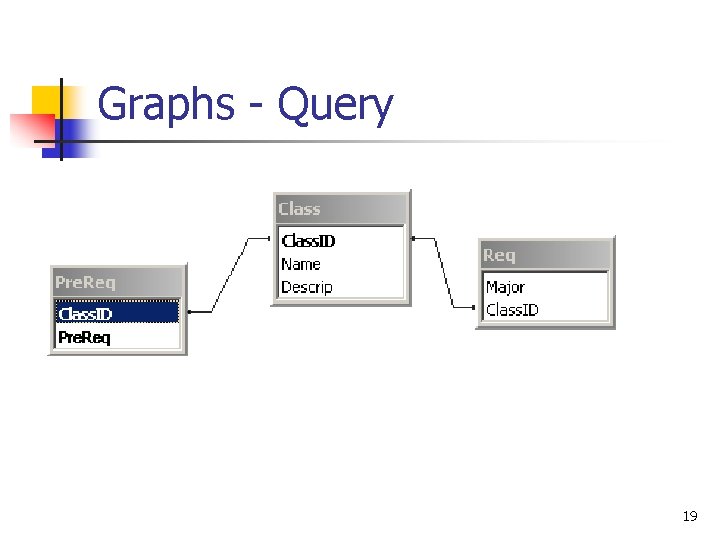

Graphs - Query 19

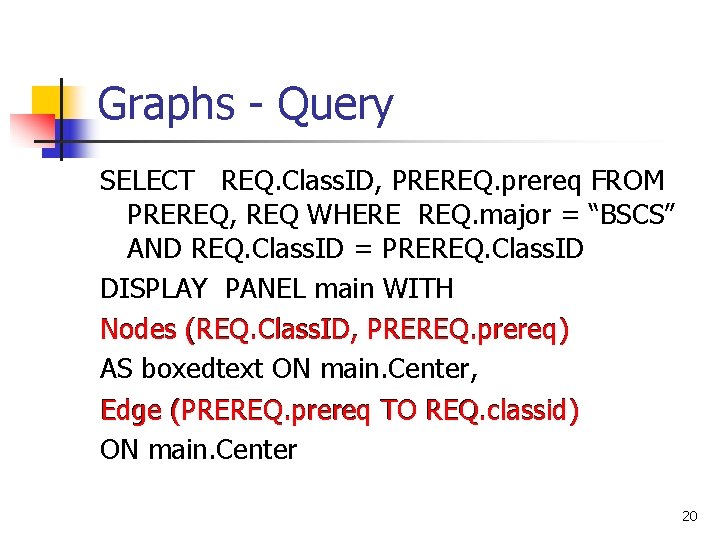

Graphs - Query SELECT REQ. Class. ID, PREREQ. prereq FROM PREREQ, REQ WHERE REQ. major = “BSCS” AND REQ. Class. ID = PREREQ. Class. ID DISPLAY PANEL main WITH Nodes (REQ. Class. ID, PREREQ. prereq) AS boxedtext ON main. Center, Edge (PREREQ. prereq TO REQ. classid) ON main. Center 20

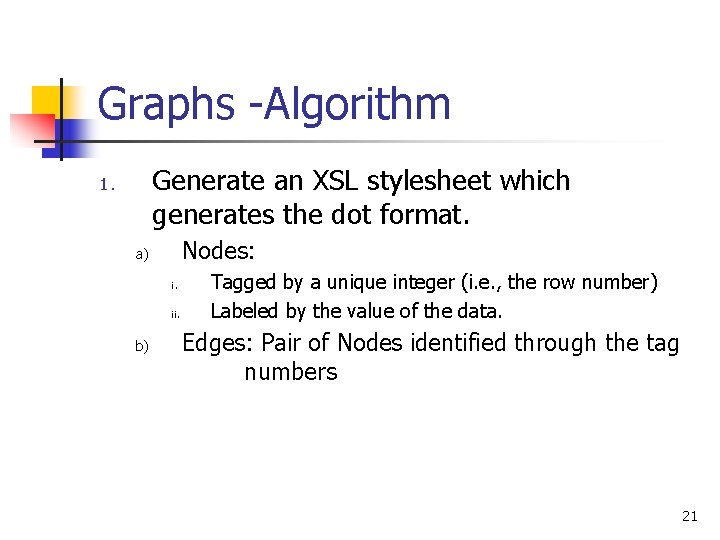

Graphs -Algorithm Generate an XSL stylesheet which generates the dot format. 1. Nodes: a) i. ii. b) Tagged by a unique integer (i. e. , the row number) Labeled by the value of the data. Edges: Pair of Nodes identified through the tag numbers 21

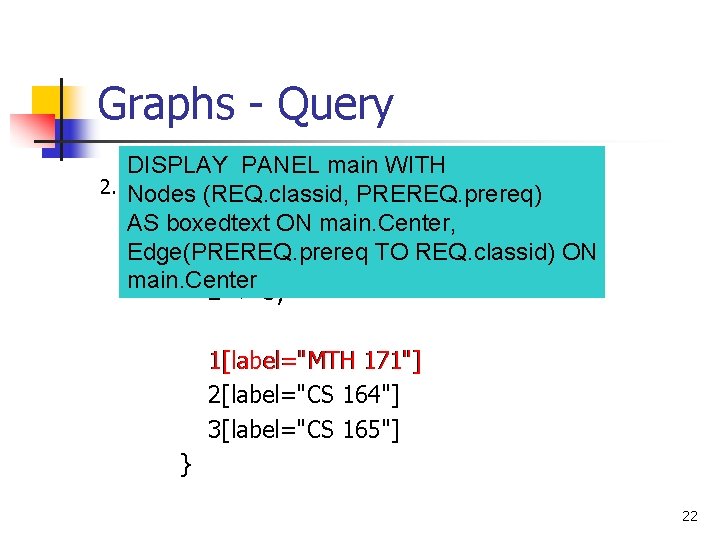

Graphs - Query DISPLAY PANEL main WITH 2. Nodes Generating the. PREREQ. prereq) dot file. (REQ. classid, digraph GON { main. Center, AS boxedtext Edge(PREREQ. prereq TO REQ. classid) ON 1 -> 3; main. Center 2 -> 3; 1[label="MTH 171"] 2[label="CS 164"] 3[label="CS 165"] } 22

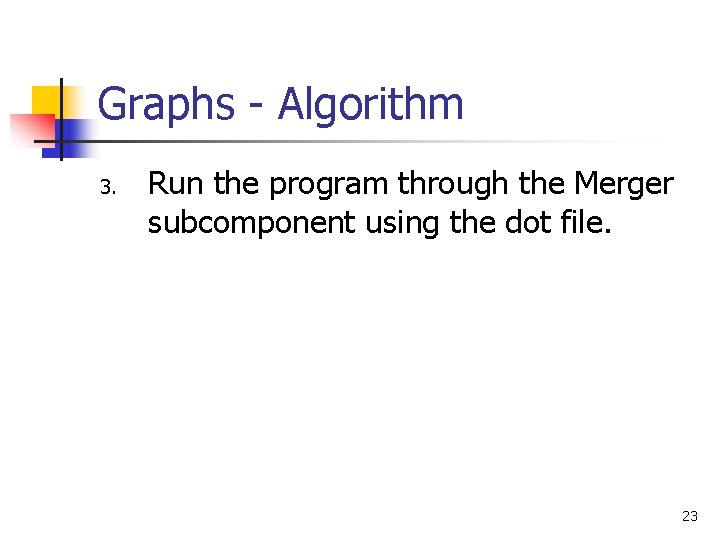

Graphs - Algorithm 3. Run the program through the Merger subcomponent using the dot file. 23

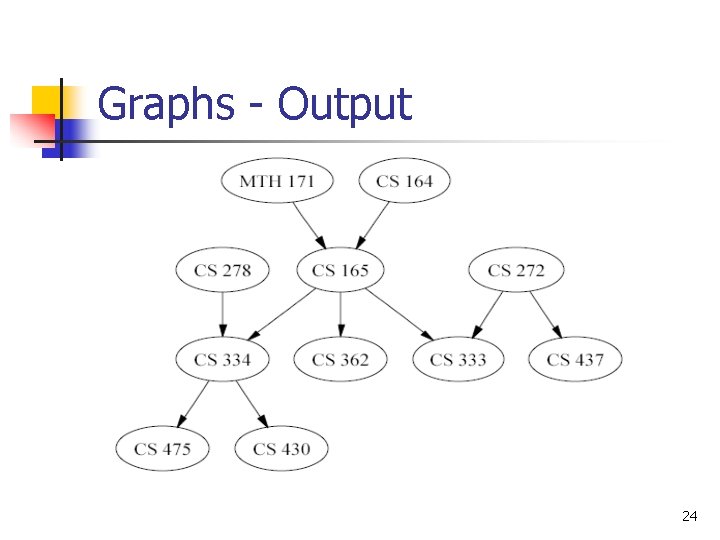

Graphs - Output 24

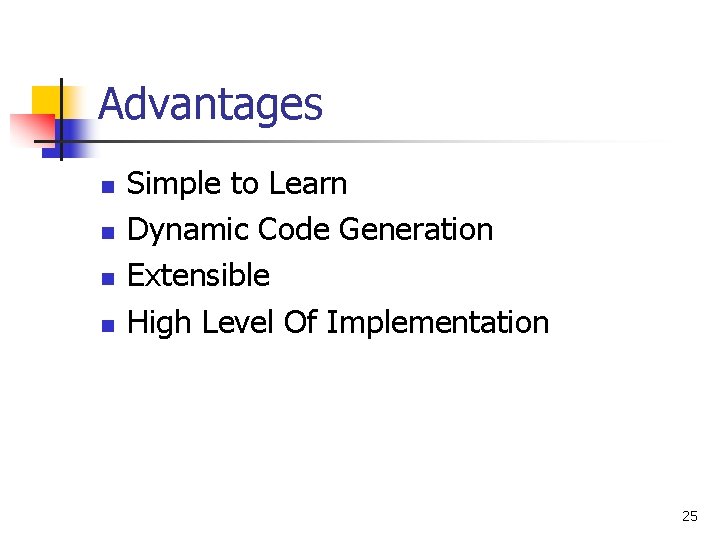

Advantages n n Simple to Learn Dynamic Code Generation Extensible High Level Of Implementation 25
