General Electricity yeah Zap zap oww Moving Electrons
- Slides: 52
General Electricity yeah Zap zap oww! Moving Electrons This And That 100 100 100 200 200 200 300 300 300 400 400 400 500 500 500
General Electricity 100 • If an electron gains electrons what happens to its charge?
General Electricity 200 • Name one of the two factors that determines the strength of an electric field.

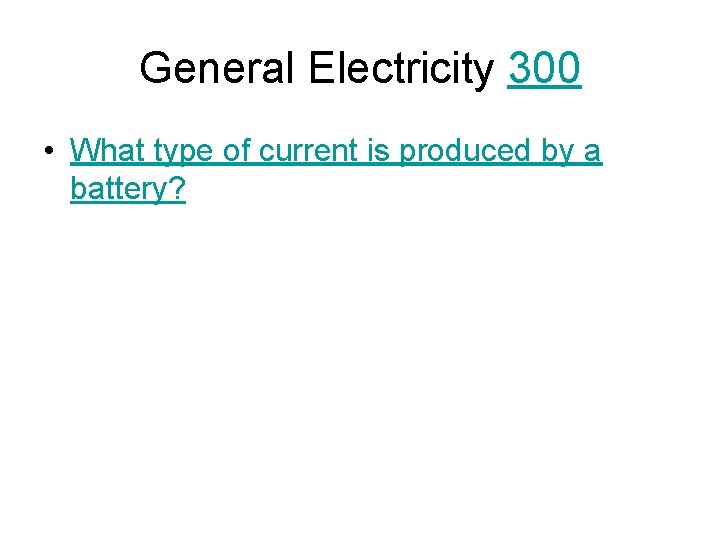

General Electricity 300 • What type of current is produced by a battery?
General Electricity 400 • How do the electrons of an electrical insulator behave (which causes it to “insulate”)
General Electricity 500 • What four factors affect the resistance of a wire?
Electricity Yeah! 100 • What type of current does most of your school use?

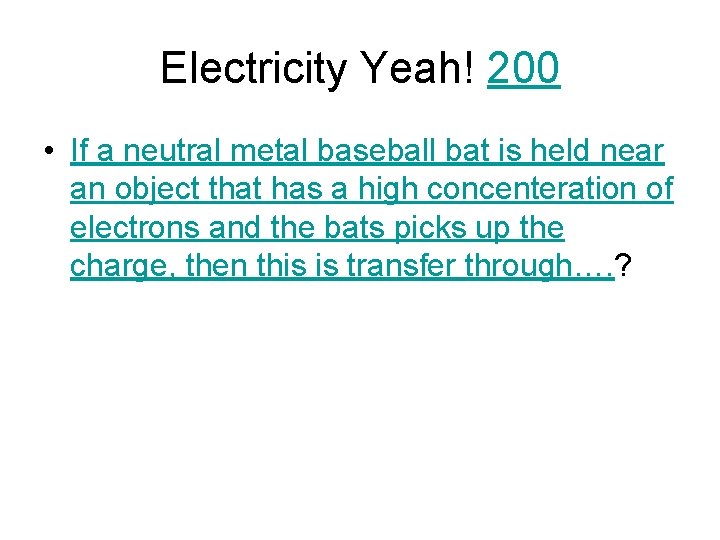

Electricity Yeah! 200 • If a neutral metal baseball bat is held near an object that has a high concenteration of electrons and the bats picks up the charge, then this is transfer through…. ?

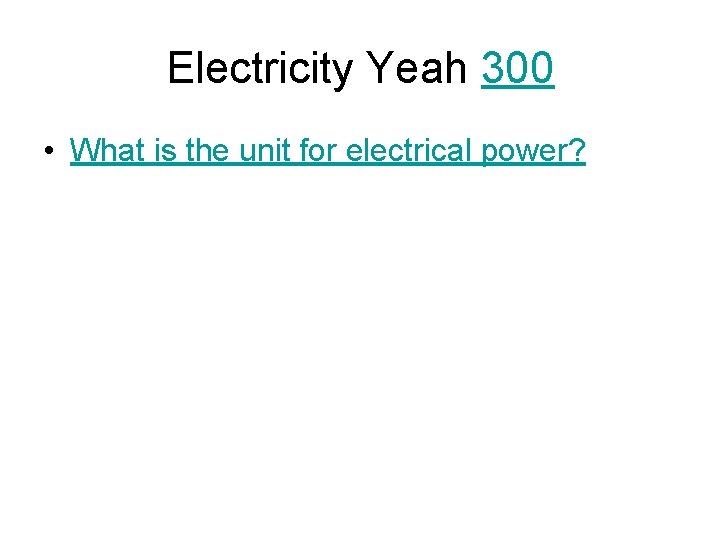

Electricity Yeah 300 • What is the unit for electrical power?
Electricity Yeah! 400 • If you know the power rating of an applicance and the voltage of the line it is attached to, you can calulate the current the appliace uses by?
Electricity Yeah! 500 • A ground fault circuit interrupter (GFCI)shuts down a circuit if it
Zap zap oww! 100 • Which of the following materials will allow charges to flow easily? • A. wood • B. glass • C. Electrical Conductor • D. Electrical Insulator
Zap zap oww! 200 • Name one way you could decrease the amount of resistance for a wire
Zap zap oww! 300 • What is one of the three ways that Ohm’s Law can be written?

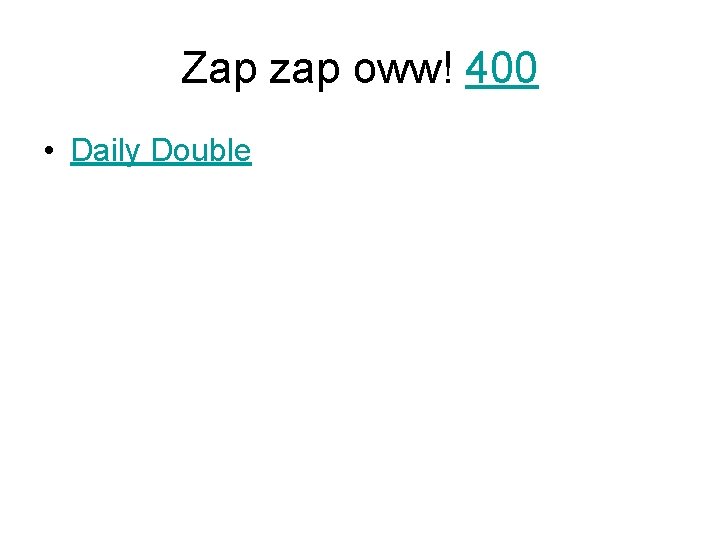

Zap zap oww! 400 • Daily Double
Zap zap oww! 500 • What is the name of the area surrounding the Earth that is influenced by the earth’s magnetic field?
Moving Electrons 100 • When placed near each other, what do like magnetic poles do to each other?

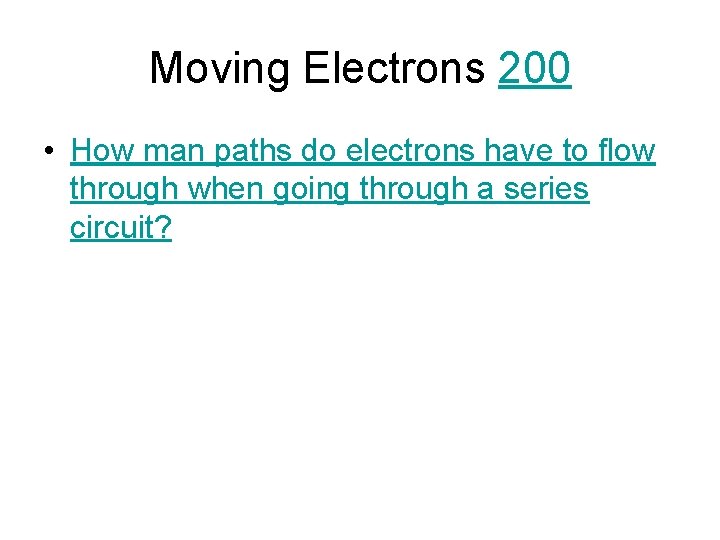

Moving Electrons 200 • How man paths do electrons have to flow through when going through a series circuit?
Moving Electrons 300 • Most of the “circuits” in your home are ?
Moving Electrons 400 • The current in a hair dryer measures 12 amps, and the resistance is 8 ohms. What is the voltage?
Moving Electrons 500 • A device that changes mechanical energy to electrical energy by rotating a coil of wires through a magnetic field.

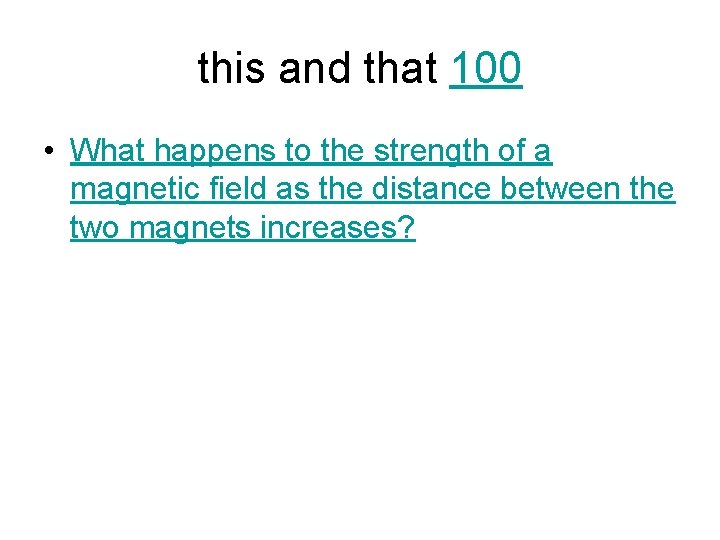

this and that 100 • What happens to the strength of a magnetic field as the distance between the two magnets increases?

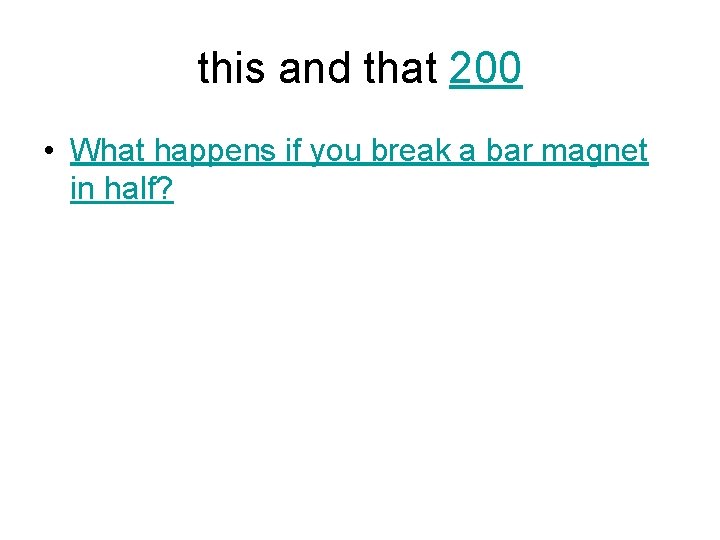

this and that 200 • What happens if you break a bar magnet in half?
this and that 300 • Name two of the four major devices that your house uses to provide electrical safety.
this and that 400 • Explain the process of using fossil fuels to creat electrical energy, and what fossil fuel is used the most for electricity?
this and that 500 • Before electricity from the power lines can enter you house it must go through this device to lower the voltage.

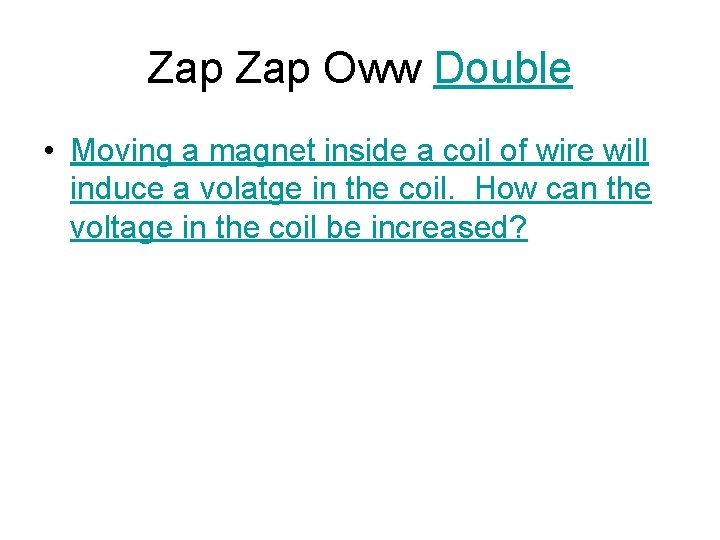

Zap Oww Double • Moving a magnet inside a coil of wire will induce a volatge in the coil. How can the voltage in the coil be increased?

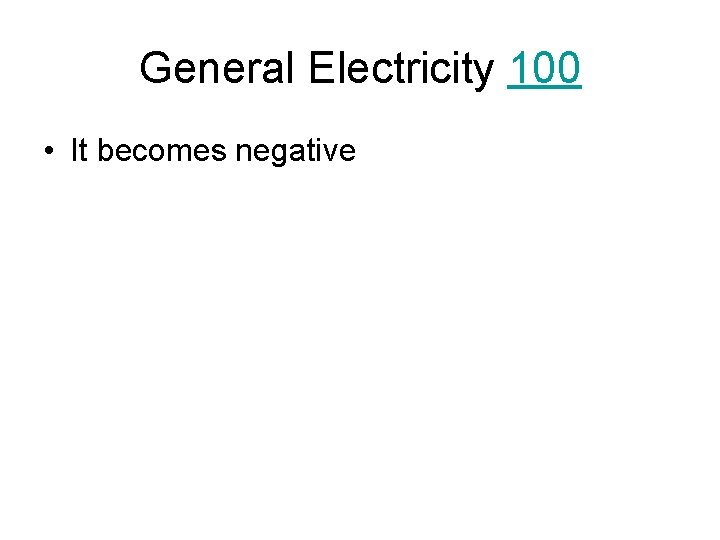

General Electricity 100 • It becomes negative
General Electricity 200 • The amount of charge that the field originally produced • And • The distance from the charge
General Electricity 300 • Direct Current
General Electricity 400 • The electrons are tightly bound to the atoms.
General Electricity 500 • • Length of the wire Material of the wire Cross section or diameter of wire Temperature of wire

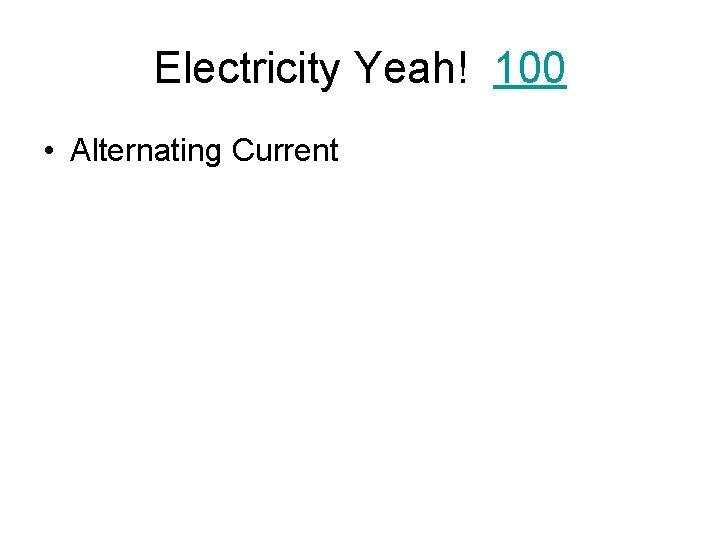

Electricity Yeah! 100 • Alternating Current
Electricity Yeah! 200 • Induction
Electricity Yeah! 300 • Watts
Electricity Yeah! 400 • Power divided by voltage or Watts/Volts

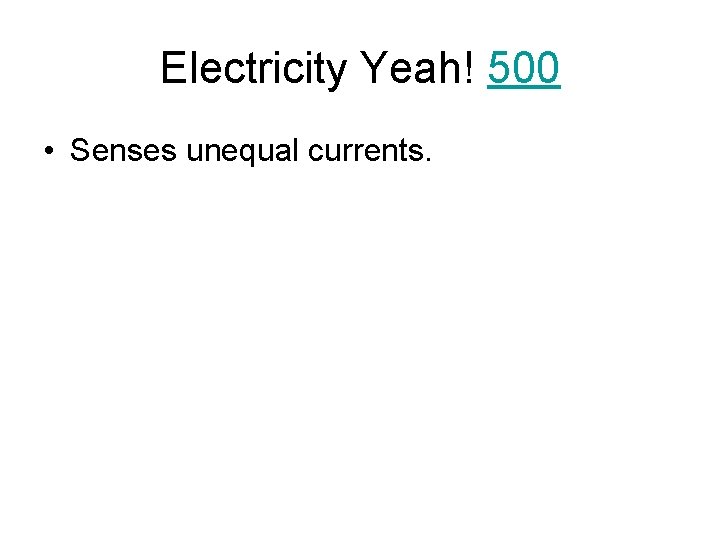

Electricity Yeah! 500 • Senses unequal currents.
Zap zap oww! 100 • C. Electrical Conductor

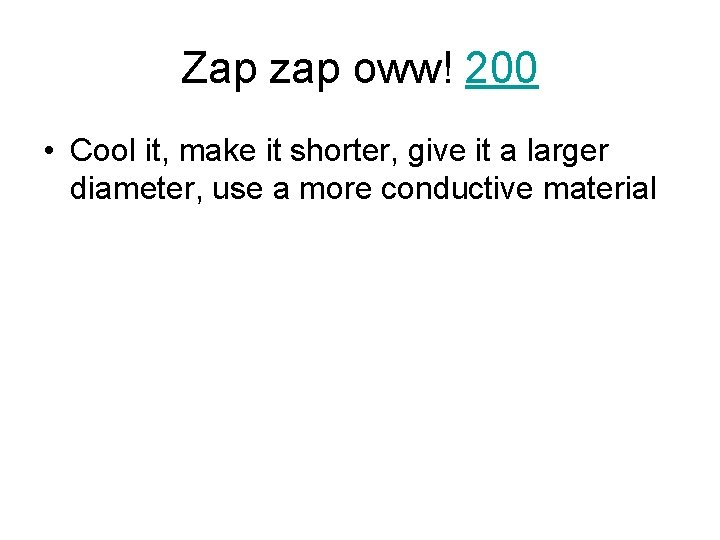

Zap zap oww! 200 • Cool it, make it shorter, give it a larger diameter, use a more conductive material

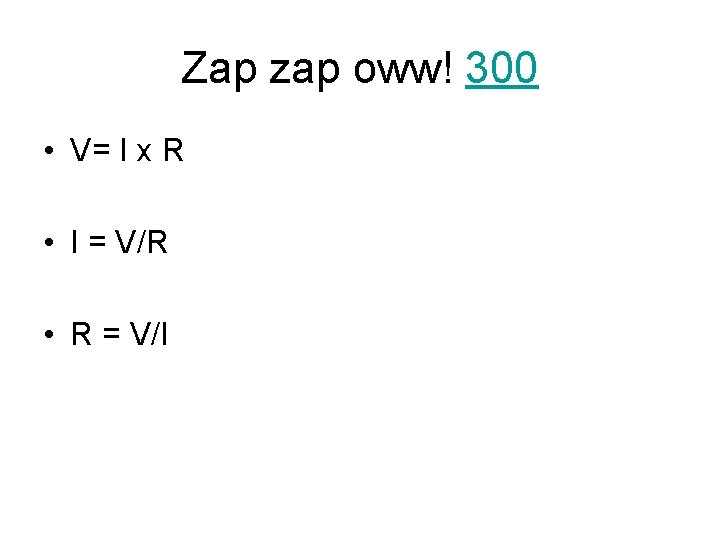

Zap zap oww! 300 • V= I x R • I = V/R • R = V/I
Zap zap oww! 400 • Move the magnet more rapidly
Zap zap oww! 500 • Magnetosphere

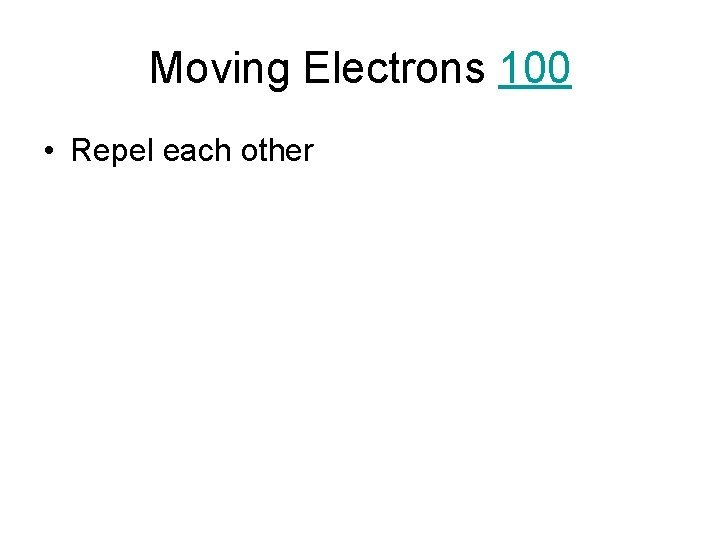

Moving Electrons 100 • Repel each other
Moving Electrons 200 • One path
Moving Electrons 300 • Parallel.
Moving Electrons 400 • 96 volts

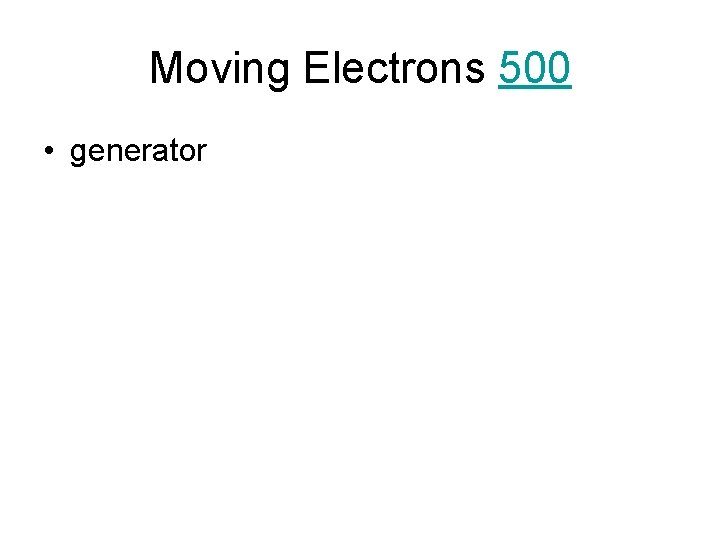

Moving Electrons 500 • generator
this and that 100 • The strength goes down
this and that 200 • Each becomes a new bar magnet with two poles
this and that 300 • • GFCI Circuit Breakers Fuses Ground Wires
this and that 400 • The burnt fossil fuels create heat, which is used to boil water, which creates steam used to turn a turbine (magnets and coils of wire) to make the electricity. • Coal
this and that 500 • Step down transformer
