General Datacomm ISDN Standards Overview 1 E Series

  • Slides: 5
Download presentation

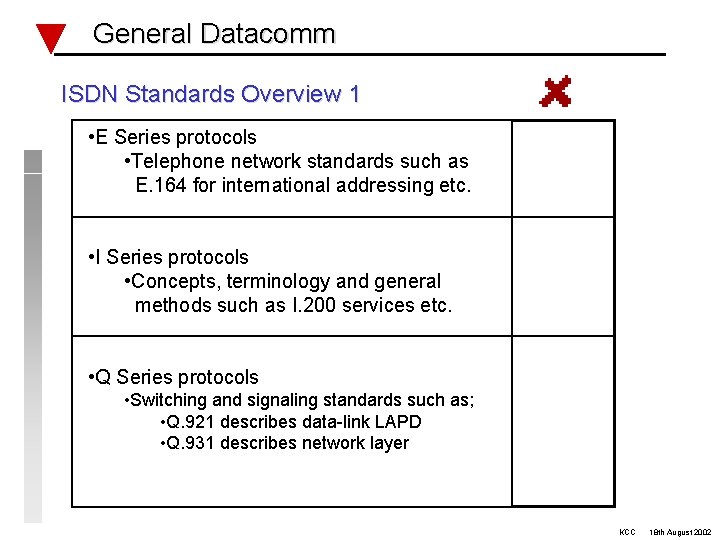

General Datacomm ISDN Standards Overview 1 • E Series protocols • Telephone network standards

General Datacomm ISDN Standards Overview 1 • E Series protocols • Telephone network standards such as E. 164 for international addressing etc. • I Series protocols • Concepts, terminology and general methods such as I. 200 services etc. • Q Series protocols • Switching and signaling standards such as; • Q. 921 describes data-link LAPD • Q. 931 describes network layer KCC 18 th August 2002

General Datacomm ISDN Standards Overview 2 • PRI STANDARDS • In USA and Japan

General Datacomm ISDN Standards Overview 2 • PRI STANDARDS • In USA and Japan T 1/DS 1 • 23 x 64 kbps bearer (B) channels • 1 x 64 kbps data (D) channel • In UK Australia & Europe • 30 x 64 kbps (B) channels • 1 x 64 kbps (D) channel • H channels bond multiple B channels • BRI STANDARDS • Most countries now 64 kbps few remain on 56 kbps • 2 x 64 kbps (B) channels • 1 x 16 kbps (D) channel KCC 18 th August 2002

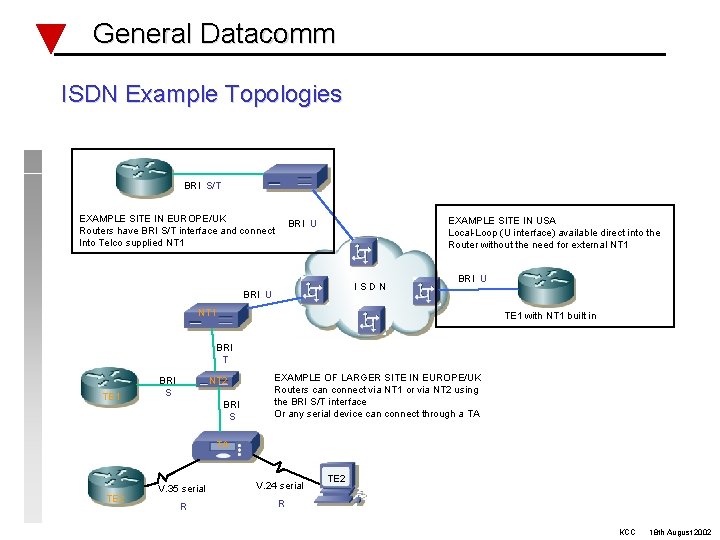

General Datacomm ISDN Example Topologies BRI S/T EXAMPLE SITE IN EUROPE/UK Routers have BRI

General Datacomm ISDN Example Topologies BRI S/T EXAMPLE SITE IN EUROPE/UK Routers have BRI S/T interface and connect Into Telco supplied NT 1 EXAMPLE SITE IN USA Local-Loop (U interface) available direct into the Router without the need for external NT 1 BRI U ISDN BRI U NT 1 TE 1 with NT 1 built in BRI T TE 1 BRI S NT 2 BRI S EXAMPLE OF LARGER SITE IN EUROPE/UK Routers can connect via NT 1 or via NT 2 using the BRI S/T interface Or any serial device can connect through a TA TA TE 2 V. 35 serial V. 24 serial R R TE 2 KCC 18 th August 2002

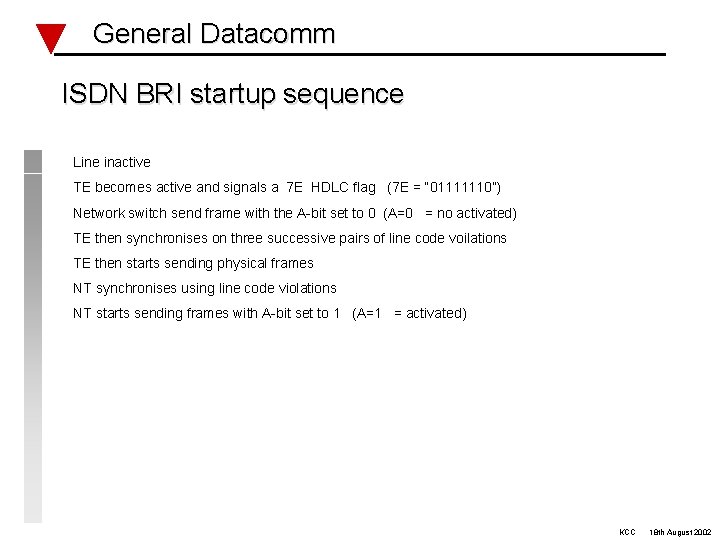

General Datacomm ISDN BRI startup sequence Line inactive TE becomes active and signals a

General Datacomm ISDN BRI startup sequence Line inactive TE becomes active and signals a 7 E HDLC flag (7 E = “ 01111110”) Network switch send frame with the A-bit set to 0 (A=0 = no activated) TE then synchronises on three successive pairs of line code voilations TE then starts sending physical frames NT synchronises using line code violations NT starts sending frames with A-bit set to 1 (A=1 = activated) KCC 18 th August 2002

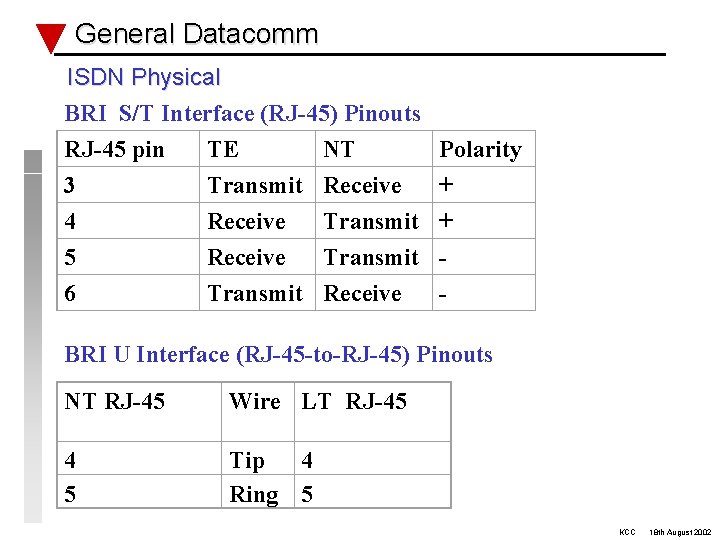

General Datacomm ISDN Physical BRI S/T Interface (RJ-45) Pinouts RJ-45 pin 3 TE NT

General Datacomm ISDN Physical BRI S/T Interface (RJ-45) Pinouts RJ-45 pin 3 TE NT Transmit Receive Polarity + 4 5 6 Receive Transmit + Receive Transmit Receive - BRI U Interface (RJ-45 -to-RJ-45) Pinouts NT RJ-45 Wire LT RJ-45 4 5 Tip 4 Ring 5 KCC 18 th August 2002
