General Chemistry M. R. Naimi-Jamal Faculty of Chemistry Iran University of Science & Technology
Contents 5 -1 5 -2 5 -3 5 -4 5 -5 5 -6 5 -7 5 -8 5 -9 Getting Started: Some Terminology Heats of Reaction and Calorimetry Work The First Law of Thermodynamics Heats of Reaction: U and H The Indirect Determination of H: Hess’s Law Standard Enthalpies of Formation Fuels as Sources of Energy
Thermochemistry: Basic Terms • Thermochemistry is the study of energy changes that occur during chemical reactions. • System: the part of the universe being studied. • Surroundings: the rest of the universe.

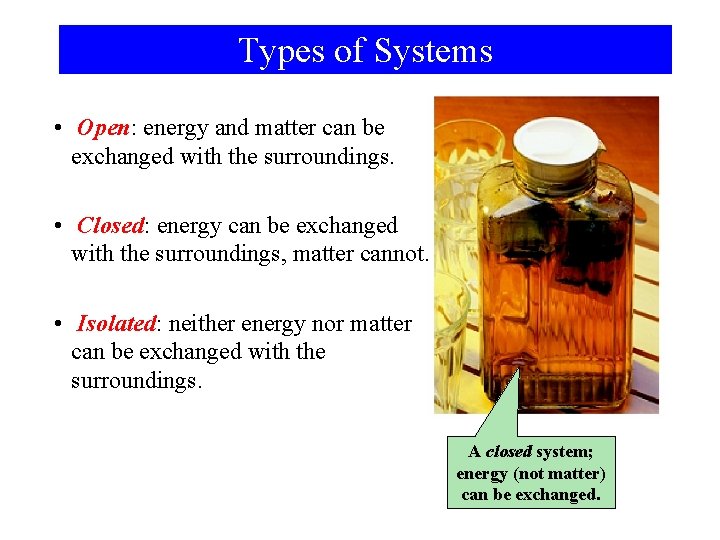

Types of Systems • Open: energy and matter can be exchanged with the surroundings. • Closed: energy can be exchanged with the surroundings, matter cannot. • Isolated: neither energy nor matter can be exchanged with the surroundings. A closed system; energy (not matter) can be exchanged.
Terminology • Energy, U – The capacity to do work. • Work – Force acting through a distance. • Kinetic Energy – The energy of motion.

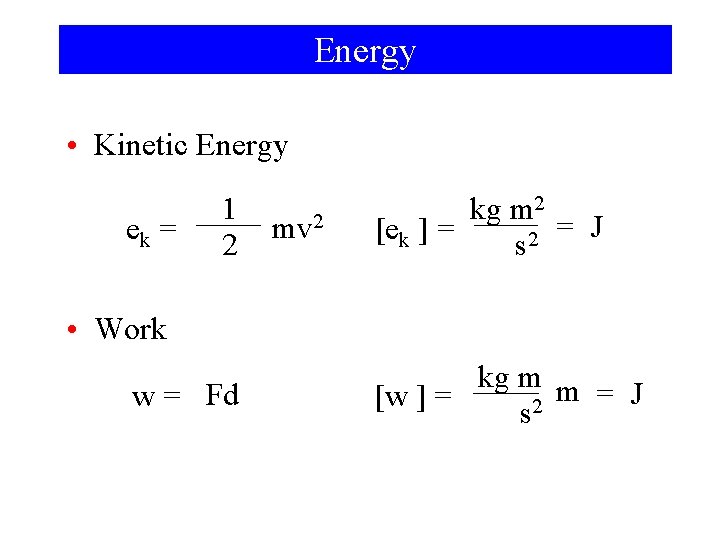

Energy • Kinetic Energy ek = 1 2 mv 2 kg m 2 = J [ek ] = 2 s • Work w = Fd kg m m = J [w ] = 2 s
Energy • Potential Energy – Energy due to condition, position, or composition. – Associated with forces of attraction or repulsion between objects. • Energy can change from potential to kinetic.
Energy and Temperature • Thermal Energy – Kinetic energy associated with random molecular motion. – In general proportional to temperature. – An intensive property. • Heat and Work – q and w. – Energy changes.
Thermal Equilibrium • Heat transfer ALWAYS occurs from a hotter object to a cooler object (directionality) • Transfer of heat continues until both objects are at the same temperature (thermal equilibrium) • The quantity of heat lost by a hotter object and the quantity of heat gained by a cooler object when they are in contact are numerically equal (required by the law of conservation of energy)

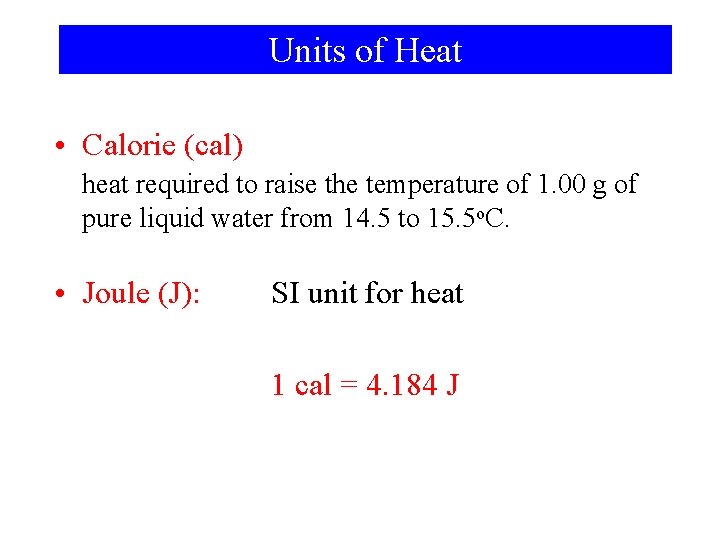

Units of Heat • Calorie (cal) heat required to raise the temperature of 1. 00 g of pure liquid water from 14. 5 to 15. 5 o. C. • Joule (J): SI unit for heat 1 cal = 4. 184 J
Heat Capacity • The quantity of heat required to change the temperature of a system by one degree. – Specific heat capacity, c. q = mc T • System is one gram of substance – Heat capacity, C. • C = Mass x specific heat (mc). q = C T
Many metals have low specific heats. The specific heat of water is higher than that of almost any other substance.
Example: How much heat, in joules and in kilojoules, does it take to raise the temperature of 225 g of water from 25. 0 to 100. 0 °C? Example: What will be the final temperature if a 5. 00 -g silver ring at 37. 0 °C gives off 25. 0 J of heat to its surroundings? The specific heat of silver is 0. 235 Jg-1°C-1.
Example: An Estimation Example Without doing detailed calculations, determine which of the following is a likely approximate final temperature when 100 g of iron at 100 °C is added to 100 g of 20 °C water in a calorimeter, the specific heat of iron is 0. 449 Jg -1°C-1: (a) 20 °C (b) 30 °C (c) 60 °C (d) 70 °C.
Conservation of Energy • In interactions between a system and its surroundings the total energy remains constant. energy is neither created nor destroyed. qsystem + qsurroundings = 0 qsystem = -qsurroundings
First Law: Sign Convention • Energy entering a system carries a positive sign: – heat absorbed by the system, or – work done on the system • Energy leaving a system carries a negative sign – heat given off by the system – work done by the system
Heats of Reaction and Calorimetry • Chemical energy. – Contributes to the internal energy of a system. • Heat of reaction, qrxn. – The quantity of heat exchanged between a system and its surroundings when a chemical reaction occurs within the system, at constant temperature.

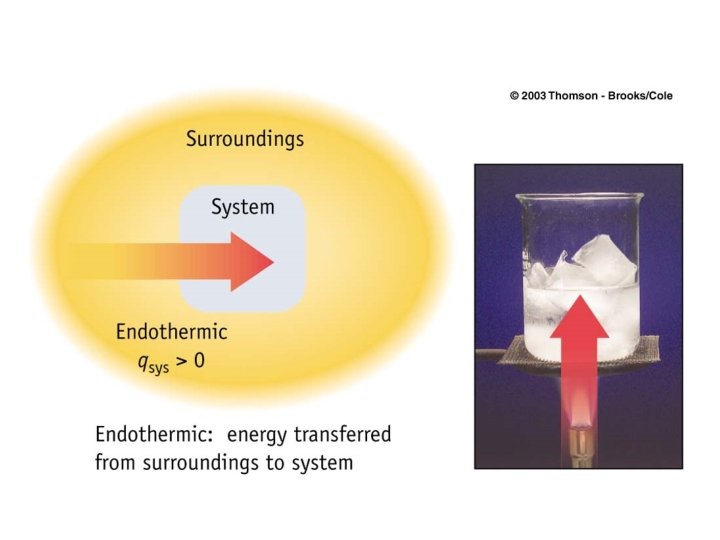

Heats of Reaction (qrxn) • An exothermic reaction gives off heat – In an isolated system, the temperature increases. – The system goes from higher to lower energy; – qrxn is negative. • An endothermic reaction absorbs heat – In an isolated system, the temperature decreases. – The system goes from lower to higher energy; – qrxn is positive.
Internal Energy • Internal Energy, U. – Total energy (potential and kinetic) in a system. • Translational kinetic energy. • Molecular rotation. • Bond vibration. • Intermolecular attractions. • Chemical bonds. • Electrons.
First Law of Thermodynamics • A system contains only internal energy. – A system does not contain heat or work. – These only occur during a change in the system. U = q + w q = heat gained by system w = work gained (+) by or done on system (-) • Law of Conservation of Energy – The energy of an isolated system is constant

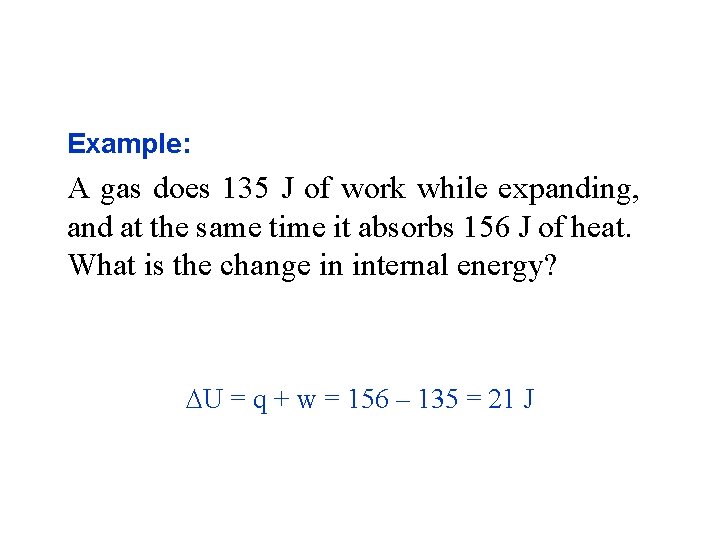

Example: A gas does 135 J of work while expanding, and at the same time it absorbs 156 J of heat. What is the change in internal energy? U = q + w = 156 – 135 = 21 J
State Functions • The state of a system: its exact condition at a fixed instant. • State is determined by the kinds and amounts of matter present, the structure of this matter at the molecular level, and the prevailing pressure and temperature. • A state function is a property that has a unique value that depends only on the present state of a system, and does not depend on how the state was reached (does not depend on the history of the system).
State Functions • Water at 293. 15 K and 1. 00 atm is in a specified state. • d = 0. 99820 g/m. L • This density is a unique function of the state. • It does not matter how the state was established.
Functions of State • U is a function of state. – Not easily measured. • U has a unique value between two states. – Is easily measured.

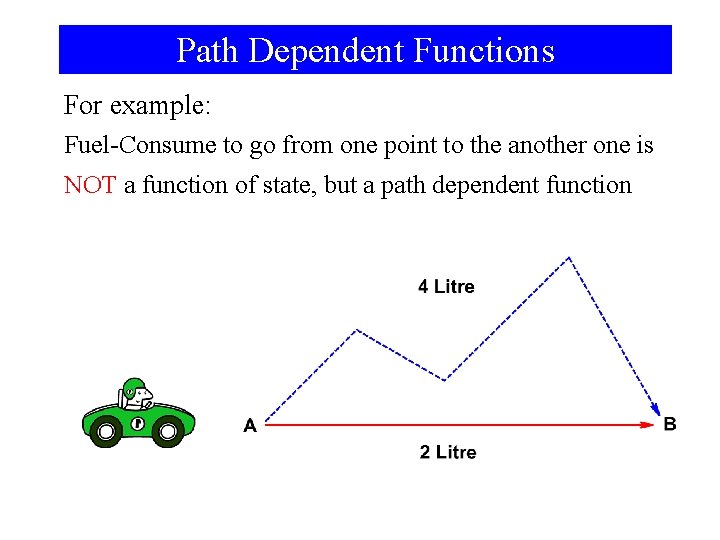

Path Dependent Functions For example: Fuel-Consume to go from one point to the another one is NOT a function of state, but a path dependent function
Internal Energy Change at Constant Volume • For a system where the reaction is carried out at constant volume, V = 0 and U = q. V. • All thermal energy produced by conversion from chemical energy is released as heat; no P-V work is done.
Work • In addition to heat effects chemical reactions may also do work. • Gas formed pushes against the atmosphere. • Volume changes. • Pressure-volume work.
Heats of Reaction: U and H Reactants → Products Ui Uf U = Uf - Ui U = qrxn + w In a system at constant volume: P V=0 U = qrxn + 0 = qrxn = qv But we live in a constant pressure world! How does qp relate to qv?
lnternal Energy Change at Constant Pressure • For a system where the reaction is carried out at constant pressure, U = q. P – P V or U + P V = q. P • Most of thermal energy is released as heat. • Some work is done to expand the system against the surroundings (push back the atmosphere).
Heats of Reaction

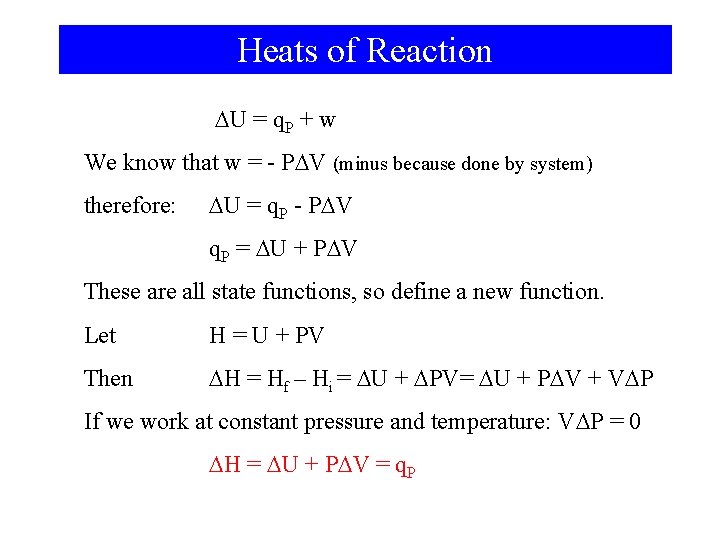

Heats of Reaction U = q. P + w We know that w = - P V (minus because done by system) therefore: U = q. P - P V q. P = U + P V These are all state functions, so define a new function. Let H = U + PV Then H = Hf – Hi = U + PV= U + P V + V P If we work at constant pressure and temperature: V P = 0 H = U + P V = q. P

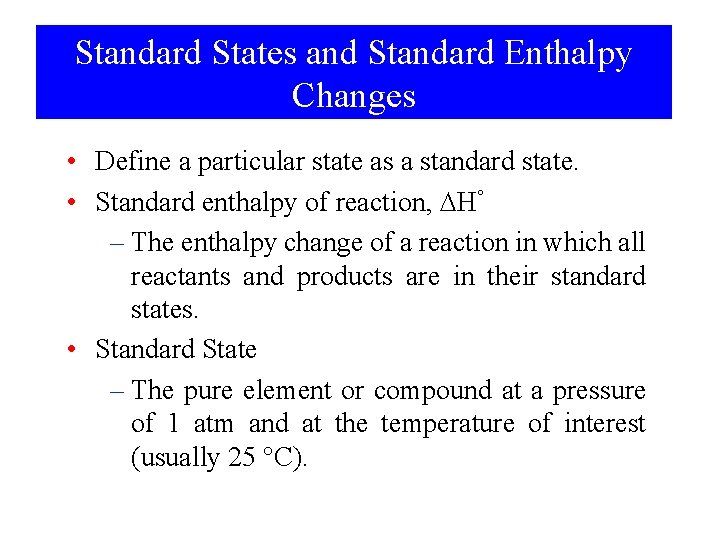

Standard States and Standard Enthalpy Changes • Define a particular state as a standard state. • Standard enthalpy of reaction, H° – The enthalpy change of a reaction in which all reactants and products are in their standard states. • Standard State – The pure element or compound at a pressure of 1 atm and at the temperature of interest (usually 25 °C).
Enthalpy Diagrams
Standard Enthalpies of Formation Hf° • The enthalpy change that occurs in the formation of one mole of a substance in the standard state from the reference forms of the elements in their standard states. • The standard enthalpy of formation of a pure element in its reference state is 0.
Standard Enthalpy of Formation When we say: “The standard enthalpy of formation of CH 3 OH(l) is 238. 7 k. J”, we are saying that the reaction: C(graphite) + 2 H 2(g) + ½ O 2(g) CH 3 OH(l) has a value of ΔH of – 238. 7 k. J. We can treat ΔHf° values as though they were absolute enthalpies, to determine enthalpy changes for reactions. Question: What is ΔHf° for an element in its standard state [such as O 2(g)]? Hint: since the reactants are the same as the products …
Standard Enthalpies of Formation
Enthalpy of Reaction Hrxn = ∑ Hf°products - ∑ Hf°reactants
Table 7. 3 Enthalpies of Formation of Ions in Aqueous Solutions
Example: Synthesis gas is a mixture of carbon monoxide and hydrogen that is used to synthesize a variety of organic compounds. One reaction for producing synthesis gas is 3 CH 4(g) + 2 H 2 O(l) + CO 2(g) 4 CO(g) + 8 H 2(g) ΔH° = ? Use standard enthalpies of formation from Table 6. 2 to calculate the standard enthalpy change for this reaction. Example: The combustion of isopropyl alcohol, common rubbing alcohol, is represented by the equation 2 (CH 3)2 CHOH(l) + 9 O 2(g) 6 CO 2(g) + 8 H 2 O(l) ΔH° = – 4011 k. J Use this equation and data from Table 6. 2 to establish the standard enthalpy of formation for isopropyl alcohol.
Fuels as Sources of Energy • Fossil fuels. – Combustion is exothermic. – Non-renewable resource. – Environmental impact.
