General ABS LineUp of GP ABS General ABS

General ABS

Line-Up of GP ABS General ABS Features Grade Remarks High impact HI 100 HI 121, HI 121 H High impact, Good processability High flow HF 380 High impact, High flow High gloss HG 173 SG 175, SG 175 H High gloss, High flow Antistatic AP 163 Antistatic property Painting HF 380 P PT 270 Excellent Paintability

Features General ABS Special features of LG General ABS are Optimum balance of physical properties Good physical properties such as imp. strength & flow Good processability Various grades that can meet the customer requirement

Application General ABS HI 100/HI 121 H § High Impact Strength § High Toughness § High whiteness Miscellaneous goods Home Appliances

Application General ABS HF 380 § High Flow § High Impact Strength IT & OA Home Appliances

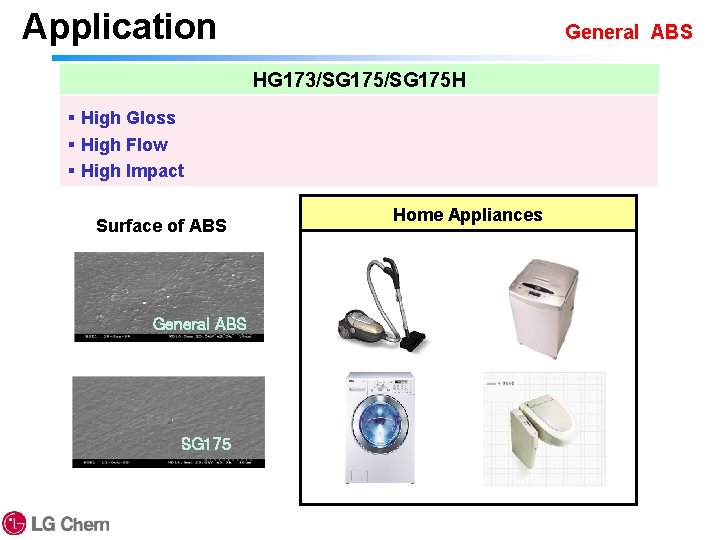

Application General ABS HG 173/SG 175 H § High Gloss § High Flow § High Impact Surface of ABS General ABS SG 175 Home Appliances

Application General ABS AP 163 § Antistatic property § Processability Change of Surface specific resistance IT & OA Surface specific resistance(Ω) General ABS General antistatic ABS Permanent antistatic ABS Months LCD CARRIER BOX

Application General ABS HF 380 P/PT 270 § Paintability § High Impact § Processability Surface of ABS gate General ABS gate SG 175 G Automotives

Extrusion ABS

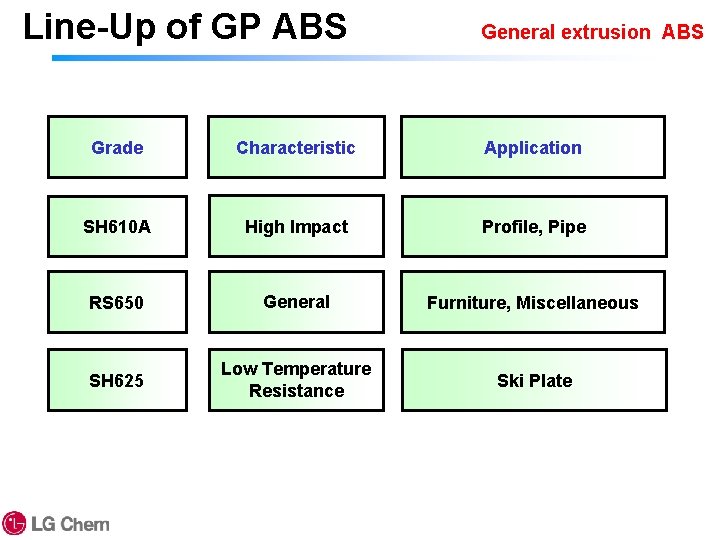

Line-Up of GP ABS General extrusion ABS Grade Characteristic Application SH 610 A High Impact Profile, Pipe RS 650 General Furniture, Miscellaneous SH 625 Low Temperature Resistance Ski Plate

Properties General extrusion ABS Properties Unit SH 610 A RS 650 Melt Flow Index 220℃/10 kgf Haze g/10 min 5. 0 7. 2 Gloss % 94 95 kg. cm/ cm 48 28 kg/㎠ 410 490 kg/㎠ 20 25 kg/㎠ 670 780 kg/㎠ 21, 000 26, 000 Rockwell Hardness R-Scale 99 107 Characteristic - High Impact General Purpose IZOD Impact Strength(6. 4 mm) Tensile Strength Tensile Elongation Flexural Strength Flexural Modulus * Notes : 1) The values of properties in the above table have been obtained by the test pieces(natural color) manufactured under certain of injection. 2) The listed values should be used for referential purpose only.

Transparent ABS

Introduction Transparent ABS Methylmetacrylate Acrylonitrile Chemical resistance Fatigue resistance Hardness and rigidity Melt strength Transparency Scratch resistance CH₃ A M C - OCH₃ O H 2 C = CH 2 = C Butadiene C B Low-temperature ductility Impact resistance CH CH CH - CH = CH 2 = 2 N Styrene S Processability Coloring Hardness and rigidity CH =C H 2

Line-Up of TR ABS Transparent ABS Features Grade Remarks High toughness TR 558 AM Good transparent High impact TR 557 High impact strength High impact & ESCR TR 552 Good chemical resistance Antistatic TR 558 NS Antistatic property

Comparison Transparent ABS TR ABS PC PMMA Transparency Good Excellent Impact Good Excellent Bad/Weak Low Temp. Impact Good Weak Bad Processability Good Bad Good General Weak General Chemical resistance

Properties Transparent ABS Unit TR 558 AM TR 557 TR 552 Haze % 2. 0 2. 5 3. 0 Tt % 90 89 88 Tensile Strength kg/㎠ 520 420 390 Flexural Strength kg/㎠ 820 650 600 IZOD Impact Strength(6. 4 mm) kg. cm/ cm 11 15 23 Melt Flow Index , 220℃/10 kgf g/10 min 22 20 14 Transparency Characteristic High Toughness Impact Super Impact * Notes : 1) The values of properties in the above table have been obtained by the test pieces(natural color) manufactured under certain of injection. 2) The listed values should be used for referential purpose only.

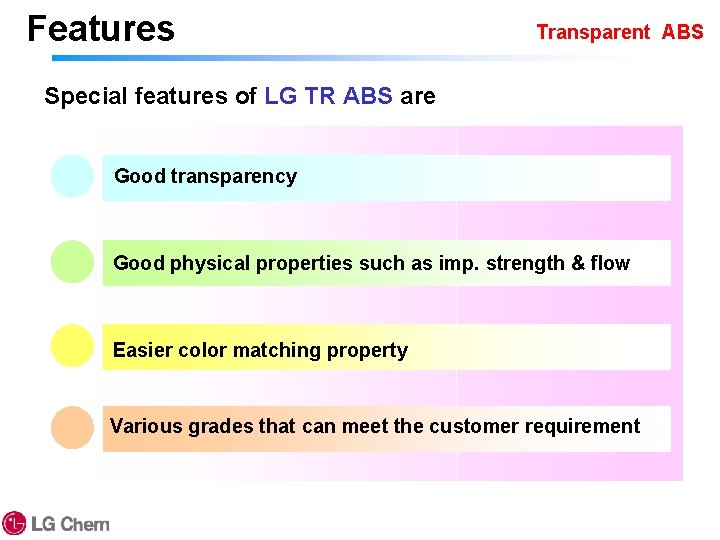

Features Transparent ABS Special features of LG TR ABS are Good transparency Good physical properties such as imp. strength & flow Easier color matching property Various grades that can meet the customer requirement

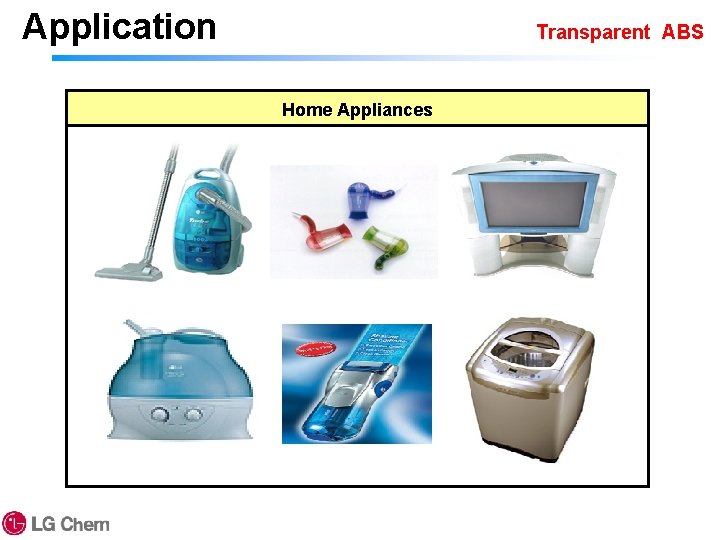

Application Transparent ABS Home Appliances

Application Transparent ABS OA / IT

Introduction Features SAN Important factor • Transparency • Electrical insulation • Heat resistance • Scratch resistance • Good coloring • Processability • Mechanical properties • Non-toxic • Chemical resistance • Molecular weight • AN content Physical properties Processing methods Color b TS FS Chemical resistance MI AN content Yellow • Injection • Extrusion AN content

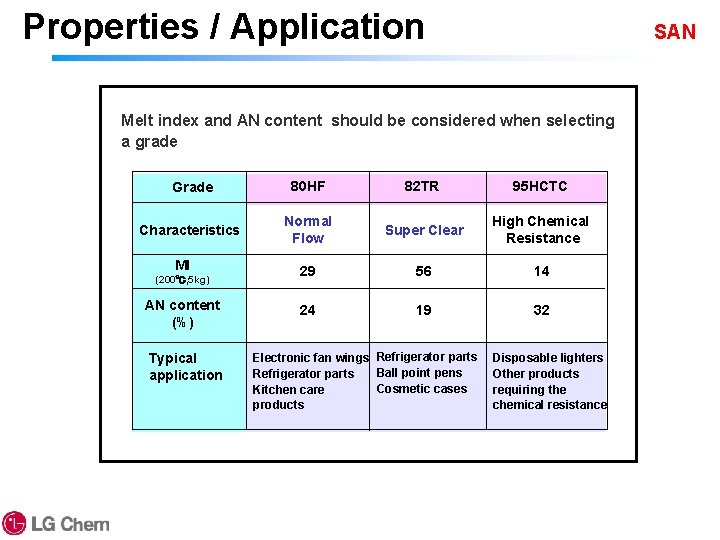

Properties / Application SAN Melt index and AN content should be considered when selecting a grade Grade 80 HF 82 TR 95 HCTC Characteristics Normal Flow Super Clear High Chemical Resistance 29 56 14 24 19 32 MI (200℃, 5 kg) AN content (%) Typical application Electronic fan wings Refrigerator parts Ball point pens Refrigerator parts Cosmetic cases Kitchen care products Disposable lighters Other products requiring the chemical resistance

Thank You www. lgchem. com www. chemwide. com
