Gene Therapy and Viral Vector Lecture 2 Basic

Gene Therapy and Viral Vector Lecture 2

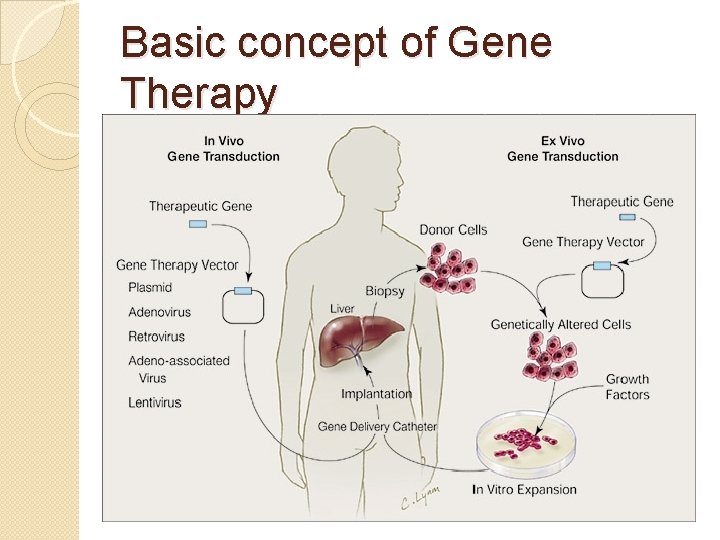

Basic concept of Gene Therapy

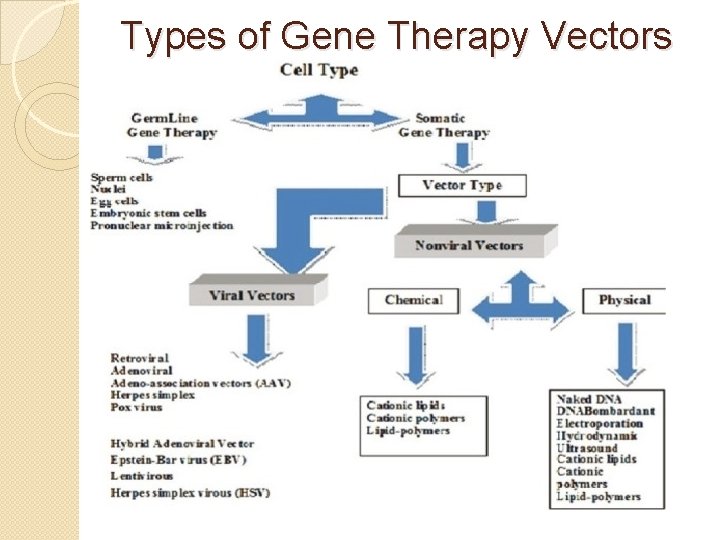

Types of Gene Therapy Vectors

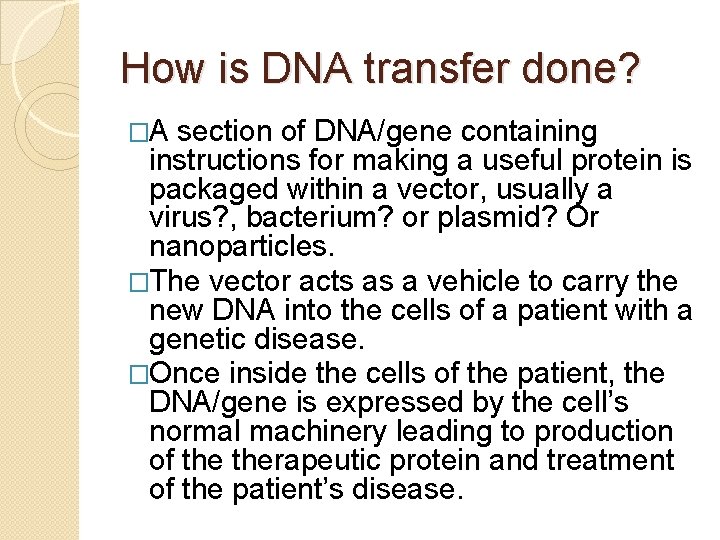

How is DNA transfer done? �A section of DNA/gene containing instructions for making a useful protein is packaged within a vector, usually a virus? , bacterium? or plasmid? Or nanoparticles. �The vector acts as a vehicle to carry the new DNA into the cells of a patient with a genetic disease. �Once inside the cells of the patient, the DNA/gene is expressed by the cell’s normal machinery leading to production of therapeutic protein and treatment of the patient’s disease.

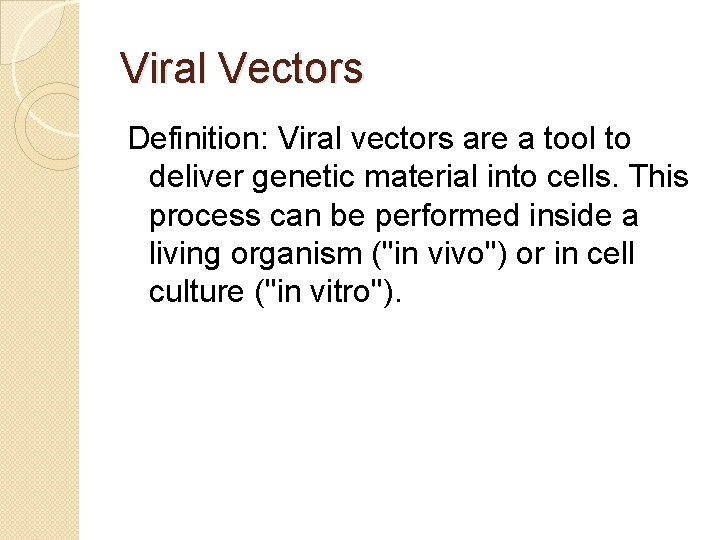

Viral Vectors Definition: Viral vectors are a tool to deliver genetic material into cells. This process can be performed inside a living organism (''in vivo'') or in cell culture (''in vitro'').

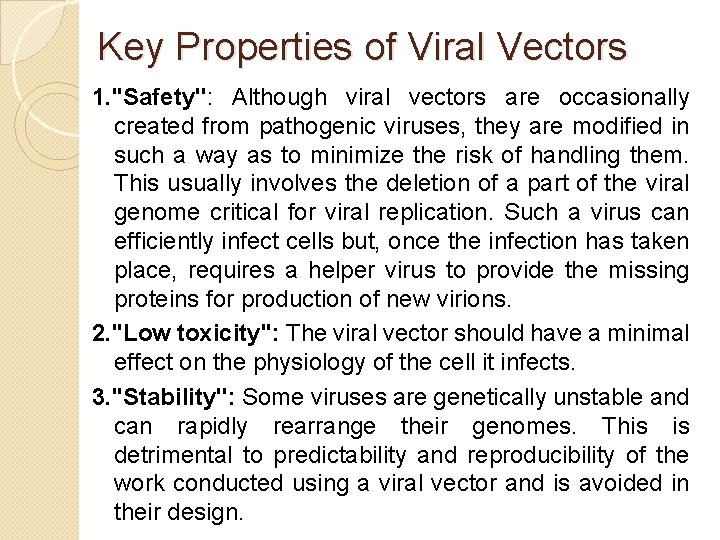

Key Properties of Viral Vectors 1. ''Safety'': Although viral vectors are occasionally created from pathogenic viruses, they are modified in such a way as to minimize the risk of handling them. This usually involves the deletion of a part of the viral genome critical for viral replication. Such a virus can efficiently infect cells but, once the infection has taken place, requires a helper virus to provide the missing proteins for production of new virions. 2. ''Low toxicity'': The viral vector should have a minimal effect on the physiology of the cell it infects. 3. ''Stability'': Some viruses are genetically unstable and can rapidly rearrange their genomes. This is detrimental to predictability and reproducibility of the work conducted using a viral vector and is avoided in their design.

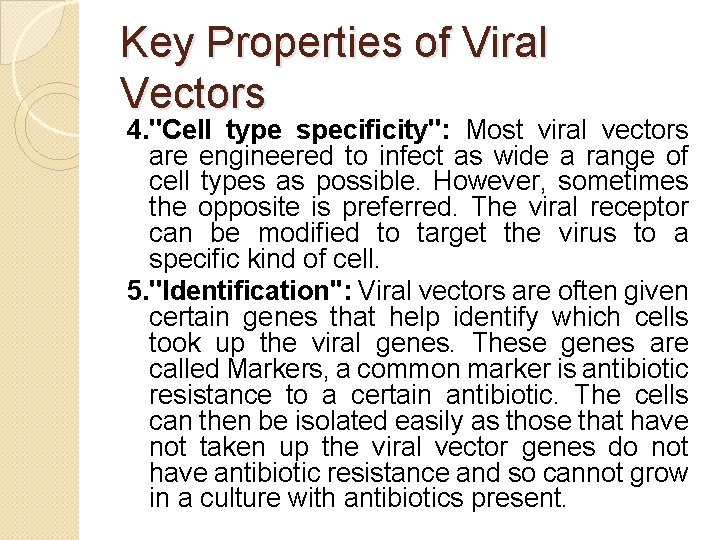

Key Properties of Viral Vectors 4. ''Cell type specificity'': Most viral vectors are engineered to infect as wide a range of cell types as possible. However, sometimes the opposite is preferred. The viral receptor can be modified to target the virus to a specific kind of cell. 5. ''Identification'': Viral vectors are often given certain genes that help identify which cells took up the viral genes. These genes are called Markers, a common marker is antibiotic resistance to a certain antibiotic. The cells can then be isolated easily as those that have not taken up the viral vector genes do not have antibiotic resistance and so cannot grow in a culture with antibiotics present.

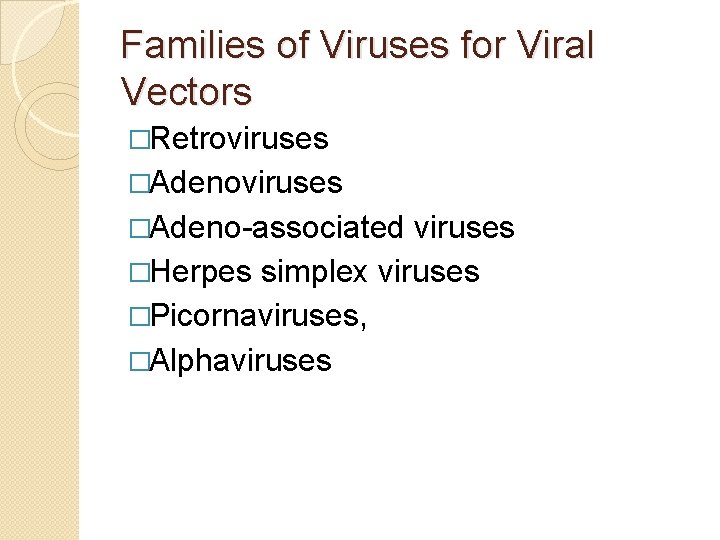

Families of Viruses for Viral Vectors �Retroviruses �Adeno-associated viruses �Herpes simplex viruses �Picornaviruses, �Alphaviruses

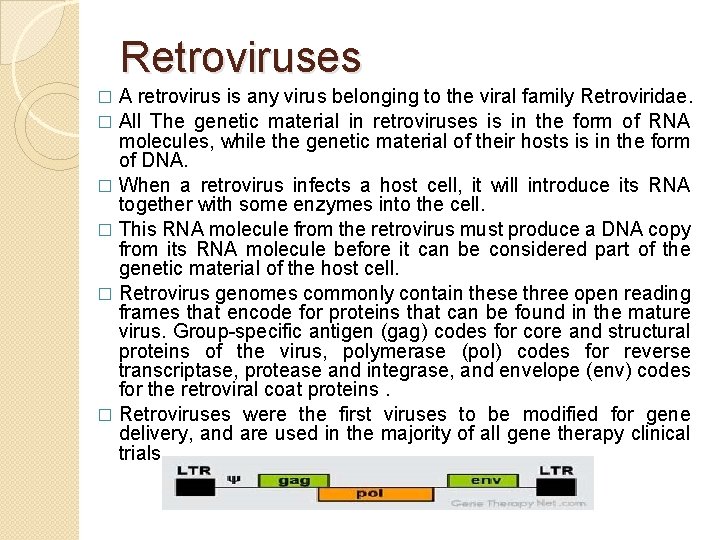

Retroviruses A retrovirus is any virus belonging to the viral family Retroviridae. � All The genetic material in retroviruses is in the form of RNA molecules, while the genetic material of their hosts is in the form of DNA. � When a retrovirus infects a host cell, it will introduce its RNA together with some enzymes into the cell. � This RNA molecule from the retrovirus must produce a DNA copy from its RNA molecule before it can be considered part of the genetic material of the host cell. � Retrovirus genomes commonly contain these three open reading frames that encode for proteins that can be found in the mature virus. Group-specific antigen (gag) codes for core and structural proteins of the virus, polymerase (pol) codes for reverse transcriptase, protease and integrase, and envelope (env) codes for the retroviral coat proteins. � Retroviruses were the first viruses to be modified for gene delivery, and are used in the majority of all gene therapy clinical trials. �

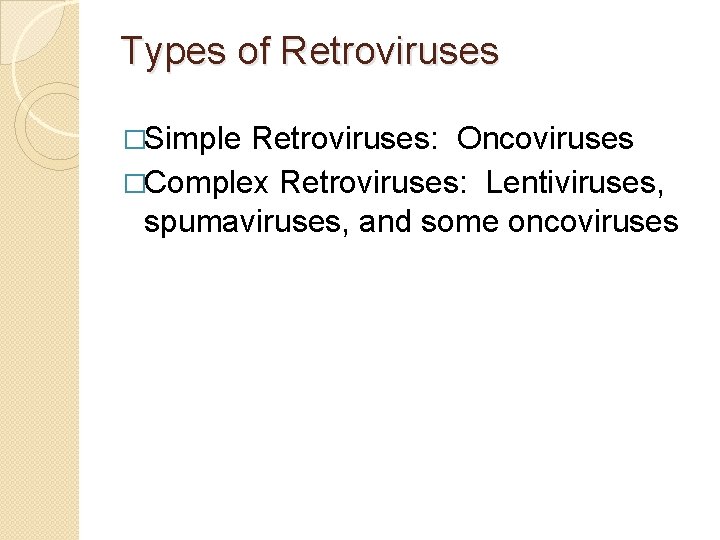

Types of Retroviruses �Simple Retroviruses: Oncoviruses �Complex Retroviruses: Lentiviruses, spumaviruses, and some oncoviruses

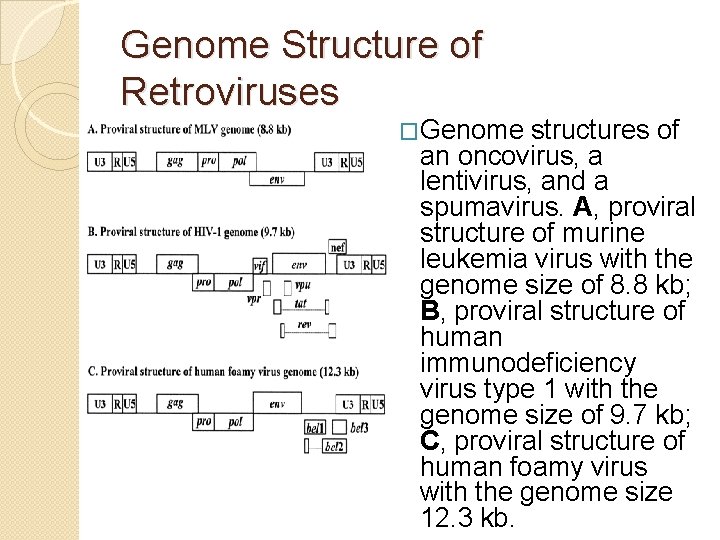

Genome Structure of Retroviruses �Genome structures of an oncovirus, a lentivirus, and a spumavirus. A, proviral structure of murine leukemia virus with the genome size of 8. 8 kb; B, proviral structure of human immunodeficiency virus type 1 with the genome size of 9. 7 kb; C, proviral structure of human foamy virus with the genome size 12. 3 kb.

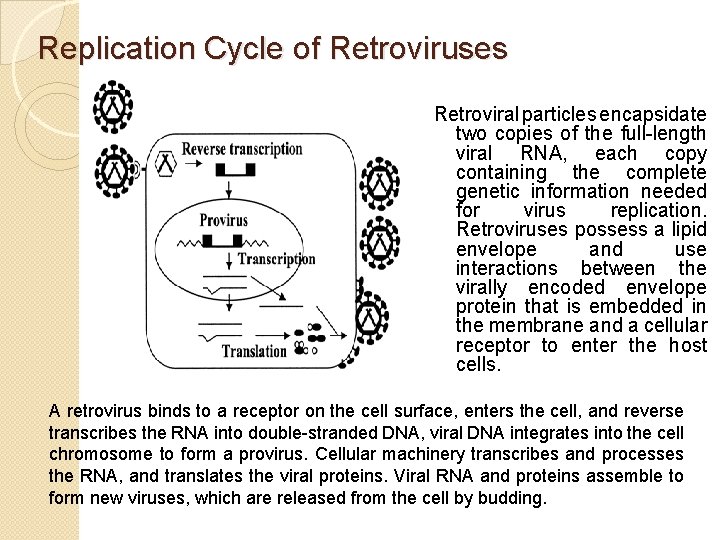

Replication Cycle of Retroviruses Retroviral particles encapsidate two copies of the full-length viral RNA, each copy containing the complete genetic information needed for virus replication. Retroviruses possess a lipid envelope and use interactions between the virally encoded envelope protein that is embedded in the membrane and a cellular receptor to enter the host cells. A retrovirus binds to a receptor on the cell surface, enters the cell, and reverse transcribes the RNA into double-stranded DNA, viral DNA integrates into the cell chromosome to form a provirus. Cellular machinery transcribes and processes the RNA, and translates the viral proteins. Viral RNA and proteins assemble to form new viruses, which are released from the cell by budding.

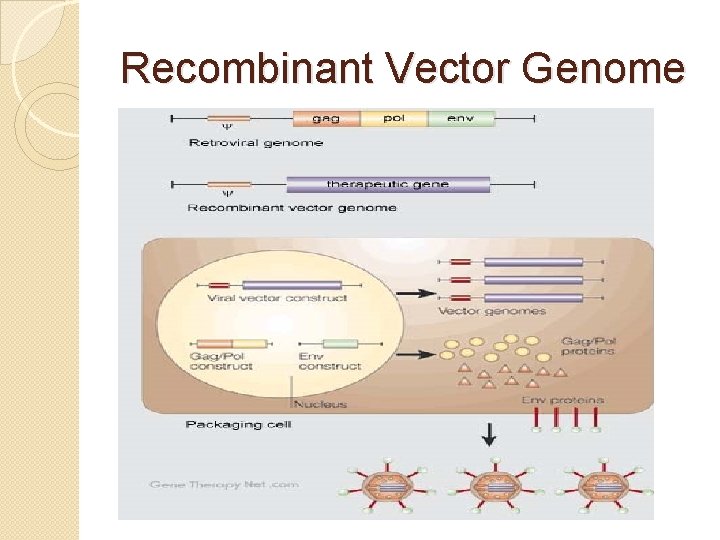

Recombinant Vector Genome

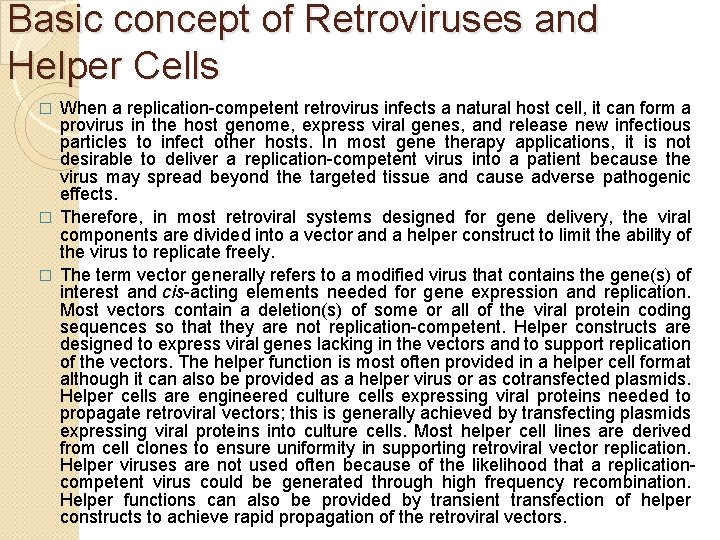

Basic concept of Retroviruses and Helper Cells When a replication-competent retrovirus infects a natural host cell, it can form a provirus in the host genome, express viral genes, and release new infectious particles to infect other hosts. In most gene therapy applications, it is not desirable to deliver a replication-competent virus into a patient because the virus may spread beyond the targeted tissue and cause adverse pathogenic effects. � Therefore, in most retroviral systems designed for gene delivery, the viral components are divided into a vector and a helper construct to limit the ability of the virus to replicate freely. � The term vector generally refers to a modified virus that contains the gene(s) of interest and cis-acting elements needed for gene expression and replication. Most vectors contain a deletion(s) of some or all of the viral protein coding sequences so that they are not replication-competent. Helper constructs are designed to express viral genes lacking in the vectors and to support replication of the vectors. The helper function is most often provided in a helper cell format although it can also be provided as a helper virus or as cotransfected plasmids. Helper cells are engineered culture cells expressing viral proteins needed to propagate retroviral vectors; this is generally achieved by transfecting plasmids expressing viral proteins into culture cells. Most helper cell lines are derived from cell clones to ensure uniformity in supporting retroviral vector replication. Helper viruses are not used often because of the likelihood that a replicationcompetent virus could be generated through high frequency recombination. Helper functions can also be provided by transient transfection of helper constructs to achieve rapid propagation of the retroviral vectors. �

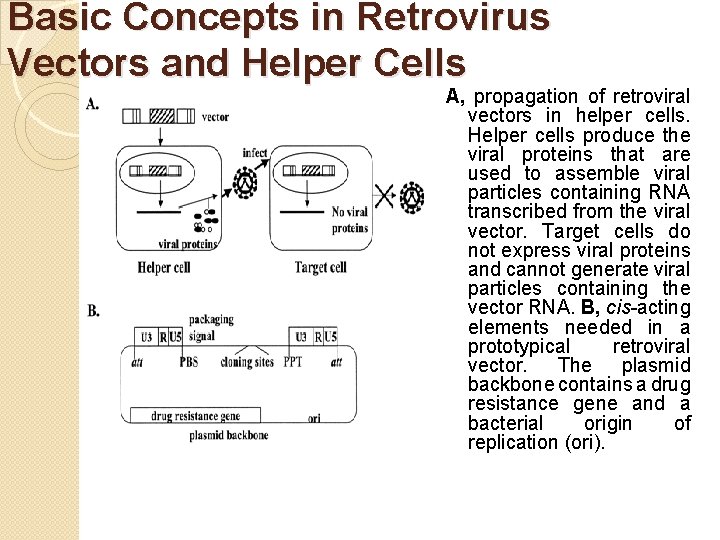

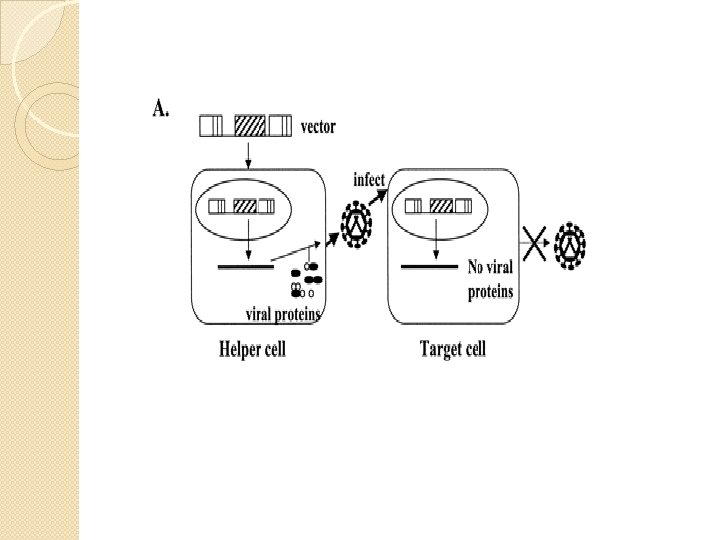

Basic Concepts in Retrovirus Vectors and Helper Cells A, propagation of retroviral vectors in helper cells. Helper cells produce the viral proteins that are used to assemble viral particles containing RNA transcribed from the viral vector. Target cells do not express viral proteins and cannot generate viral particles containing the vector RNA. B, cis-acting elements needed in a prototypical retroviral vector. The plasmid backbone contains a drug resistance gene and a bacterial origin of replication (ori).

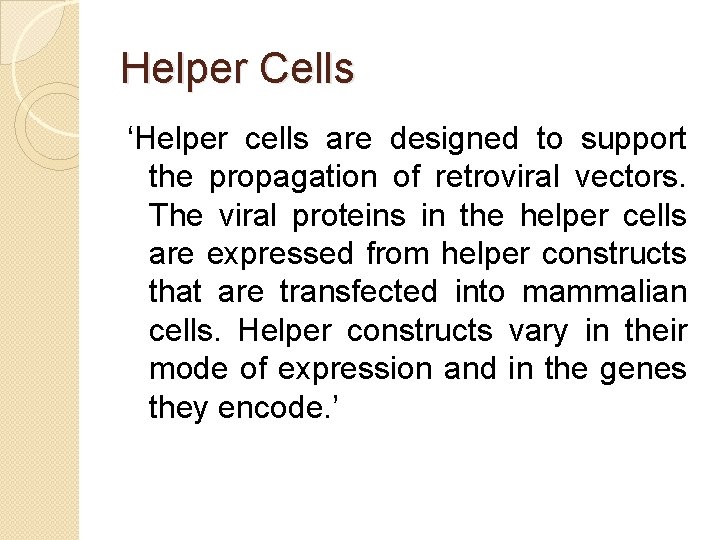

Helper Cells ‘Helper cells are designed to support the propagation of retroviral vectors. The viral proteins in the helper cells are expressed from helper constructs that are transfected into mammalian cells. Helper constructs vary in their mode of expression and in the genes they encode. ’

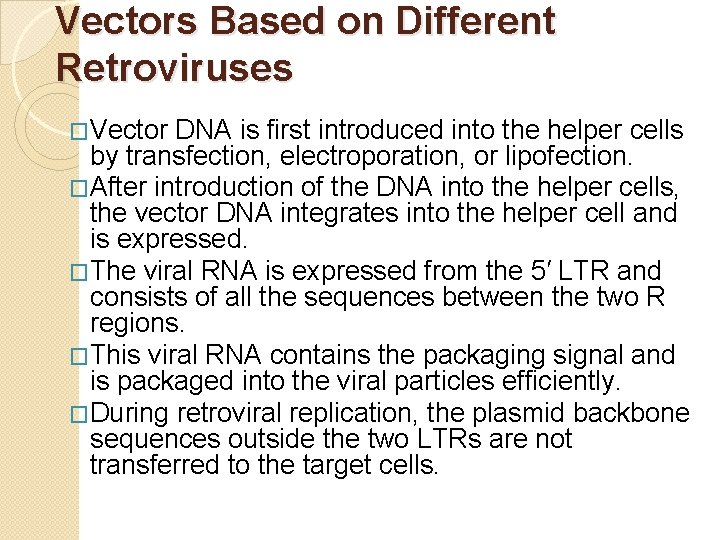

Vectors Based on Different Retroviruses �Vector DNA is first introduced into the helper cells by transfection, electroporation, or lipofection. �After introduction of the DNA into the helper cells, the vector DNA integrates into the helper cell and is expressed. �The viral RNA is expressed from the 5′ LTR and consists of all the sequences between the two R regions. �This viral RNA contains the packaging signal and is packaged into the viral particles efficiently. �During retroviral replication, the plasmid backbone sequences outside the two LTRs are not transferred to the target cells.

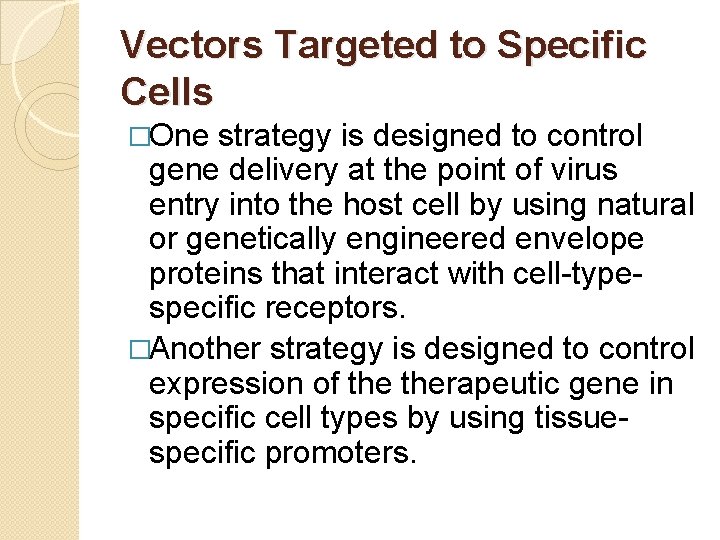

Vectors Targeted to Specific Cells �One strategy is designed to control gene delivery at the point of virus entry into the host cell by using natural or genetically engineered envelope proteins that interact with cell-typespecific receptors. �Another strategy is designed to control expression of therapeutic gene in specific cell types by using tissuespecific promoters.

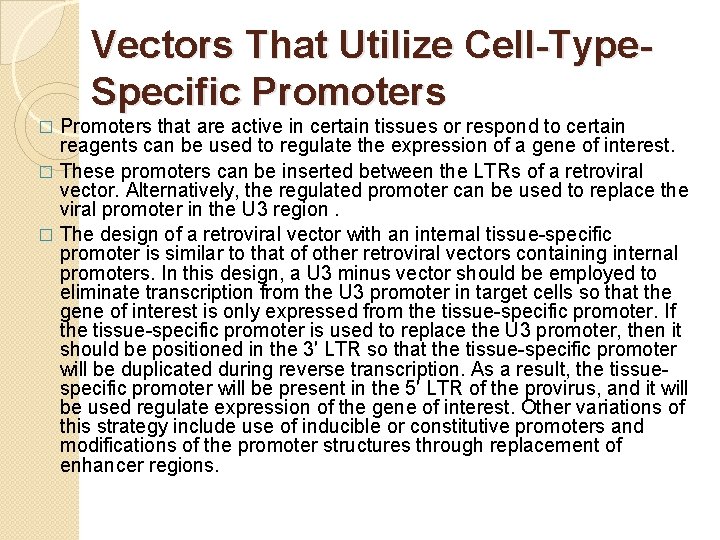

Vectors That Utilize Cell-Type. Specific Promoters that are active in certain tissues or respond to certain reagents can be used to regulate the expression of a gene of interest. � These promoters can be inserted between the LTRs of a retroviral vector. Alternatively, the regulated promoter can be used to replace the viral promoter in the U 3 region. � The design of a retroviral vector with an internal tissue-specific promoter is similar to that of other retroviral vectors containing internal promoters. In this design, a U 3 minus vector should be employed to eliminate transcription from the U 3 promoter in target cells so that the gene of interest is only expressed from the tissue-specific promoter. If the tissue-specific promoter is used to replace the U 3 promoter, then it should be positioned in the 3′ LTR so that the tissue-specific promoter will be duplicated during reverse transcription. As a result, the tissuespecific promoter will be present in the 5′ LTR of the provirus, and it will be used regulate expression of the gene of interest. Other variations of this strategy include use of inducible or constitutive promoters and modifications of the promoter structures through replacement of enhancer regions. �

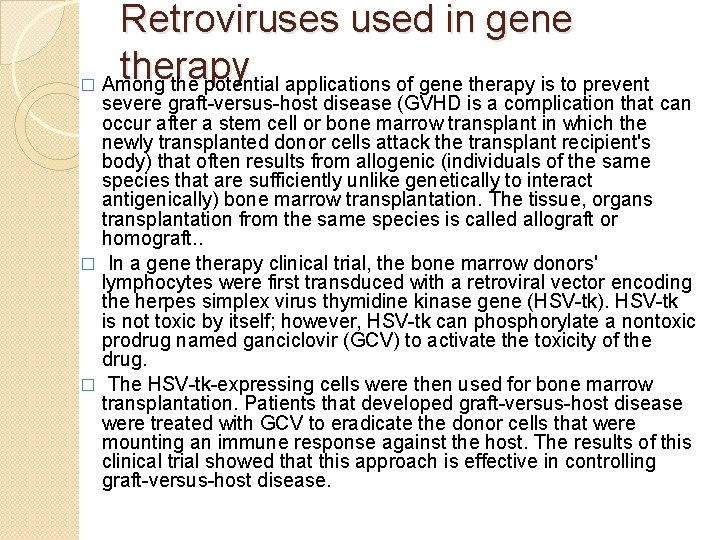

Retroviruses used in gene therapy � Among the potential applications of gene therapy is to prevent severe graft-versus-host disease (GVHD is a complication that can occur after a stem cell or bone marrow transplant in which the newly transplanted donor cells attack the transplant recipient's body) that often results from allogenic (individuals of the same species that are sufficiently unlike genetically to interact antigenically) bone marrow transplantation. The tissue, organs transplantation from the same species is called allograft or homograft. . � In a gene therapy clinical trial, the bone marrow donors' lymphocytes were first transduced with a retroviral vector encoding the herpes simplex virus thymidine kinase gene (HSV-tk). HSV-tk is not toxic by itself; however, HSV-tk can phosphorylate a nontoxic prodrug named ganciclovir (GCV) to activate the toxicity of the drug. � The HSV-tk-expressing cells were then used for bone marrow transplantation. Patients that developed graft-versus-host disease were treated with GCV to eradicate the donor cells that were mounting an immune response against the host. The results of this clinical trial showed that this approach is effective in controlling graft-versus-host disease.

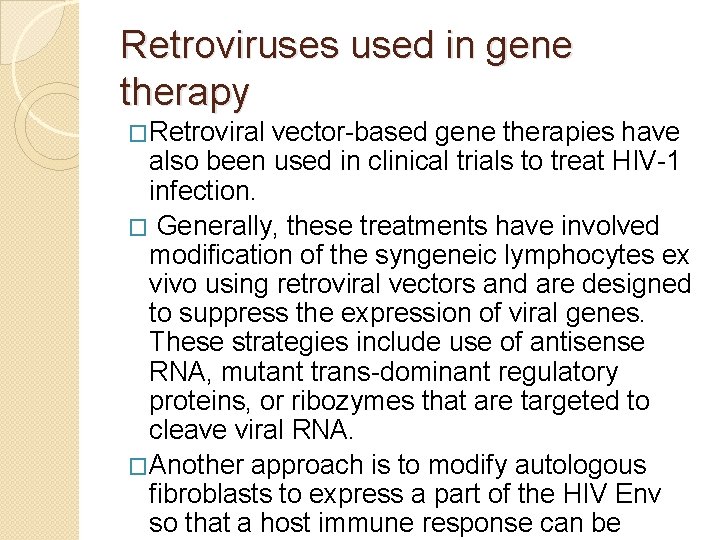

Retroviruses used in gene therapy �Retroviral vector-based gene therapies have also been used in clinical trials to treat HIV-1 infection. � Generally, these treatments have involved modification of the syngeneic lymphocytes ex vivo using retroviral vectors and are designed to suppress the expression of viral genes. These strategies include use of antisense RNA, mutant trans-dominant regulatory proteins, or ribozymes that are targeted to cleave viral RNA. �Another approach is to modify autologous fibroblasts to express a part of the HIV Env so that a host immune response can be

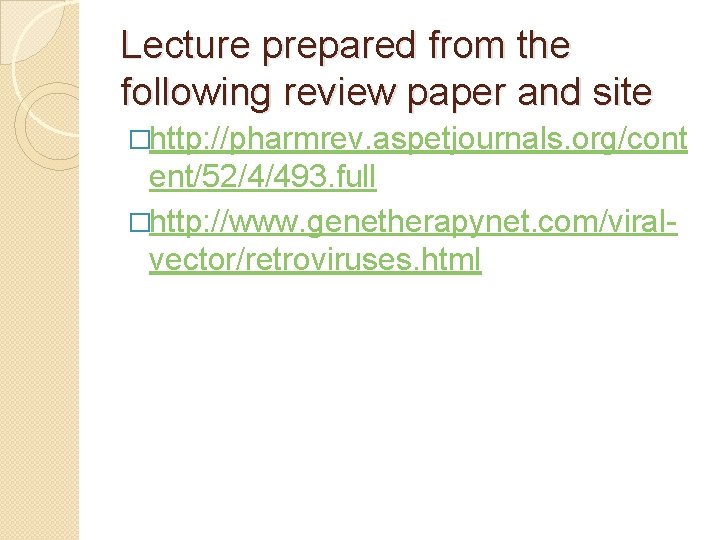

Lecture prepared from the following review paper and site �http: //pharmrev. aspetjournals. org/cont ent/52/4/493. full �http: //www. genetherapynet. com/viralvector/retroviruses. html
