Gene reporter Watson et al BIOLOGIA MOLECOLARE DEL
Gene reporter
Watson et al. , BIOLOGIA MOLECOLARE DEL GENE, Zanichelli editore S. p. A. Copyright © 2005
I promotori eucariotici sono costituiti da una associazione variabile di “box” -140 -120 -100 -80 -60 SV 40 (promotore precoce) Timidina kinasi Istone H 2 B Ottamero CAAT GC -40 -20 1 10
Attivatori costitutivi Modulo Attivatore DNA occupato Consenso Distribuzione CAAT box CTF/NF 1 22 bp GGCCAATCT ubiquitaria GC box SP 1 20 bp GGGCGG ubiquitaria Ottamero Oct-1 20 bp ATTGCAT ubiquitaria Ottamero Oct-2 23 bp ATTGCAT linfoidi k. B NFk. B 10 bp GGGACTTTCC ubiquitaria ATF 20 bp GTGACGT ubiquitaria
Attivatori inducibili e elementi di risposta Agente regolatore Elemento di risposta Consenso Fattore Dimensioni (dalton) Shock termico HSE CNNGCCNNTCCNNG HSTF 93. 000 Glucocorticoidi GRE TGGTACAAATGTTCT GR 94. 000 Cadmio MRE CGNCCCGGNCNC TPA TRE TGACTCA AP 1 39. 000 Siero SRE CCATATTAGG SRF 52. 000
Esempio di promotore
Watson et al. , BIOLOGIA MOLECOLARE DEL GENE, Zanichelli editore S. p. A. Copyright © 2005
Watson et al. , BIOLOGIA MOLECOLARE DEL GENE, Zanichelli editore S. p. A. Copyright © 2005

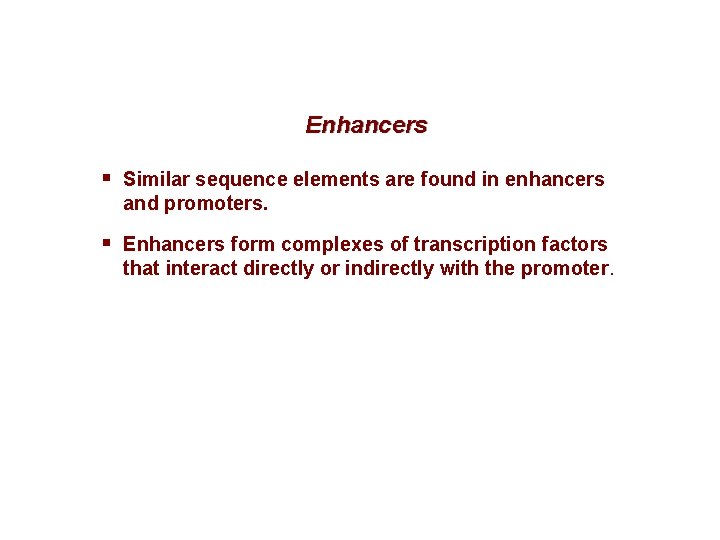

Enhancers § Similar sequence elements are found in enhancers and promoters. § Enhancers form complexes of transcription factors that interact directly or indirectly with the promoter.

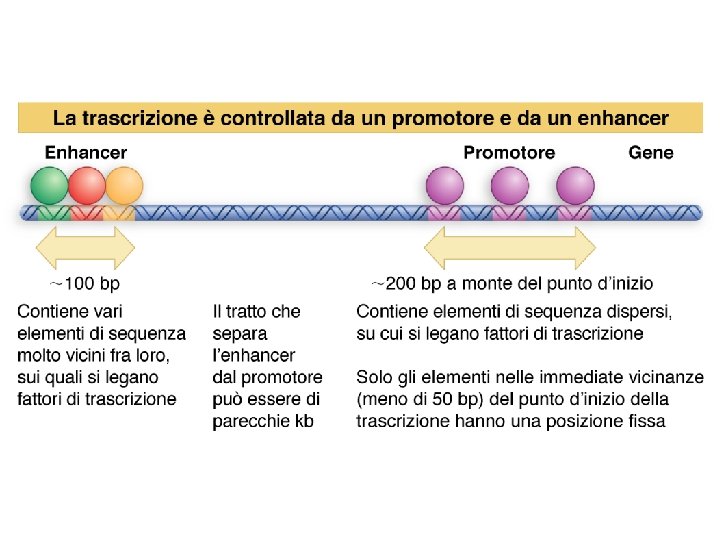

Funzionamento degli enhancer
Funzionamento degli enhancer
L’enhancer può funzionare in trans

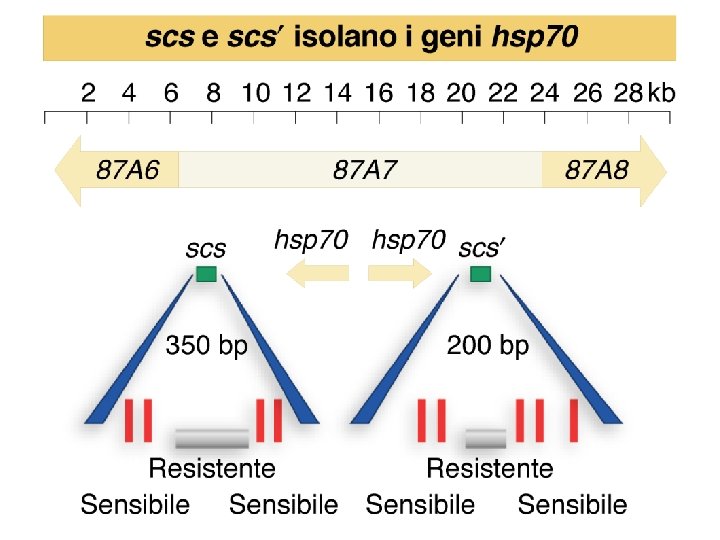

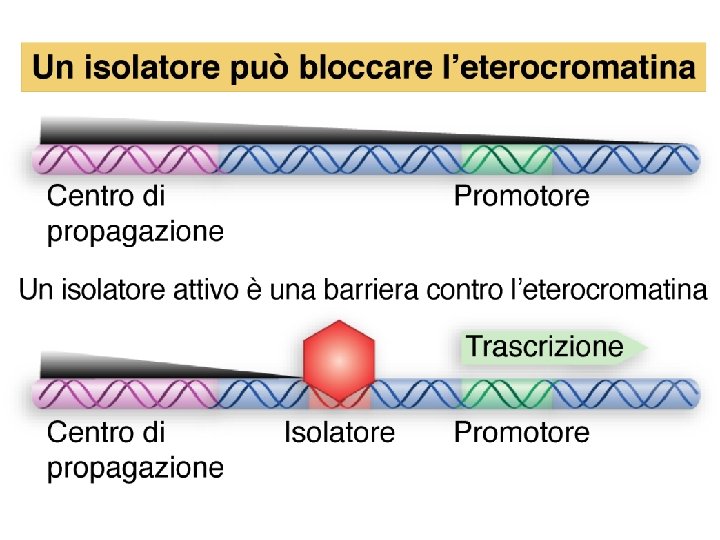

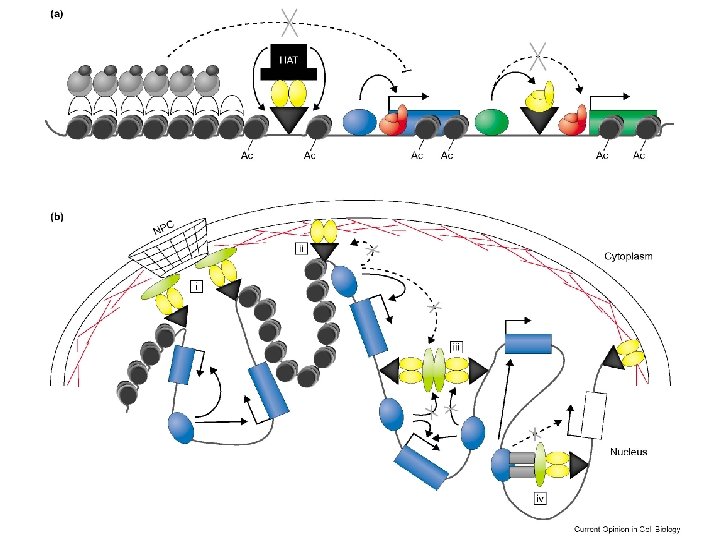

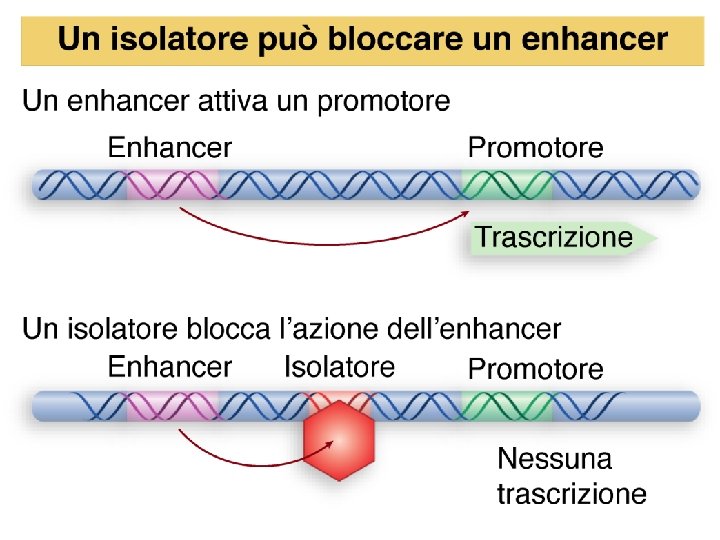

Ruolo degli Isolatori
Watson et al. , BIOLOGIA MOLECOLARE DEL GENE, Zanichelli editore S. p. A. Copyright © 2005
Watson et al. , BIOLOGIA MOLECOLARE DEL GENE, Zanichelli editore S. p. A. Copyright © 2005
LCR and insulators § An LCR is located at the 5' end of the domain and consists of several hypersensitive sites. § Insulators are specialized chromatin structures that have hypersensitive sites. § All known insulators are able to block passage of any activating or inactivating effects from enhancers, silencers, or LCRs. § In some cases, insulators have directionality, and may stop passage of effects in one direction but not the other.
Fattori di trascrizione negli eucarioti (trans-acting factors = fattori che agiscono in trans ) Possono essere distinti in: - Fattori generali - Fattori specifici (attivatori)

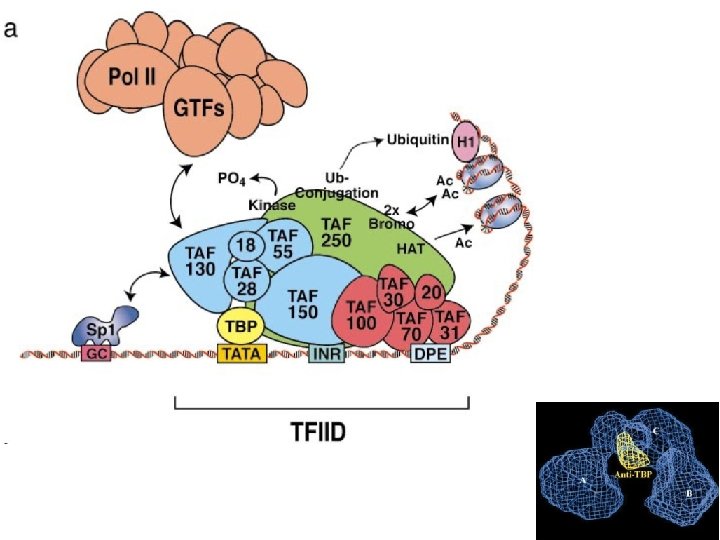

Complesso di inizio su un promotore Pol II 1 TBP + vari TAF -5 0 -4 0 -3 0 -2 0 TATA TFII D TATA TFII B TFIIF Pol II TFII E Pol -1 0 1 10 20
Watson et al. , BIOLOGIA MOLECOLARE DEL GENE, Zanichelli editore S. p. A. Copyright © 2005
Lewin, IL GENE VIII, Zanichelli editore S. p. A. Copyright © 2006
Attivazione della trascrizione
Complessi basali delle RNA polimerasi eucariotiche

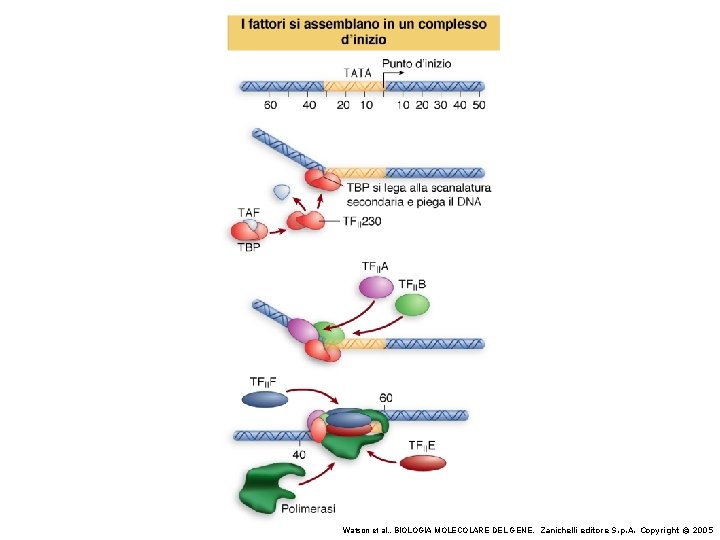

Initiation at pol II promoters ¨ Binding of TFIID to the TATA box is the first step in initiation. ¨ Other transcription factors bind to the complex in a defined order, extending the length of the protected region on DNA. ¨ When RNA polymerase II binds to the complex, it initiates transcription.
Later events of pol II initiation ¨ TFIIE and TFIIH are required to melt DNA to allow polymerase movement. ¨ Phosphorylation of the CTD may be required for elongation to begin. ¨ Further phosphorylation of the CTD is required at some promoters to end abortive initiation. ¨ The CTD may coordinate processing of RNA with transcription.
Fattori di trascrizione negli eucarioti (trans-acting factors = fattori che agiscono in trans ) Possono essere distinti in: - Fattori generali - Fattori specifici (attivatori)
Struttura“modulare” degli attivatori trascrizionali • legame al DNA • transattivazione • dimerizzazione • legame al ligando
Strategia per lo studio degli attivatori
Struttura degli attivatori
Domini (moduli) degli attivatori

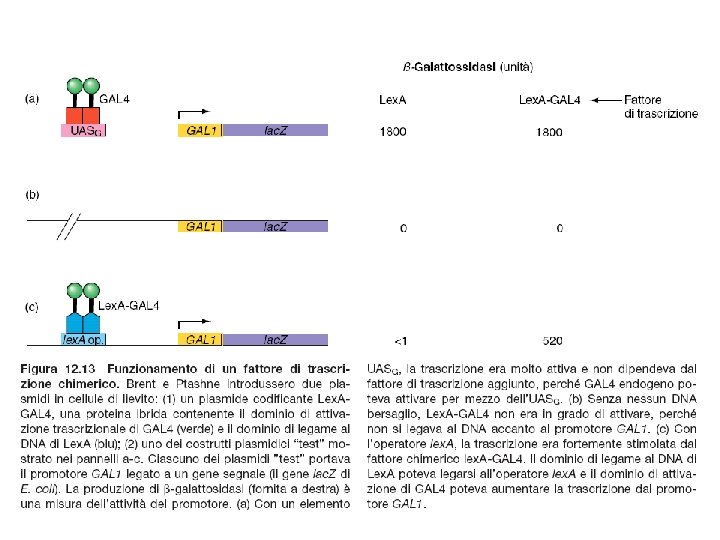

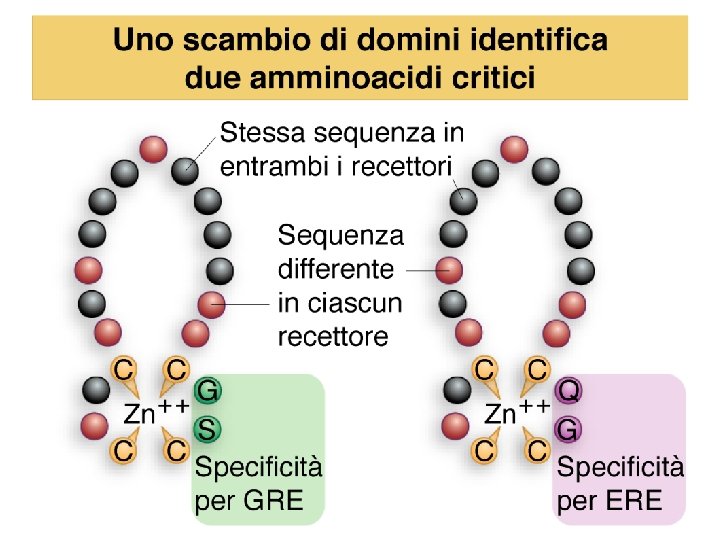

Scambio di domini (attivatori chimerici)
Scambio di domini N h. GR h. ER Recettore “chimera” modulatore DNA ligando C
Combinazioni di omodimeri ed eterodimeri
Domini di dimerizzazione
Domini di attivazione • Domini acidici: es. GAL 4 • Domini ricchi di glutammine: es. Sp 1 • Domini ricchi di proline: es. CTF
Famiglie di fattori di trascrizione • Domini a zinco • Omeodominio (elica-giro-elica) HTH • Elica-ansa-elica HLH • Cerniera di leucina
Coattivatori della trascrizione
Coattivatori della trascrizione

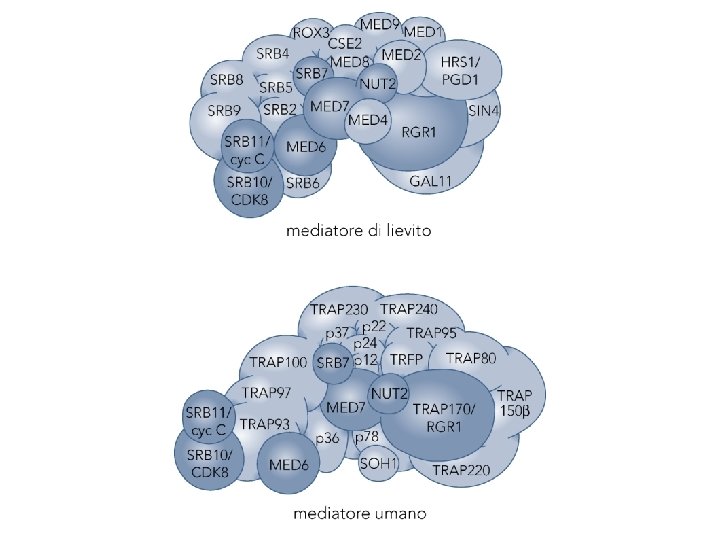

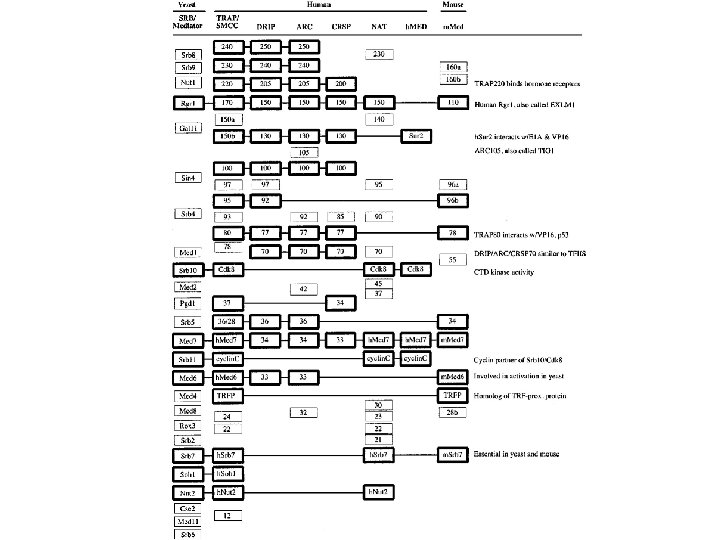

Complesso del mediatore Watson et al. , BIOLOGIA MOLECOLARE DEL GENE, Zanichelli editore S. p. A. Copyright © 2005
Complesso d’inizio di pol II
Modelli dell'oloenzima
RNA pol II holoenzyme ¨ Includes pol II, GTFs, Srb/Mediator complex ¨ Exists in more than one form ¨ Can initiate transcription and respond to activators
Regolazione negativa

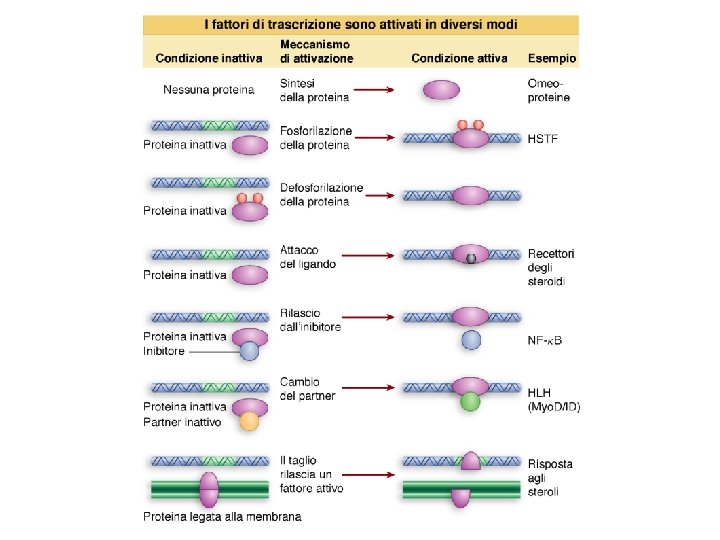

Regolazione degli attivatori

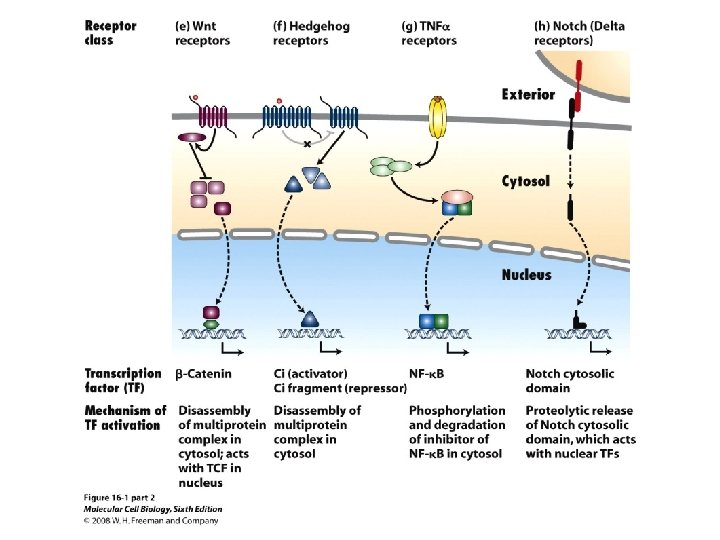

Trasduzione del segnale dalla membrana al nucleo
Le vie delle MAP chinasi
Trasduzione del segnale dalla membrana al nucleo
