Gene Annotation & Gene Ontology May 28, 2020
Gene lists from RNAseq analysis What do you do with a list of 100 s of genes that contain only the following information? • Gene name or symbol • Ratio between groups (UP or DOWN) • One or more database IDs (accession numbers) How do you figure out the role of the genes in the model you are studying?
Gene annotation Process of assigning descriptions to a transcript or gene product. Includes: – Official gene symbol & name – Protein features: domains, functional elements such as nuclear localization signals – Predicted molecular function, biological process and cellular location – Experimentally derived information function, process and cellular location – References –. .

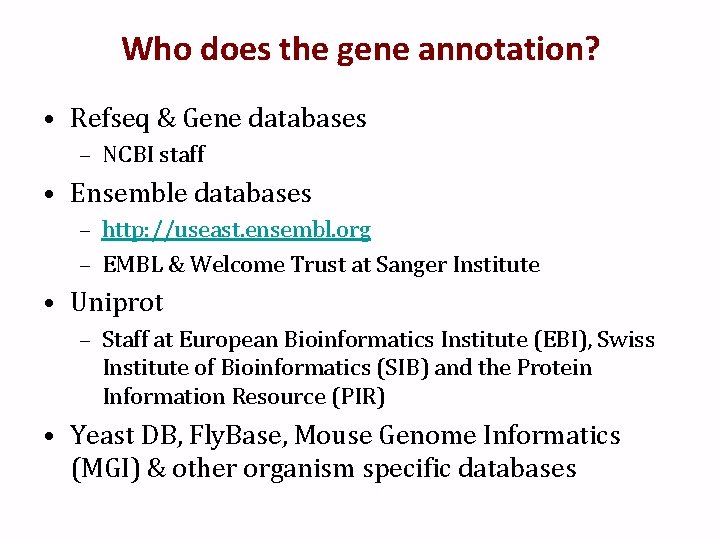

Who does the gene annotation? • Refseq & Gene databases – NCBI staff • Ensemble databases – http: //useast. ensembl. org – EMBL & Welcome Trust at Sanger Institute • Uniprot – Staff at European Bioinformatics Institute (EBI), Swiss Institute of Bioinformatics (SIB) and the Protein Information Resource (PIR) • Yeast DB, Fly. Base, Mouse Genome Informatics (MGI) & other organism specific databases
Gene record for BEST 1
Ensembl Gene record for BEST 1
Uniprot record for BEST 1

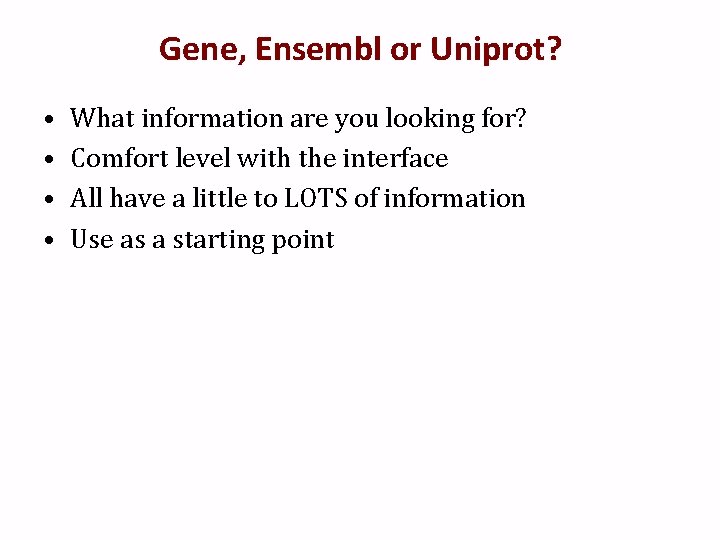

Gene, Ensembl or Uniprot? • • What information are you looking for? Comfort level with the interface All have a little to LOTS of information Use as a starting point

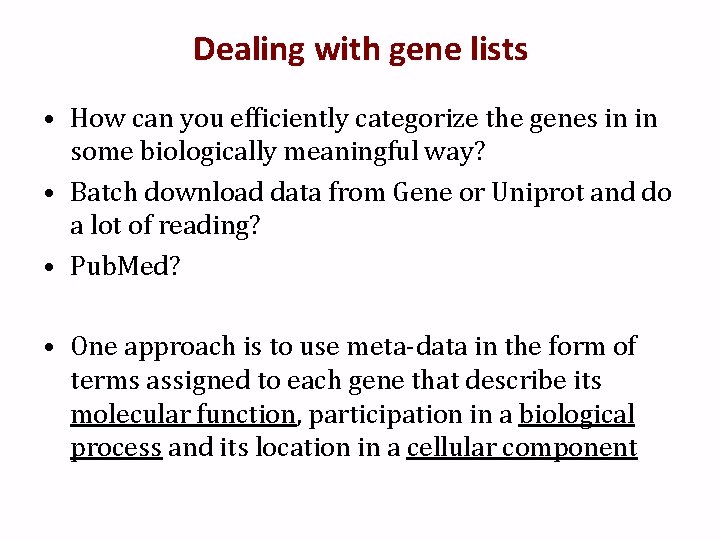

Dealing with gene lists • How can you efficiently categorize the genes in in some biologically meaningful way? • Batch download data from Gene or Uniprot and do a lot of reading? • Pub. Med? • One approach is to use meta-data in the form of terms assigned to each gene that describe its molecular function, participation in a biological process and its location in a cellular component
Gene Ontology • Set of standard biological phrases (terms) which are applied to genes/proteins: – protein kinase – apoptosis – Membrane • Standardize the representation of gene product attributes across species and databases • Maintained by Gene Ontology consortium – http: //geneontology. org/ – Individual groups contribute taxonomic specific terms

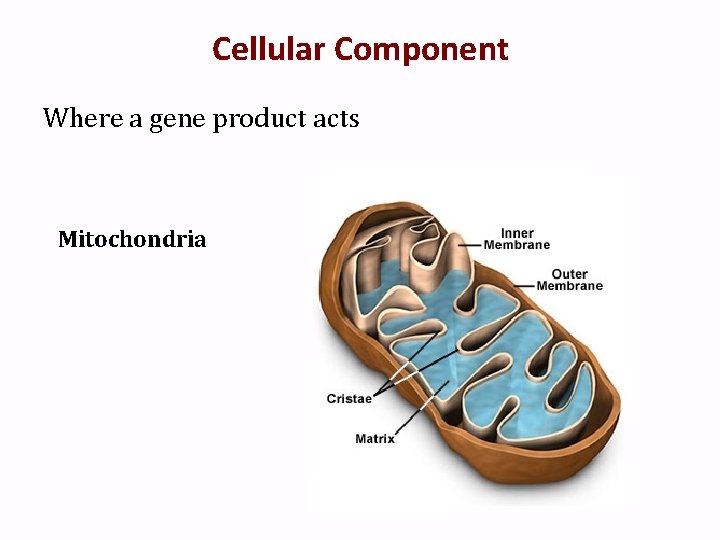

Cellular Component Where a gene product acts Mitochondria
Cellular Component Cellular components not all same between organisms
Cellular Component Ribosome Enzyme complexes in the component ontology refer to places, not activities.

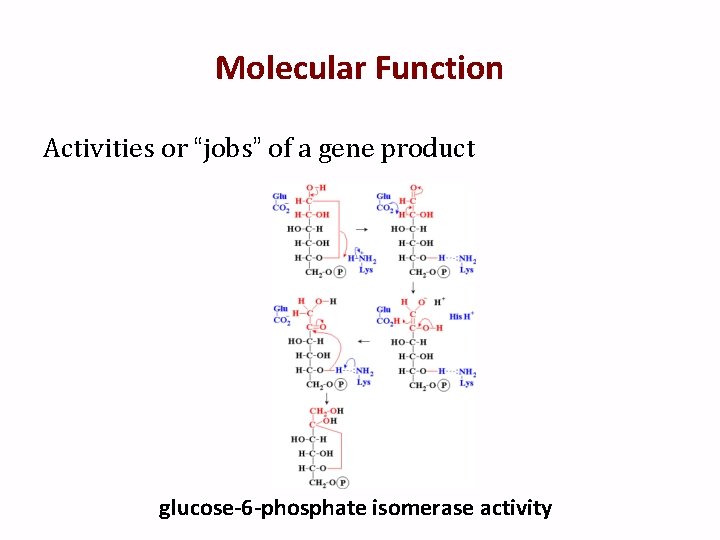

Molecular Function Activities or “jobs” of a gene product glucose-6 -phosphate isomerase activity
Molecular Function insulin binding insulin receptor activity
Molecular Function • A gene product may have several functions • Sets of functions make up a biological process.

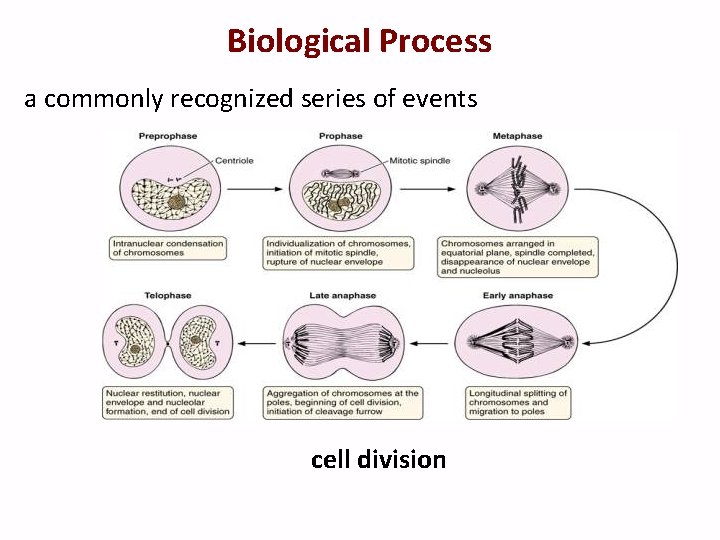

Biological Process a commonly recognized series of events cell division
Biological Process transcription

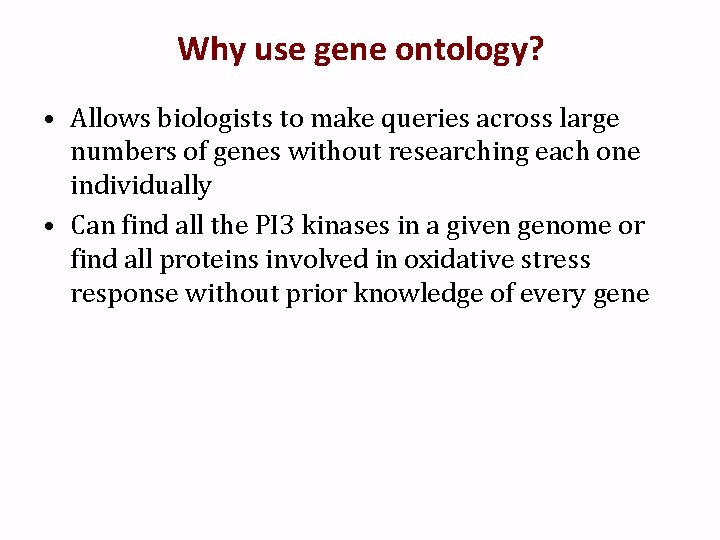

Why use gene ontology? • Allows biologists to make queries across large numbers of genes without researching each one individually • Can find all the PI 3 kinases in a given genome or find all proteins involved in oxidative stress response without prior knowledge of every gene
Gene Ontology for analysis • Biological process terms are more useful for putting gene lists into a context • More GO terms assigned to process than to function or component • Fewest terms assigned to component • Function in the absence of any process information can imply a biological role – i. e. you are looking for transcription factors responsible for some response Ontology annotation is NOT complete
GO terms Each concept has: • a name • an ID number • a definition term: transcription initiation id: GO: 0006352 definition: Processes involved in the assembly of the RNA polymerase complex at the promoter region of a DNA template resulting in the subsequent synthesis of RNA from that promoter.
GO structure Nucleic acid binding is a type of binding. • GO isn’t just a flat list of biological terms • terms are related within a hierarchy DNA binding is a type of nucleic acid binding. is_a

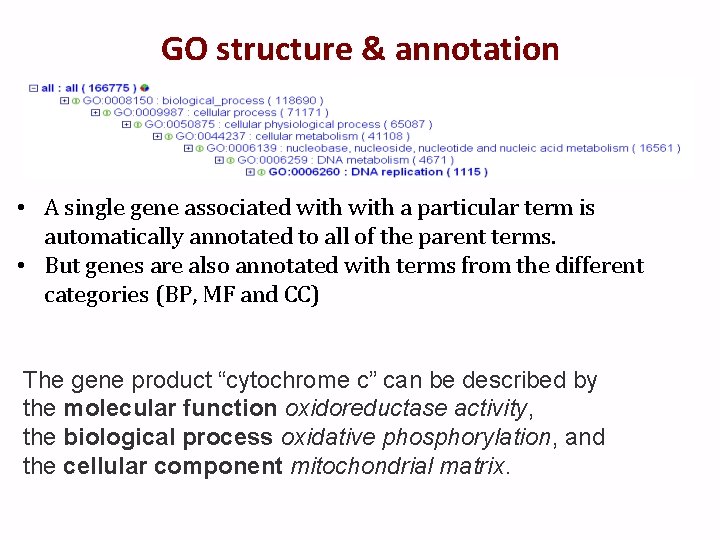

GO structure & annotation • A single gene associated with a particular term is automatically annotated to all of the parent terms. • But genes are also annotated with terms from the different categories (BP, MF and CC) The gene product “cytochrome c” can be described by the molecular function oxidoreductase activity, the biological process oxidative phosphorylation, and the cellular component mitochondrial matrix.
GO structure • This hierarchichal structure means genes can be grouped according to user-defined levels • Allows broad overview of gene set or genome • You can use the level of granularity that makes most sense Different enrichment tools may use a different level of GO hierarchy in their analyses, resulting a different number of statistically enriched terms

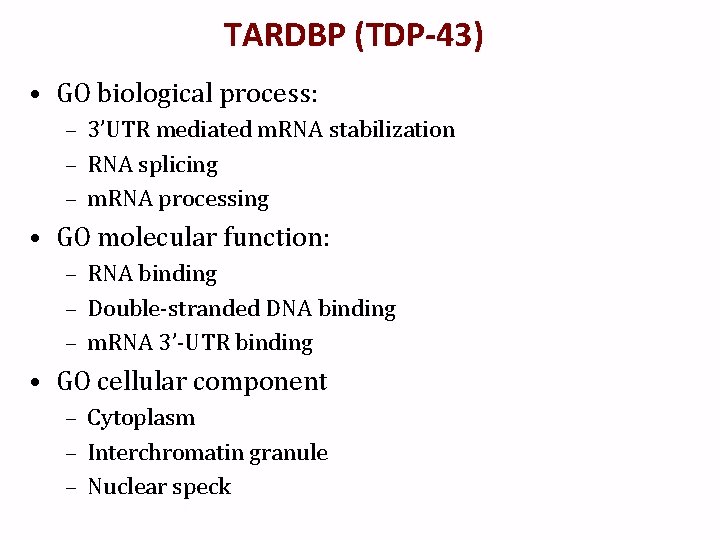

TARDBP (TDP-43) • GO biological process: – 3’UTR mediated m. RNA stabilization – RNA splicing – m. RNA processing • GO molecular function: – RNA binding – Double-stranded DNA binding – m. RNA 3’-UTR binding • GO cellular component – Cytoplasm – Interchromatin granule – Nuclear speck
GO terms assigned to TARDBP

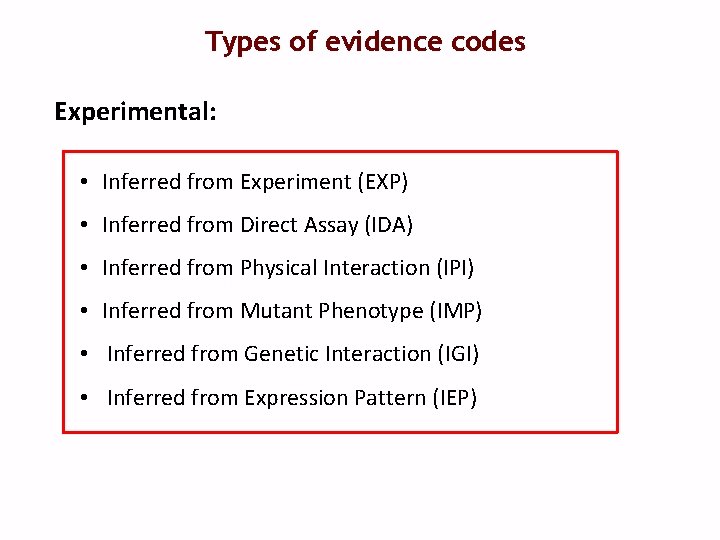

Types of evidence codes Experimental: • Inferred from Experiment (EXP) • Inferred from Direct Assay (IDA) • Inferred from Physical Interaction (IPI) • Inferred from Mutant Phenotype (IMP) • Inferred from Genetic Interaction (IGI) • Inferred from Expression Pattern (IEP)

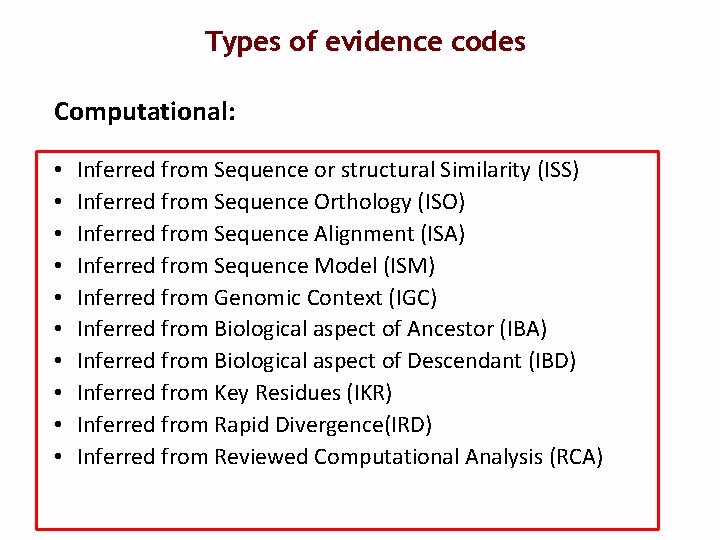

Types of evidence codes Computational: • • • Inferred from Sequence or structural Similarity (ISS) Inferred from Sequence Orthology (ISO) Inferred from Sequence Alignment (ISA) Inferred from Sequence Model (ISM) Inferred from Genomic Context (IGC) Inferred from Biological aspect of Ancestor (IBA) Inferred from Biological aspect of Descendant (IBD) Inferred from Key Residues (IKR) Inferred from Rapid Divergence(IRD) Inferred from Reviewed Computational Analysis (RCA)
Types of evidence codes Other: Author Statement Evidence Codes • Traceable Author Statement (TAS) • Non-traceable Author Statement (NAS) Curator Statement Evidence Codes • Inferred by Curator (IC) • No biological Data available (ND) Automatically-assigned • Inferred from Electronic Annotation (IEA)
Manual annotation Molecular function In this study, we report the isolation and molecular characterization of the B. napus PERK 1 c. DNA, that is predicted to encode a novel receptor-like kinase. We have shown that like other plant RLKs, the kinase domain of PERK 1 has serine/threonine kinase activity, In addition, the location of a PERK 1 -GTP fusion protein to the plasma membrane supports the prediction that PERK 1 is an integral membrane protein…these kinases have been implicated in early stages of wound response… Biological process Cellular component
Electronic Annotation • Annotation derived without human validation – mappings file e. g. interpro 2 go, ec 2 go. – Blast search ‘hits’ • Lower ‘quality’ than manual codes • Used in non-model organisms • Define a similarity cut-off (E-value of 10 -25)
Quality of annotation varies by organism
GO & analysis of gene lists • www. geneontology. org – Maintains the databases of GO terms, serves a clearing house for terms as they are assigned in new organisms • Tools for exploring gene lists using GO: – Web. Gestalt, g. Profiler, Gorilla, Panther – DAVID is a suite of tools for gene enrichment analysis that also includes GO. – We’ll use both DAVID and Web. Gestalt to explore our gene list – DAVID does not reduce the redundancy of terms as well as Web. Gestalt does
Gene Ontology tools • Input a gene list • Shows which GO categories have most genes associated with them or are “enriched” elative to a defined background • Provides a statistical measure to determine whether enrichment is significant microarray 1000 genes experiment 100 genes differentially regulated mitosis – 80/100 apoptosis – 40/100 Cell proliferation – 30/100 glucose transport – 20/100

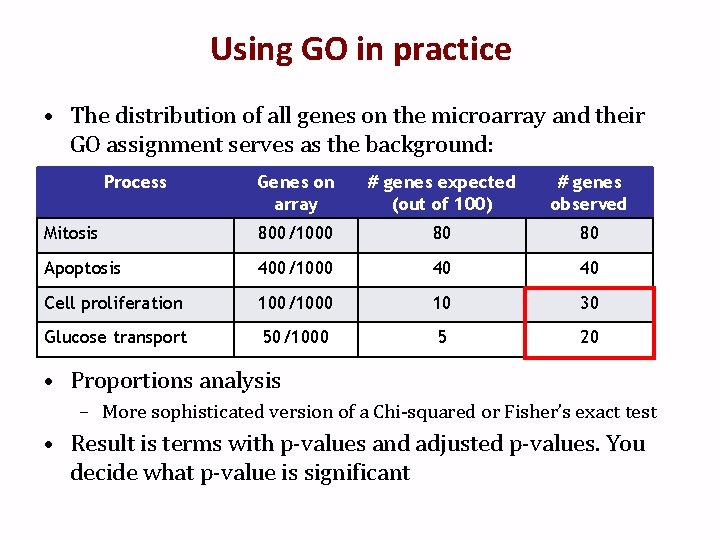

Using GO in practice • The distribution of all genes on the microarray and their GO assignment serves as the background: Process Genes on array # genes expected (out of 100) # genes observed Mitosis 800/1000 80 80 Apoptosis 400/1000 40 40 Cell proliferation 100/1000 10 30 Glucose transport 50/1000 5 20 • Proportions analysis – More sophisticated version of a Chi-squared or Fisher’s exact test • Result is terms with p-values and adjusted p-values. You decide what p-value is significant

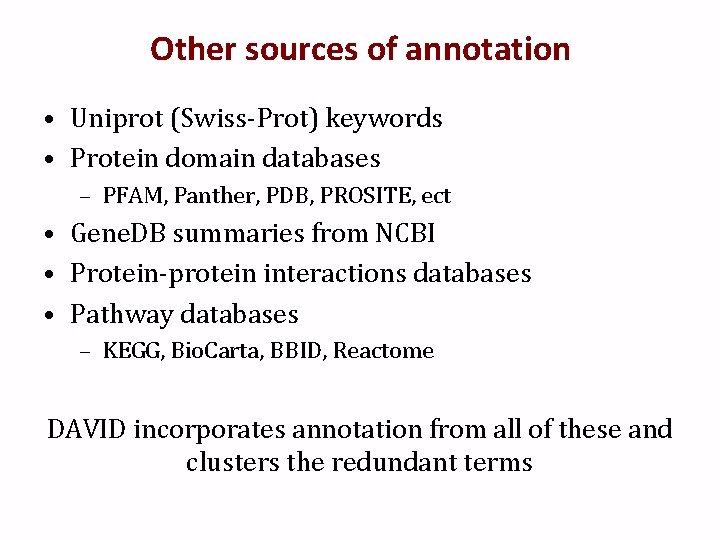

Other sources of annotation • Uniprot (Swiss-Prot) keywords • Protein domain databases – PFAM, Panther, PDB, PROSITE, ect • Gene. DB summaries from NCBI • Protein-protein interactions databases • Pathway databases – KEGG, Bio. Carta, BBID, Reactome DAVID incorporates annotation from all of these and clusters the redundant terms
Today in computer lab • Tutorial on using DAVID & Web. Gestalt • Analysis of gene lists using DAVID and Web. Gestalt and comparing the results from the two different tools
