GE 0 -3112 Sedimentary processes and products Lecture 5. Alluvial fans and fan deltas Geoff Corner Department of Geology University of Tromsø 2006 Literature: - Leeder 1999. Ch. 18 Alluvial fans and fan deltas.

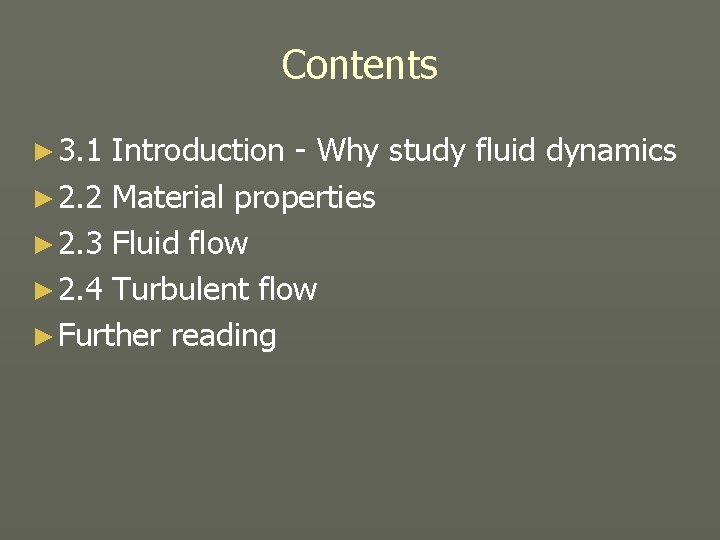

Contents ► 3. 1 Introduction - Why study fluid dynamics ► 2. 2 Material properties ► 2. 3 Fluid flow ► 2. 4 Turbulent flow ► Further reading
Importance of terrestrial fan deposits Basin –margin fault patterns controlling alluvial fan deposition ► Fans common in different tectonic settings: § § § extensional terranes. forelands (compressional). pull-apart basins. Postglacial fans common in mountain regions. ► Thick ancient fan deposits, e. g: ► § Devonian, Hornelen Basin, Norway. § Jurassic Greenland. ► Economic resources: § placer gold in E. Precambian alluvial fan systems of Witwatersrand Supergroup, Africa. § petroleum in some fan deltas. Devonian alluvial fan sandstones, Hornelen Basin, W. Norway S.
Nomenclature ► Colluvial ► Alluvial ► Fluvial ► Glaciofluvial § dominated by mass-movement processes. § E. g. talus cones, avalanche boulder tongues, debris-flow fans. § dominated by ephemeral and/or permanent streams. § NB. alluvial fans may comprise both mass-movement (debris-flow) and streamflow deposits. § same as alluvial. § Substantial part of the streamflow discharge derives from glaciers. Colluvial Alluvial fan Colluvial-alluvial-deltaic system Alluvial or fluvial Deltaic
Spectrum of fan deposits Fan deposits have fan shape. Coalesced fans are aprons or bajadas. ► Deposition occurs: ► ► § at foot of slope (gradient change). § through loss of flow momentum or: § through loss of flow volume due to infiltration/evaporation. § NB. A fan deposited in standing water is a delta Spectrum of 'dry' to 'wet' systems. Spectrum of unconfined (fan) to confined (valley) deposits. ► Fans deposited in standing water are fan deltas. ► ►

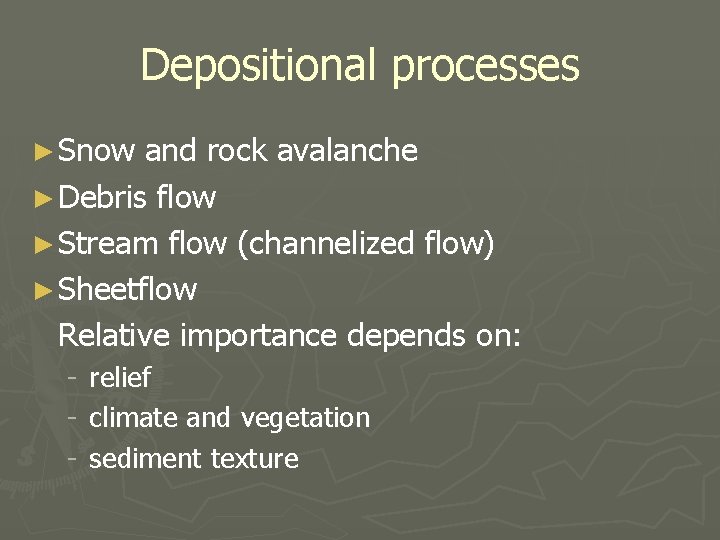

Depositional processes ► Snow and rock avalanche ► Debris flow ► Stream flow (channelized flow) ► Sheetflow Relative importance depends on: - relief climate and vegetation sediment texture
Fan types ► Colluvial fans ► Alluvial fans ► ’Fan deltas’
Depositional processes ► Snow and rock avalanche Snow-avalancge and rockfall talus, Lyngen, N. Norway.
Talus cones ► ► ► Rock fall processes. Linear profile. Distal coarsening. Talus cones with bouldery rockavalanche debris, Varanger, N. Norway.

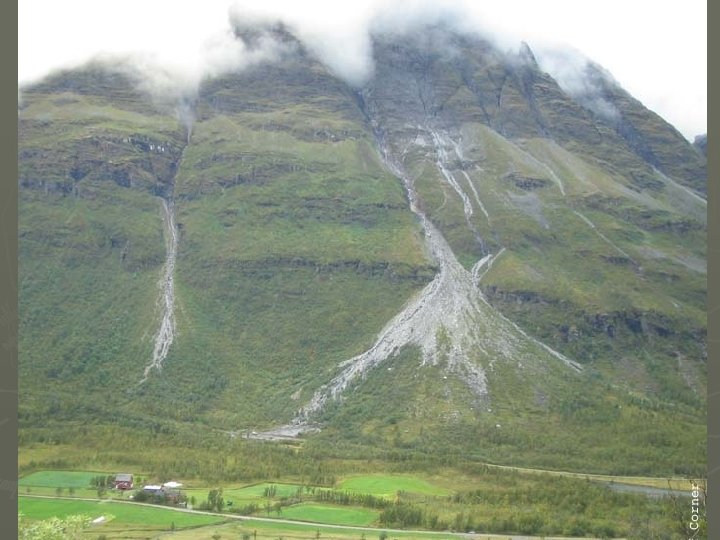

Avalanche talus cones ► ► Snow and rock avalanche. Concave profile. Talus cones and snow-avalanche boulder tongues at Tytebærdalen, Lyngen.

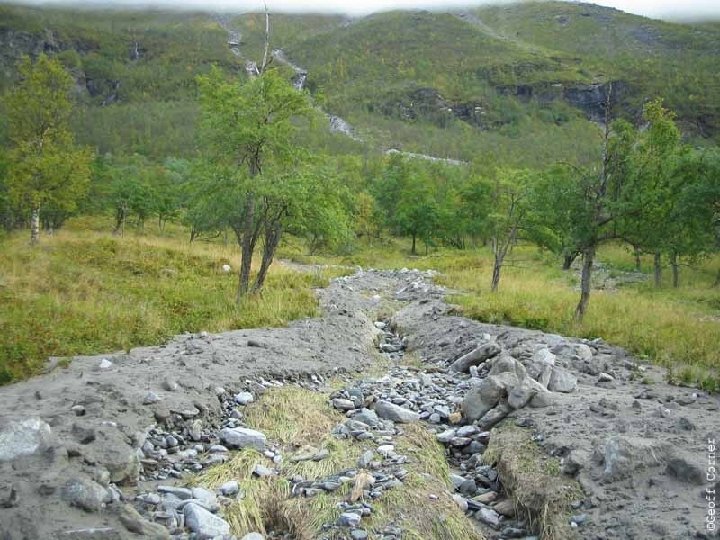

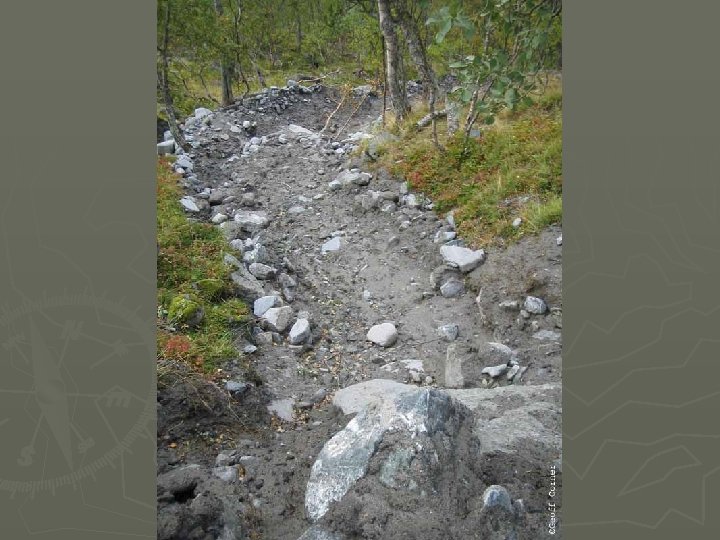

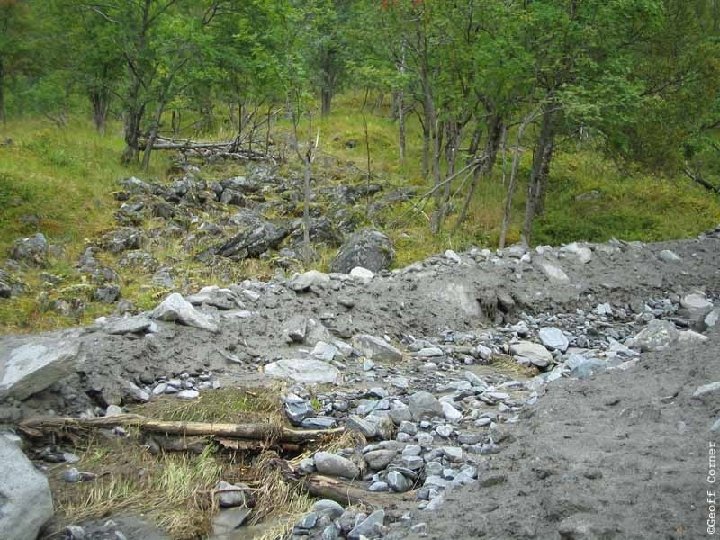

Colluvial cones ► ► ► Rock fall, snow-avalanche and debris-flows. Concave profile. Distal fining. Debris-flow channels and lobes formed during torrential rain in August 1999, on talus and colluvial fans at Nordkjosbotn, Balsfjord, N. Norway.
Colluvial (alluvial) fan ► ► ► Debris-flow processes dominate. Concave profile. Distal fining. Colluvial/ealluvial at Disko Bugt, Greenland.
Alluvial fan ► ► ► Ephemeral (flashflood) stream-flow and sheetflow processes. Gentle, concave profile. Distal fining. Alluvial fans, Death Valley, California.

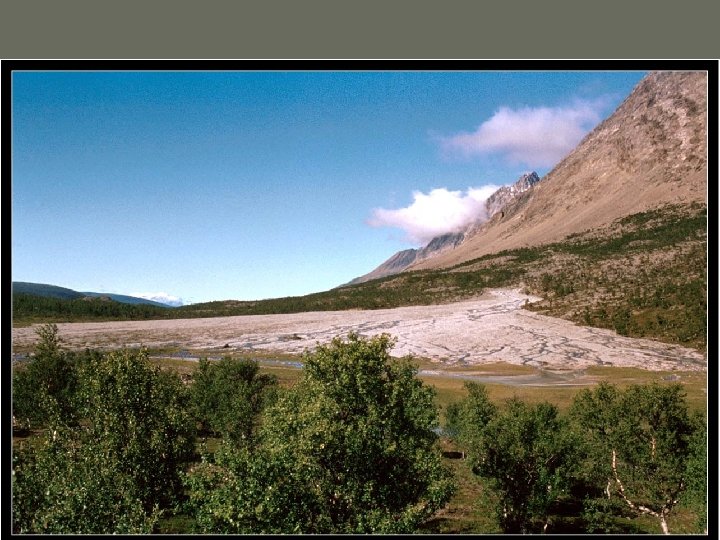

Confined and unconfined fans Unconfined glaciofluvial fan, Lyngen. Confined glaciofluvial fan (sandur), Steindalen, Lyngen.
Spectrum of alluvial fans Galloway & Hobday 1996

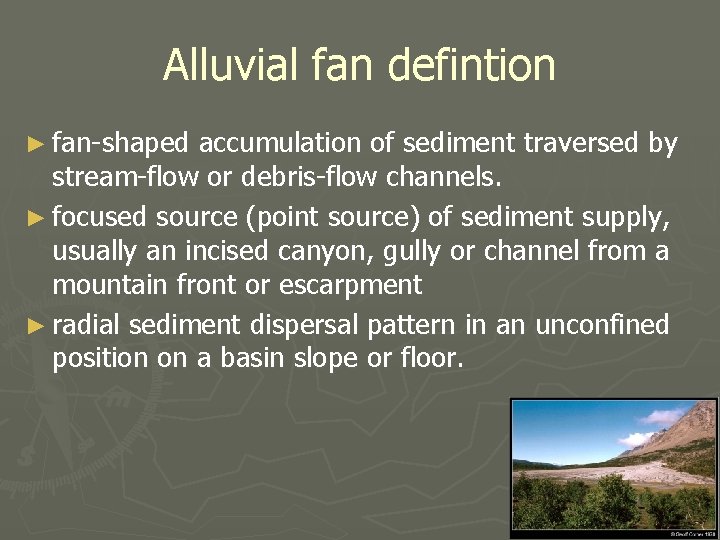

Alluvial fan defintion ► fan-shaped accumulation of sediment traversed by stream-flow or debris-flow channels. ► focused source (point source) of sediment supply, usually an incised canyon, gully or channel from a mountain front or escarpment ► radial sediment dispersal pattern in an unconfined position on a basin slope or floor.

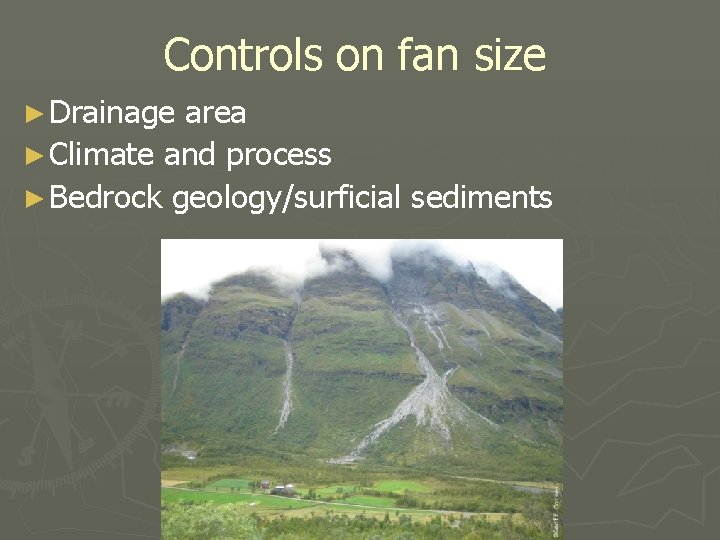

Controls on fan size ► Drainage area ► Climate and process ► Bedrock geology/surficial sediments
Fan size and gradients ► Small, o steep fans (30 – 5 ) § e. g. fans in cold mountainous regions. ► Small, o moderately steep fans (20 – 2 ) § e. g. fans in semi-arid mountains. ► Large, moderately steep fans (megafans) o (15 – 0, 5 ) § e. g. Kosi and other fans, Nepalese Himalaya. ► Large, o gentle fans (<0, 5 ) § e. g. Okavango fan, southern Africa.
Fan area and slope vs. catchment size Fan area Fan gradient
Fan development ► Flows emerging on fan are free to diverge (expand) and infiltrate. ► Fan shape results from frequent radial shifts in feeder channel about the nodal point. ► Channel shifts (avulsions) result from blockage and breakout.
Nodal points
Depositional processes ► Snow and rock avalanche ► Debris flow ► Stream flow (channelized flow) ► Sheetflow Relative importance depends on: - relief climate and vegetation sediment texture
Debris-flow-dominated fans
Occurrence and characteristics Occur in: § Arctic mountains (e. g. Norway, Svalbard) § Arid/semi-arid mountains (e. g. SW USA, Dead Sea) ► Size and morphology: § Relatively small § Relatively steep (5 - 20 o) § Concave profile, segments reflect process change ► Sediments § coarse (gravels, cobbles), poorly sorted, matrix- to clast supported
Debris-flow deposits Sheet-flow deposits
Proximal part of a debris-flow fan
Debris-flow fan – idealised long-section
Debris-flow fan facies

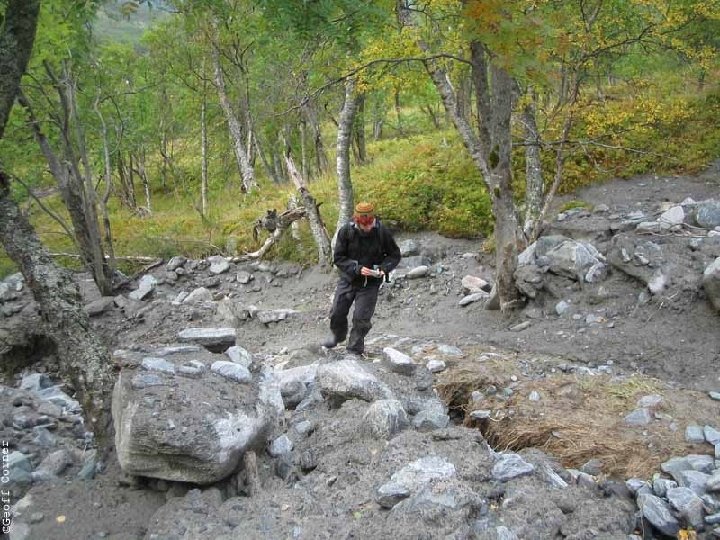

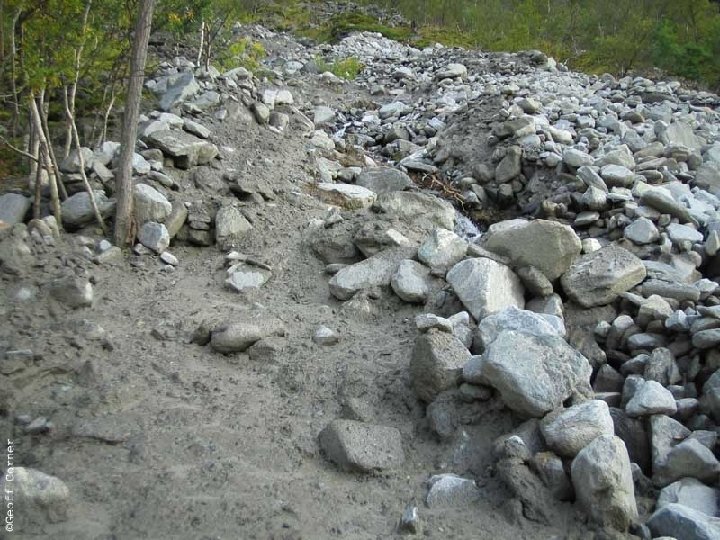

► Debris flow deposit from August 2005 event

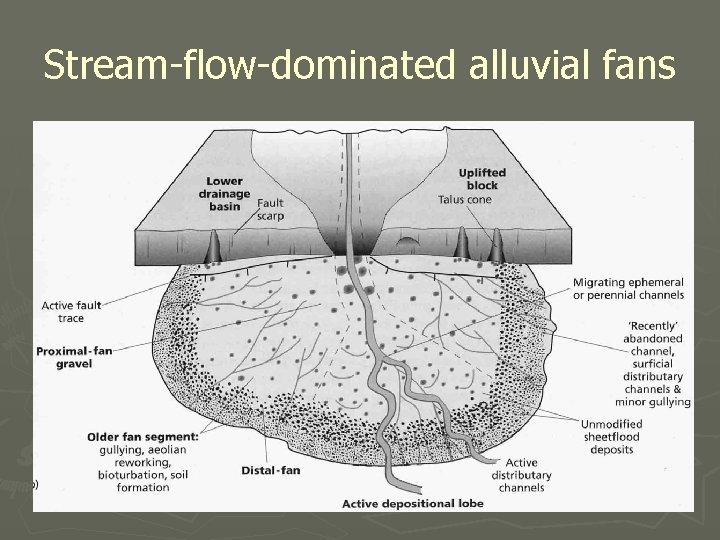

Stream-flow-dominated alluvial fans

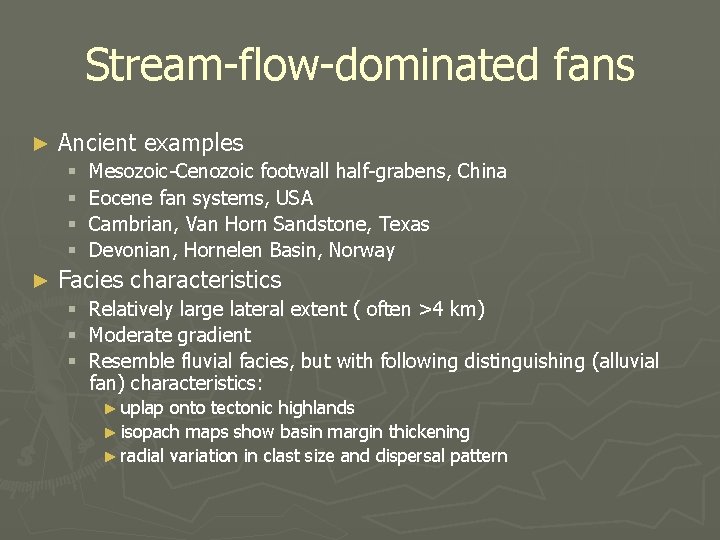

Stream-flow-dominated fans ► Ancient examples § § ► Mesozoic-Cenozoic footwall half-grabens, China Eocene fan systems, USA Cambrian, Van Horn Sandstone, Texas Devonian, Hornelen Basin, Norway Facies characteristics § § § Relatively large lateral extent ( often >4 km) Moderate gradient Resemble fluvial facies, but with following distinguishing (alluvial fan) characteristics: ► uplap onto tectonic highlands ► isopach maps show basin margin thickening ► radial variation in clast size and dispersal pattern
Depositional processes ► Stream-flow (channelised) and sheetflow
Facies in small gravelly fan

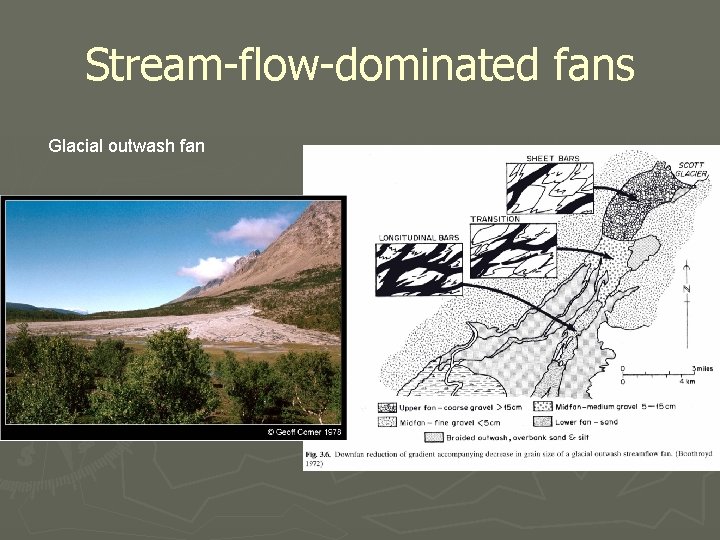

Stream-flow-dominated fans Glacial outwash fan
Stream-flow megafans Humid fan
Megafans - Himalaya
Large fluvial fans – N Apennines
Cambrian Van Horn Sandstone fan

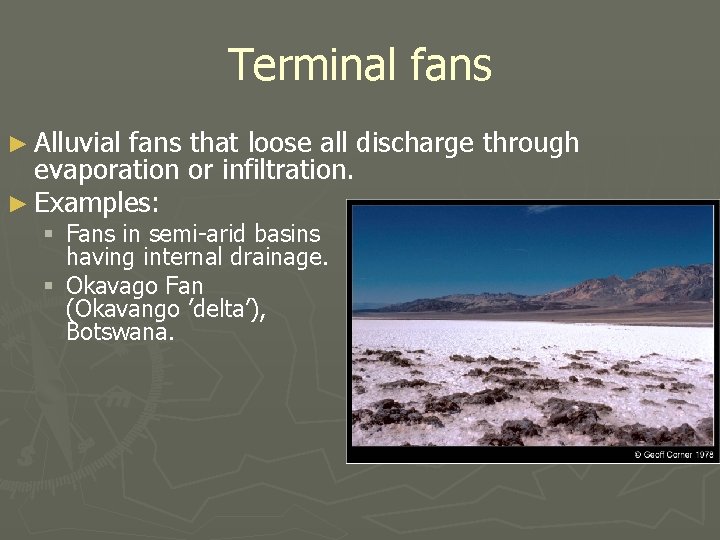

Terminal fans ► Alluvial fans that loose all discharge through evaporation or infiltration. ► Examples: § Fans in semi-arid basins having internal drainage. § Okavago Fan (Okavango ’delta’), Botswana.
