GCSE Session 27 Probability and Relative Frequency GCSE

GCSE Session 27 – Probability and Relative Frequency GCSE MATHS

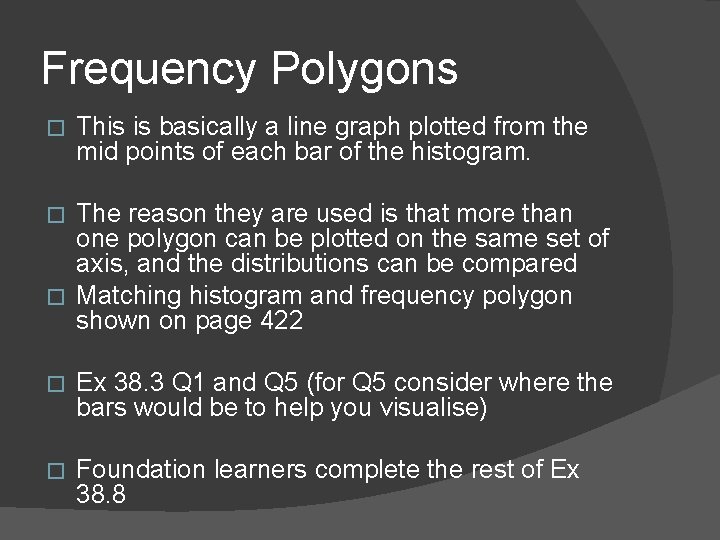

Frequency Polygons � This is basically a line graph plotted from the mid points of each bar of the histogram. The reason they are used is that more than one polygon can be plotted on the same set of axis, and the distributions can be compared � Matching histogram and frequency polygon shown on page 422 � � Ex 38. 3 Q 1 and Q 5 (for Q 5 consider where the bars would be to help you visualise) � Foundation learners complete the rest of Ex 38. 8

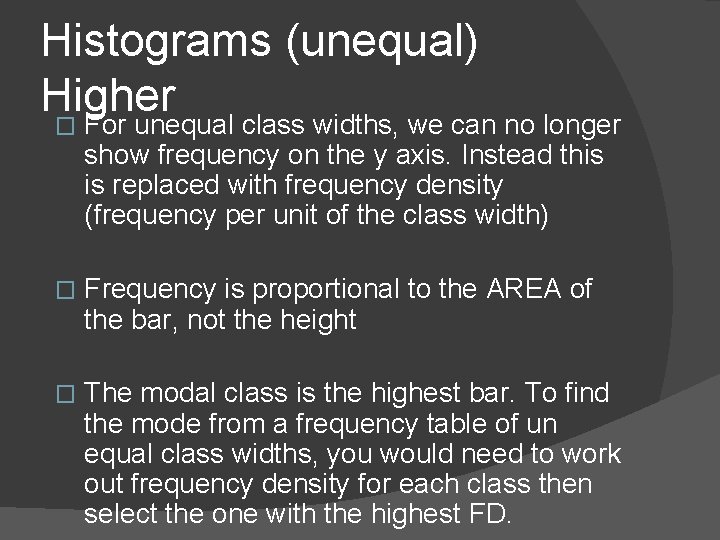

Histograms (unequal) Higher � For unequal class widths, we can no longer show frequency on the y axis. Instead this is replaced with frequency density (frequency per unit of the class width) � Frequency is proportional to the AREA of the bar, not the height � The modal class is the highest bar. To find the mode from a frequency table of un equal class widths, you would need to work out frequency density for each class then select the one with the highest FD.

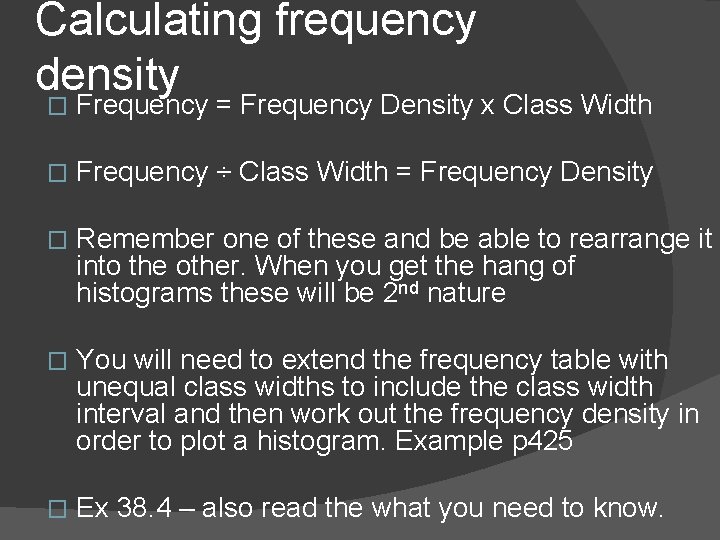

Calculating frequency density � Frequency = Frequency Density x Class Width � Frequency ÷ Class Width = Frequency Density � Remember one of these and be able to rearrange it into the other. When you get the hang of histograms these will be 2 nd nature � You will need to extend the frequency table with unequal class widths to include the class width interval and then work out the frequency density in order to plot a histogram. Example p 425 � Ex 38. 4 – also read the what you need to know.

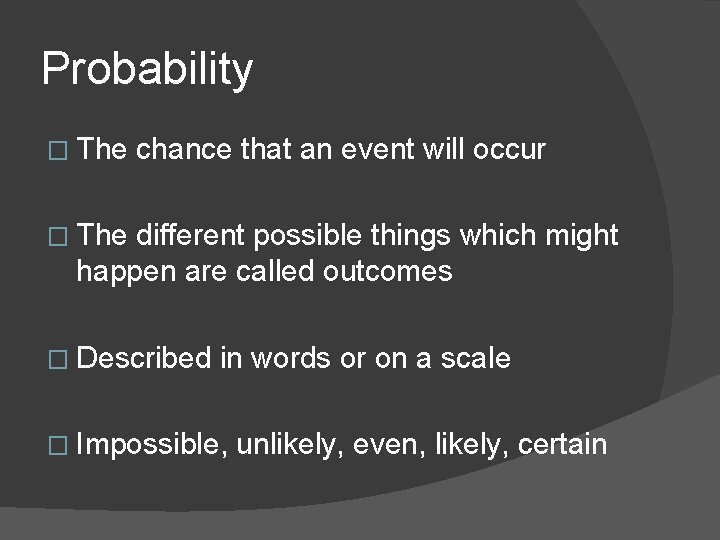

Probability � The chance that an event will occur � The different possible things which might happen are called outcomes � Described in words or on a scale � Impossible, unlikely, even, likely, certain

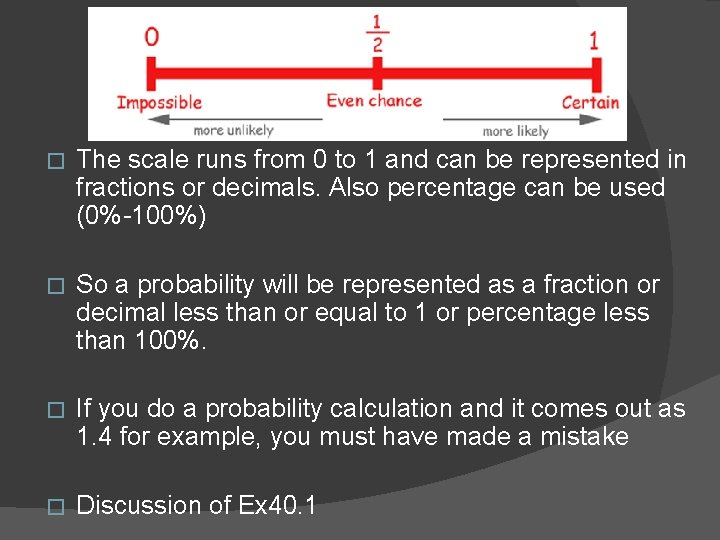

� The scale runs from 0 to 1 and can be represented in fractions or decimals. Also percentage can be used (0%-100%) � So a probability will be represented as a fraction or decimal less than or equal to 1 or percentage less than 100%. � If you do a probability calculation and it comes out as 1. 4 for example, you must have made a mistake � Discussion of Ex 40. 1

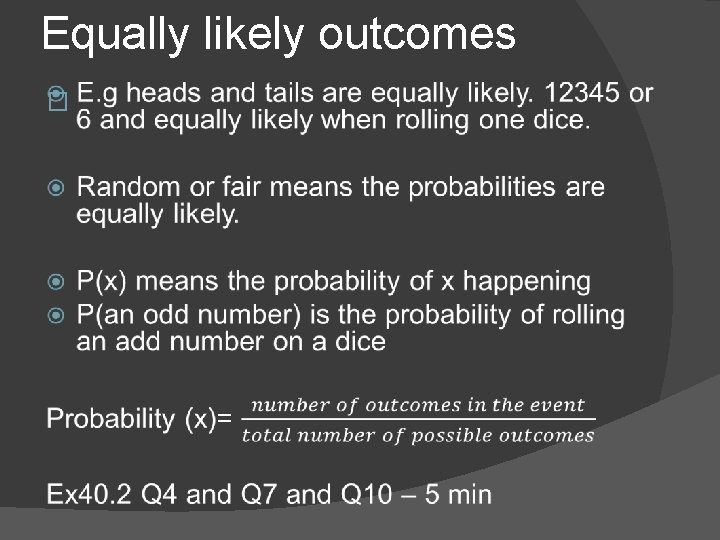

Equally likely outcomes �

Relative Frequency �

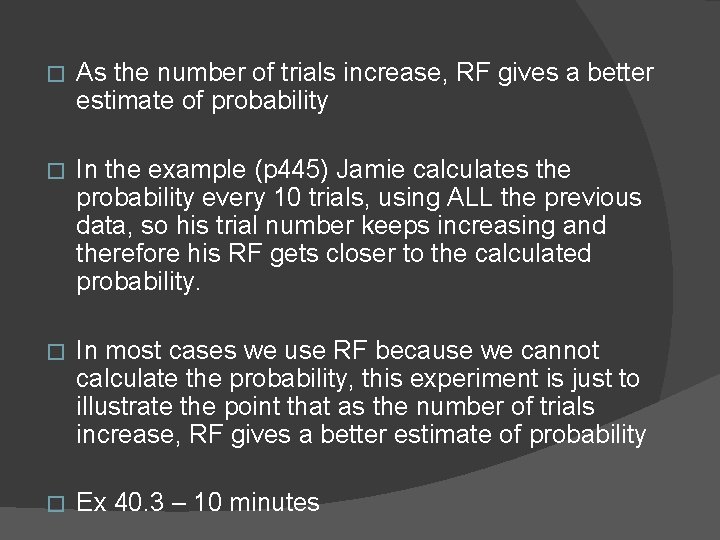

� As the number of trials increase, RF gives a better estimate of probability � In the example (p 445) Jamie calculates the probability every 10 trials, using ALL the previous data, so his trial number keeps increasing and therefore his RF gets closer to the calculated probability. � In most cases we use RF because we cannot calculate the probability, this experiment is just to illustrate the point that as the number of trials increase, RF gives a better estimate of probability � Ex 40. 3 – 10 minutes

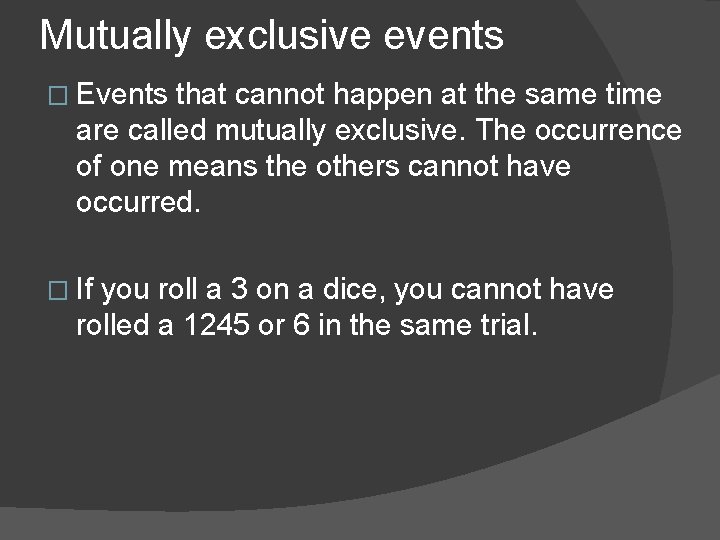

Mutually exclusive events � Events that cannot happen at the same time are called mutually exclusive. The occurrence of one means the others cannot have occurred. � If you roll a 3 on a dice, you cannot have rolled a 1245 or 6 in the same trial.

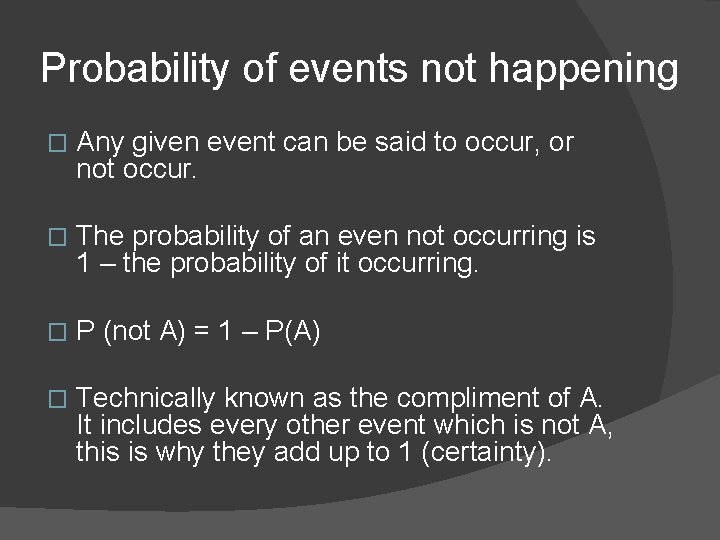

Probability of events not happening � Any given event can be said to occur, or not occur. � The probability of an even not occurring is 1 – the probability of it occurring. � P (not A) = 1 – P(A) � Technically known as the compliment of A. It includes every other event which is not A, this is why they add up to 1 (certainty).

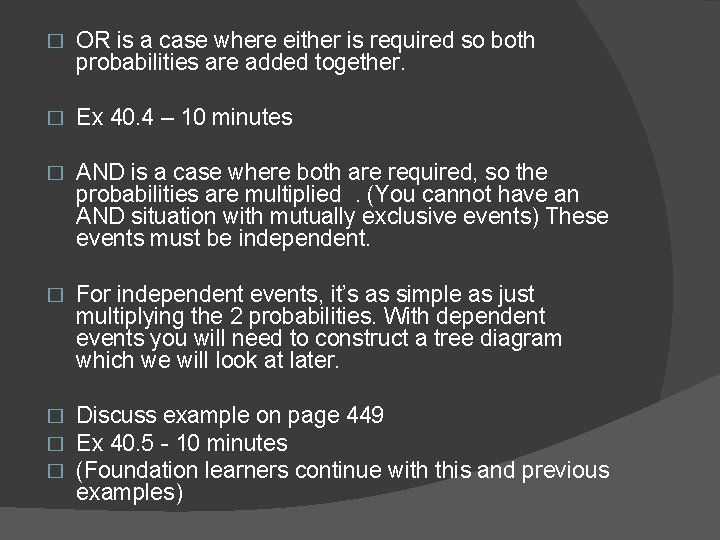

� OR is a case where either is required so both probabilities are added together. � Ex 40. 4 – 10 minutes � AND is a case where both are required, so the probabilities are multiplied. (You cannot have an AND situation with mutually exclusive events) These events must be independent. � For independent events, it’s as simple as just multiplying the 2 probabilities. With dependent events you will need to construct a tree diagram which we will look at later. � � � Discuss example on page 449 Ex 40. 5 - 10 minutes (Foundation learners continue with this and previous examples)

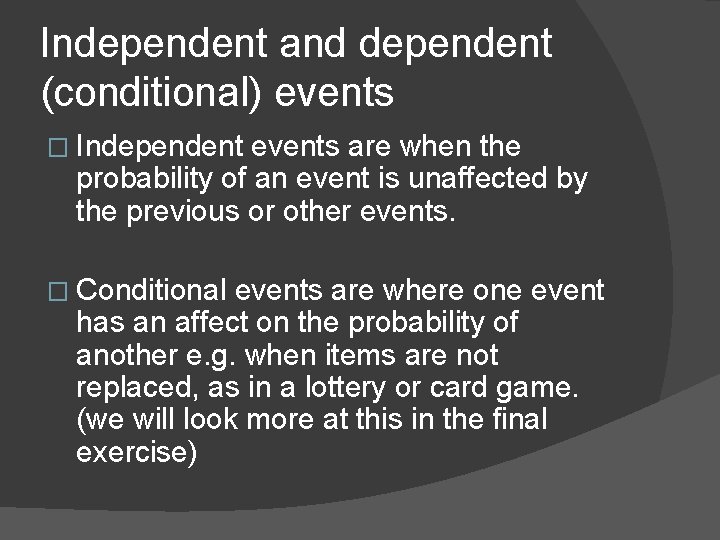

Independent and dependent (conditional) events � Independent events are when the probability of an event is unaffected by the previous or other events. � Conditional events are where one event has an affect on the probability of another e. g. when items are not replaced, as in a lottery or card game. (we will look more at this in the final exercise)

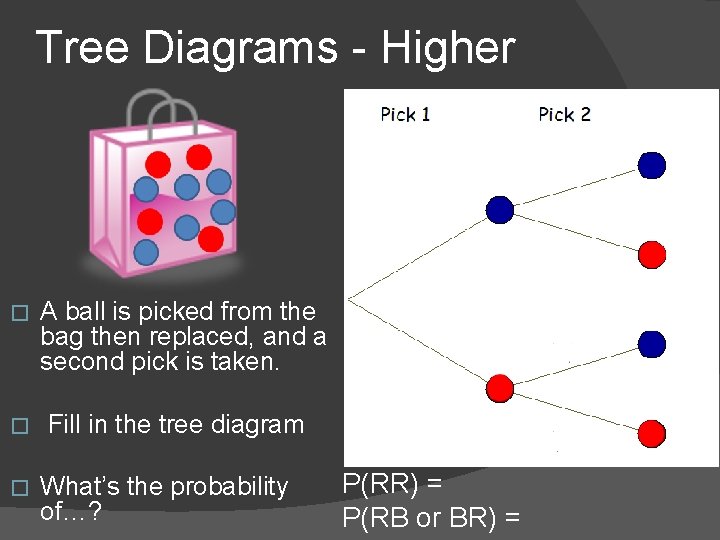

Tree Diagrams - Higher � � � A ball is picked from the bag then replaced, and a second pick is taken. Fill in the tree diagram What’s the probability of…? P(RR) = P(RB or BR) =

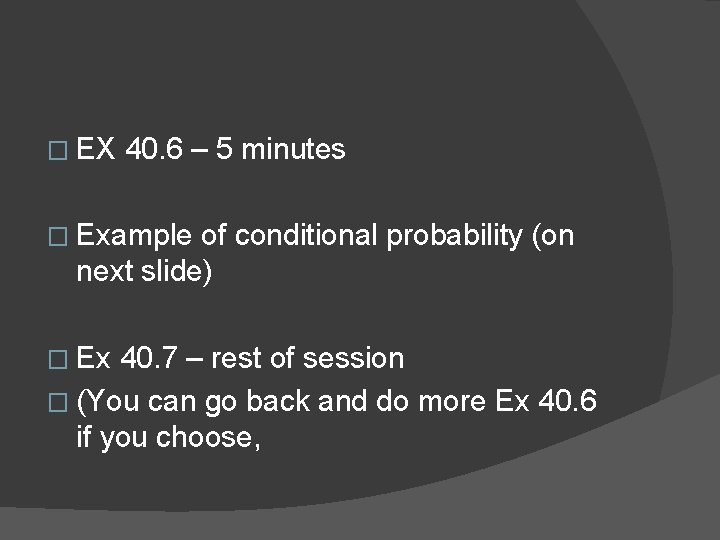

� EX 40. 6 – 5 minutes � Example of conditional probability (on next slide) � Ex 40. 7 – rest of session � (You can go back and do more Ex 40. 6 if you choose,

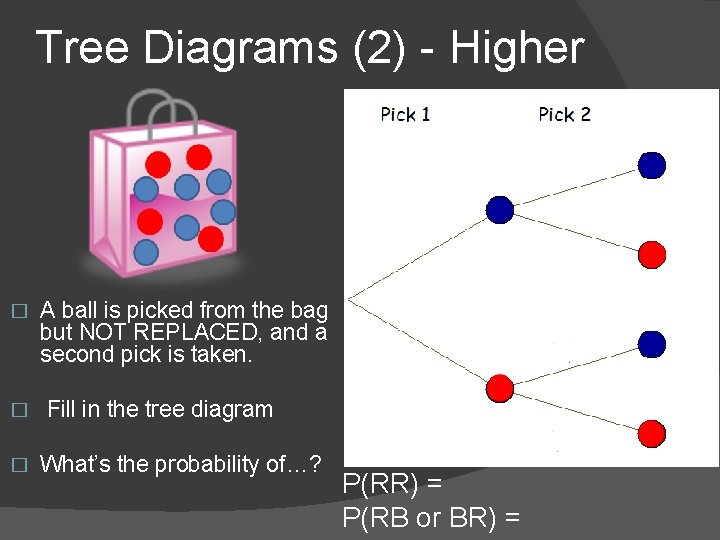

Tree Diagrams (2) - Higher � � � A ball is picked from the bag but NOT REPLACED, and a second pick is taken. Fill in the tree diagram What’s the probability of…? P(RR) = P(RB or BR) =
