What is GCB? › GCB is the Generic Connection Broker h. Included in Condor 6. 7. 13 (Nov 2005) and later h. Linux-only › It solves the “firewall traversal problem” › So what is the firewall traversal problem? www. cs. wisc. edu/condor

A Simple Condor Pool Communication is initiated in two directions Matchmaker Submitter Executor Note: This is a subset of communication in Condor www. cs. wisc. edu/condor

What If There Is A Firewall? › Firewalls usually block incoming traffic on › most ports “Incoming” depends on your perspective: h. Organizations have firewalls to protect from computers outside the organization h. Individual computers have firewalls to protect from other computers www. cs. wisc. edu/condor

A Condor Pool With Firewall X Matchmaker X Submitter Executor www. cs. wisc. edu/condor

How Can You Traverse Firewalls? › Punch a hole h. Configure firewall to allow traffic on certain ports to come through h. Condor can use many ports h. Punching holes is a security risk and makes people nervous www. cs. wisc. edu/condor

How Can You Traverse Firewalls? › Use Condor-C h. Put host on network edge h. Open a couple of ports for it h. Delegate jobs to this host Matchmaker Submitter Re-Submitter www. cs. wisc. edu/condor Executor

How Can You Traverse Firewalls? › Change Condor to always use outgoing traffic h. What if there are two firewalls or private networks? h. Which direction is “outgoing”? › GCB automates this solution h. It knows which direction is outgoing h. It can proxy if there are two firewalls www. cs. wisc. edu/condor

GCB: Contacting Executor (One Possible Scenario) 1. Executor registers with GCB (Permanent TCP connection) 2. Executor advertises to matchmaker (GCB IP address) 3. After match, submitter contacts executor, via GCB 2 Matchmaker 3 GCB 4 1 Executor 4. GCB tell executor to open connection 5. Executor opens connection to submitter 5 Submitter www. cs. wisc. edu/condor

GCB (Acting as Proxy) 1. Assume 1 port open for matchmaker. (Can avoid…) 1 3 2. Executor advertises with GCB (permanent connection) 3. Executor advertises to Matchmaker matchmaker (GCB IP address) 4. After match, submitter contacts executor, via GCB 5. Communication flows through GCB, using both connections 4 GCB 2 5 Submitter Note: Can avoid firewall hole by setting up second GCB www. cs. wisc. edu/condor Executor

GCB Advantages › Good connectivity h. Works with multiple private networks h. Works with network address translation › Don’t need to punch holes in firewall › GCB does not need to be run as root › No changes to firewall configuration www. cs. wisc. edu/condor

GCB Disadvantages › GCB is a point of failure h. All communications through GCB, so if GCB fails… › Computers behind a firewall share an IP address (of GCB) h. Makes host-based security difficult › Doesn’t work with Kerberos security › Can slow down network performance › Scalability issues h. A single GCB server is limited by number of ports available on computer › Complex to configure and debug www. cs. wisc. edu/condor

Now for the Nitty Gritty… www. cs. wisc. edu/condor

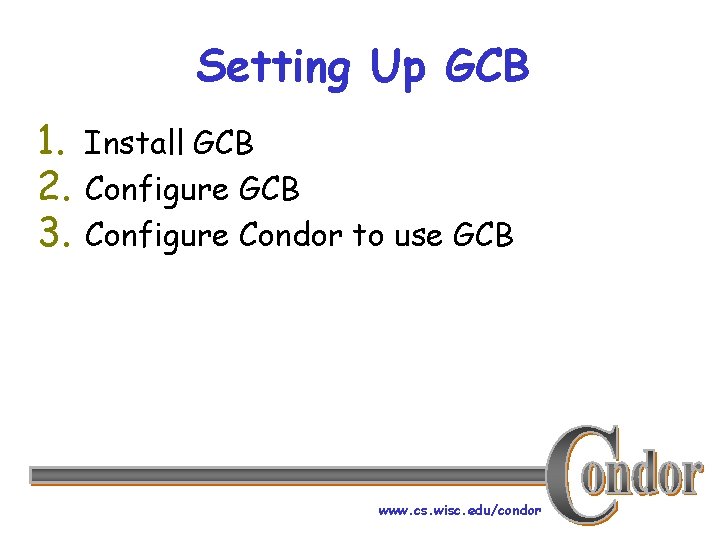

Setting Up GCB 1. Install GCB 2. Configure GCB 3. Configure Condor to use GCB www. cs. wisc. edu/condor

Install GCB › GCB comes with Condor › GCB has two programs hgcb_broker: The “big brains” of GCB hgcb_relay_server: proxy for private net to private net communication › GCB was written independently of Condor h. Can’t read condor_config directly h. So create environment in condor_config h. GCB reads from environment www. cs. wisc. edu/condor

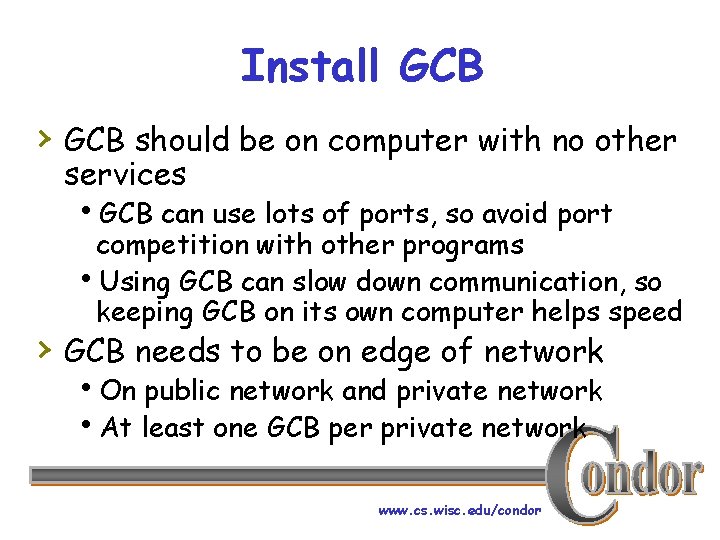

Install GCB › GCB should be on computer with no other services h. GCB can use lots of ports, so avoid port competition with other programs h. Using GCB can slow down communication, so keeping GCB on its own computer helps speed › GCB needs to be on edge of network h. On public network and private network h. At least one GCB per private network www. cs. wisc. edu/condor

Configure GCB › To run from condor_master: # Specify that you only want the master # and the broker running DAEMON_LIST = MASTER, GCB_BROKER # Define the path to the broker binary # for the master to spawn GCB_BROKER=$(RELEASE_DIR)/libexec/gcb_broker www. cs. wisc. edu/condor

Configure GCB › GCB expects configuration in environment. Sample: GCB_BROKER_ENVIRONMENT = ## Provide the full path to the gcb_relay_server GCB_BROKER_ENVIRONMENT = = GCB_RELAY_SERVER=$(GCB_RELAY) GCB_BROKER_ENV GCB_RELAY_SERVER=$(GCB_RELAY) # Tell GCB to write all log files into the Condor log ## Condor directory log directory Note: more configuration options are available. GCB_BROKER_ENVIRONMENT=(GCB_BROKER_ENVIRONMENT); GCB_LOG_DIR=$(LOG) GCB_BROKER_ENV=$(GCB_BROKER_ENV); GCB_LOG_DIR=$(LOG) # Tell GCB it connect to private network Seecan manual for details # Tell GCB it can connect=to private network GCB_BROKER_ENVIRONMENT=$(GCB_BROKER_ENVIRONMENT); GCB_ACTIVE_TO_CLIENT=yes $(GCB_BROKER_ENV); GCB_ACTIVE_TO_CLIENT=yes ## Setpublic IPforaddress IP address GCB broker for GCB broker GCB_BROKER_ARGS = -i 123 www. cs. wisc. edu/condor

Configure Condor to Use GCB › In condor_config: Turn on GCB: NET_REMAP_ENABLE = true NET_REMAP_SERVICE = GCB # Point to GCB NET_REMAP_INAGENT = 123 # Routing Table NET_REMAP_ROUTE = /full/path/gcbroutes www. cs. wisc. edu/condor

Set Up Routing Table Public Network 123. * Private Network 192. 168. 2. * GCB Broker 123 Routing Table 123/32 GCB */0 direct www. cs. wisc. edu/condor

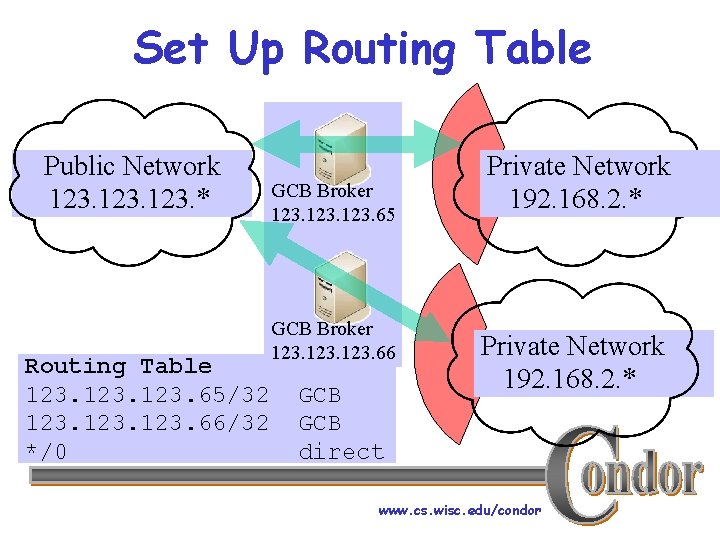

Set Up Routing Table Public Network 123. * Routing Table 123. 65/32 123. 66/32 */0 GCB Broker 123. 65 GCB Broker 123. 66 GCB direct Private Network 192. 168. 2. * www. cs. wisc. edu/condor

Security Implications › Hosts in private network look like they › share a single IP Address (the address of the GCB broker) If you use host-based security, you can’t distinguish hosts in the private network www. cs. wisc. edu/condor

More Information › Section 3. 8 of the Condor manual “Networking” › http: //www. cs. wisc. edu/~sschang/firewall/gcb www. cs. wisc. edu/condor
