GATE a General Architecture for Text Engineering http

GATE, a General Architecture for Text Engineering http: //gate. ac. uk/ Hamish Cunningham, Kalina Bontcheva, Valentin Tablan, Diana Maynard, Yorick Wilks Department of Computer Science, University of Sheffield UMIST Friday November 29 th 2002

Motivation for Software Infrastructure for Language Engineering • Need for scalable, reusable, and portable HLT solutions • Support for large data, in multiple media, languages, formats, and locations • Lowering the cost of creation of new language processing components • Promoting quantitative evaluation metrics via tools and a level playing field 2

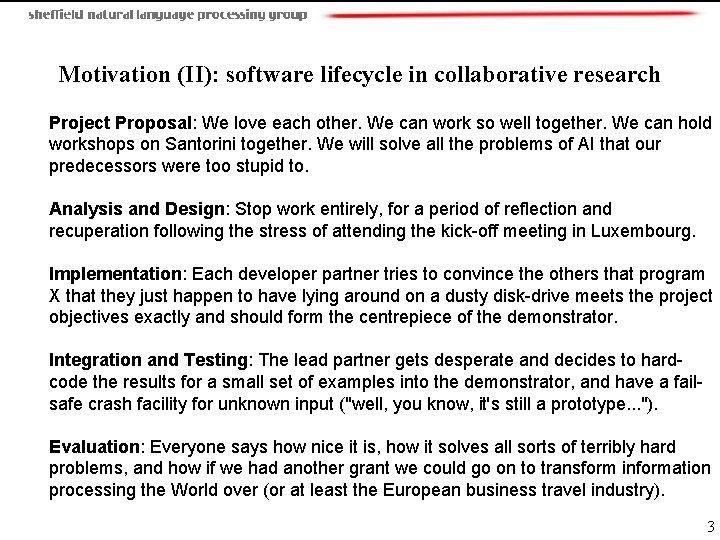

Motivation (II): software lifecycle in collaborative research Project Proposal: We love each other. We can work so well together. We can hold workshops on Santorini together. We will solve all the problems of AI that our predecessors were too stupid to. Analysis and Design: Stop work entirely, for a period of reflection and recuperation following the stress of attending the kick-off meeting in Luxembourg. Implementation: Each developer partner tries to convince the others that program X that they just happen to have lying around on a dusty disk-drive meets the project objectives exactly and should form the centrepiece of the demonstrator. Integration and Testing: The lead partner gets desperate and decides to hardcode the results for a small set of examples into the demonstrator, and have a failsafe crash facility for unknown input ("well, you know, it's still a prototype. . . "). Evaluation: Everyone says how nice it is, how it solves all sorts of terribly hard problems, and how if we had another grant we could go on to transform information processing the World over (or at least the European business travel industry). 3

GATE, a General Architecture for Text Engineering • An architecture A macro-level organisational picture for LE software systems. • A framework For programmers, GATE is an object-oriented class library that implements the architecture. • A development environment For language engineers, computational linguists et al, GATE is a graphical development environment bundled with a set of tools for doing e. g. Information Extraction. • Some free components. . . and wrappers for other people's components • Tools for: evaluation; visualise/edit; persistence; IR; IE; dialogue; ontologies; etc. • Free software (LGPL). Download at http: //gate. ac. uk/download/ 4

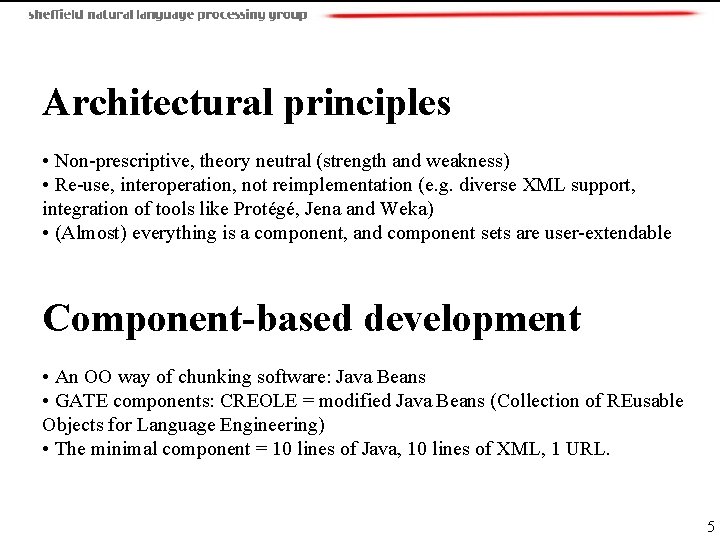

Architectural principles • Non-prescriptive, theory neutral (strength and weakness) • Re-use, interoperation, not reimplementation (e. g. diverse XML support, integration of tools like Protégé, Jena and Weka) • (Almost) everything is a component, and component sets are user-extendable Component-based development • An OO way of chunking software: Java Beans • GATE components: CREOLE = modified Java Beans (Collection of REusable Objects for Language Engineering) • The minimal component = 10 lines of Java, 10 lines of XML, 1 URL. 5

GATE Language Resources GATE LRs are documents, ontologies, corpora, lexicons, …… Documents / corpora: • GATE documents loaded from local files or the web. . . • Diverse document formats: text, html, XML, email, RTF, SGML. Processing Resourcres Algorithmic components knows as PRs – beans with execute methods. • All PRs can handle Unicode data by default. • Clear distinction between code and data (simple repurposing). • 20 -30 freebies with GATE • e. g. Named entity recognition; Word. Net; Protégé; Ontology; Onto. Gazetteer; DAML+OIL export; Information Retrieval based on Lucene 6

7 Visual Resources

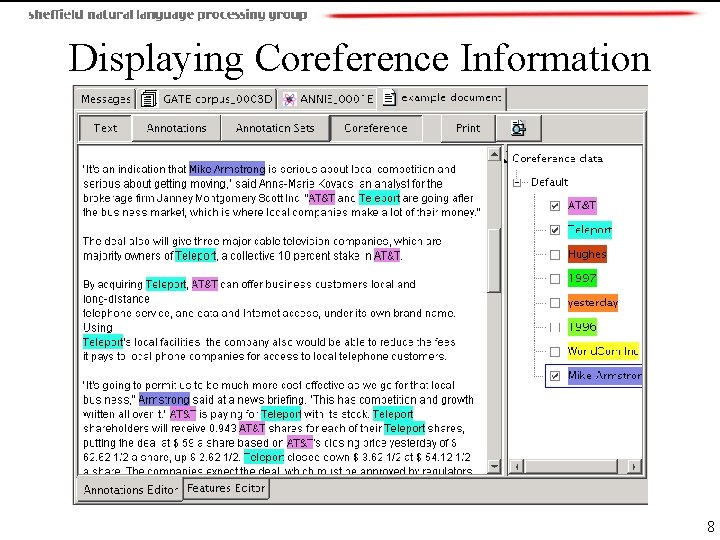

Displaying Coreference Information 8

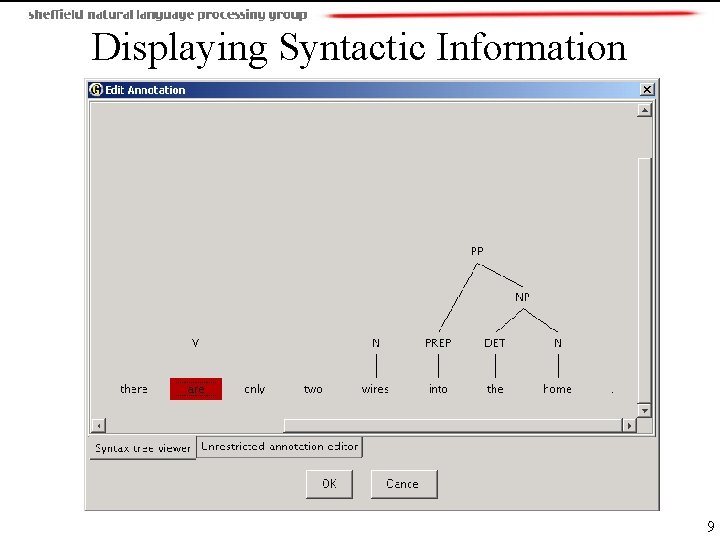

Displaying Syntactic Information 9

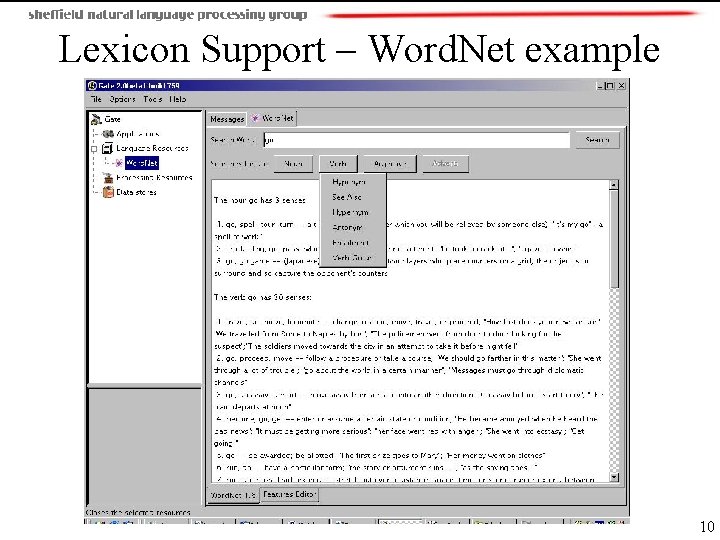

Lexicon Support – Word. Net example 10

A Language Analysis Example … ANNIE … Named entity Coreference HTML docs XML docs GATE Format Handlers RTF docs Document content Document metadata POS tagger … Document format data Named entity Linguistic data … … Event extraction Custom application 1 Relational Database Oracle/ Postgres. QL File storage 11

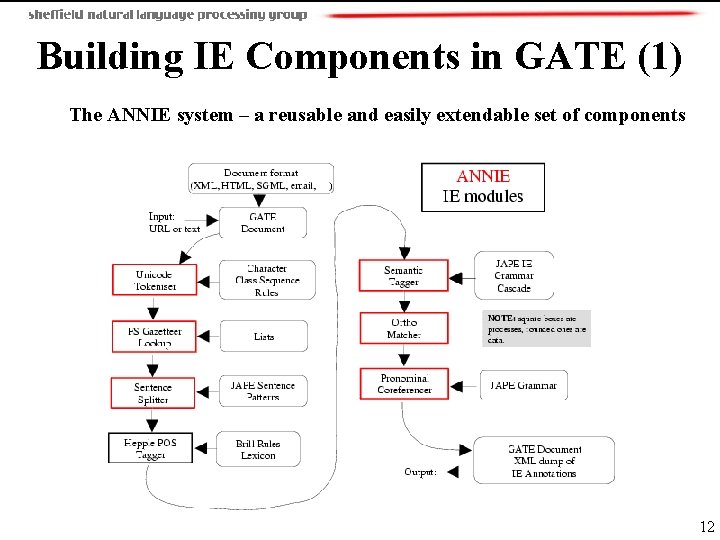

Building IE Components in GATE (1) The ANNIE system – a reusable and easily extendable set of components 12

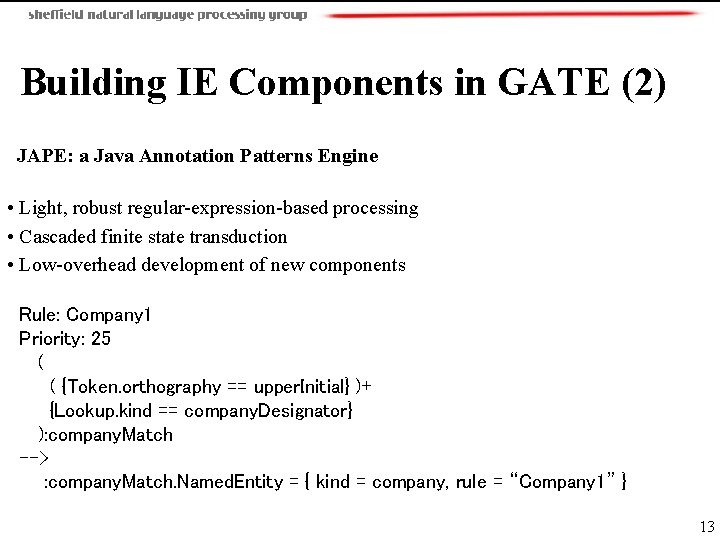

Building IE Components in GATE (2) JAPE: a Java Annotation Patterns Engine • Light, robust regular-expression-based processing • Cascaded finite state transduction • Low-overhead development of new components Rule: Company 1 Priority: 25 ( ( {Token. orthography == upper. Initial} )+ {Lookup. kind == company. Designator} ): company. Match --> : company. Match. Named. Entity = { kind = company, rule = “Company 1” } 13

Performance Evaluation • At document level – annotation diff • At corpus level – corpus benchmark tool – tracking system’s performance over time 14

Regression Testing – Corpus Benchmark Tool 15

The Semantic Web and GATE is being used for development of (semi-)automatic methods for: • linking web pages to Ontologies using Information Extraction; • learning and evolving Ontologies via IE and lexical semantic network traversal. 16

Populating Ontologies with IE 17

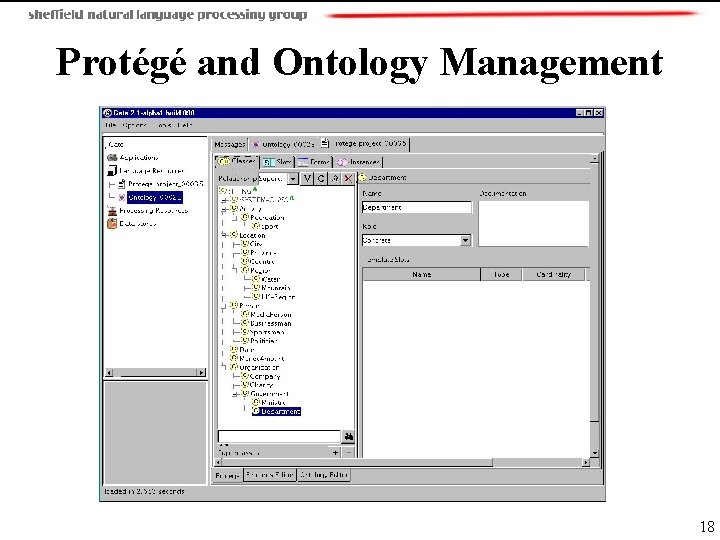

Protégé and Ontology Management 18

Information Retrieval Support Based on the Lucene IR engine 19

Editing Multilingual Data GATE Unicode Kit (GUK) Java provides no special support for text input (this may change) • Support for defining additional Input Methods (IMs) • currently 30 IMs for 17 languages • Pluggable in other applications 20

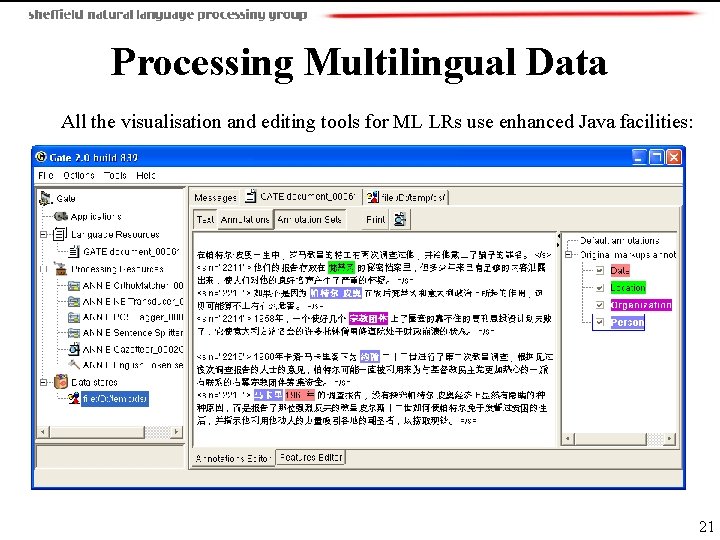

Processing Multilingual Data All the visualisation and editing tools for ML LRs use enhanced Java facilities: 21

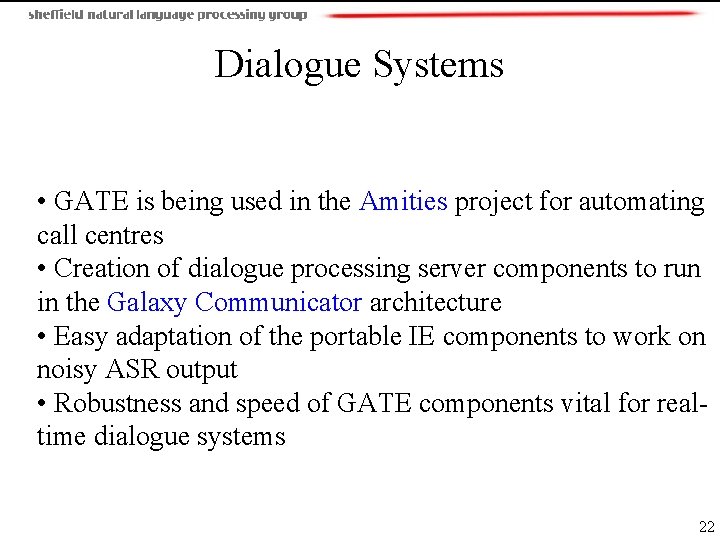

Dialogue Systems • GATE is being used in the Amities project for automating call centres • Creation of dialogue processing server components to run in the Galaxy Communicator architecture • Easy adaptation of the portable IE components to work on noisy ASR output • Robustness and speed of GATE components vital for realtime dialogue systems 22

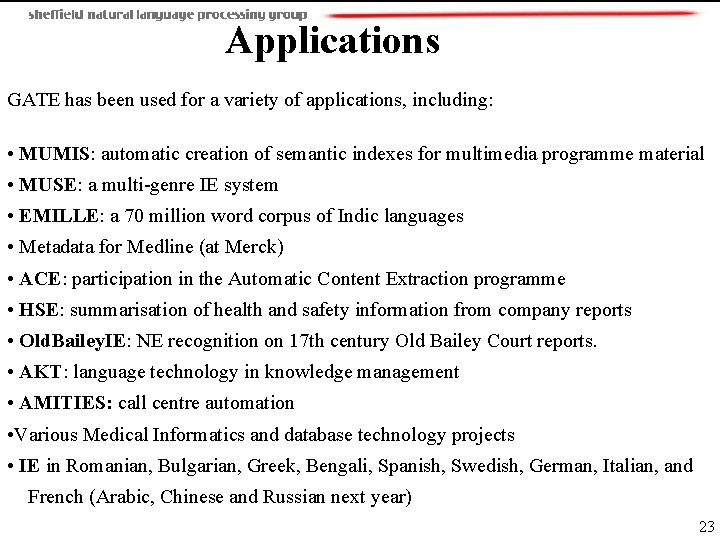

Applications GATE has been used for a variety of applications, including: • MUMIS: automatic creation of semantic indexes for multimedia programme material • MUSE: a multi-genre IE system • EMILLE: a 70 million word corpus of Indic languages • Metadata for Medline (at Merck) • ACE: participation in the Automatic Content Extraction programme • HSE: summarisation of health and safety information from company reports • Old. Bailey. IE: NE recognition on 17 th century Old Bailey Court reports. • AKT: language technology in knowledge management • AMITIES: call centre automation • Various Medical Informatics and database technology projects • IE in Romanian, Bulgarian, Greek, Bengali, Spanish, Swedish, German, Italian, and French (Arabic, Chinese and Russian next year) 23

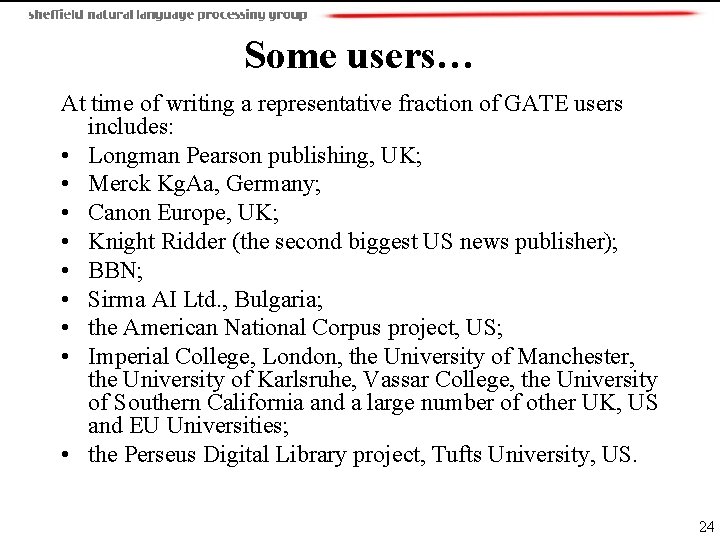

Some users… At time of writing a representative fraction of GATE users includes: • Longman Pearson publishing, UK; • Merck Kg. Aa, Germany; • Canon Europe, UK; • Knight Ridder (the second biggest US news publisher); • BBN; • Sirma AI Ltd. , Bulgaria; • the American National Corpus project, US; • Imperial College, London, the University of Manchester, the University of Karlsruhe, Vassar College, the University of Southern California and a large number of other UK, US and EU Universities; • the Perseus Digital Library project, Tufts University, US. 24

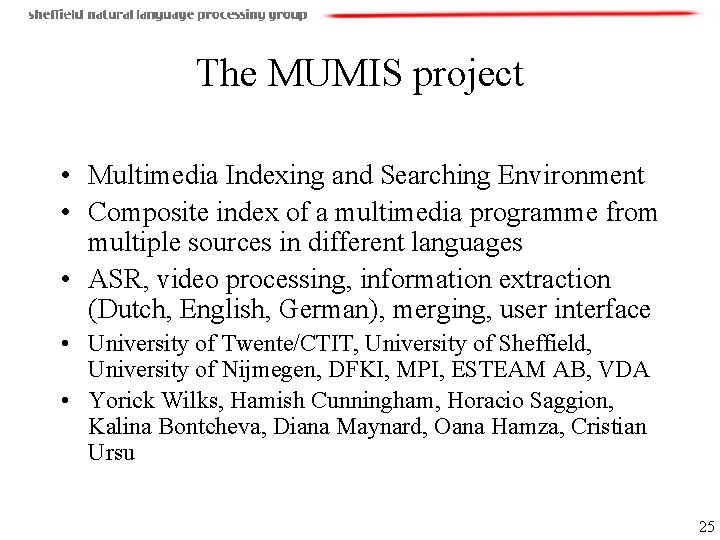

The MUMIS project • Multimedia Indexing and Searching Environment • Composite index of a multimedia programme from multiple sources in different languages • ASR, video processing, information extraction (Dutch, English, German), merging, user interface • University of Twente/CTIT, University of Sheffield, University of Nijmegen, DFKI, MPI, ESTEAM AB, VDA • Yorick Wilks, Hamish Cunningham, Horacio Saggion, Kalina Bontcheva, Diana Maynard, Oana Hamza, Cristian Ursu 25

The Whole Picture Ontology & Lexicon DE IE Formal Text Formal NL Formal Text Formal EN Formal Text Sources IE IE Formal Text Formal Anno. Text tations Merging Final Annotations Video & Audio Signal Forma l Forma ll Forma l. Text Forma ll. Text Forma l. Text Speech l l. Text Signals Text ASR Formal Formal Text Text Formal Trans Text criptions Query User Interface Multimedia Data Base Results 26

User Interface 27

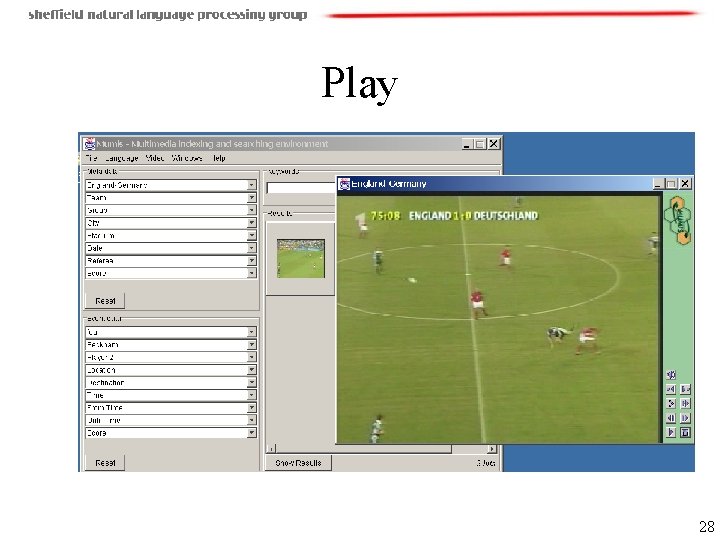

Play 28

Conclusion GATE: an infrastructure that lowers the overhead of creating & embedding robust NLP components Further information: http: //gate. ac. uk/ • Online demos, tutorials and documentation • Software downloads • Talks and papers 29
