GASTRULATION, NEURULATION AND FOLDING Dr Rania Gabr

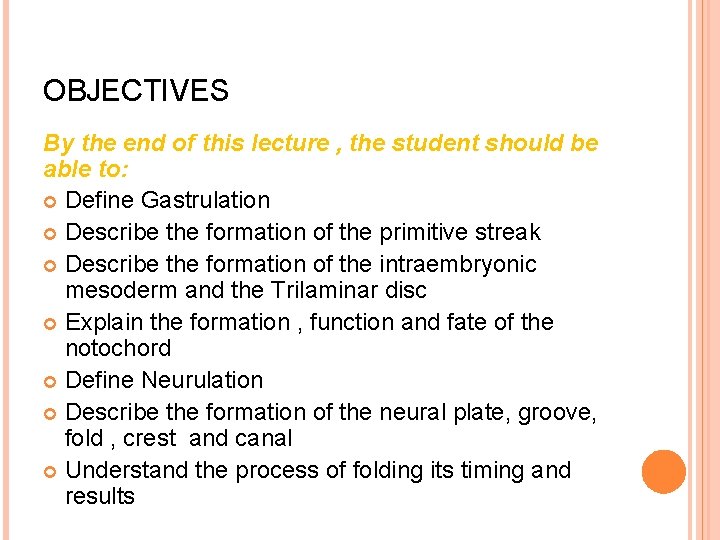

OBJECTIVES By the end of this lecture , the student should be able to: Define Gastrulation Describe the formation of the primitive streak Describe the formation of the intraembryonic mesoderm and the Trilaminar disc Explain the formation , function and fate of the notochord Define Neurulation Describe the formation of the neural plate, groove, fold , crest and canal Understand the process of folding its timing and results

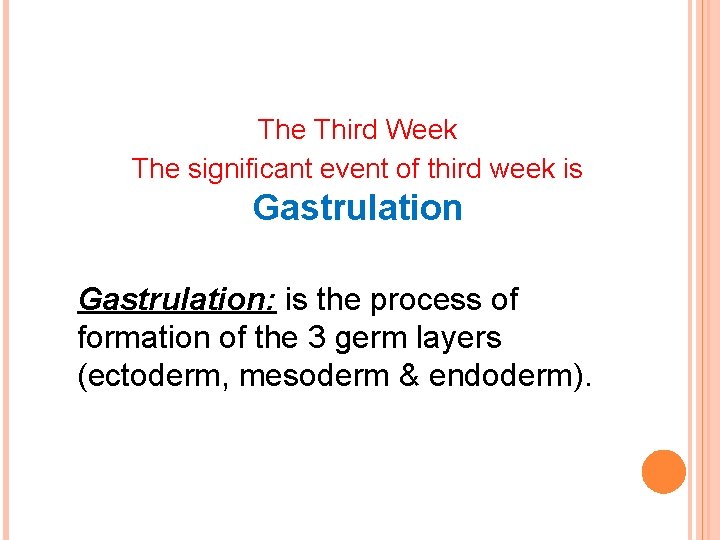

The Third Week The significant event of third week is Gastrulation: is the process of formation of the 3 germ layers (ectoderm, mesoderm & endoderm).

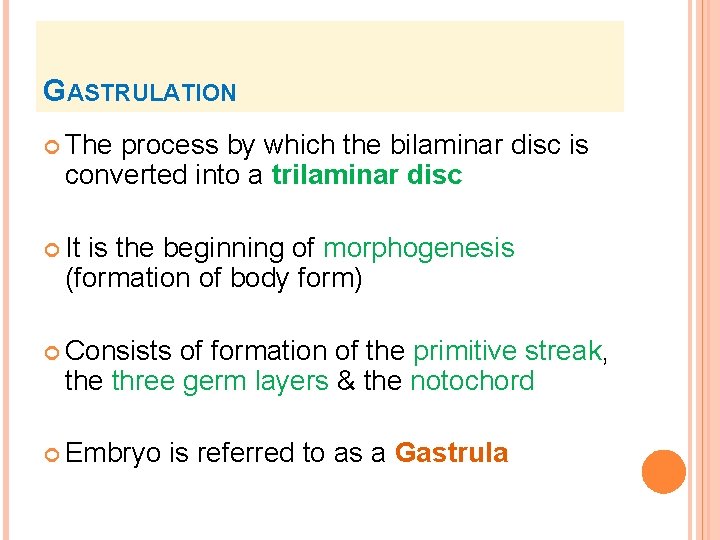

GASTRULATION The process by which the bilaminar disc is converted into a trilaminar disc It is the beginning of morphogenesis (formation of body form) Consists of formation of the primitive streak, the three germ layers & the notochord Embryo is referred to as a Gastrula

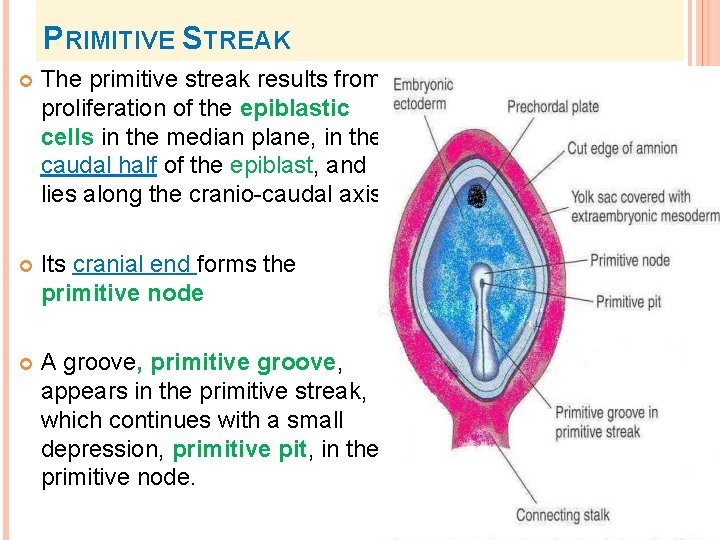

PRIMITIVE STREAK The primitive streak results from proliferation of the epiblastic cells in the median plane, in the caudal half of the epiblast, and lies along the cranio-caudal axis. Its cranial end forms the primitive node A groove, primitive groove, appears in the primitive streak, which continues with a small depression, primitive pit, in the primitive node.

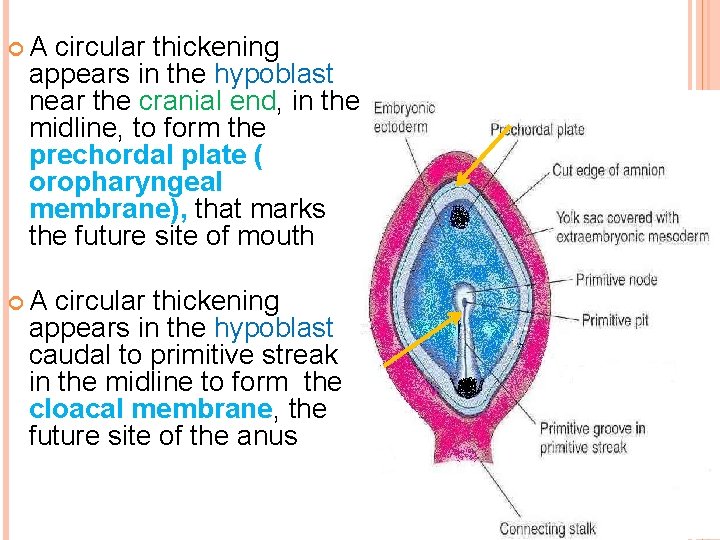

A circular thickening appears in the hypoblast near the cranial end, in the midline, to form the prechordal plate ( oropharyngeal membrane), that marks the future site of mouth A circular thickening appears in the hypoblast caudal to primitive streak in the midline to form the cloacal membrane, the future site of the anus

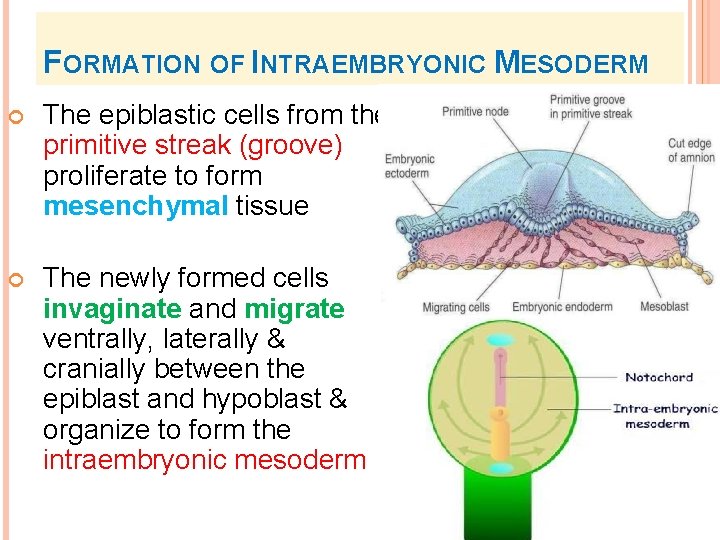

FORMATION OF INTRAEMBRYONIC MESODERM The epiblastic cells from the primitive streak (groove) proliferate to form mesenchymal tissue The newly formed cells invaginate and migrate ventrally, laterally & cranially between the epiblast and hypoblast & organize to form the intraembryonic mesoderm
FORMATION OF INTRAEMBRYONIC MESODERM CONT’D Intraembryonic mesoderm merges with the extraembryonic mesoderm at the periphery of the embryonic disc By the end of 3 rd week, mesoderm lies between embryonic ectoderm and endoderm everywhere EXCEPT in the region of prechordal plate and cloacal membrane, as the embryonic ectoderm & endoderm are fused at these regions

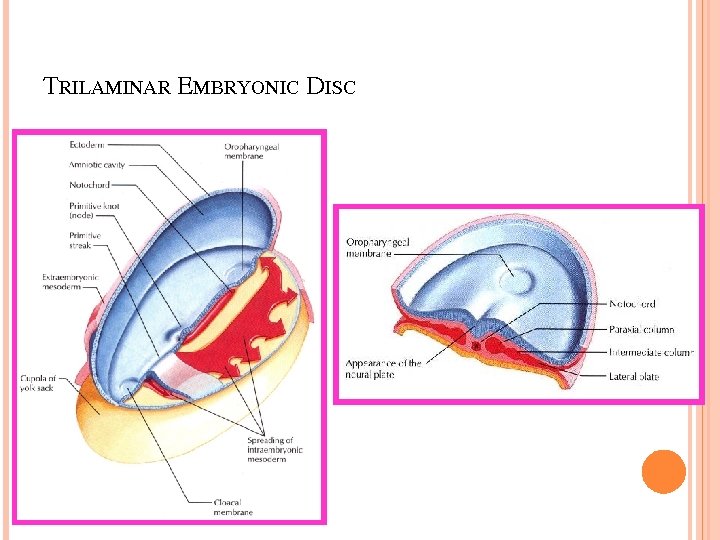

TRILAMINAR EMBRYONIC DISC

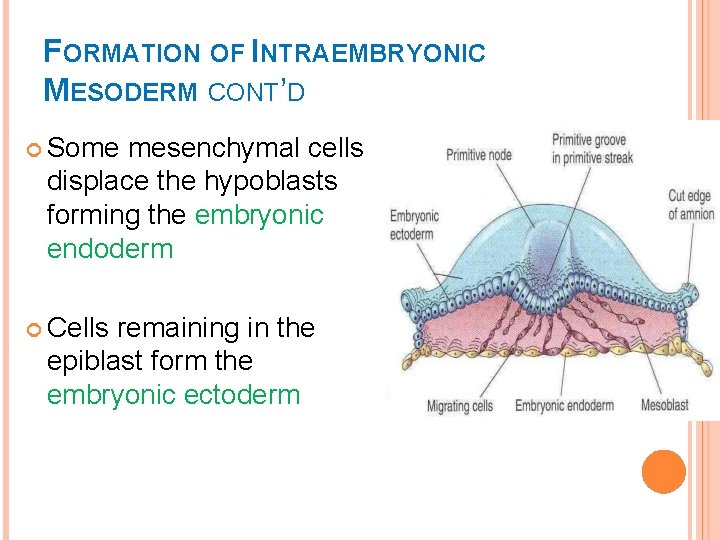

FORMATION OF INTRAEMBRYONIC MESODERM CONT’D Some mesenchymal cells displace the hypoblasts forming the embryonic endoderm Cells remaining in the epiblast form the embryonic ectoderm

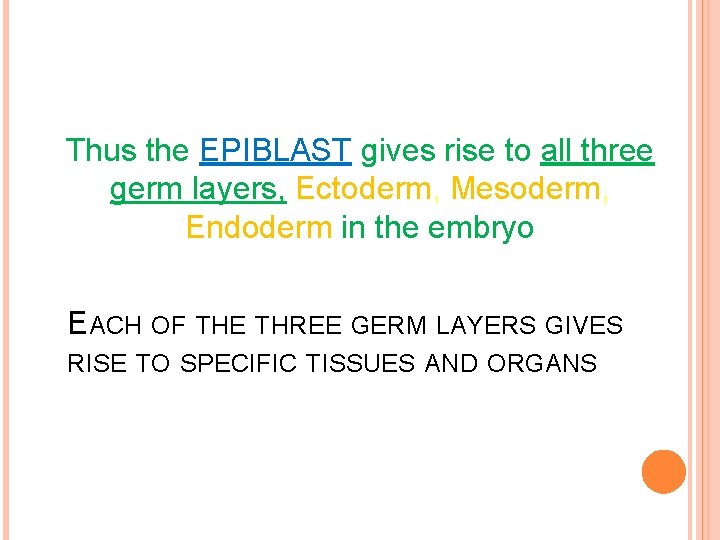

Thus the EPIBLAST gives rise to all three germ layers, Ectoderm, Mesoderm, Endoderm in the embryo EACH OF THE THREE GERM LAYERS GIVES RISE TO SPECIFIC TISSUES AND ORGANS
FATE OF PRIMITIVE STREAK Actively forms mesoderm until the early part of 4 th week Then it starts regressing and becomes an insignificant structure in the sacrocooccygeal regions Normally it degenerates and disappears by the end of 4 th week Remnants may persist and give rise to a large tumor called Sacrococcygeal Teratomas

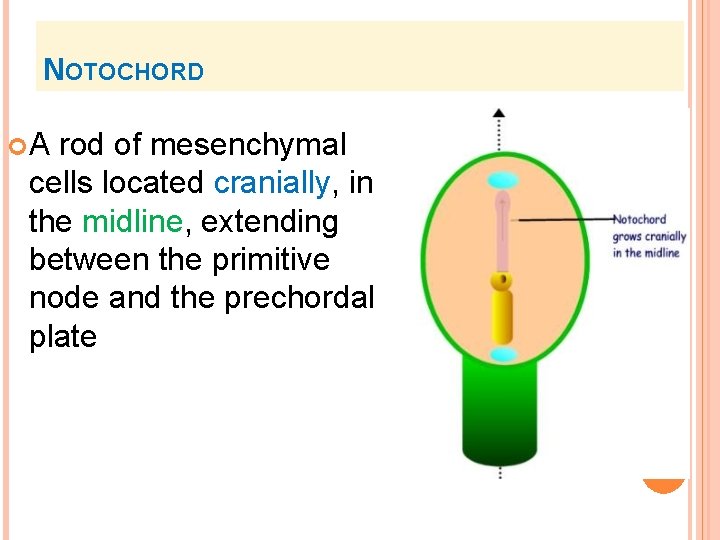

NOTOCHORD A rod of mesenchymal cells located cranially, in the midline, extending between the primitive node and the prechordal plate

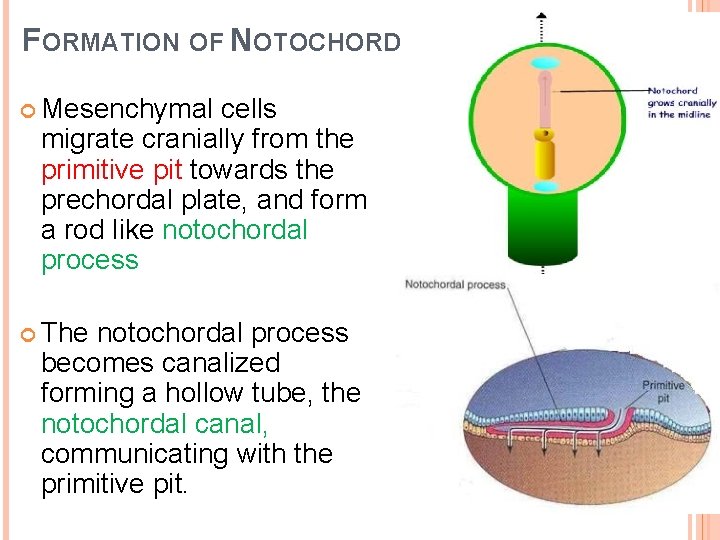

FORMATION OF NOTOCHORD Mesenchymal cells migrate cranially from the primitive pit towards the prechordal plate, and form a rod like notochordal process The notochordal process becomes canalized forming a hollow tube, the notochordal canal, communicating with the primitive pit.

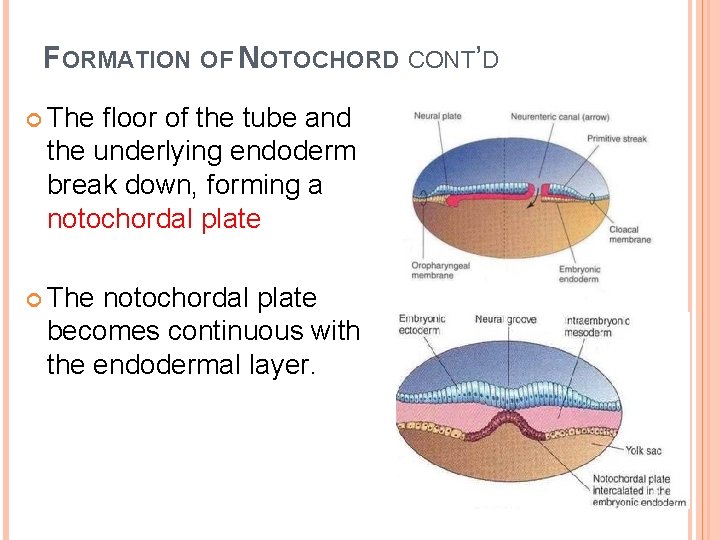

FORMATION OF NOTOCHORD CONT’D The floor of the tube and the underlying endoderm break down, forming a notochordal plate The notochordal plate becomes continuous with the endodermal layer.

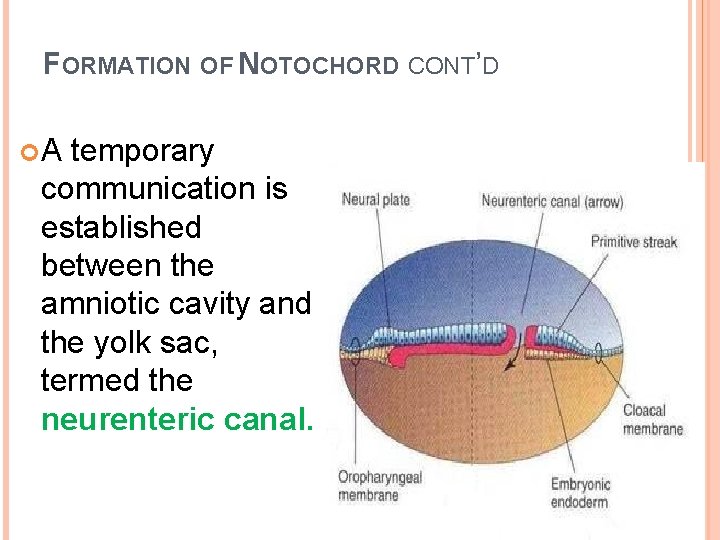

FORMATION OF NOTOCHORD CONT’D A temporary communication is established between the amniotic cavity and the yolk sac, termed the neurenteric canal.

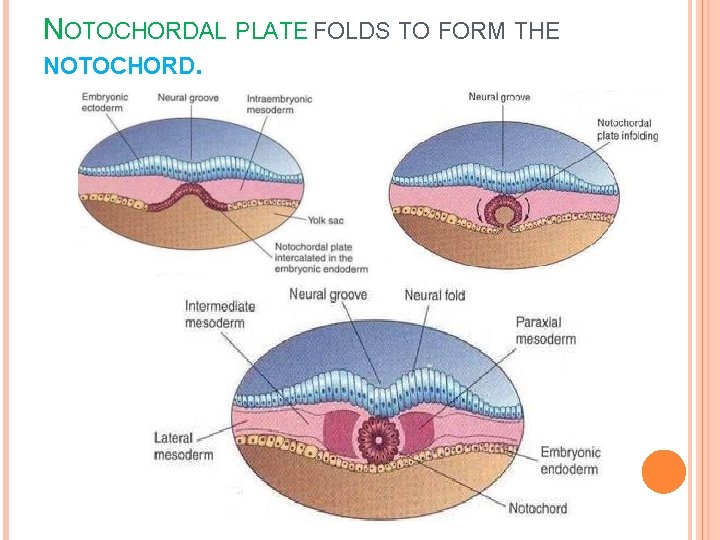

NOTOCHORDAL PLATE FOLDS TO FORM THE NOTOCHORD.

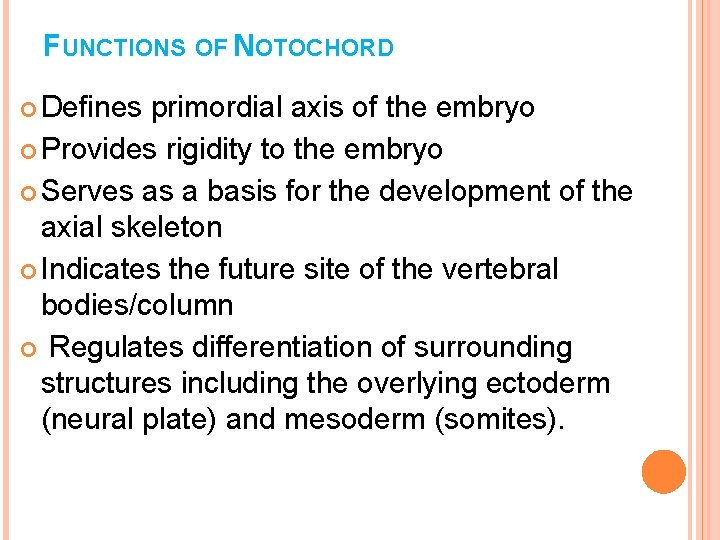

FUNCTIONS OF NOTOCHORD Defines primordial axis of the embryo Provides rigidity to the embryo Serves as a basis for the development of the axial skeleton Indicates the future site of the vertebral bodies/column Regulates differentiation of surrounding structures including the overlying ectoderm (neural plate) and mesoderm (somites).

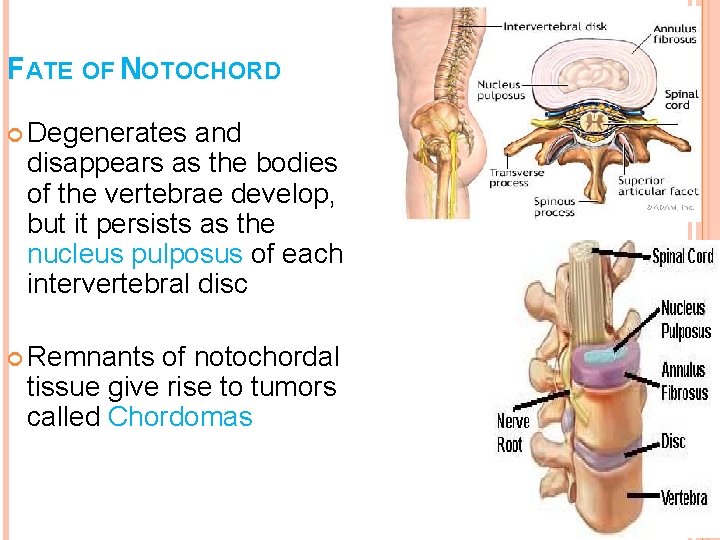

FATE OF NOTOCHORD Degenerates and disappears as the bodies of the vertebrae develop, but it persists as the nucleus pulposus of each intervertebral disc Remnants of notochordal tissue give rise to tumors called Chordomas

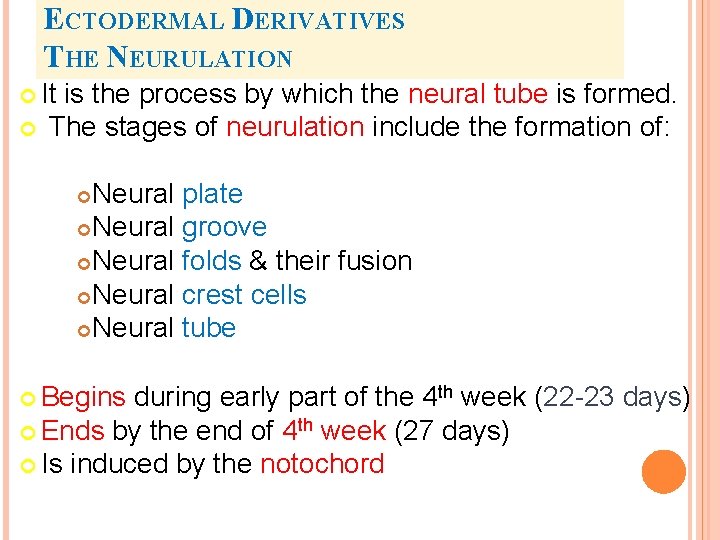

ECTODERMAL DERIVATIVES THE NEURULATION It is the process by which the neural tube is formed. The stages of neurulation include the formation of: Neural plate Neural groove Neural folds & their fusion Neural crest cells Neural tube Begins during early part of the 4 th week (22 -23 days) Ends by the end of 4 th week (27 days) Is induced by the notochord

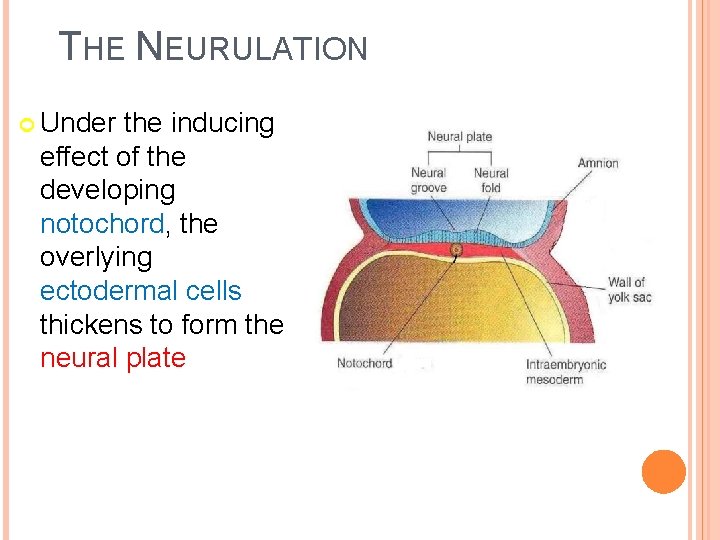

THE NEURULATION Under the inducing effect of the developing notochord, the overlying ectodermal cells thickens to form the neural plate
The neural plate first appears: Cranial to the primitive node and Dorsal to the developing notochord & the mesoderm adjacent to it
As the notochord forms & elongates: The embryonic disc elongates and becomes club-shaped The neural plate broadens and extends cranially as far as the buccopharyngeal membrane, and later on grows beyond it

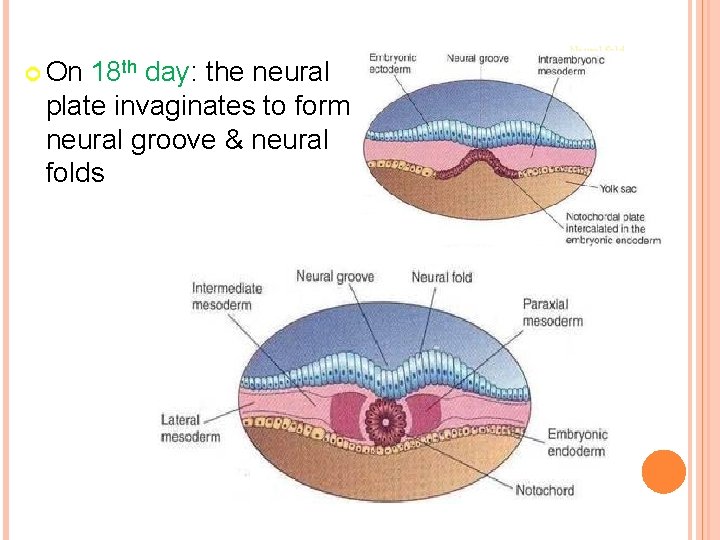

On 18 th day: the neural plate invaginates to form neural groove & neural folds Neural fold

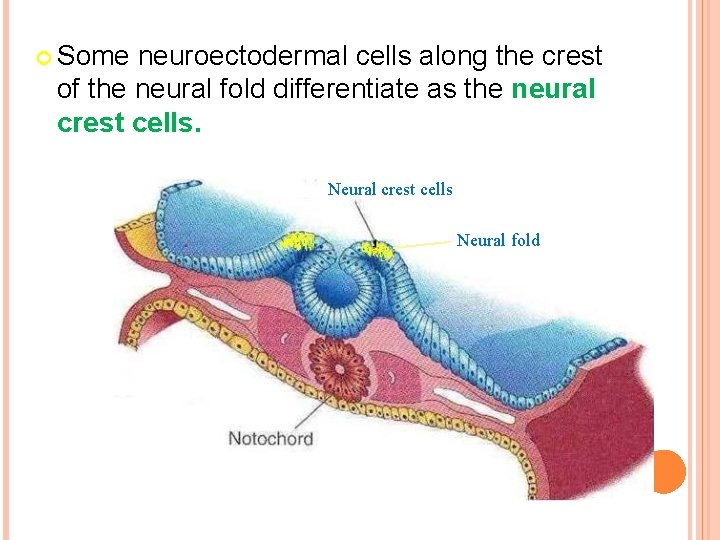

Some neuroectodermal cells along the crest of the neural fold differentiate as the neural crest cells. Neural crest cells Neural fold

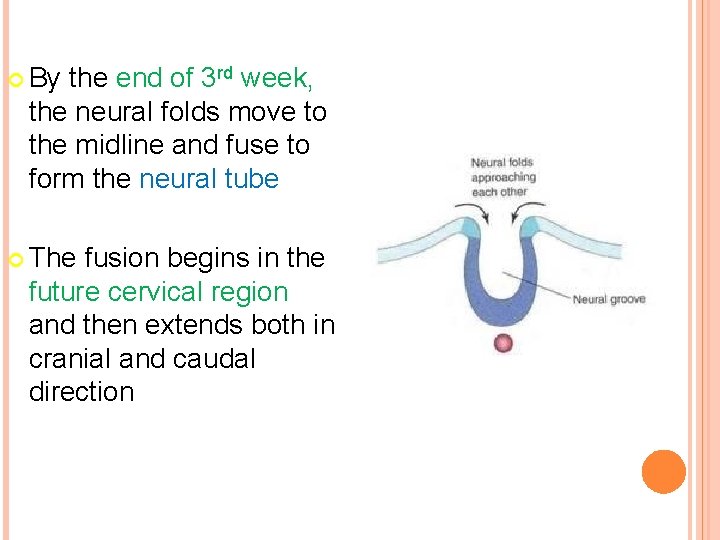

By the end of 3 rd week, the neural folds move to the midline and fuse to form the neural tube The fusion begins in the future cervical region and then extends both in cranial and caudal direction

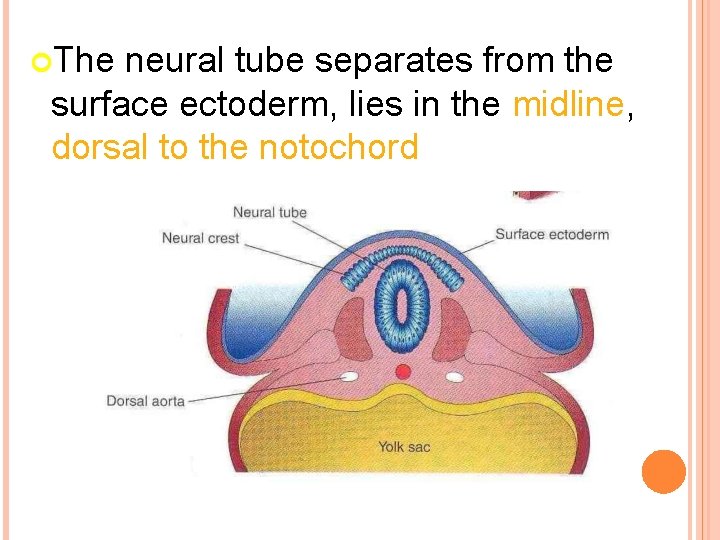

The neural tube separates from the surface ectoderm, lies in the midline, dorsal to the notochord

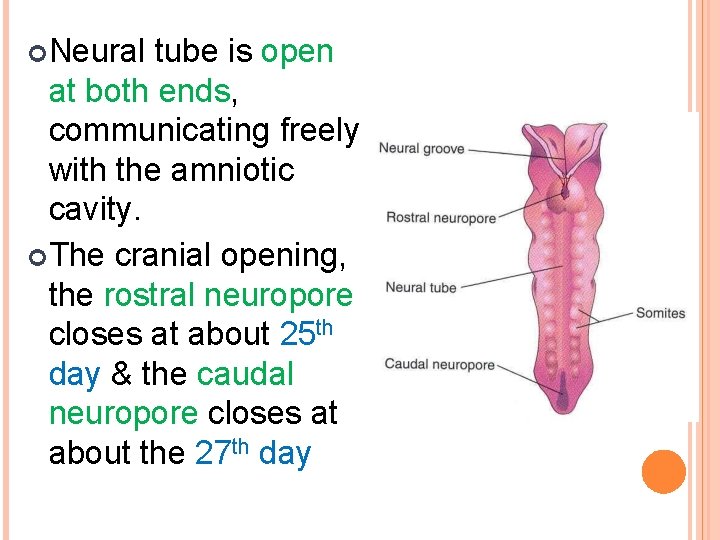

Neural tube is open at both ends, communicating freely with the amniotic cavity. The cranial opening, the rostral neuropore closes at about 25 th day & the caudal neuropore closes at about the 27 th day

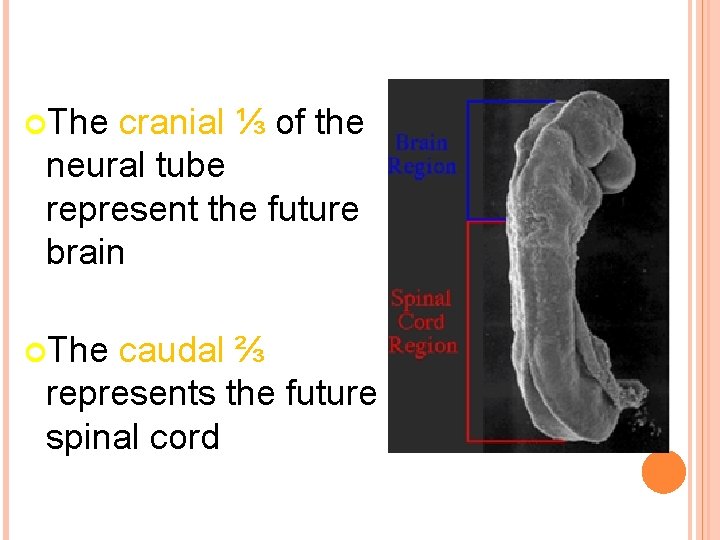

The cranial ⅓ of the neural tube represent the future brain The caudal ⅔ represents the future spinal cord

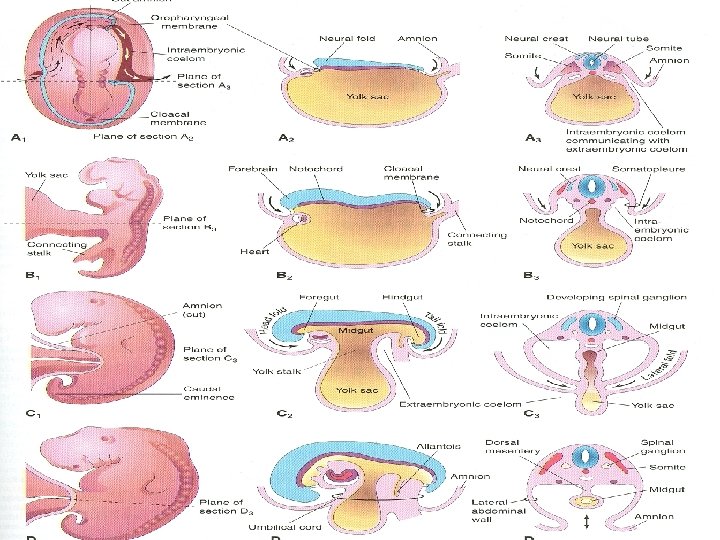

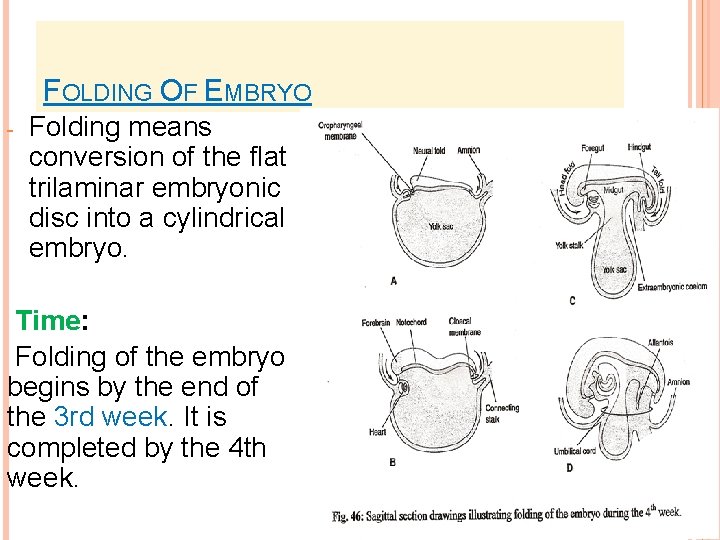

FOLDING OF EMBRYO - Folding means conversion of the flat trilaminar embryonic disc into a cylindrical embryo. Time: Folding of the embryo begins by the end of the 3 rd week. It is completed by the 4 th week.

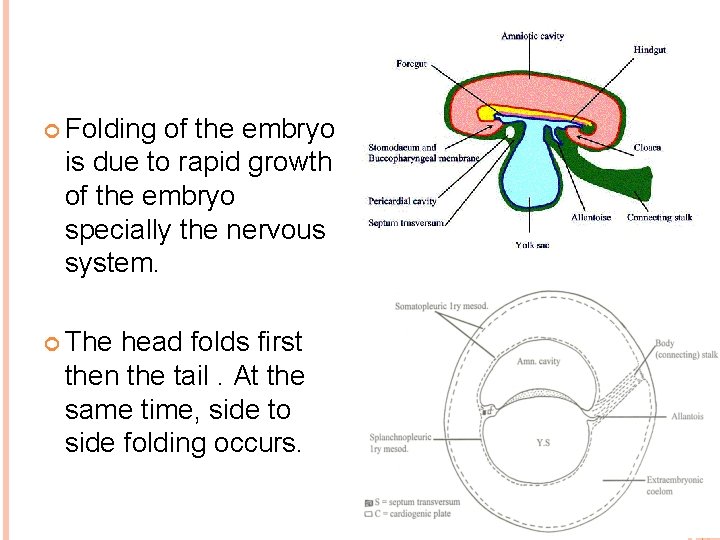

Folding of the embryo is due to rapid growth of the embryo specially the nervous system. The head folds first then the tail. At the same time, side to side folding occurs.
