Gastrulation It is not birth marriage or death

Gastrulation It is not birth, marriage or death, but gastrulation, which is truly the most important event in your life Lewis Wolpert

17 hours in the life of a zebrafish embryo

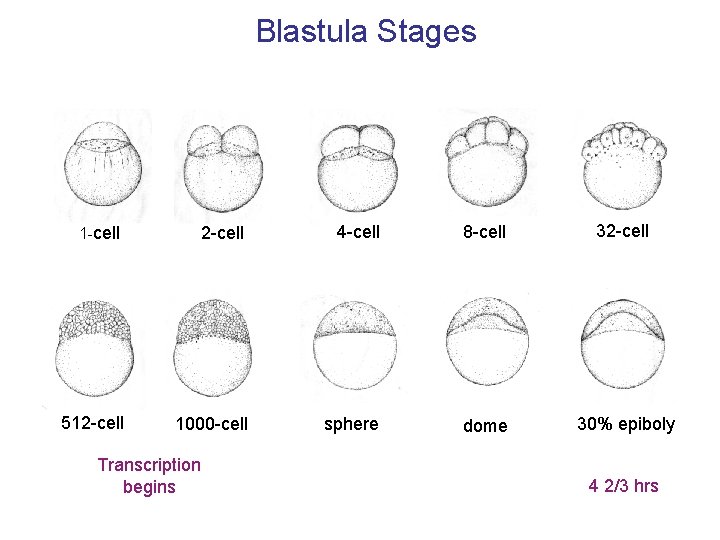

Blastula Stages 1 -cell 2 -cell 4 -cell 8 -cell 32 -cell 512 -cell 1000 -cell sphere dome 30% epiboly Transcription begins 4 2/3 hrs

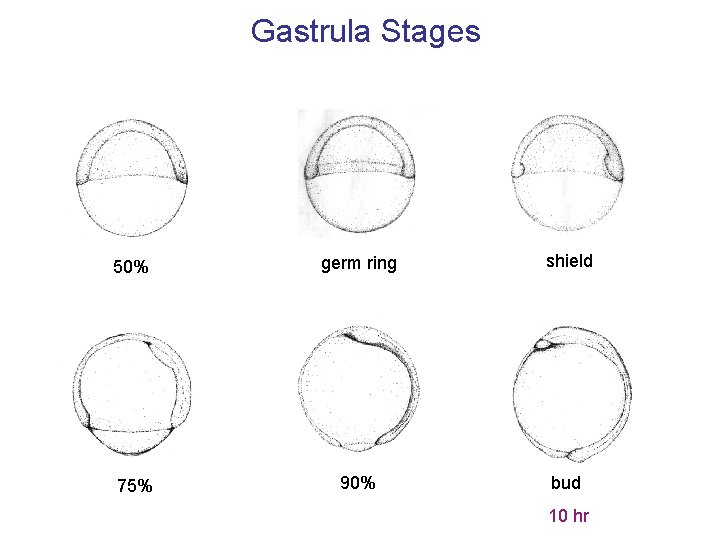

Gastrula Stages 50% germ ring shield 75% 90% bud 10 hr

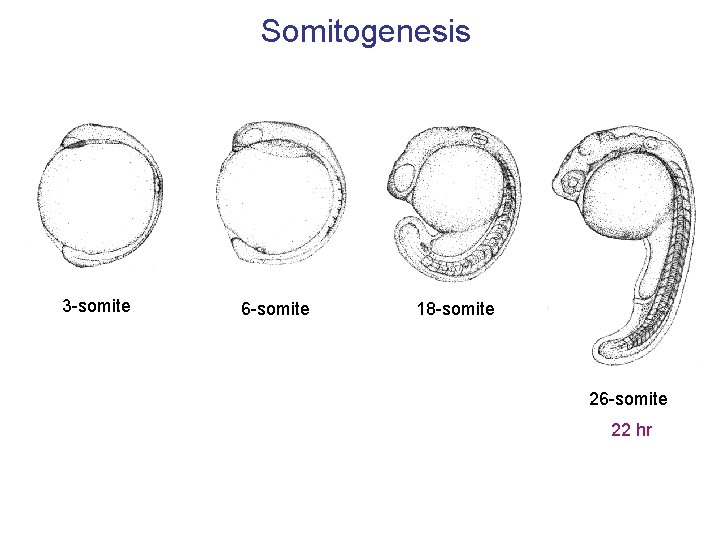

Somitogenesis 3 -somite 6 -somite 18 -somite 26 -somite 22 hr

Zebrafish development

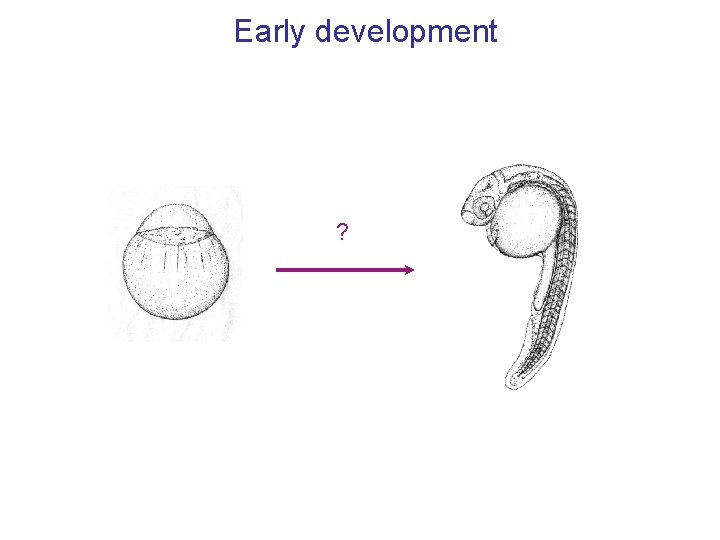

Early development ?

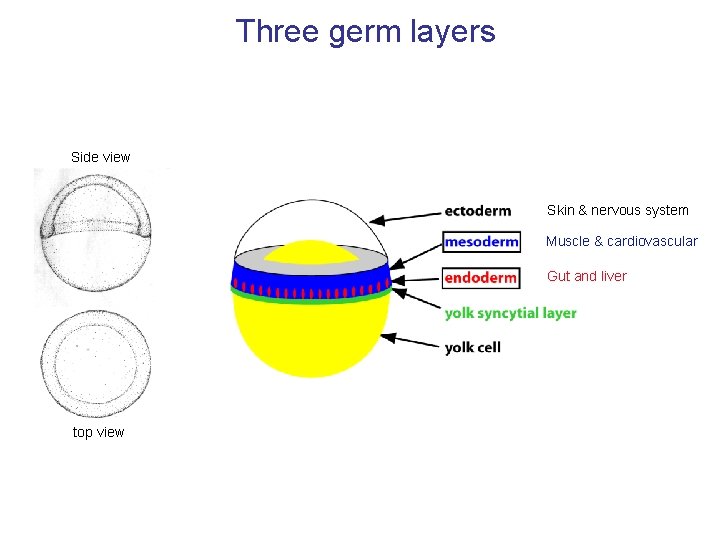

Three germ layers Side view Skin & nervous system Muscle & cardiovascular Gut and liver top view

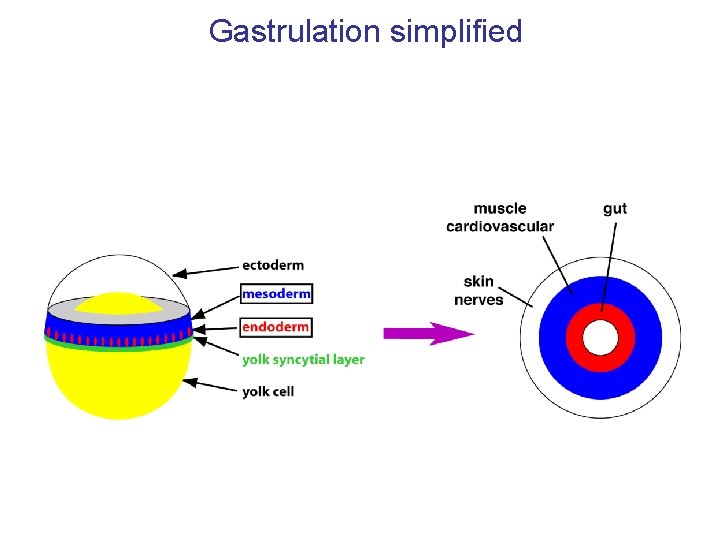

Gastrulation simplified

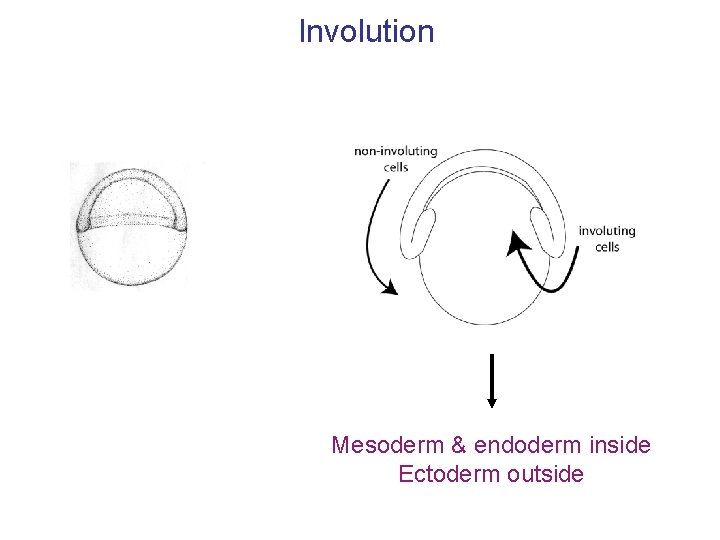

Involution Mesoderm & endoderm inside Ectoderm outside

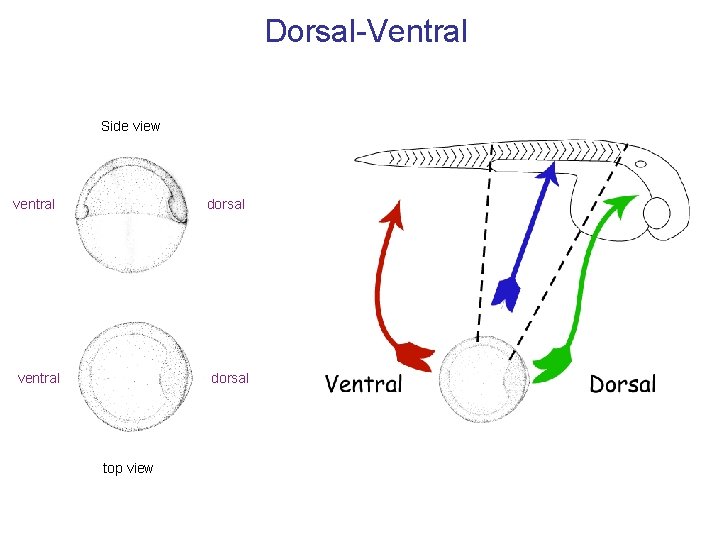

Dorsal-Ventral Side view ventral dorsal top view

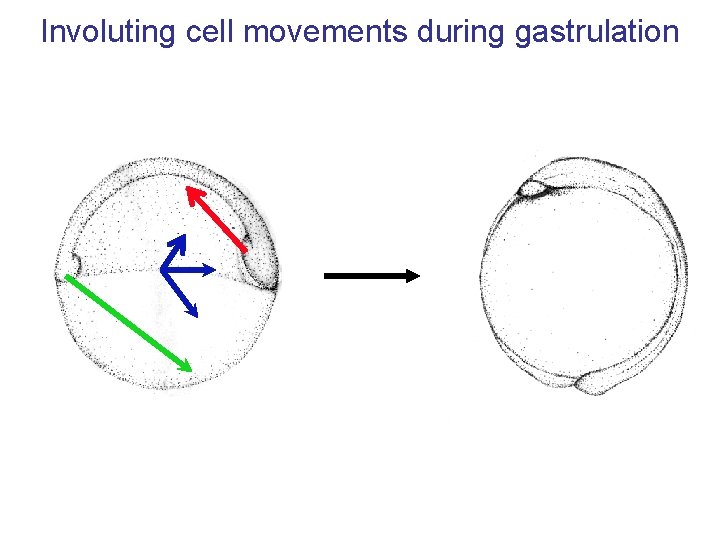

Involuting cell movements during gastrulation

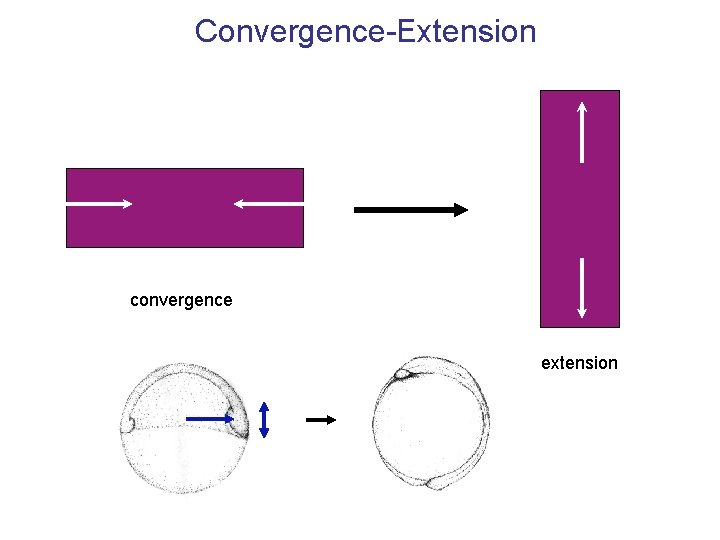

Convergence-Extension convergence extension

Convergence-extension

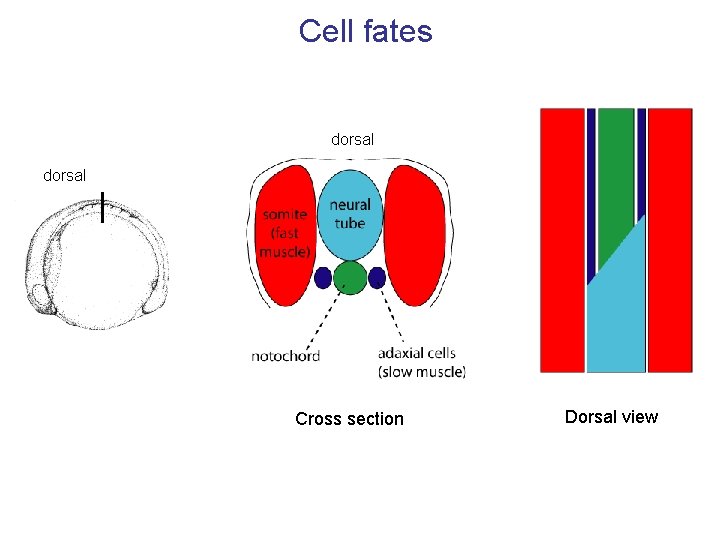

Cell fates dorsal Cross section Dorsal view

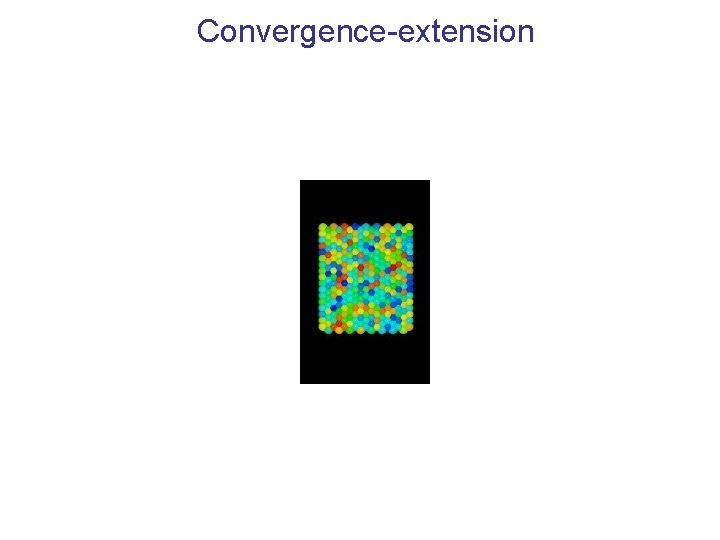

Convergence-extension

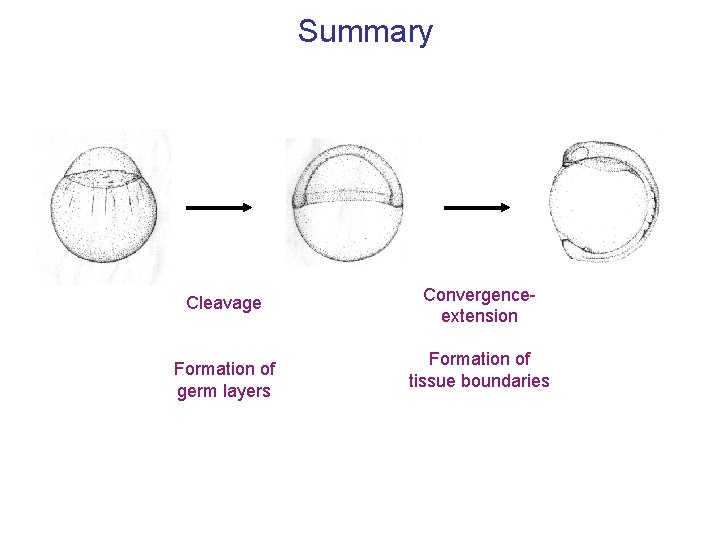

Summary Cleavage Formation of germ layers Convergenceextension Formation of tissue boundaries

Two major Questions • How are the germ layers established? • What determines polarity?

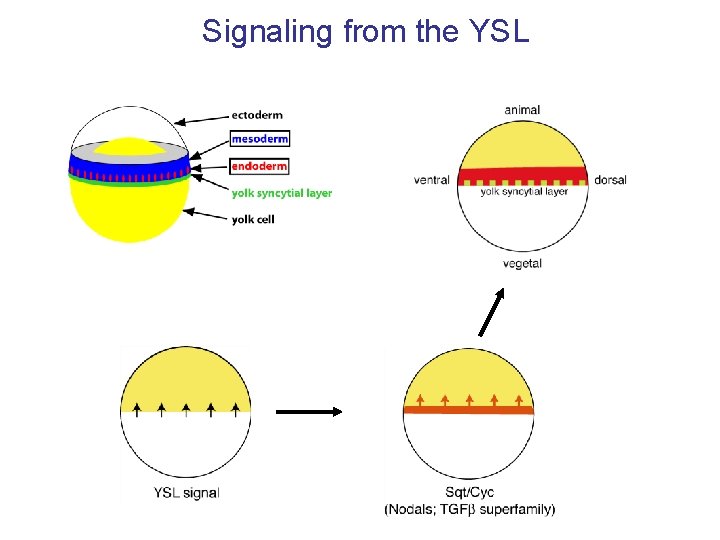

Signaling from the YSL

Nodal mutant wild-type sqt; cyc -/No endoderm No head & trunk mesoderm

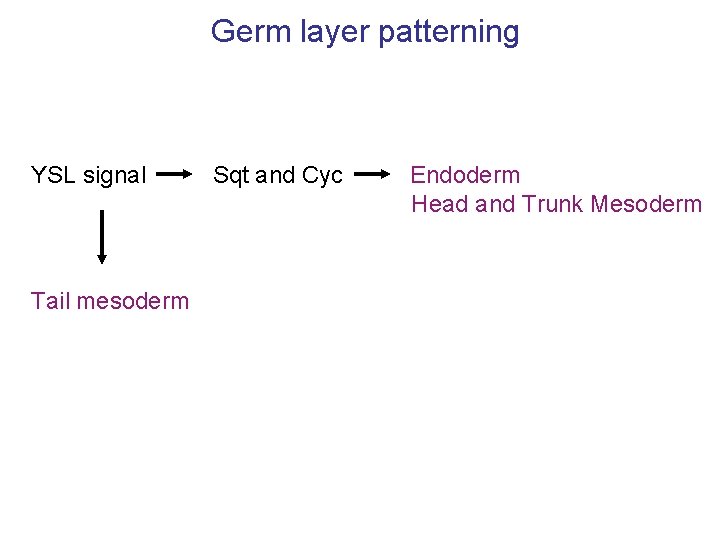

Germ layer patterning YSL signal Tail mesoderm Sqt and Cyc Endoderm Head and Trunk Mesoderm

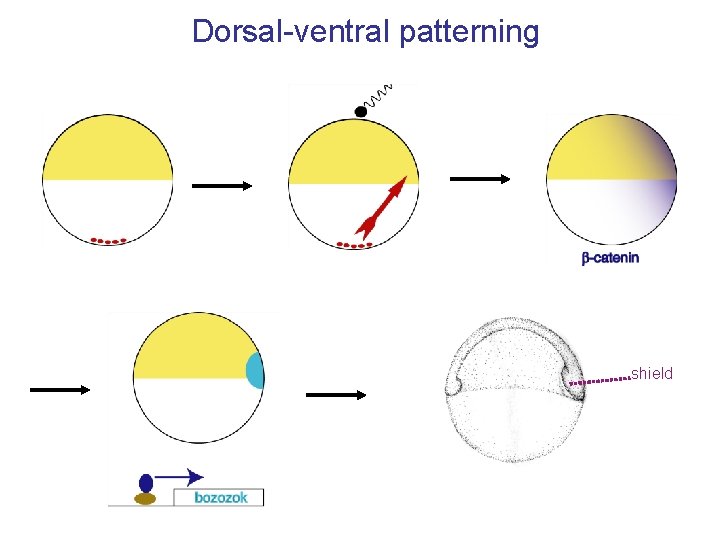

Dorsal-ventral patterning shield

Bozozok

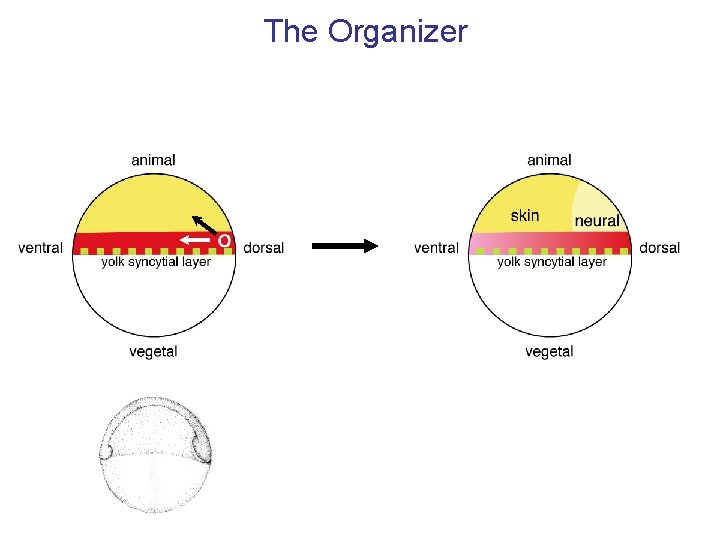

The Organizer

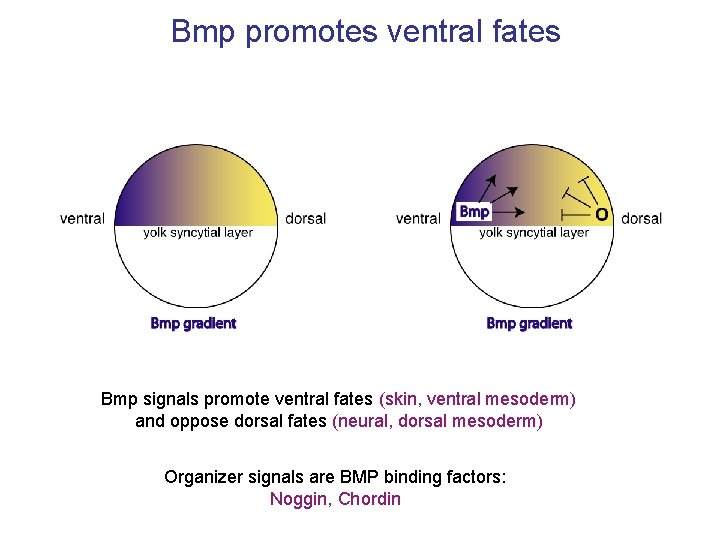

Bmp promotes ventral fates Bmp signals promote ventral fates (skin, ventral mesoderm) and oppose dorsal fates (neural, dorsal mesoderm) Organizer signals are BMP binding factors: Noggin, Chordin

Mutants in the dorsal-ventral pathway Snailhouse (snh) = bmp 7 mutant Chordino (din) = chordin mutant

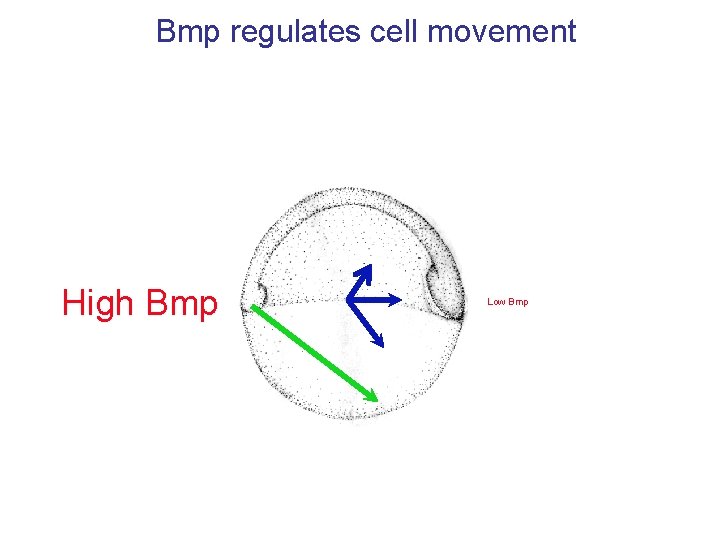

Bmp regulates cell movement High Bmp Low Bmp

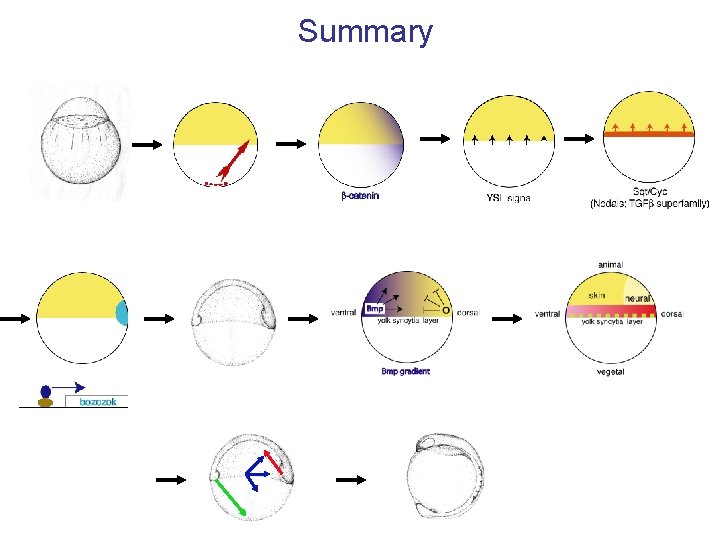

Summary

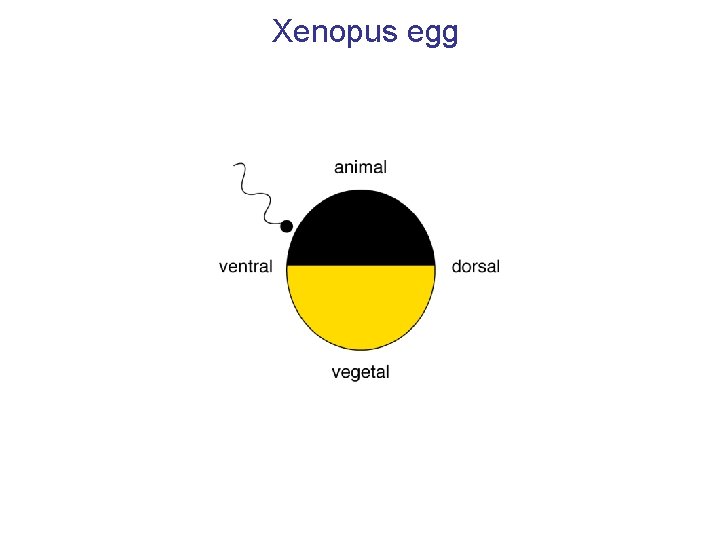

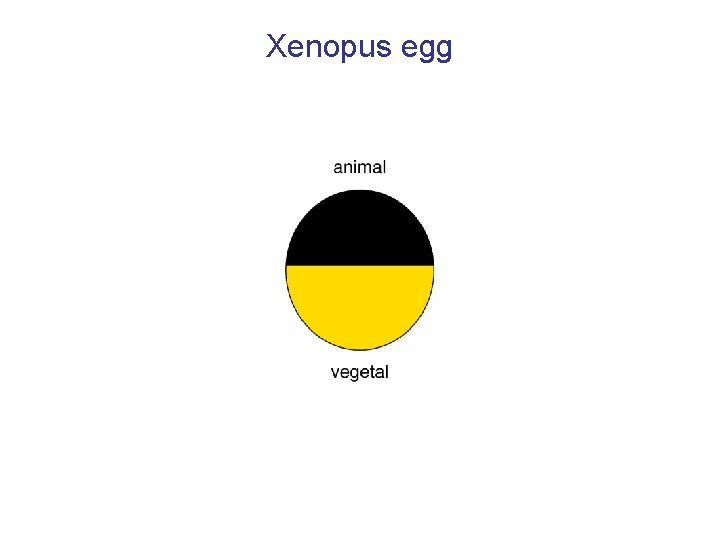

Xenopus egg

Cleavage of Xenopus embryo Animal pole view Midblastula transition (MBT) occurs at 12 th cleavage = start of zygotic transcription

Gastrulation in Xenopus vegetal pole view

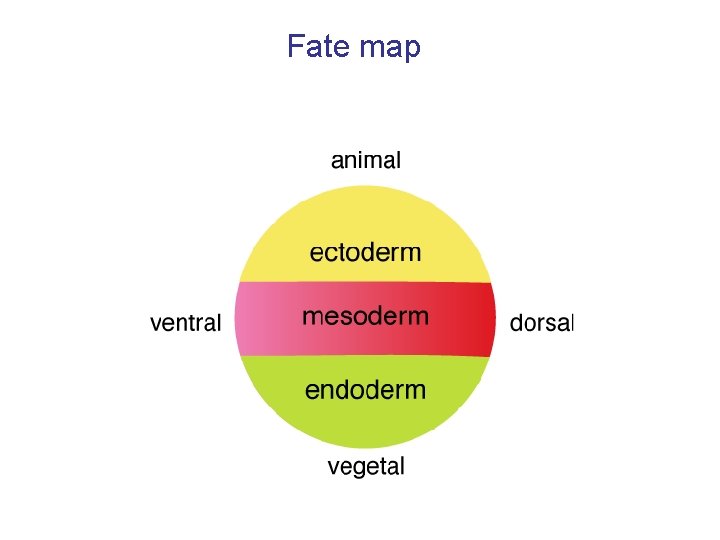

Fate map

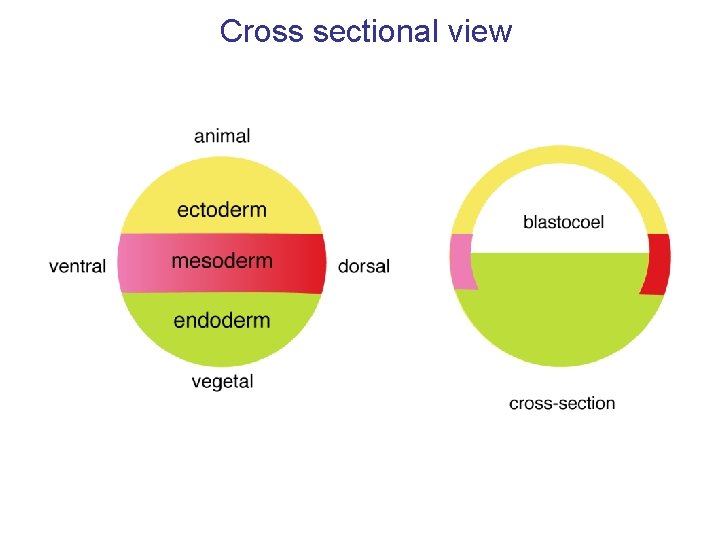

Cross sectional view

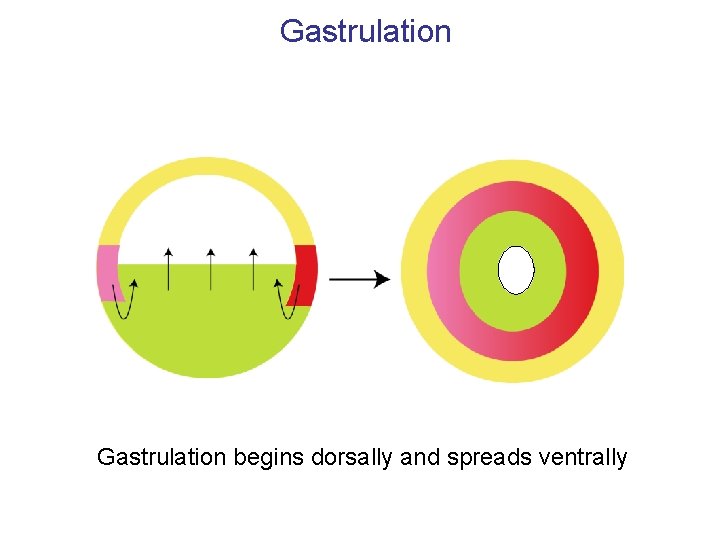

Gastrulation begins dorsally and spreads ventrally

Gastrulation in Xenopus

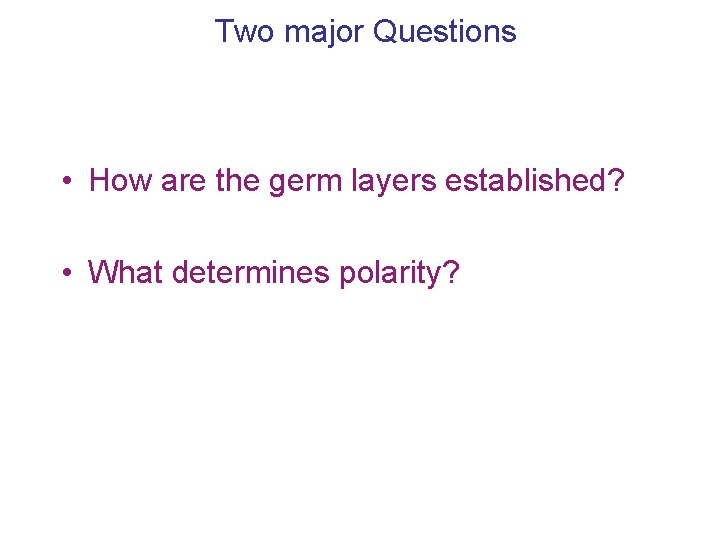

Two major Questions • How are the germ layers established? • What determines polarity?

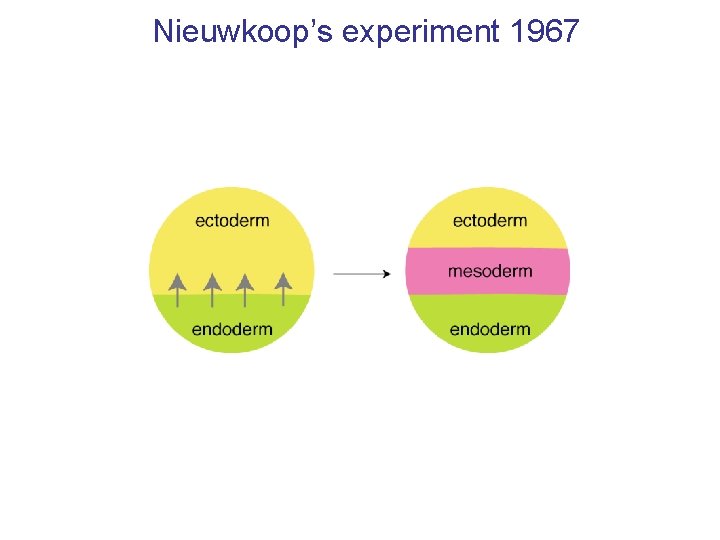

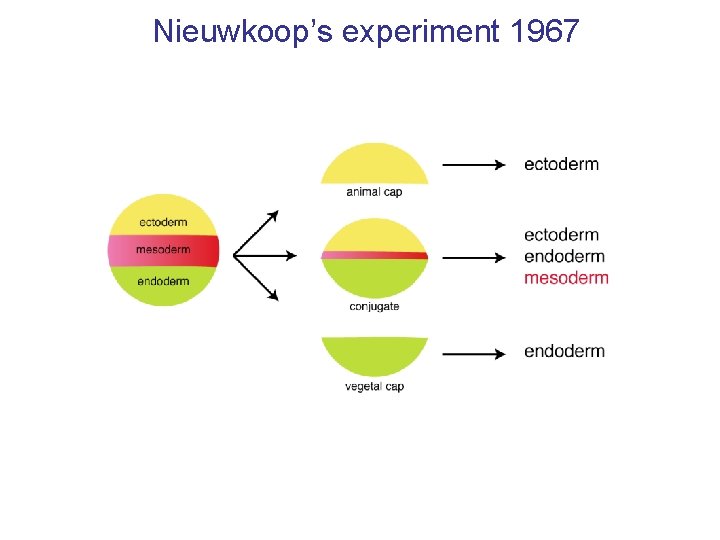

Nieuwkoop’s experiment 1967

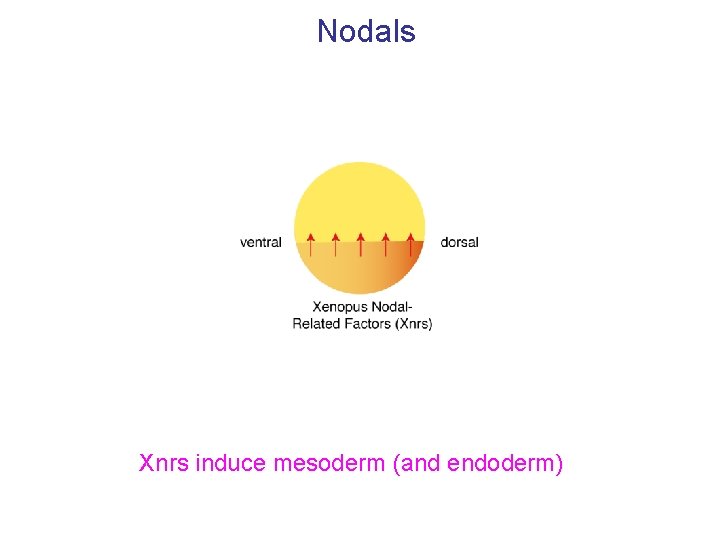

Nodals Xnrs induce mesoderm (and endoderm)

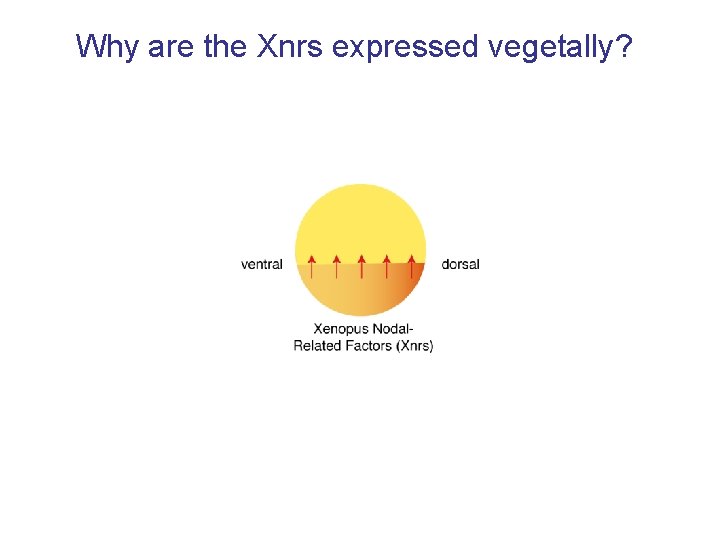

Why are the Xnrs expressed vegetally?

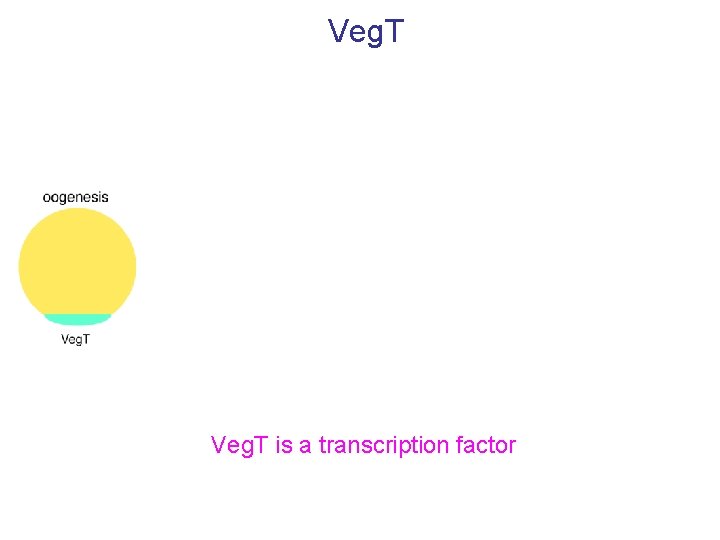

Veg. T is a transcription factor

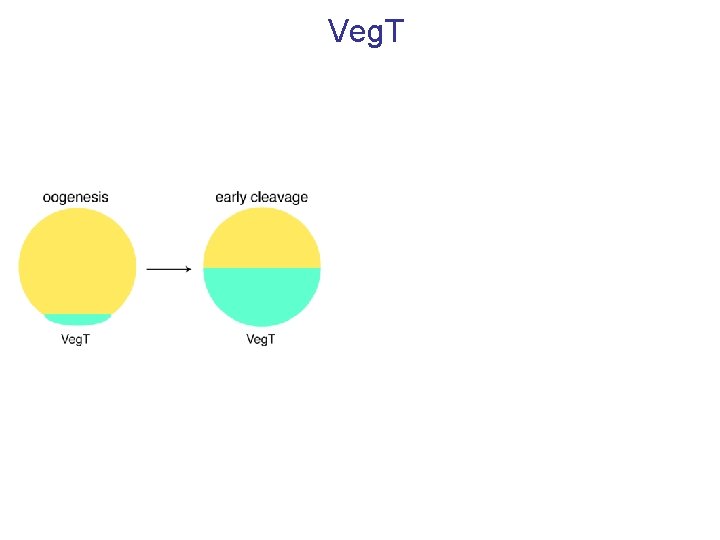

Veg. T

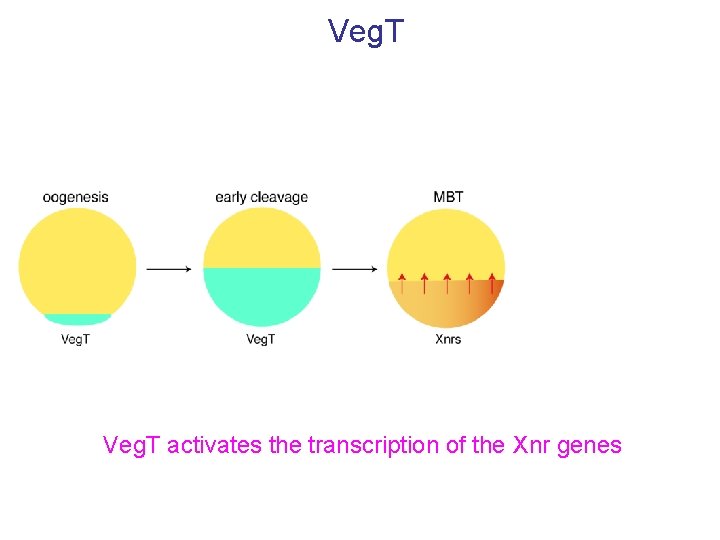

Veg. T activates the transcription of the Xnr genes

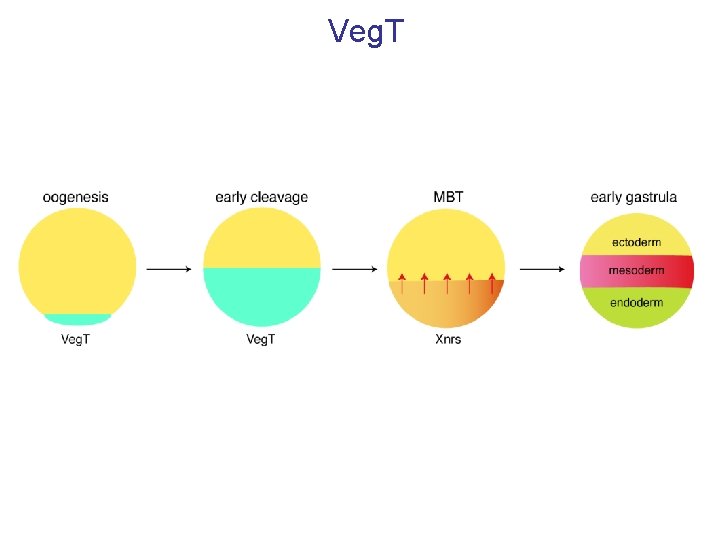

Veg. T

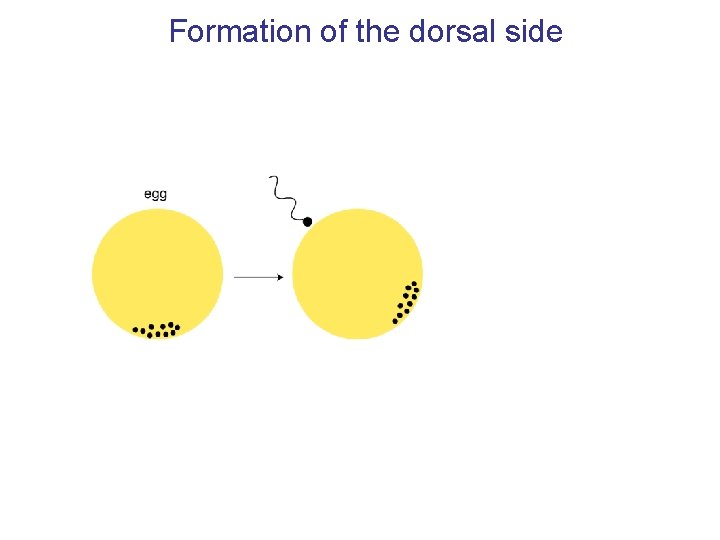

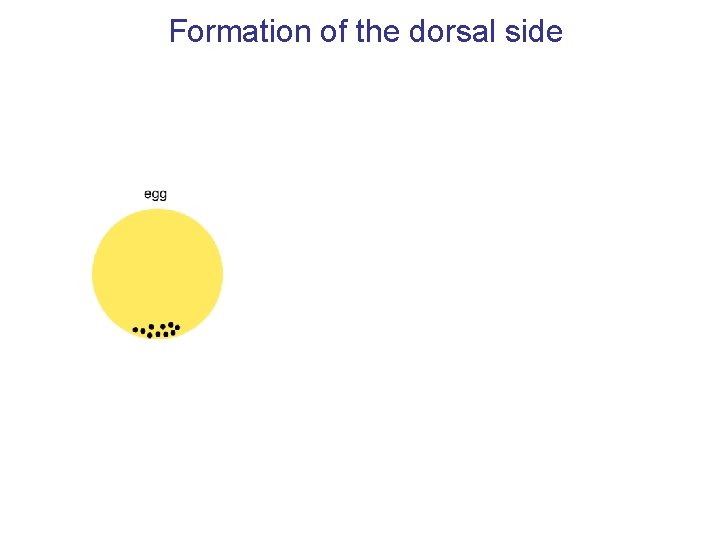

Formation of the dorsal side

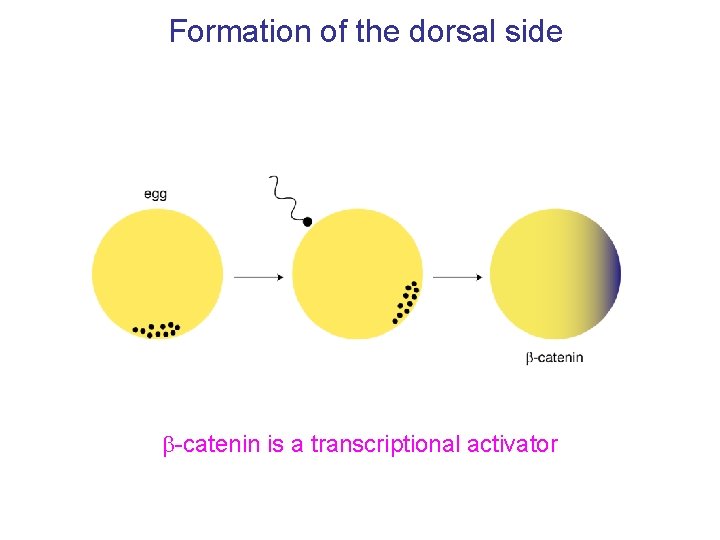

Formation of the dorsal side b-catenin is a transcriptional activator

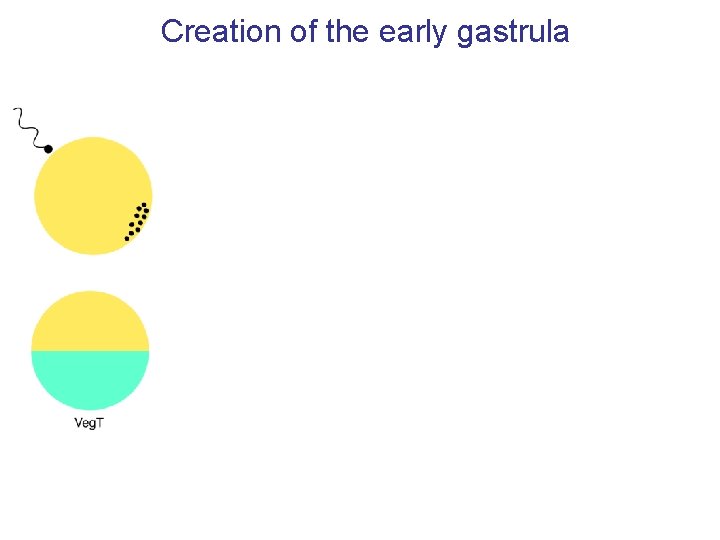

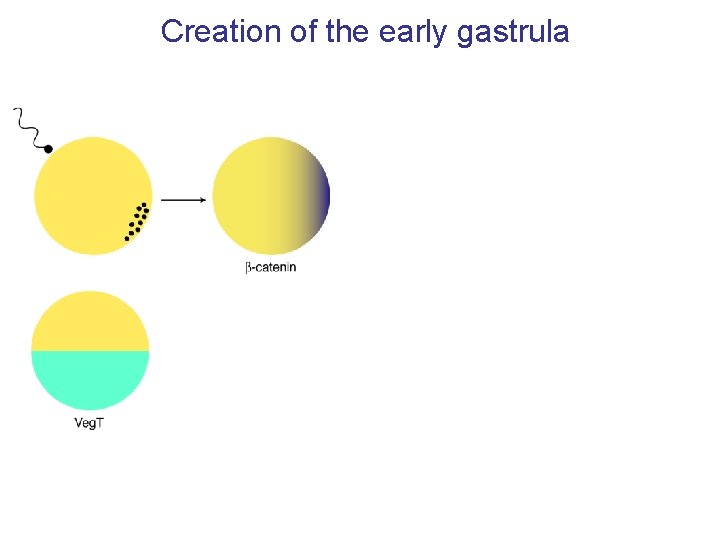

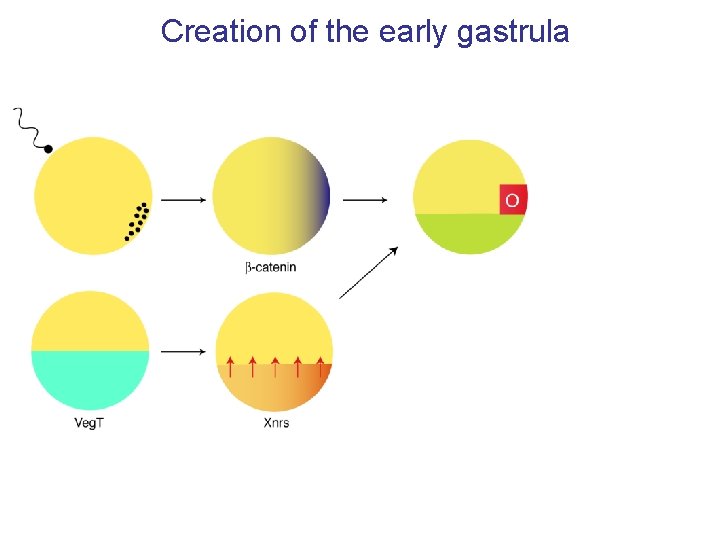

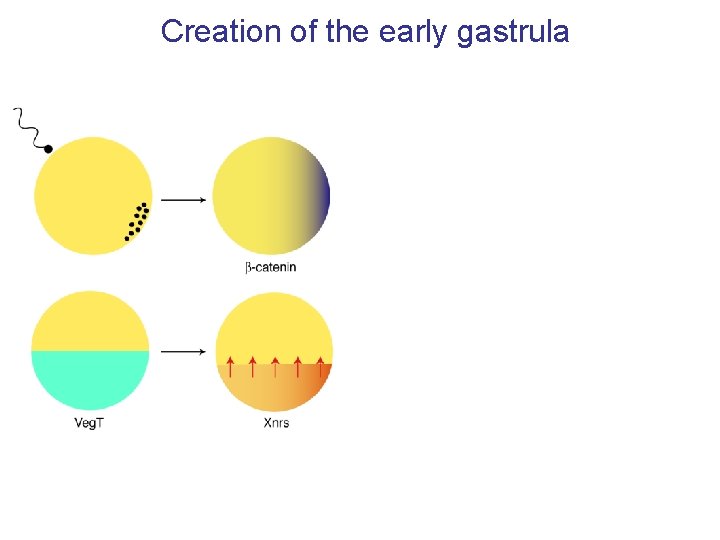

Creation of the early gastrula

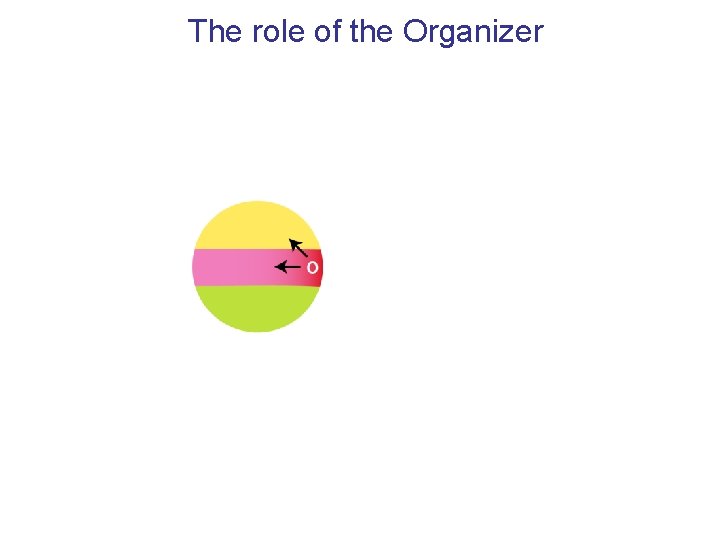

The role of the Organizer

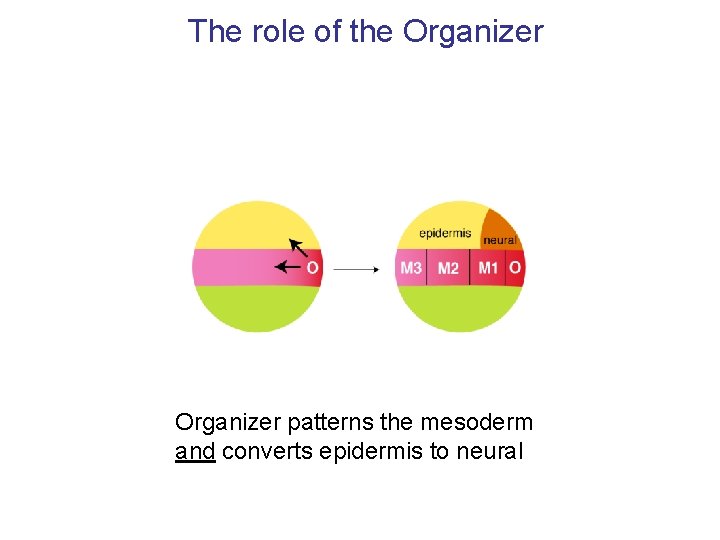

The role of the Organizer patterns the mesoderm and converts epidermis to neural

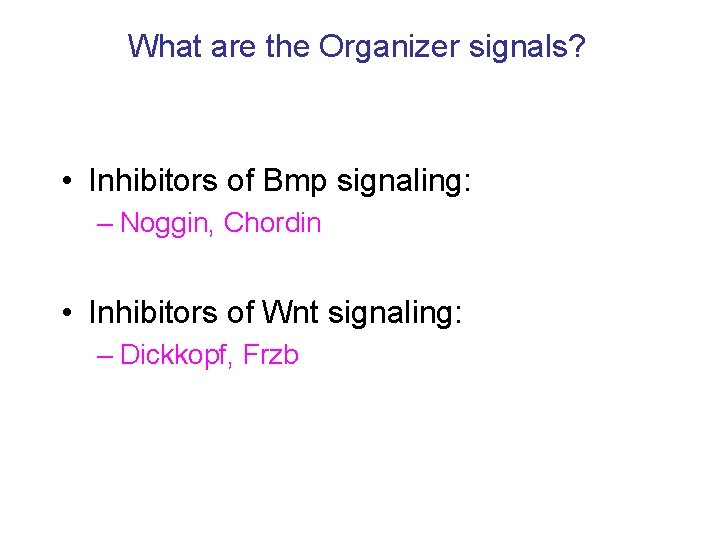

What are the Organizer signals? • Inhibitors of Bmp signaling: – Noggin, Chordin • Inhibitors of Wnt signaling: – Dickkopf, Frzb

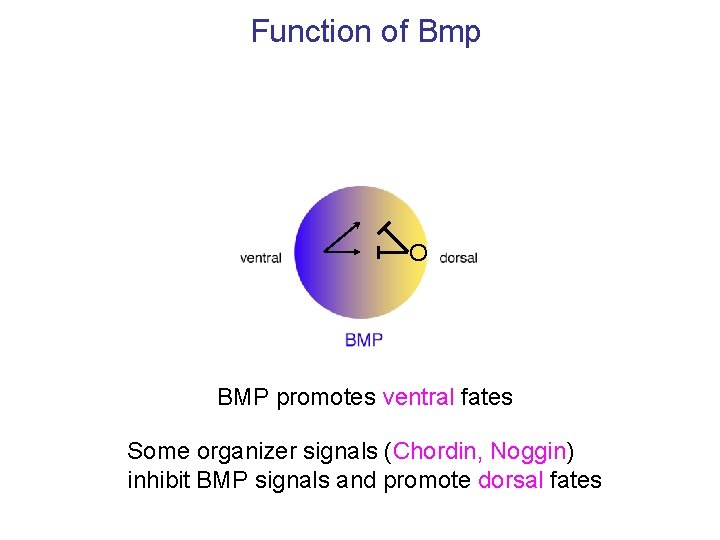

Function of Bmp O BMP promotes ventral fates Some organizer signals (Chordin, Noggin) inhibit BMP signals and promote dorsal fates
