Gas Insulated Substation Product Line Gerardo RIVERA Head
Gas Insulated Substation Product Line Gerardo RIVERA Head of Sales Specialists GIS - LAM GRID
Mision de la linea de Productos GIS La GIS de Alstom Grid provee a las redes y la industria de un producto exepcional “state-of-the-art” de 72, 5 k. V a 800 k. V: − − − En el rango de las mas compactas Productos optimizados Productos totalmente con eco-deseño Mecanismos de resorte de primer clase Conectividad para redes inteligentes “smartgrids” con la integración de automation y sistemas de monitoreo Con mas de 40 años de experiencia comprobada Con mas de 2, 000 subestaciones y mas de 15, 000 bahias en servicio en el mundo
Unidades GIS en el mundo Oberentfelden – Switzerland » Ensamble de 72, 5 k. V a 170 k. V » 520 empleados Aix-les-Bains – France » Ensamble de 245 k. V, 550 k. V, y ultra high voltage » 800 empleados Chennai – India » Ensamble de 145 k. V - 220 k. V - 400 k. V » Inauguracion en 2008. Como lider mundial de tecnologia GIS hemos instalado y puesto en servcio mas de 15 000 bahias GIS Suzhou – China » Ensamble de 145 k. V y 245 k. V » Inaguracion en 2007
Multi-units Offers: Strategy Scheme GISPL Leading Units: • Engineering • Project Management • Special Tools • Supervision of Installation • Customer’s Training Customer Supplying Units: • Manufacturing • Assembly • Transportation • Delivery
Unidades de Servico GIS Soporte a nuestros Clientes proviendo de servicios para las 15 000 bahias instaladas durante todo su ciclo de vida - Instalación, puesta en servicio, pruebas y entrenamiento - Diagnostico, monitoreo y seguimiento de las instalaciones GIS - Soporte de emergencia y reparación - Mantenimiento preventivo - Suministro de repuestos estratégicos - Modernizaciones de GIS - De-comisionamiento y reciclaje de GIS Estos servicio son soportados por las unidades de servicio en todo el mundo
Quien vende GIS ? European manufacturers : 56% Chinese Manufacturers: 26% Japanese and Korean Manufacturers: 18%

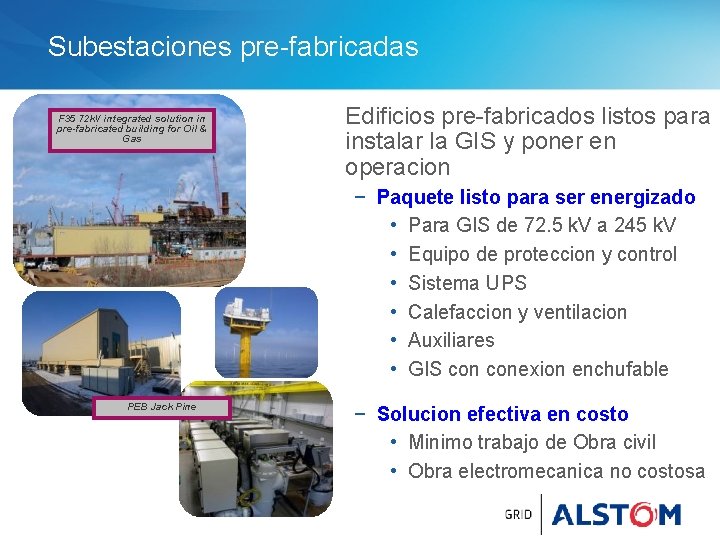

Subestaciones pre-fabricadas F 35 72 k. V integrated solution in pre-fabricated building for Oil & Gas Edificios pre-fabricados listos para instalar la GIS y poner en operacion − Paquete listo para ser energizado • Para GIS de 72. 5 k. V a 245 k. V • Equipo de proteccion y control • Sistema UPS • Calefaccion y ventilacion • Auxiliares • GIS conexion enchufable PEB Jack Pine − Solucion efectiva en costo • Minimo trabajo de Obra civil • Obra electromecanica no costosa
Gas Insulated Lines GIL GAS INSULATED LINES - GIL − Al aire libre 420 k. V GIL: 17 km in a thermal power plant − Tuneles y cabernas − Subterraneos Mas de 100 km de GIL en operacion instalados en el mundo
Optimizacion continua del producto: Eco-Designed − Optimizacion de cantidades de material utilizado Ejemplo en 420 k. V : − Alsladores (-77%), − aluminio (-30%) − SF 6 (-26%) − FACIL reciclaje: • Uso de hasta 96% de materiales que pueden ser reciclables • Ejemplo: Earthing proof tulip of GIS 420 -550 kv (left) and GIS 420 k. V (right)
Continous product optimization: fully Eco-Designed range − Energy efficiency: • Reduction of eq. C 02 emissions by 25% for 420 k. V thanks to the reduction of SF 6 mass and to the improvement of the gas tightness. 7 m − Reduced footprint and volumes At 170 k. V : Ground surface reduced by 45% compared to B 105 245 k. V 5. 5 m Example : minus 1. 5 m height 420/550 k. V GIS 420 k. V GIS
Rango de productos GIS
Alstom GIS product range (1/2) Technical Data Rated voltage Rated power frequency withstand voltage Rated lightning impulse withstand voltage Rated current Rated permissible peak withstand current Rated short-circuit breaking capacity Rated frequency Min. gas operating pressure (rel. ): switchgear / circuit breaker Application Enclosure Permissible ambient temperature Bay dimensions: • width / depth / height • weight Operating system F 35 B 65 B 105 [k. V] [A] [k. A] [Hz] 72. 5 - 170 140 - 325 - 750 2500/3150/4000 80 - 130 31. 5 - 50 50 / 60 145 275 650 2500 - 3150 104 40 50 / 60 245 - 300 460 1050 3150 -4000 100 -125 -160 50 -63 50 / 60 [bar] 5. 5 / 5. 5 Indoor/outdoor three-phase -25 / +40 5. 5 / 5. 5 Indoor/outdoor single-phase -25 / +40 5. 5 - 4. 5 / 5. 5 indoor/outdoor single-phase -25 / +40 0, 65/3. 3/2. 650. 8/3. 82. 8 -1/4. 3/2. 9 1. 2 / 3. 4 / 2. 9 [°C] [m] [kg] 1500/2800/3100 single or three-pole* spring operated *single pole only available for F 35 145 and 170 k. V 3200 single or three-pole spring operated 1. 5 -1. 85 / 5. 0 / 3. 7 -4. 2 5800 -6400 single-pole spring operated
Alstom GIS Product Range (2/2) Technical Data Rated voltage [k. V] Rated power frequency withstand voltage [k. V] Rated lightning impulse withstand voltage [k. V] Rated current [A] Rated permissible peak withstand current [k. A] Rated short-circuit breaking capacity [k. A] Rated frequency [Hz] Min. gas operating pressure (rel. ): switchgear / circuit breaker [bar] Application Enclosure Permissible ambient temperature [°C] Bay dimensions: • width / depth / height [m] • weight [kg] Operating system Other values on request T 155 362 450 1175 4000 160 63 50 / 60 420 620 1425 4000 160 63 50 / 60 550 620 -740 1550 -1800 4000 - 6300 160 63 50 / 60 2, 9 / 6, 5 indoor/outdoor single-phase -25 / +40 2, 9 -4, 5 / 6, 5 indoor/outdoor single-phase -25 / +40 2, 7 / 7, 0 / 6, 6 15000 single-pole spring operated 2, 7/ 7 / 6, 6 15000 single-pole spring operated
GIS Interfaces Bus duct connections to transformers Bus duct connections to bushing (overhead lines) Cable connection
B 105, 245 k. V
B 105, 245 k. V GIS Cabinetes de control local compactos 3 incoming cables type Customer equipment GIS equipment CB Operating mechanism
Increased availability UHF monitoring (1/2) • PD Watch monitoring system enhances substation availability, through periodic or continuous monitoring • UHF signals are captured by special antennas then processed by a spectrum analyzer • Spectrum analysis helps in determining PD source and assess maintenance needs Presentation title - 01/01/2010 - P 20
Increased availability UHF monitoring (2/2) Presentation title - 01/01/2010 - P 21
B 105, 245 k. V GIS Ensamble en fabrica By boat / container or standard truck − Dismountling of common points +
B 105, 245 k. V GIS general view
B 105, 245 k. V GIS general view
B 105, 245 k. V GIS general view conexion cable aislado subterraneo
B 105, 245 k. V GIS con gabinetes de control integrados a la bahia
B 105, 245 k. V GIS views (Local control cubicles)
B 105, 245 k. V GIS spring mechanism
B 105, 245 k. V GIS doble barra
B 105, 245 k. V GIS Transformadores de corriente
B 105, 245 k. V GIS Transformadores de voltaje
GIS 245 k. V Instalación u Anclaje directo al piso nivelado u Sin necesidad de rieles No need to install costly floor framing
Fijacion al piso • Piso nivelado • Margen de 20 mm
Gas Insulated Substation Product Line Algunos ejemplos en el mundo No need to install costly floor framing
GIS F 35 -72. 5 k. V Syncrude, Canada
GIS F 35 -145 k. V Oberuzwil (Switzerland)
GIS B 105 245 k. V Ras Laffan Power Plant (Qatar)
GIB 400 k. V PP 9 (Saudia Arabia)
GIS T 155 420 k. V Charpenay (France)
GIS T 155 550 k. V Paiton (Indonesia)
GIS T 155 400 k. V Amorebieta (Spain)
GIS T 105 245 k. V Sam Phran (Thailand)
GIS T 105 245 k. V Harcourt (France)
GIS T 105 345 k. V Taylor (USA) GIS 345 k. V
GIS T 155 420 k. V Lackenby (UK) GIS 420 k. V
Gas Insulated Line GIL
GIS T 155 420 k. V Escombreras (Spain)
GIS B 105 245 k. V Termobahia (Brazil)
GIS B 105 245 k. V Mata (Spain)
GIS B 105 245 k. V Mobile Unit (Abu Dhabi)
T 155 gas-insulated switchgear The versatile solution T 155 – 2012/02/13 - P 56
GIB 420 k. V Jebel M (Dubai) Total length 15 km
