Gas Furnace Planned Maintenance Annual Fuel Utilization Efficiency

Gas Furnace Planned Maintenance

Annual Fuel Utilization Efficiency (AFUE) • Percentage of the annual average efficiency of a furnace • All furnaces manufactured after 1992 must have a AFUE of at least 78%

Types of Gas-Fired Furnaces Natural Draft Induced-Draft Condensing

Natural Draft Furnaces • Rely on the buoyancy of the hot combustion products to create the draft needed to draw combustion products through the heat exchanger and out the vent • Difficult to obtain a 78% AFUE rating • Not being produced by most manufacturers

Induced-Draft Furnaces • Have an AFUE of at least 78% • Use an inducer fan to draw the products of combustion through the heat exchanger • Inducer fan restricts the flow of warm air out the vent during the off cycle

Condensing Furnaces • Have an AFUE rating of at least 90% • Have an additional heat exchanger which removes the latent heat from the flue gas by condensing the water vapor • Side wall venting • Draws in 100% combustion air from outside

Furnace Configurations Upflow Downflow Horizontal Multipoise

Gas Furnace Components Gas Valve Gas Manifold and Orifices Gas Burners Heat Exchangers Burner Ignition Devices

Gas Valves • Most furnaces will use a combination gas valve • The basic function of a combination gas valve is: – Automatic and manual shut-off of gas flow to the main burners & pilot – Pressure adjustment and regulation of the gas supplied to the gas manifold & pilot

Gas Valves continued…. • Natural gas furnaces use a combination gas valve--it should be adjusted to regulate the outlet gas pressure to 3. 2” w. c. to 3. 8” w. c. • LP furnaces may not have a pressure regulator adjustment; if it does, it should be adjusted to regulate the outlet pressure to 10. 5” w. c. to 11” w. c.

Gas Manifold & Orifices • Spuds can be changed in the field to obtain the correct burner input rate • The spud controls the flow of gas to each of the burners • The exact orifice size of the spud is determined by the manufacturer

Gas Burners • Properly mix the gas with the combustion air to the combustion chamber • Two types: – Multi-port – Mono-port • The amount of primary air supplied to some multi-port burners can be changed by adjusting the primary air shutter

Burner Ignition Devices Three basic types Standing Pilot Re-ignition Direct Ignition

Standing Pilot • Two types of safety devices: – Thermocouple – Thermally-actuated switch • Clean orifice carefully • A properly adjusted pilot flame will have a soft blue color with some yellow at the tip • Should have a height of 3/8” to 1/2” to impinge on thermocouple

Standing Pilots continued. . . • Normal output voltage of thermocouple is 26 to 32 millivolts DC • The minimum acceptable output voltage is 12 millivolts DC • If pilot flame goes out the gas flow to the pilot assembly should drop out within 2 -1/2 minutes.

Spark Re-ignition • Used on mid-efficiency & high-efficiency furnaces • Output spark typically 15, 000 volts • Pilot flame is proved by either a set of thermally-actuated switches or a flame rectification circuit (more common) • Never attempt to manually light

Spark Re-ignition continued. . . • Clean the components of any dirt, scale, soot or carbon using a soft-bristle brush • Check high voltage cable for any cracks or poor connections • Check safety lockout operation – With gas valve off set thermostat to call for heat, see if gas valve shuts down if no flame is proved

Direct Ignition (Hot Surface Ignitor) • Used on high efficiency furnaces • Hot Surface Ignitor directly lights burners • Uses flame rectification circuit to prove flame • Made of ceramic - fragile • Visually inspect for cracks or breaks • At room temperature the resistance should equal 45 to 90 ohms (if over 110 ohms replace)

Vent Checks • Visually check for any obstructions • Visually check for any worn or damaged pipes • If any problems observed, immediately notice the proper personnel • Inspect vent pipe to other appliances that may be tied into the furnace(s)

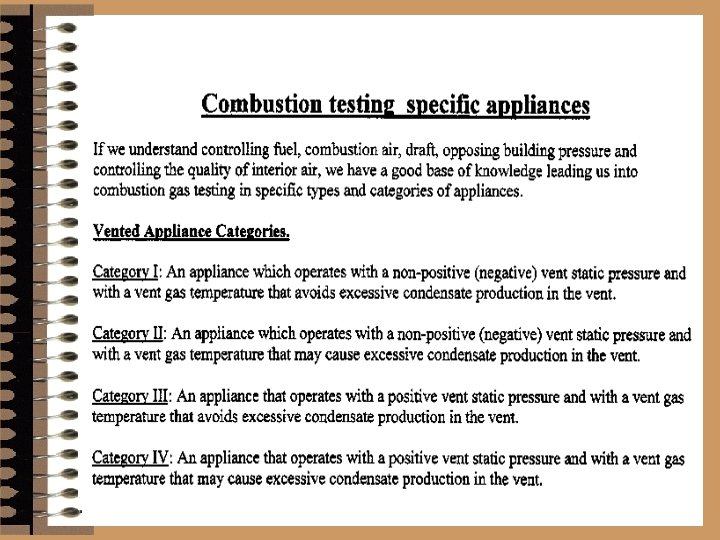

Combustion Testing

Category I Appliance

Category I - Appliance Test Point

Category I Appliances

Fan Assisted Furnaces

Category IV Furnaces

Temperature Rise Checks • Determine temperature rise for data plate • Generally low-efficiency furnaces will have a temperature rise of 75 to 100 degrees • Generally high-efficiency furnaces will have a temperature rise of 40 to 70 degrees • Always check supply temperature out of the line of sight of the heat exchanger

Temperature Rise Checks continued. . . • Before checking the temperature rise of a furnace make sure the filter is clean and the airflow is not being blocked • Use the same type of thermometers for measuring the return and supply temperatures • Before checking the temperature rise, compare the accuracy of each thermometer against each other

Safety Controls Checks • Verify the operation of the high temperature switch. • Block return airflow completely and observe the gas valve shutting down and at which temperature • On induced draft furnaces remove one end of the rubber hose from the air pressure switch and observe the gas valve shutting down
