Gas Compression Oil and Gas Technology Program Two

Gas Compression Oil and Gas Technology Program

Two Elements: Driver and Compressor Driver (Prime Mover) Compressor Oil and Gas Technology Program

Driver Types • Internal Combustion Engines • Gas Turbines • Steam Turbines • Electric Motors Oil and Gas Technology Program

Compressor Types • Reciprocating Compressors: Designed for high pressure and low volume applications • Centrifugal Compressors: Designed for low pressure and high volume applications Oil and Gas Technology Program

Reciprocating Compressor Driver End Compressor Oil and Gas Technology Program

Compressor Components Oil and Gas Technology Program

Cylinder Oil and Gas Technology Program

Piston and Piston Rod Oil and Gas Technology Program

Piston Rings Oil and Gas Technology Program

Suction and Discharge Valves Oil and Gas Technology Program

Packing Oil and Gas Technology Program

Connecting Components Oil and Gas Technology Program

Double Acting Cylinder Head Oil and Gas Technology Program

Frame Compressors Oil and Gas Technology Program

Interstage Cooling Oil and Gas Technology Program

Adjusting Compressor Capacity • Speed Control – Some compressors allow speed adjustment. – Reducing the compressor speed also reduces the number of pistons strokes per minute. – This reduces capacity. • Reducing Displacement – Another way to reduce compressor capacity is to reduce the displacement within the compressor cylinder head. – Displacement is the volume of gas that the piston moves as it travels from one end of the cylinder to the other. – This volume is equal to the cross-sectional area of the cylinder times the length of its stroke. • Two methods combined for reducing displacement: – Raising valve lifters – Increasing cylinder clearance Oil and Gas Technology Program

Suction and Discharge Valve Oil and Gas Technology Program

Raising a Valve Lifter open Oil and Gas Technology Program closed

Clearance Pocket Oil and Gas 5 Technology Slid Program

Bypass Control Oil and Gas Technology Program

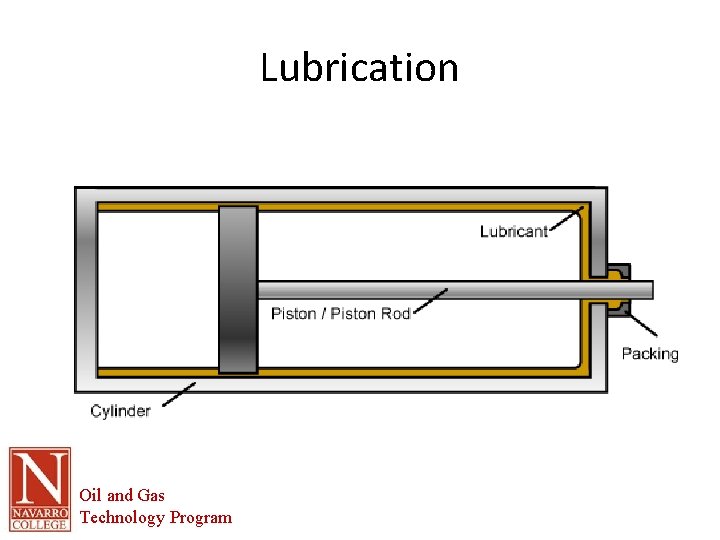

Lubrication Oil and Gas Technology Program

Internal Cooling Oil and Gas Technology Program
