Gardner Denver Centrifugal Blowers Typical Applications 1 2
Gardner Denver Centrifugal Blowers

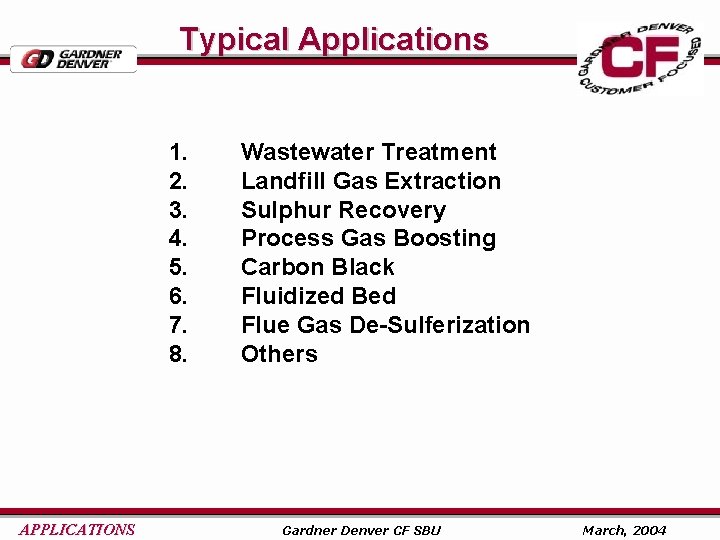

Typical Applications 1. 2. 3. 4. 5. 6. 7. 8. APPLICATIONS Wastewater Treatment Landfill Gas Extraction Sulphur Recovery Process Gas Boosting Carbon Black Fluidized Bed Flue Gas De-Sulferization Others Gardner Denver CF SBU March, 2004
Typical Applications Wastewater Treatment APPLICATIONS Gardner Denver CF SBU March, 2004
APPLICATIONS Gardner Denver CF SBU March, 2004
Wastewater Basins APPLICATIONS Gardner Denver CF SBU March, 2004

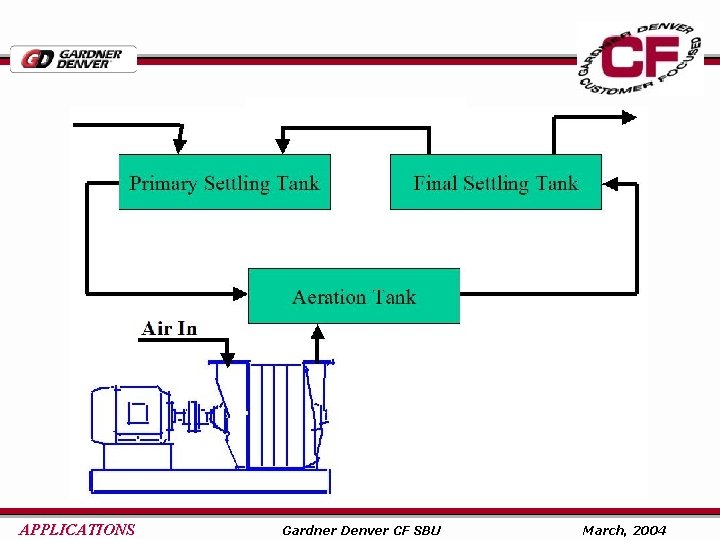

APPLICATIONS Gardner Denver CF SBU March, 2004
Blowers in Wastewater As Biochemical Oxygen Demand requirement changes in wastewater treatment, Gardner Denver multistage centrifugal blowers adjust easily. The Gardner Denver blowers save energy by eliminating the need for blowoff systems. Gardner Denver centrifugal blowers in wastewater service are designed for direct connection to an electric motor with a non-lubricated flexible drive coupling. APPLICATIONS Gardner Denver CF SBU March, 2004

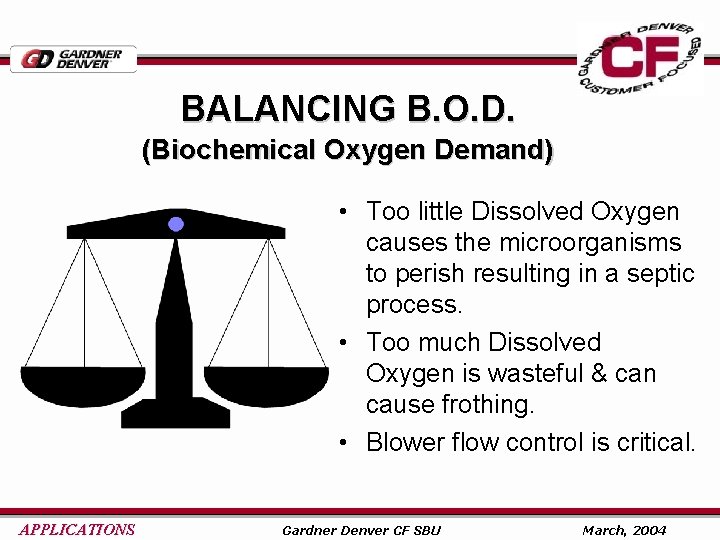

BALANCING B. O. D. (Biochemical Oxygen Demand) • Too little Dissolved Oxygen causes the microorganisms to perish resulting in a septic process. • Too much Dissolved Oxygen is wasteful & can cause frothing. • Blower flow control is critical. APPLICATIONS Gardner Denver CF SBU March, 2004

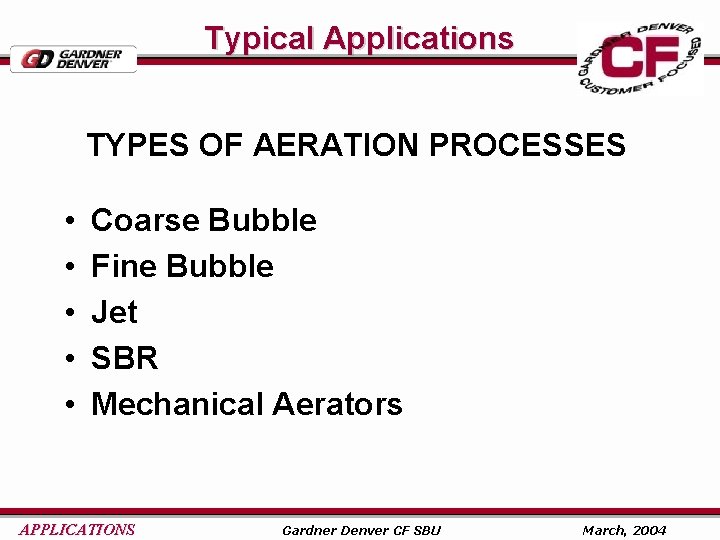

Typical Applications TYPES OF AERATION PROCESSES • • • Coarse Bubble Fine Bubble Jet SBR Mechanical Aerators APPLICATIONS Gardner Denver CF SBU March, 2004

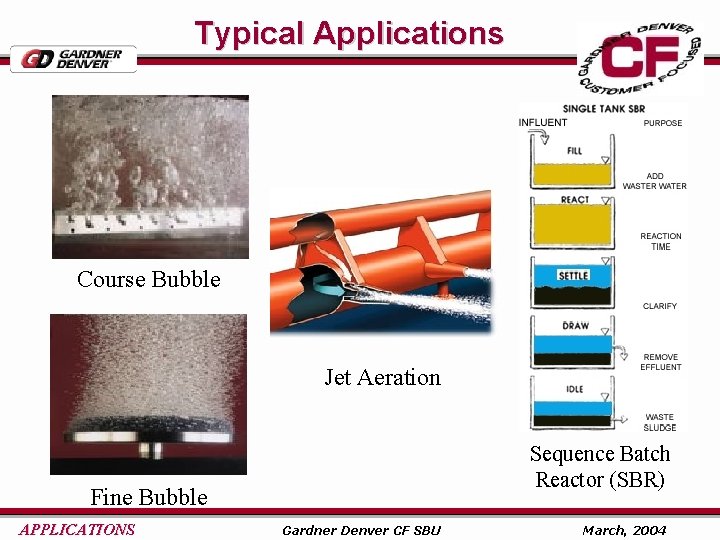

Typical Applications Course Bubble Jet Aeration Sequence Batch Reactor (SBR) Fine Bubble APPLICATIONS Gardner Denver CF SBU March, 2004

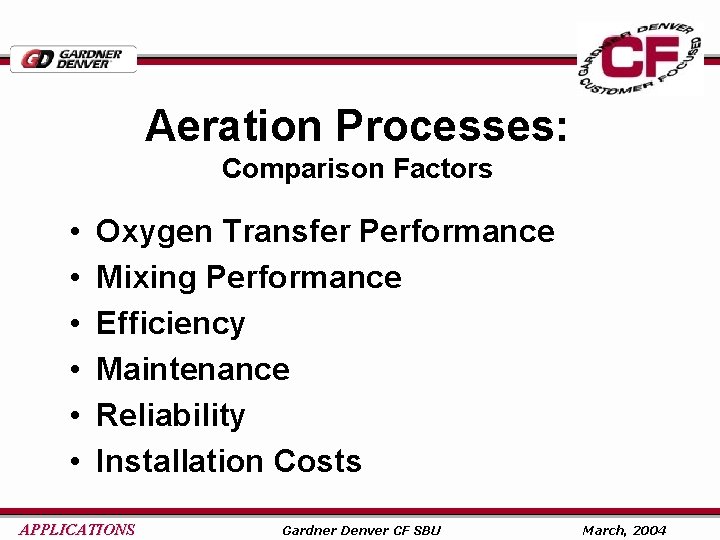

Aeration Processes: Comparison Factors • • • Oxygen Transfer Performance Mixing Performance Efficiency Maintenance Reliability Installation Costs APPLICATIONS Gardner Denver CF SBU March, 2004

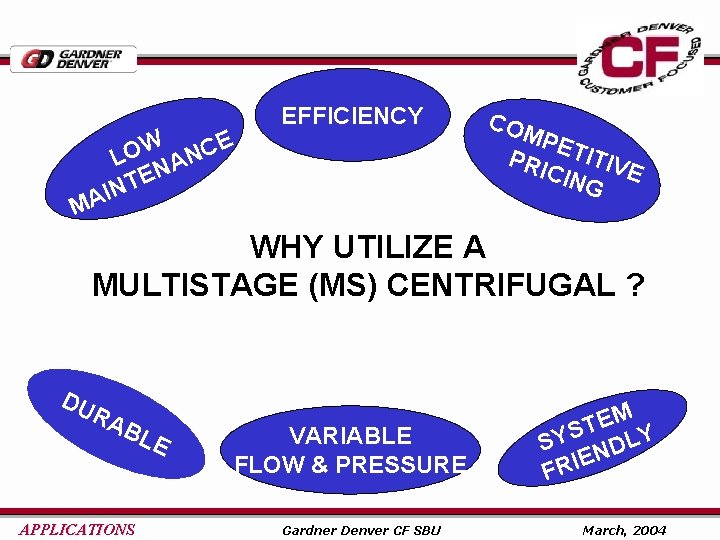

EFFICIENCY CE W LO AN EN T AIN M CO MP E PRI TITIV E CIN G WHY UTILIZE A MULTISTAGE (MS) CENTRIFUGAL ? DU RA BL APPLICATIONS E VARIABLE FLOW & PRESSURE Gardner Denver CF SBU M E T SYS NDLY E I R F March, 2004
ADVANTAGES OF MULTISTAGE CENTRIFUGAL BLOWERS • Flexibility - MS Blowers allow variable flow capability without a VFD, critical for maintaining sufficient amounts of dissolved oxygen at the minimum and maximum air requirement levels. • Efficiency - MS Blowers maintain efficiency throughout their useful life. Additional energy savings are gained by inlet throttling and using custom design control schemes. • Low Maintenance - With L-10 bearing life design and no wearing parts, MS Blowers operate virtually maintenance free. (Periodic lubrication) • Low Noise - Most MS Blowers operate below 85 dba at 1 meter. APPLICATIONS Gardner Denver CF SBU March, 2004

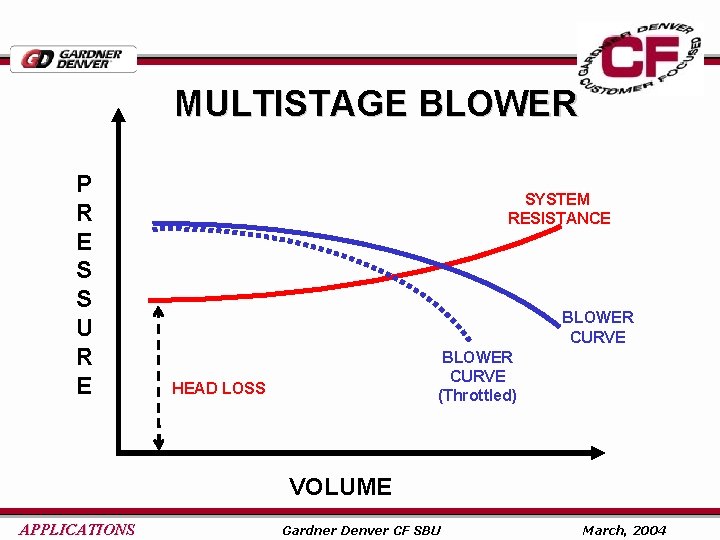

MULTISTAGE BLOWER P R E S S U R E SYSTEM RESISTANCE BLOWER CURVE (Throttled) HEAD LOSS VOLUME APPLICATIONS Gardner Denver CF SBU March, 2004

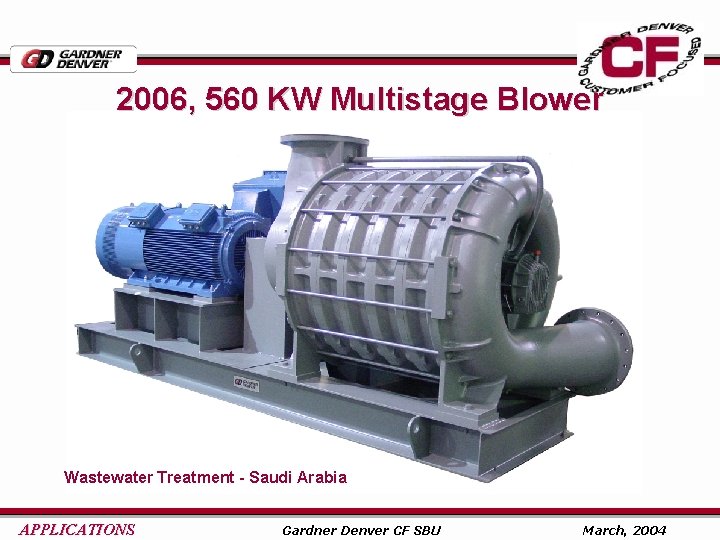

2006, 560 KW Multistage Blower Wastewater Treatment - Saudi Arabia APPLICATIONS Gardner Denver CF SBU March, 2004

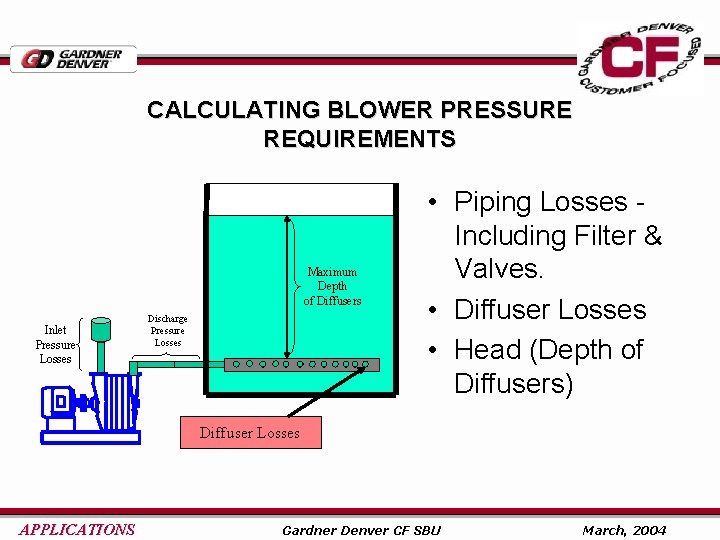

CALCULATING BLOWER PRESSURE REQUIREMENTS Maximum Depth of Diffusers Inlet Pressure Losses Discharge Pressure Losses • Piping Losses Including Filter & Valves. • Diffuser Losses • Head (Depth of Diffusers) Diffuser Losses APPLICATIONS Gardner Denver CF SBU March, 2004
Typical Applications INLET AIR 33% 100% INLET AIR 33% BASIN INLET AIR 33% APPLICATIONS Gardner Denver CF SBU BASIN March, 2004
Typical Applications Wastewater Treatment APPLICATIONS Gardner Denver CF SBU March, 2004

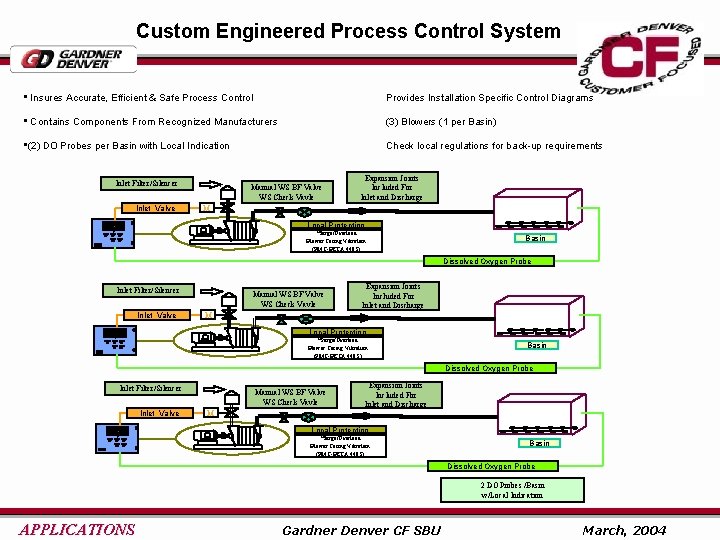

Custom Engineered Process Control System • Insures Accurate, Efficient & Safe Process Control Provides Installation Specific Control Diagrams • Contains Components From Recognized Manufacturers (3) Blowers (1 per Basin) • (2) DO Probes per Basin with Local Indication Check local regulations for back-up requirements Inlet Filter/Silencer Inlet Valve Manual WS BF Valve WS Check Vavle Expansion Joints Included For Inlet and Discharge M Local Protection *Surge/Overload Blower Casing Vibration (PMC-BETA 440 S) Basin Dissolved Oxygen Probe Inlet Filter/Silencer Inlet Valve Manual WS BF Valve WS Check Vavle M Expansion Joints Included For Inlet and Discharge Local Protection *Surge/Overload Blower Casing Vibration (PMC-BETA 440 S) Basin Dissolved Oxygen Probe 2 DO Probes /Basin w/Local Indication APPLICATIONS Gardner Denver CF SBU March, 2004

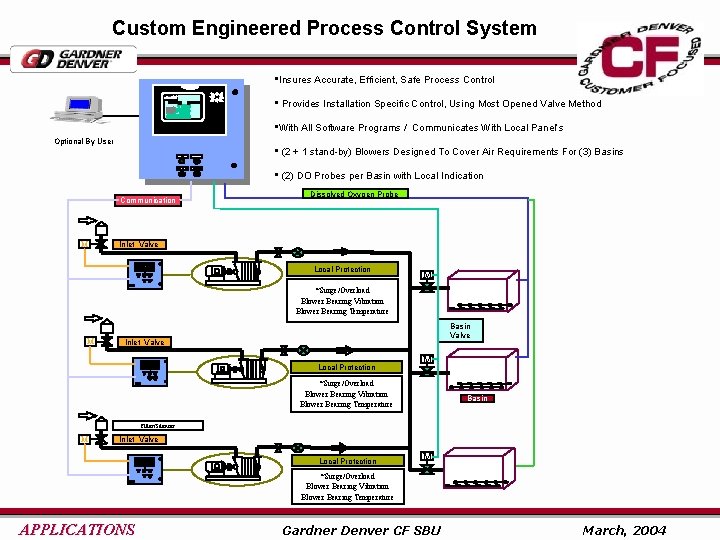

Custom Engineered Process Control System • Insures Accurate, Efficient, Safe Process Control P 1 ESC P 2 P 3 P 4 P 5 F 1 F 2 F 3 F 4 F 5 F 6 F 7 F 8 F 9 F 10 F 11 F 12 F 13 F 14 F 15 F 16 F 17 F 18 F 19 F 20 Optional By User Communication M POWER BALANCE VALVE HAND OFF AUTO BALANCE VAL 1 OPEN JOG CLOSE BALANCE VAL 2 OPEN JOG CLOSE 1 2 3 4 5 P 6 7 8 P 7 < 0 > P 8 = - RETURN 6 P 9 INS HOME PAGE UP P 10 DEL END PAGE DOWN ALP SP TAB BS LCK CTL ALT SHF 9 • Provides Installation Specific Control, Using Most Opened Valve Method • With All Software Programs / Communicates With Local Panel’s • (2 + 1 stand-by) Blowers Designed To Cover Air Requirements For (3) Basins • (2) DO Probes per Basin with Local Indication Dissolved Oxygen Probe Inlet Valve Local Protection M *Surge/Overload Blower Bearing Vibration Blower Bearing Temperature M Basin Valve Inlet Valve Local Protection M *Surge/Overload Blower Bearing Vibration Blower Bearing Temperature Basin Filter/Silencer M Inlet Valve Local Protection M *Surge/Overload Blower Bearing Vibration Blower Bearing Temperature APPLICATIONS Gardner Denver CF SBU March, 2004

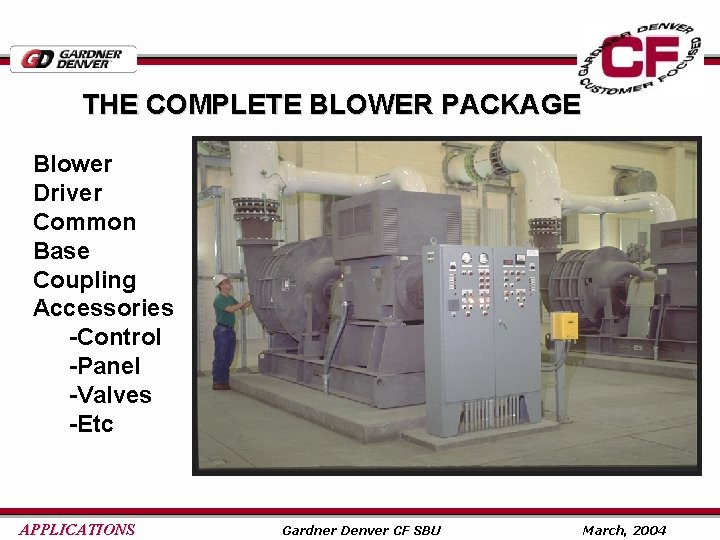

THE COMPLETE BLOWER PACKAGE Blower Driver Common Base Coupling Accessories -Control -Panel -Valves -Etc APPLICATIONS Gardner Denver CF SBU March, 2004

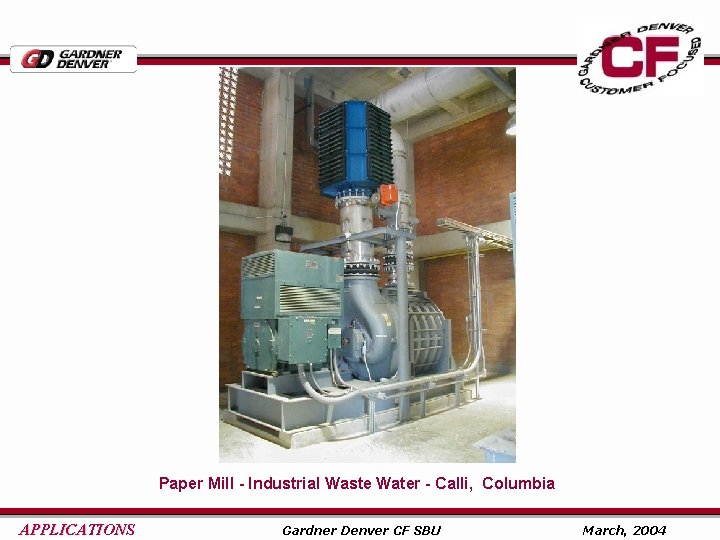

Paper Mill - Industrial Waste Water - Calli, Columbia APPLICATIONS Gardner Denver CF SBU March, 2004
Paper Mill - Industrial Waste Water - Medellin Columbia APPLICATIONS Gardner Denver CF SBU March, 2004
Typical Applications OTHER APPLICATIONS FOR WASTEWATER TREATMENT PLANTS • Digester Gas - Includes options for corrosive gas; stainless steel shaft and/or impellers. Coated castings and special seals for minimal leakage around the bearings. • Air Scour/Filter Backwash - Low pressure, short cycle application. • Fluid Bed Incineration APPLICATIONS Gardner Denver CF SBU March, 2004

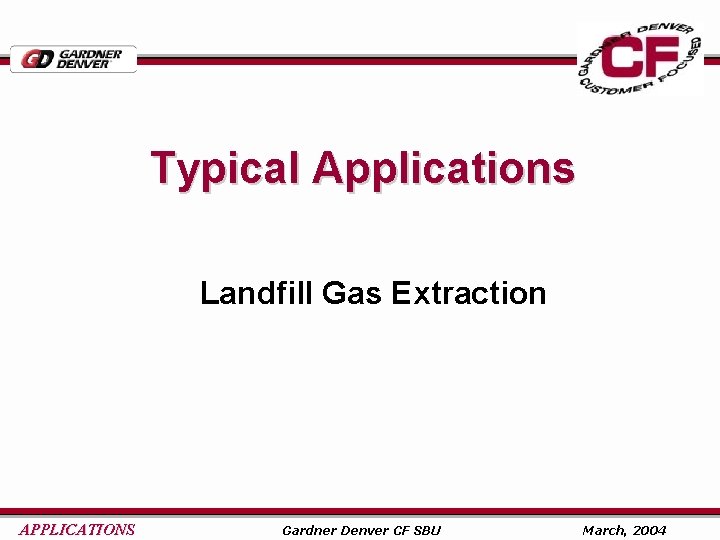

Typical Applications Landfill Gas Extraction APPLICATIONS Gardner Denver CF SBU March, 2004

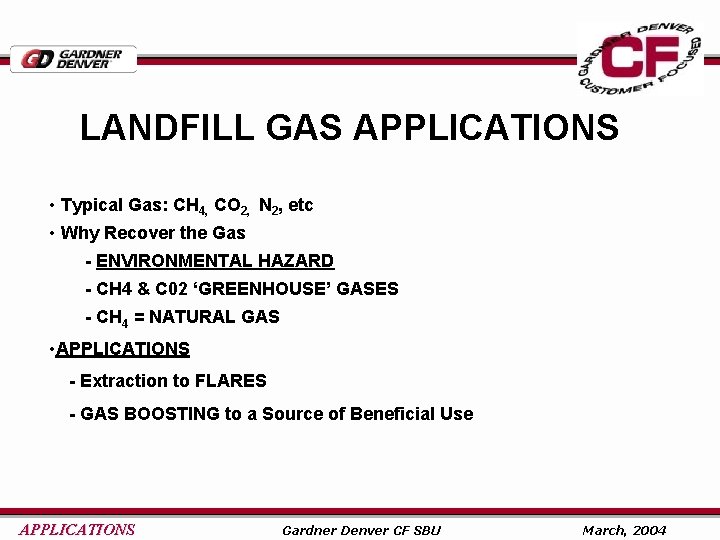

LANDFILL GAS APPLICATIONS • Typical Gas: CH 4, CO 2, N 2, etc • Why Recover the Gas - ENVIRONMENTAL HAZARD - CH 4 & C 02 ‘GREENHOUSE’ GASES - CH 4 = NATURAL GAS • APPLICATIONS - Extraction to FLARES - GAS BOOSTING to a Source of Beneficial Use APPLICATIONS Gardner Denver CF SBU March, 2004
Brazilian Landfill APPLICATIONS Gardner Denver CF SBU March, 2004

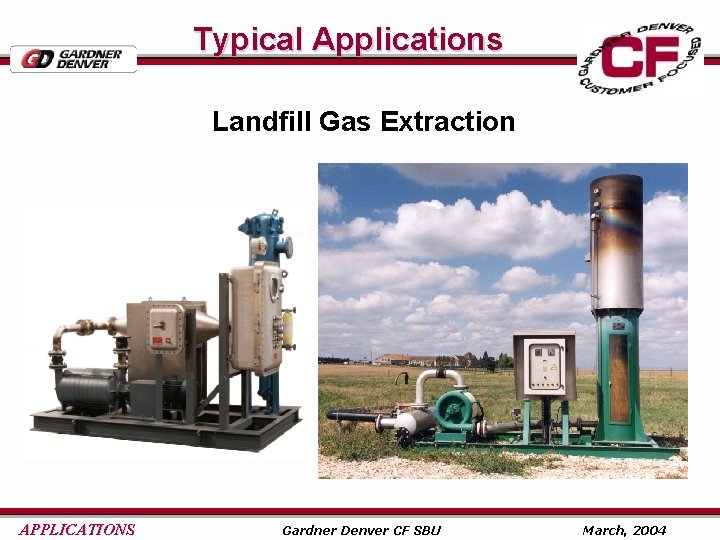

Typical Applications Landfill Gas Extraction APPLICATIONS Gardner Denver CF SBU March, 2004

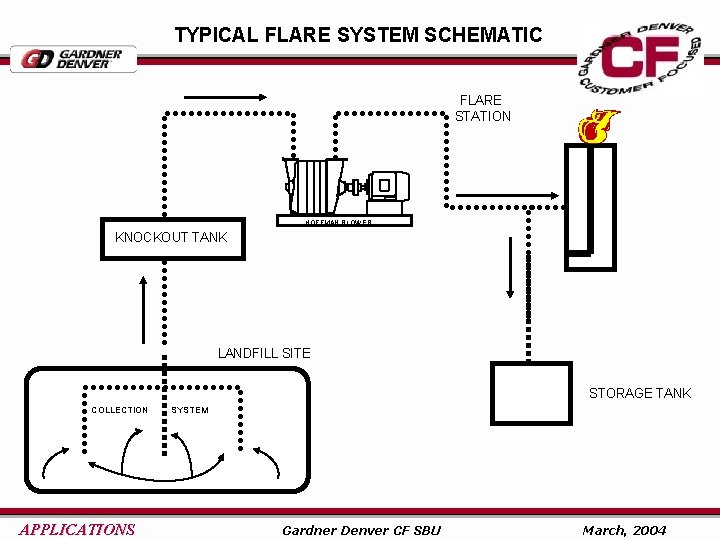

TYPICAL FLARE SYSTEM SCHEMATIC FLARE STATION HOFFMAN BLOWER KNOCKOUT TANK LANDFILL SITE STORAGE TANK COLLECTION APPLICATIONS SYSTEM Gardner Denver CF SBU March, 2004
Landfill Gas Storage Tank for Low Flow Conditions APPLICATIONS Gardner Denver CF SBU March, 2004

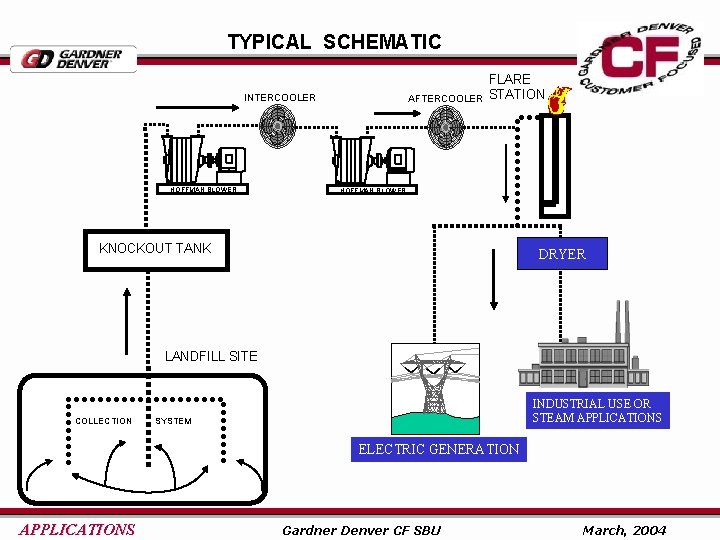

TYPICAL SCHEMATIC INTERCOOLER HOFFMAN BLOWER AFTERCOOLER FLARE STATION HOFFMAN BLOWER KNOCKOUT TANK DRYER LANDFILL SITE COLLECTION INDUSTRIAL USE OR STEAM APPLICATIONS SYSTEM ELECTRIC GENERATION APPLICATIONS Gardner Denver CF SBU March, 2004
Landfill Gas - Brazil APPLICATIONS Gardner Denver CF SBU March, 2004

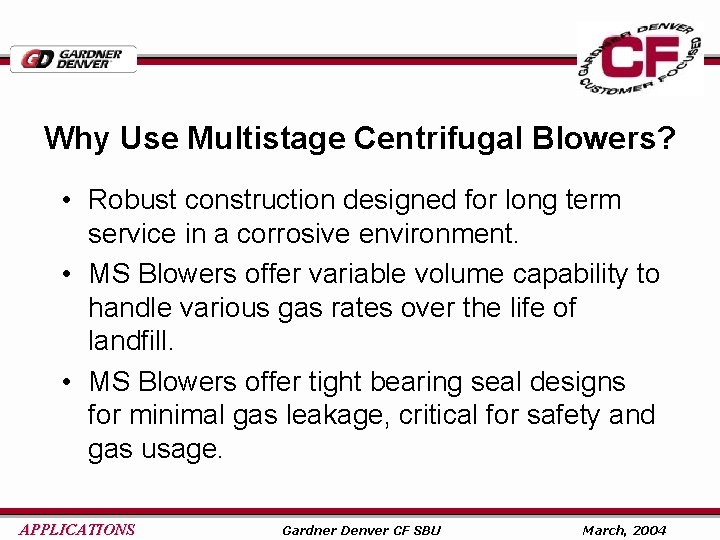

Why Use Multistage Centrifugal Blowers? • Robust construction designed for long term service in a corrosive environment. • MS Blowers offer variable volume capability to handle various gas rates over the life of landfill. • MS Blowers offer tight bearing seal designs for minimal gas leakage, critical for safety and gas usage. APPLICATIONS Gardner Denver CF SBU March, 2004
Blower Design Concerns l l Saturated Gas Corrosive Gas Condensate Build-Up Gas Leakage (Air into the system) l l l APPLICATIONS Add Section Drains Add Coated Castings Add Coating / Drains Grease Units - Inlet Stuffing Box and Closed Bearing Housings Oil Units - 4 - Carbon Rings Seals and optional purge taps. Gardner Denver CF SBU March, 2004

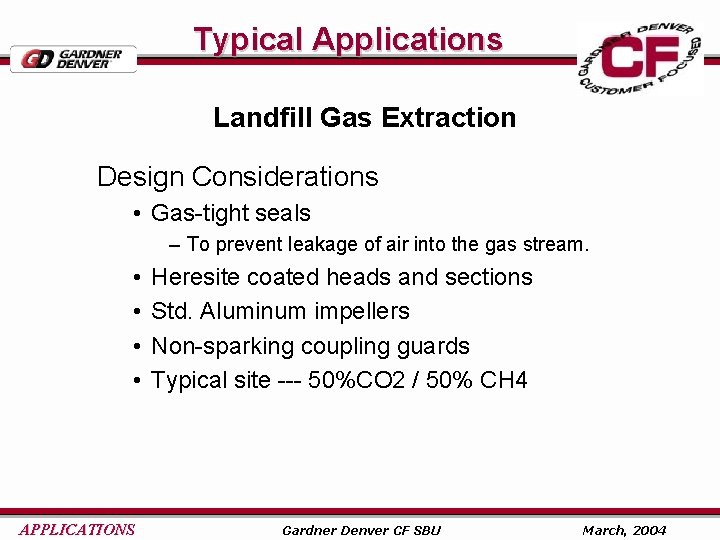

Typical Applications Landfill Gas Extraction Design Considerations • Gas-tight seals – To prevent leakage of air into the gas stream. • • APPLICATIONS Heresite coated heads and sections Std. Aluminum impellers Non-sparking coupling guards Typical site --- 50%CO 2 / 50% CH 4 Gardner Denver CF SBU March, 2004

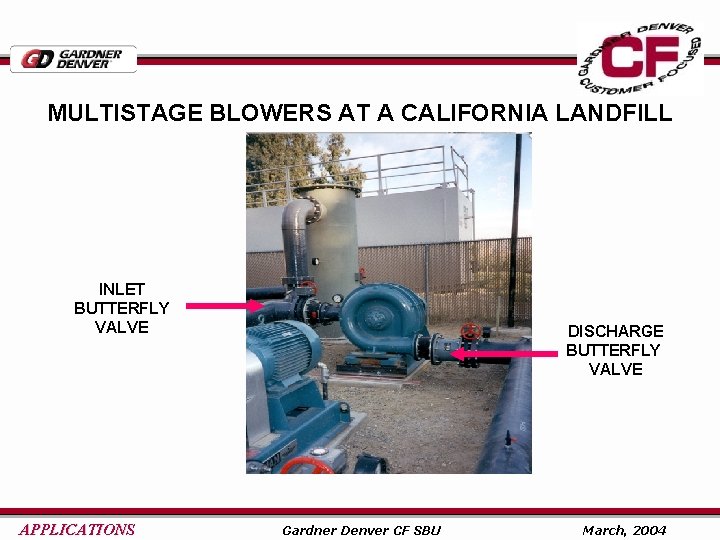

MULTISTAGE BLOWERS AT A CALIFORNIA LANDFILL INLET BUTTERFLY VALVE APPLICATIONS DISCHARGE BUTTERFLY VALVE Gardner Denver CF SBU March, 2004
Typical Applications Sulfur Recovery APPLICATIONS Gardner Denver CF SBU March, 2004

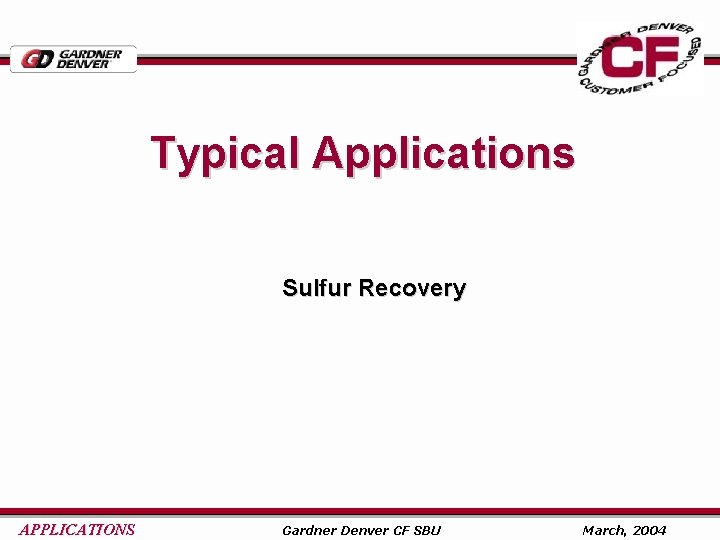

Typical Applications Sulfur Recovery APPLICATIONS Gardner Denver CF SBU March, 2004

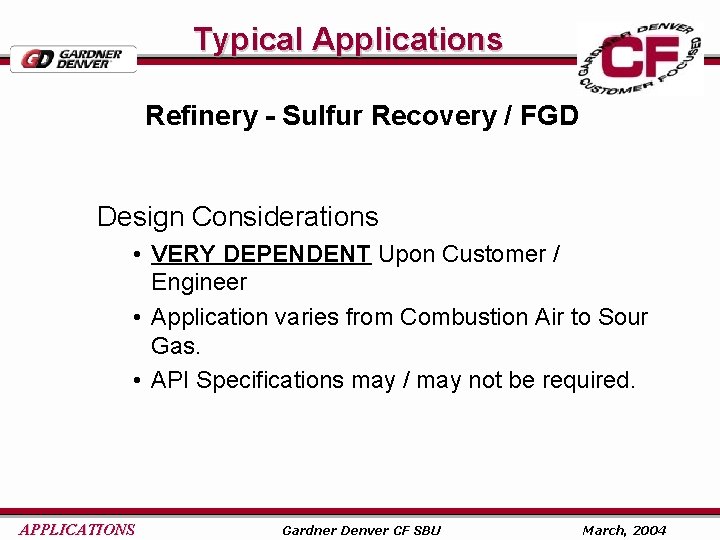

Typical Applications Refinery - Sulfur Recovery / FGD Design Considerations • VERY DEPENDENT Upon Customer / Engineer • Application varies from Combustion Air to Sour Gas. • API Specifications may / may not be required. APPLICATIONS Gardner Denver CF SBU March, 2004

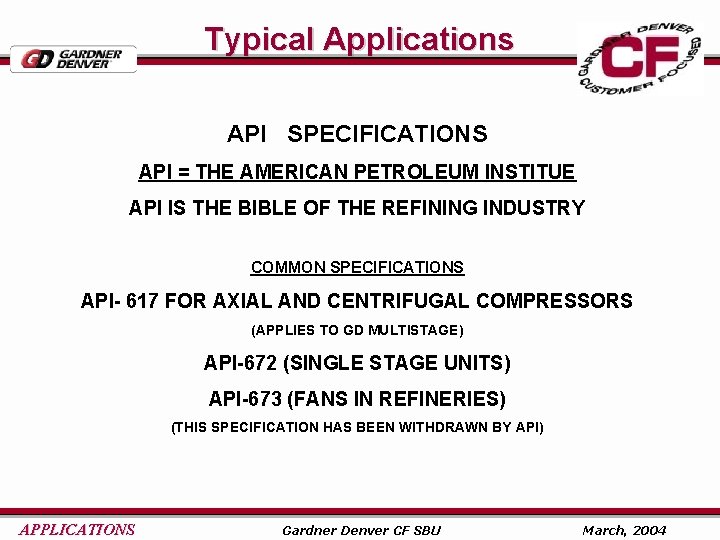

Typical Applications API SPECIFICATIONS API = THE AMERICAN PETROLEUM INSTITUE API IS THE BIBLE OF THE REFINING INDUSTRY COMMON SPECIFICATIONS API- 617 FOR AXIAL AND CENTRIFUGAL COMPRESSORS (APPLIES TO GD MULTISTAGE) API-672 (SINGLE STAGE UNITS) API-673 (FANS IN REFINERIES) (THIS SPECIFICATION HAS BEEN WITHDRAWN BY API) APPLICATIONS Gardner Denver CF SBU March, 2004
Typical Applications API - 617 MAJOR REQUIREMENTS Extensive Testing ASME PTC-10 / Impeller Overspeed / Hydrotest (Special) Rotor Balance (Special) 4 Hour Mechanical Run, etc. Special Base Checkered Decking with Drip Rim / Jackscrews Designed for Grouting in place Special Motor API-541 or IEEE-841 Motors And Many Other Requirements. . APPLICATIONS Gardner Denver CF SBU March, 2004
Typical Applications API - 617 Major Exceptions Lubrication System - API-617 Requires a forced Lubrication System as per API-619 Drive Coupling - API-617 Requires Drive Couplings be a Tapered fit as per API-671 and many others. . APPLICATIONS Gardner Denver CF SBU March, 2004

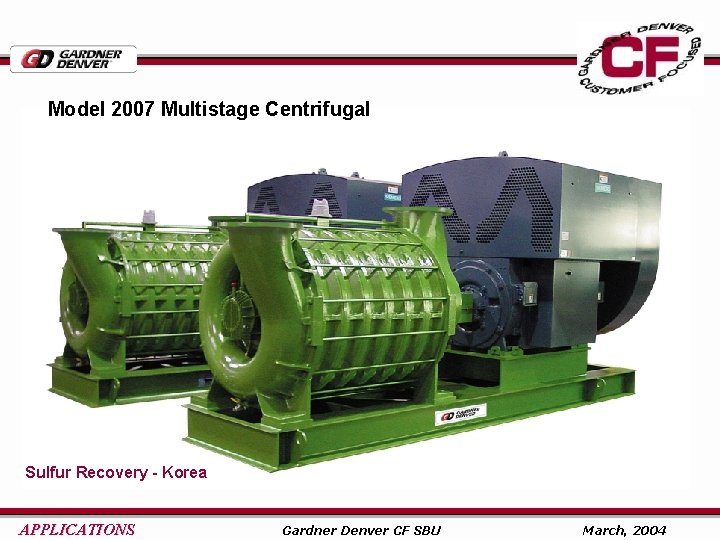

Model 2007 Multistage Centrifugal Sulfur Recovery - Korea APPLICATIONS Gardner Denver CF SBU March, 2004

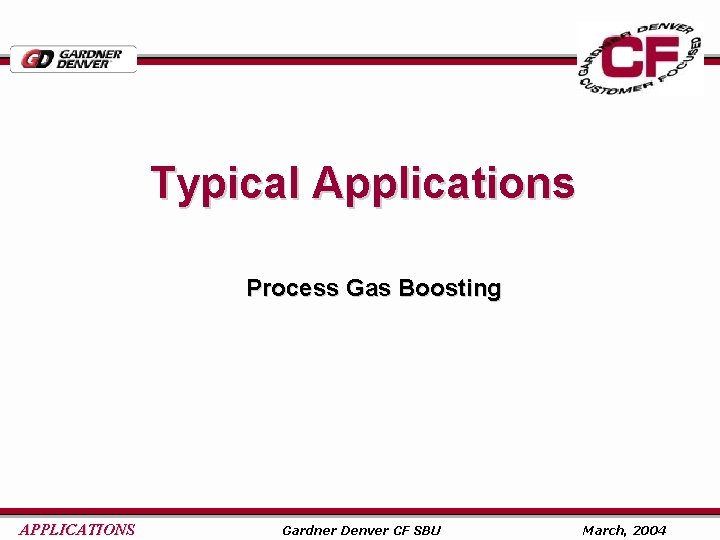

Typical Applications Process Gas Boosting APPLICATIONS Gardner Denver CF SBU March, 2004

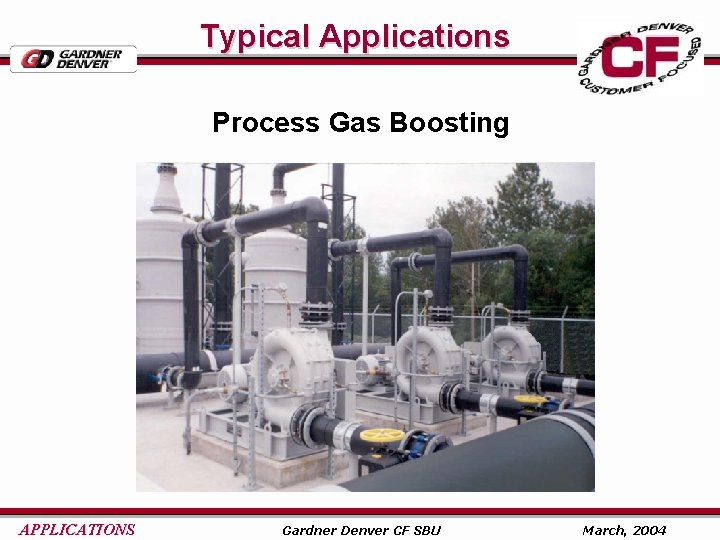

Typical Applications Process Gas Boosting APPLICATIONS Gardner Denver CF SBU March, 2004

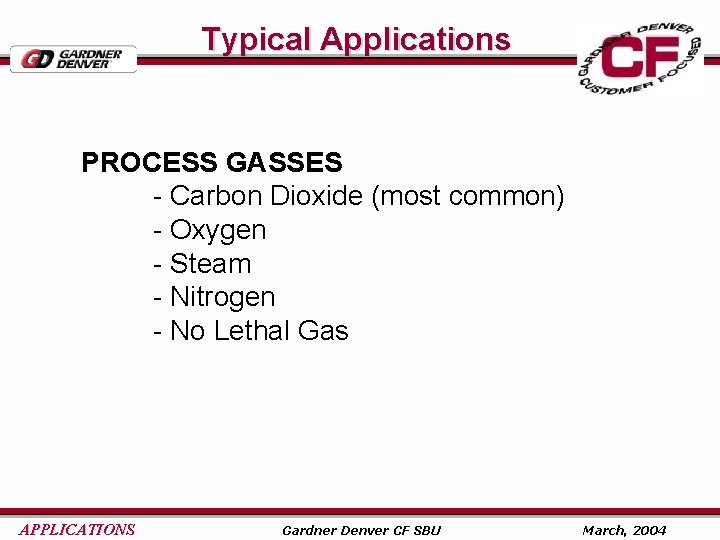

Typical Applications PROCESS GASSES - Carbon Dioxide (most common) - Oxygen - Steam - Nitrogen - No Lethal Gas APPLICATIONS Gardner Denver CF SBU March, 2004
Typical Applications CARBON BLACK APPLICATIONS Gardner Denver CF SBU March, 2004

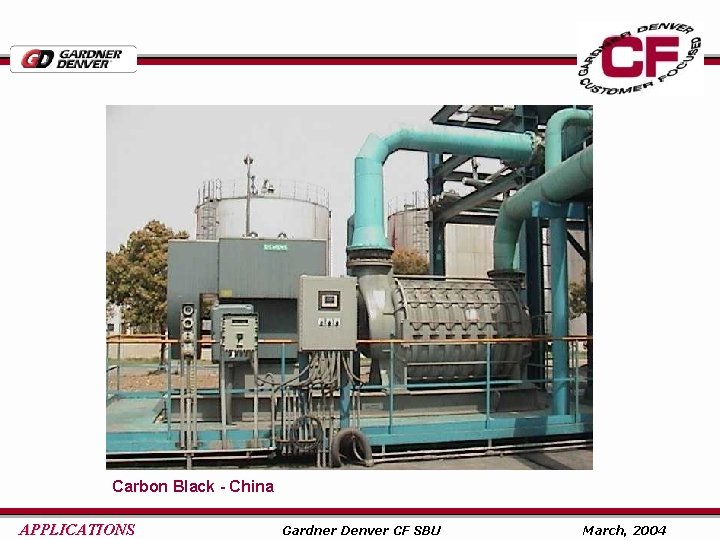

Carbon Black - China APPLICATIONS Gardner Denver CF SBU March, 2004
Typical Applications Fluidized Bed Incineration APPLICATIONS Gardner Denver CF SBU March, 2004

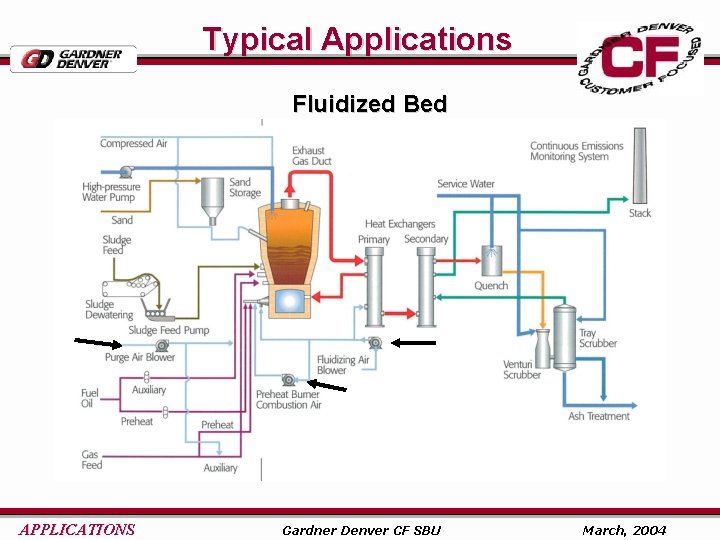

Typical Applications Fluidized Bed APPLICATIONS Gardner Denver CF SBU March, 2004

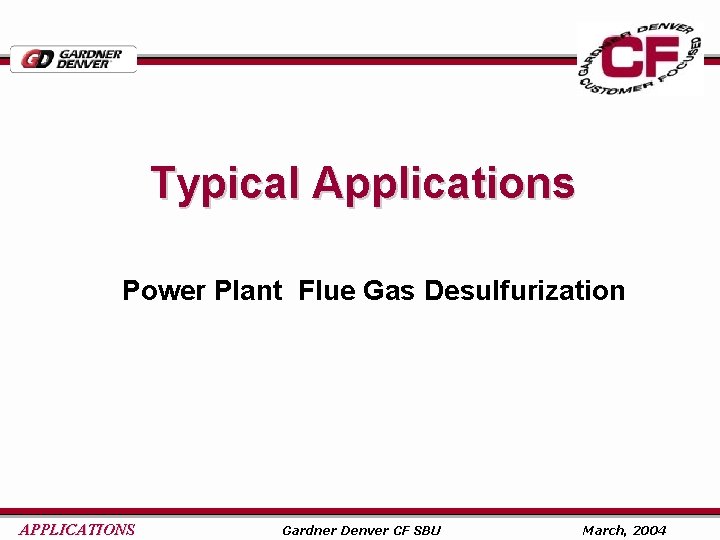

Typical Applications Power Plant Flue Gas Desulfurization APPLICATIONS Gardner Denver CF SBU March, 2004

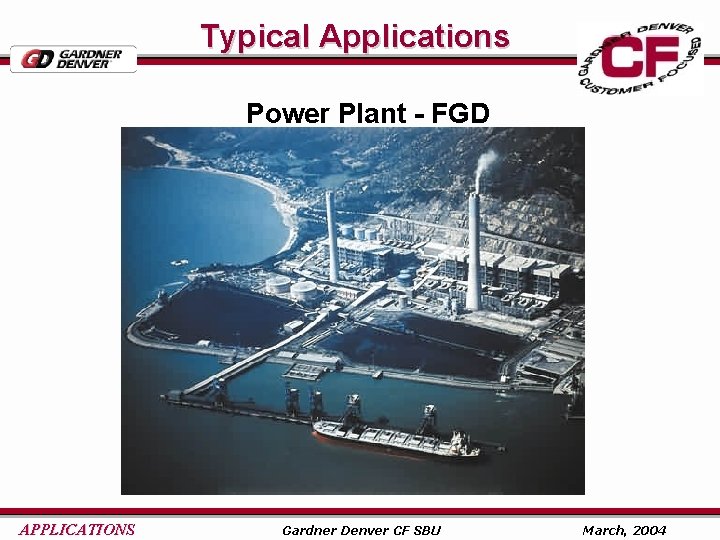

Typical Applications Power Plant - FGD APPLICATIONS Gardner Denver CF SBU March, 2004
Typical Applications Power Plant - FGD • Varying Methods – Ammonia Injection Systems – SO 3 Injection Systems – Wet FGD Systems APPLICATIONS Gardner Denver CF SBU March, 2004
Typical Applications Ammonia / SO 3 Injection APPLICATIONS Gardner Denver CF SBU March, 2004

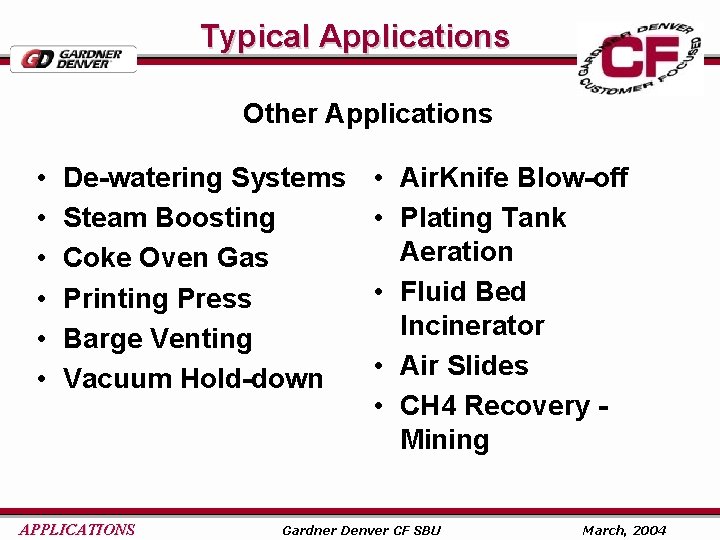

Typical Applications Other Applications • • • De-watering Systems Steam Boosting Coke Oven Gas Printing Press Barge Venting Vacuum Hold-down APPLICATIONS • Air. Knife Blow-off • Plating Tank Aeration • Fluid Bed Incinerator • Air Slides • CH 4 Recovery Mining Gardner Denver CF SBU March, 2004

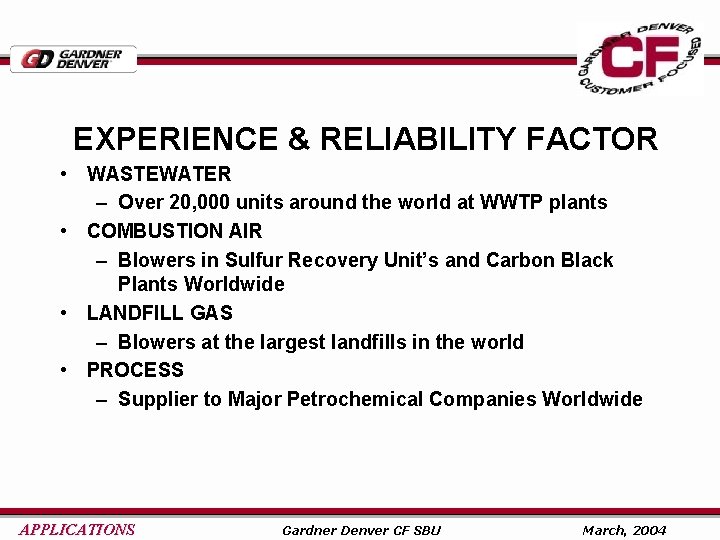

EXPERIENCE & RELIABILITY FACTOR • WASTEWATER – Over 20, 000 units around the world at WWTP plants • COMBUSTION AIR – Blowers in Sulfur Recovery Unit’s and Carbon Black Plants Worldwide • LANDFILL GAS – Blowers at the largest landfills in the world • PROCESS – Supplier to Major Petrochemical Companies Worldwide APPLICATIONS Gardner Denver CF SBU March, 2004
WE THANK YOU FOR YOUR TIME !! APPLICATIONS Gardner Denver CF SBU March, 2004
