Galley Packing Sabre 2 Steven Teoh James Matlik

Galley Packing – Sabre 2 Steven Teoh, James Matlik, Hong Liang, Min Li, Bret Hanson, Chris Spahn

The Purpose of this Project To build Galley Packing, a web-enabled food provisioning tool for airlines.

Galley Packing System Functions n n Drawing Tool – Allows administrator to set up aircraft storage locations. Packing Tool – Allows analyst to fill storage locations with food service items. Viewing Tool – Allows caterer to view complete food provisioning diagrams. General Tools – Other system functions, including security.

System Requirements for Drawing Selecting individual galleys in the aircraft. Ø Designing individual galley locations. Ø Design individual storage devices. Ø View layout of galley and storage device. Ø Save current galley configuration. Ø

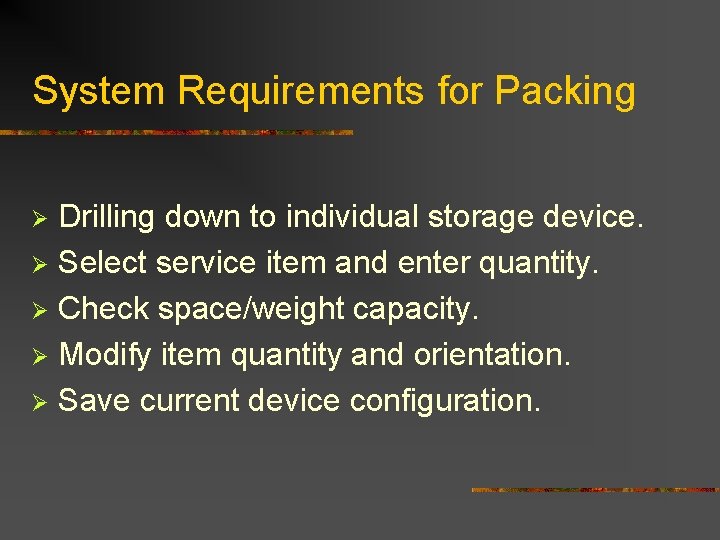

System Requirements for Packing Drilling down to individual storage device. Ø Select service item and enter quantity. Ø Check space/weight capacity. Ø Modify item quantity and orientation. Ø Save current device configuration. Ø

Use Cases Draw Galley Plans Administrator Pack Service Items Analyst View Provisioning Plans Caterer

Drawing Service Sequence Diagram Drawing Tool Administrator Select Storage Location Design Layout of Storage Location View Final Layout of Storage Location Save Final Layout of Storage Location

Packing Service Sequence Diagram Packing Tool Analyst Select Storage Device Add Items to Storage Device Modify Item Layout in Storage Device Save Final Item Layout

Conceptual Model Storage Device contains Galley contains Service Item specifies Airline Analyst specifies Flight Provision Plan creates views specifies contains Aircraft Type Caterer

Questions n n n Should changes in the space and weight constraints be dynamically displayed? Should the packing tool be able to handle item orientation for each individual item? How are the dimensions of the service items represented in the database? Rectangles, more complex?
