Gallbladder and Bile Ducts Chuan Lu Department of Diagnostic Radiology Taishan Medical University

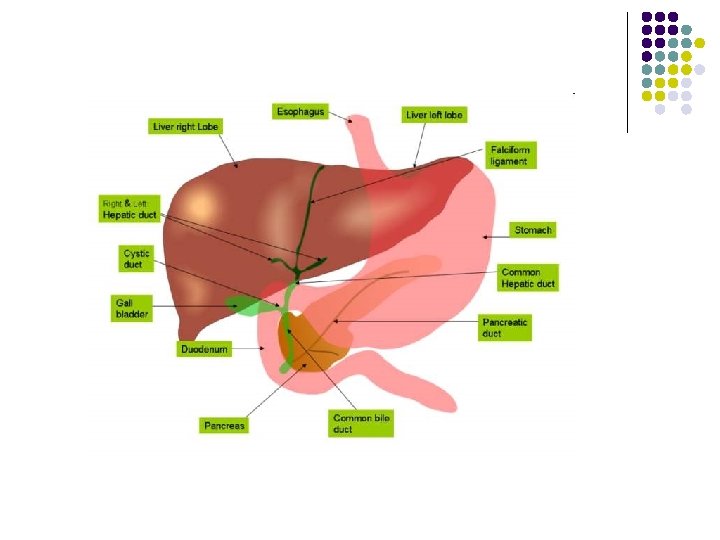

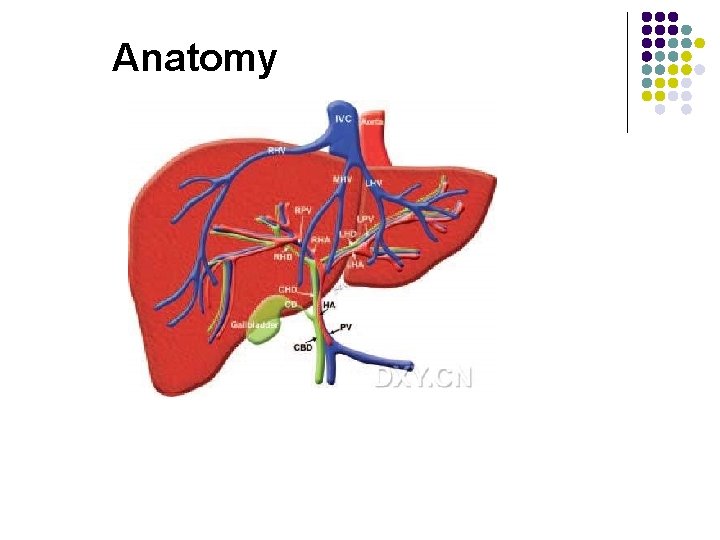

Anatomy

Various Modalities in Biliary Imaging l l l US MRCP CT ERCP Percutaneous transhepatic cholangiography

Sagittal image of gallbladder l

Gallbladder and Bile Ducts Normal size of gallbladder: 7~9 cm in length ; 3~4 cm in width; Wall thickness : 2~3 mm l Normal size of bile ducts : CBD: ≥ 8 mm =dilated right /left intrahepatic duct just to proximal CHD: 23 mm ； l

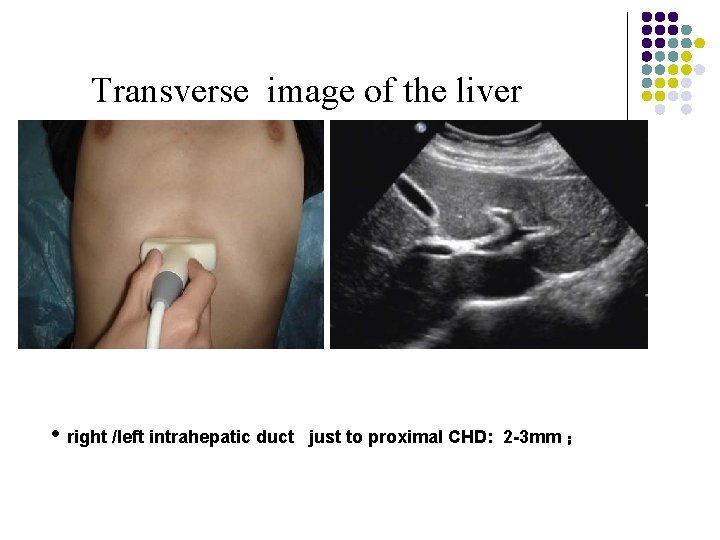

Transverse image of the liver • right /left intrahepatic duct just to proximal CHD: 2 -3 mm ；

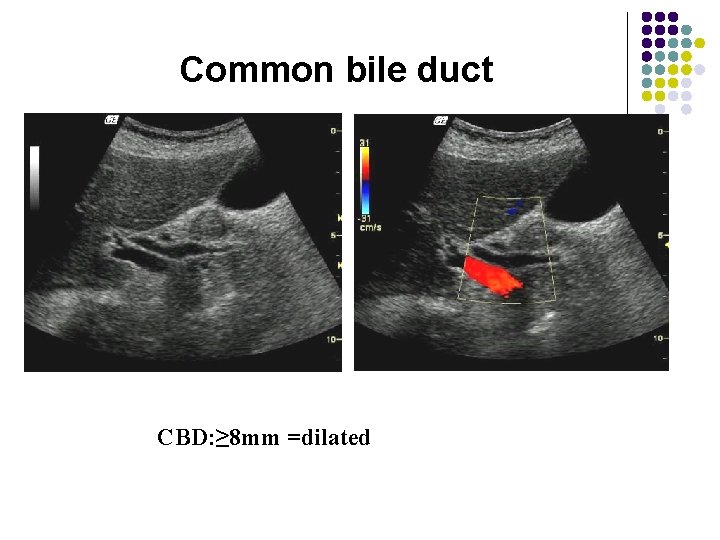

Common bile duct CBD: ≥ 8 mm =dilated

MR l Magnetic resonance imaging is slightly superior to computed tomography in visualization of tumors. The recent addition of magnetic resonance cholangiography allows visualization of both dilated biliary ducts proximal to the tumor and normalsized extrahepatic ducts distal to the level of occlusion.

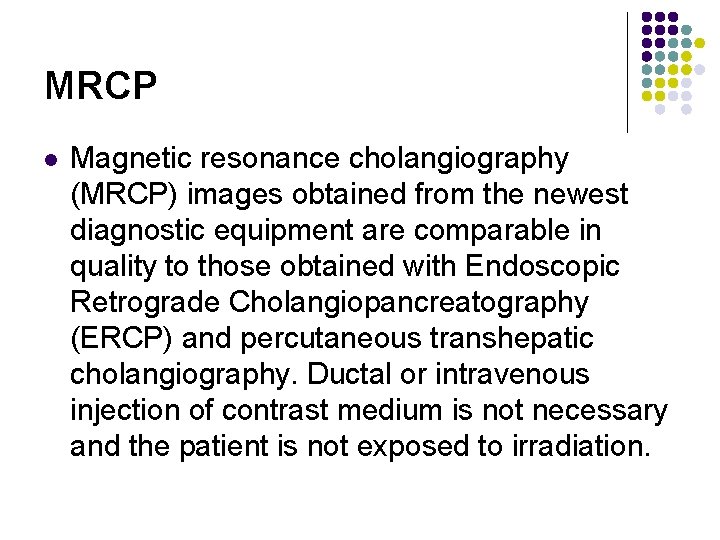

MRCP l Magnetic resonance cholangiography (MRCP) images obtained from the newest diagnostic equipment are comparable in quality to those obtained with Endoscopic Retrograde Cholangiopancreatography (ERCP) and percutaneous transhepatic cholangiography. Ductal or intravenous injection of contrast medium is not necessary and the patient is not exposed to irradiation.

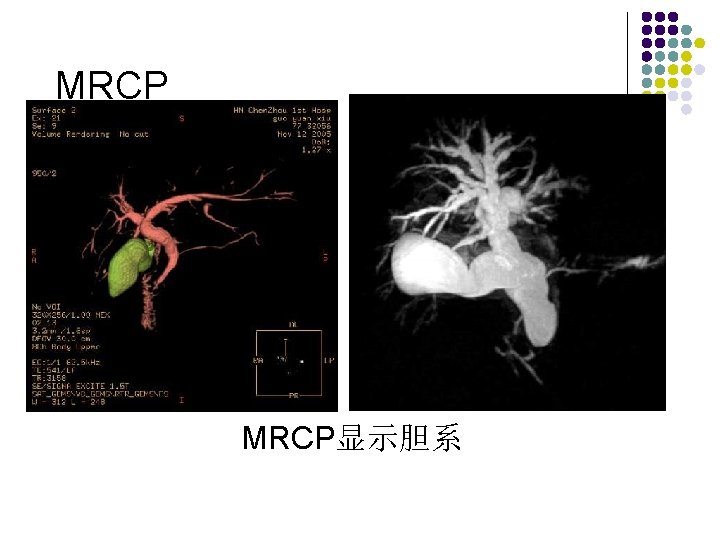

MRCP

The MRCP creates an enhanced MRI and may be adjusted to optimally visualize the biliary and pancreatic ducts. MRCP显示胆系

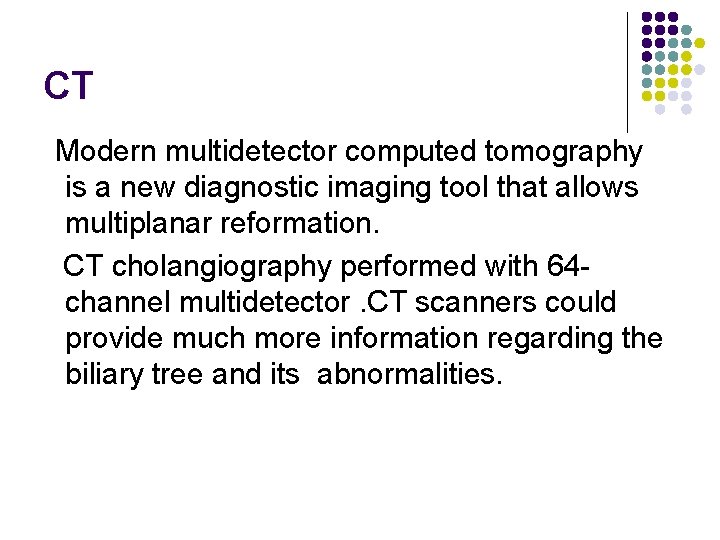

CT Modern multidetector computed tomography is a new diagnostic imaging tool that allows multiplanar reformation. CT cholangiography performed with 64 channel multidetector. CT scanners could provide much more information regarding the biliary tree and its abnormalities.

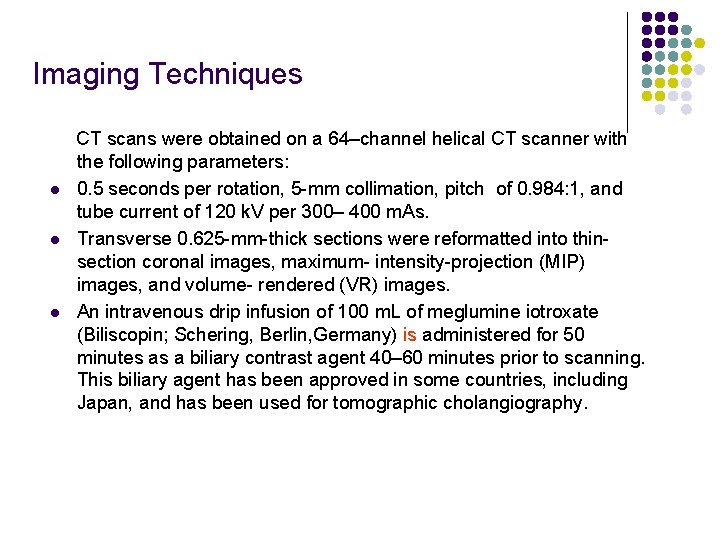

Imaging Techniques l l l CT scans were obtained on a 64–channel helical CT scanner with the following parameters: 0. 5 seconds per rotation, 5 -mm collimation, pitch of 0. 984: 1, and tube current of 120 k. V per 300– 400 m. As. Transverse 0. 625 -mm-thick sections were reformatted into thinsection coronal images, maximum- intensity-projection (MIP) images, and volume- rendered (VR) images. An intravenous drip infusion of 100 m. L of meglumine iotroxate (Biliscopin; Schering, Berlin, Germany) is administered for 50 minutes as a biliary contrast agent 40– 60 minutes prior to scanning. This biliary agent has been approved in some countries, including Japan, and has been used for tomographic cholangiography.

l l Anterior (a) and right superior (b) VR images show the right posterior hepatic duct (arrow in a) draining into the left hepatic duct.

ERCP : Endoscopic Retrograde Cholangiopancreatography

l ERCP, MR cholangiopancreatography, ultrasonography (US), and multidetector CT cholangiography each have their own advantages and disadvantages

Advantages and Disadvantages of Various Modalities in Biliary Imaging Modality Advantages ERCP Permits simultaneous biopsy or Treatment MRCP Noninvasive, no radiation exposure US Noninvasive, easily available, no radiation exposure Disadvantages Invasive, may not be possible due to altered anatomy following surgery Prone to artifact, provides little functional information, difficult to diagnose calcification, difficult to perform in periampullary area Operator dependent, poor demonstration of peripheral intrahepatic bile ducts, less consistent Multidetector CT cholangiography Information regarding biliary kinetics and function available, high spatial resolution, short scanning time Radiation exposure, side effects of the biliary agent, limited in patients with poor hepatic function

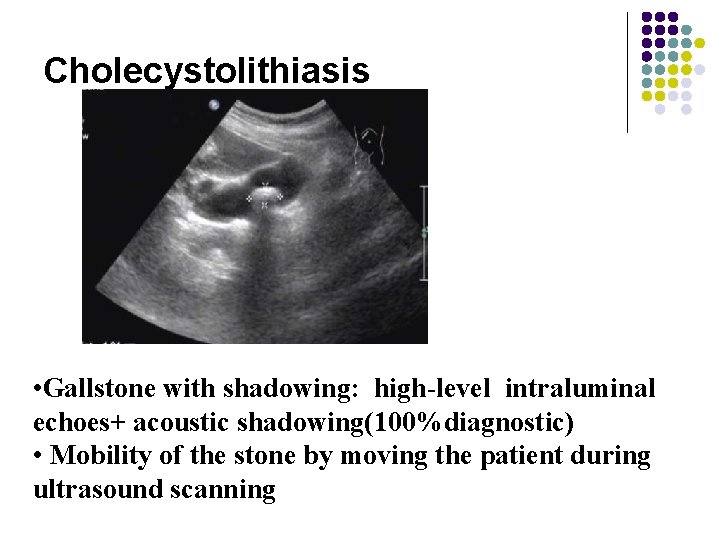

Cholecystolithiasis • Gallstone with shadowing: high-level intraluminal echoes+ acoustic shadowing(100%diagnostic) • Mobility of the stone by moving the patient during ultrasound scanning

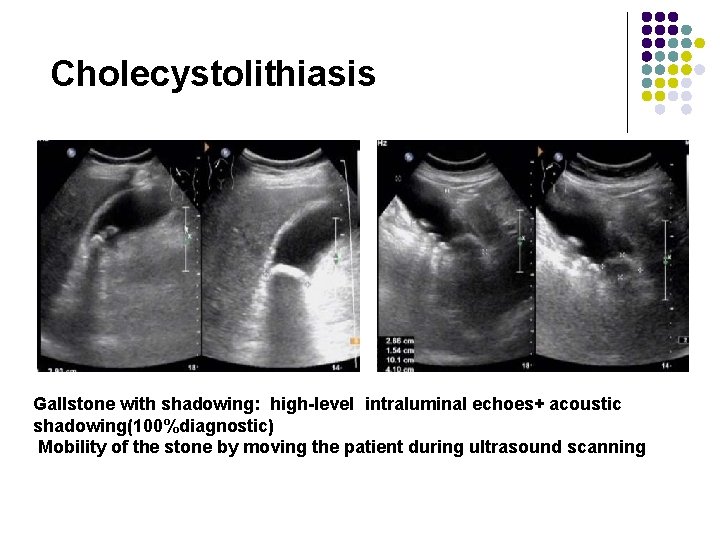

Cholecystolithiasis Gallstone with shadowing: high-level intraluminal echoes+ acoustic shadowing(100%diagnostic) Mobility of the stone by moving the patient during ultrasound scanning

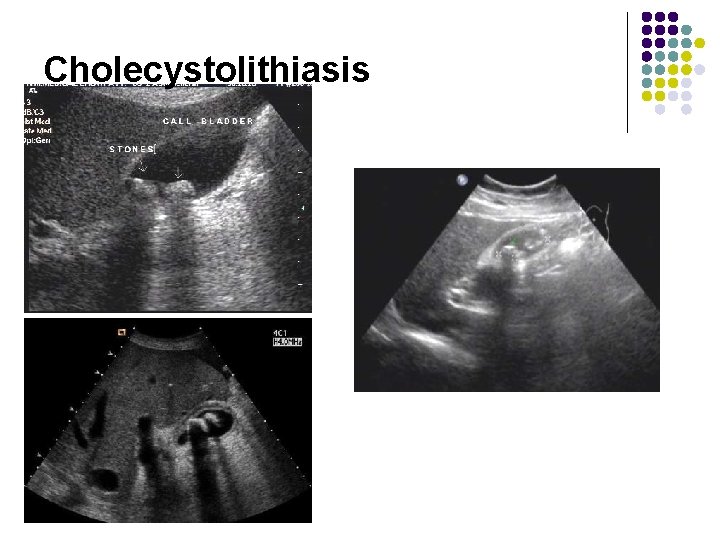

Cholecystolithiasis

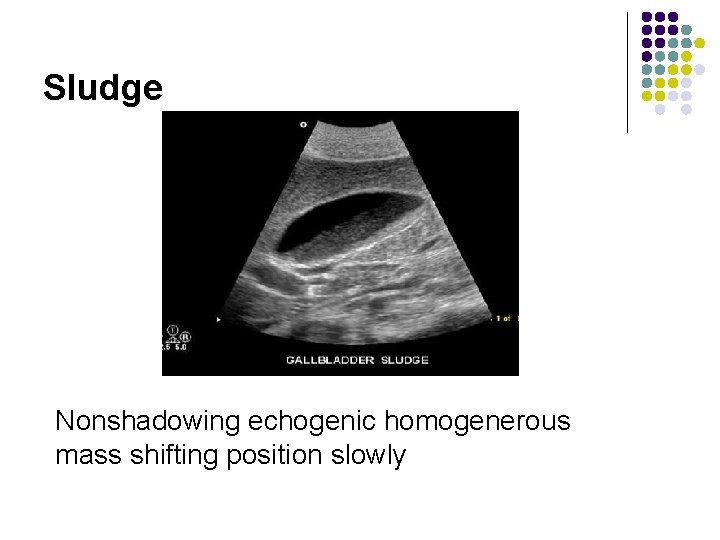

Sludge Nonshadowing echogenic homogenerous mass shifting position slowly

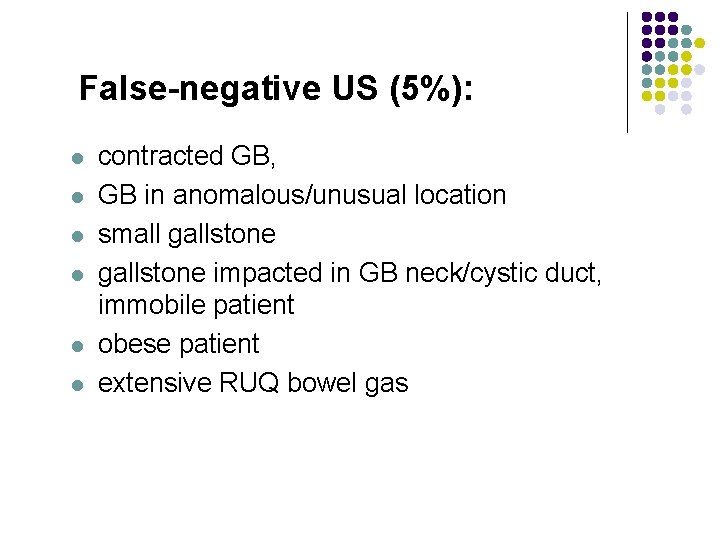

False-negative US (5%): l l l contracted GB, GB in anomalous/unusual location small gallstone impacted in GB neck/cystic duct, immobile patient obese patient extensive RUQ bowel gas

Cholangiolithiasis l l Stones may develop in the gallbladder and then reflux into the biliary tree to cause focal dilatation of a segment of the biliary tree Stone visualization in 13 -77%(more readily with CBD dilatation+good visibility of pancreatic head) Dilatation of CBD Acoustic shadowing No stone in gallbladder(11%)

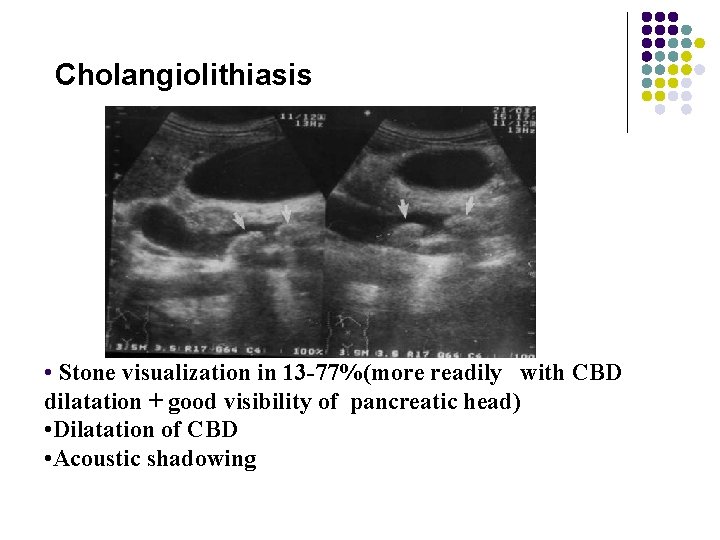

Cholangiolithiasis • Stone visualization in 13 -77%(more readily with CBD dilatation + good visibility of pancreatic head) • Dilatation of CBD • Acoustic shadowing

Cholangiolithiasis 2 Stone visualization with CBD dilatation

Acute cholecystitis l l Wall thickening (over 3 mm) and irregularity Hazy delineation of gallbladder wall Focal tenderness over gallbladder (sonographic Murphy’s sign) Cholelithiasis

Acute cholecystitis l l Coarse nonshadowing nondependent echodensities= slouged necrotic mucosa/sluge/pus/clotted blood within gallbladder “halo sign” =GB wall lucency =3 layered configuration with sonolucent middle layer(edema) Crescent-shaped anechoic pericholecystic fluid Gallbladder hydrops=distension with AP diameter >5 cm

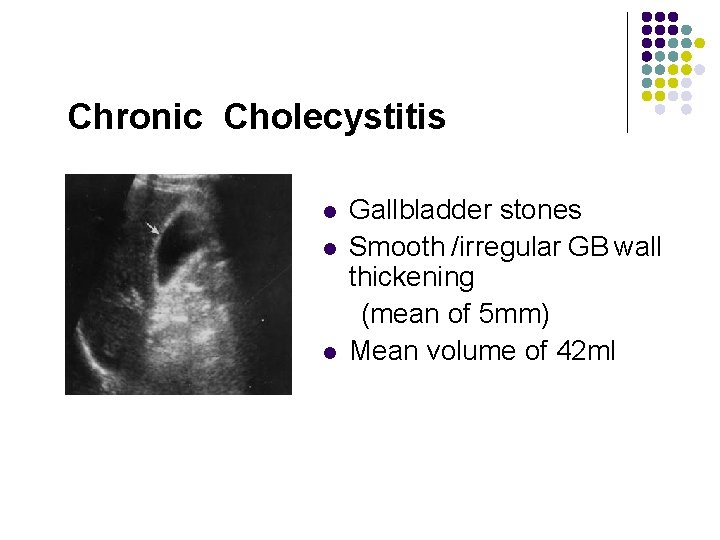

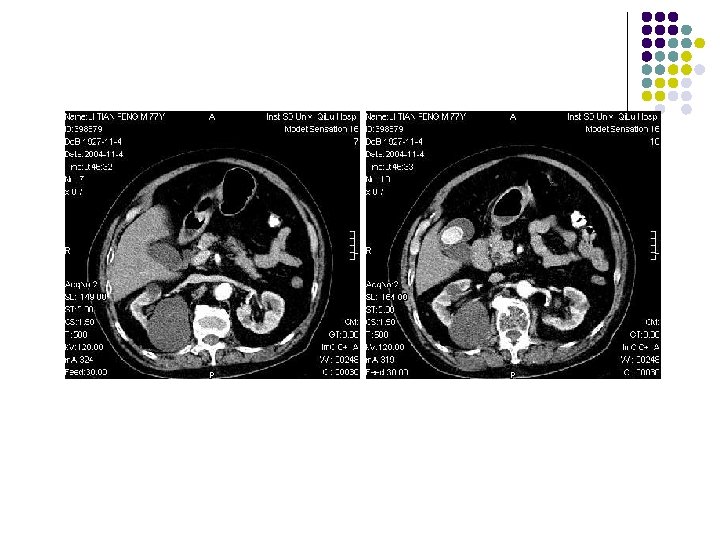

Chronic Cholecystitis l l l Gallbladder stones Smooth /irregular GB wall thickening (mean of 5 mm) Mean volume of 42 ml

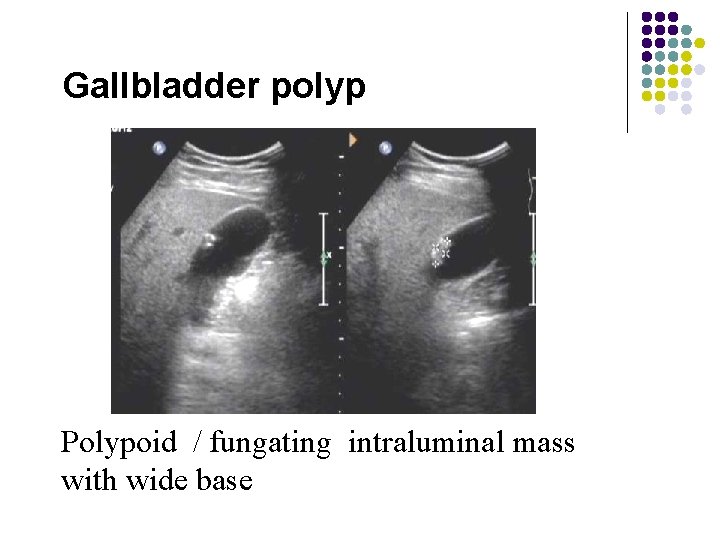

Gallbladder polyp Polypoid / fungating intraluminal mass with wide base

Polypoid / fungating intraluminal mass with wide base

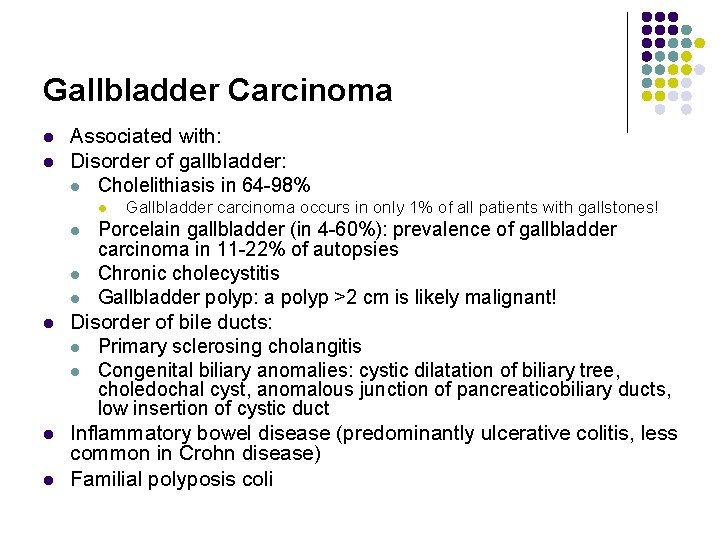

Gallbladder Carcinoma l l Associated with: Disorder of gallbladder: l Cholelithiasis in 64 -98% l l l l Gallbladder carcinoma occurs in only 1% of all patients with gallstones! Porcelain gallbladder (in 4 -60%): prevalence of gallbladder carcinoma in 11 -22% of autopsies Chronic cholecystitis Gallbladder polyp: a polyp >2 cm is likely malignant! Disorder of bile ducts: l Primary sclerosing cholangitis l Congenital biliary anomalies: cystic dilatation of biliary tree, choledochal cyst, anomalous junction of pancreaticobiliary ducts, low insertion of cystic duct Inflammatory bowel disease (predominantly ulcerative colitis, less common in Crohn disease) Familial polyposis coli

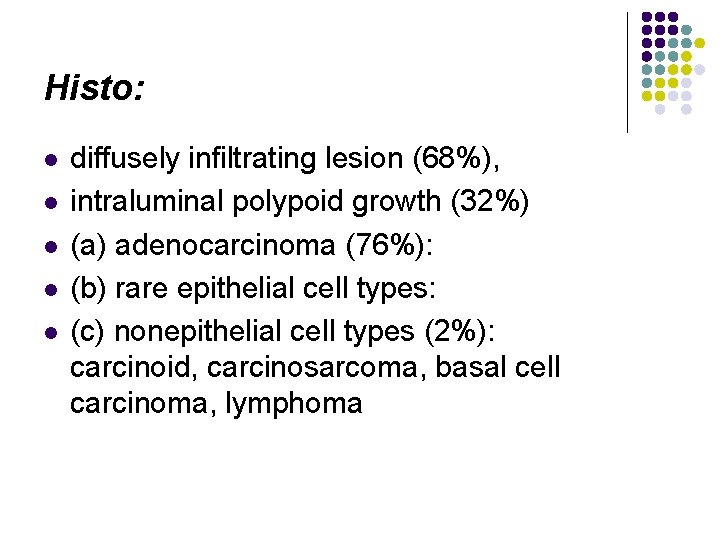

Histo: l l l diffusely infiltrating lesion (68%), intraluminal polypoid growth (32%) (a) adenocarcinoma (76%): (b) rare epithelial cell types: (c) nonepithelial cell types (2%): carcinoid, carcinosarcoma, basal cell carcinoma, lymphoma

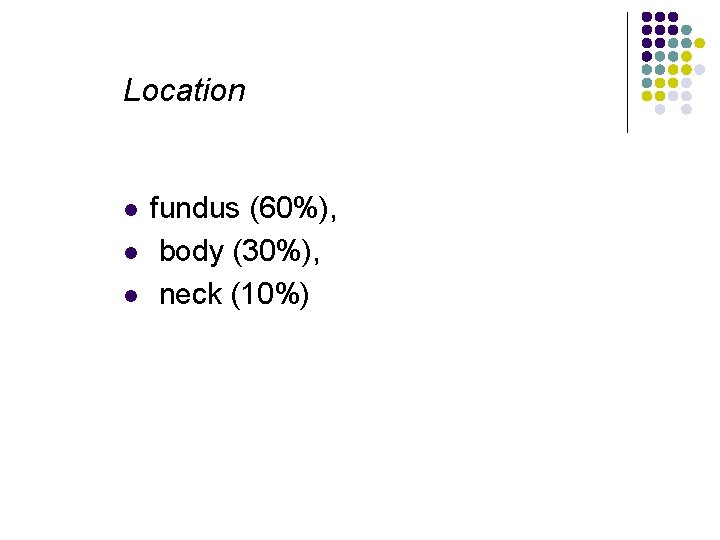

Location l l l fundus (60%), body (30%), neck (10%)

Growth types: l l l replacement of gallbladder by mass (37 -70%) focal /diffuse irregular asymmetric thickening wall(15 -47%) intraluminal polypoid /fungating intraluminal mass with wide base(14 -25%）

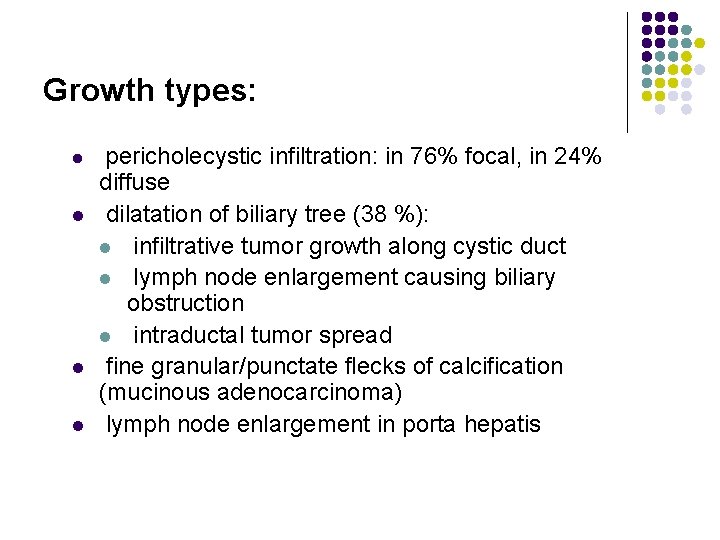

Growth types: l l pericholecystic infiltration: in 76% focal, in 24% diffuse dilatation of biliary tree (38 %): l infiltrative tumor growth along cystic duct l lymph node enlargement causing biliary obstruction l intraductal tumor spread fine granular/punctate flecks of calcification (mucinous adenocarcinoma) lymph node enlargement in porta hepatis

US: l gallbladder replaced by mass with irregular margins + heterogeneous echotexture (= tumor necrosis) l immobile intraluminal well-defined round/oval mass

Replacement of gallbladder by mass (gallbladder replaced by mass with irregular margins + heterogeneous echotexture (= tumor necrosis)

immobile intraluminal well-defined round/oval mass

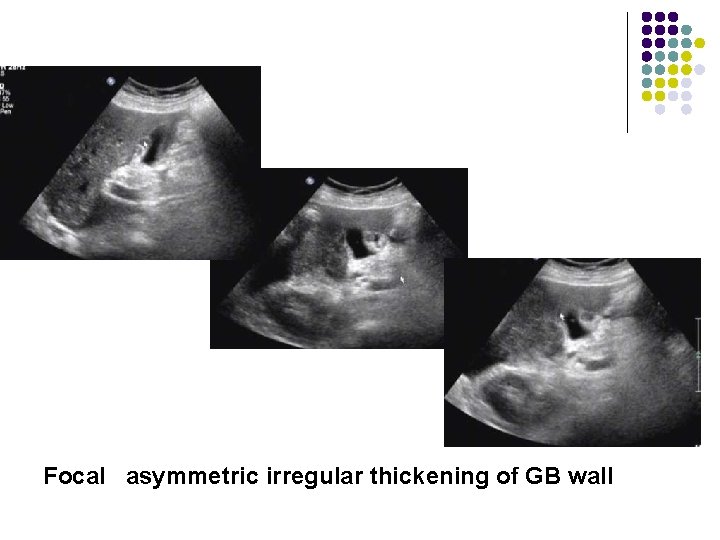

Focal asymmetric irregular thickening of GB wall

Cholangiocarcinoma: extrahepatic cholangiocarcinoma= bile duct carcinnoma Growth pattern: l Obstructive type : U/V-shaped obstruction with nipple , rattail, smooth/ irregular termination l Stenotic type: strictured rigid lumen with irregular margin+ prestenotic dilatation l Polypoid/ papillary type : intraluminal filling defect with irregular margins

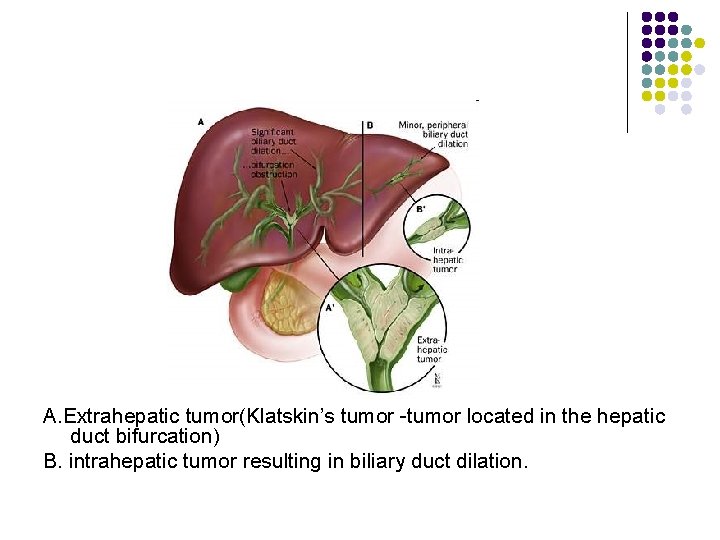

A. Extrahepatic tumor(Klatskin’s tumor -tumor located in the hepatic duct bifurcation) B. intrahepatic tumor resulting in biliary duct dilation.

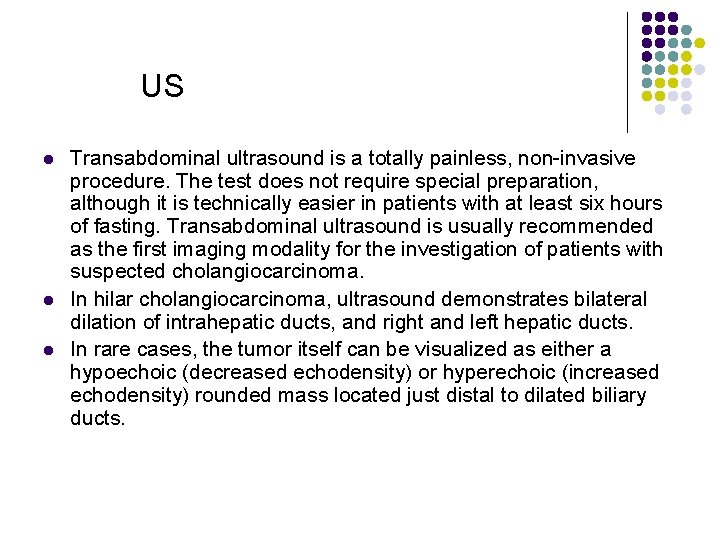

US l l l Transabdominal ultrasound is a totally painless, non-invasive procedure. The test does not require special preparation, although it is technically easier in patients with at least six hours of fasting. Transabdominal ultrasound is usually recommended as the first imaging modality for the investigation of patients with suspected cholangiocarcinoma. In hilar cholangiocarcinoma, ultrasound demonstrates bilateral dilation of intrahepatic ducts, and right and left hepatic ducts. In rare cases, the tumor itself can be visualized as either a hypoechoic (decreased echodensity) or hyperechoic (increased echodensity) rounded mass located just distal to dilated biliary ducts.

l l Peripheral cholangiocarcinoma may be suspected if abdominal ultrasound demonstrates local dilation of intrahepatic ducts or isolated dilation of the biliary tree inside one lobe of the liver. In both peripheral and hilar cholangiocarcinoma, biliary ducts distal to the obstruction (common hepatic duct and common bile duct) are not dilated. In patients with hilar cholangiocarcinoma and complete obstruction of both right and left hepatic ducts, extrahepatic bile ducts and the gallbladder appear empty (collapsed) because there is no bile flow out of the liver. In patients with distal cholangiocarcinoma, ultrasound demonstrates dilated intra- and extrahepatic ducts along with significant dilation of the gallbladder. Peripherally located tumors cause segmental or lobular obstruction of the biliary tree. Bile flow from the rest of the liver is preserved. Extrahepatic bile ducts and the gallbladder appear normal (filled with bile) in patients with peripheral cholangiocarcinoma.

Obstructive type : U/V-shaped obstruction with nipple , rattail, smooth/ irregular termination Mass within/surrounding the ducts at point of obstruction

Obstructive type the tumor itself can be visualized as either a hypoechoic (decreased echodensity) or hyperechoic (increased echodensity) rounded mass located just distal to dilated biliary ducts.

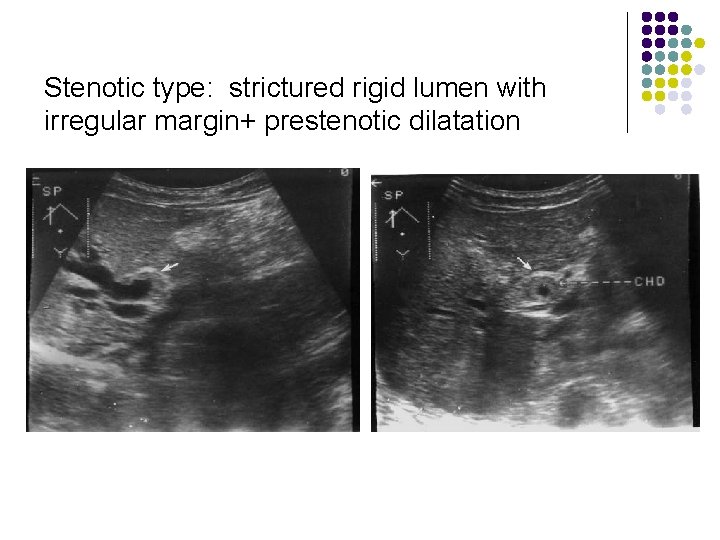

Stenotic type: strictured rigid lumen with irregular margin+ prestenotic dilatation

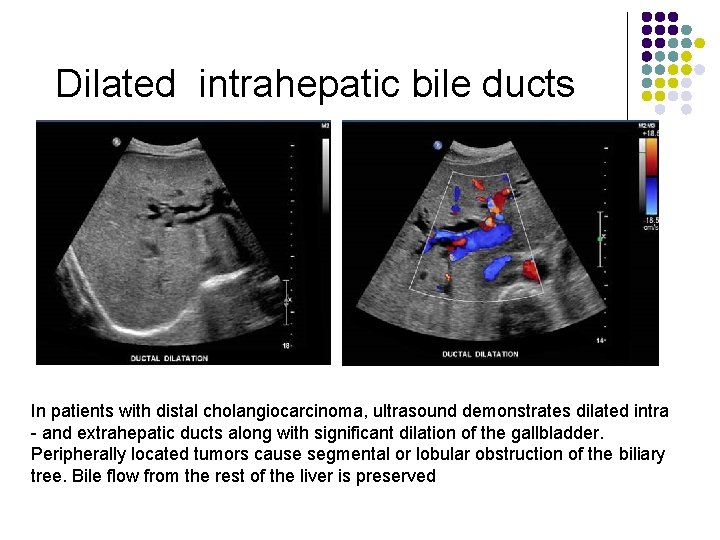

Dilated intrahepatic bile ducts In patients with distal cholangiocarcinoma, ultrasound demonstrates dilated intra - and extrahepatic ducts along with significant dilation of the gallbladder. Peripherally located tumors cause segmental or lobular obstruction of the biliary tree. Bile flow from the rest of the liver is preserved

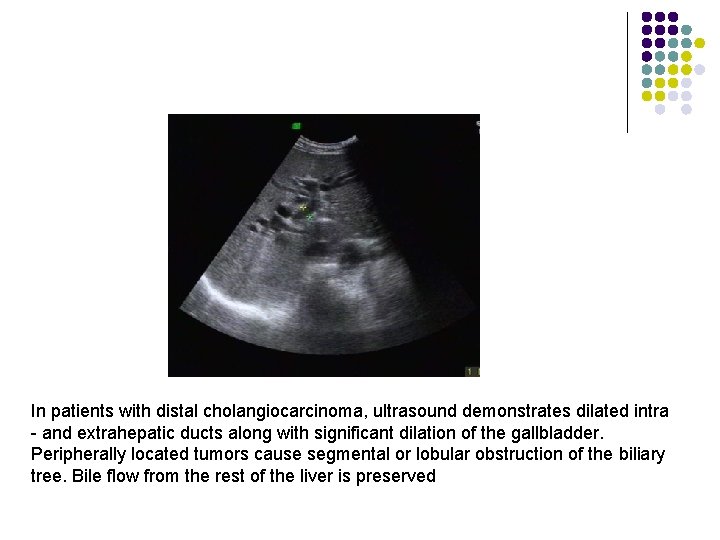

In patients with distal cholangiocarcinoma, ultrasound demonstrates dilated intra - and extrahepatic ducts along with significant dilation of the gallbladder. Peripherally located tumors cause segmental or lobular obstruction of the biliary tree. Bile flow from the rest of the liver is preserved
